Den Hoorn住宅

别墅

作者：52无聊

Double Dwelling in Den Hoorn
设计方：DP6 Architectuurstudio建筑事务所
位置：荷兰 Den Hoorn
竣工：2010年
分类：别墅建筑
内容：实景照片
图片：20张
摄影师：Christian Richters

建筑面积：426平方米

Project Area: 426 sqm

项目是一个半独立住宅，是为两个家庭分别设计的住宅，一个专门为建筑师所用，而另一个则要等待新的主人的到来。设计直接回应当地的黑色木质农仓造型，采用当地流行的瓦楞屋顶。北部的立面与道路呼应，较为封闭，最外面同样覆盖黑色木头。东南末端朝着水道和花园，这一侧完全是透明的，也是在这里住宅是完全开放的，室内和室外融为一体。白色的灰泥体量和墙壁内包含玻璃和宽大的凉亭，营造出合适的室内室外之间的过渡。另外住宅是一个被动节能住宅，住宅表皮吸收有利的阳光，凉亭则将下午不利的阳光遮挡，墙壁和屋顶隔热，可以调节室内温度，室内管道还可以进行热量回收。

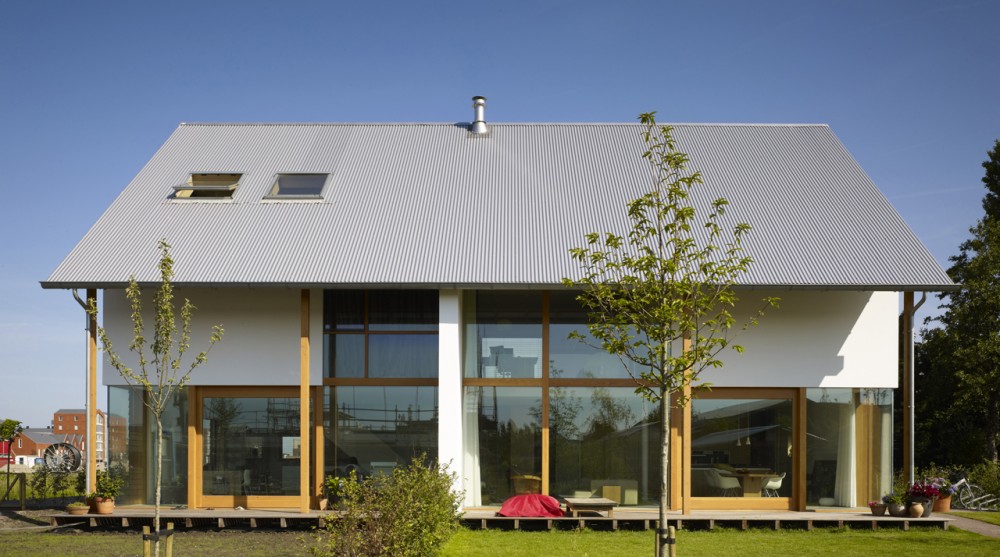

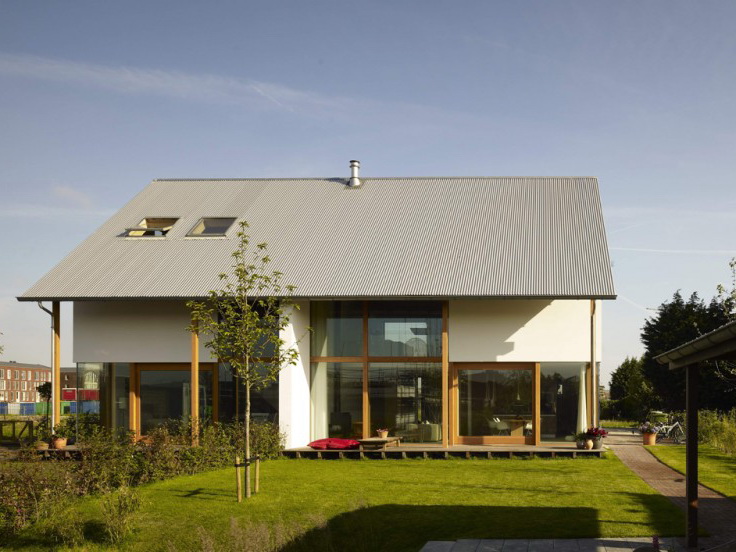

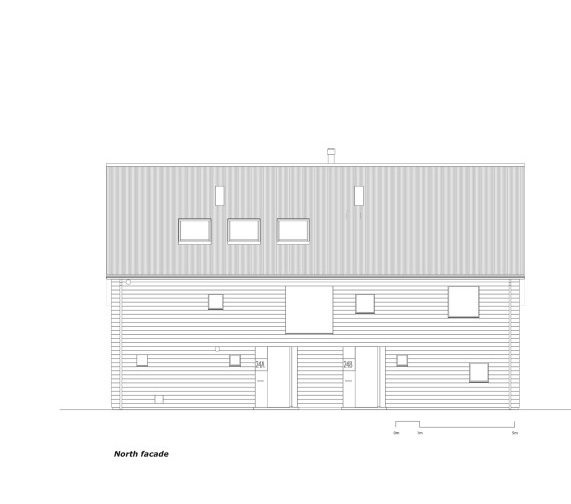

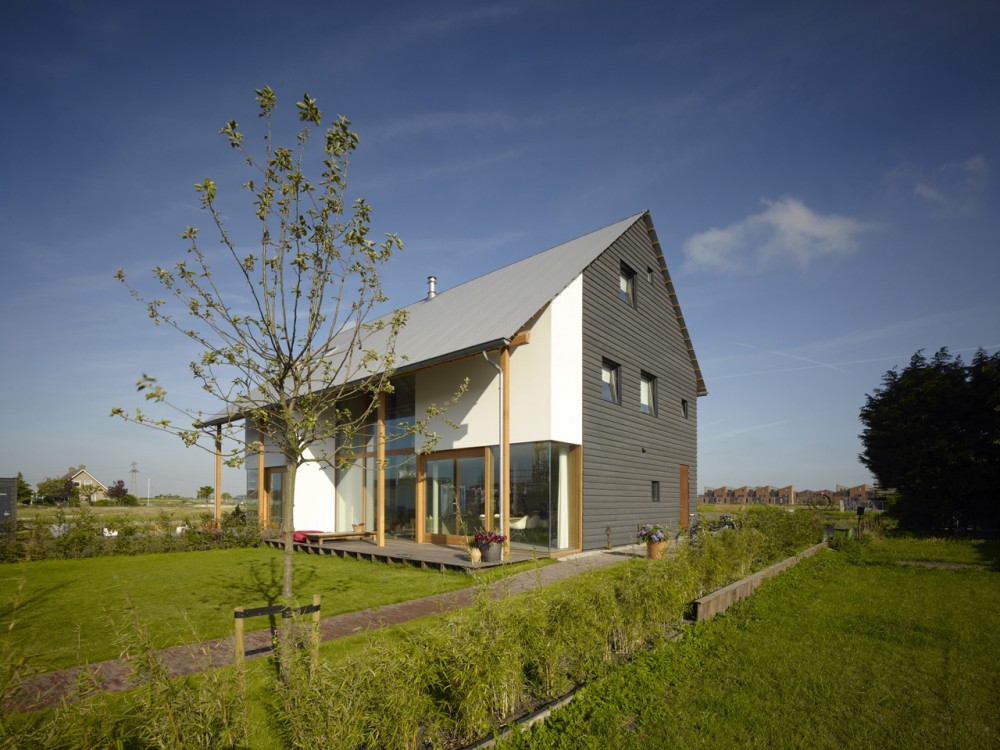

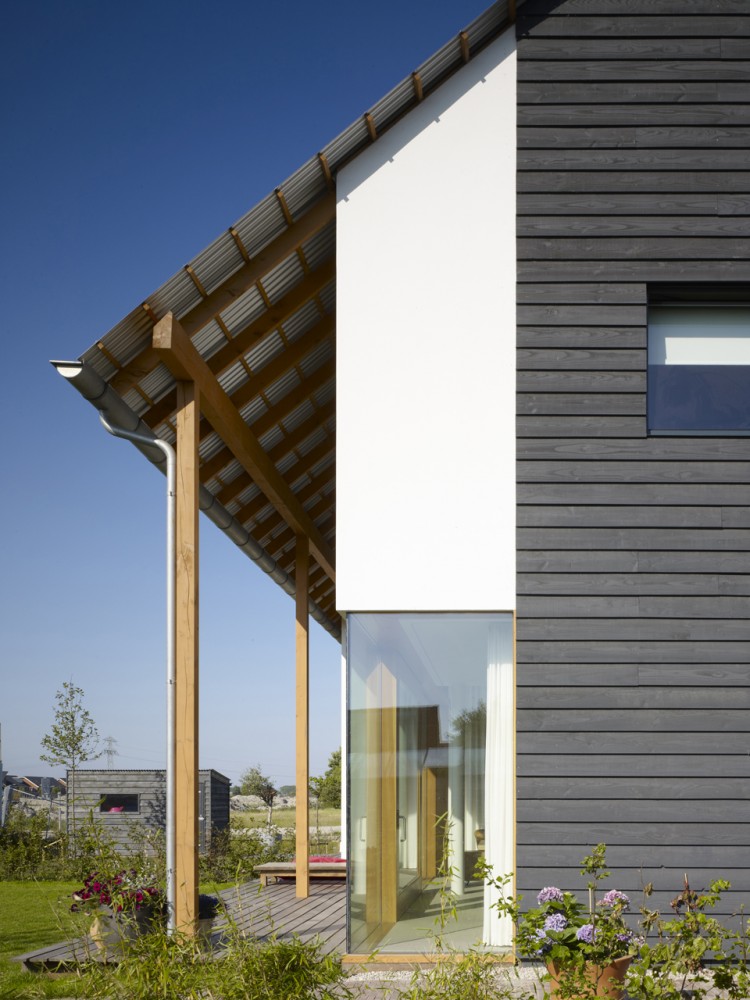

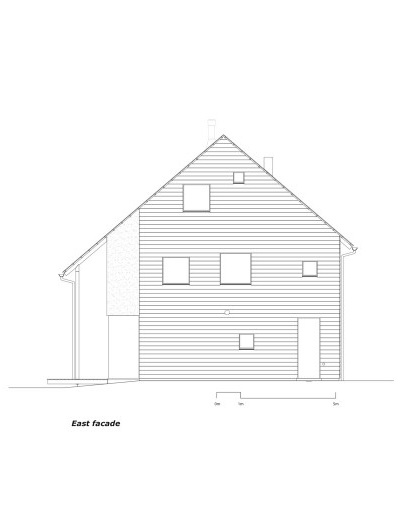

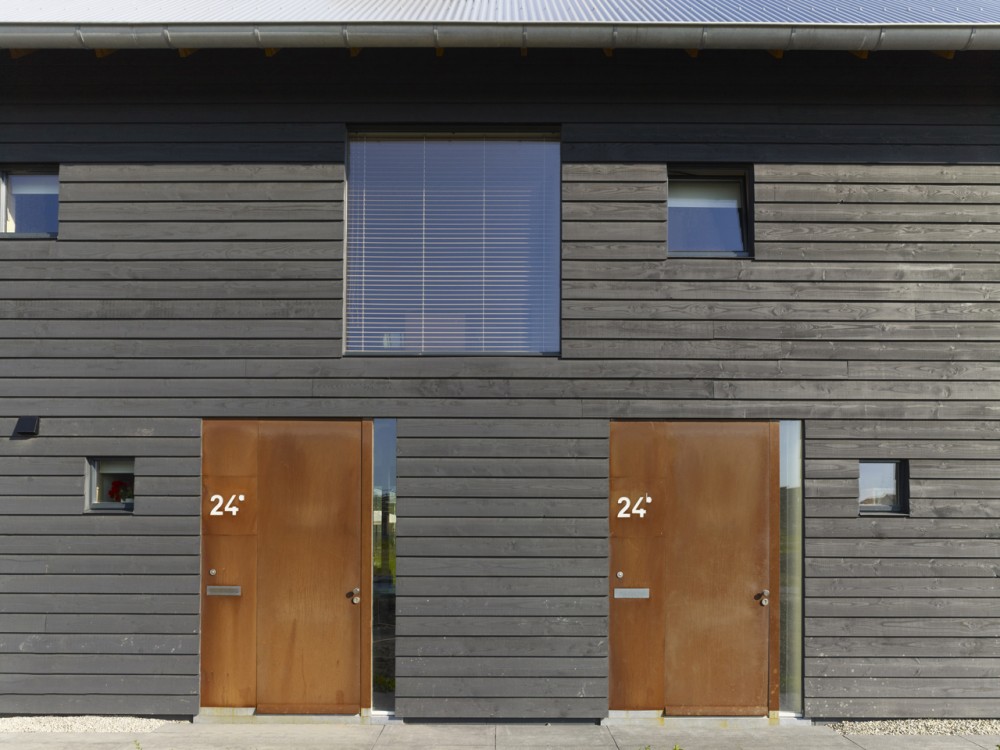

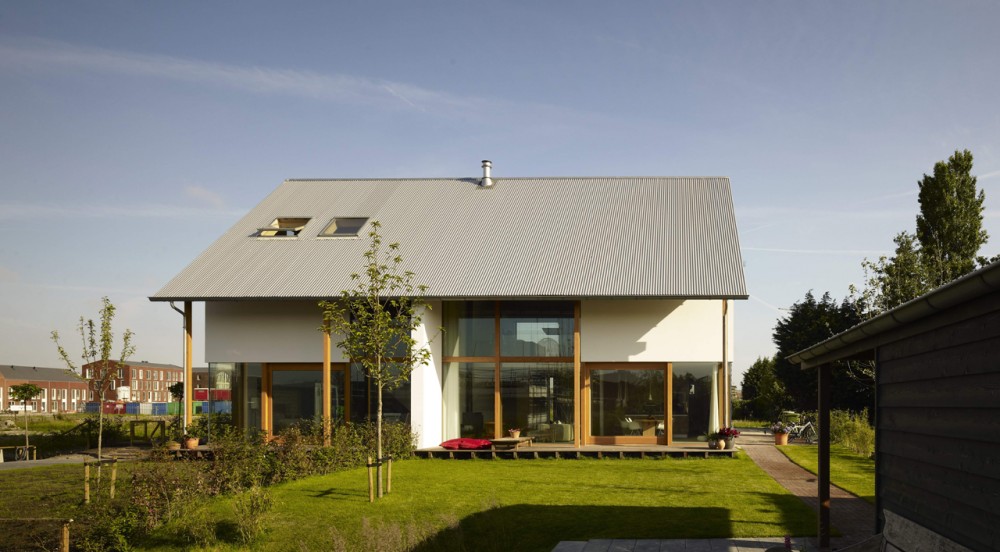

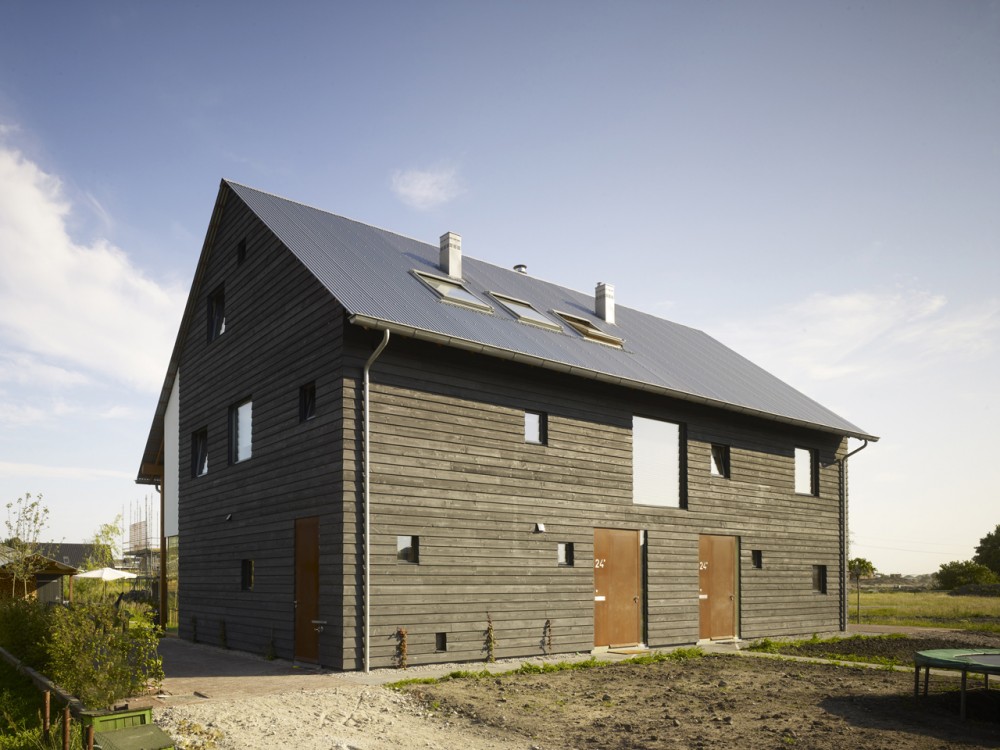

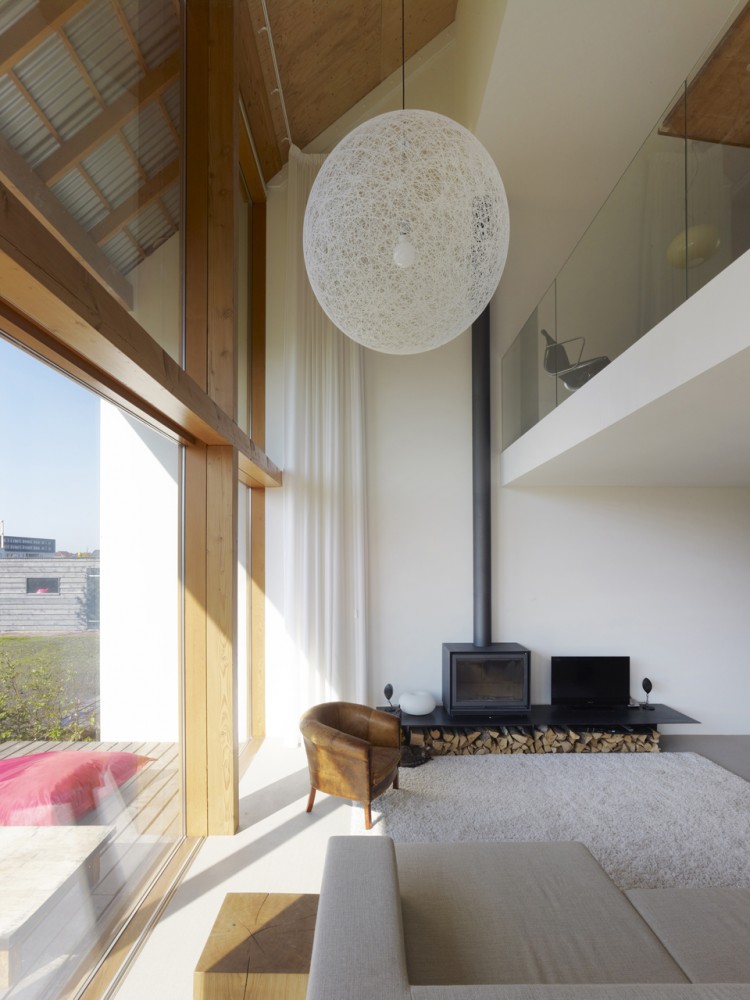

This project called for a semi-detached house， a double dwelling for two families. The double dwelling was designed， developed and realized by architect Robert Alewijnse and designed as a singular architectonic object， housing two completely different homes. The eastern home was specifically designed for the architect’s family and the western home was sold and adapted to the specific wishes of the new owners. The design makes a direct reference to the black wooden barns with their corrugated roofs common to the region. The northern façade addresses the road， is relatively closed and is finished in black wood. The south-eastern end faces the waterways and the gardens and is completely transparent. It is here that the barn is opened up， blurring the boundaries between inside and outside. The white stuccoed volumes and walls pierce through the glass and the wide veranda creates a proper exterior-interior transition. In the name of sustainability， the dwellings are designed as energy passive homes. By designing the façades in keeping with the sun， the favorable morning sun is caught， and the veranda shades the spaces from harsh afternoon and evening sun. The roof and the walls are heavily insulated and the plumbing is equipped with heat recovery mechanisms.
