作者:xxzjj

3-Element House
设计方:Tomás Swett建筑事务所
位置:智利 圣地亚哥
分类:别墅建筑
内容:实景照片
图片:25张
摄影师:Felipe Fontecilla
建筑面积:485平方米

Project Area: 485 sqm

这是对老住宅的一个改造项目,原来的住宅是一个一层的占地300平方米的结构,新设计将保留旧项目的百分之五十,去除另一半,客户的部分要求是创造住宅的新气象,打造与院落连接的入口,实现起居空间与室外空间相连,还要有一个独立的有着室外美好景观的主房间。

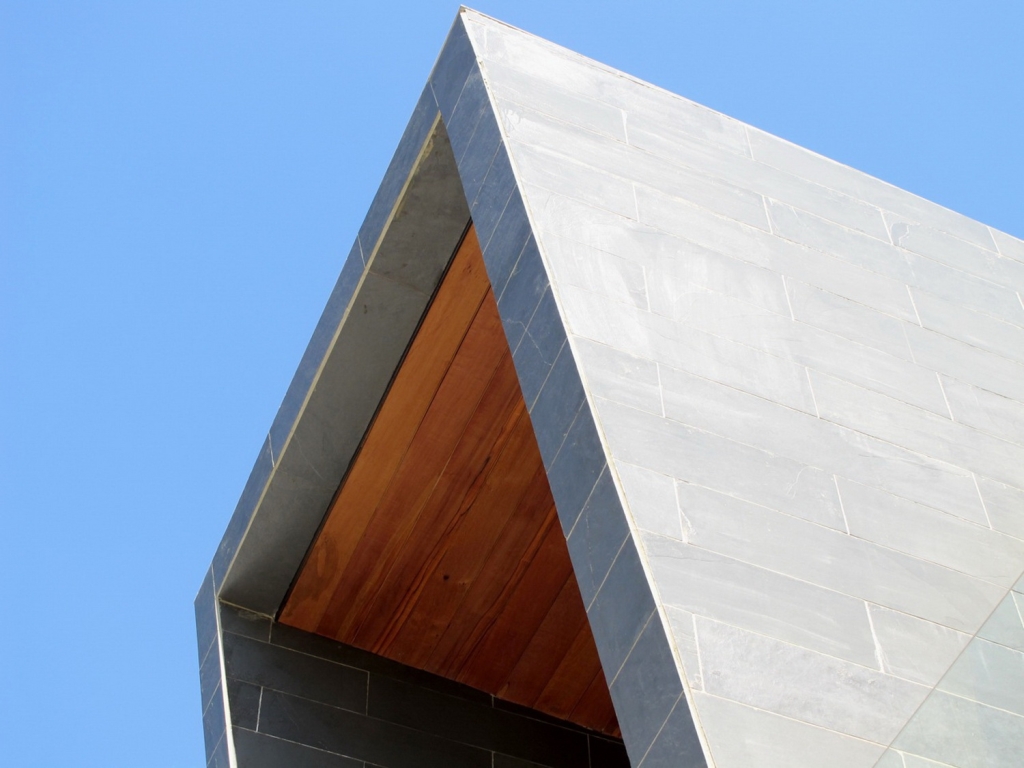

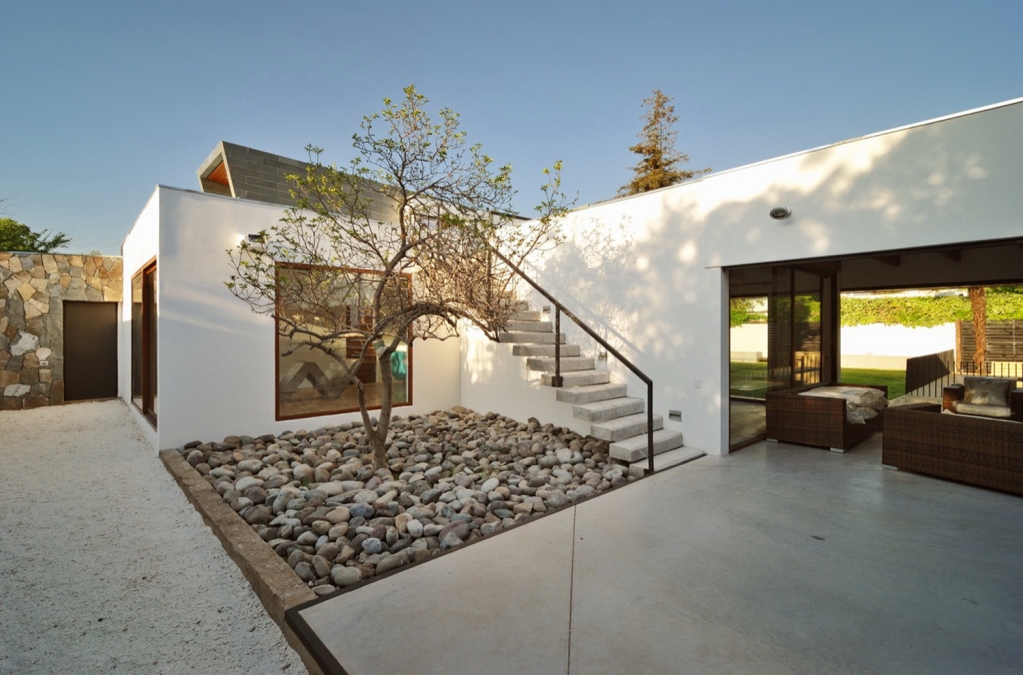

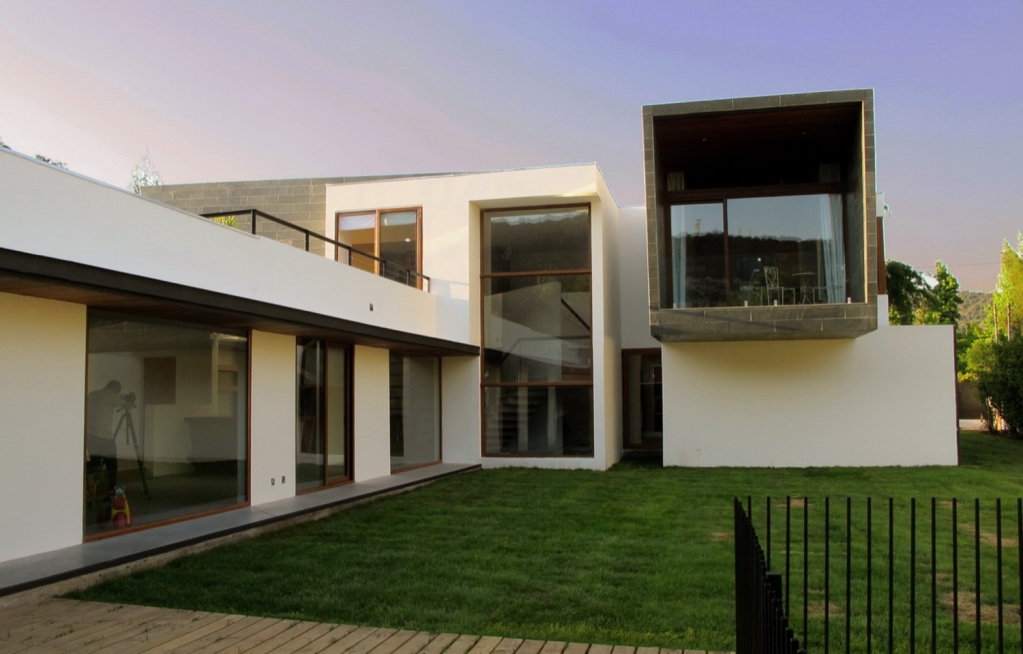

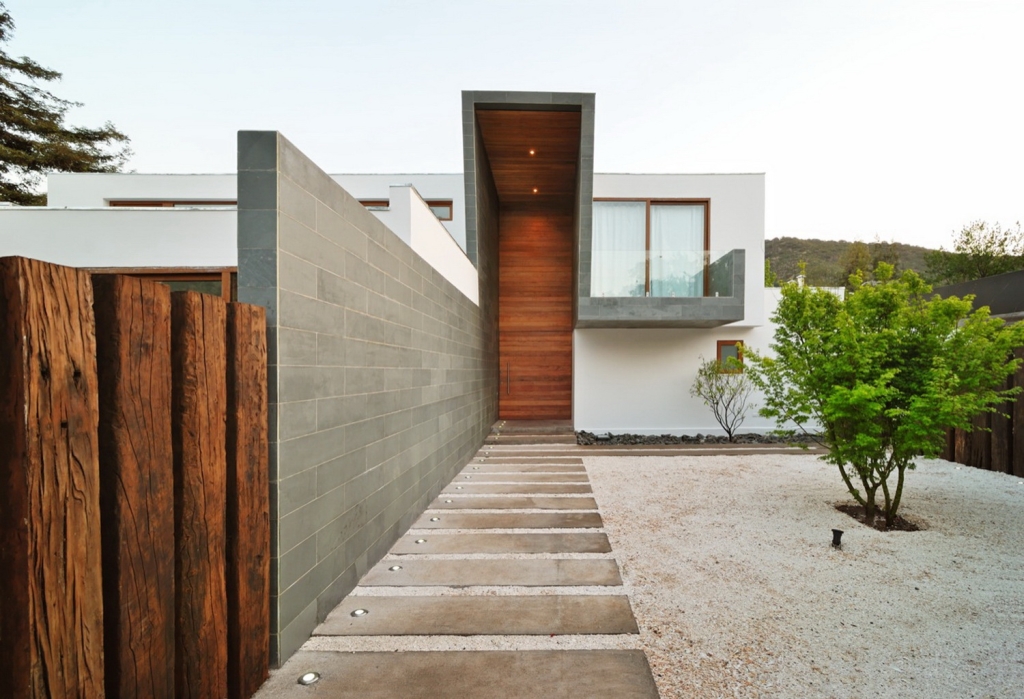

根据客户的要求,设计师有针对性地采取了两个步骤,一是对首层进行相关的延伸,以包含几个院落性的元素,如入口区,烧烤区,花园和游戏空间;其次将所有新的元素放在二层以留出空间,同时使用新建筑材料以实现住宅的新形象。对于第一点,设计将不同的项目元素包含在一个延续的花园内,形成一个新的起居和露台空间,还有一个烧烤和泳池,同时延伸卧室。二层的处理是加入了三个石头元素,一改老住宅平平的形象,这三个石头元素定义了一个双高的入口,一个与室外露台相连的内部交织的起居空间,和一个标志性的主导花园和景观的体量。

Building a new house in a land where there was an existing one floor house of 300 square meters, keeping only 50% of the construction and demolishing the rest, was the client’s requirement because of the poor state of the original house and its location in the land. Part of the client’s requirements was to get a new image house, creating a new access associated with a courtyard, living spaces connected with outside areas and an independent main room with views to the landscape.

With these 3 requirements, we proposed to work with two main operations. First, a few first floor extensions should define several programmatic courtyards as an entrance area, barbecue area, garden and playground. Second, almost all the new program should be on the second floor to release the land, with a new building material which creates a new image of the house. With the first operation, we defined different programmatic areas in a continuous garden. We projected a new living room and terrace area, defining a barbecue and a pool zone. Also, we extended the bedrooms area and we defined a playground area and a private terrace. In the second operation, we worked with 3 stone elements to give a new look to the house which brook to the flat geometry of the original house. These 3 elements defined a double-height entrance, a second interconnected living room with an outdoor terrace and finally, the main room as an icon volume, dominating the garden and landscape.

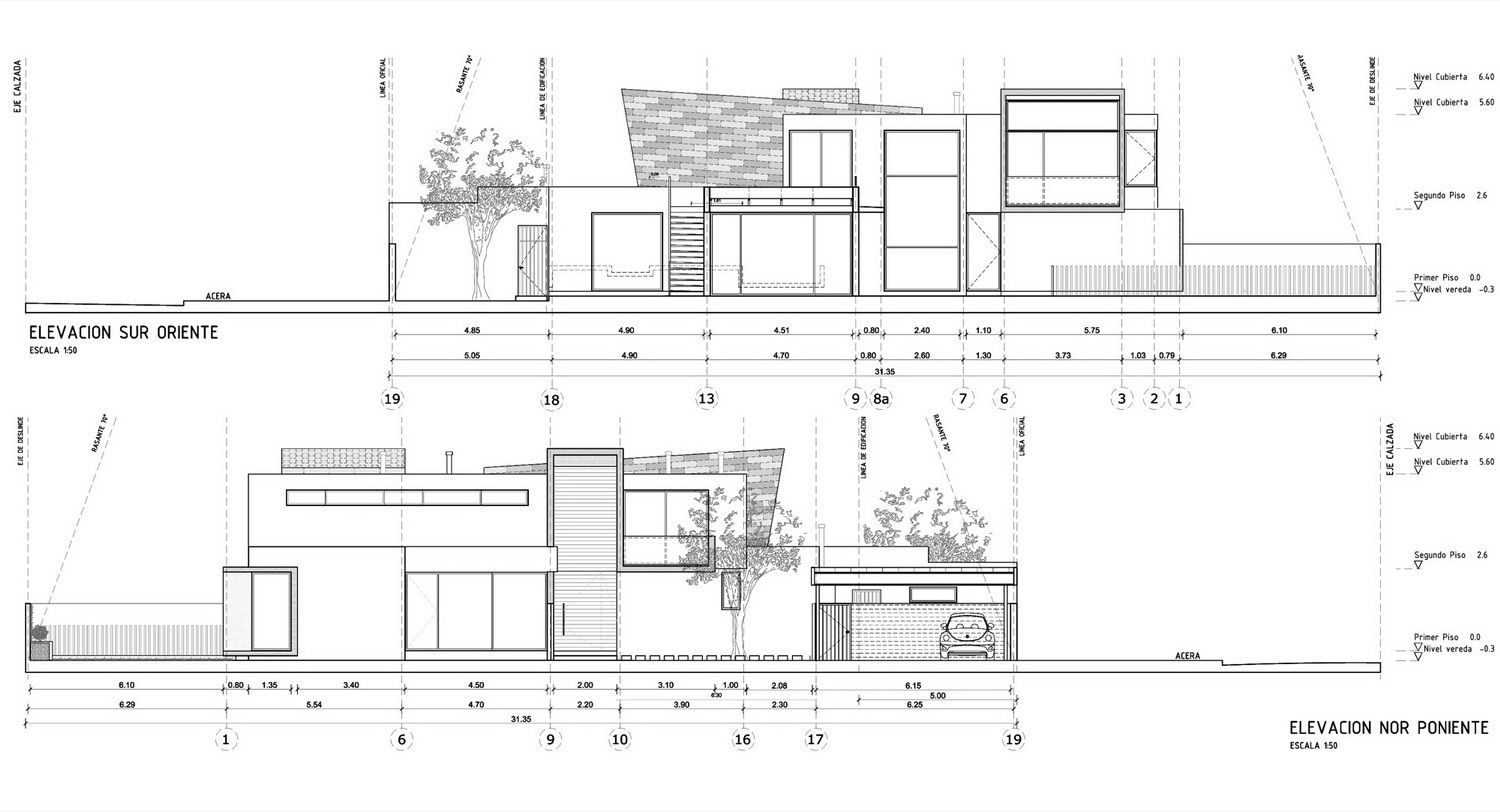

立面图01 Elevations01

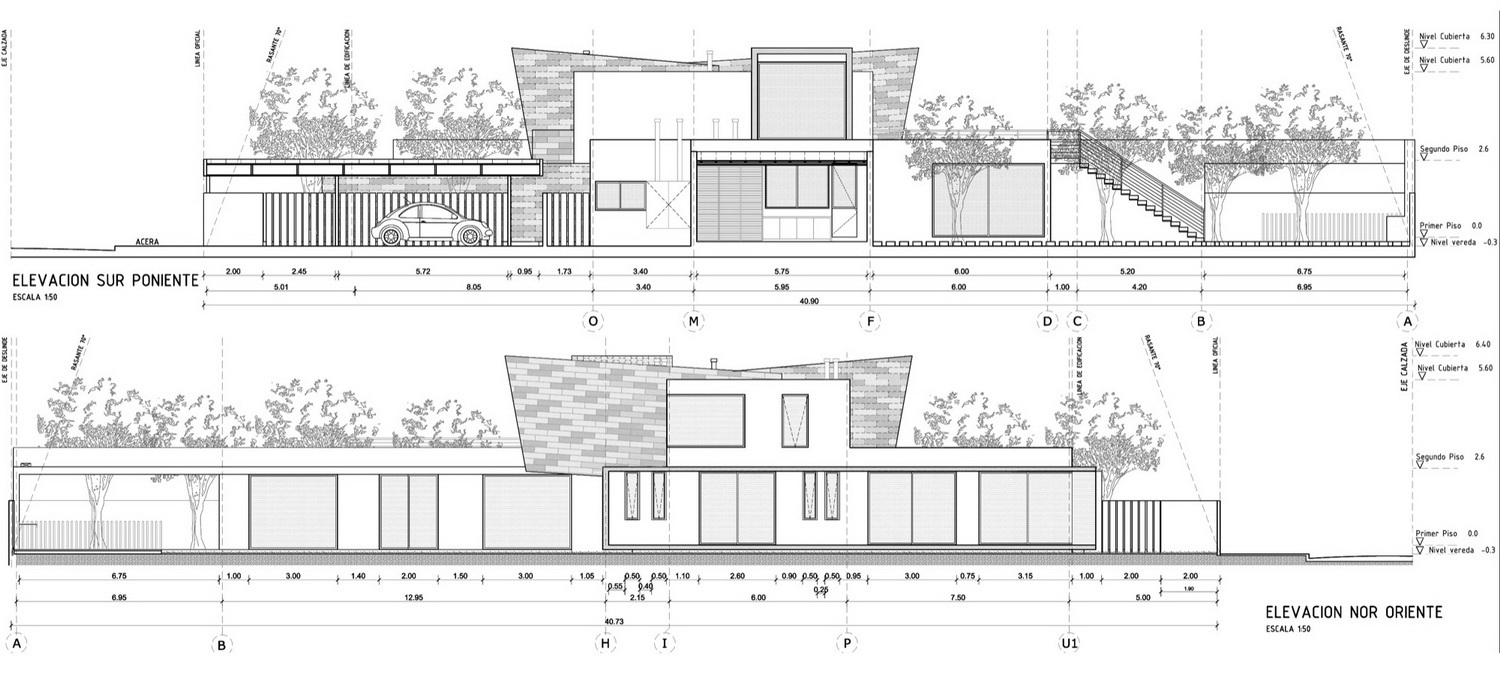

立面图02 Elevations02

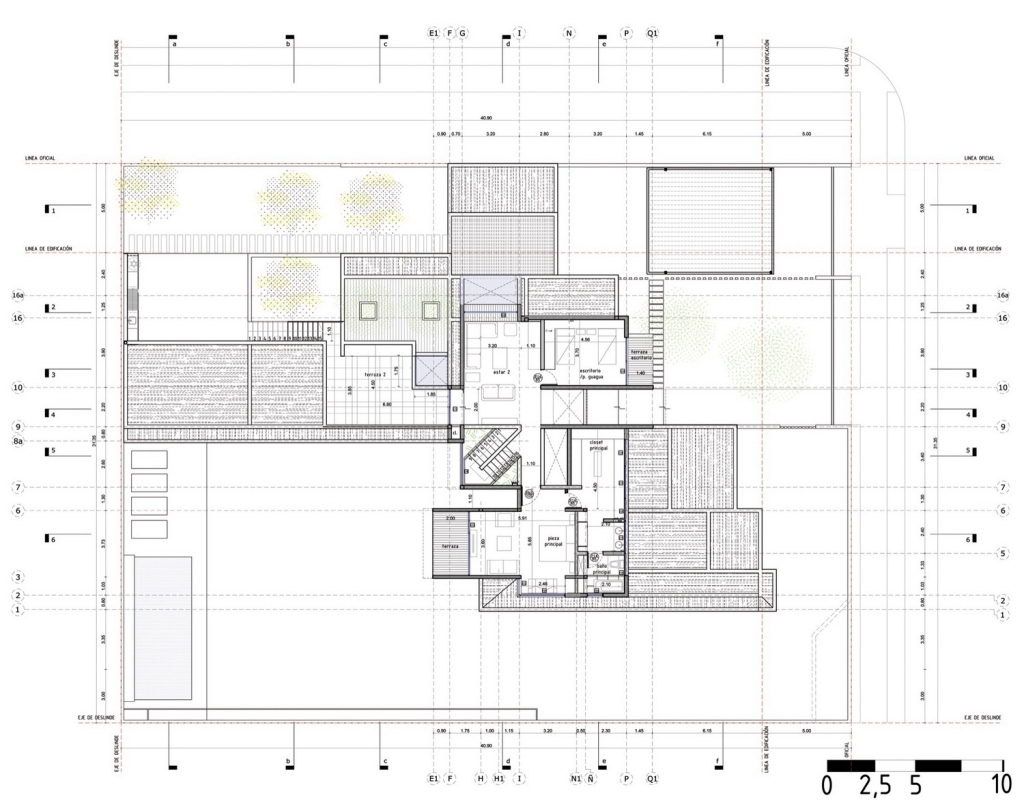

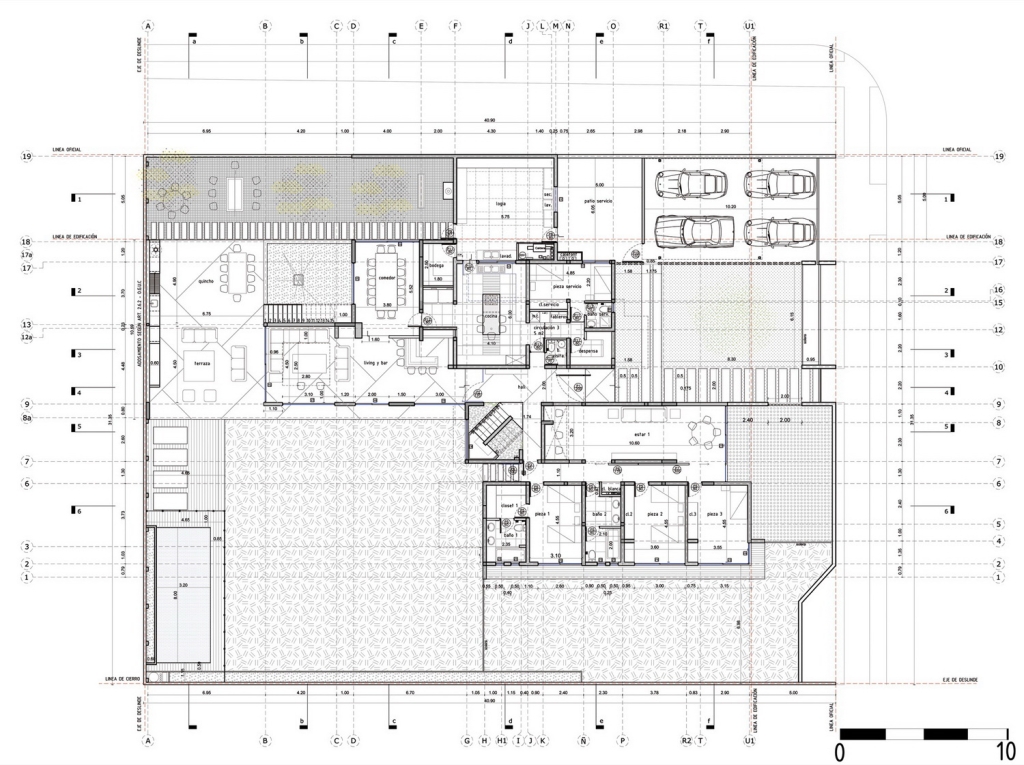

平面图01 Floor Plan01
平面图02 Floor Plan02
平面图表 Floor Plan Diagram

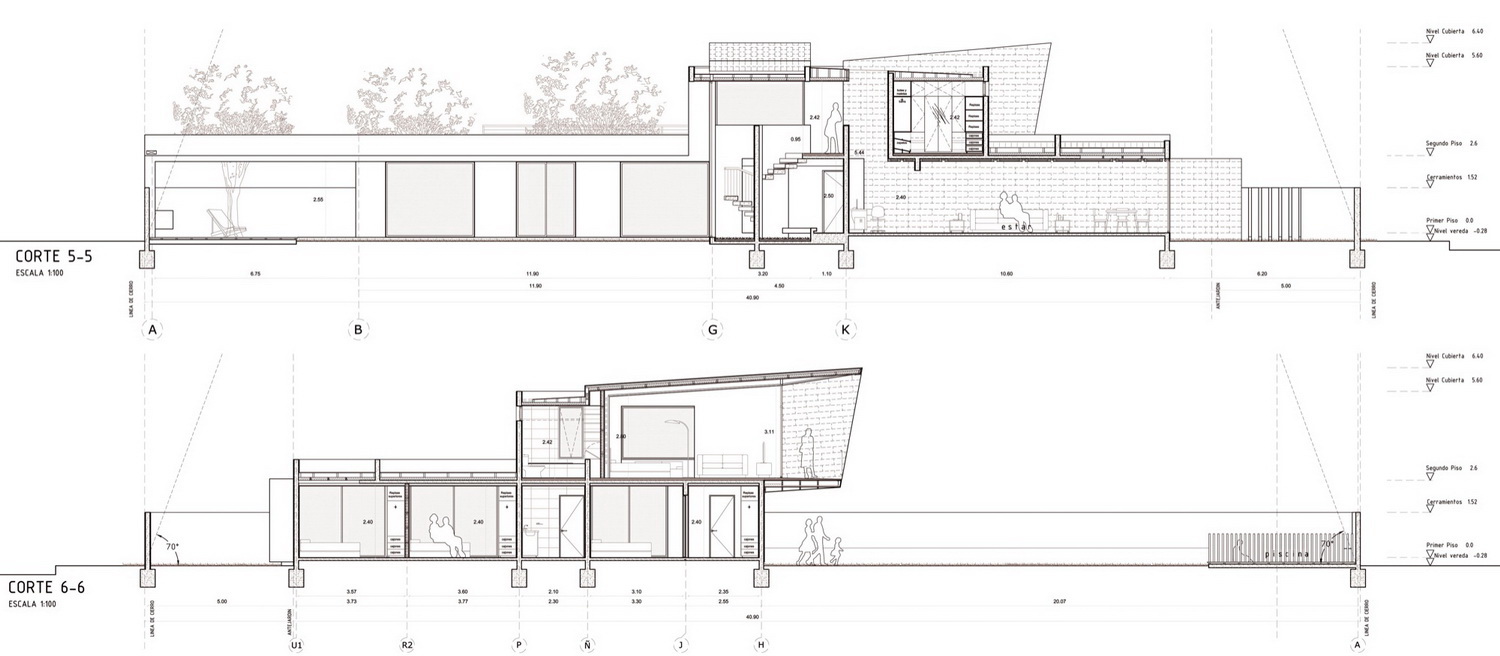

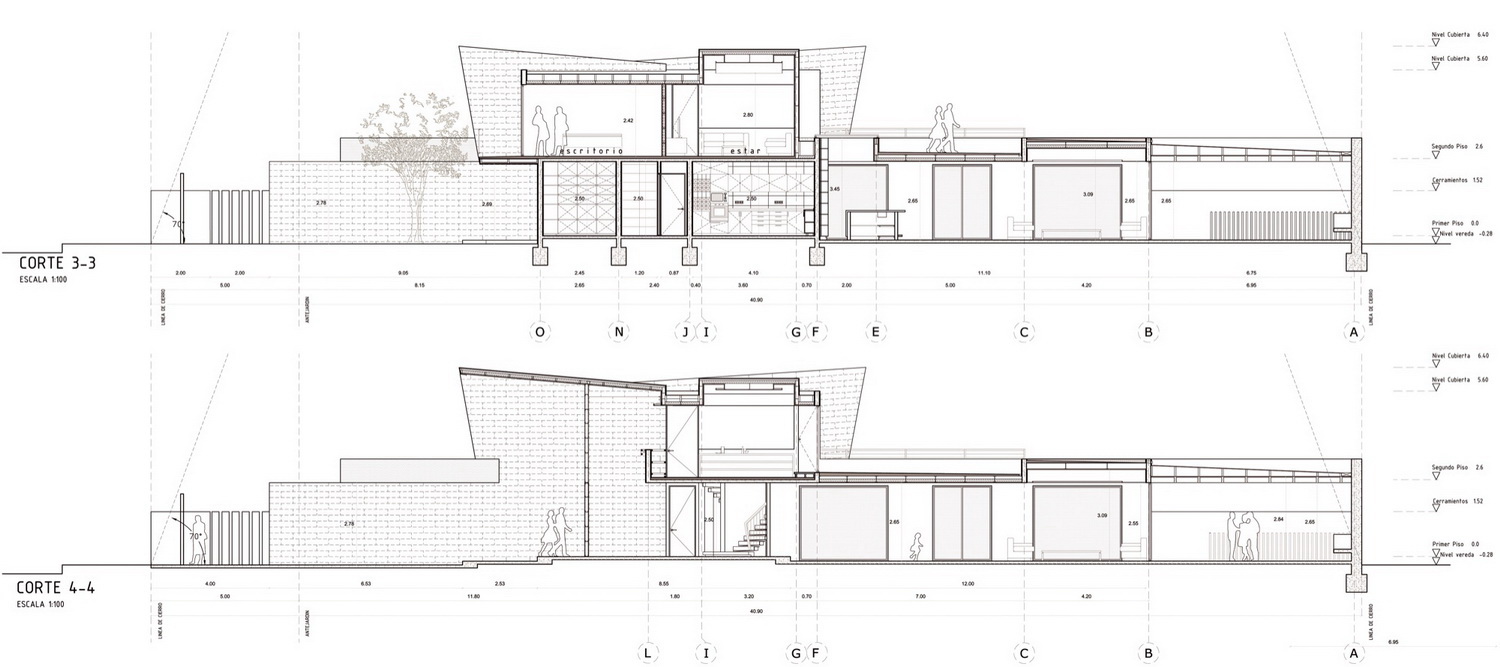

剖面图01 Sections01
剖面图02 Sections02

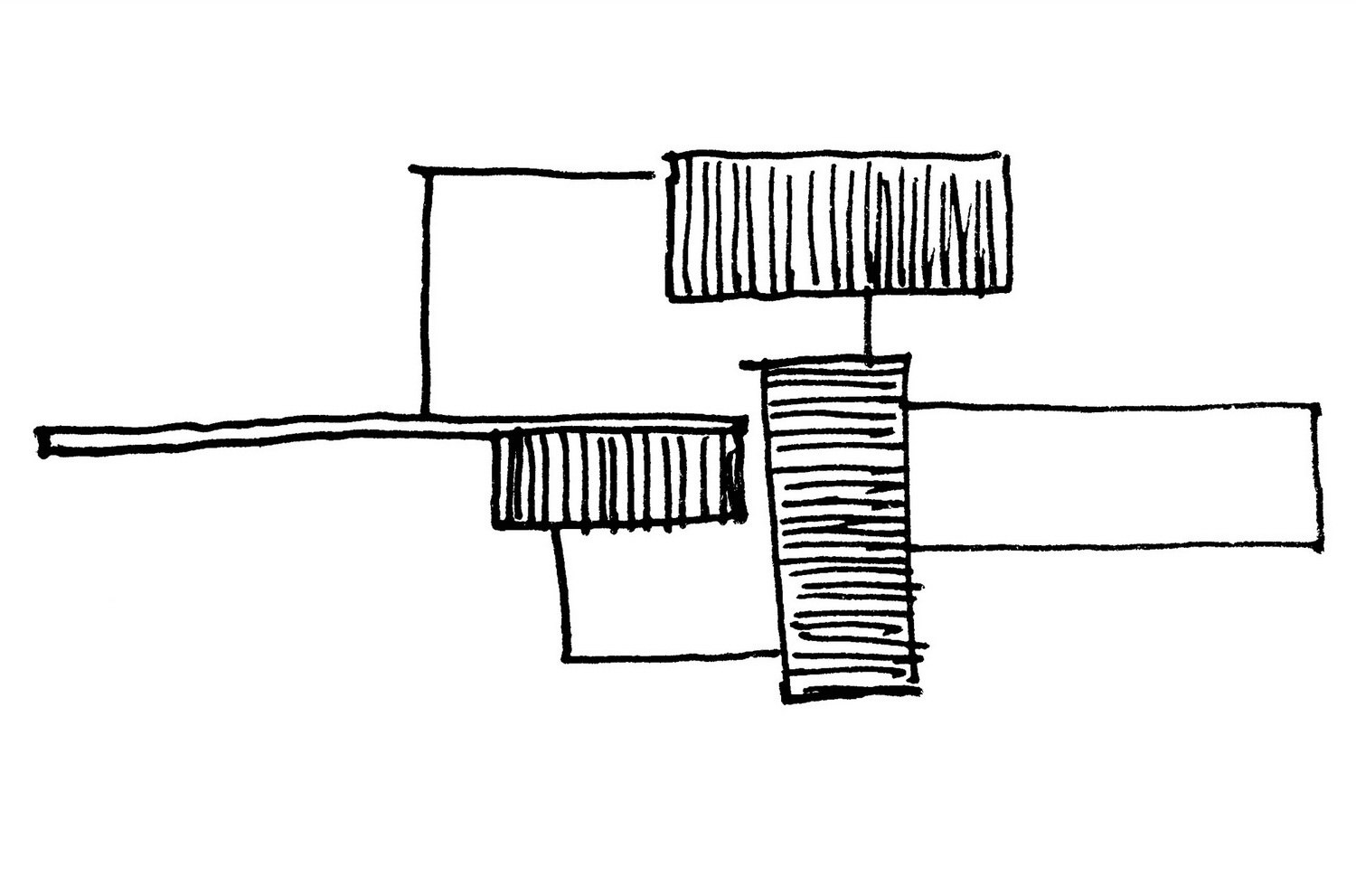

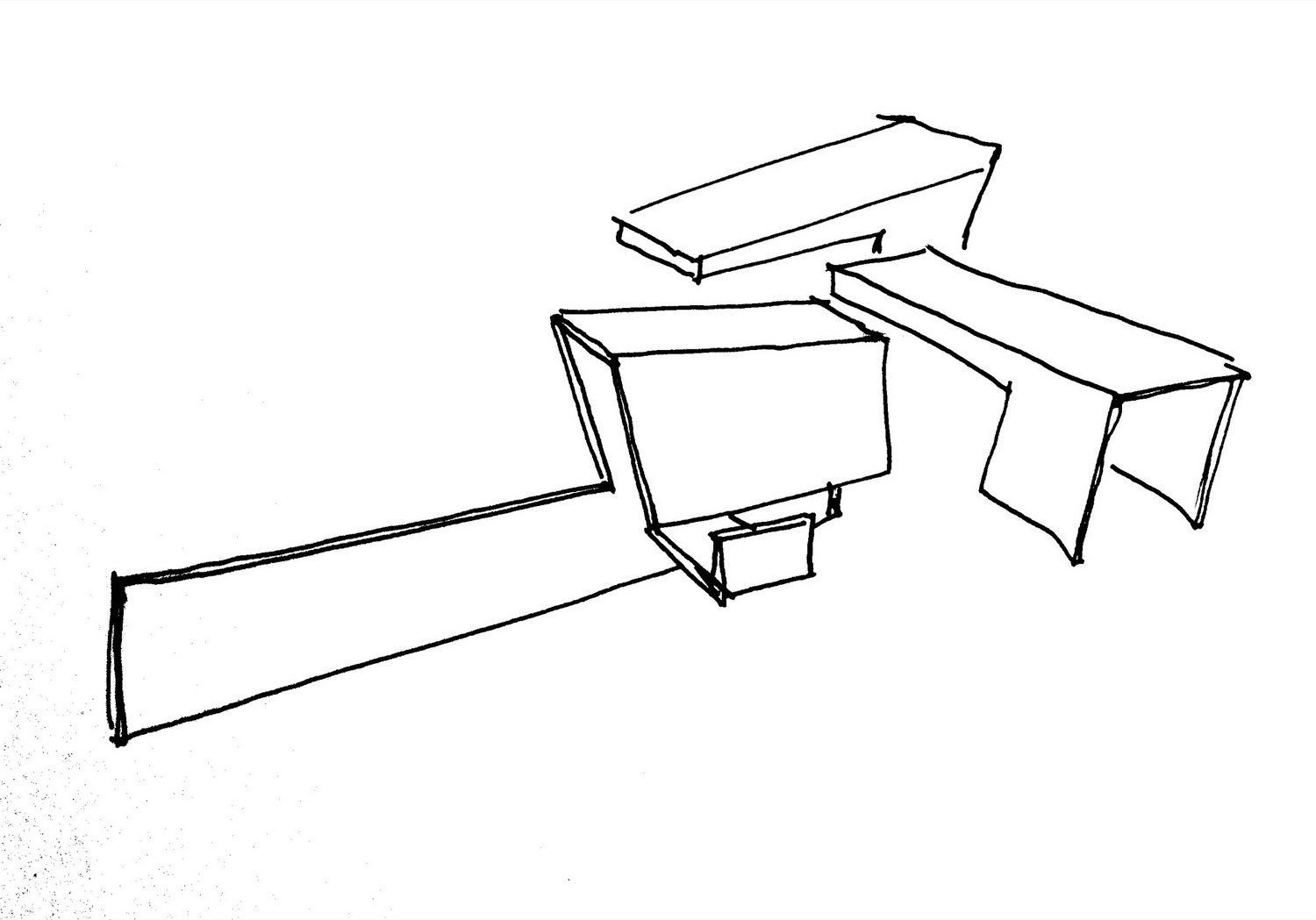

图表 Diagram

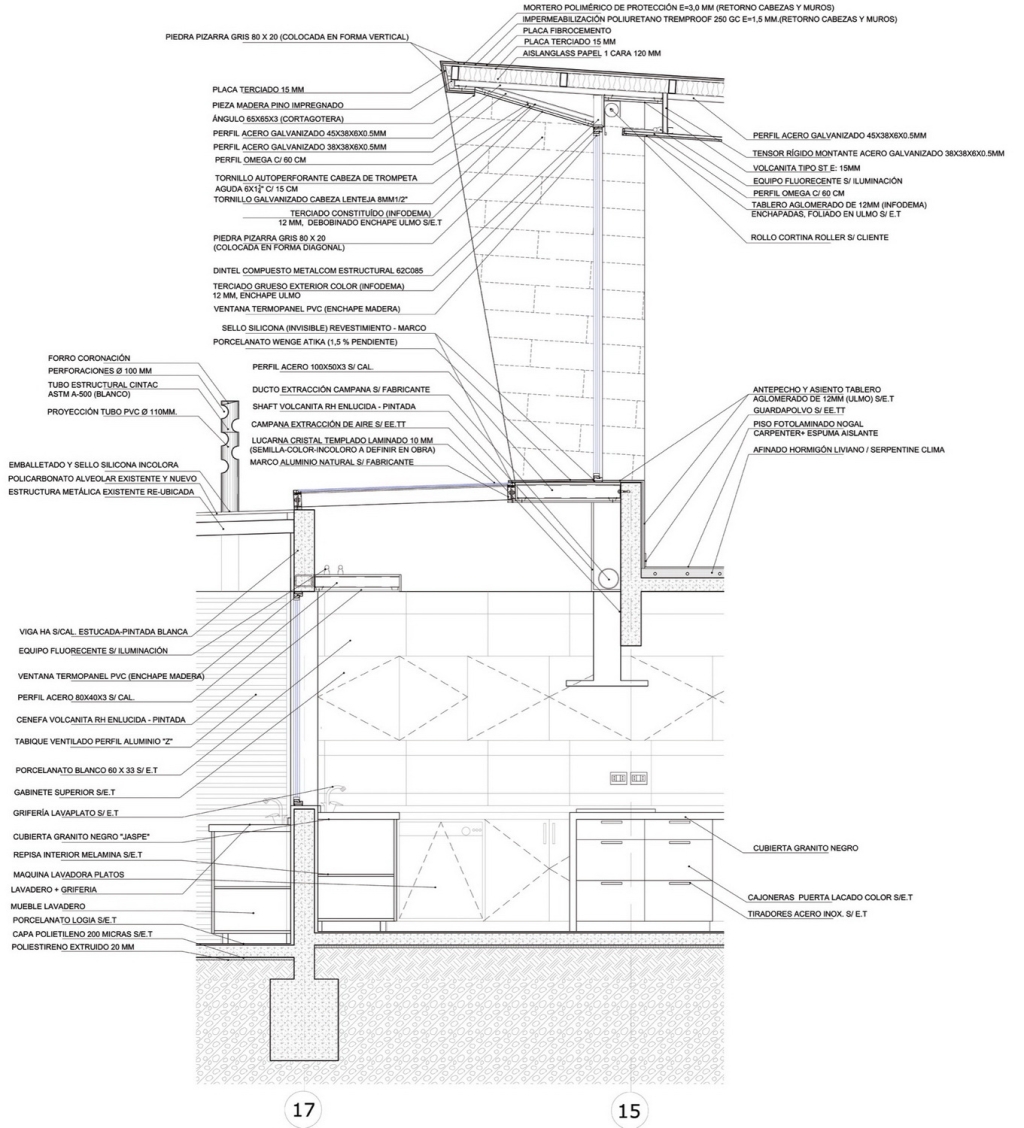

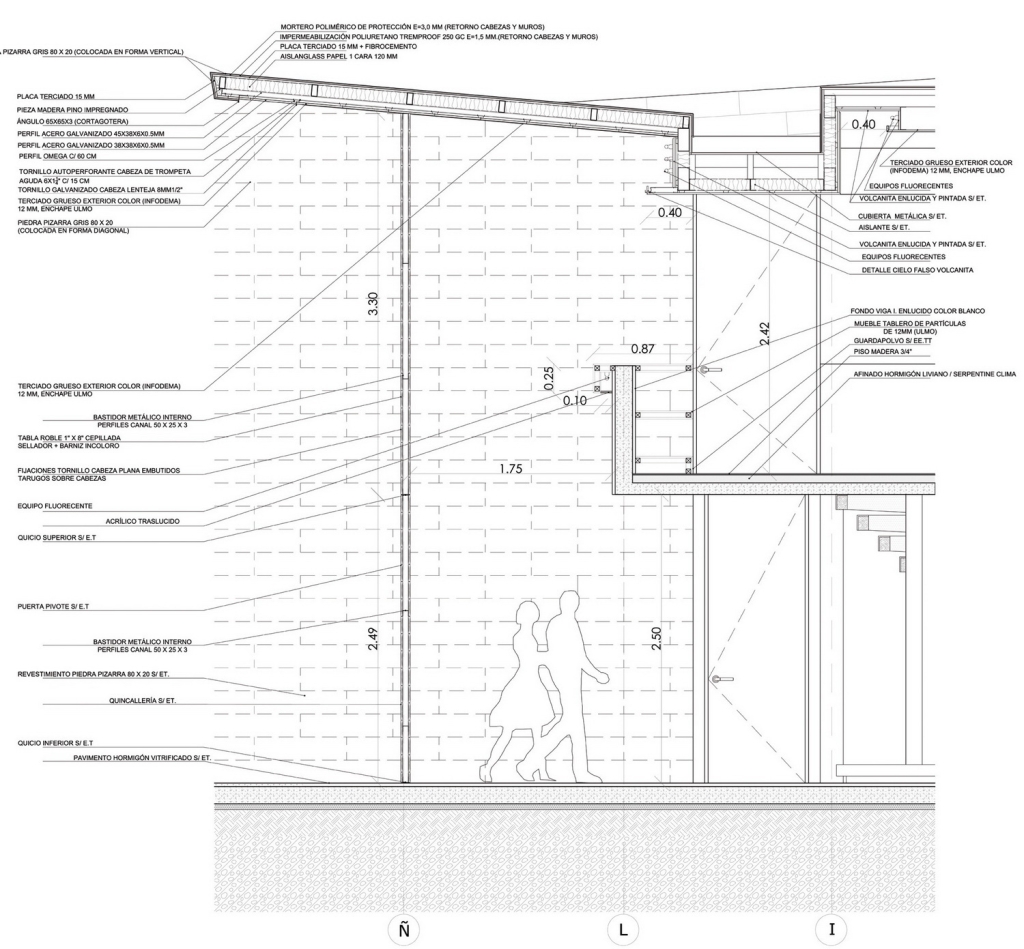

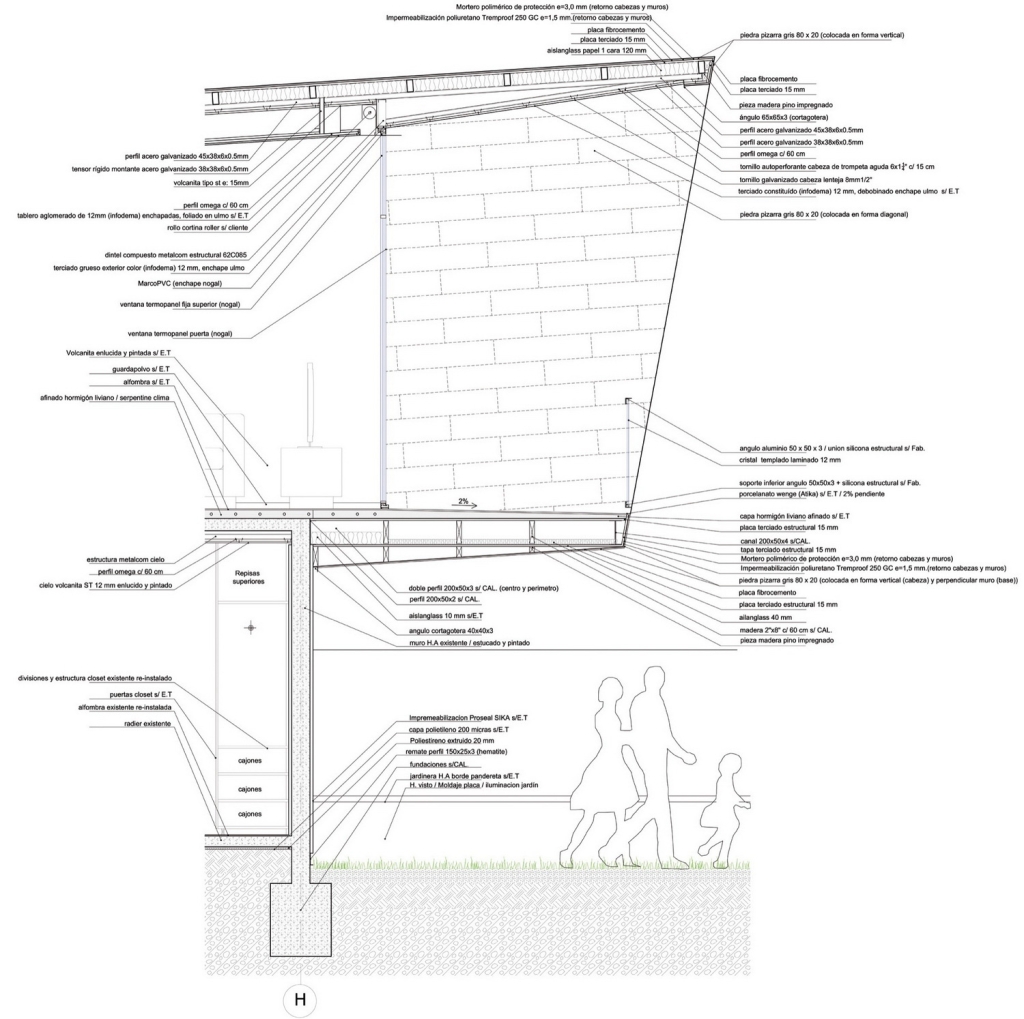

细节01 Details01
细节02 Details02
细节03 Details03
