矩形光住宅

别墅

作者：yangxinj

Rectangle of Light
设计方：Jun Igarashi Architects建筑事务所
位置：日本 札幌
分类：别墅建筑
内容：实景照片
图片：25张
摄影师：Jun Igarashi Architects

建筑面积：71.54平方米

Project Area: 71.54 sqm

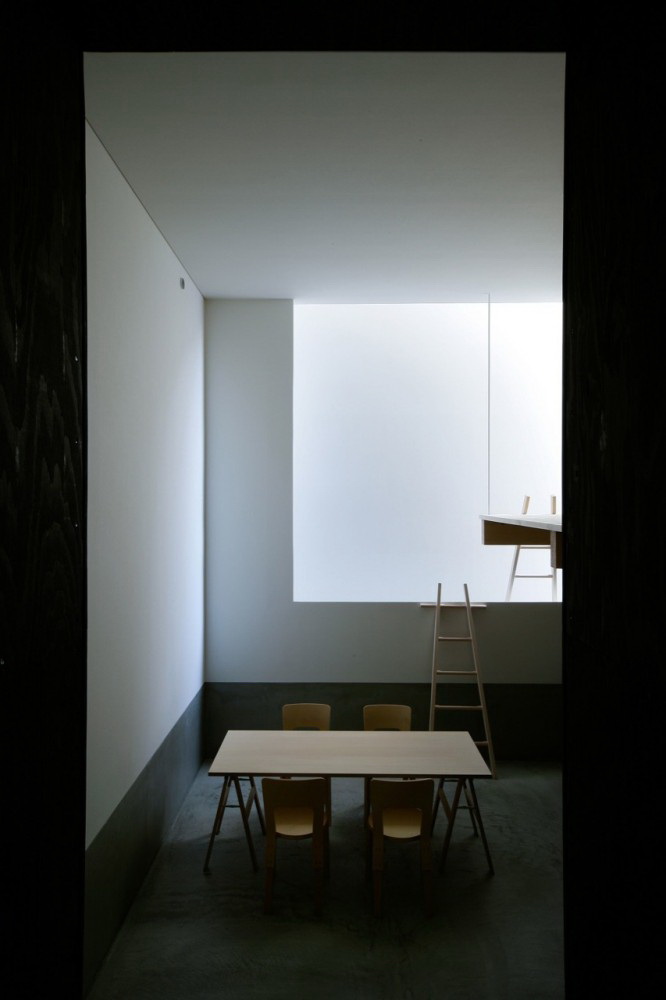

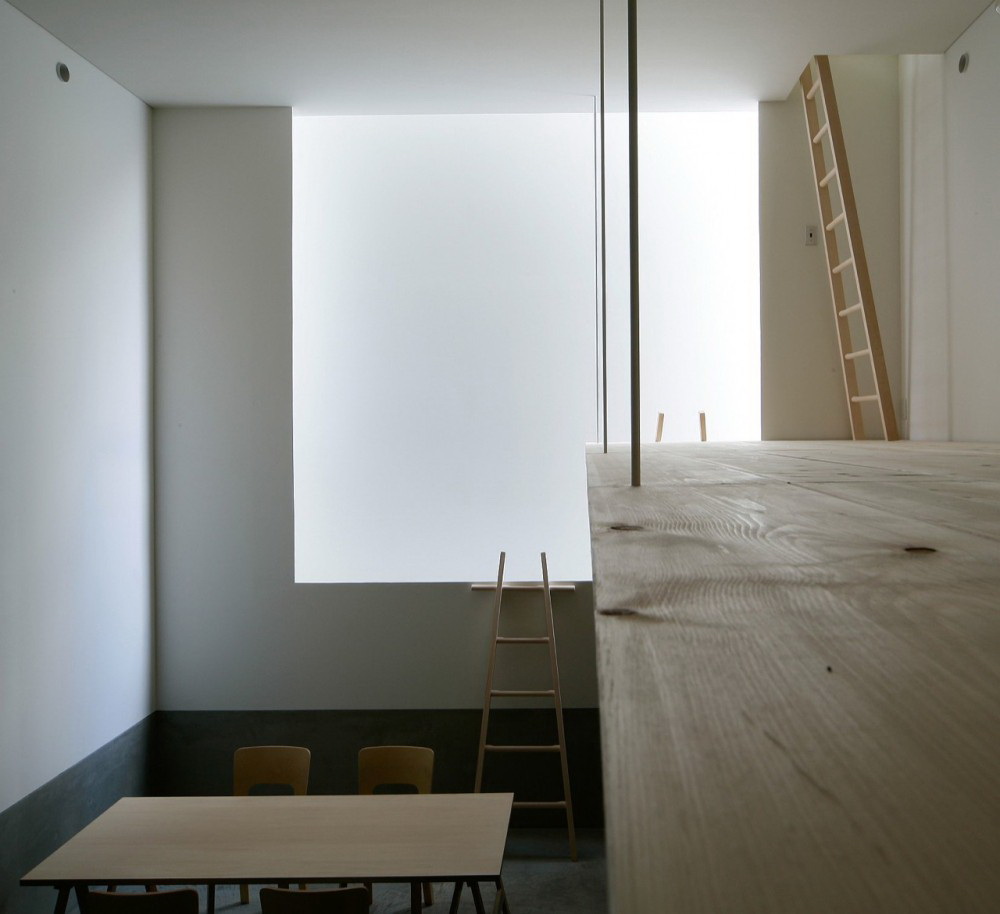

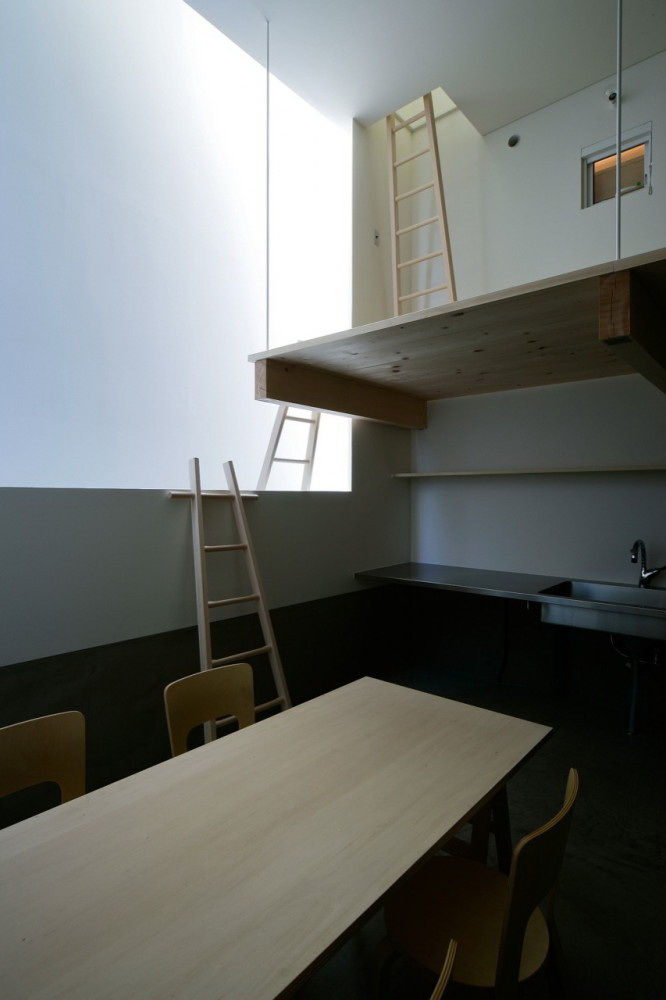

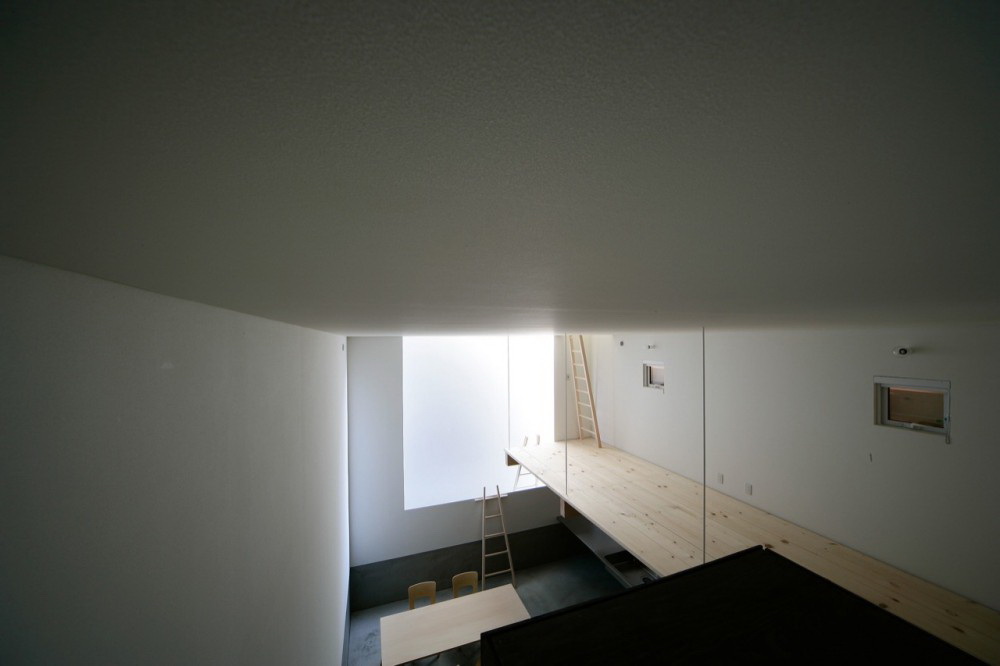

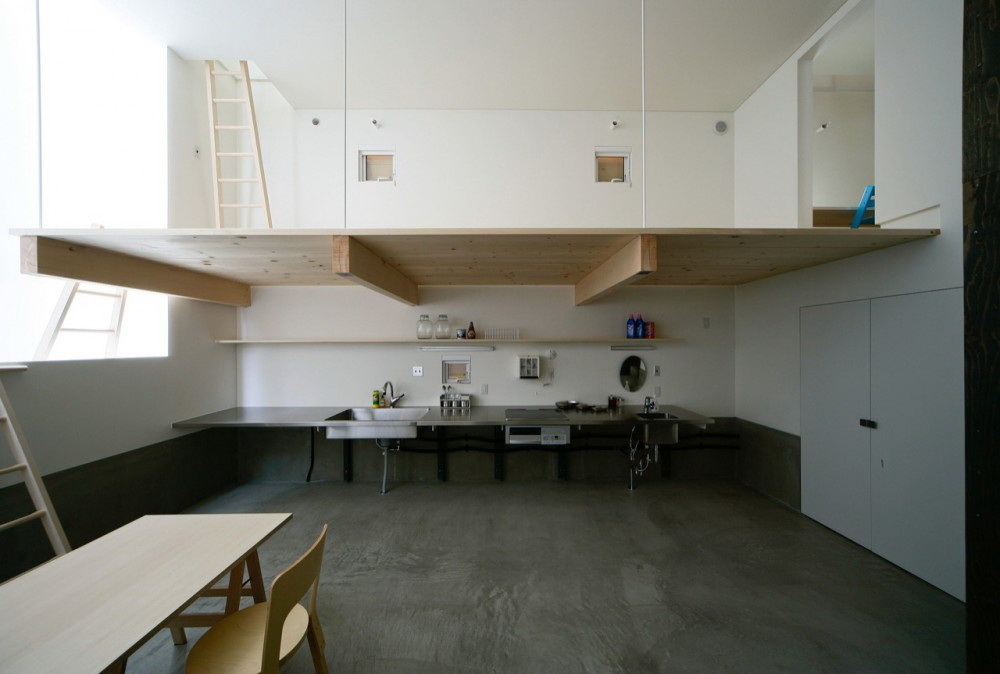

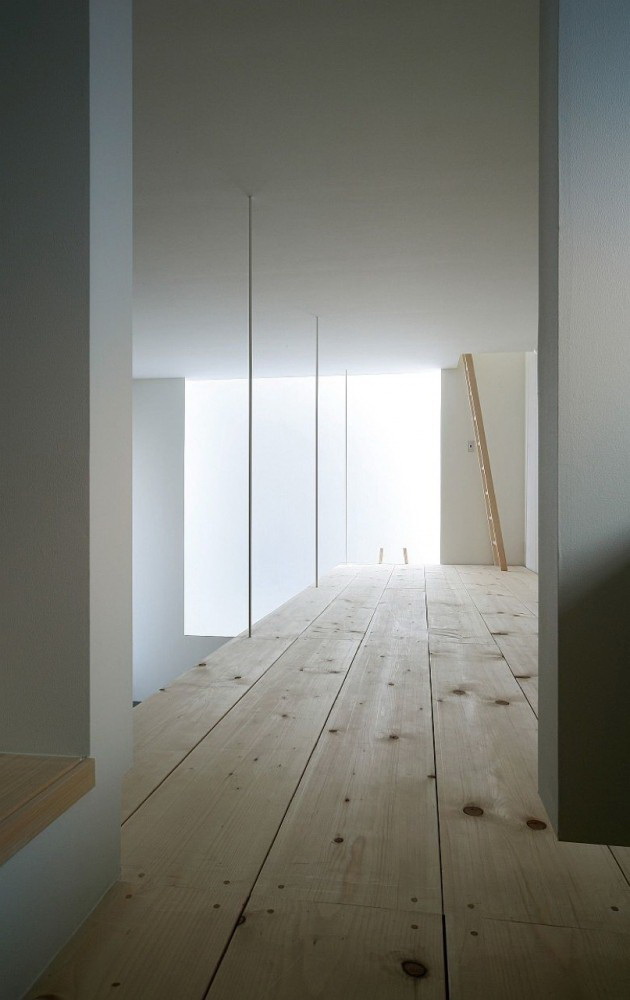

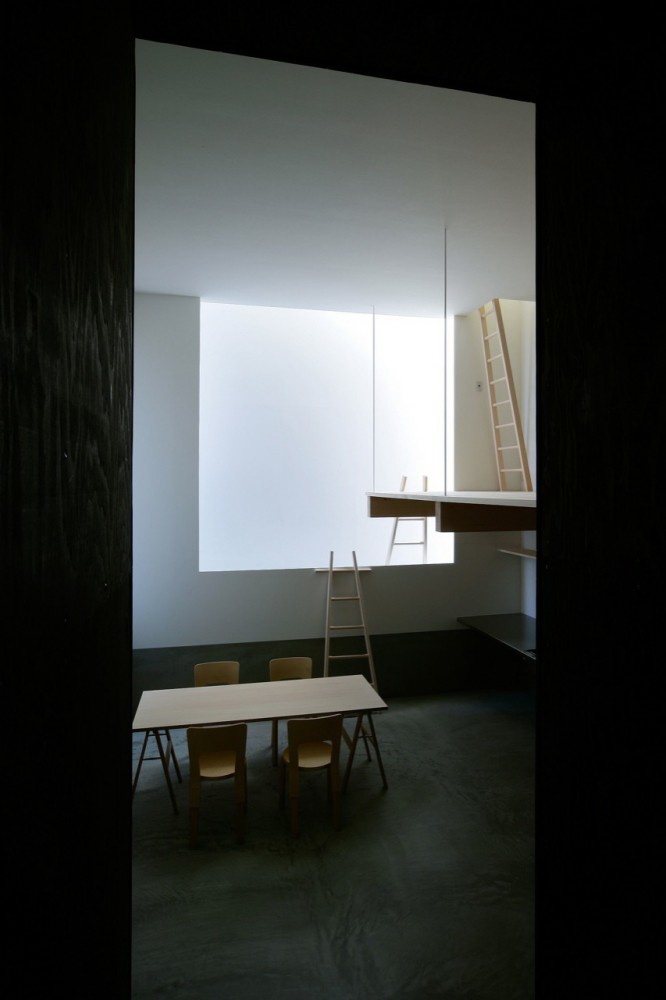

这个建筑的北侧部分是楼梯，浴室，入口平台和其他空间依次排布，它们充当一个缓冲区，隔开公共和私人空间。它们后面是起居空间，它比周围的房间低600毫米。设计打算设计一个半地下的空间，因此房间的天花板高一些。在一二楼之间有一些地面木板，顶层是一个巨大的卧室。住宅没有任何朝外的窗口，但是根据规定又要设立窗户，设计师在窗户上覆盖纤维强化树脂板，通风窗户上覆盖与室外墙面材料一致的木质板。建筑南侧矩形结构收集光线然后将光线反射回去，打到起居空间内部。但矩形结构末端吸收的是直接的太阳光，它们慢慢移动，产生变化。

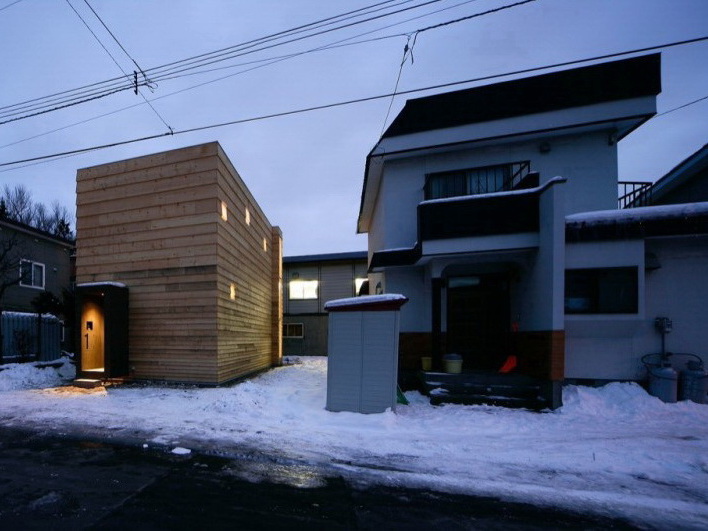

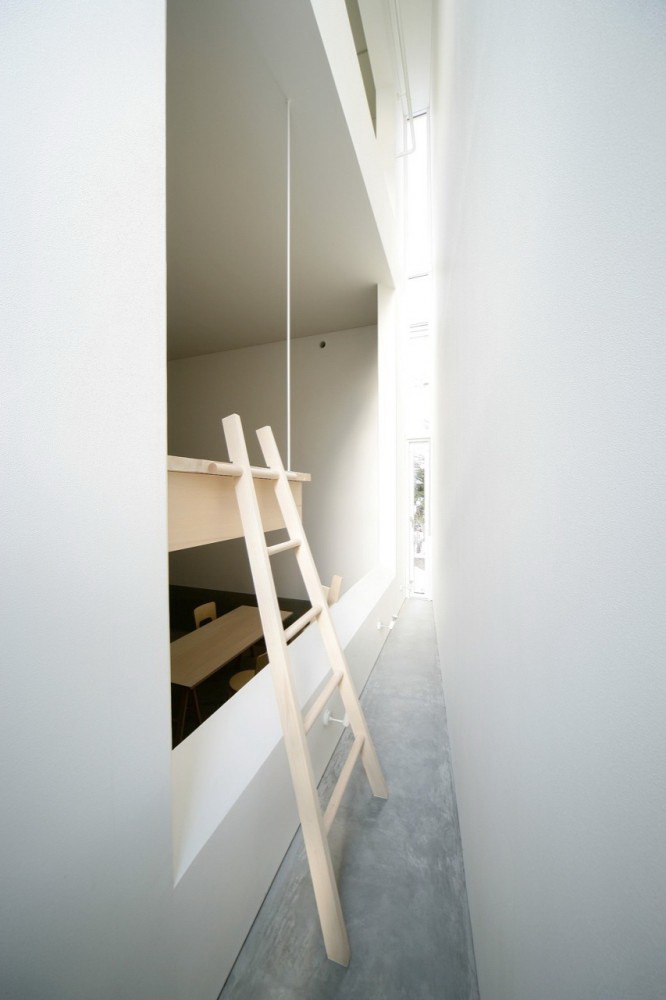

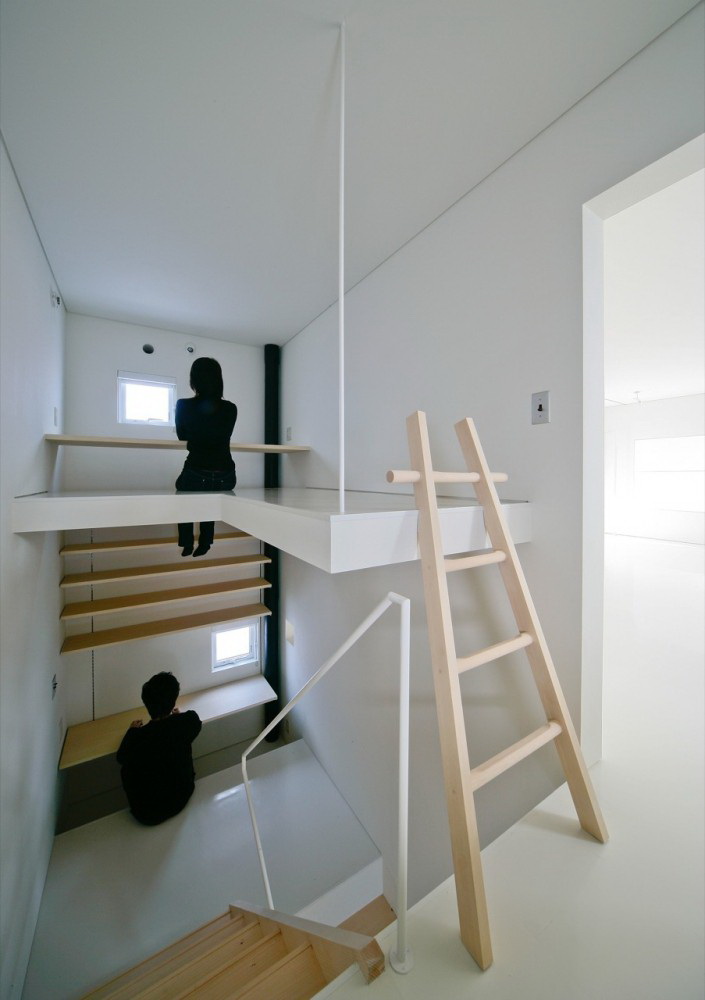

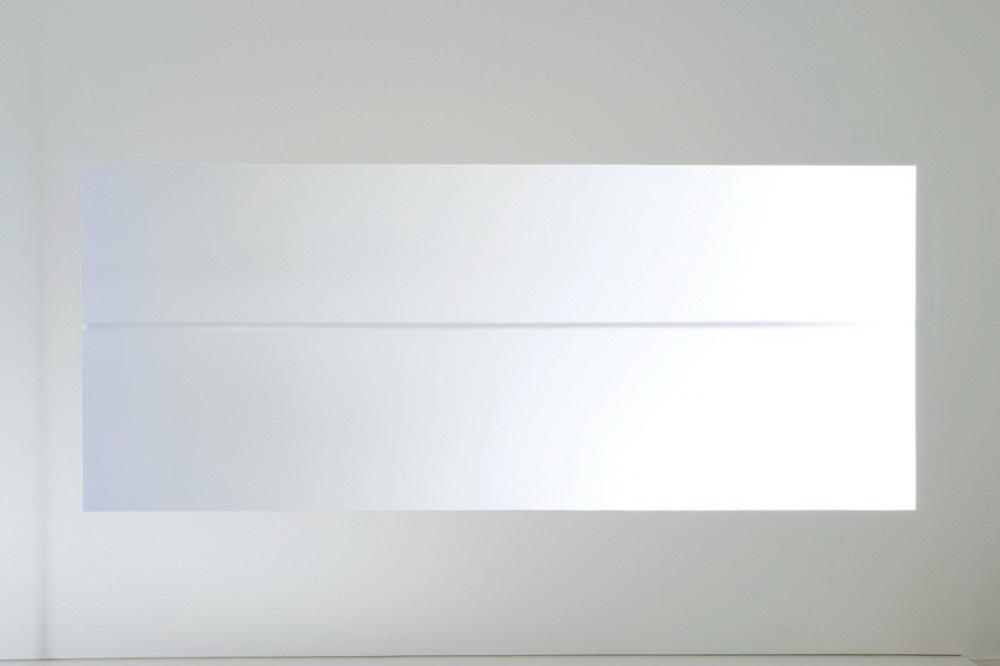

In the northern section of the building you will find the stairway， the bathroom， the landing， and other various spaces will be arranged in the north of the building. This is a Buffer zone between the public space and the private space. Behind it， the living room floor is 600mm lower than the surrounding rooms. With the decision to make a semi basement， the ceiling of the room becomes higher. Between the first and the second floor there is some duckboards， and a large bedroom on the top floor. This house doesn’t have any window to regard the outer scenery; however， according to the building standard law， some windows must be placed in the building. The windows are covered by a fiber plastic board and， and the ventilation windows are covered by a wooden board， which is the same material as the exterior wall. In the southern section of the building， the light collects in the rectangle allowing only the reflecting light to shine back into the living space. But in the back of this rectangle， its light’s origin shows face and changes little by little into another characteristic thing.

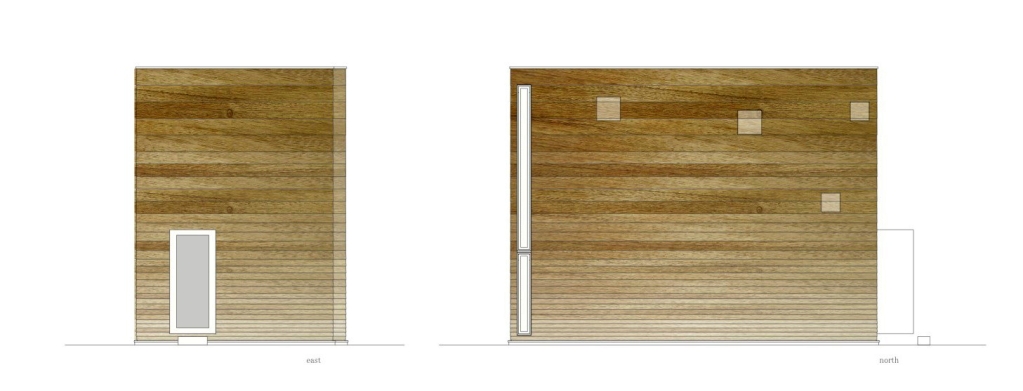

东&北立面图 East & North Elevations

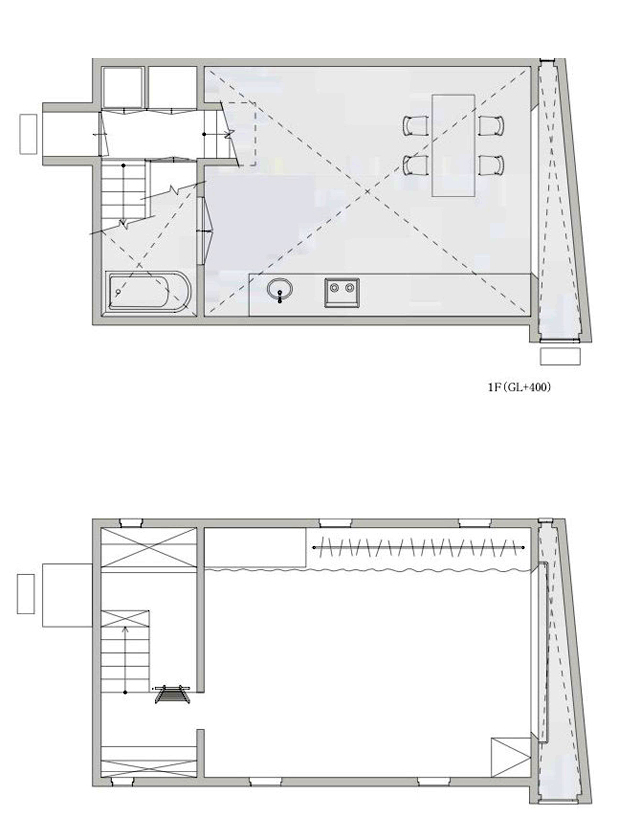

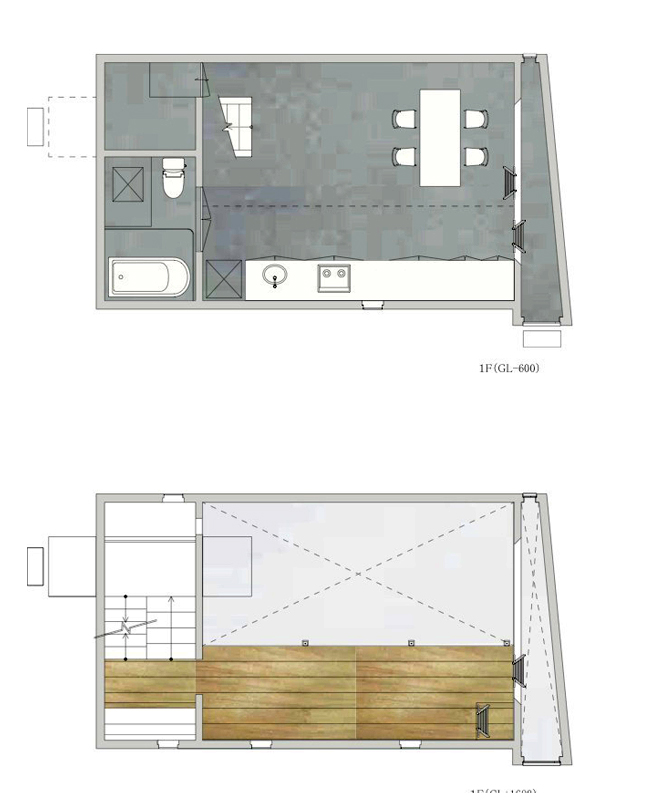

平面图01 Plans01

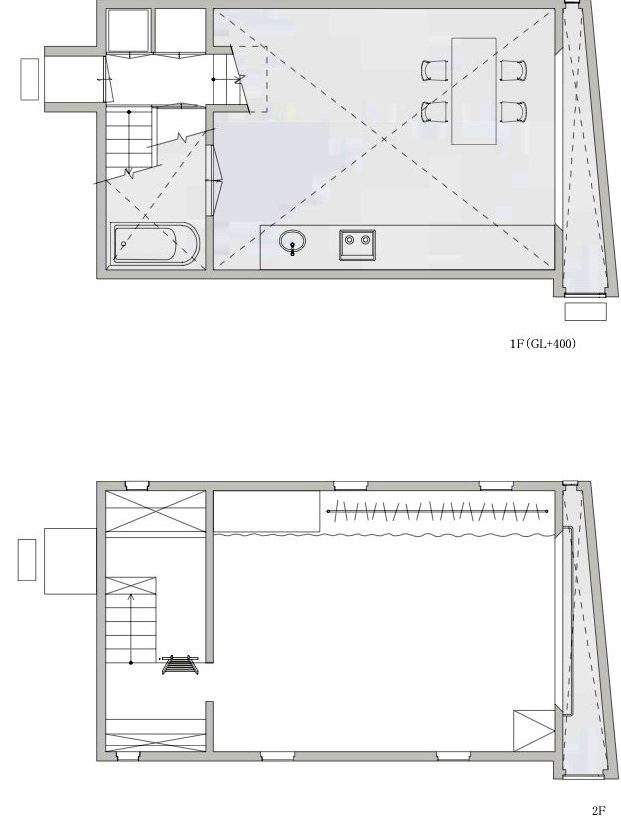

平面图02 Plans02

平面图03 Plans03

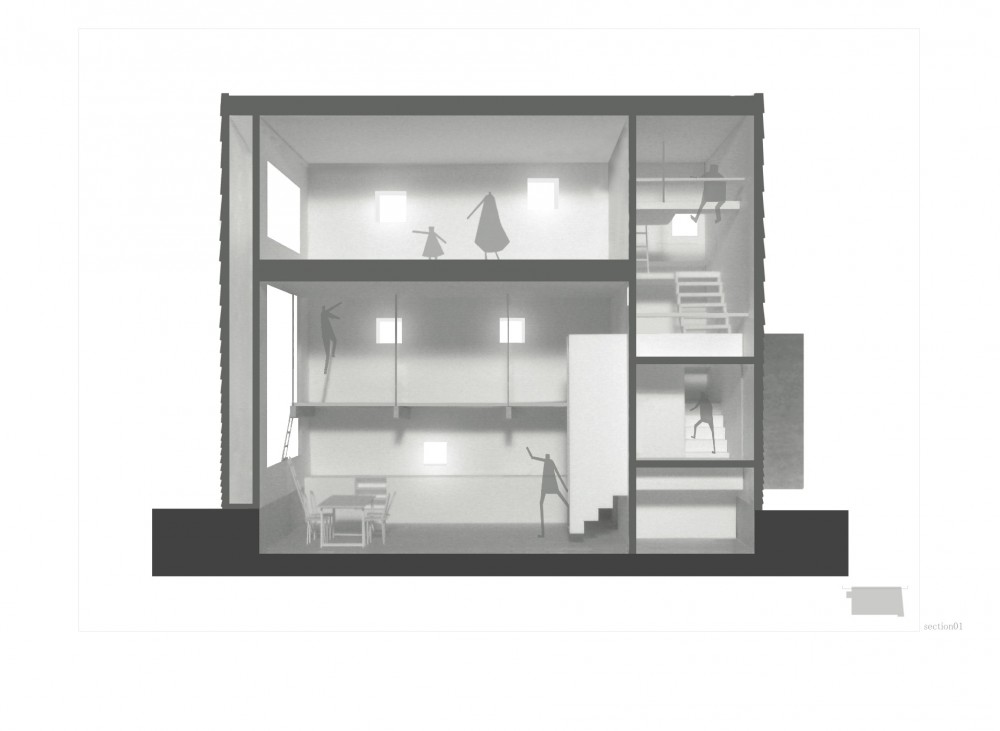

剖面图01 Section01

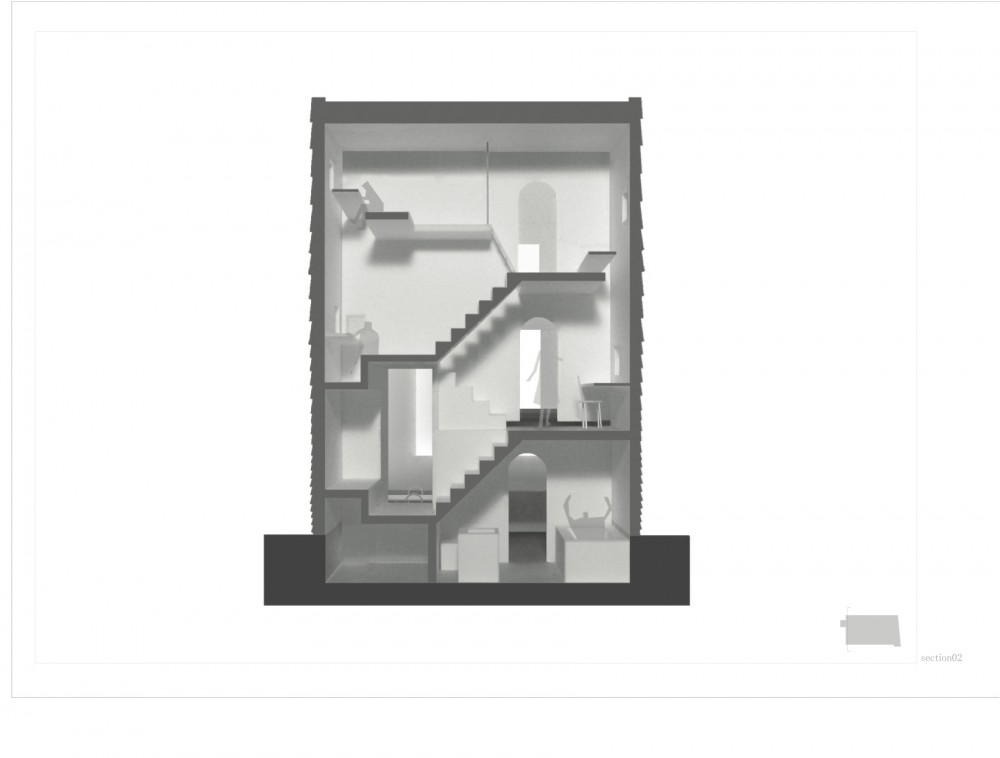

剖面图02 Section02

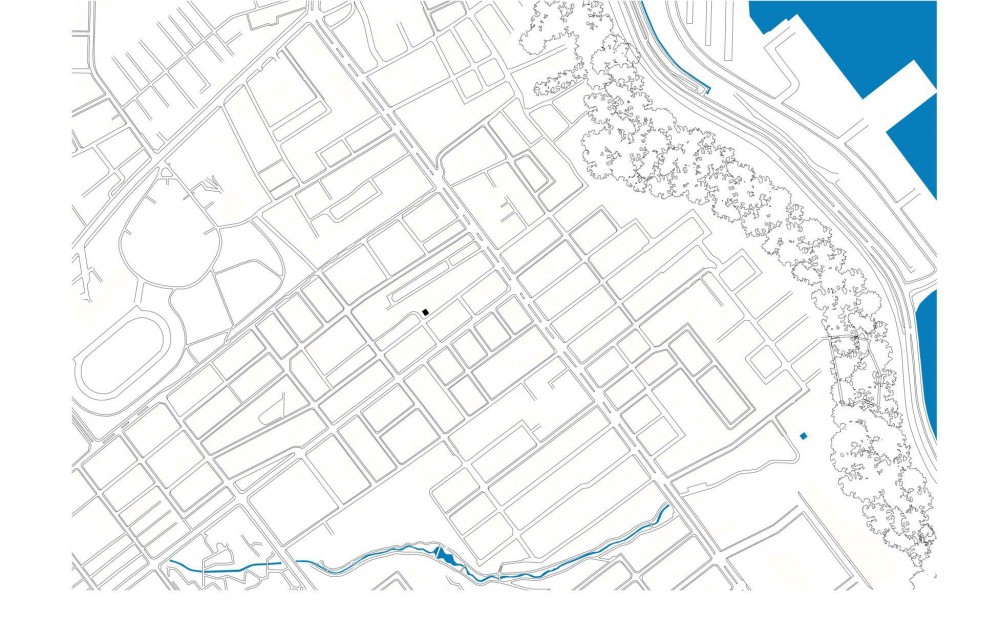

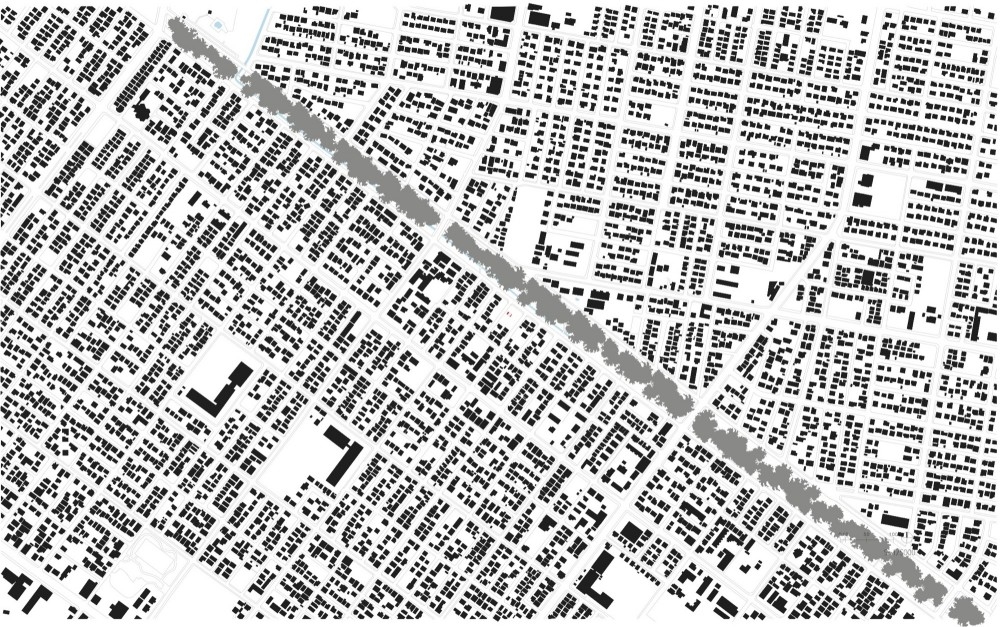

位置01 Situation01

位置02 Situation02

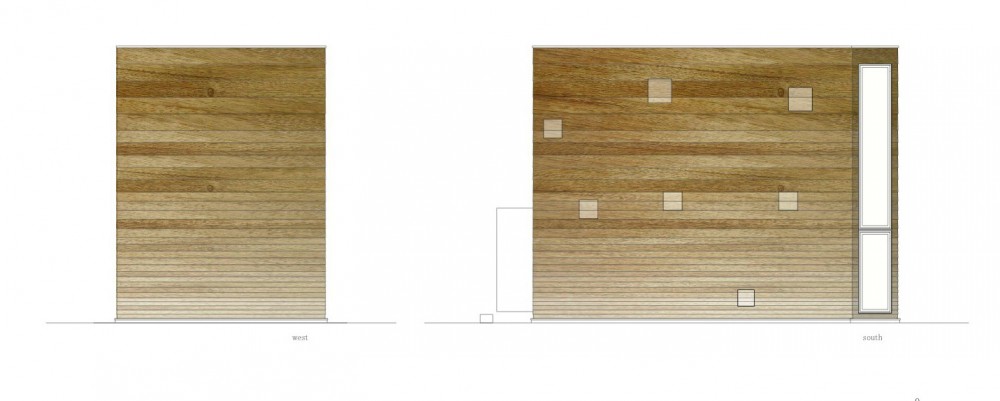

西&南立面图 West & South Elevations
