Brandt和Simon设计的独栋别墅

别墅

作者：dandan0906

Single Family House / Brandt + Simon Architekten
设计方：Brandt + Simon Architekten建筑事务所
位置：德国 柏林
竣工：2009年
分类：别墅建筑
内容：实景照片
图片：20张

结构设计：Christian Müller， Frank Niehues
占地面积：784平方米
图片来源：Michael Nast

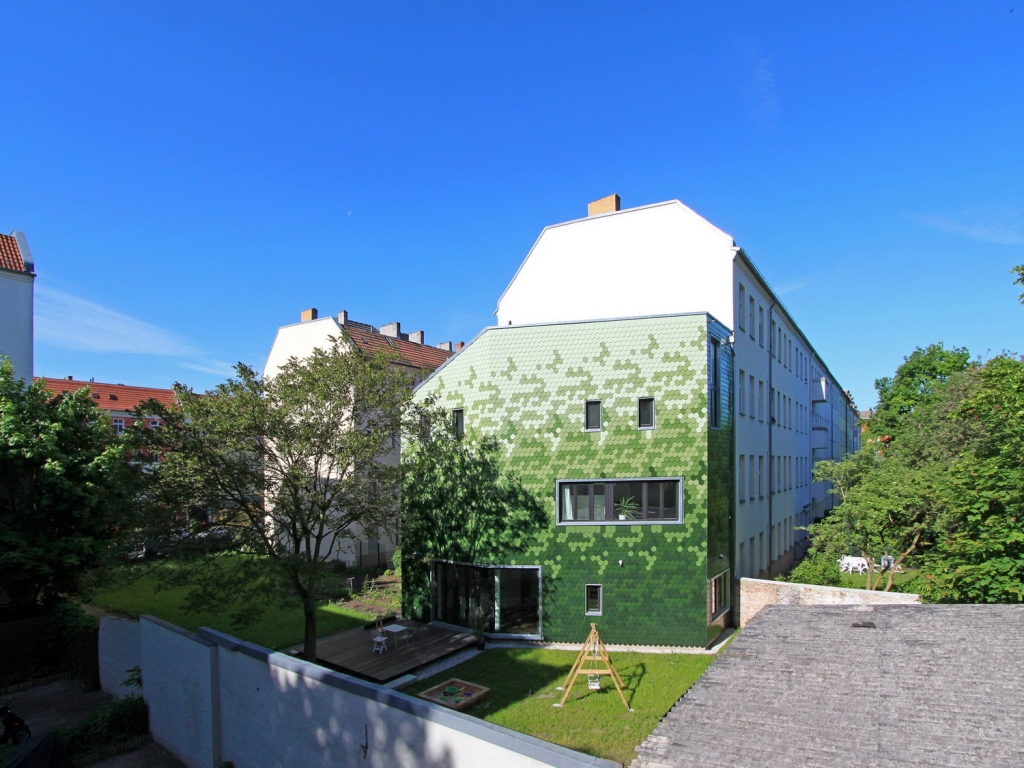

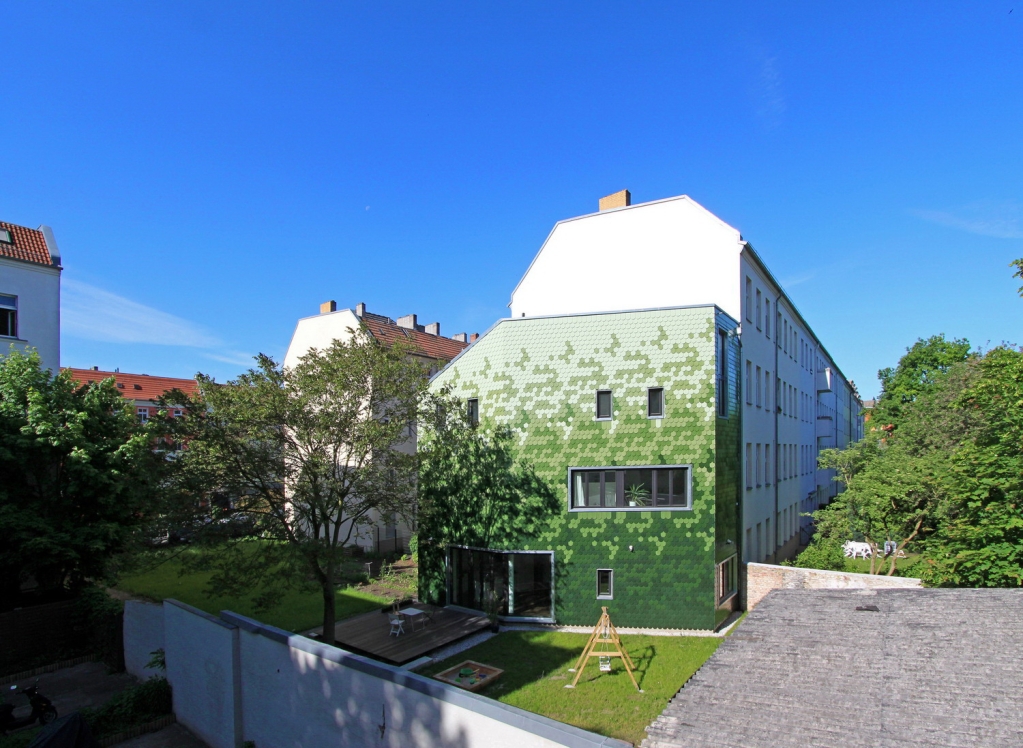

这是由Brandt + Simon建筑事务所设计的独栋别墅。它所具有的非典型的彩色磁砖表面使得这座建筑成为了城市织物中别具特色的图案。同时，隐匿于树木等绿色植物中的这座绿色建筑不会过分地吸引过路人的目光，在周围其他建筑中显得低调而与众不同。

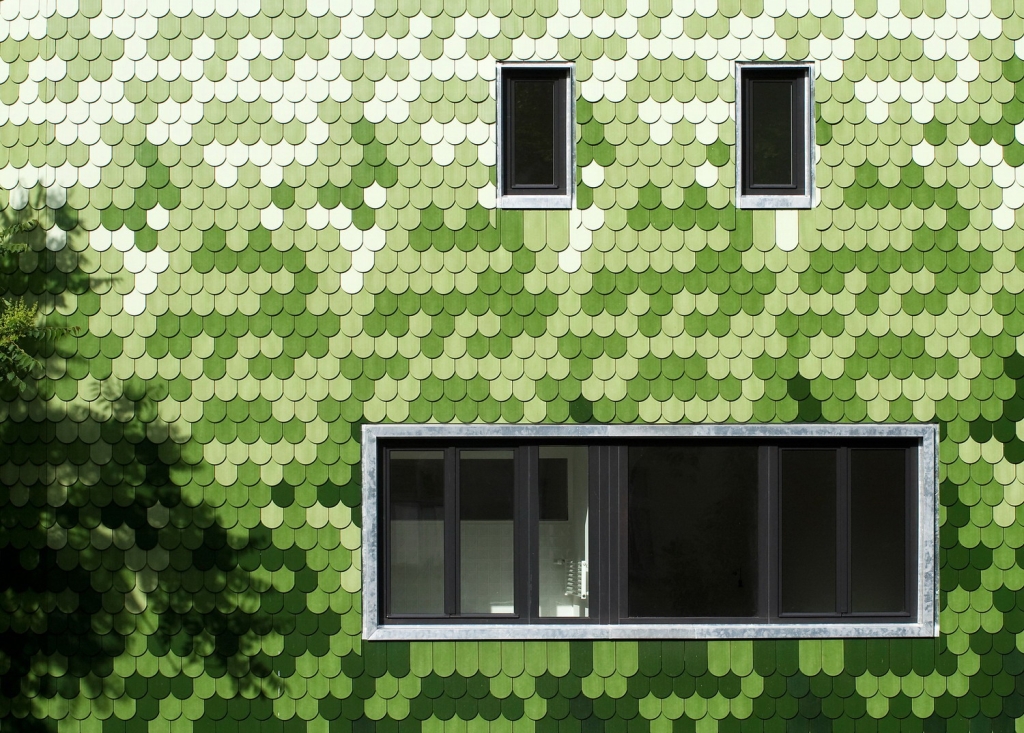

数量巨大的磁砖以及所选的色系促进了具有手工手感的传统建筑与整块表面的像素感间的交流。这种颜色梯度奠定了这种重复的形式，这让人想起了这里先前的幼儿园，也解释了这里的主人想要建造一座花园别墅的意愿。
在表面上大量使用磁砖的同时也照顾到了它的耐用性，这种潜在的设计理念为这座木结构建筑提供了富有科技感的完美外表。为了实现建筑的完全环保化，设计师专门使用了大量可回收的纤维纸来隔热，而室内热能则由太阳能板来提供。

译者： Wind巽

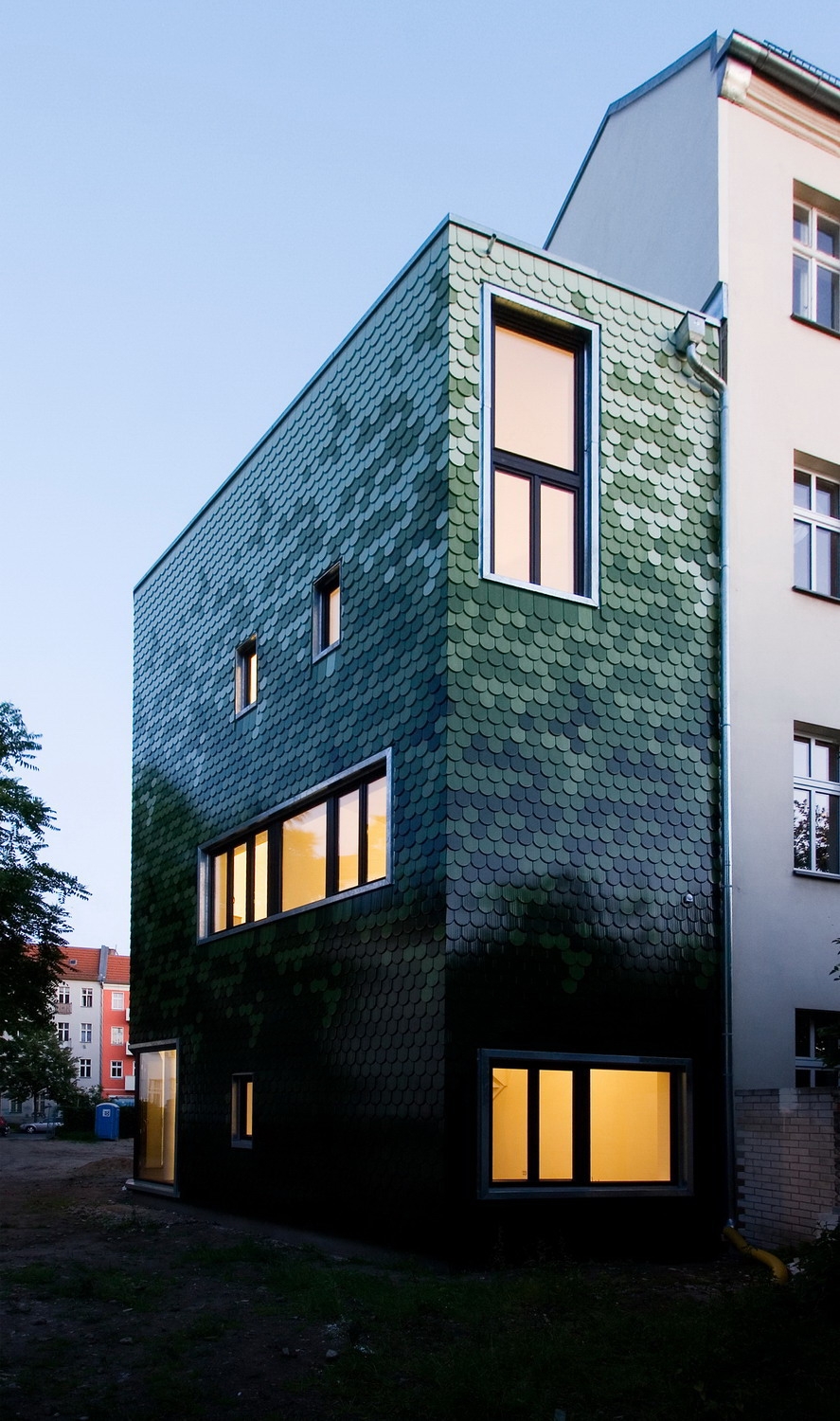

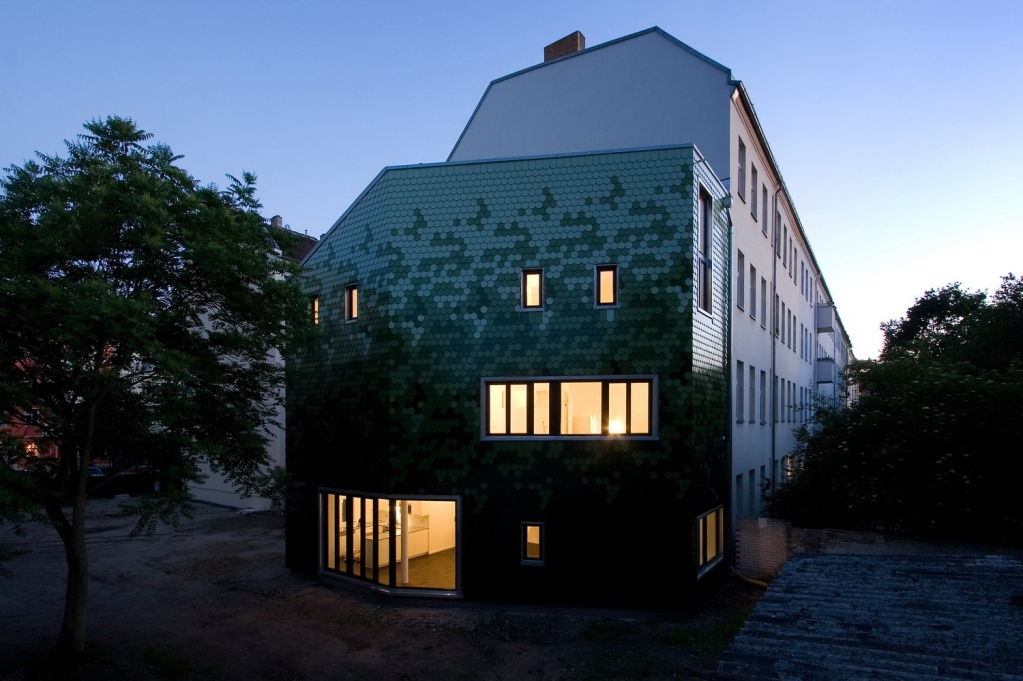

The untypical facade of coloured plain tiles make this house a peculiar new member of the urban fabric. Simultaneously the hasty passerby will not neccessarily take notice of the greenish structure blending with plants and trees deep in the gap between neighbouring buildings.

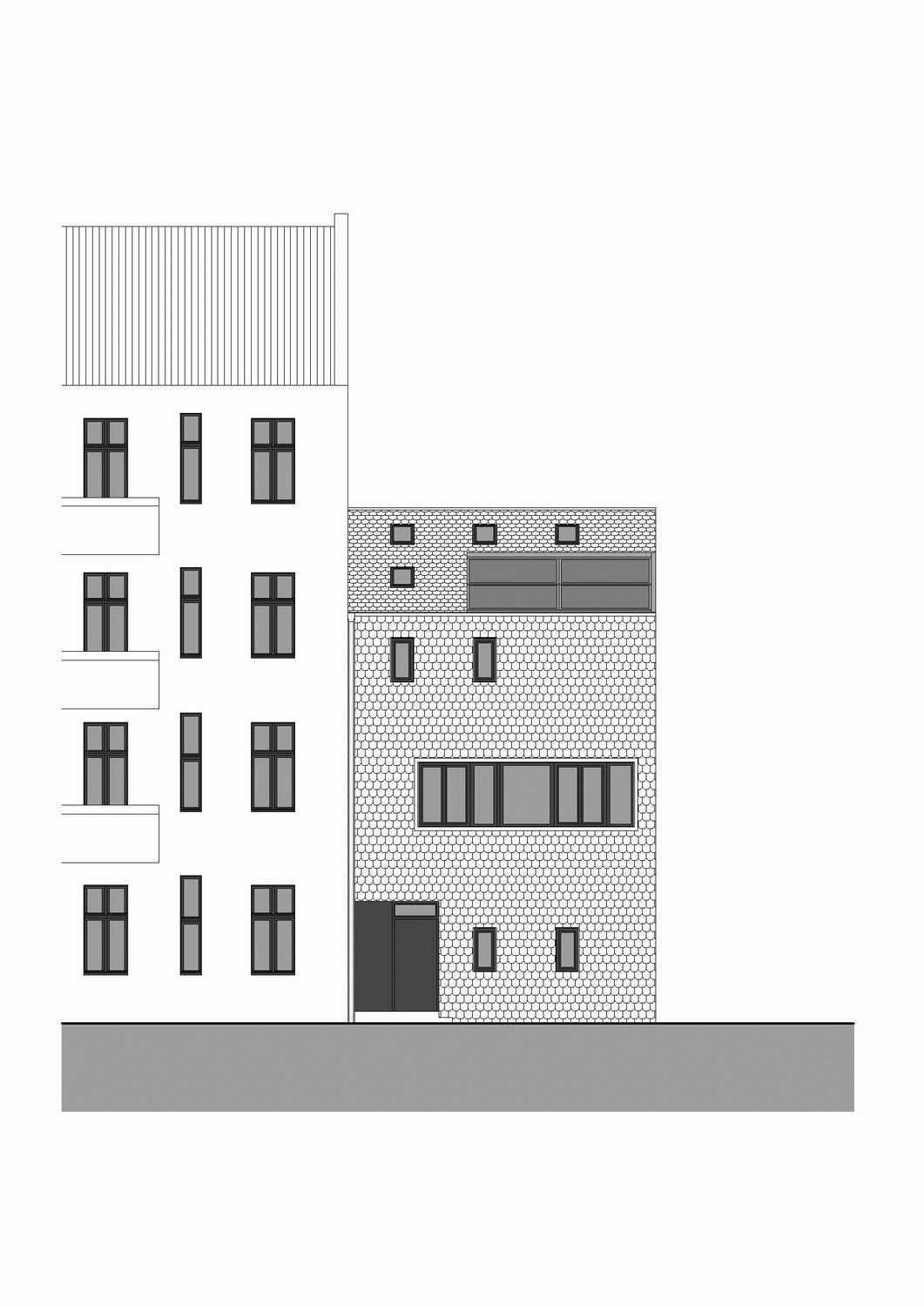

The huge number of plain tiles and the chosen range of colour lead to an interplay between the very traditional building material in its almost handmade haptic quality and the pixel-like apearance of the whole facade from a distance. The colour gradiant is laid out as a repeating pattern. It recalls the former nursery on the estate and also interprets the clients brief to build a garden house.

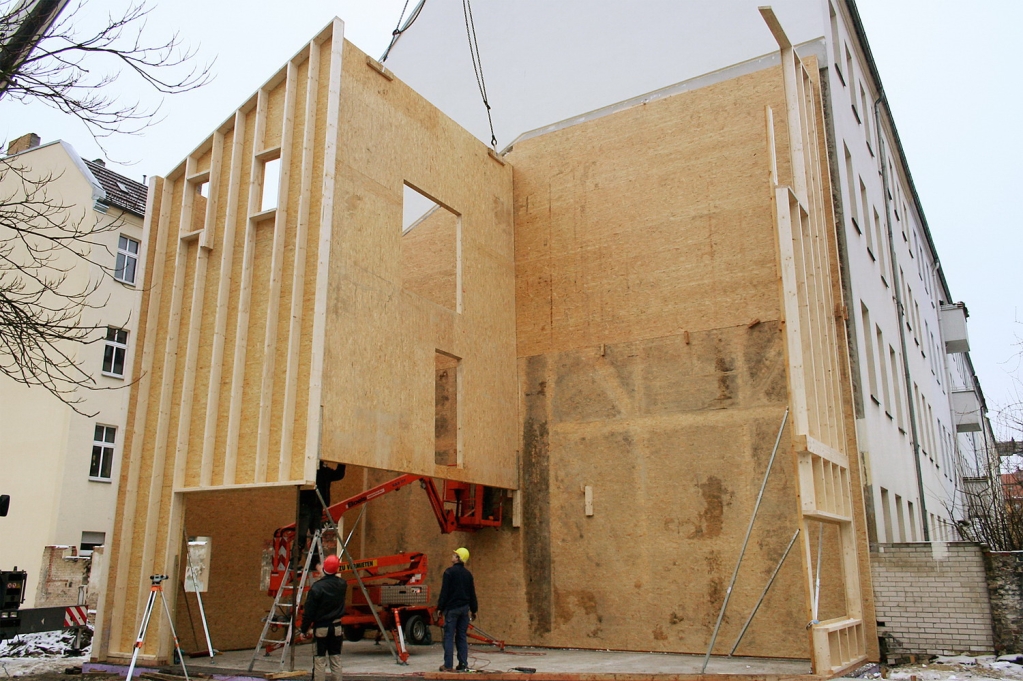

While using the plain tiles for the whole facade a massive and durable solution was found， which beside its design potential provides a technically perfect coverage for the timber frame construction behind. To complete the overall green thought of the building cellulose (recycled paper) has been used exclusivly for thermal insulation and heating is substantially supported by passive solar energy panels.
