瑞典林雪平锯齿屋顶别墅

别墅

作者：ya920725

Swedish linkoping sawtooth roof villa
设计方：FAF
位置：瑞典
分类：别墅建筑
内容：实景照片
图片：8张

锯齿屋顶别墅是由FAF设计建造的，别墅坐落在瑞典的林雪平，项目本来是为一对年轻的夫妻设计的，但是很快就变成了扩张生活的概念。为了与发展需要相一致，别墅的设计理念是可以逐渐被房间填满的框架结构。工作室的人说：“当孩子长大后可以再增加另外一个卧室；如果需要在家里工作的话就增加一个书房；当经济条件允许的时候可以再增加一个宽敞的卫生间。”别墅的外表是固定不变的，包括两堵重墙，这两堵墙由可伸展的滑动玻璃门分开，墙顶上有一个更轻的体量。

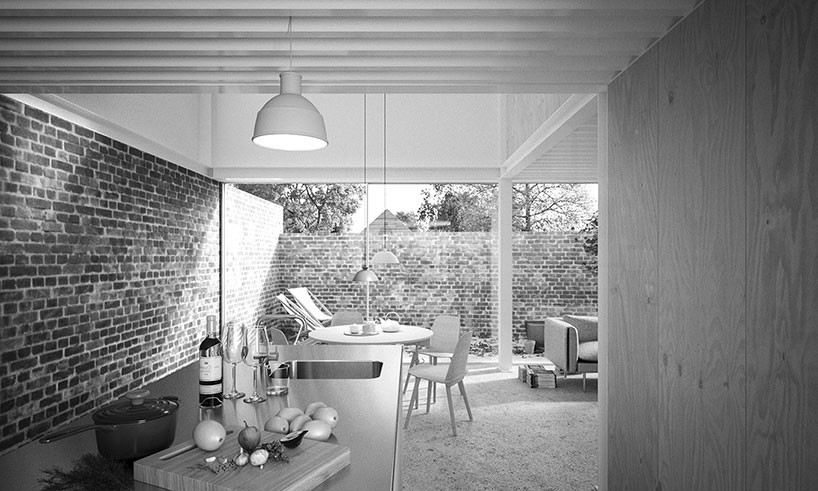

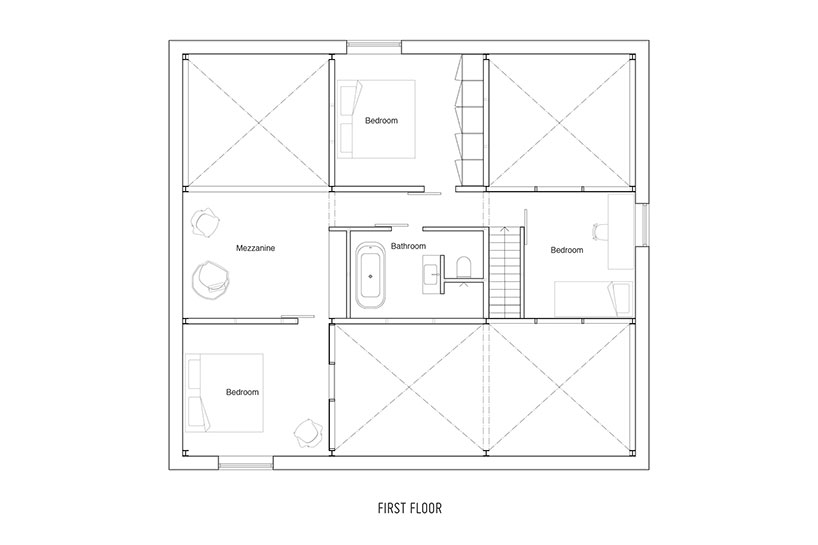

别墅的边界可以由石头、混凝土或者是回收的砌砖做成。别墅的上部是绝缘面板的结构。这样的设计构想是由钢架构支撑着的，这些刚构架就像网格，在需要的时候可以被嵌入，比如在支撑新楼面的钢梁之间增加一个梯形料片，并在钢柱之间建造一个简单的立柱墙。修建别墅时使用的SIP面板允许窗户自由的排列，也允许在合并的结构中增加窗户，锯齿屋顶别墅的内部空间都是使用的漫射光。别墅的基本配置：一个浴室、一个洗衣室和厨房占据着别墅的中央，而周围的区域则是可调节的。

译者：蝈蝈

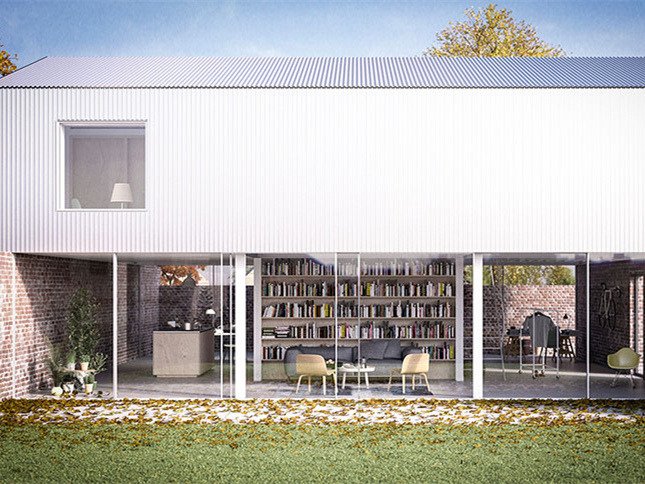

‘House with a saw-tooth roof’ by forstberg arkitektur och formgivning (FAF) started as a project for a young family in linkoping, sweden, but soon turned into a concept for expandable living. Intended to grow along with developing needs, the house is conceived as a framework that can gradually be filled with rooms. ‘Add an extra bedroom when the children get older, a study if you need to work from home or a spacious bathroom when you can afford it,’ the studio says.The outer envelope is fixed, consisting of two heavy walls separated by a stretch of sliding glass doors, with a lighter volume on top.

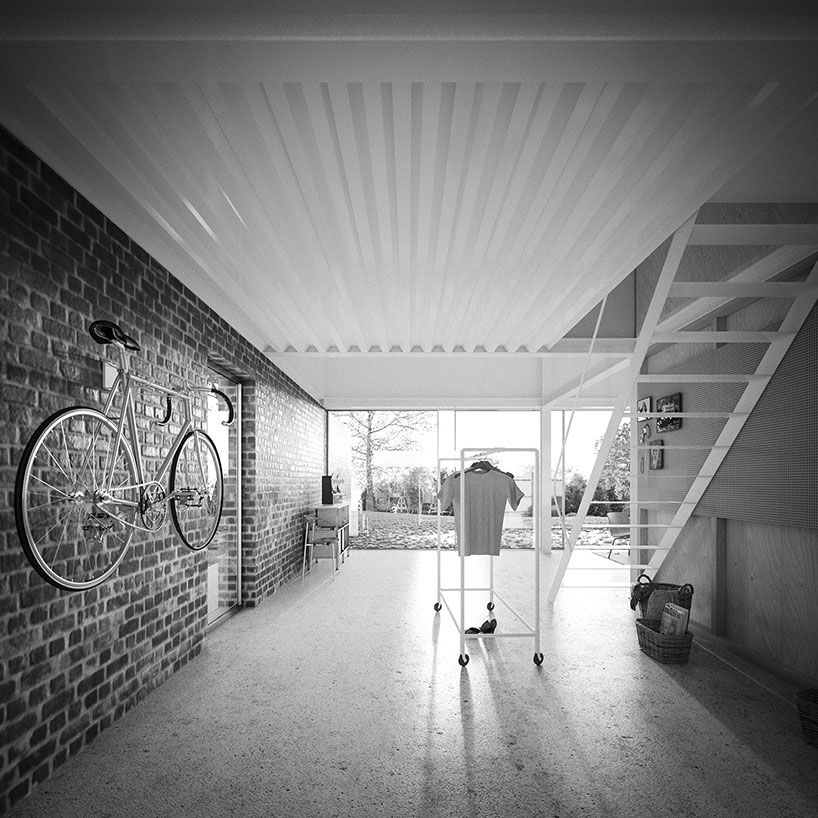

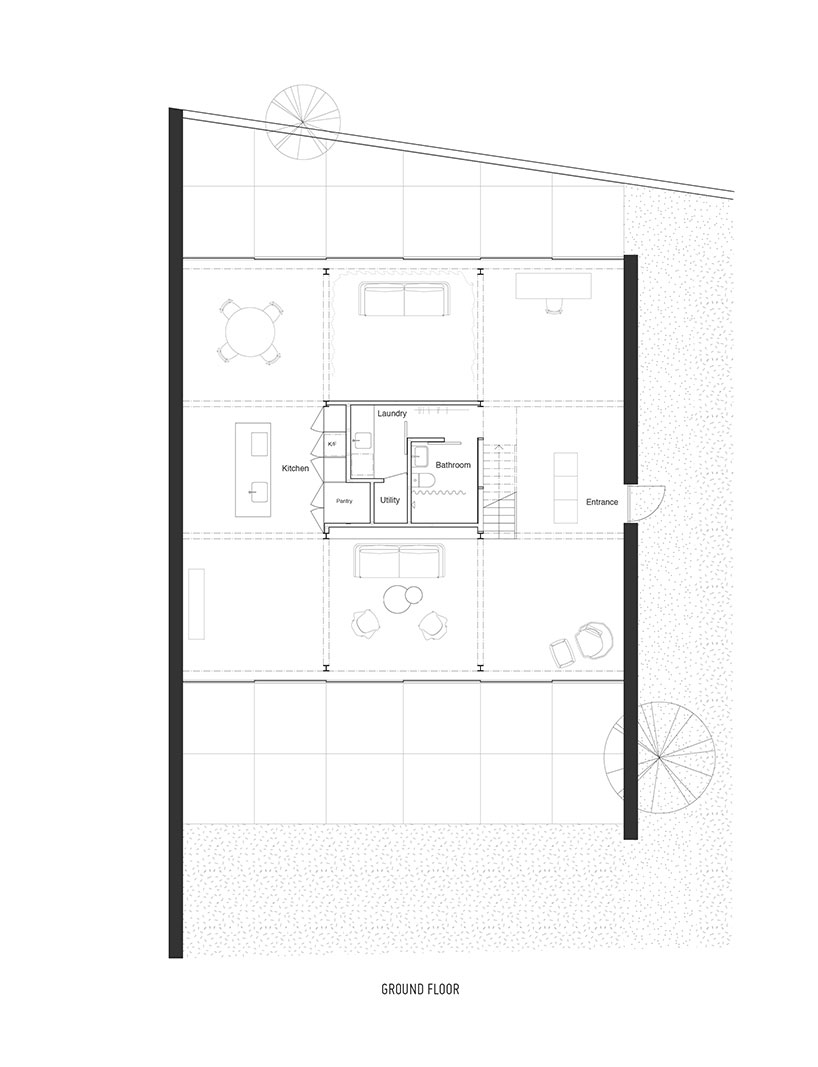

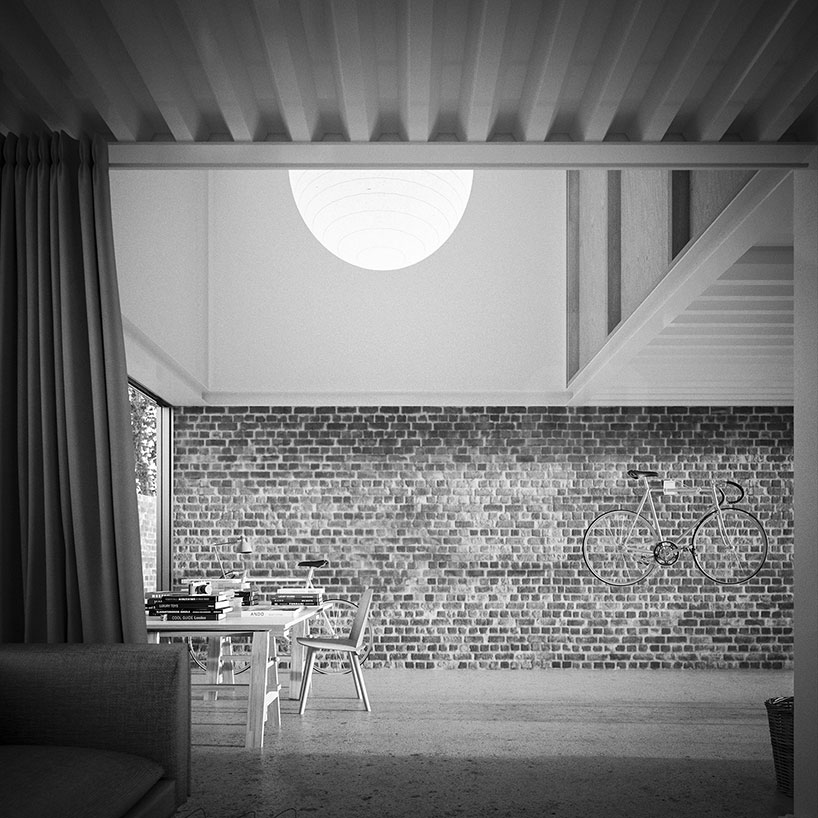

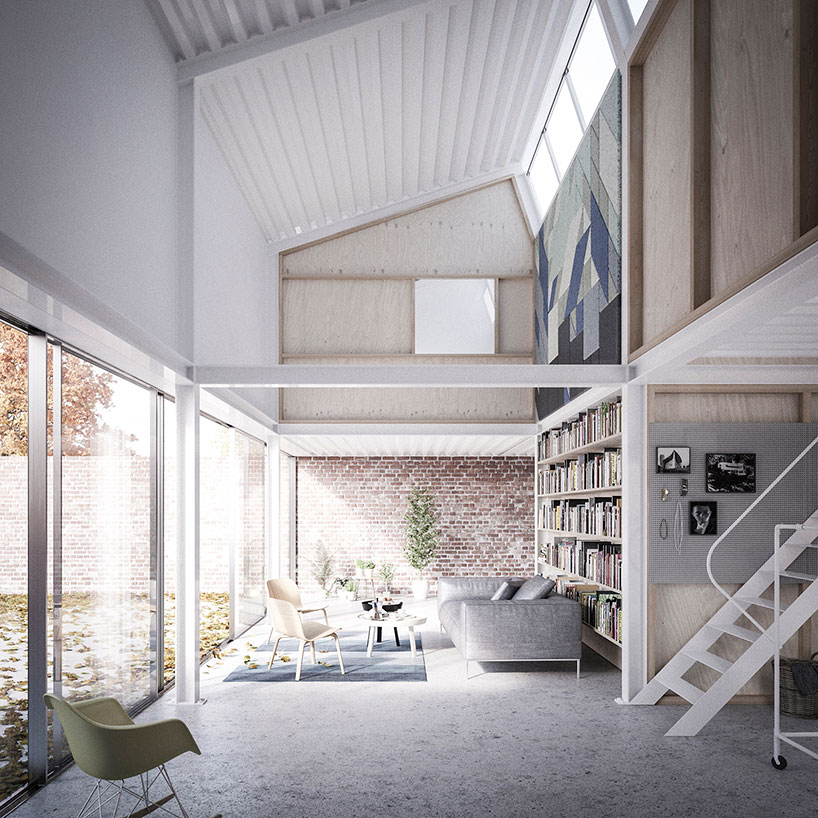

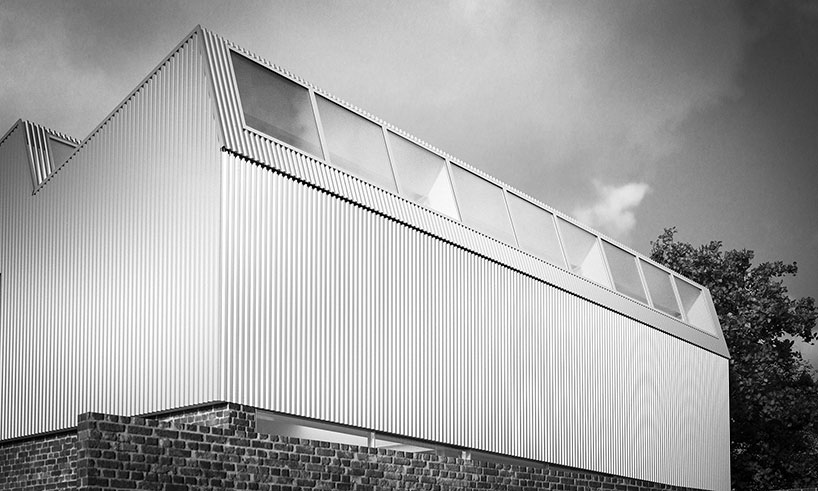

The boundary could be made of stone, concrete or as in this case, recycled brickwork, while the the upper portion is made from structural insulated panels. This construct is supported by a steel framework which acts as a grid into which functions can be inserted as needed: add a trapezoidal sheet between the steel beams to support a new floor and put up a simple stud wall between the steel columns. The SIP-panels allow windows to be placed freely and additional windows to be incorporated when inserting programs, while the saw-tooth roof provides a diffused light to the whole interior.At the basic configuration, a bathroom, the laundry and the kitchen occupy the center of the house while the space around them is easily adjustable.
