澳大利亚奥斯汀莫海滩别墅

别墅

作者：已注册123

Australia Aositingmo Beach Villa
设计方：Alexander SymesArchitect , G+V architecture
位置：澳大利亚
分类：别墅建筑
内容：实景照片
设计团队：Alexander Symes, FurioValich, Marc Orberhauser, Alicia Pozniak, Julian Carrasco, Edwin Venegus
图片：13张
摄影师：Nicholas Watt

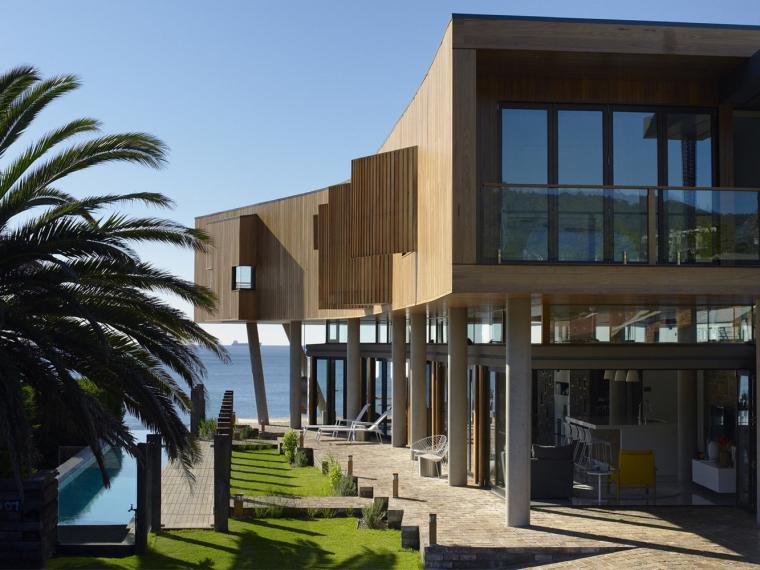

这是由Alexander Symes Architect设计的奥斯汀莫海滩别墅。这是一座低生态影响的家庭海滨住宅，以操作最小化和能源具体化为特点，有效储蓄和再利用水体，鼓励生物多样性，同时也是享受家庭生活的健康之家。该住宅通过中央的肺部，即双层通高的中庭，引入空气，如果室内温度超过26度，则可通过肺部里的传感器进行被动式分层，切换到混合模式，帮助交叉通风。该住宅由三个不同的元素组成。元素1是布置了卧室、浴室等私密功能的漂浮盒子，元素2是连接周边环境的首层空间，而元素3是半地形的凉廊空间，用于储物和恶劣气候期间的次要公共空间。

译者：筑龙网艾比

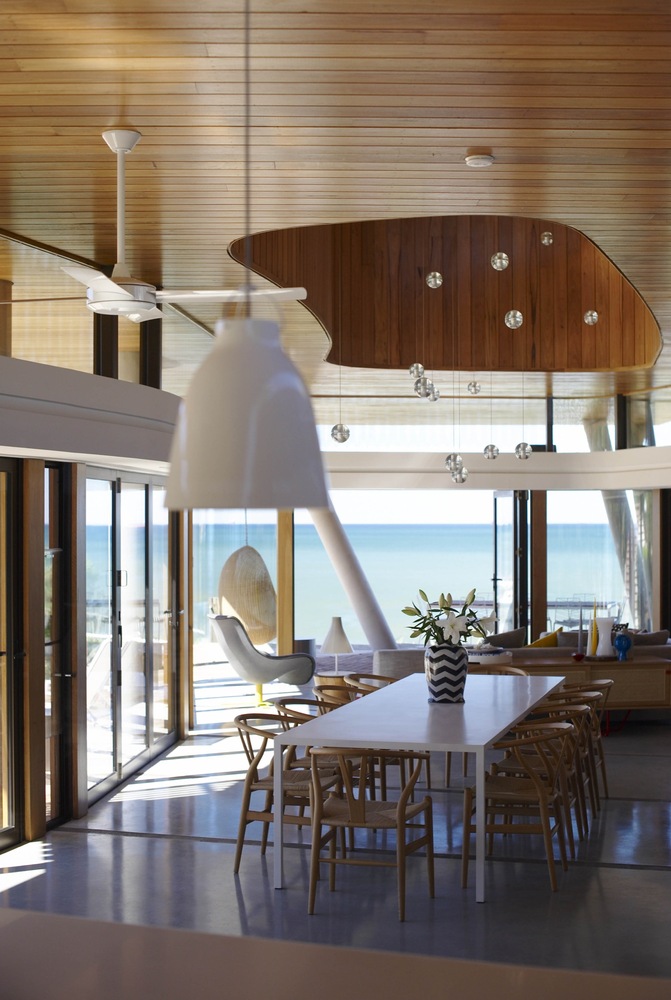

From the architect. A low ecological impact family home by the beach that minimised operational and embodied energy, efficiently captured and re‐use water, encouraged bio‐diversity and is also be a healthy home for a family to enjoy. The house breaths through its central lung – the vented double height atrium space which draws air through the house passively via stratification – a sensor sits within this lung so if its temperature exceeds 26 degrees the passive vents switch to hybrid mode to help draw out the air at a higher exchange of air.

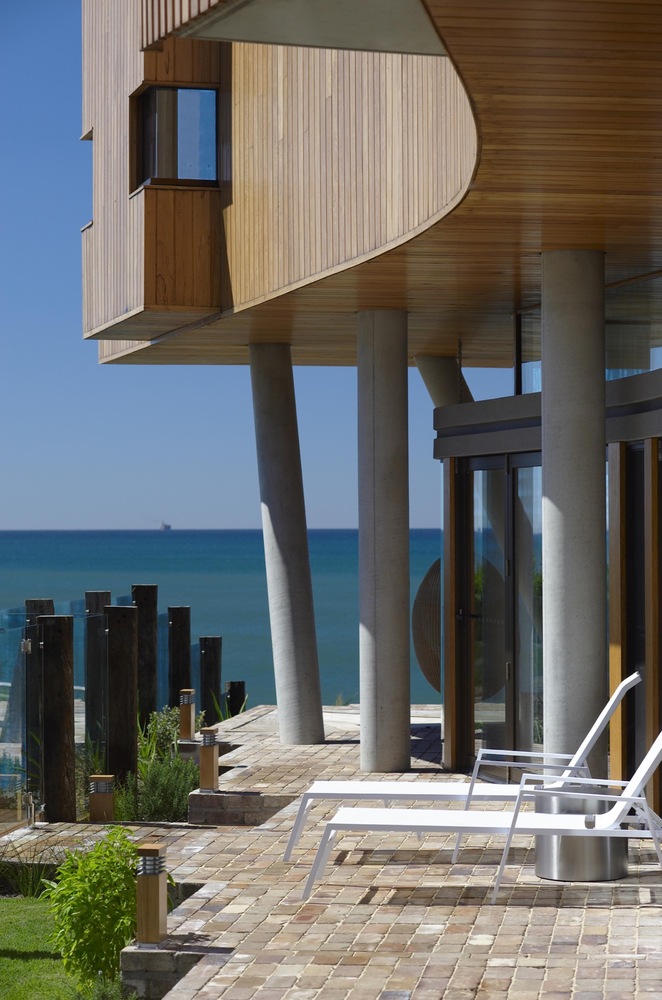

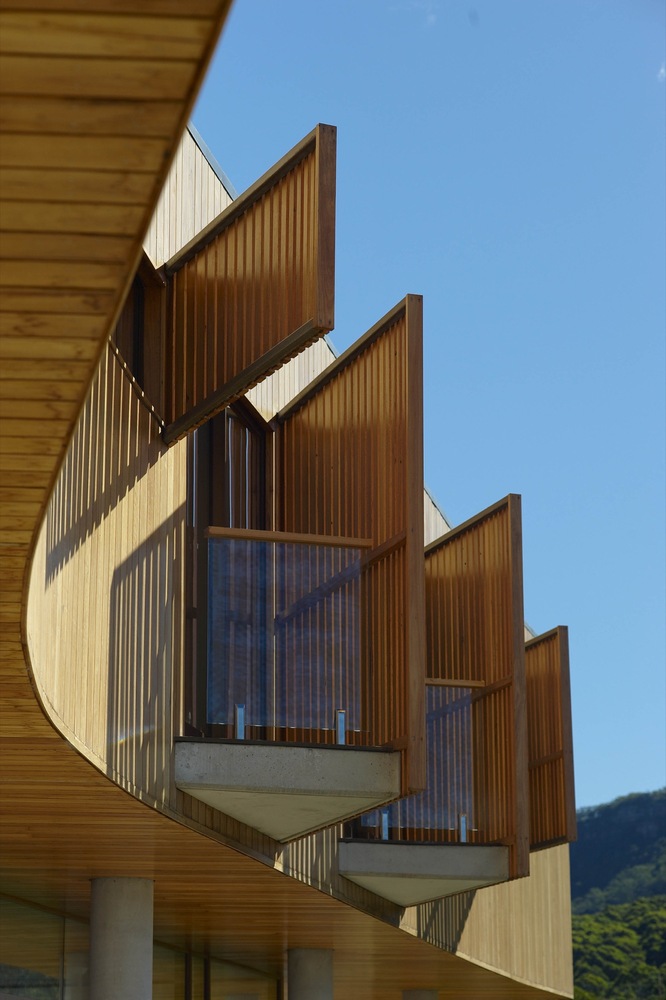

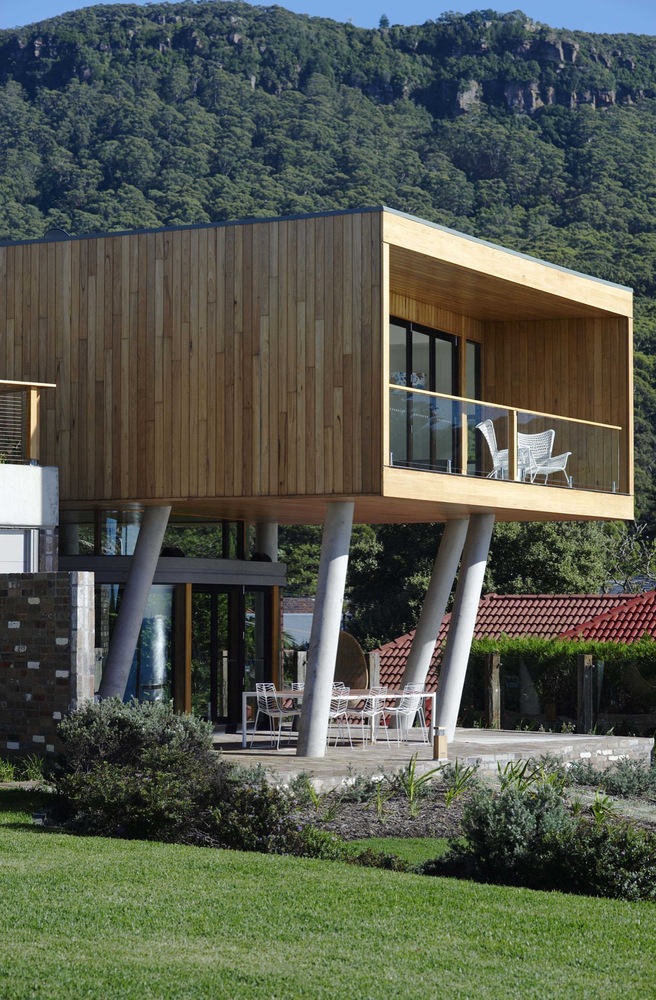

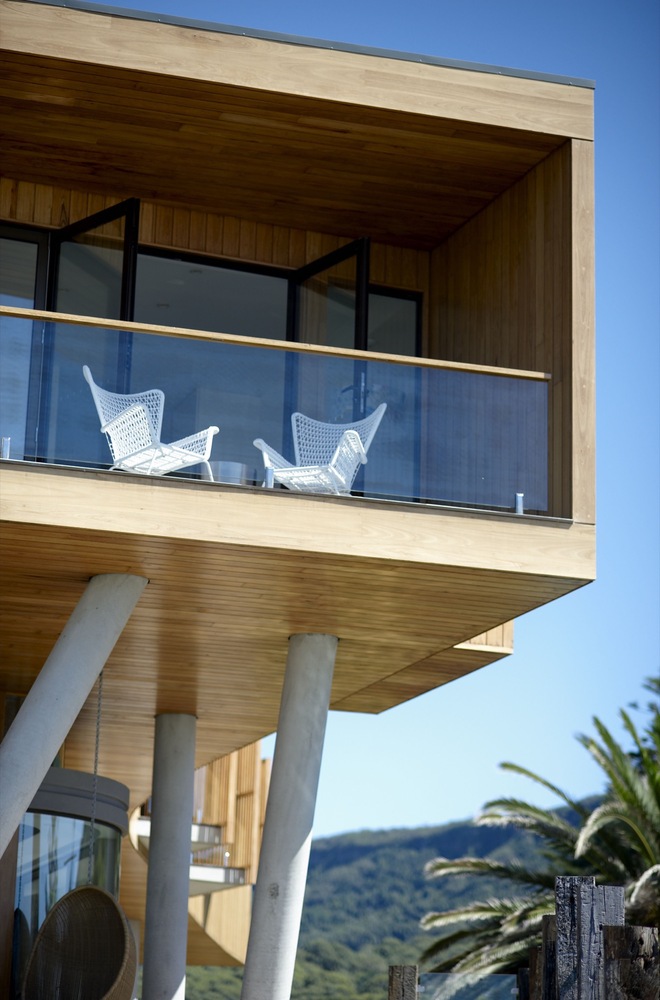

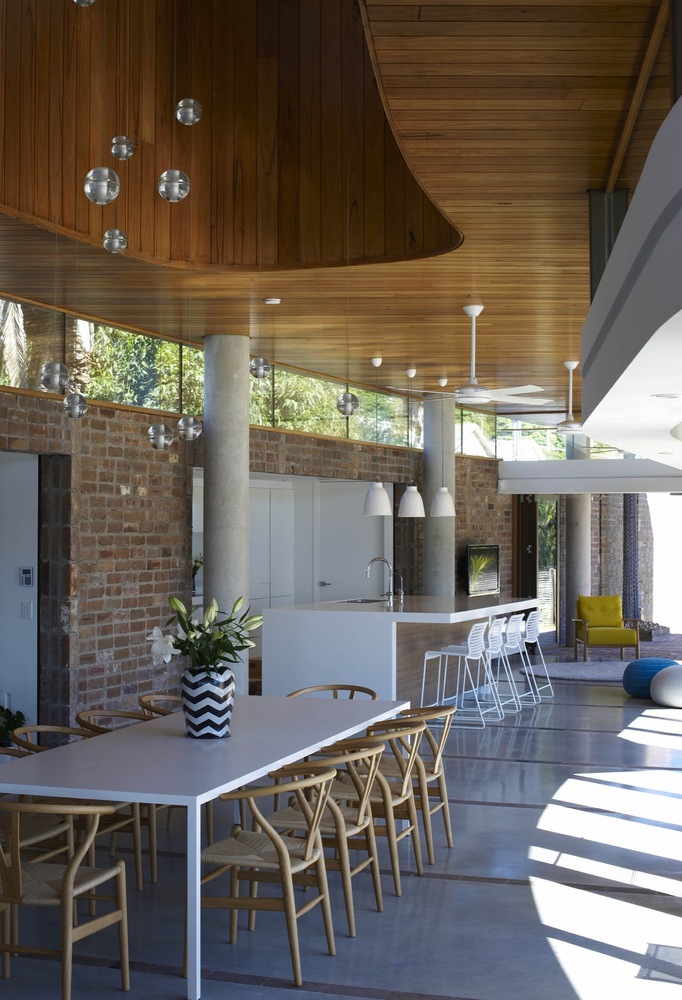

The dwelling has been designed as three distinct elements. Element 1 is the floating box which houses the private functions such as bedrooms and bathrooms. Element 2 is the ground floor that connects with the surrounding environment and Element 3 is the sub‐terrain loggia space that is used for storage and as a secondary communal space during inclement weather.Each element is performs a different function and as such has differing thermal mass, insulation and shading strategies to optimise how the spaces act passively during both summer and winter.

A house may be designed in accordance with ecological principles, however if the occupants are not aware of how to operate the dwelling to optimise its thermal comfort, daylight, energy generation systems and durability of materials then the dwelling is not operating to its full potential. Therefore an electronic updatable home user guide that is linked to the owners computer and can be accessed via the internal communications dashboard informs the occupant of which windows and at what time of the year and day a purge should be implemented. Similarly the home user guide reminds the owner when the building requires a high pressure hose down to prolong life of he external cladding materials in the harsh salt spray environment and what the number of the tradesperson is to do it. The home user guide acts as an operations and maintenance manual written in plain English which can be passed onto future owners or tradespeople so they know how the building is to operate.

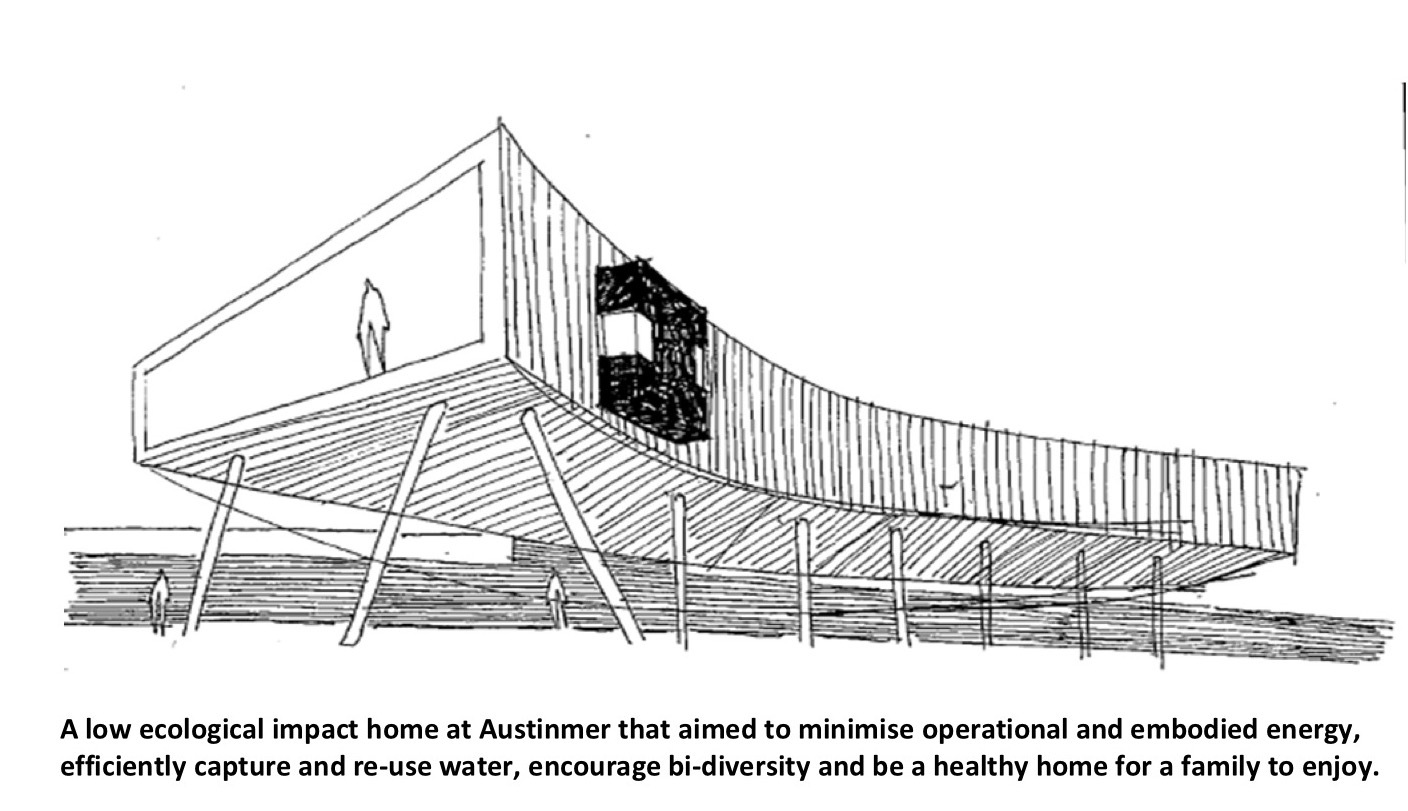

澳大利亚奥斯汀莫海滩别墅草图
