挪威Tussefaret别墅

别墅

作者：乘着帆船45

Norway Tussefaret villa
设计方：Lie ØyenArkitekter
位置：挪威 济州岛
分类：别墅建筑
内容：实景照片
委托方：Kamran Shalchian-Tabrizi
图片：17张
摄影师：Fin Serck-Hanssen, Nils Petter Dale

这是由Lie ØyenArkitekter设计的Tussefaret别墅。客户想要一座经济适用的小住宅，适合一家人居住，并设有可出租的工作室。建筑师使用了预制混凝土元素解决了这个问题。该别墅为一座60平方米的双层独栋住宅，紧凑布局，可以竖向划分为一个主体单元以及一个出租单元。结合在一起时，这两个单元可提供四间卧室、两间浴室以及两间起居室。这个构思可以创建一个混凝土的“壳体”，也就是单房住宅，也可根据实际情况划分为两层，为两个孩子留有空房和出租单元。随着设计的深化过程，该住宅变得更为传统，但“壳体”的构思仍得以保留。住宅使用了预制混凝土元素。隔热夹心板应用在室内外饰面中，使得整座建筑得以快速完工。

译者：筑龙网艾比

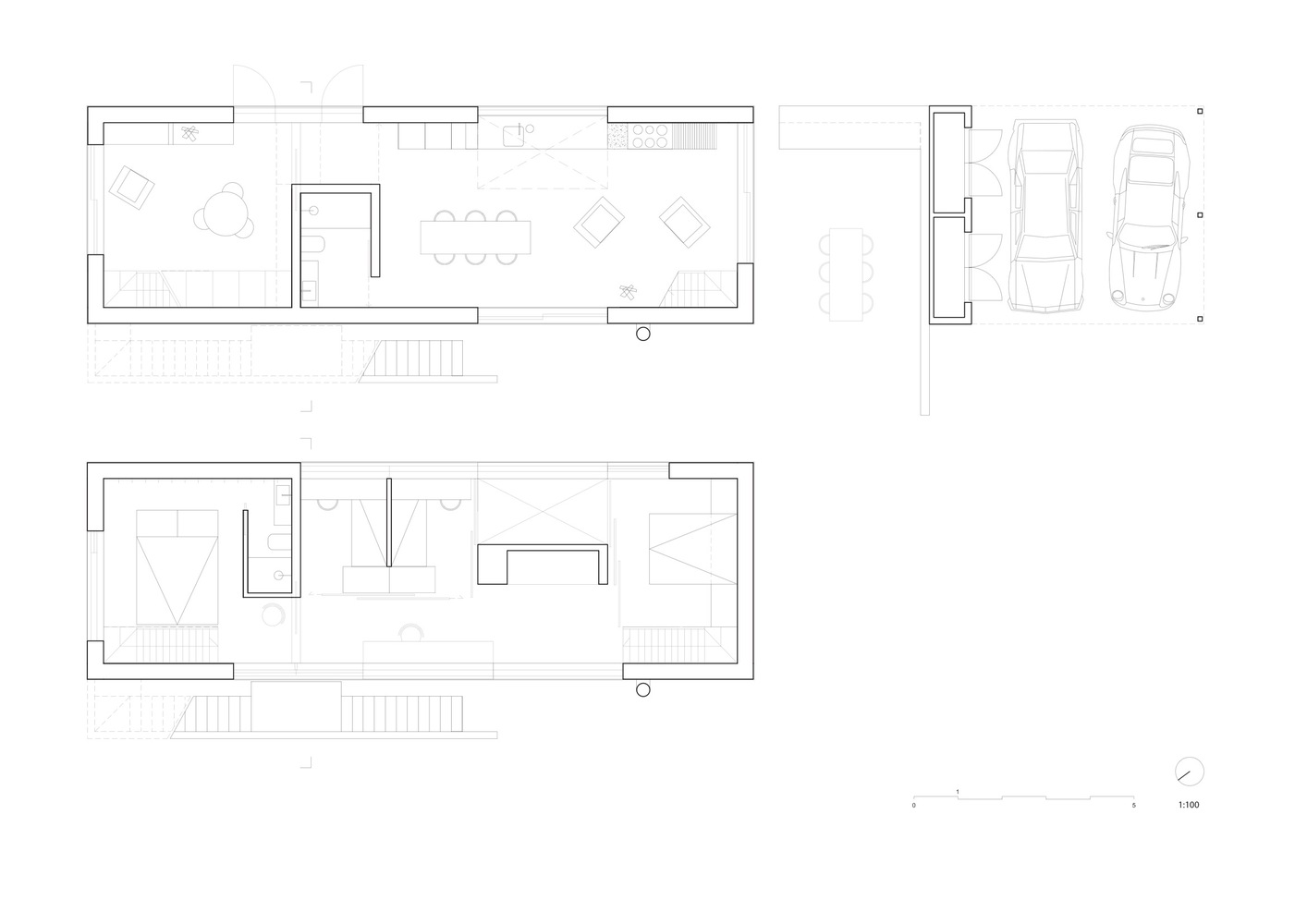

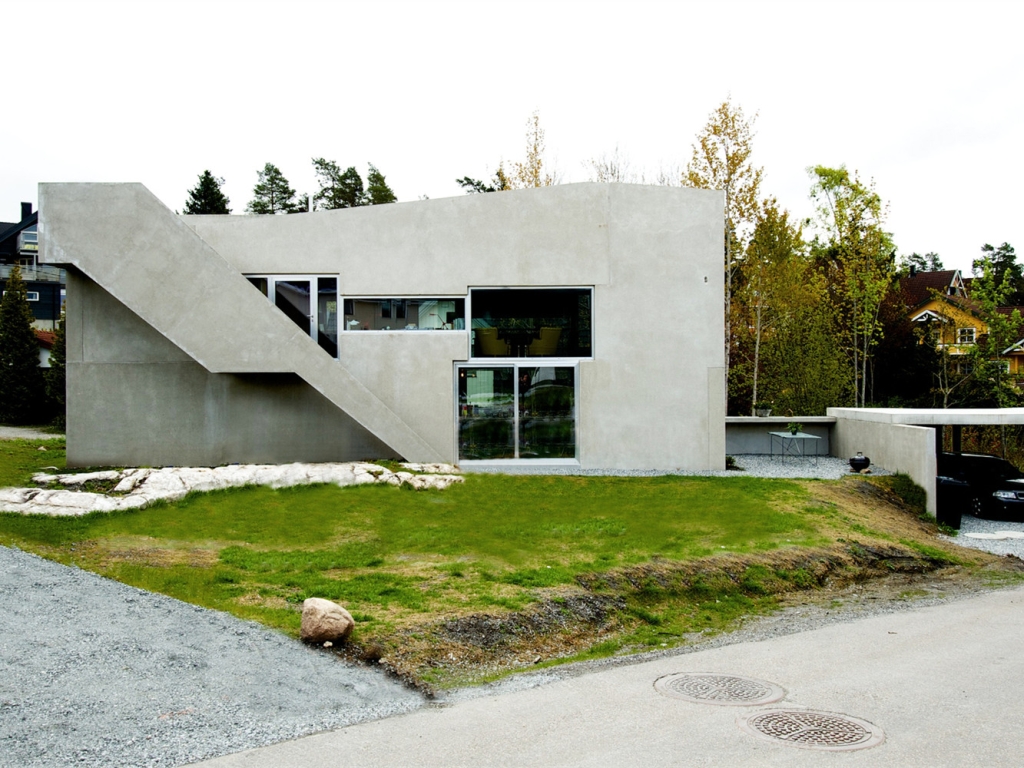

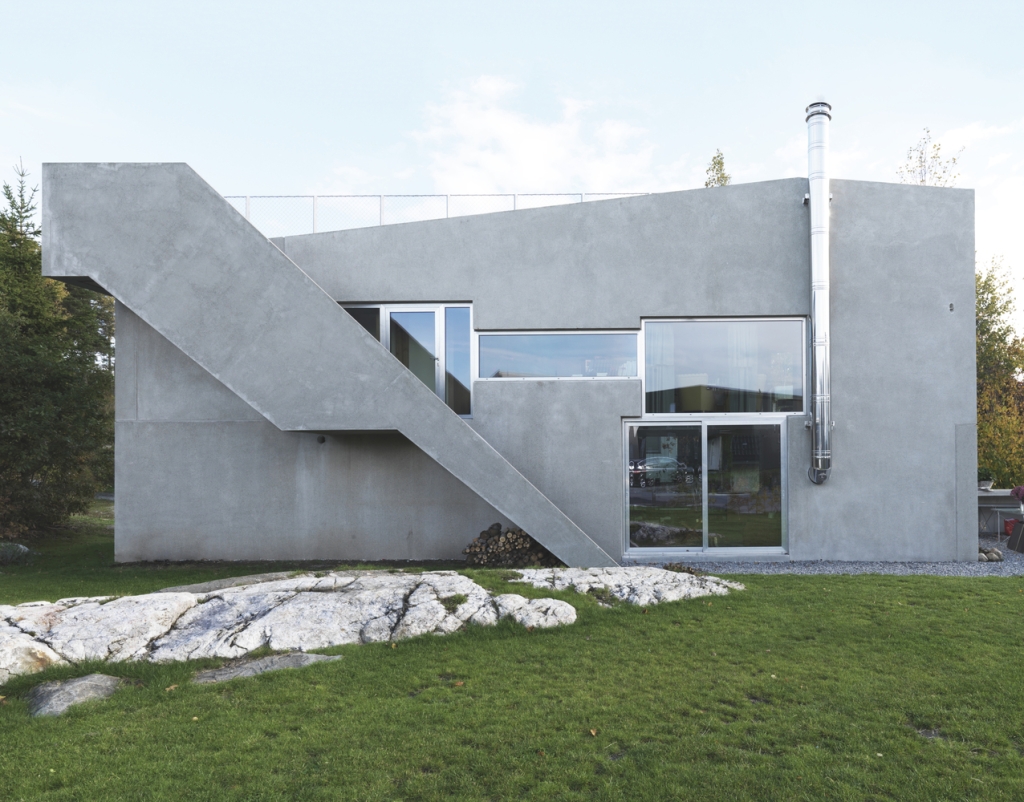

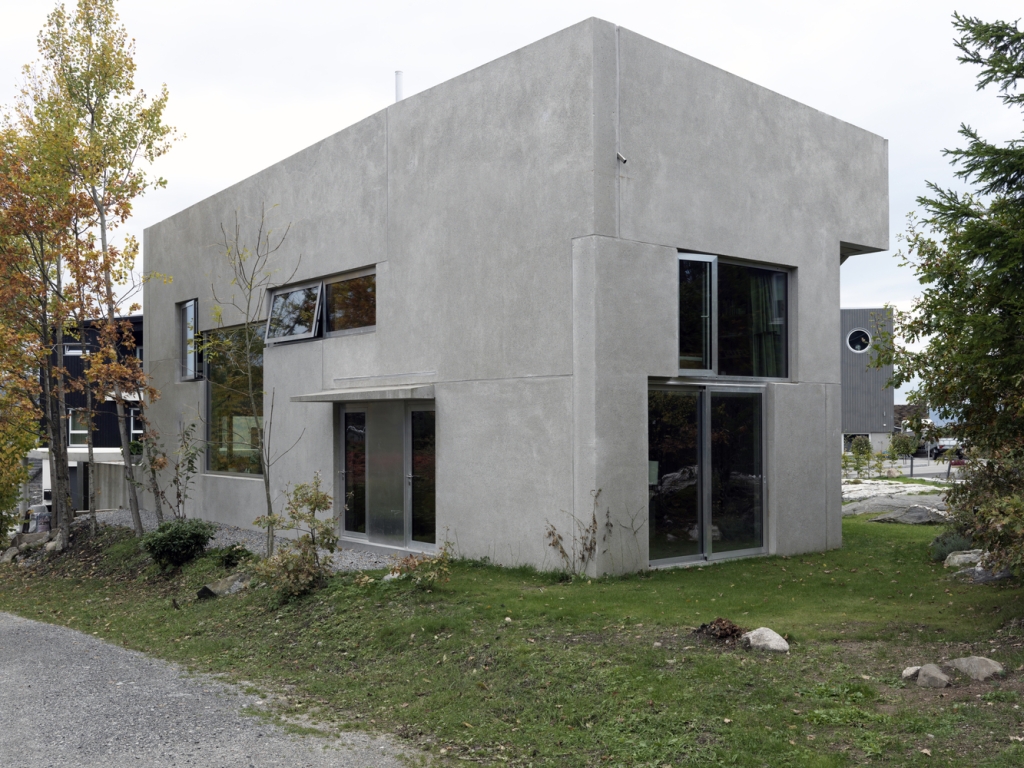

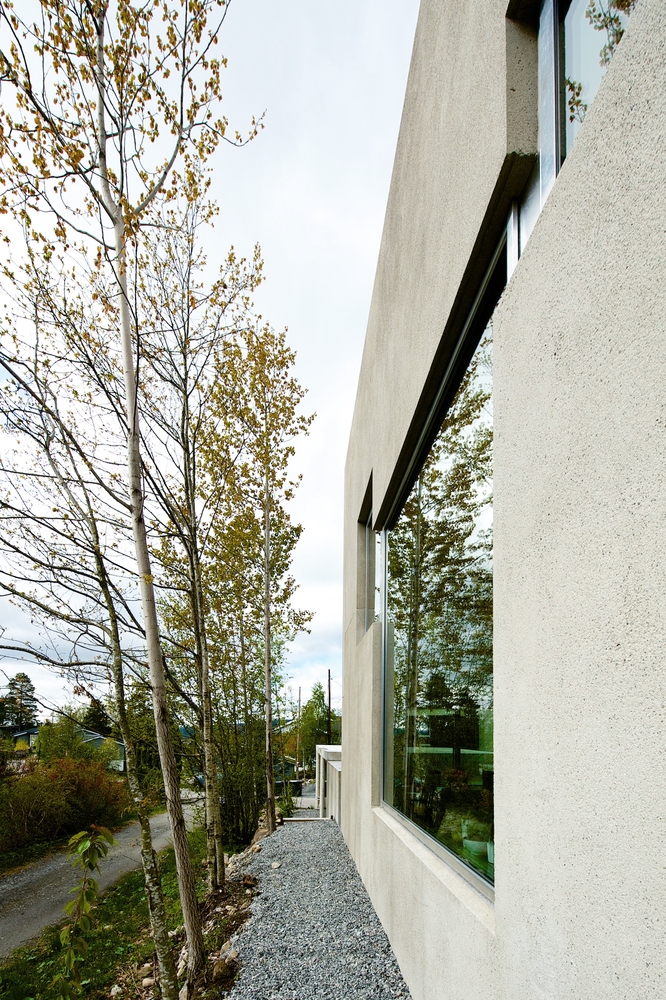

From the architect. The client wanted an affordable little house, with room for one family and lettable studio. Lie Øyen solved the task with a puzzle of prefabricated concrete elements.Villa Tussefaret is a 60 m2 compact single family two storey house. It can be divided vertically into one main unit and one rental unit. Combined, these two units provide four bedrooms, two bathrooms and two living rooms. The idea was to create a concrete “shell”, a one-room house that could later be divided into two floors, which had to have room for two children and a rental unit. Through the design process the house became slightly more conventional, but the idea of the “big shell” is maintained. The house is made from prefabricated concrete elements. The insulated sandwich panels were deliveres ready to use, with exterior and interior finish. This made it possible to complete the structure quickly. The elements are intended as single pieces that are assembled and rest on each other. Their size is close to the maximum for transportation and assembly. Each element has a unique shape, and they are combined so that the spaces between them make up the window openings.

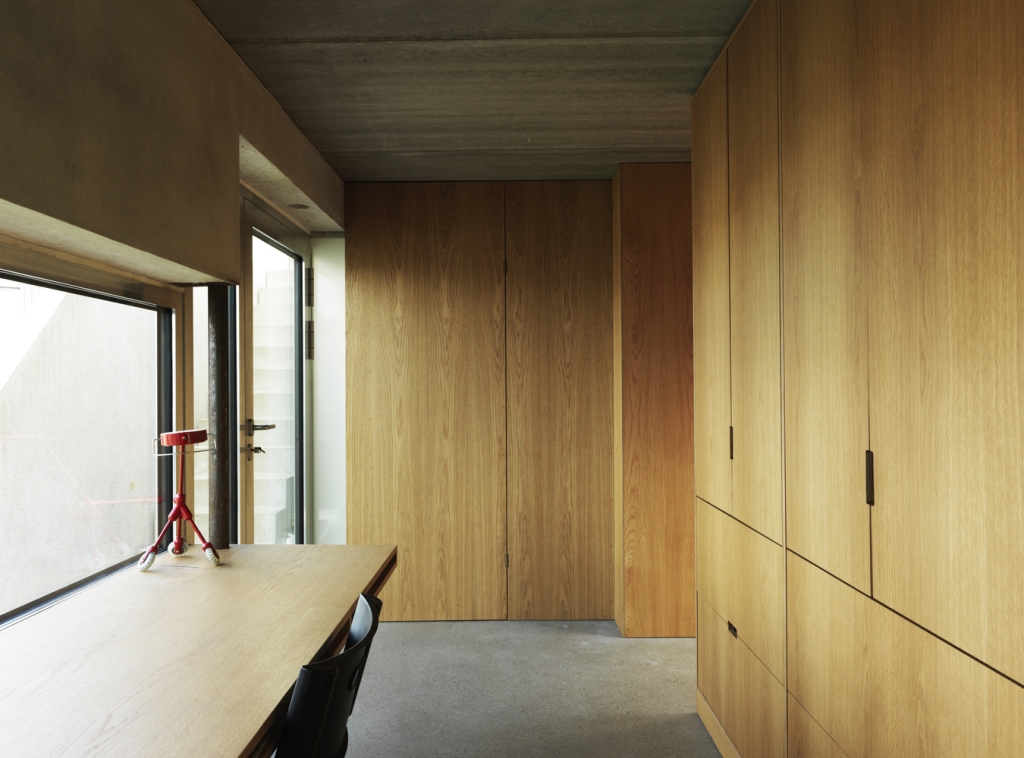

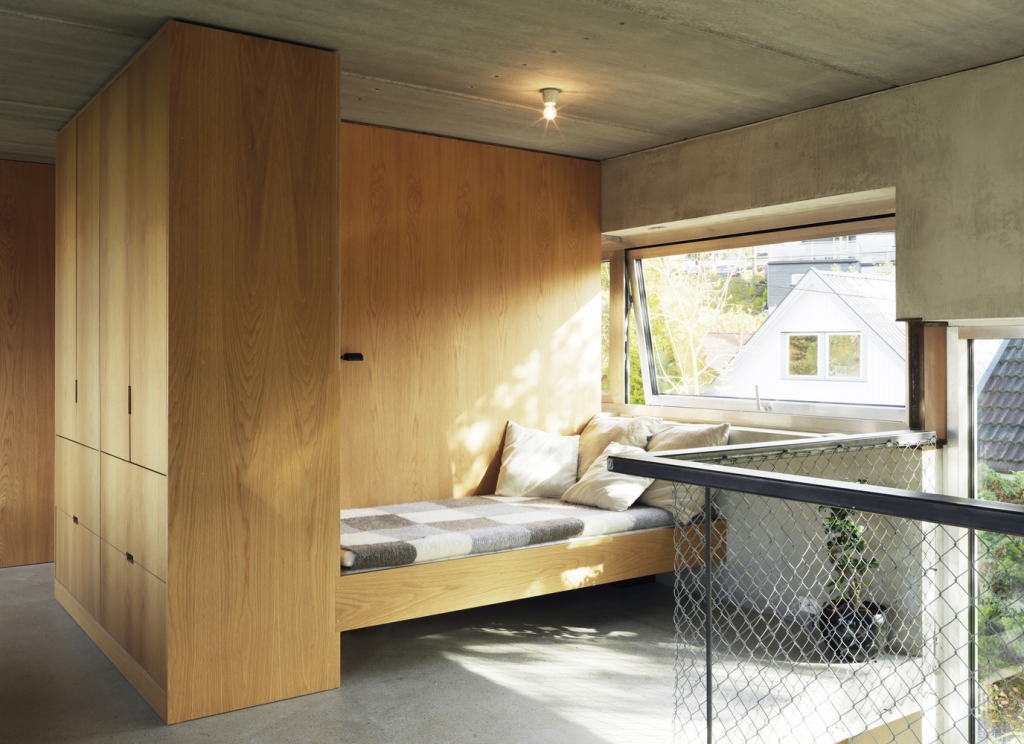

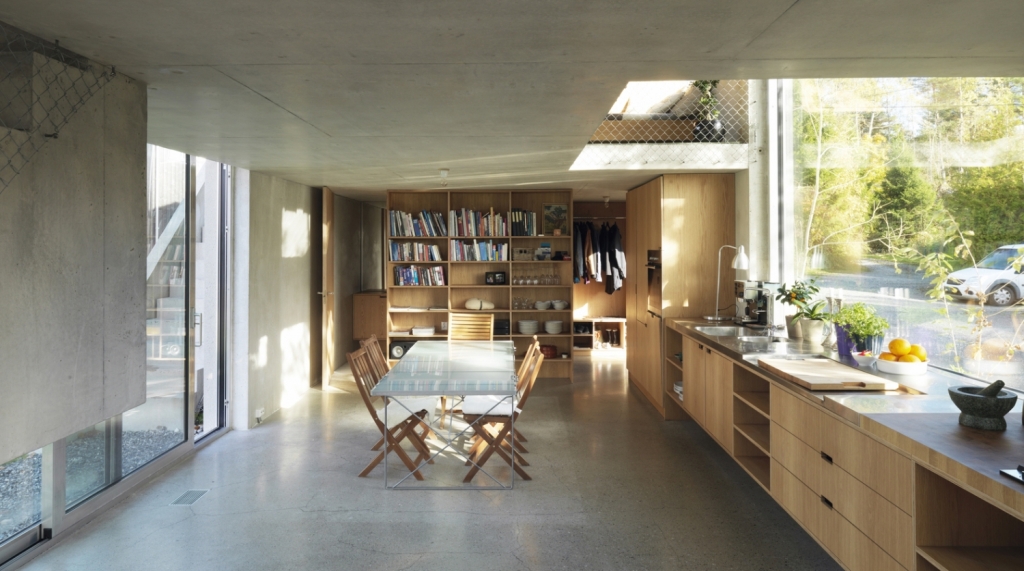

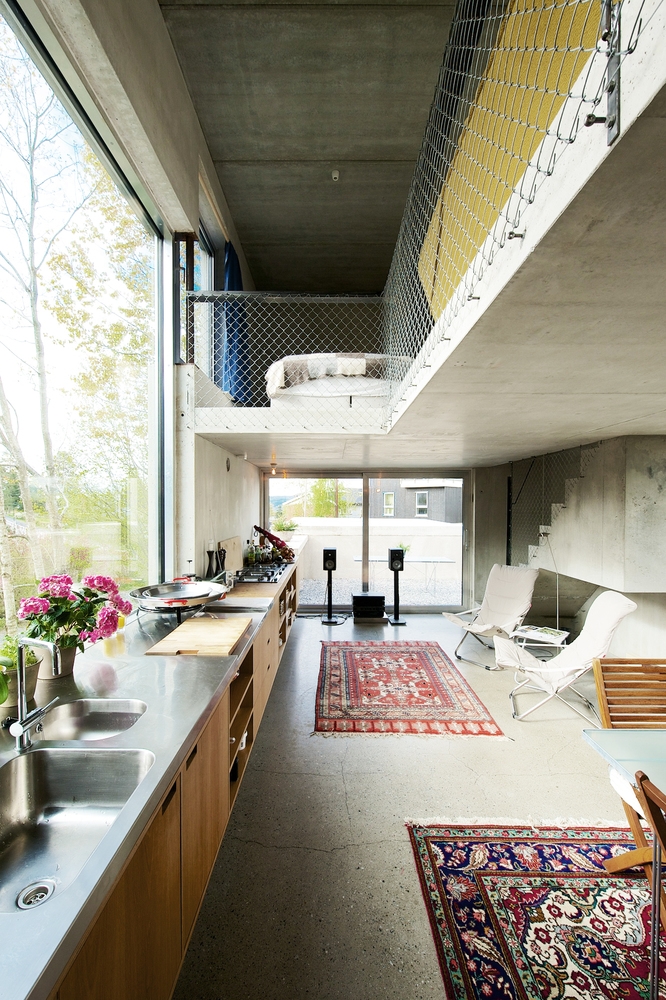

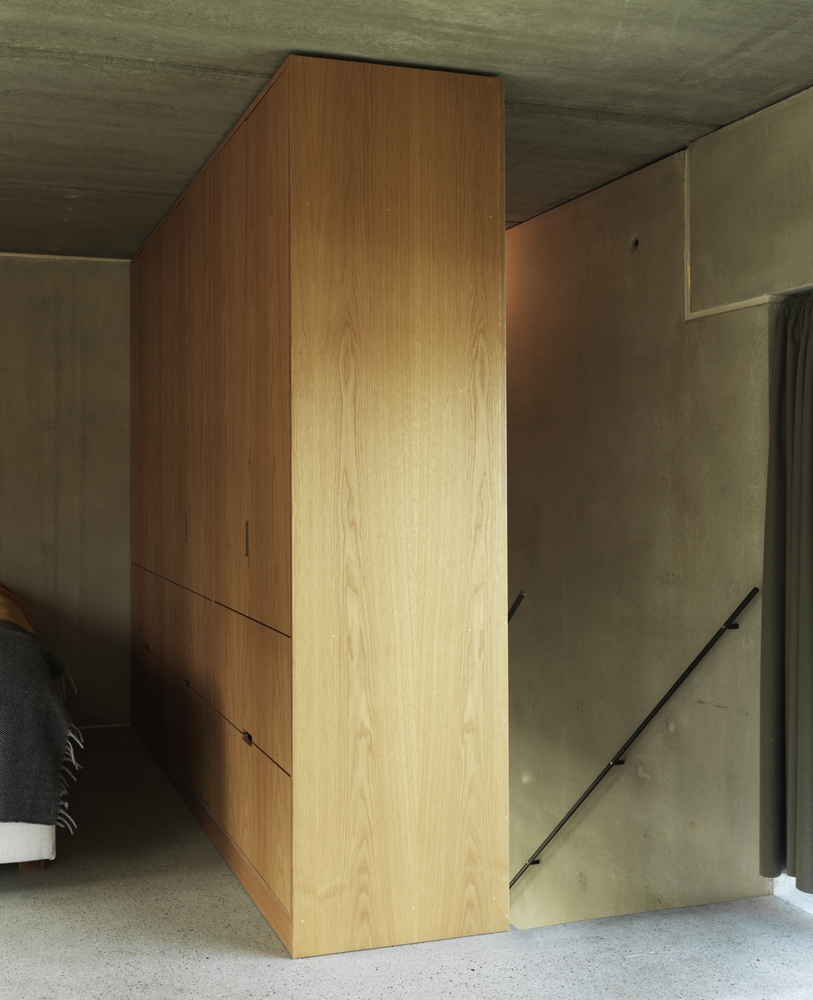

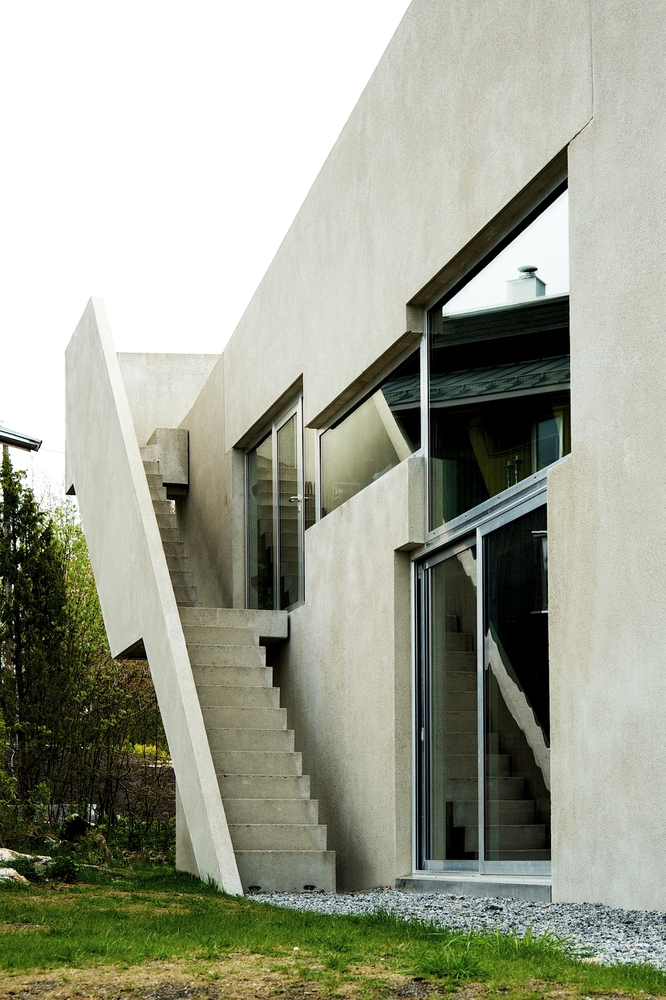

The windows and doors are made of crude aluminum, the only other material used in the exterior. All material can be left untreated. The interiors are oak veneered birch plywood. Room zones connect the two floors, and the custom-built furniture, made by the architect’s own carpenters, emphasizes these zones. The furniture can change as the family and its members develop and grow.
