吕蒂住宅

别墅

作者：xiejianss

House in Rüti
设计方：AFGH建筑事务所
位置：瑞士 吕蒂
竣工：2011年
分类：别墅建筑
内容：实景照片
图片：28张
摄影师：Valentin Jeck

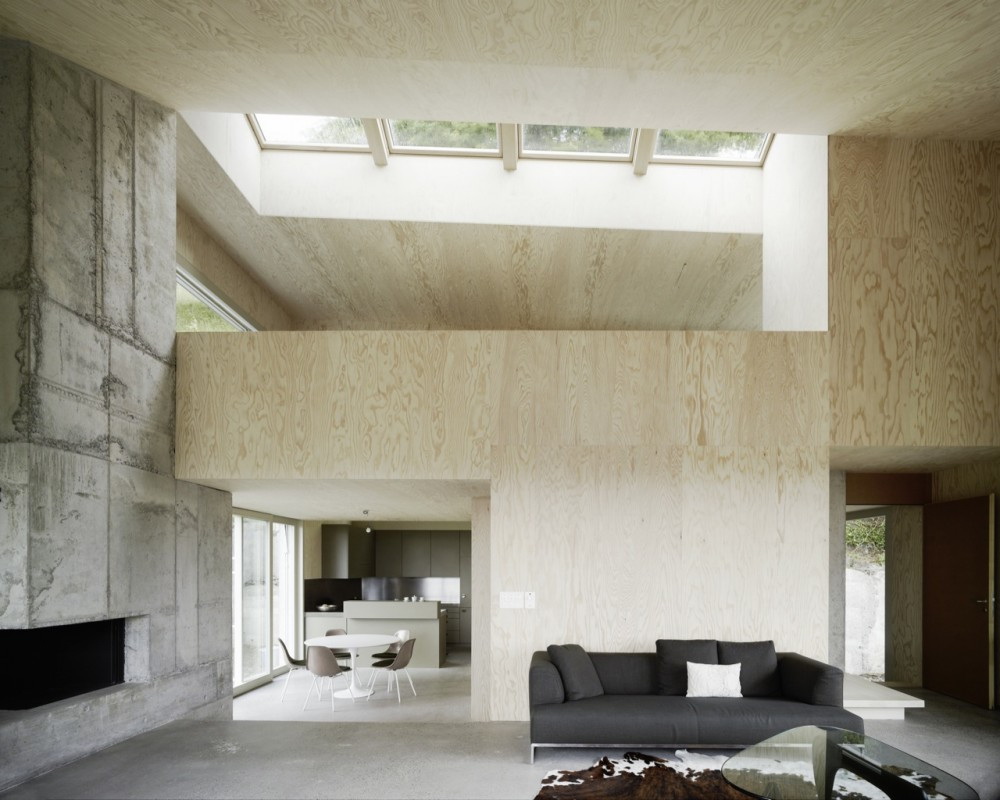

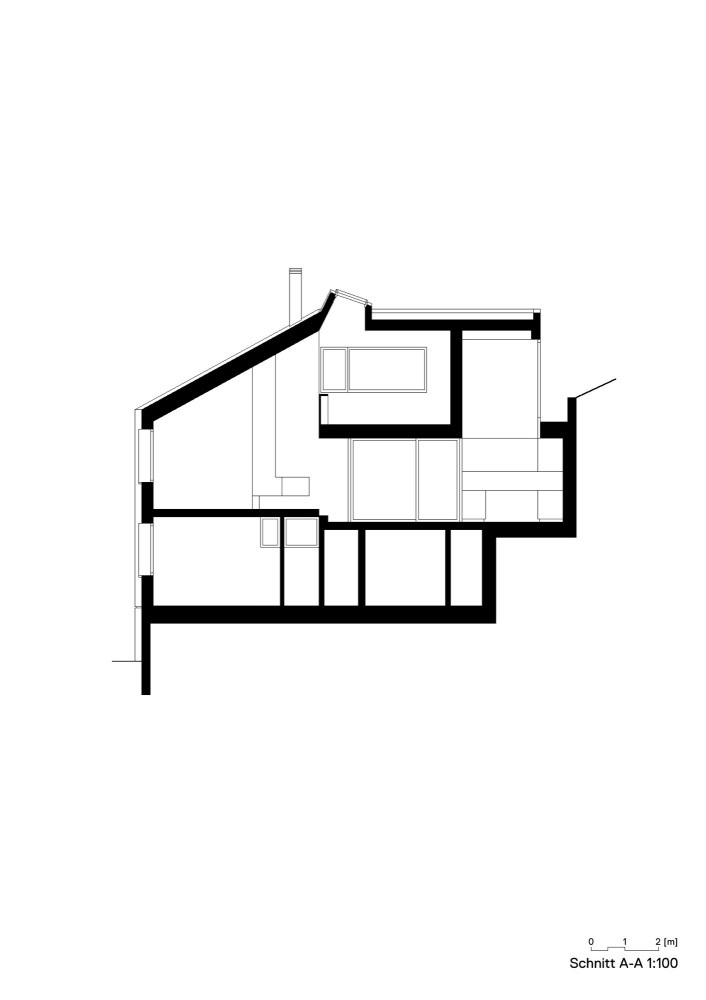

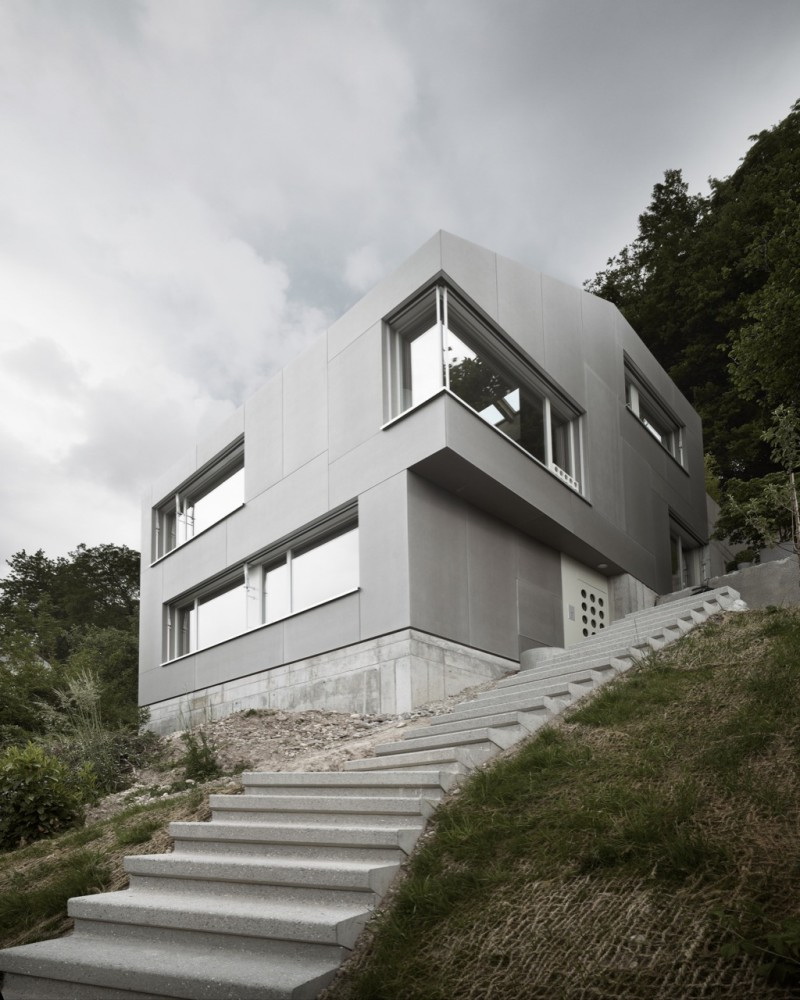

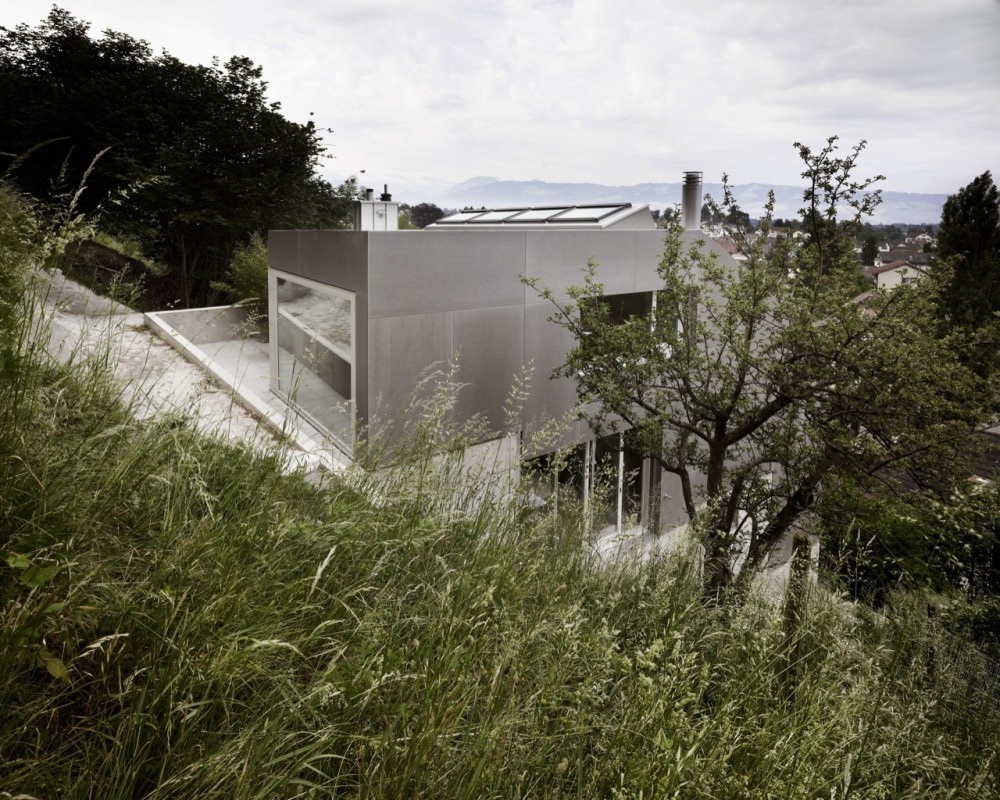

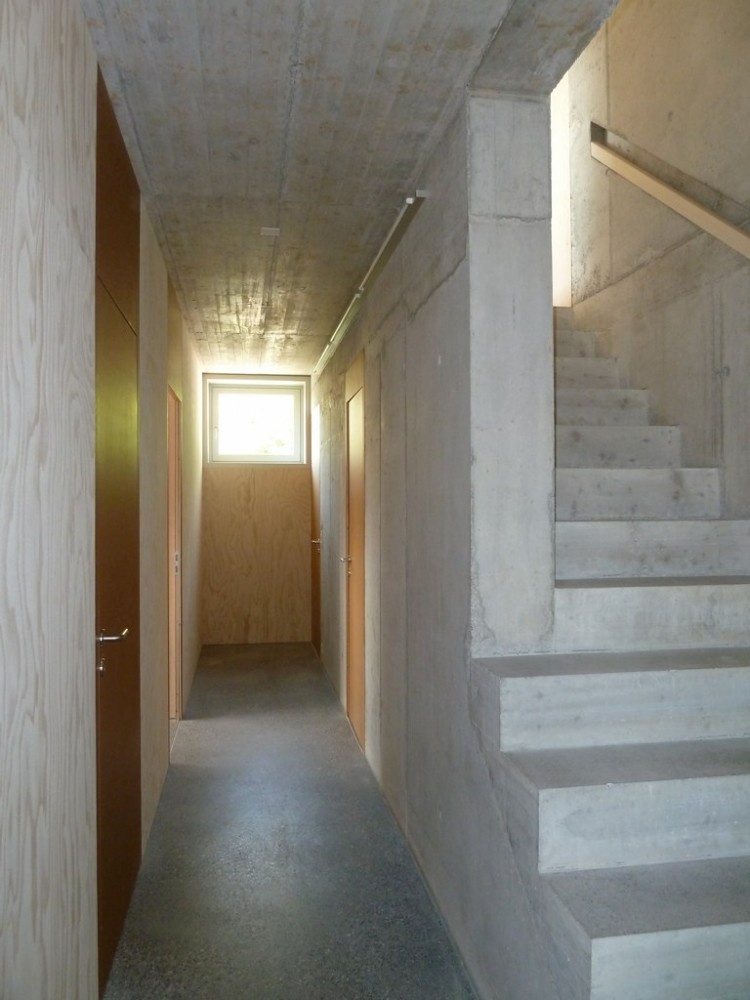

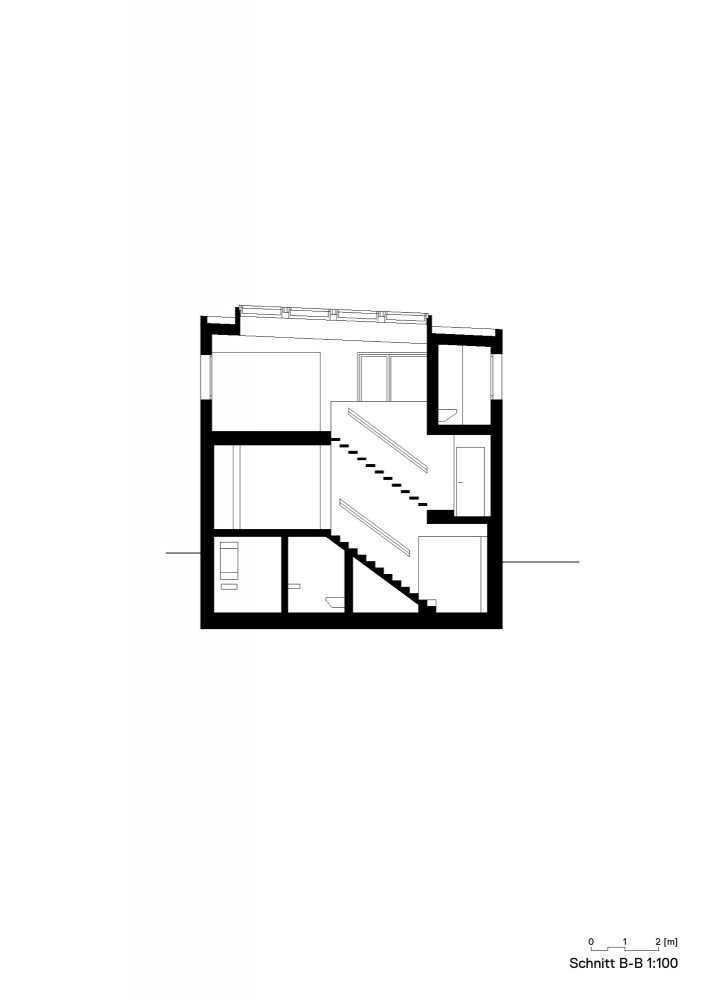

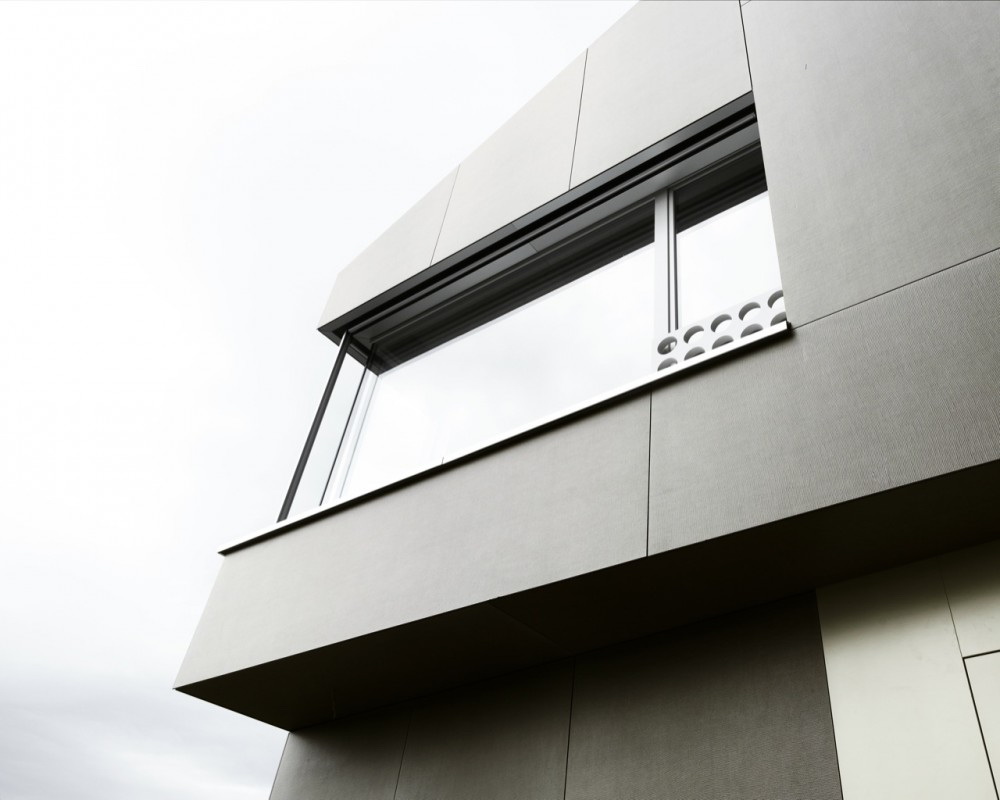

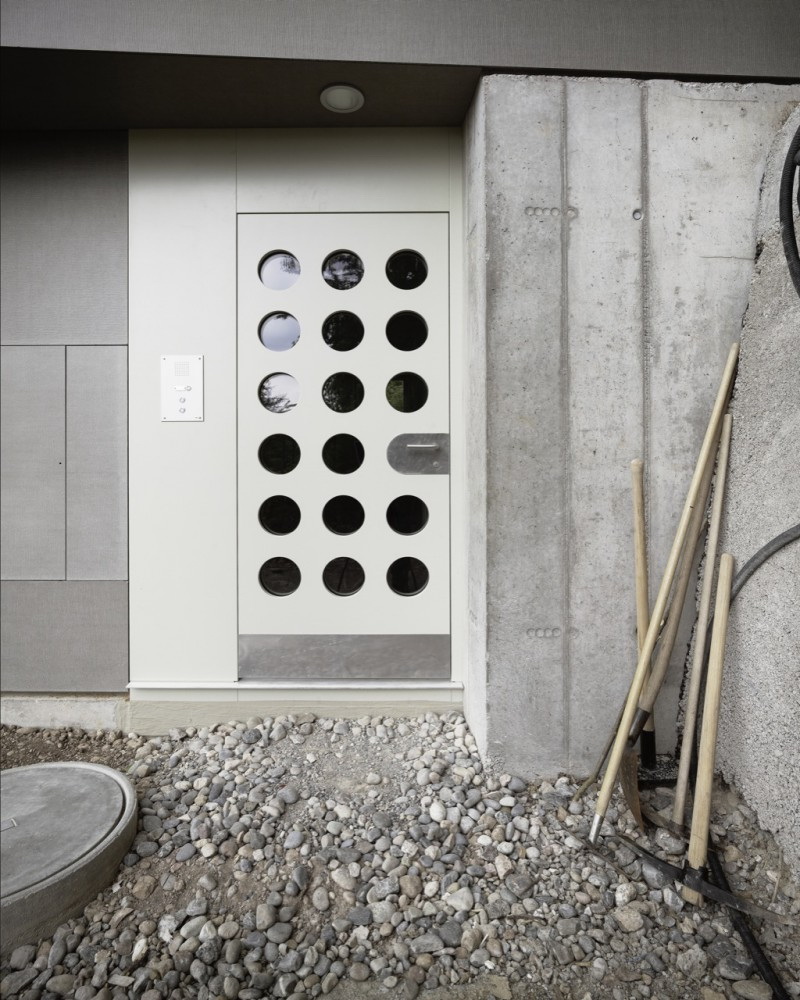

住宅是为一个四口之家设计的，位于原来山边的一个未经开发的葡萄园内，住宅所在场地是一片与山坡北侧斜坡相连的天然区域，周围被巨大的绿树包围，为了能尽可能地使用场地，设计将场地分阶层设置，将住宅沿着之前地形的边缘排布。在这个过程中，四个层次逐渐形成，它们充当室外空间，每一个层次都与一个室内空间对应。这种独特的场地形式同样反映在建筑的建造之中，住宅与场地的连接是一个分层次的，巨大的地下层，这个空间完全由内部绝缘的暴露混凝土组成，上面是一个预制的木质结构，覆盖以通风的石棉水泥表皮。

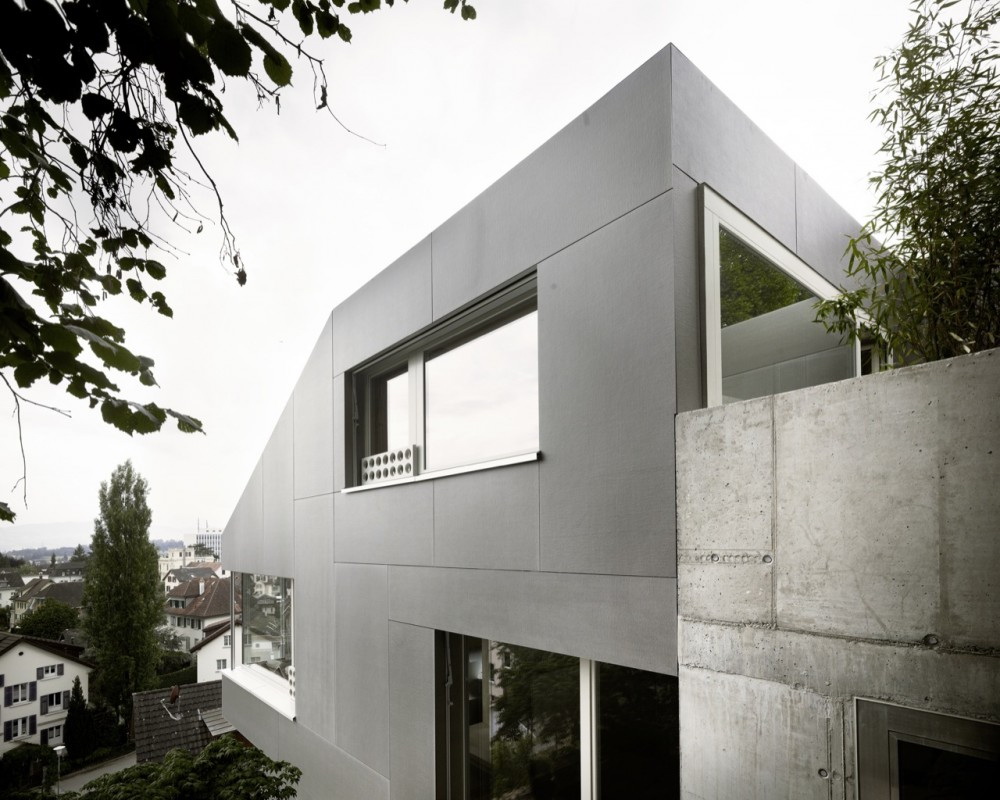

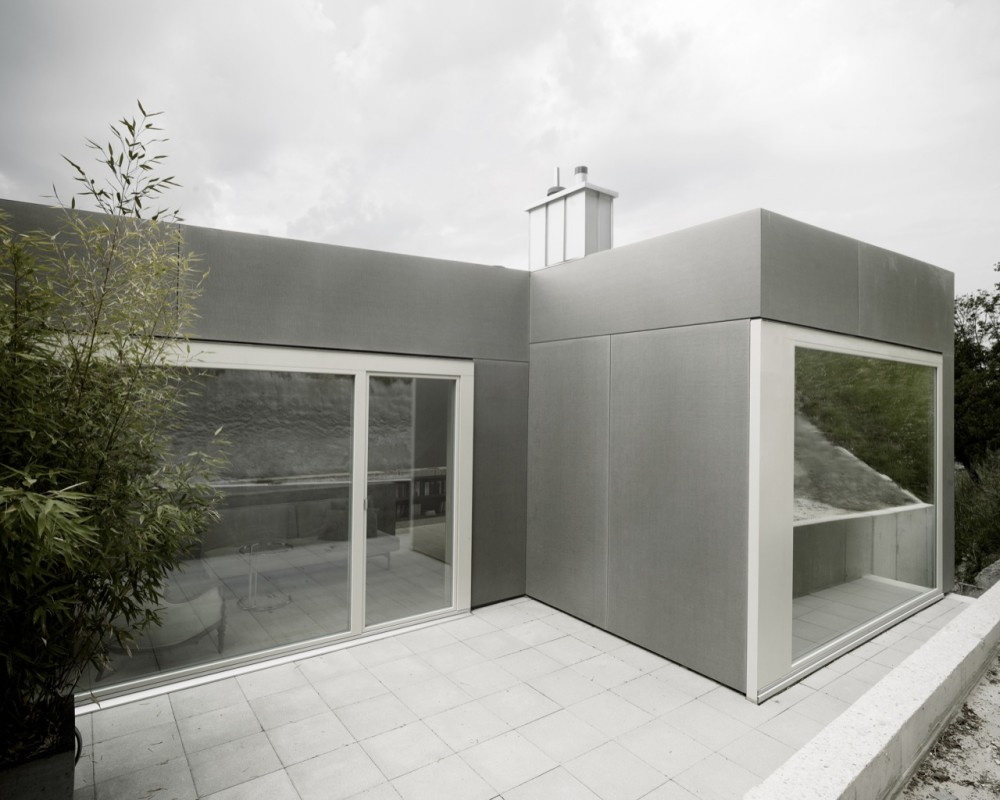

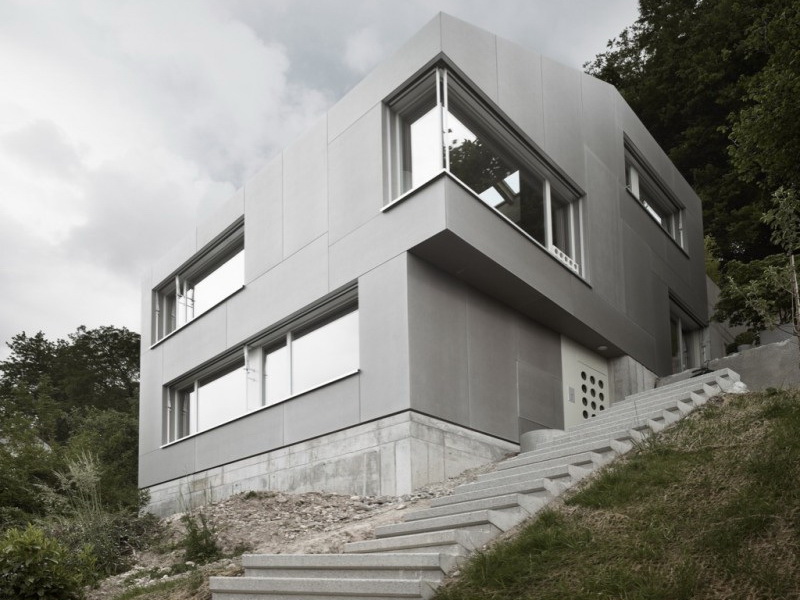

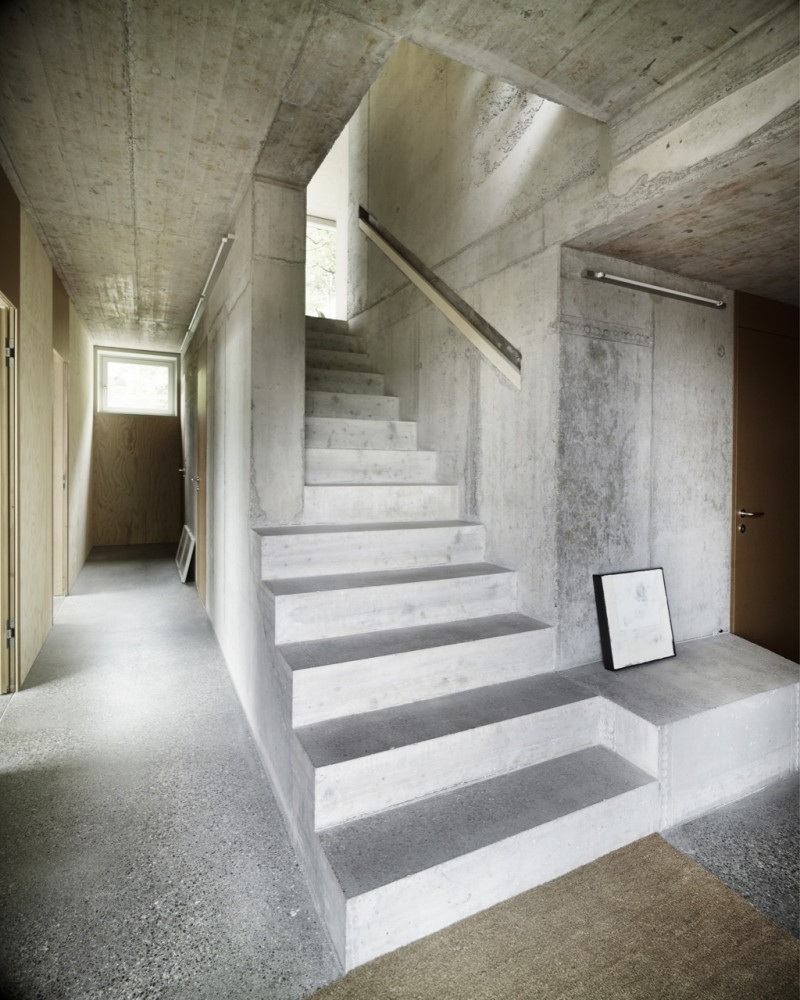

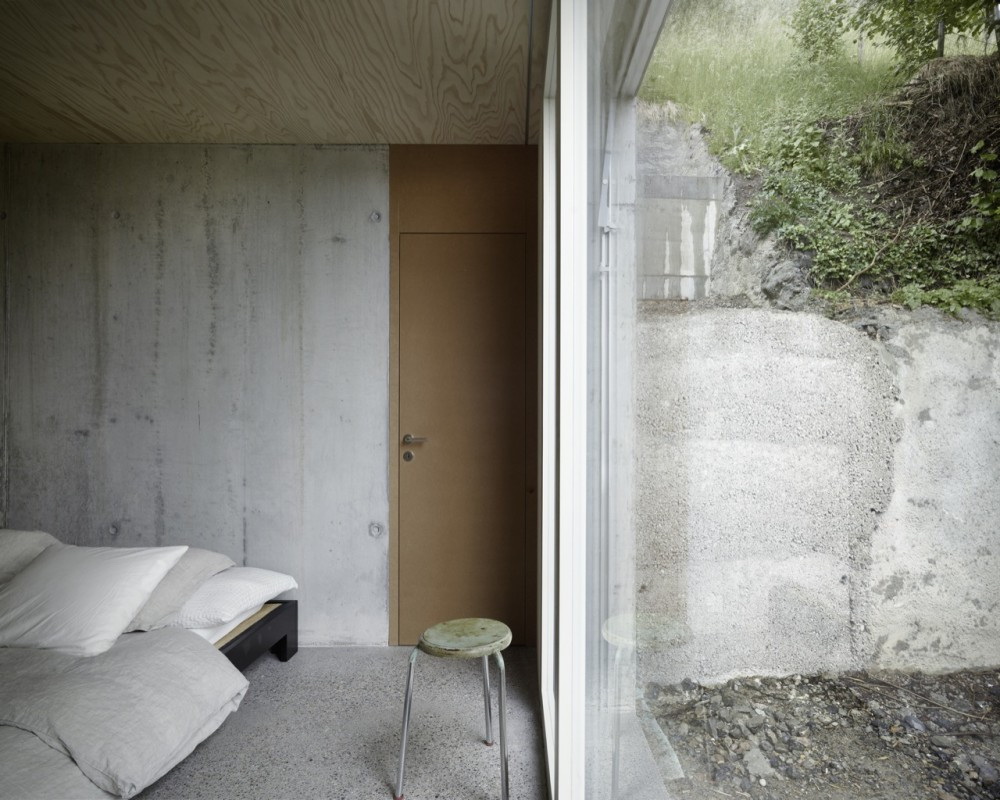

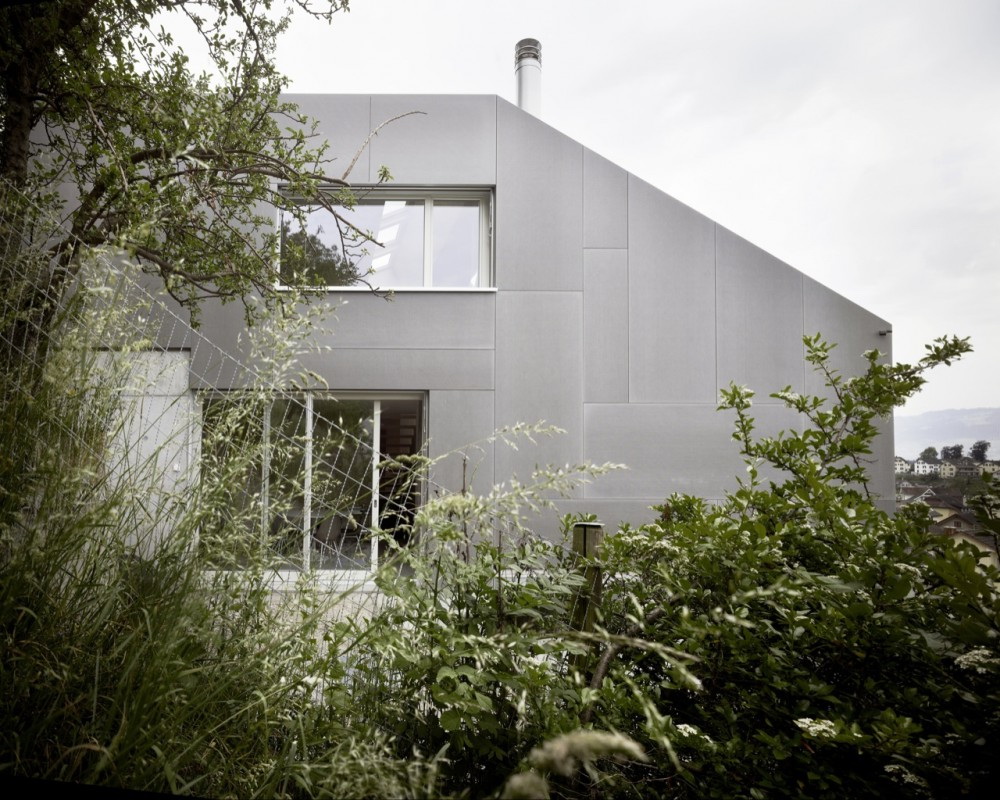

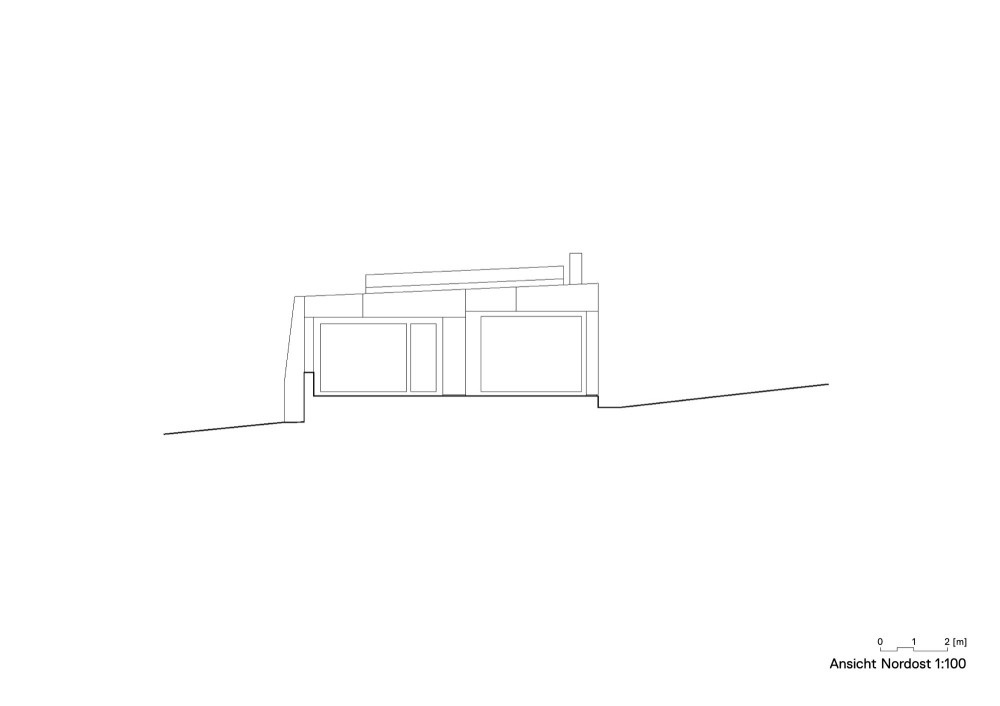

The house for a family with two children is situated on a former hillside vineyard that had remained undeveloped. On the northern slope of the hill adjoining a non-developable zone， the house is surrounded by large old trees. In order to be able to even use the site it was necessary to terrace the immediate surroundings， and the house was developed along the lines of the formed topography. In the process， the four terraces themselves function as exterior spaces， each corresponding to a specific interior space. The unusual topography is also mirrored in the construction of the building. The connection to the terrain is a stepped， largely subterranean basement storey made of internally insulated exposed concrete， above which is a prefabricated wooden construction with a ventilated Eternit façade.
