Beach Refuge
设计方：Pablo Errázuriz 建筑事务所
位置：智利 Huentelauquén
竣工：2009年
分类：别墅建筑
内容：实景照片
图片：21张

占地面积：5000平方米
项目面积: 24 平方米
设计时间：2008

Site Area: 5，000 sqm
Project Area: 24 sqm
Design Year: 2008

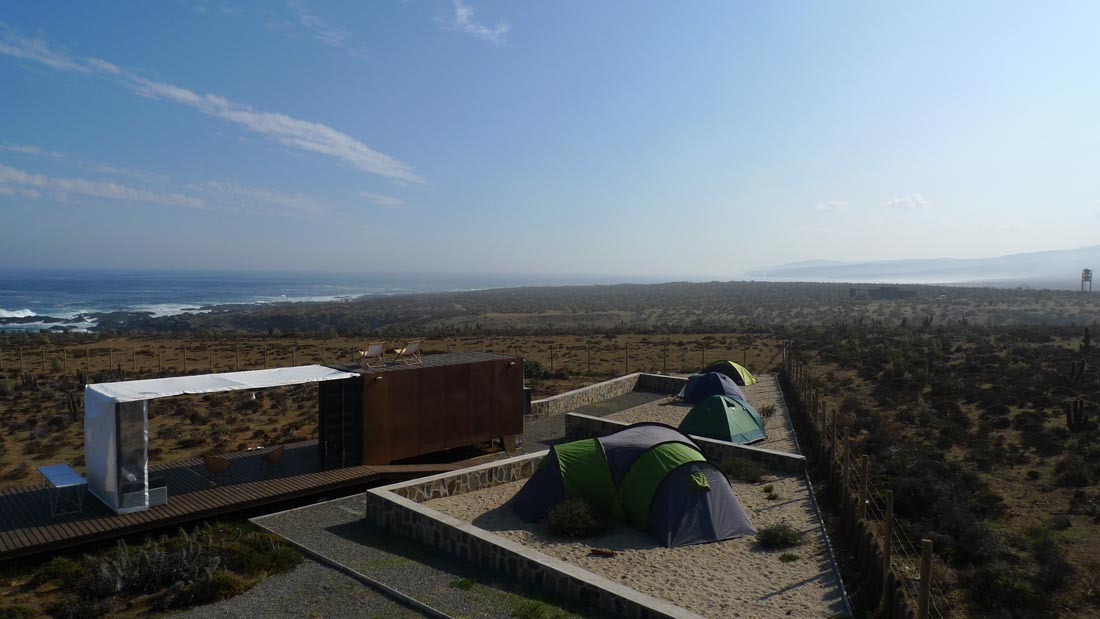

这个度假地位于圣地亚哥北部260千米处。这次设计的巨大挑战是在有限的预算之内设计一个能供人们短暂度假的空间。它还必须要安全，比较好打理。这一项目包含以下三个要素：

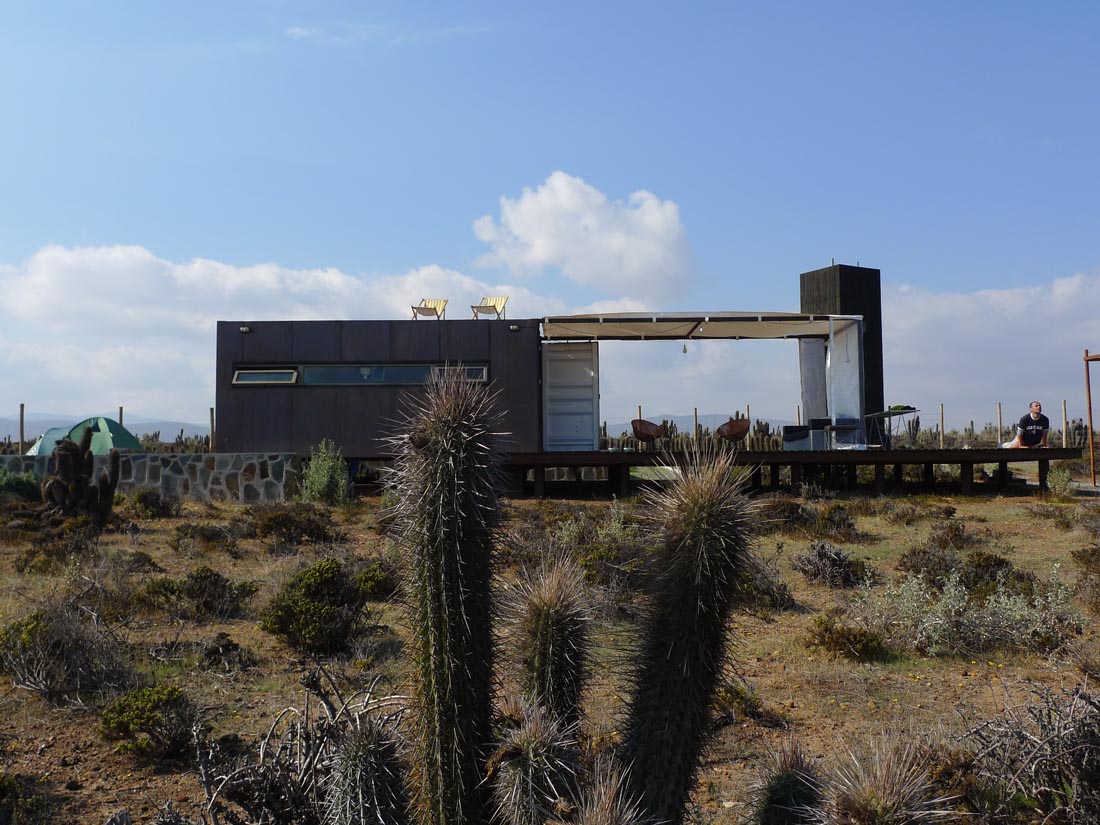

集装箱：一个改造过的集装箱，外部由耐候钢块覆盖，内部则由上白漆的木板覆盖，其中包括一个浴室和厨房。室外有个木质甲板，上面有一个和旧集装箱尺寸相同的钢结构，它被用于支撑一个聚氯乙烯薄板，当需要的时候可以用来遮盖墙体和屋顶。

帐篷院：外面有一块空地，遍地是矮矮的砂石，排布起来形成条条小槽小径。

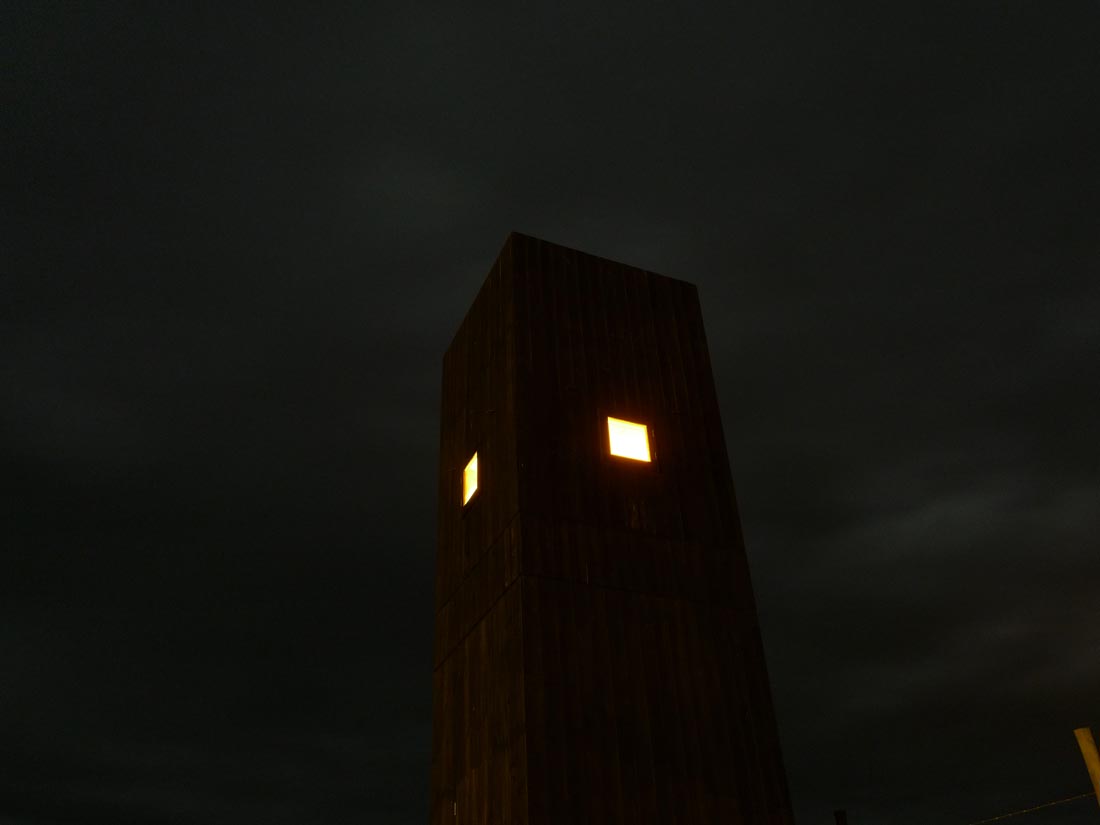

水塔：水塔一层是被当成仓库和机房，二层是一个卧室，三层是一个水箱。

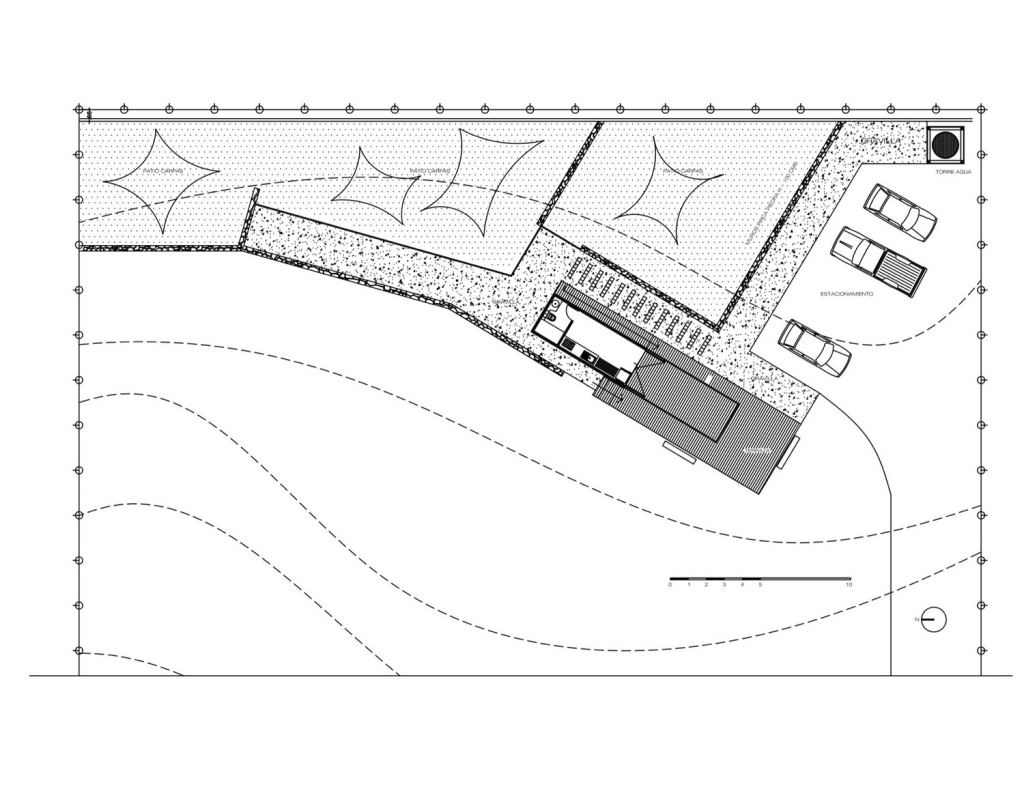

The refuge is located 260km at the north of Santiago. The challenge was to design a space with a reduced budget to spend short vacations. It had also to be safe and easy to maintain. The program consists of 3 elements:

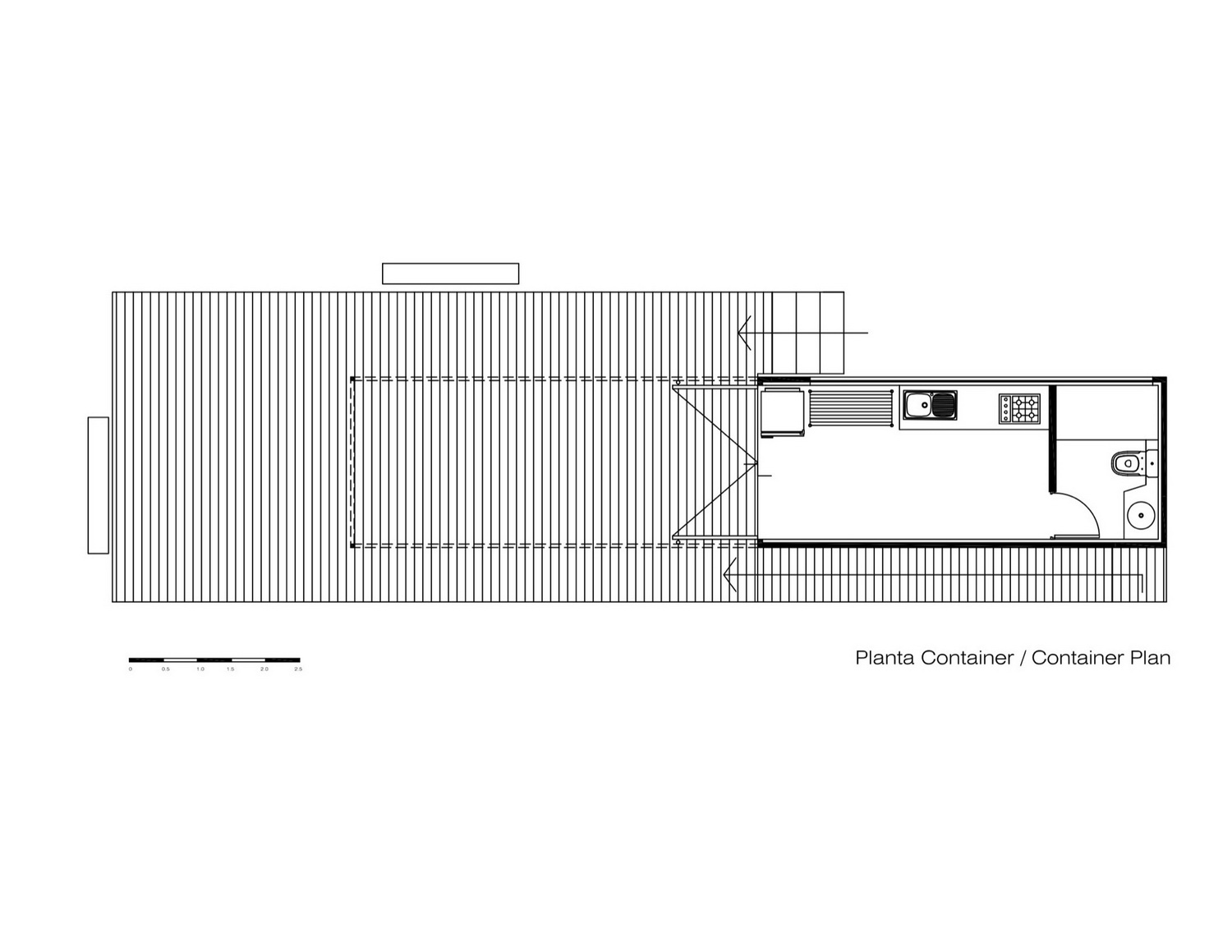

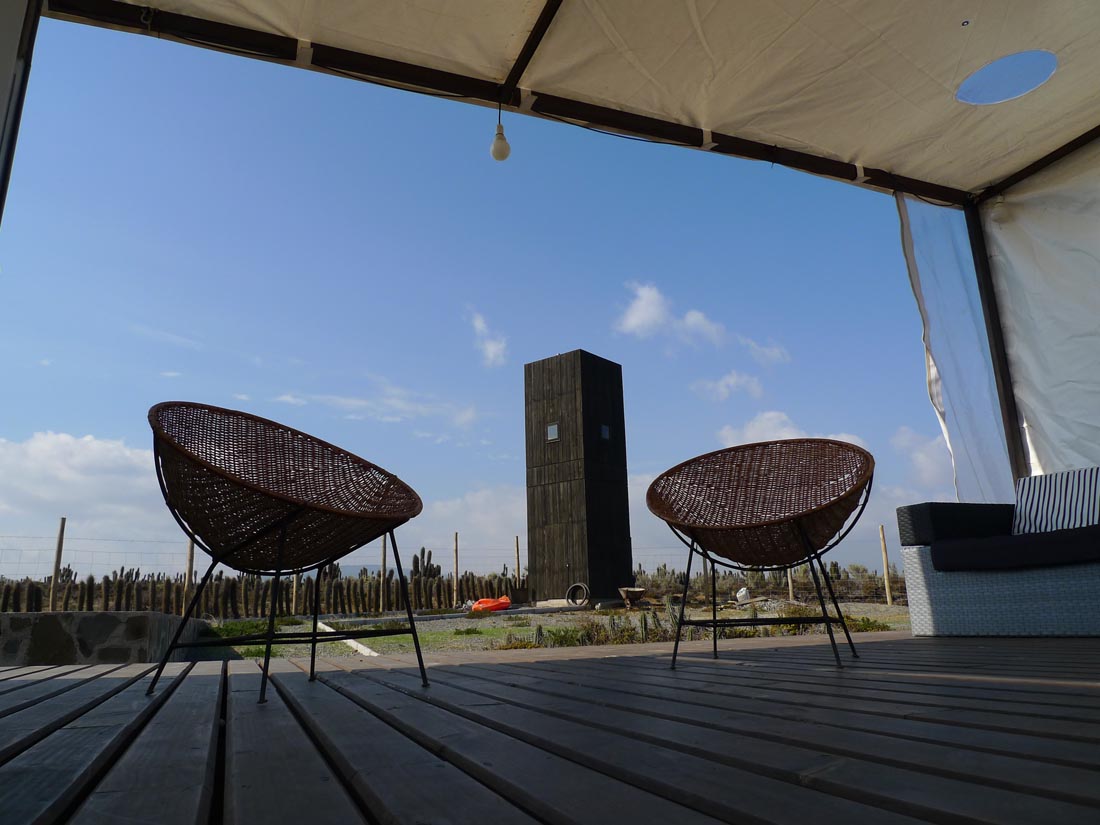

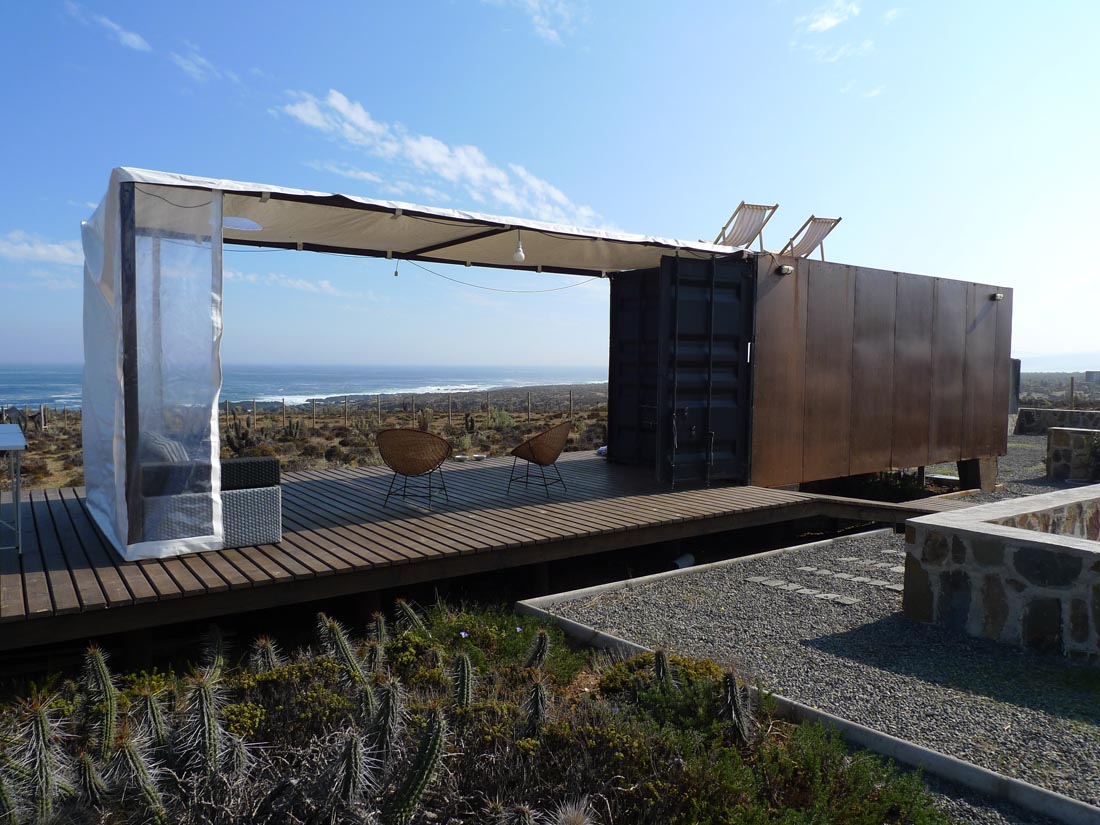

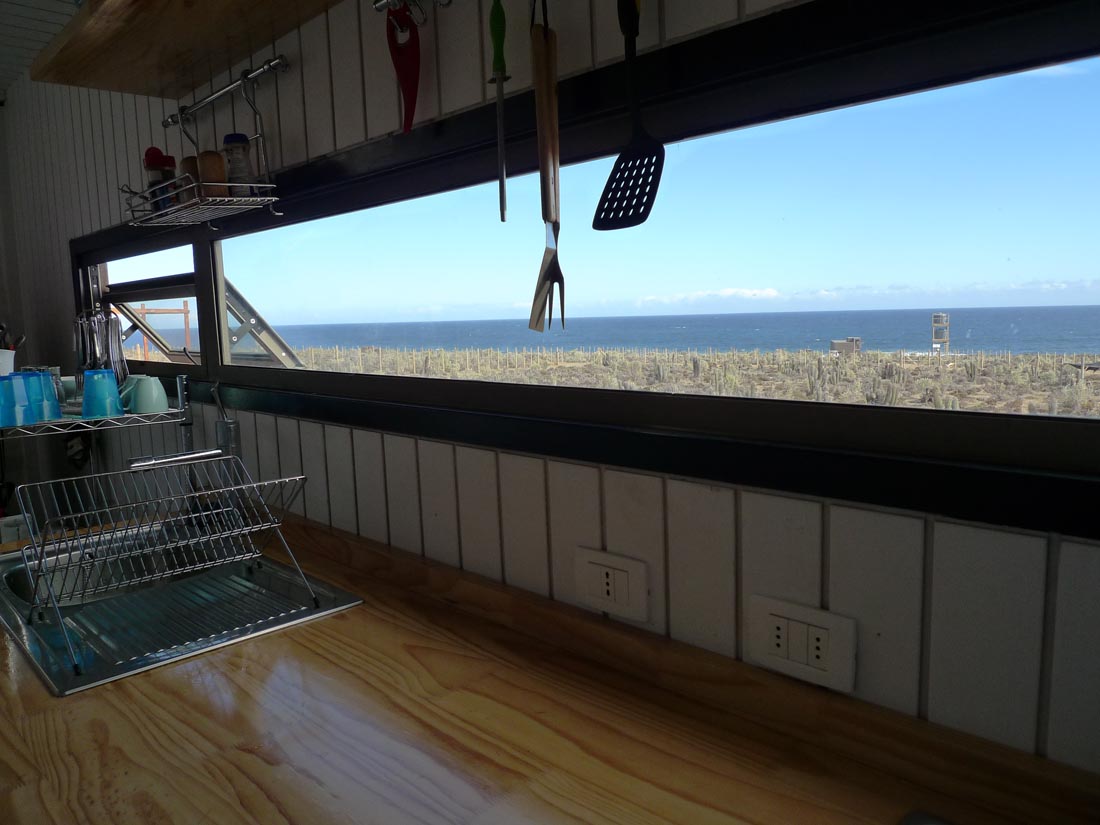

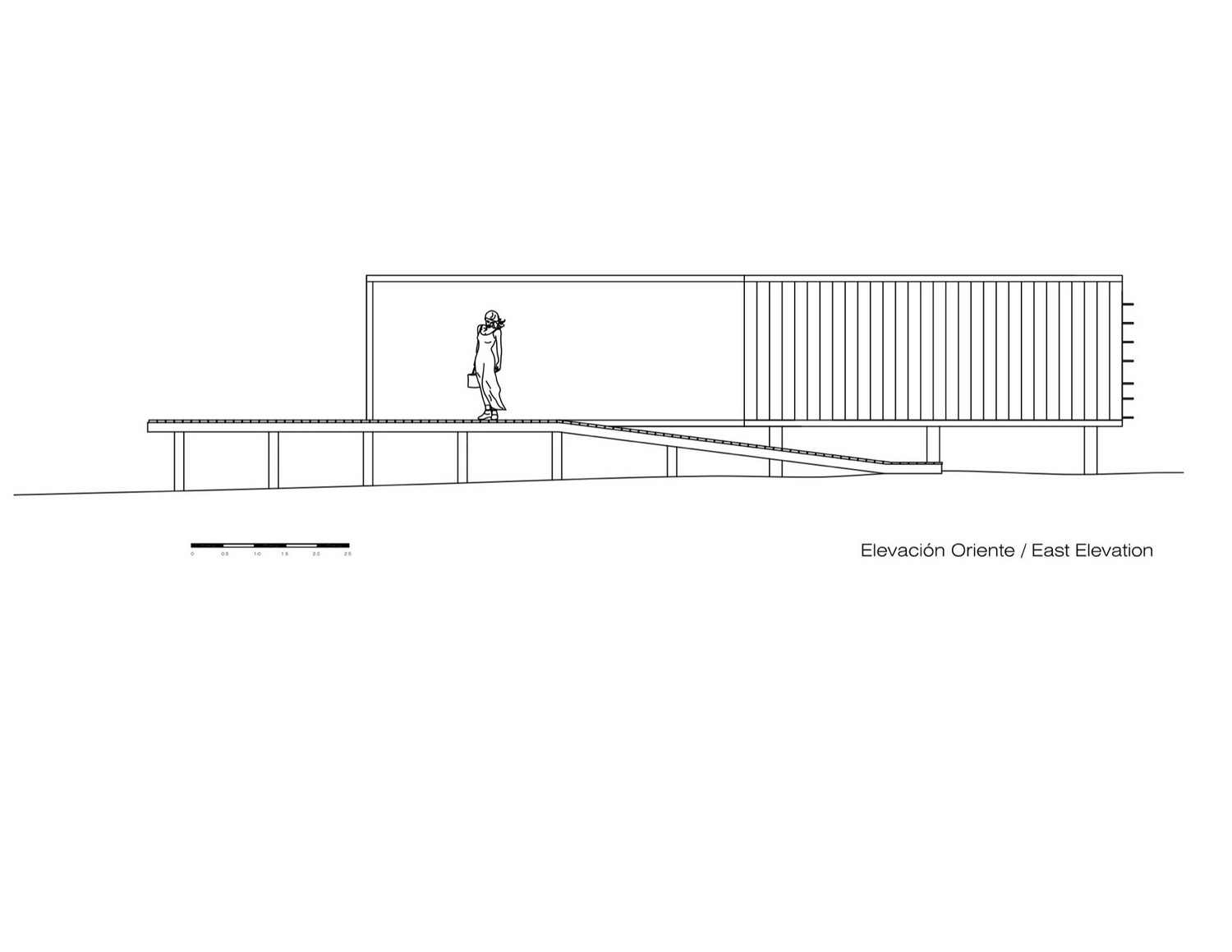

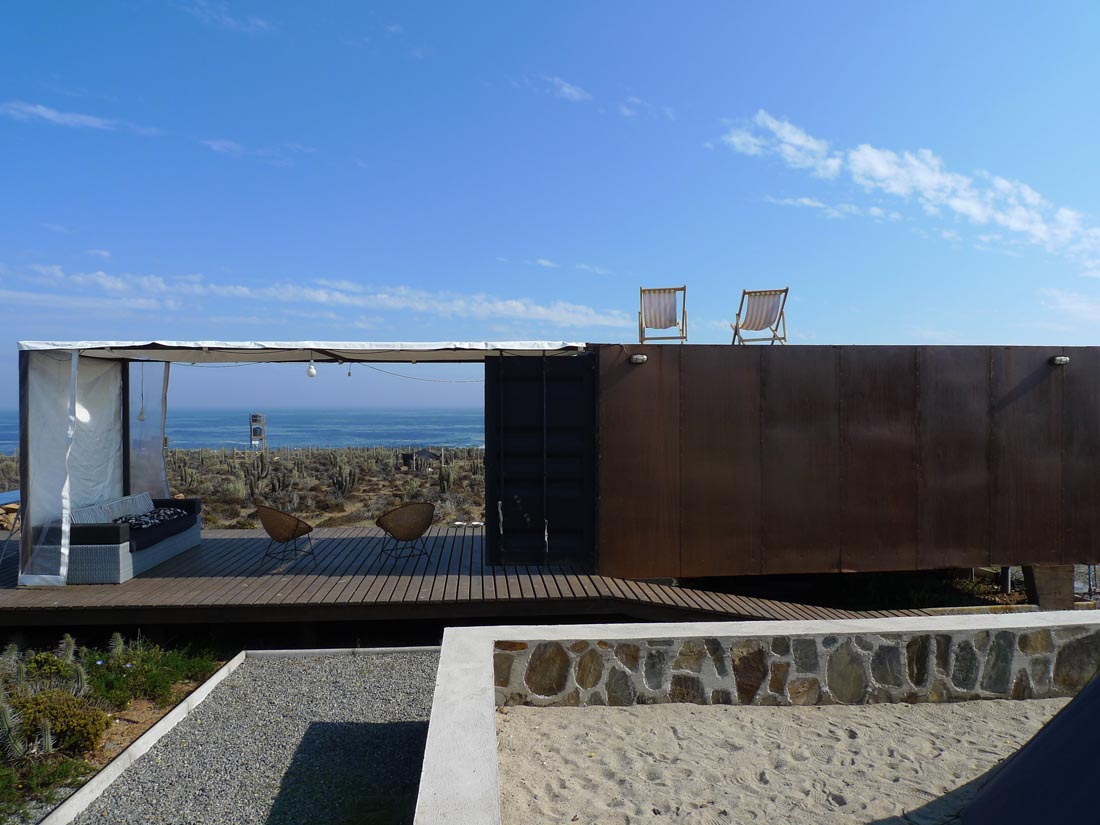

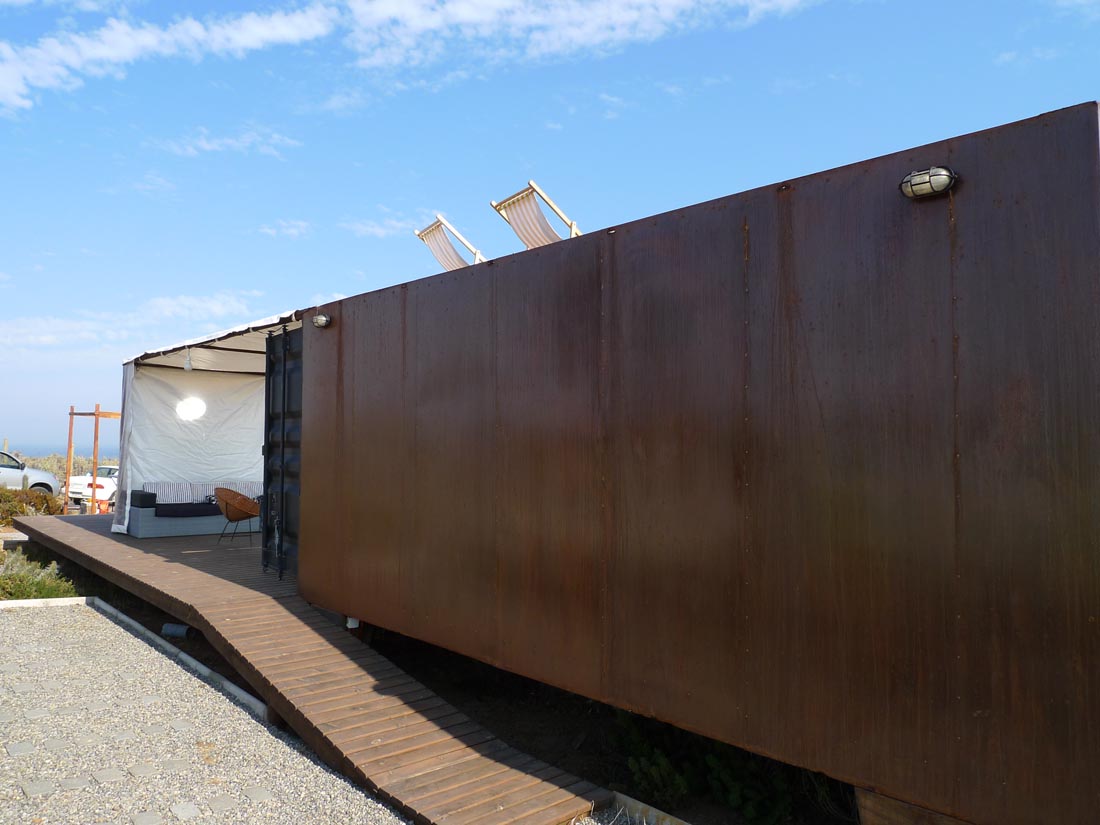

- Container; a recovered container， cladded with corten steel plates with wooden boards painted white for the interiors， which include a bathroom and a kitchen. The exterior has a wooden deck terrace with a steel structure on top of it with the same dimensions as the container (6×2.4m) that holds a PVC sheet for wall and ceiling when required.

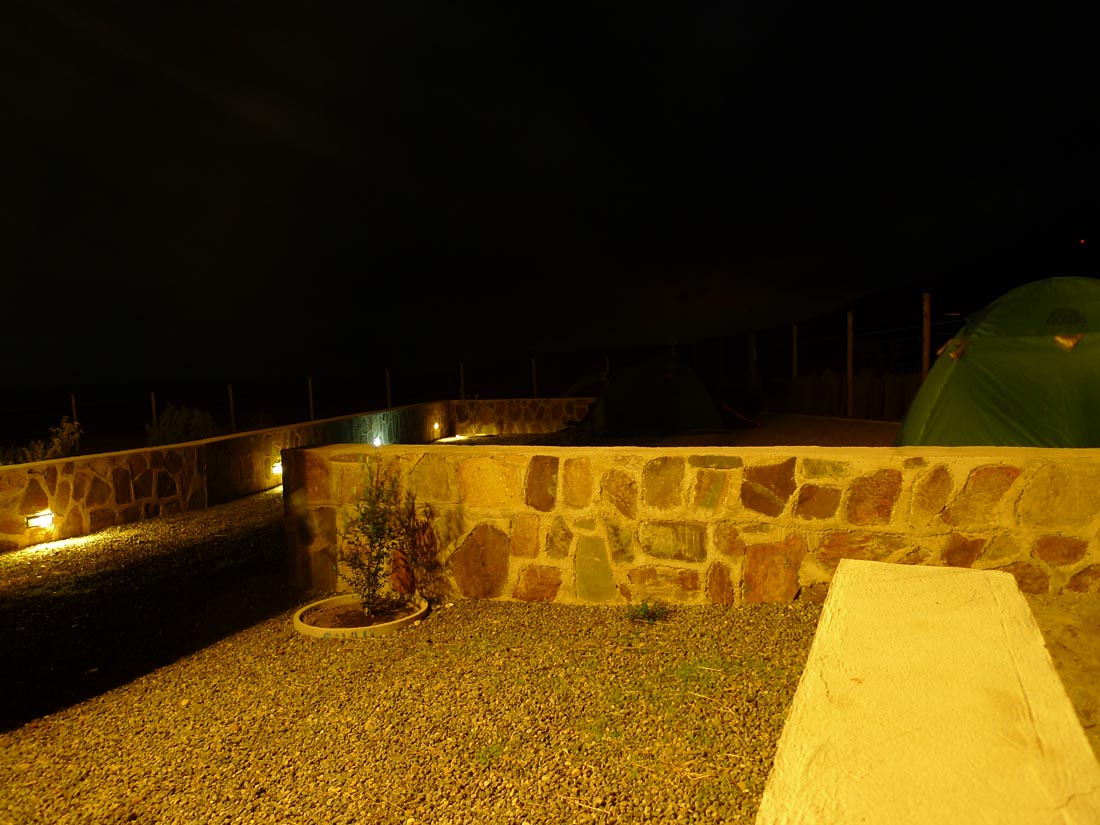

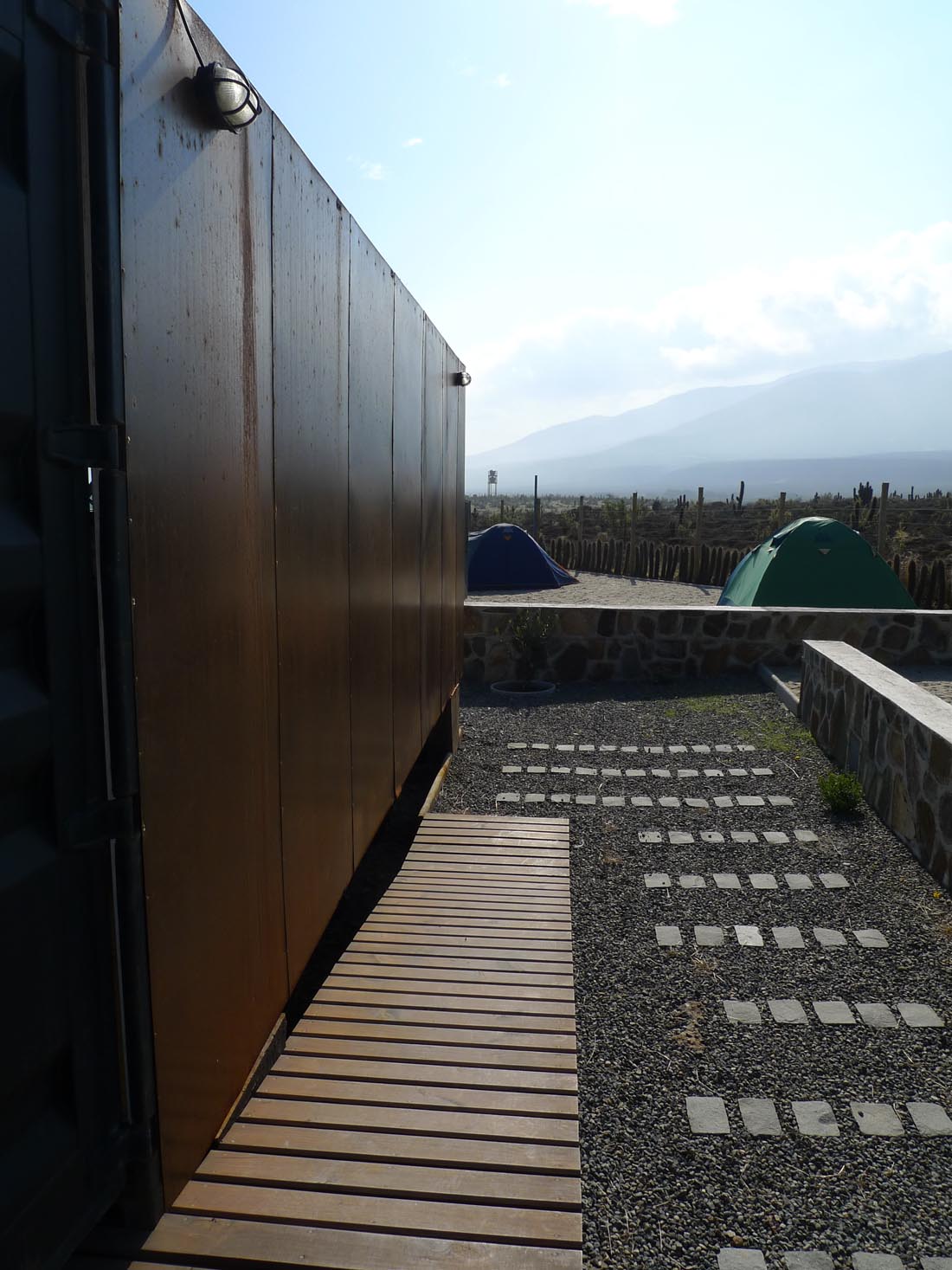

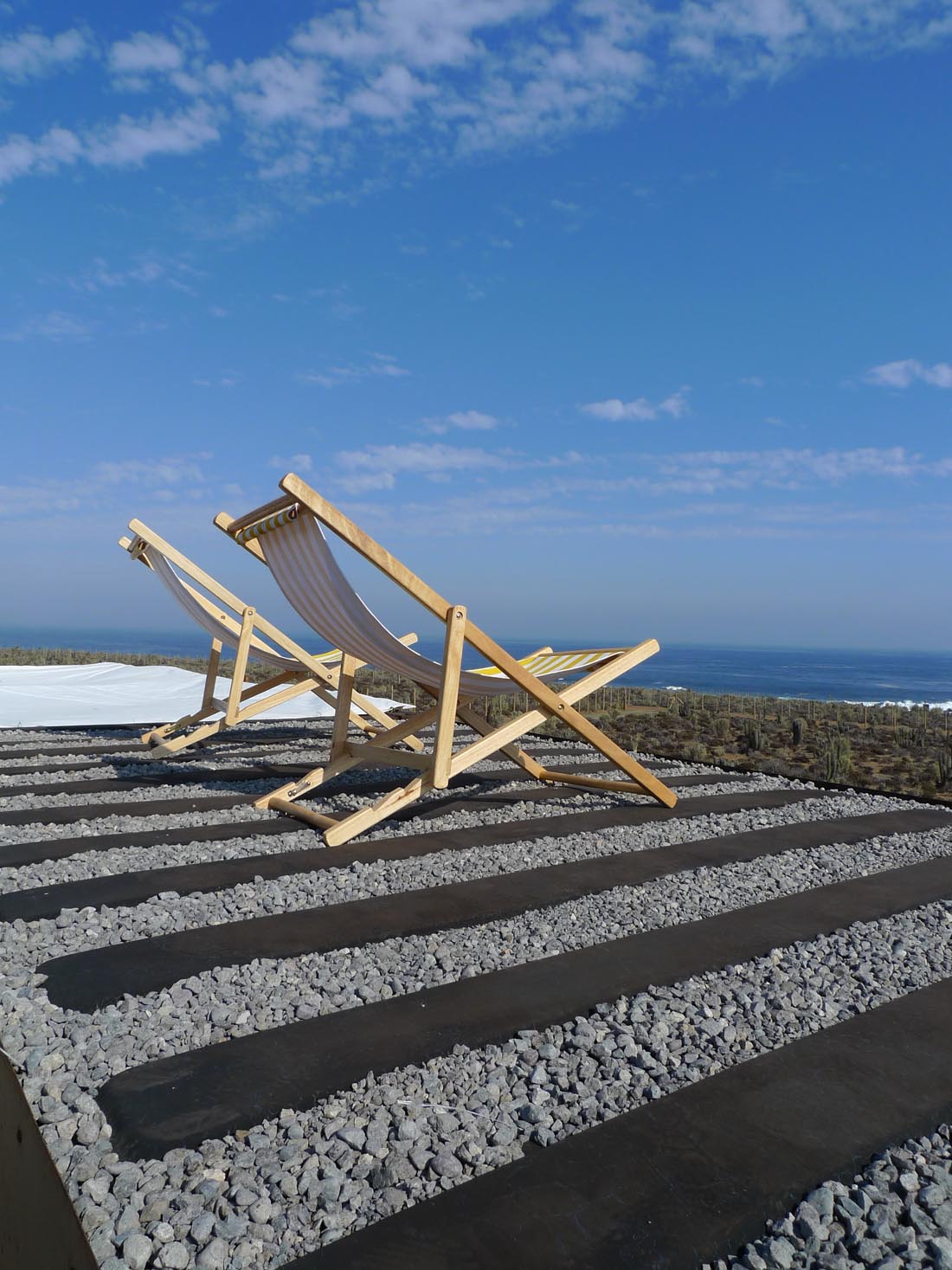

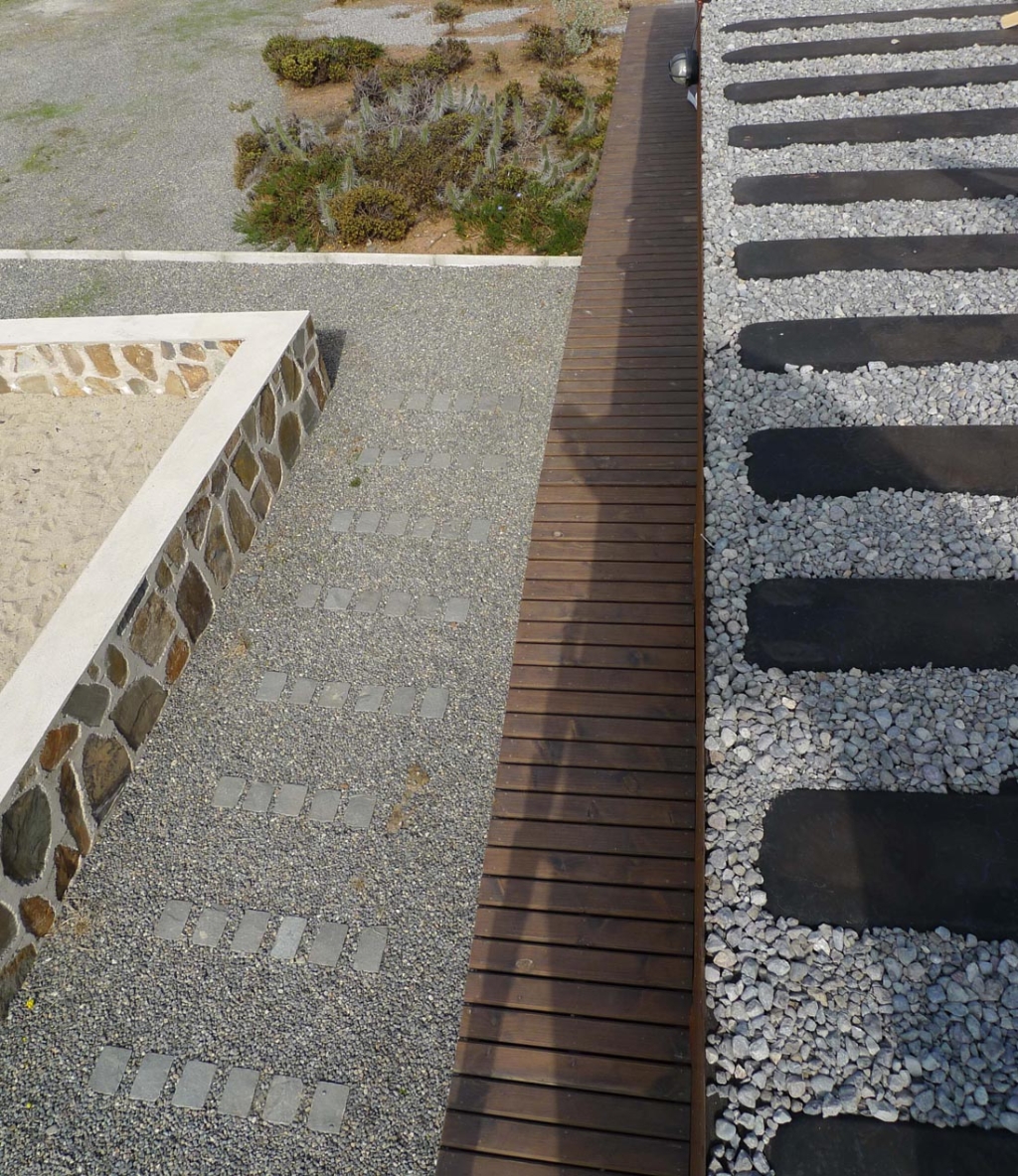

- Tent yard; a small area marked by low stone walls with river sand， connected trough gravel footsteps.

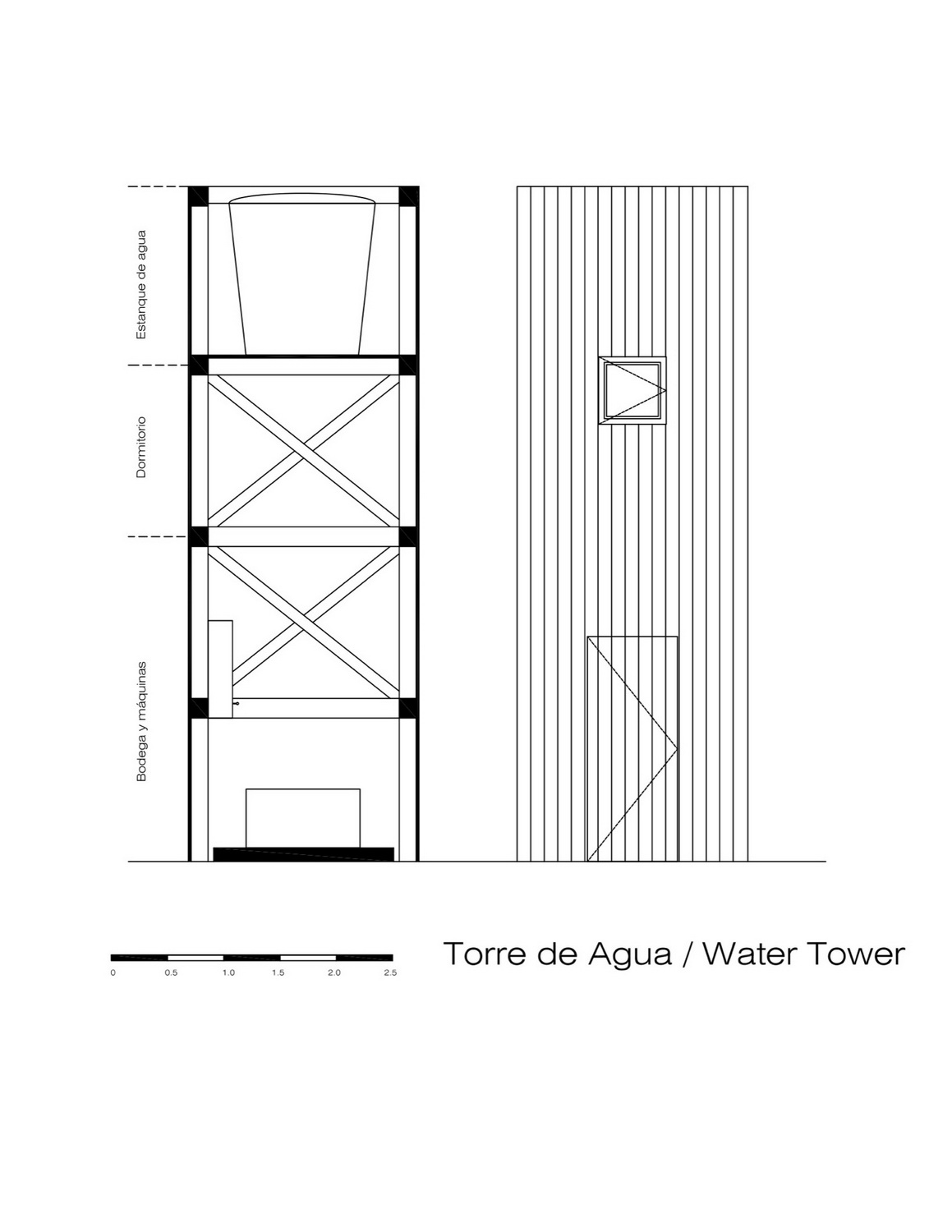

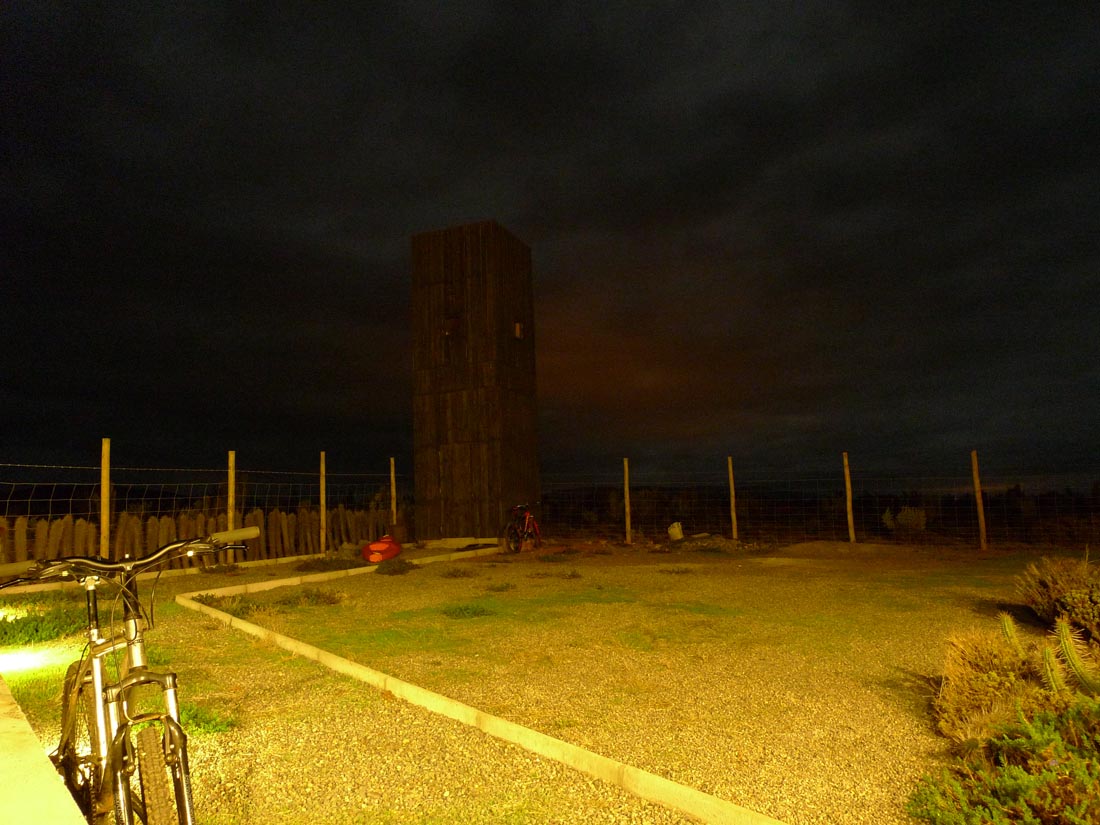

- Water tower; acting as a warehouse and “engine room” on the first level， a bedroom on the 2nd level and a water tank on the 3rd level.
