阿根廷米拉弗洛别墅

别墅 · 发表于 2026-5-22 12:04:46

Argentina mira Flo villa

设计方：Gerardo Caballero Maite Fernandez Arquitectos

位置：阿根廷

分类：别墅建筑

内容：实景照片

图片来源：Gustavo Frittegotto

图片：16张

摄影师：Gustavo Frittegotto

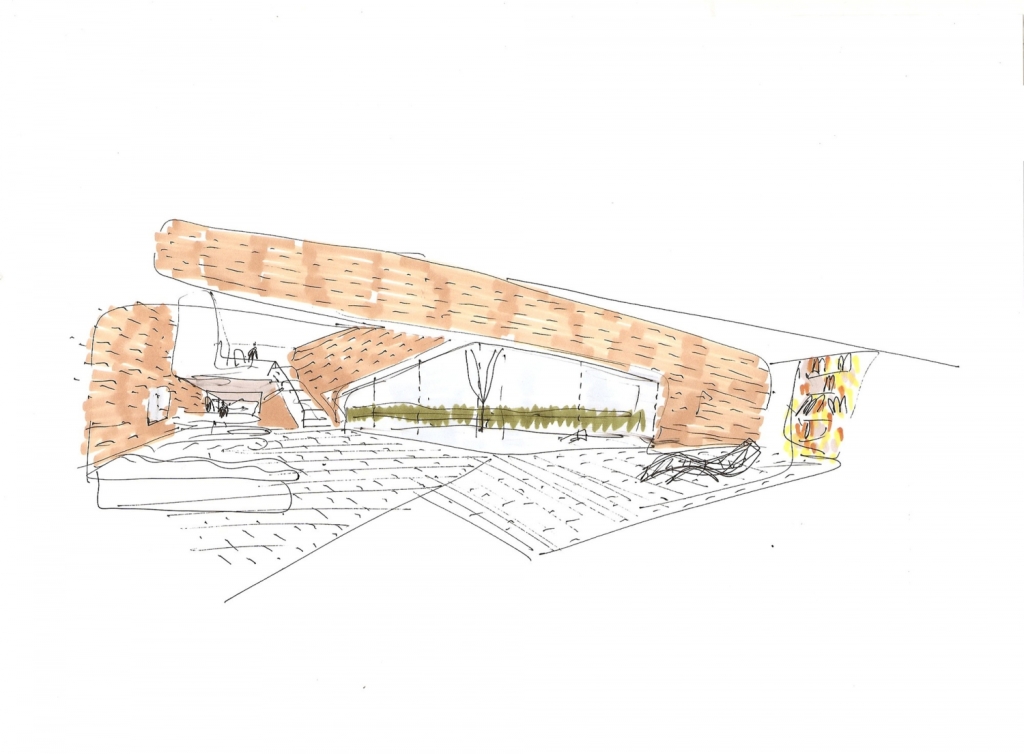

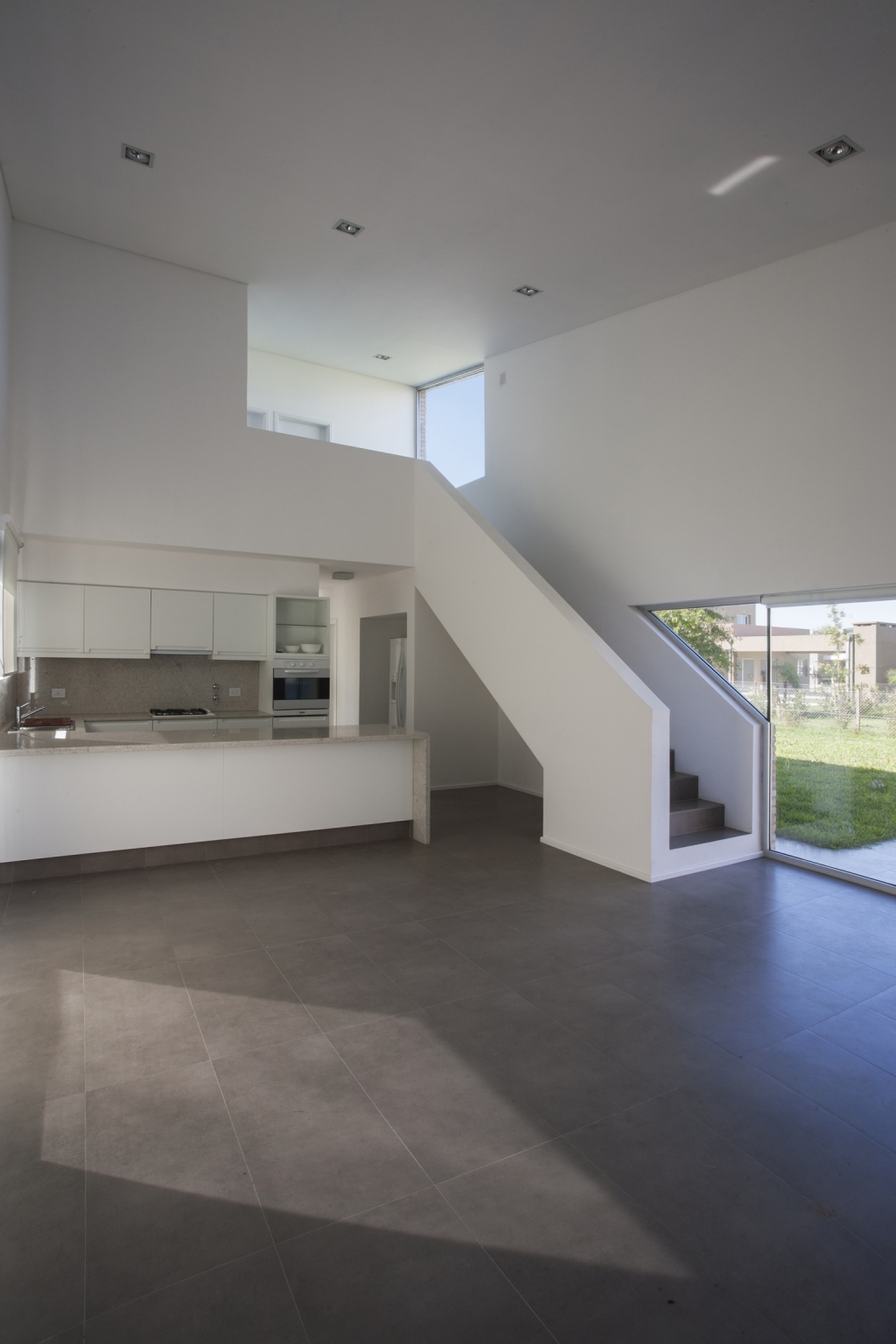

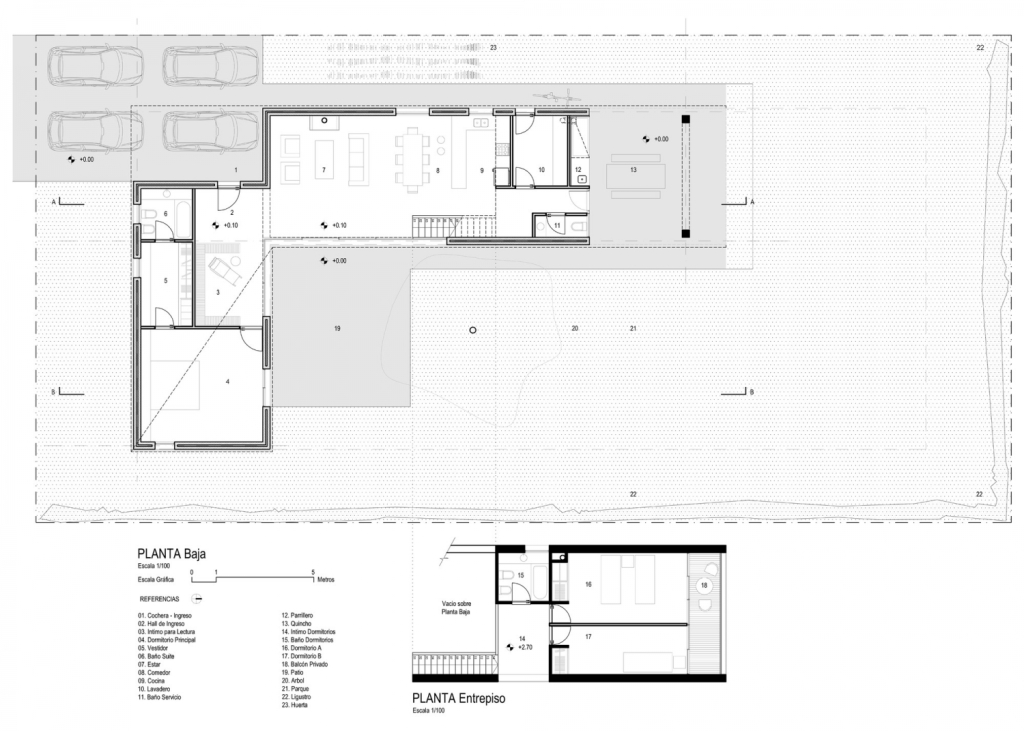

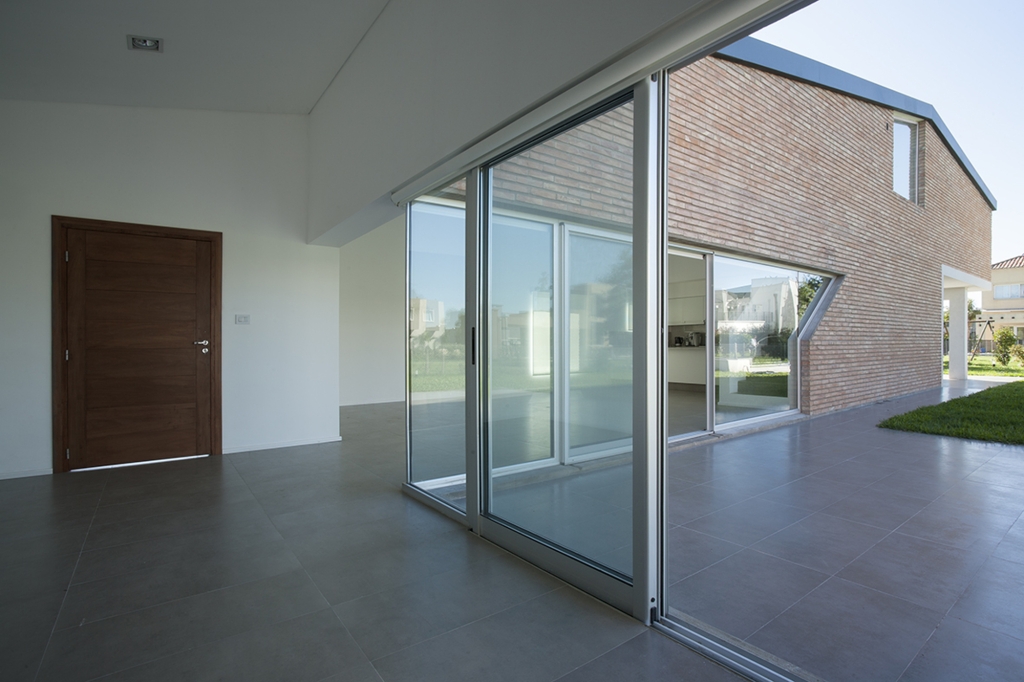

走进别墅入口后左拐，我们会看到一个令人吃惊的景象：在我们头上几英寸的地方悬挂着两个相交而组成T字形的横梁。这两个横梁是别墅内最大窗户的过梁，透过这个窗户可以俯瞰别墅外的庭院。这个朝我们靠近的T字形横梁是别墅内图书休息室的入口，并朝向起居室和餐厅混合区，窗户的交叠部分朝向北面。这个T字形横梁与地面也有连接点，与地面的连接点决定了两个横梁的结构方向。别墅本来呈L形，但后来变成了T形。但是如果用T字形的横梁和地面相连的话，横梁之上的屋顶就像弯曲的跳马一样呈圆形，这个设计使别墅看起来不是很平衡。米拉弗洛别墅里的木质构件和 Frittegotto别墅的木质构件起着相同的作用。米拉弗洛别墅的木质构件起着很重要的作用，这些木质构件位于别墅隔绝街道的围墙和别墅花园一侧的墙之间。同时，米拉弗洛别墅的木质构件被设计成与别墅垂直的形态，并穿透了别墅，使别墅的水平面颠倒了过来。这些木质构件是主卧的隔墙，倾斜的楼梯面就在木质构件上面展开。译者：蝈蝈 After passing the entrance and turning left, a brutal fact comes upon us. A few inches from our heads cantilevers a T, formed by the meeting of two beams that build the lintel of the largest window overlooking the courtyard. This T moves towards us virtually severing the lobby-library entrance to the house, and defines the opening to the living-dining room, and the folded part of the window looking north. This T also produces a coupling of the house to the ground, while determining its two main directions. The house is an L which becomes T . But if the house is connected to the ground by this crossroads of the T beam, a few meters above it, the roof makes a round movement, like the twist of a horse, which excites and destabilizes the appeased image of the house. This tree in Miraflores House plays an analogous role to another tree, the one in Frittegotto house. There, the tree is also at the center of a dance, which is established between the existing wall that chamfers the property from the street and its reflection, the wall of the house that folds over the garden.At the same time, the tree in Miraflores House is projected perpendicularly to the house and penetrates inside transmuting into its horizontal inverse, the partition of the main bedroom, and oblique, the plane of the staircase that unfolds from it. A similar operation occurs in Cinalli House, where the tree in the courtyard builds a plane of correspondence with the wall that divides the bedroom/living room.
