智利1957别墅

别墅 · 发表于 2026-5-22 13:49:41

Chile 1957 villas

设计方：Brugnoli Asociados Arquitectos

位置：智利

分类：别墅建筑

内容：实景照片

图片来源：Juan Duran Sierralta

项目规模：230平方米

图片：28张

摄影师：Juan Dúran Sierralta

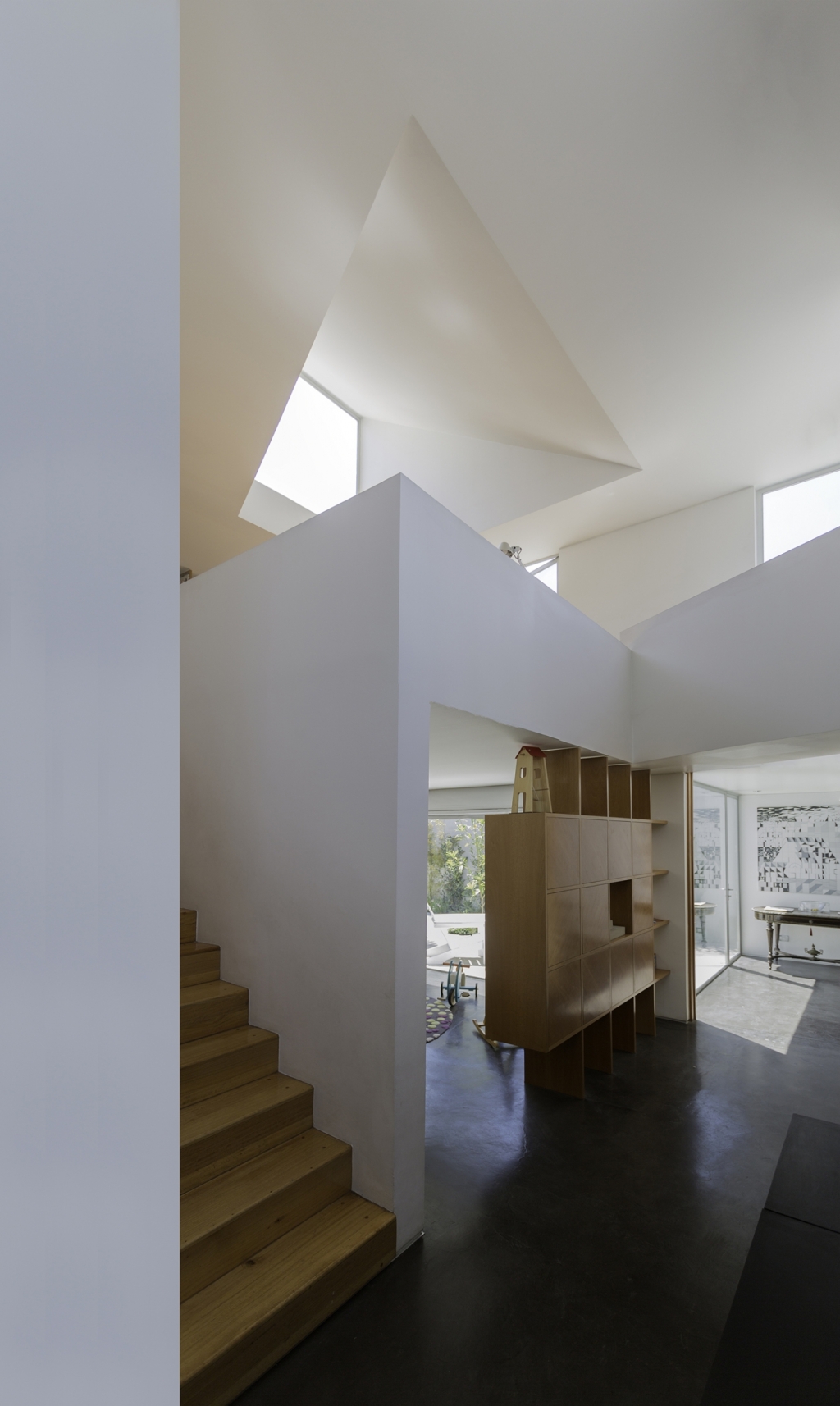

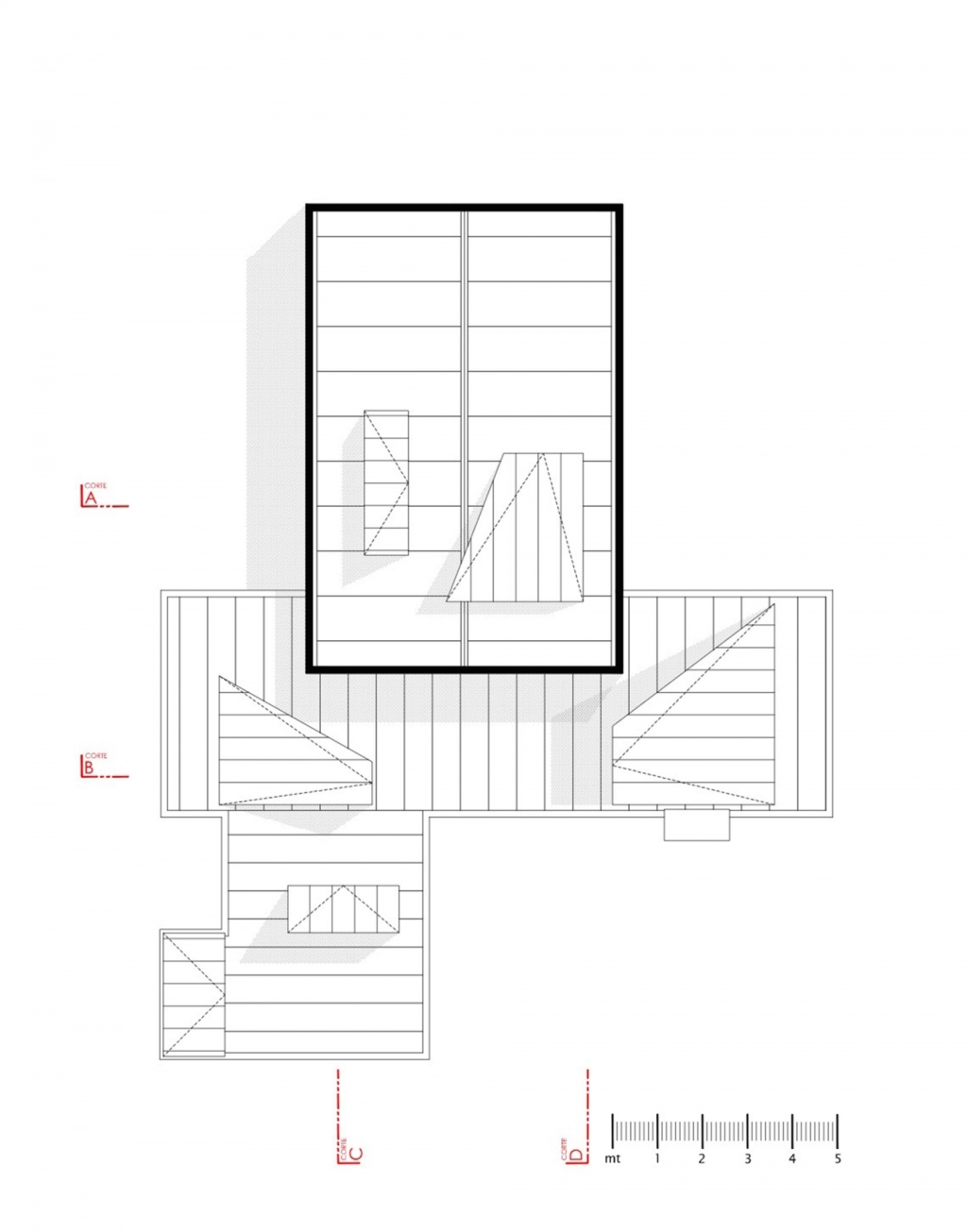

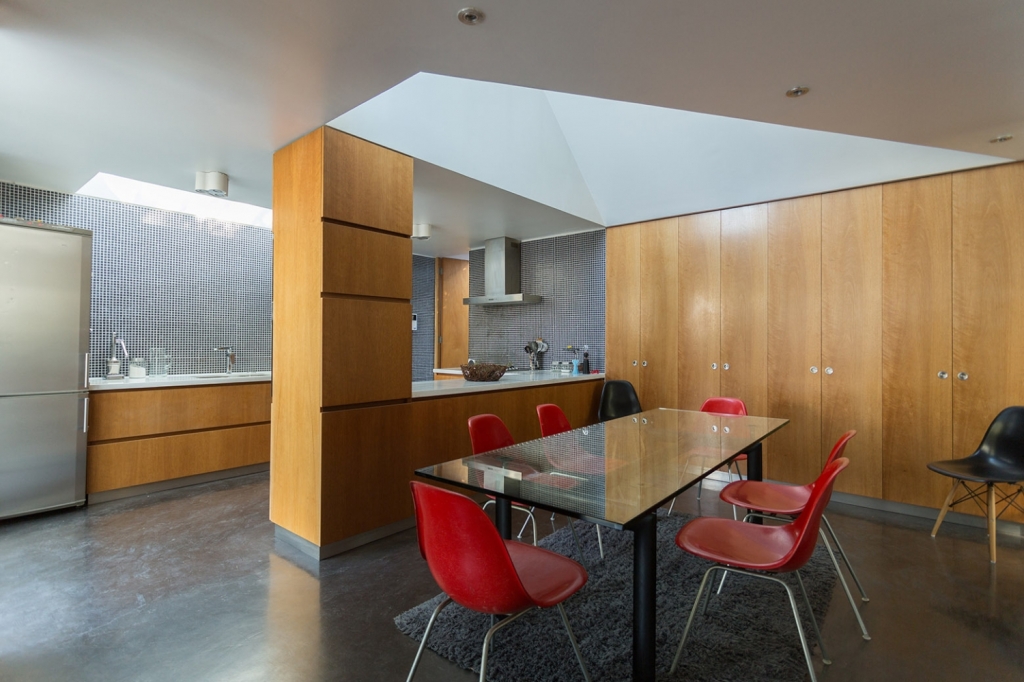

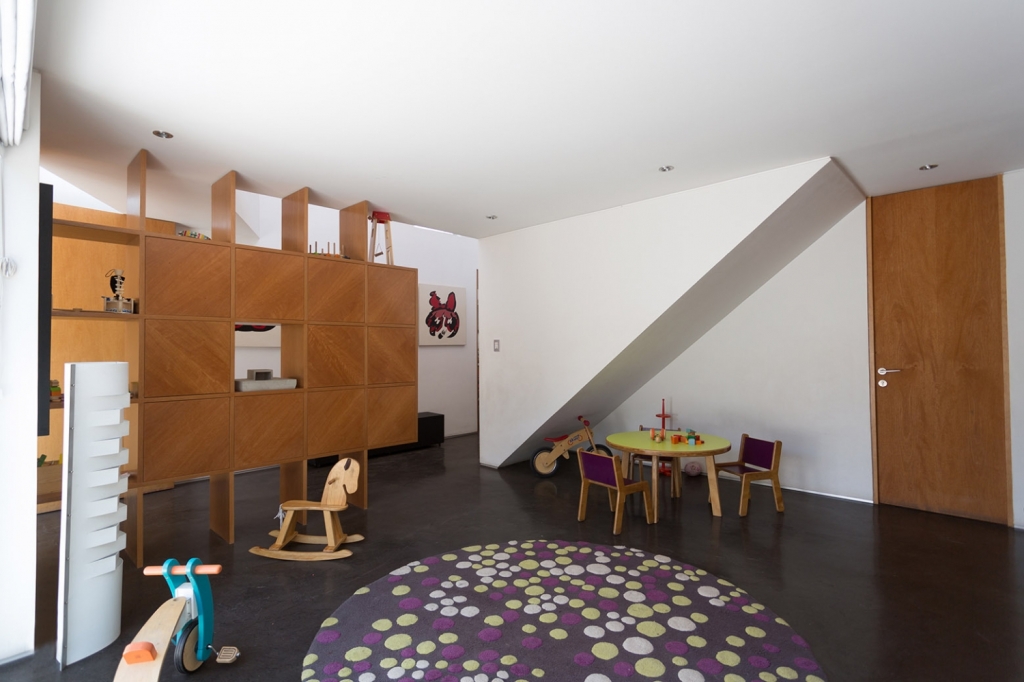

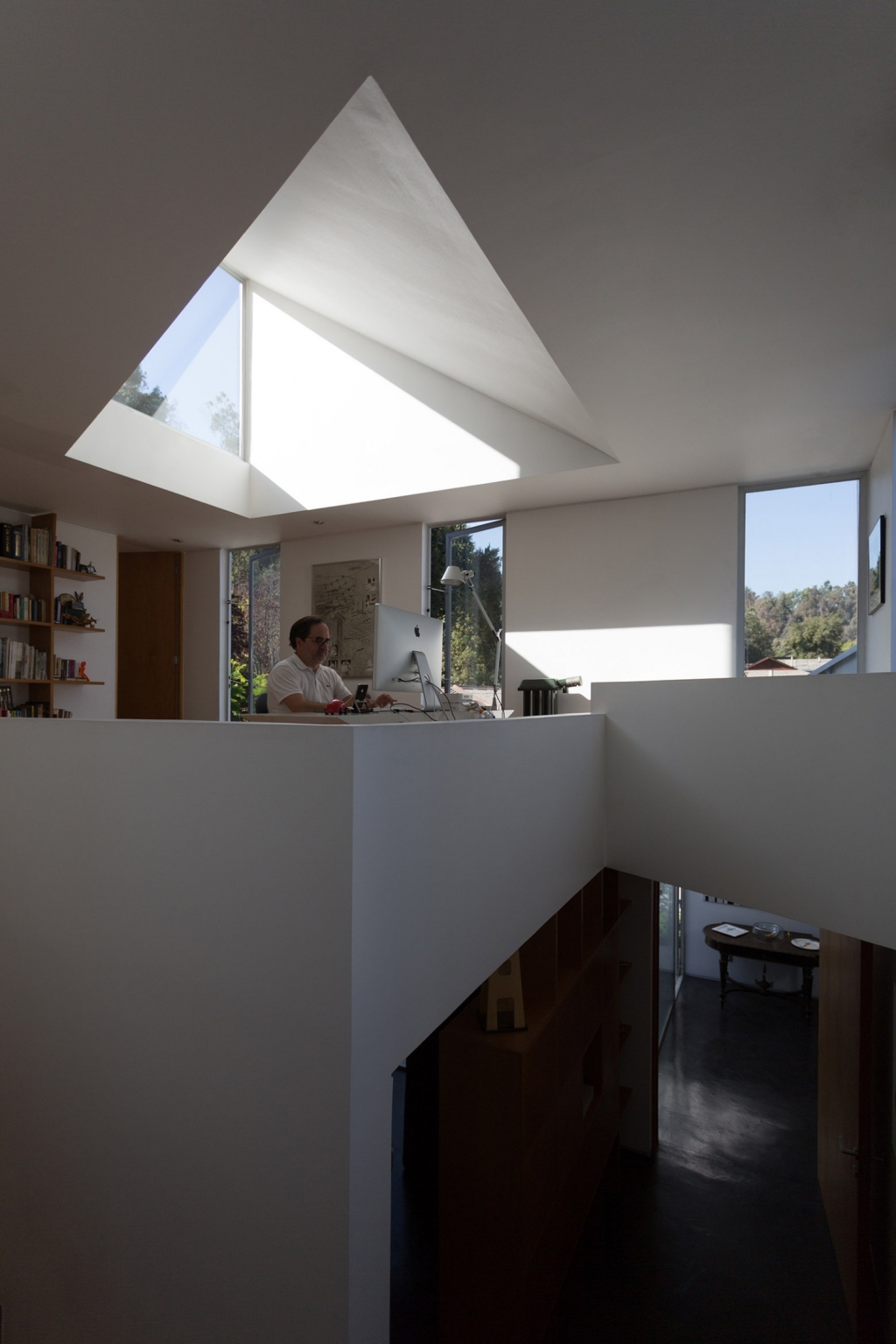

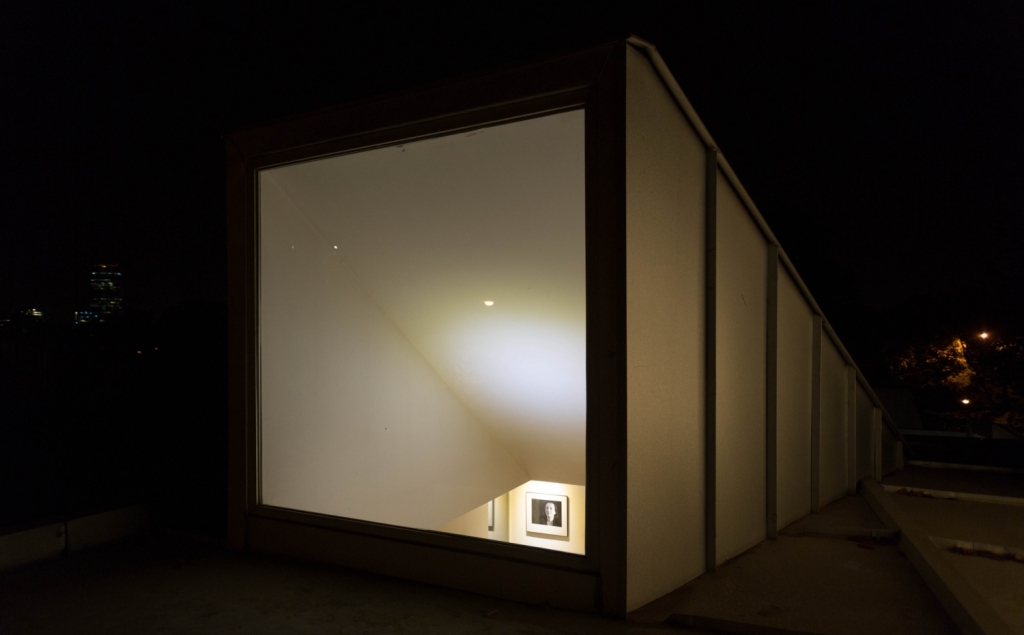

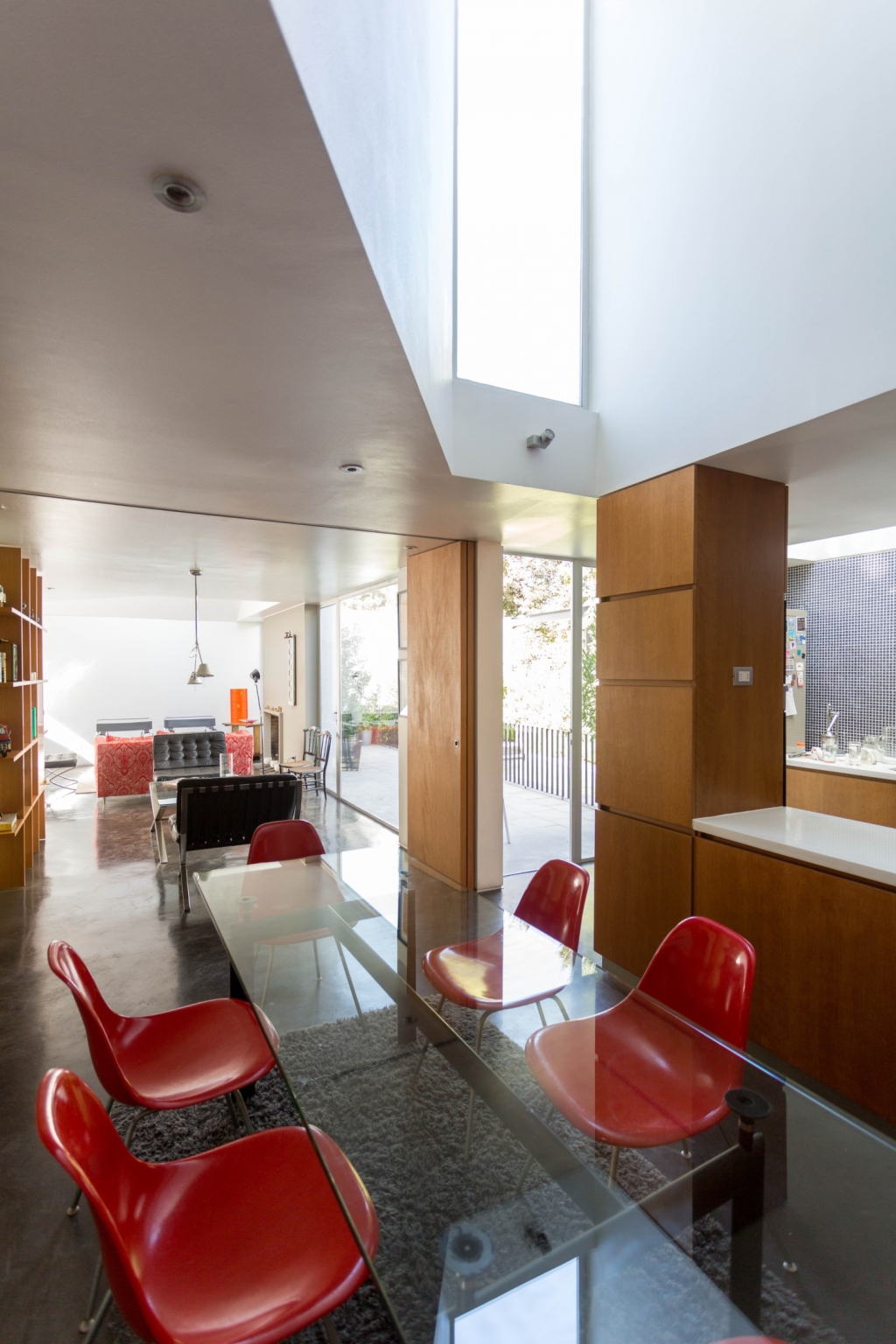

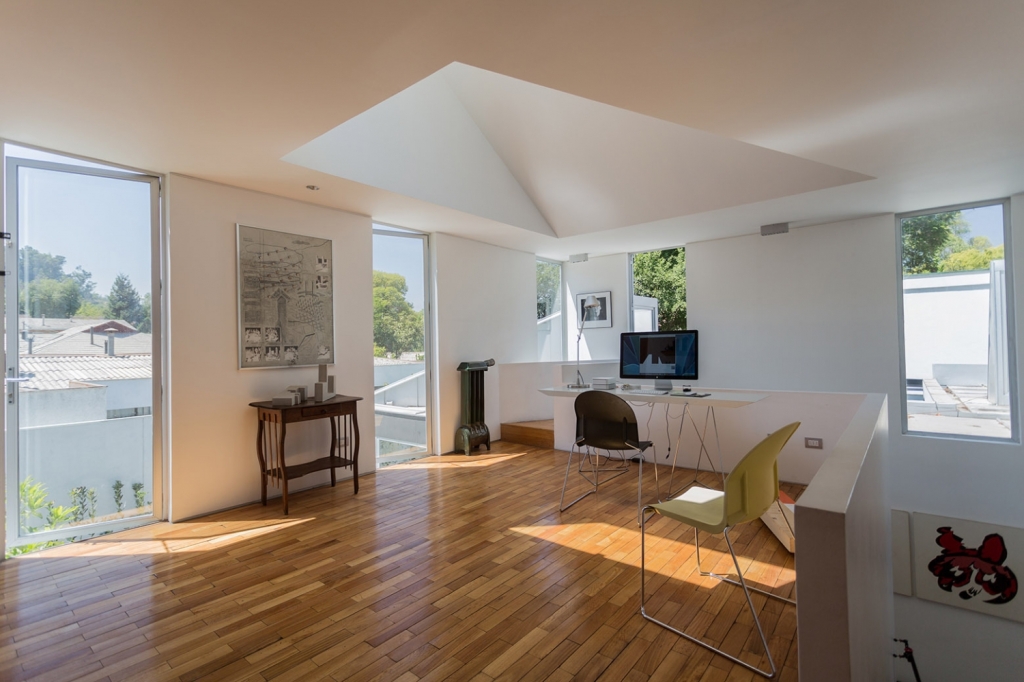

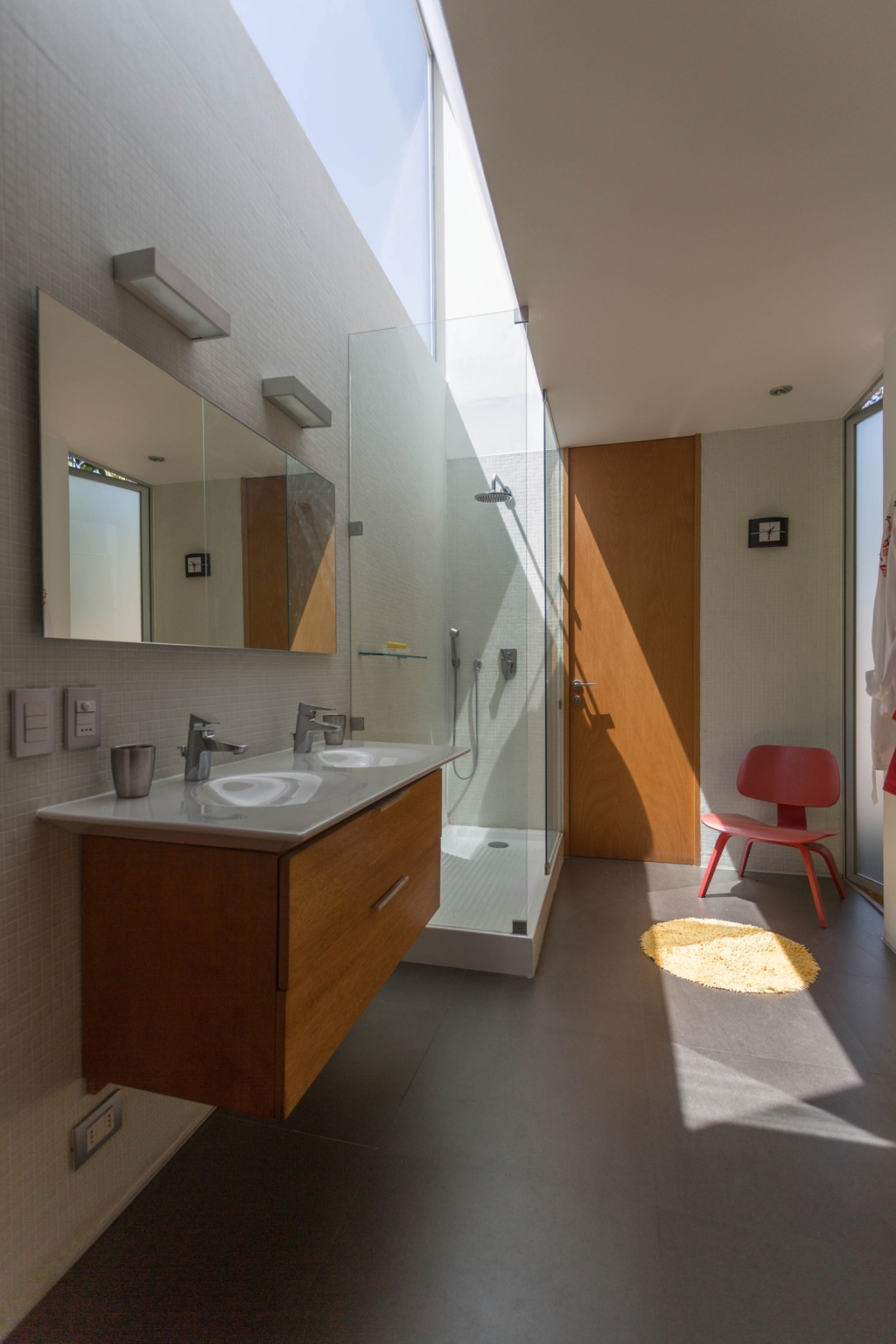

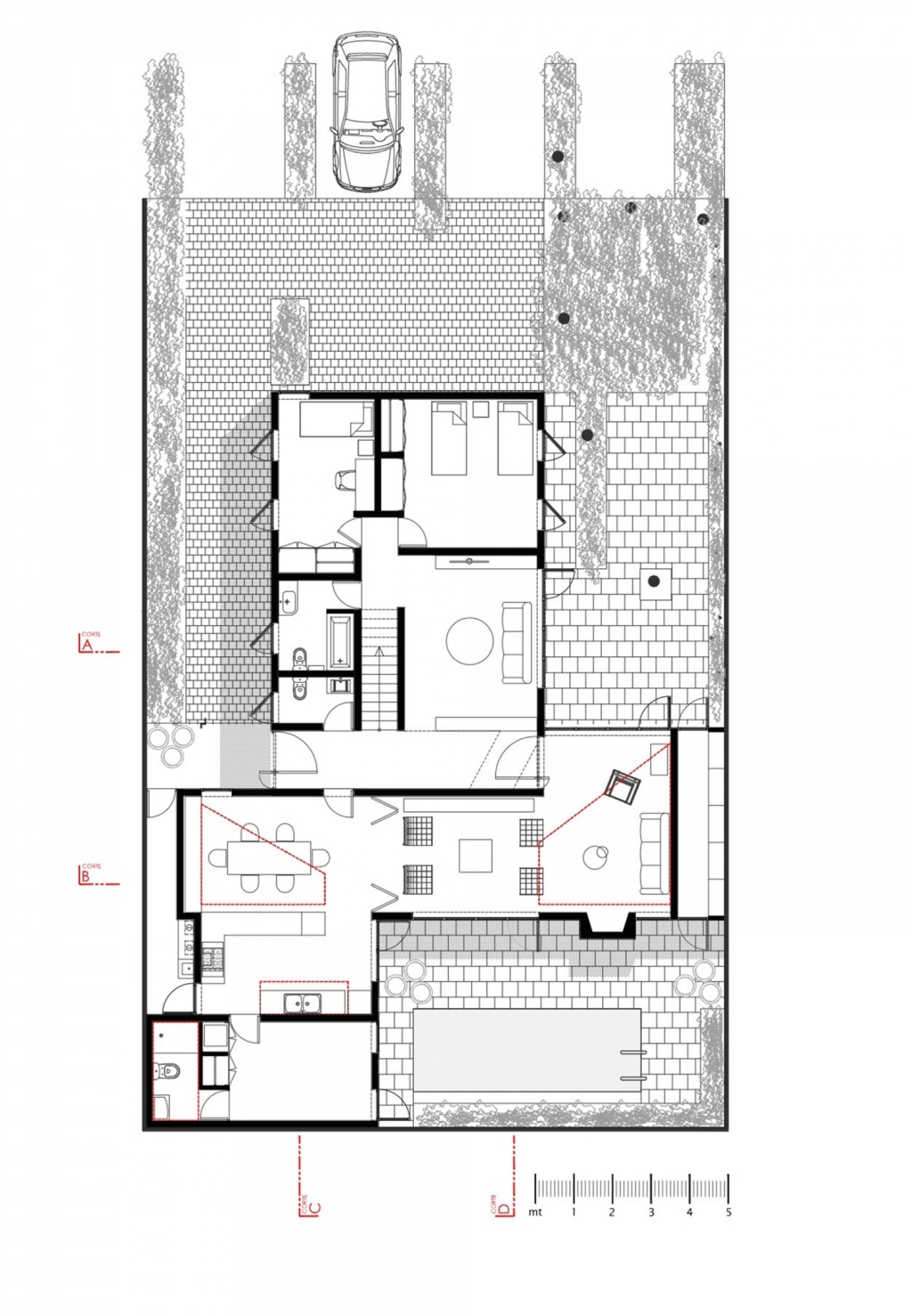

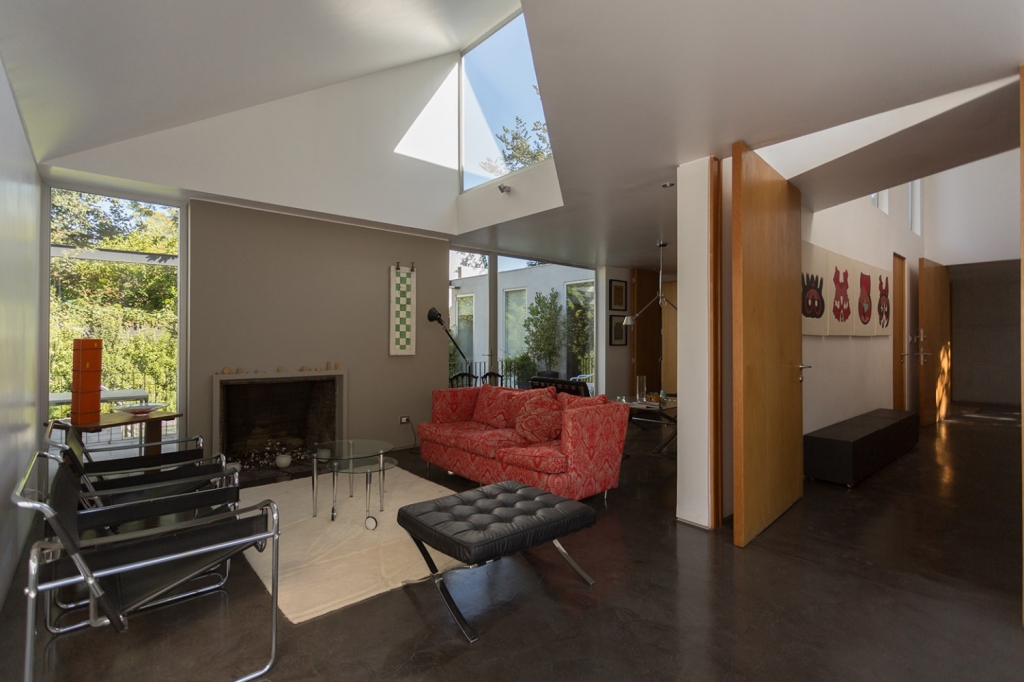

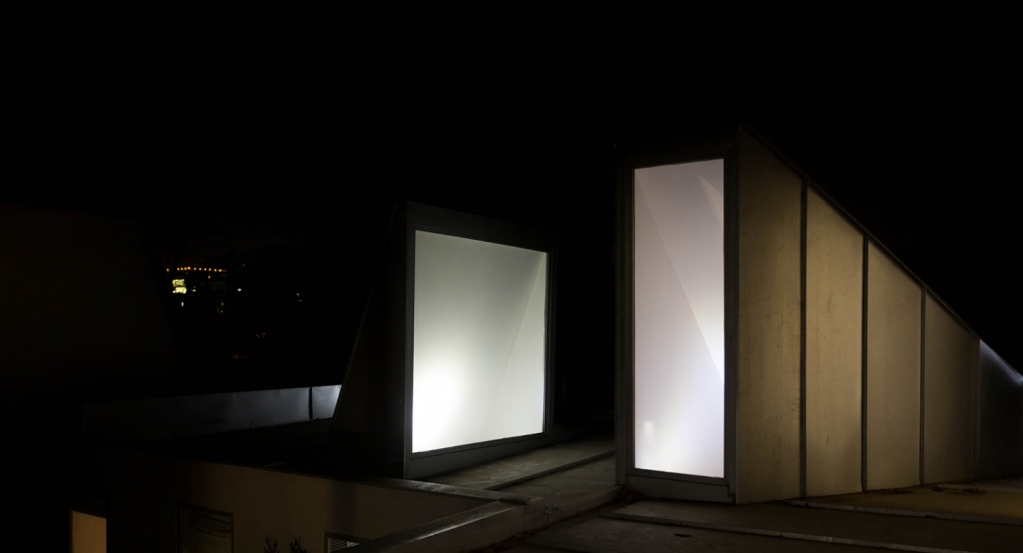

1957别墅是一个翻修工程，当承认原始建筑的价值后修建了一个配筋砌体，这个砌体与房间、方向和位置之间的关系正确，所有的这些元素都由圣地亚哥圣克里斯托瓦尔山直接决定。这些预存条件定义了别墅的形状和形式，项目的建造可以总结为两点：1.分区性：维持原始别墅的结构顺序，但是更换它们的关系，进行改组和重新设计，从而创造出不同的空间。因此，就产生了一个供家庭成员使用的公用区，修建这个公用区的目的是消除任何边界，使空间完全整合在一起。空间性：在别墅的建筑设计过程中使用了很多有特色的元素，它们可以改变原始别墅集合结构空间，并改进别墅的光透射度设计。设计的目的是使居住者能欣赏到别墅周围的风景，但是在建筑过程中要降低邻居家围墙对远景的阻隔，还要创造一种视觉张力。天窗的位置设计是为了使别墅内每个空间都有足够的光线。同时，楼梯和桥需要加强它们的特色。别墅最后的设计结果是一个合理的建筑体量，建筑体量拥有必要的开口，这些开口分布在每个房间中的任何位置上。译者：蝈蝈 The refurbishment project – House 1957- began acknowledging the values of the existing house, build in reinforced masonry, that had a right relationship between rooms, orientation and location, all determined by the immediacy of San Cristobal Hill in Santiago. These pre-existing conditions provide a range of perceptual and formal definitions, allowing configure the project′s premises that can be summarized in two main aspects:1. Zoning:the existing program order was maintained, but altering their relationships, reorganizing and redesigning some others to create different spaces informal terms.Thus, a common area was define for all members of the family, which aims to have full spatial integration, without further boundaries. Spatiality: A range of distinctive elements with capacity of altering the space from the existing geometry and improve light penetration were designed . The aim was to capture the surrounding landscape but diluting neighbors walls to generate perspectives and built a visual tension with the context.The position of these elements – skylights- was decide in orden to give formal clarity to each space. Also, connector elements stair and bridge acquired a formal singularity to strengthen its identity.The outcome is a rational box with the all necessary openings, which are located in each room, from floor to ceiling.
