新西兰长廊别墅

别墅 · 发表于 2026-5-22 19:05:58

New Zealand Promenade Villa

设计方：Daniel Marshall Architects

位置：新西兰奥克兰

分类：别墅建筑

内容：实景照片

设计团队：Nick Veint, Nick Sayes

图片：14张

摄影师：Simon Devitt

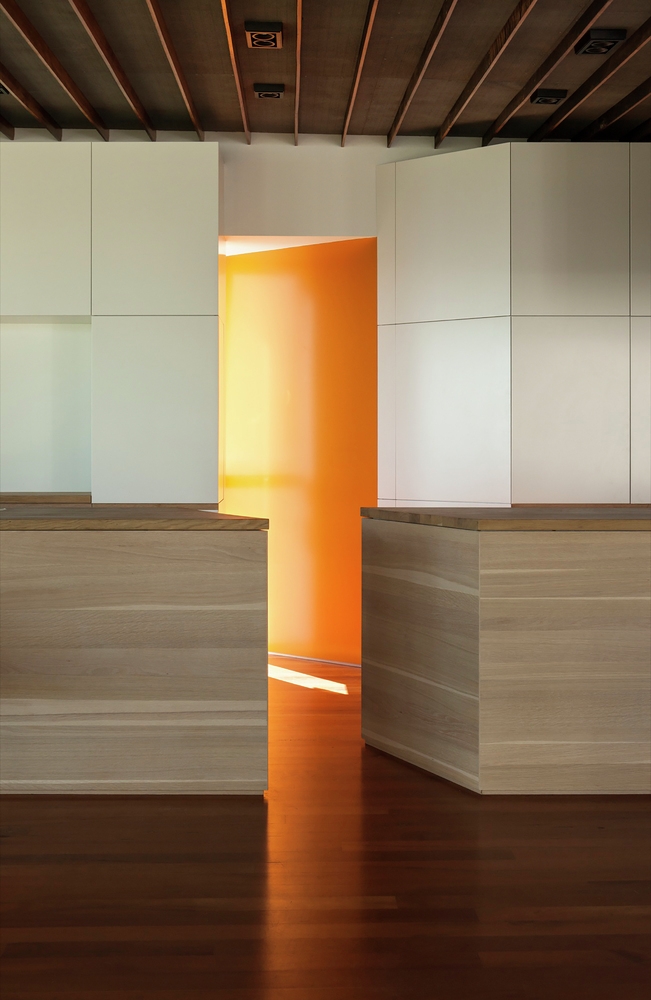

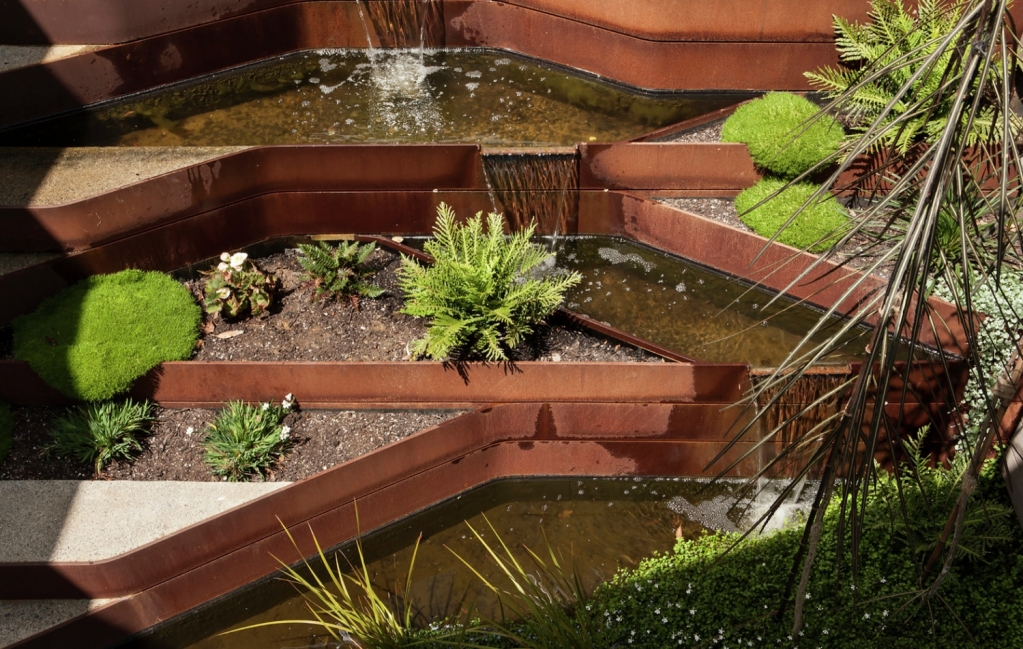

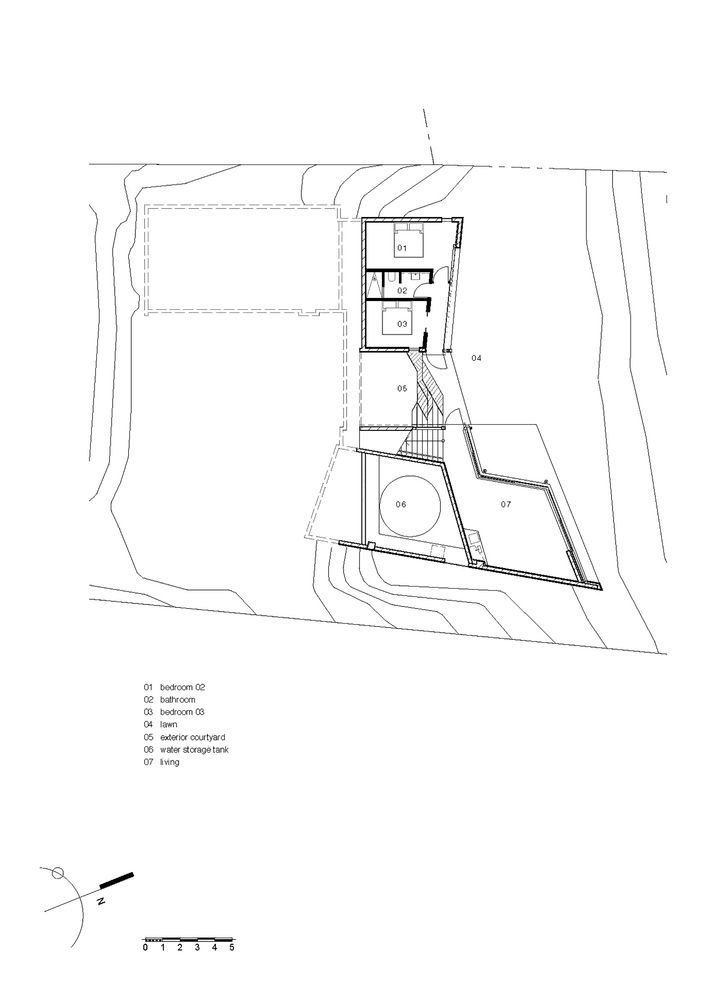

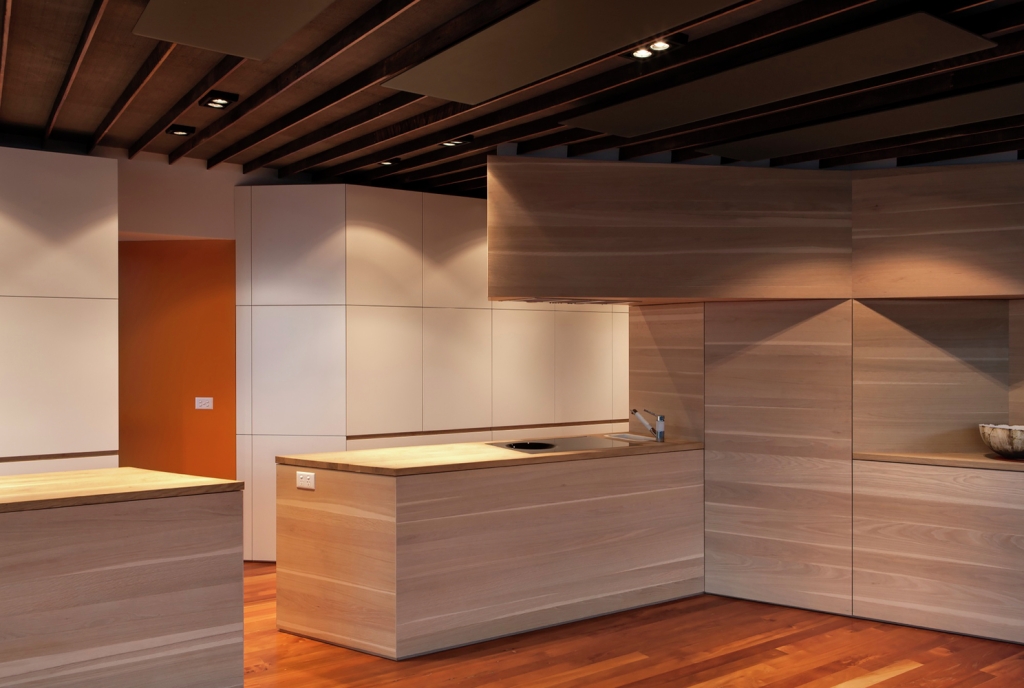

项目的场址伸展的很长，从Mellons Bay大街一直延伸到了一个砂岩悬崖上，这个悬崖俯视着海湾中的群岛。一栋二十世纪六十年代的矩形两层楼别墅就像一个大坝一样横穿过场址，隔绝了街道和大海之间的任何视线和感知。这栋别墅的状态不是很好，很大一部分原因是因为应对缺乏下部河道的准备。原始别墅很潮湿，设计也不好，当初的设计忽视了原始别墅所在的环境。新的别墅是为一对夫妻和他们的两个正在成长的孩子设计建造的。我们抛开了场址的临海位置，并决定从边缘位置后退，使得环境与大海重新结合起来。对环境的考虑包括了：1.合适的再利用。场址上原始别墅的大部分都被再造并重新使用着。地板板材和封檐板都用在了项目的建设中，原始地下室中的钢梁和石头包层用在了景观美化中。场址上的栎树在被砍倒和加工成形后用在了厨房的橱柜中。2.雨水收集。雨水被收集和储存在了一个3500公升的水箱中。水箱在别墅的下面，这利用了原始别墅的地下室区域。3.阳光。太阳能被用来为别墅提供热水供暖。4.高绝缘。译者：蝈蝈 The site is a long stretch from a suburban Mellons Bay street, to a sandstone cliff that overlooks the gulf islands.An existing 1960s rectangular two storey house sat across the site like a dam, blocking any transition both visual and visceral, between the street and the sea. The house was in poor repair, largely due to a lack of provision in terms of the watercourse beneath. It was damp and poorly planned, with a startling abandon, it ignored the landscape it was anchored in.The new house was designed for an engaging couple with 2 grown children. Despite the allure of the seaward end of the site, it was decided to pull back from the edge, to avoid the heroic gesture, to let the landscape re-engage with the sea. Environmental considerations:1) Adaptive re-use. Much of the original house was recycled and reused on site. The floor boards and weather boards were used in construction, the steel beams and stone cladding from the original basement were used in the landscaping. An oak tree that stood on the site was chopped down, milled and the timber was used for the kitchen cabinetry；2) Rainwater harvesting. The rainwater is harvested and stored in a 3500 litre tank beneath the house - utilising the basement area of the original house；3) Solar. Solar energy is used for the hot water heating in the house；4) Highly Insulated.
