辽宁大连西山别墅

别墅 · 发表于 2026-5-22 23:53:25

Liaoning dalian west mountain villa

设计方：CONTEXTUREARCHITECTS

位置：辽宁大连

分类：别墅建筑

内容：实景照片

设计团队：Wouter Bolsius, Onno van Welzen, Pearl Huang, Angela van der Hoek, Yajie Wang

图片：36张

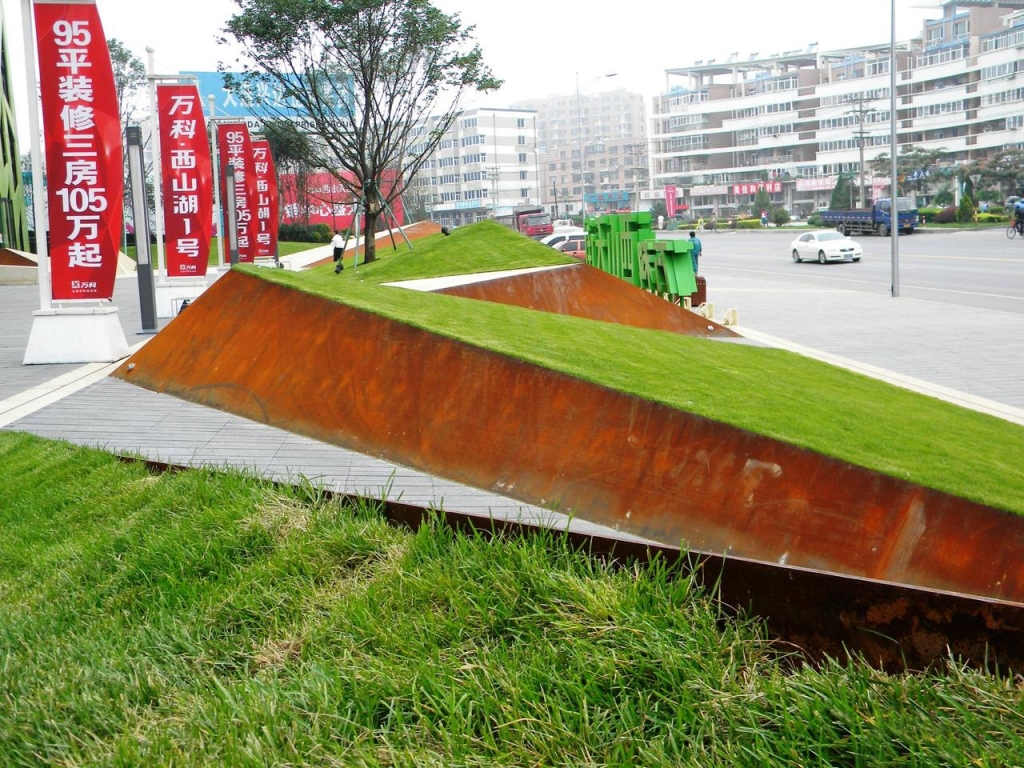

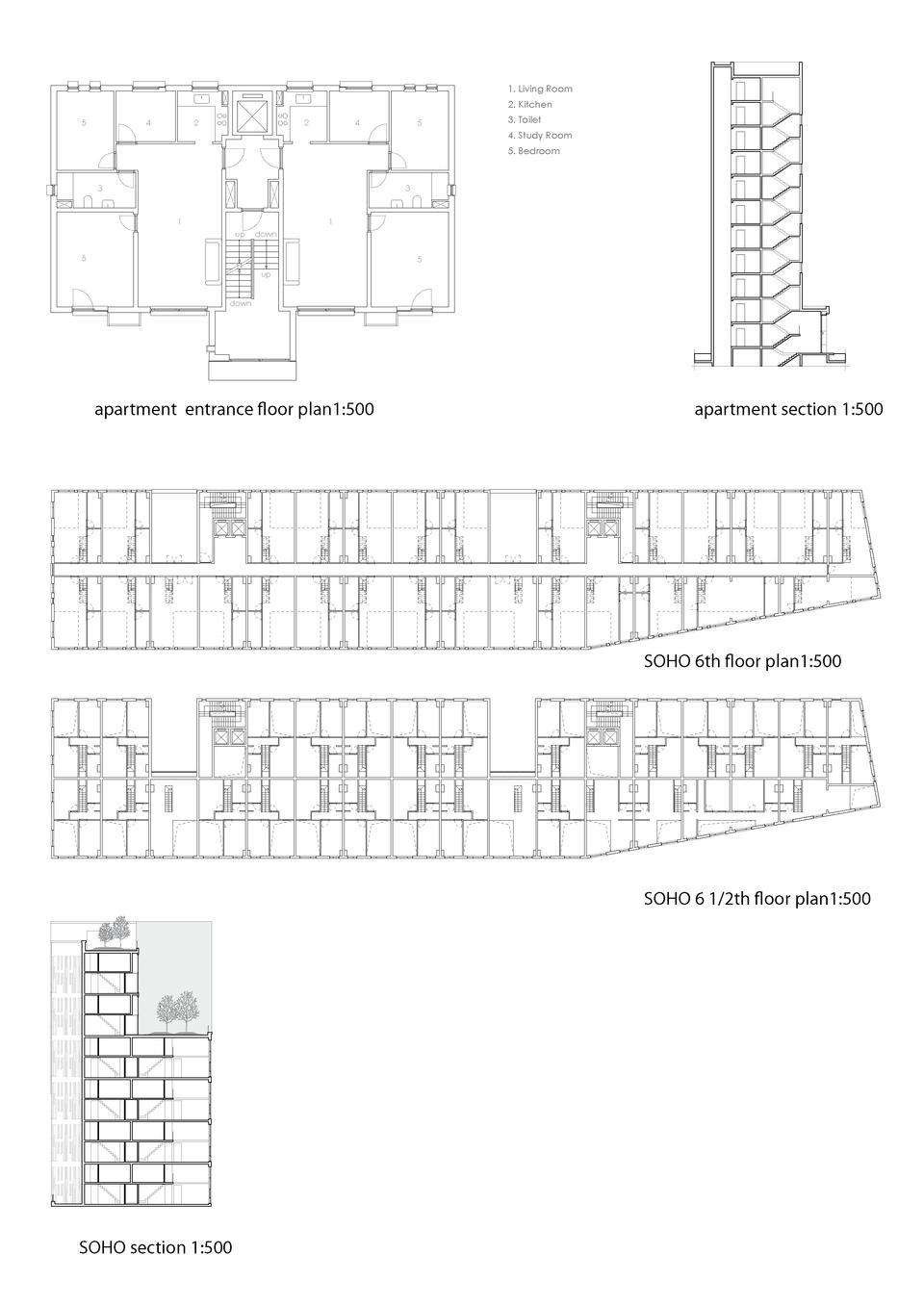

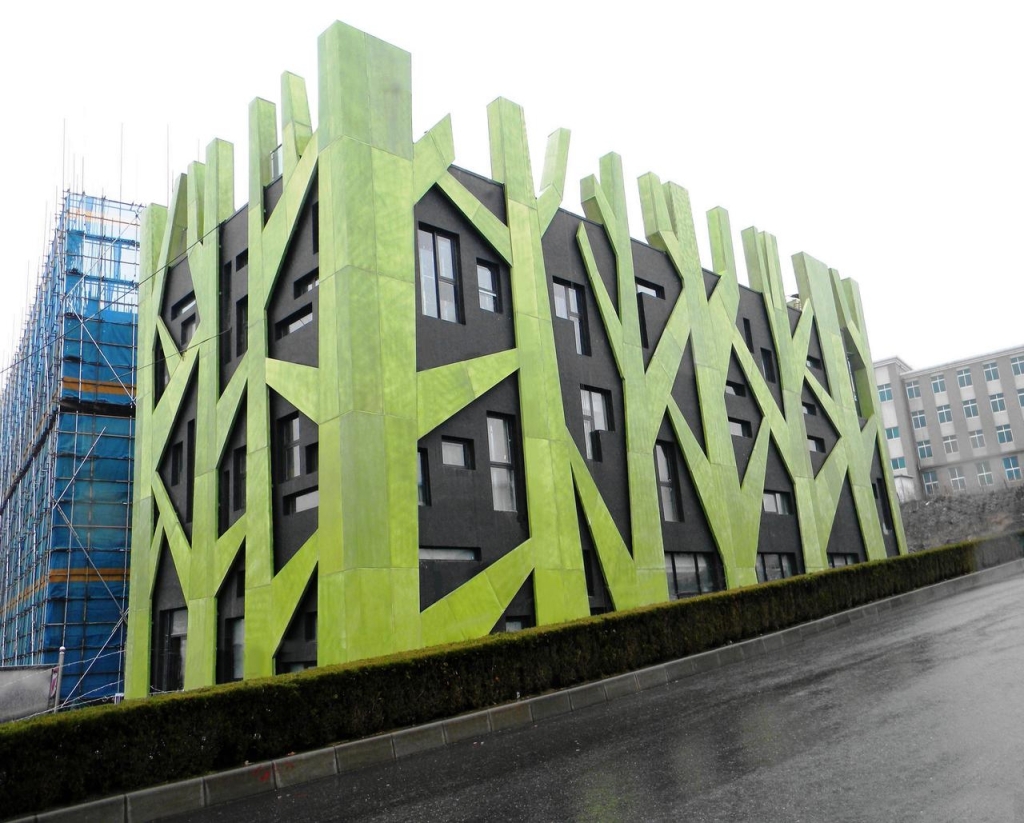

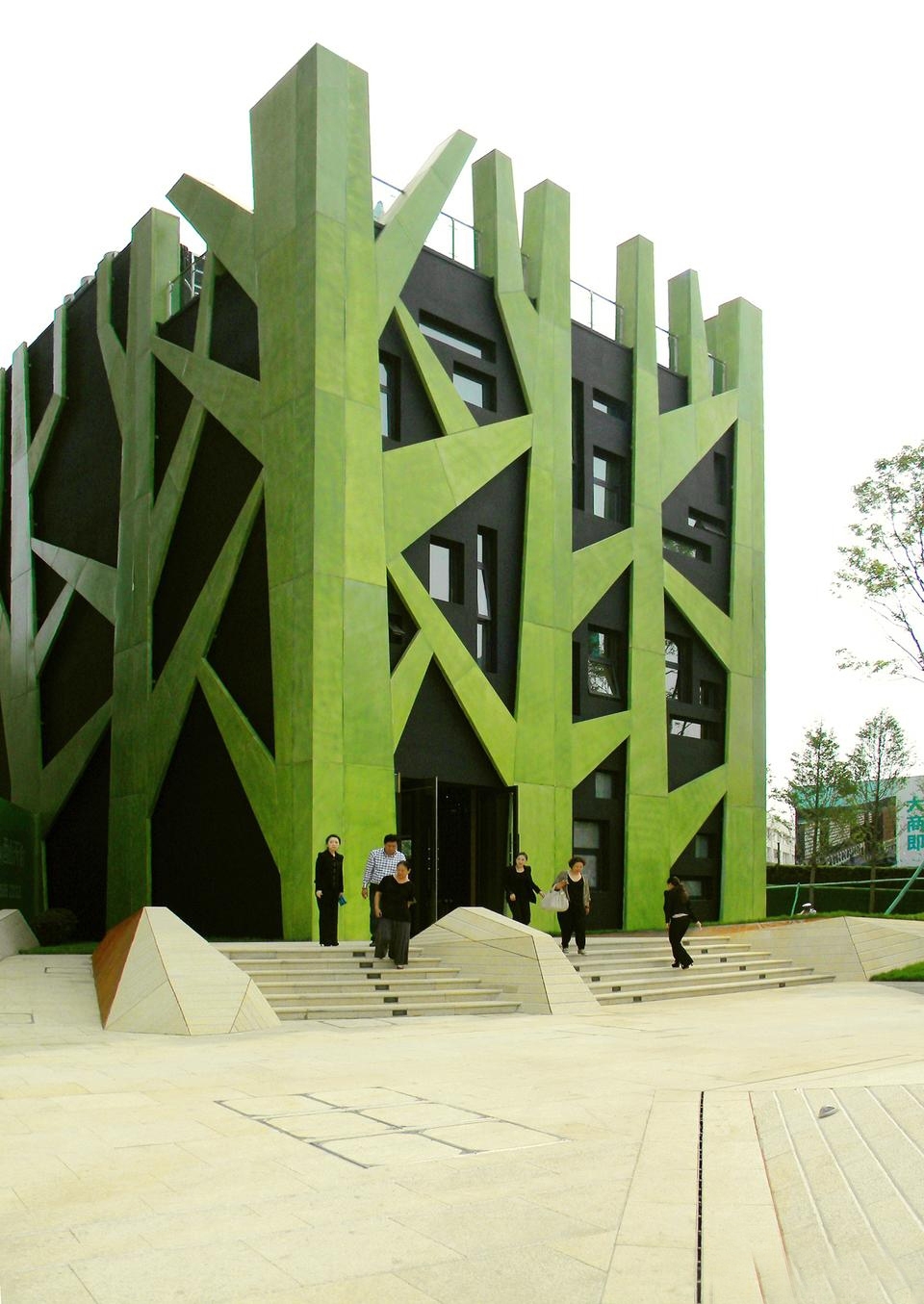

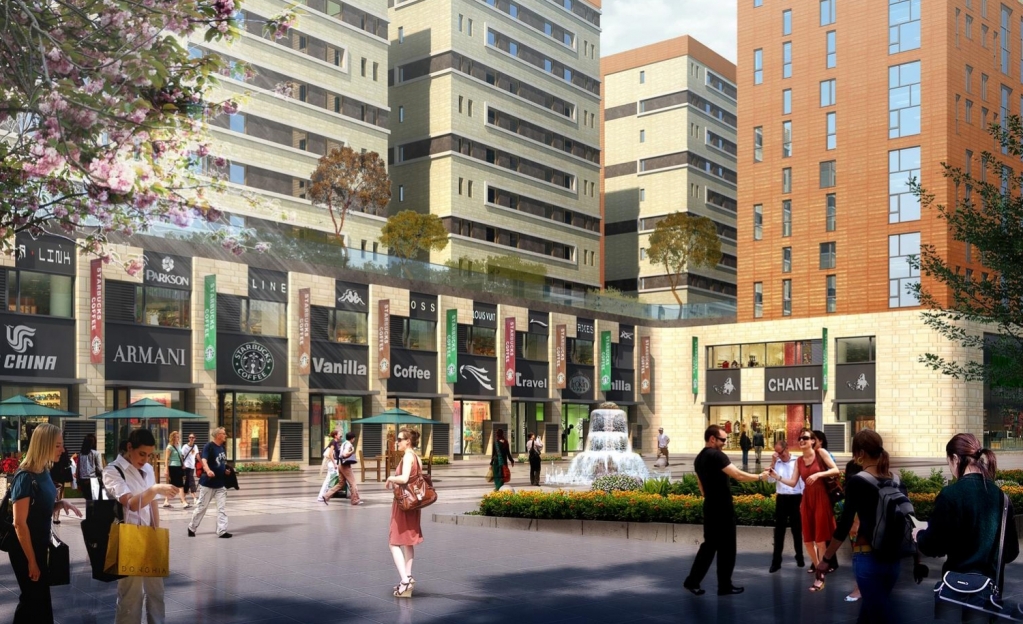

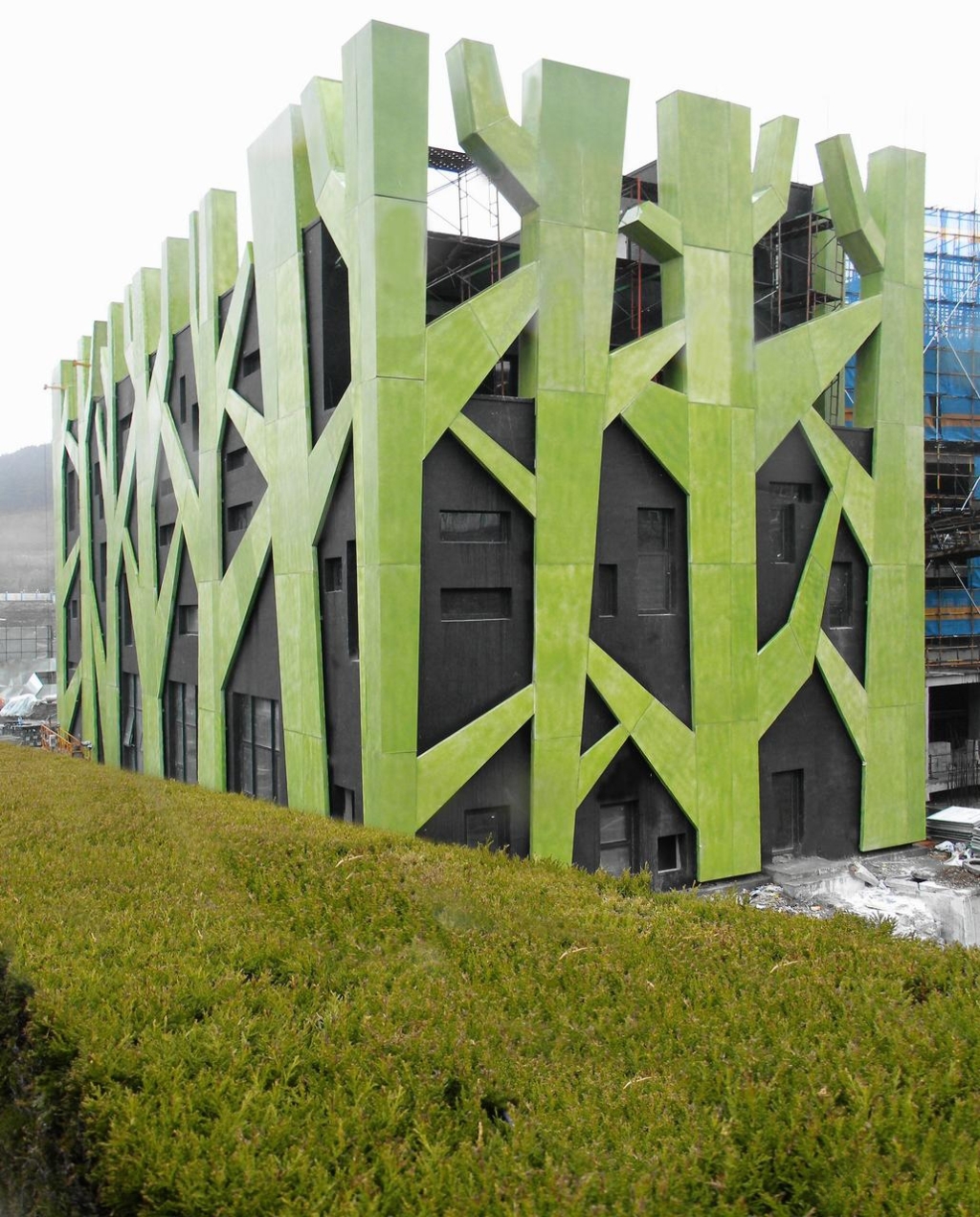

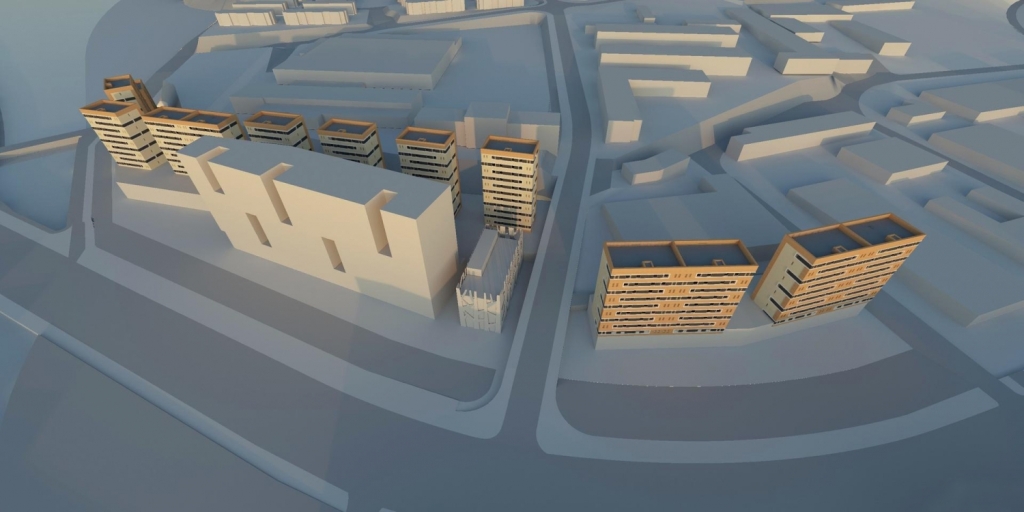

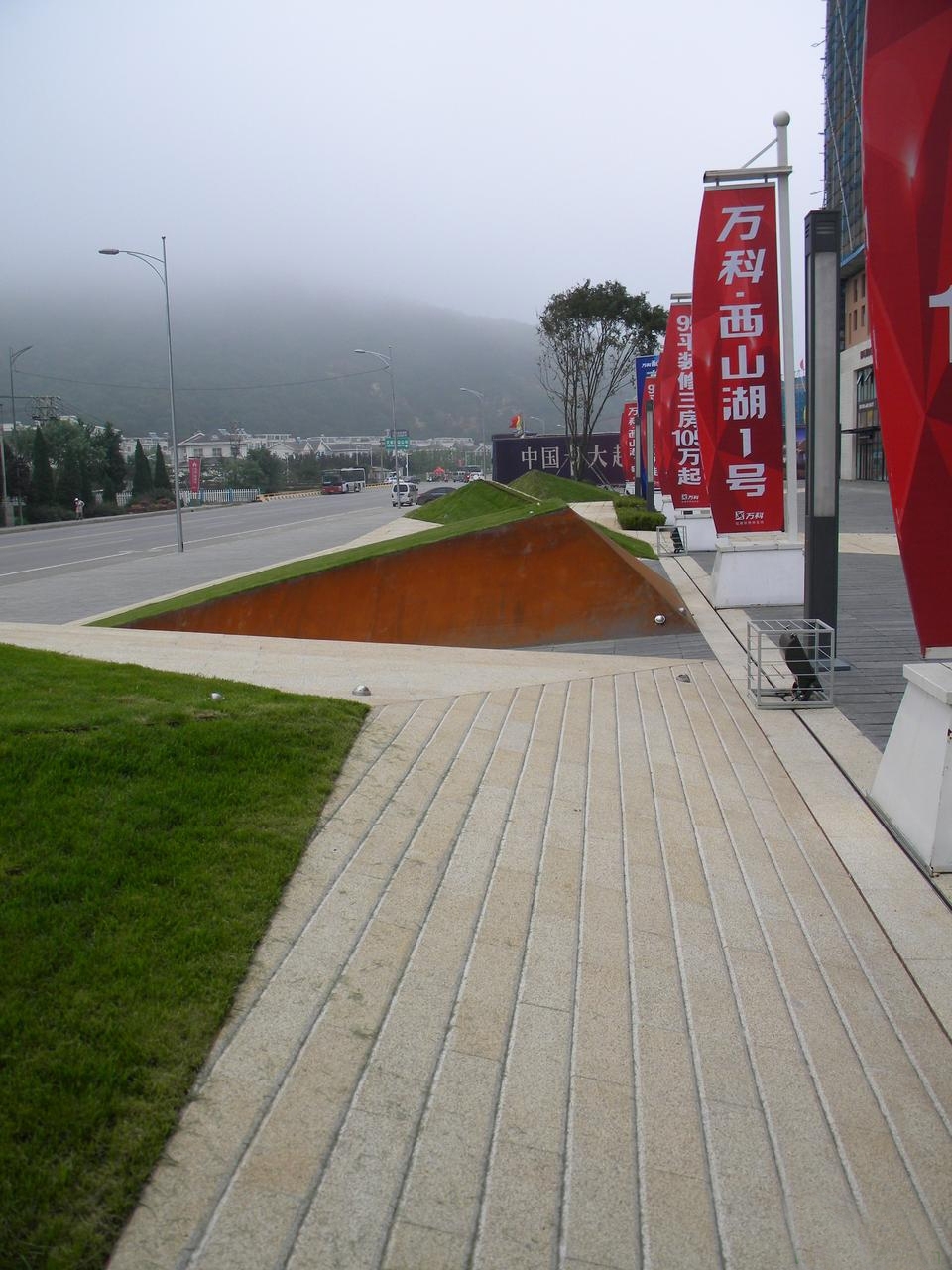

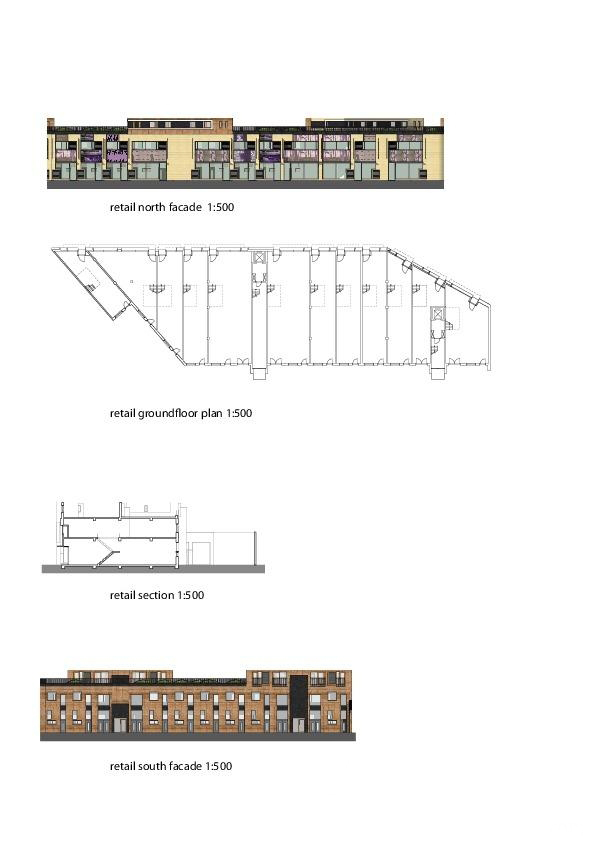

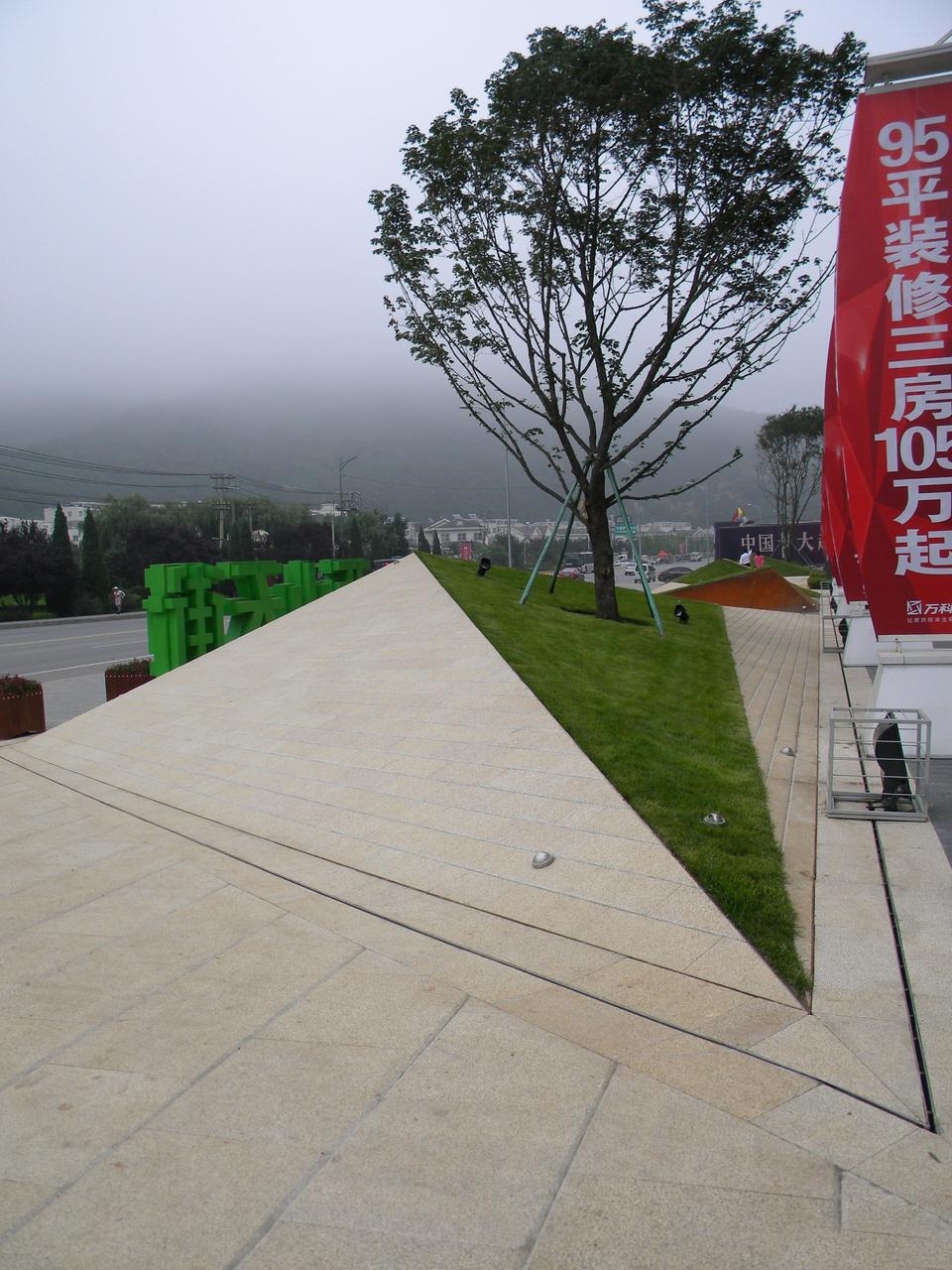

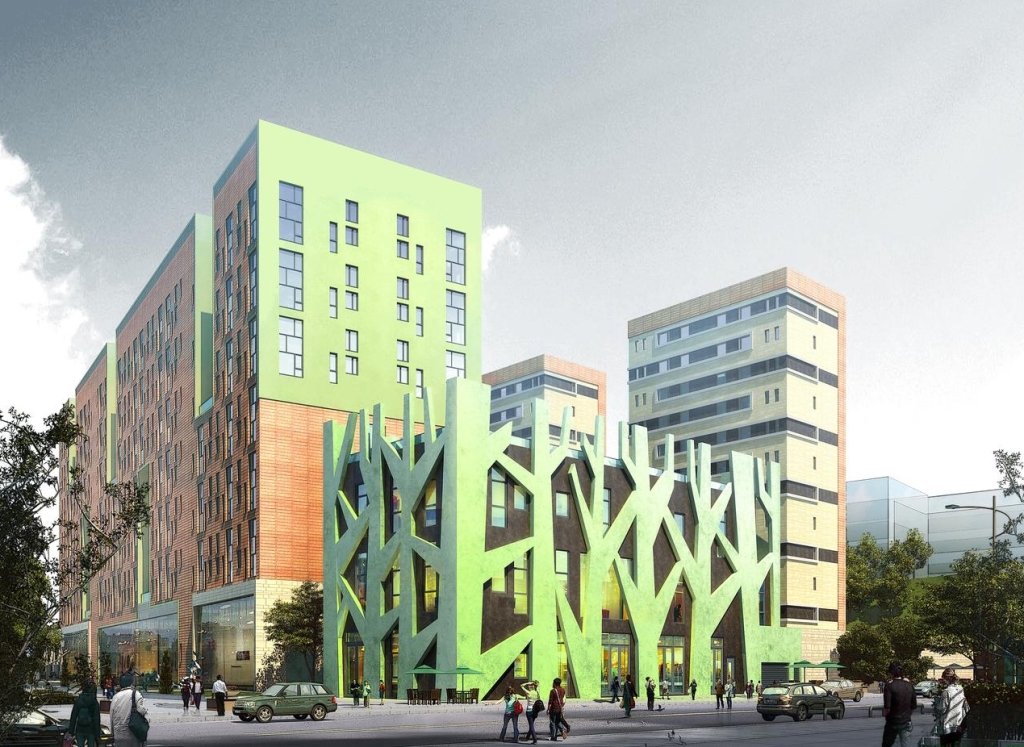

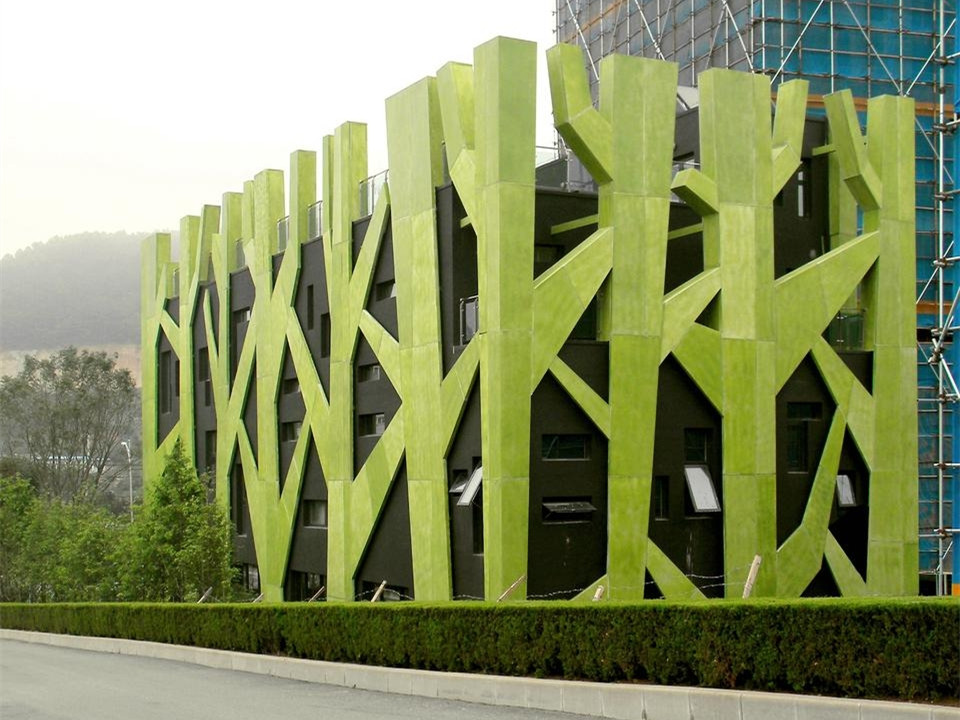

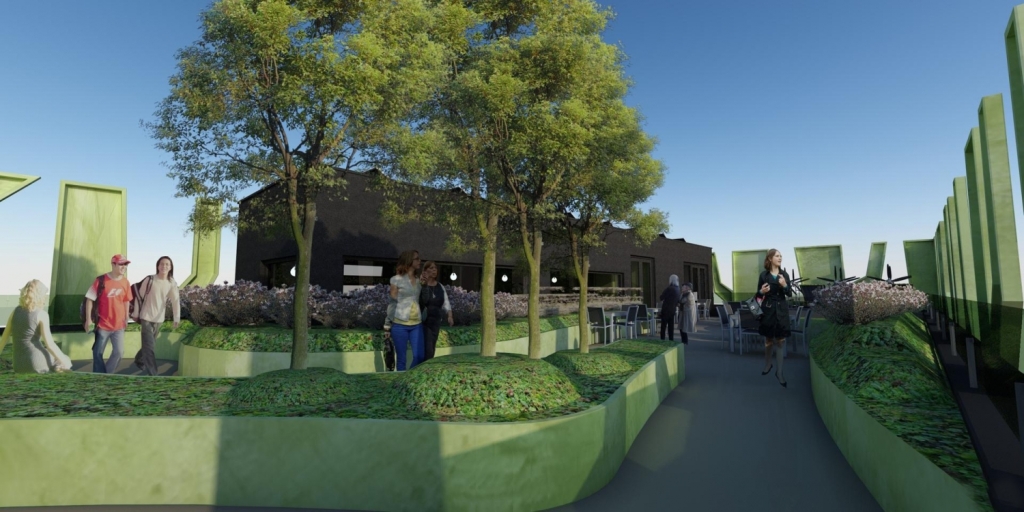

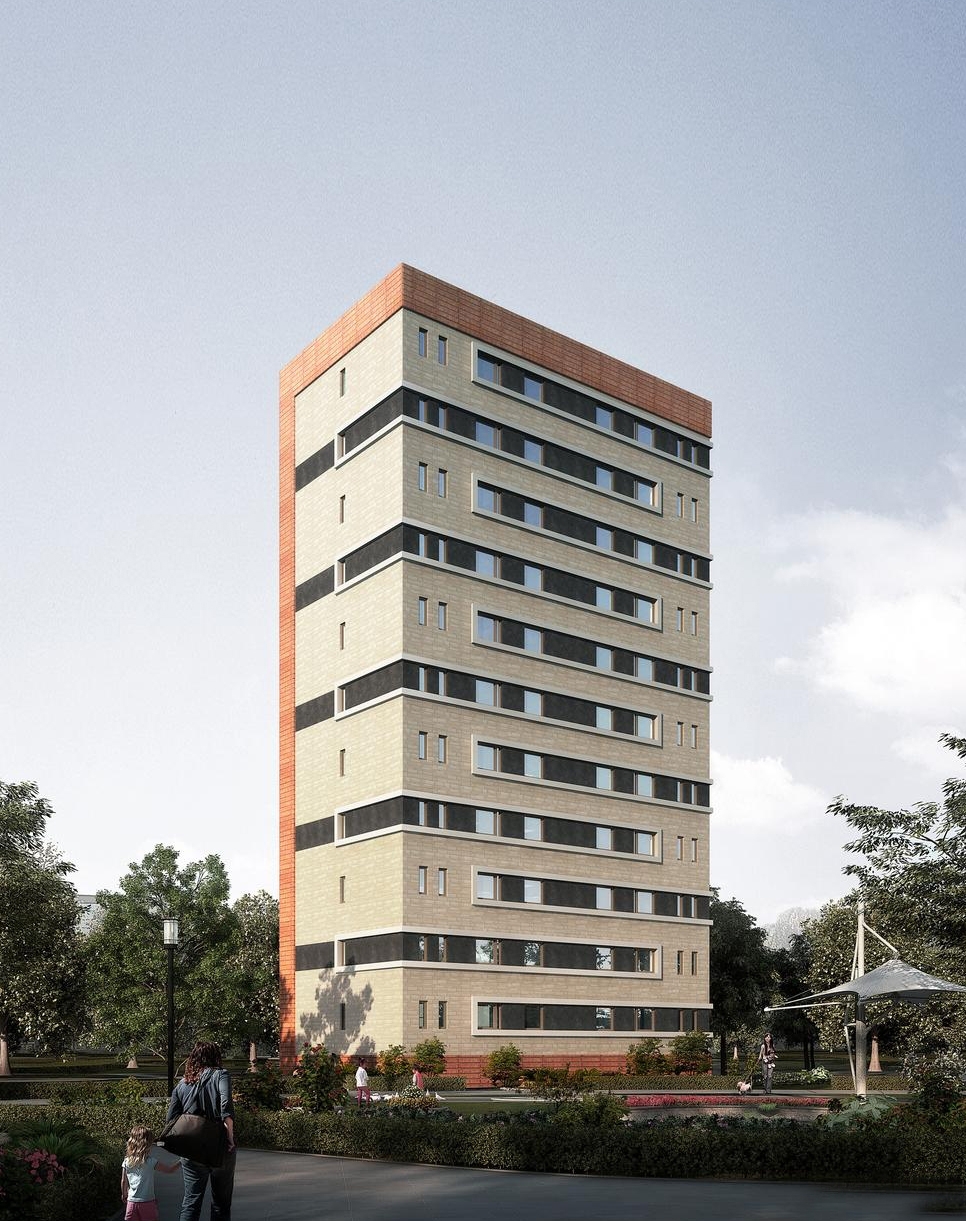

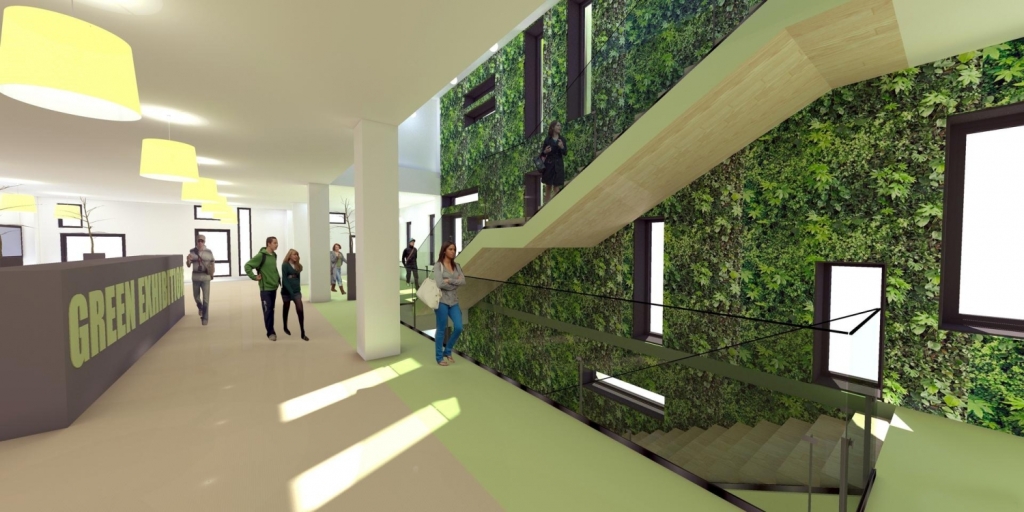

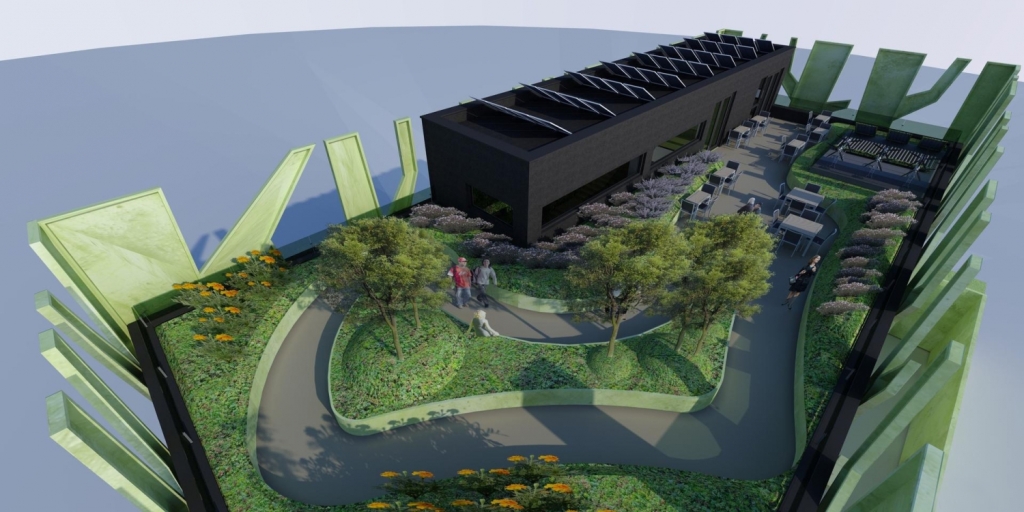

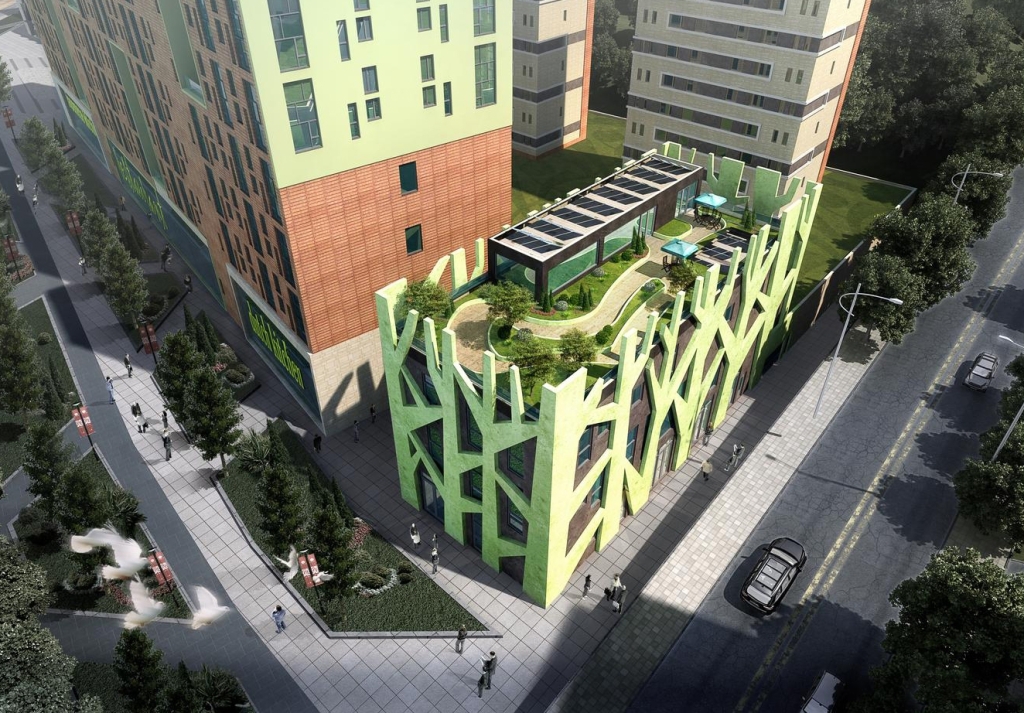

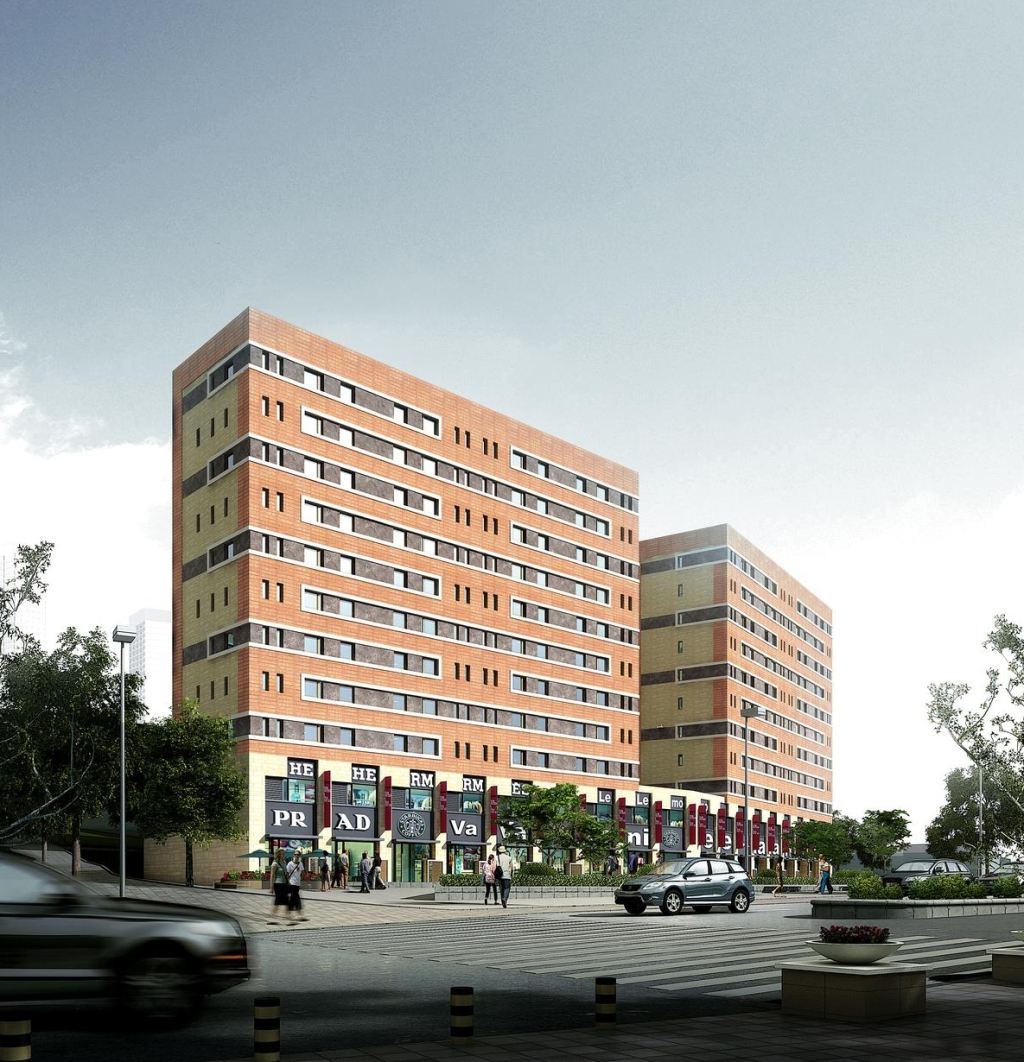

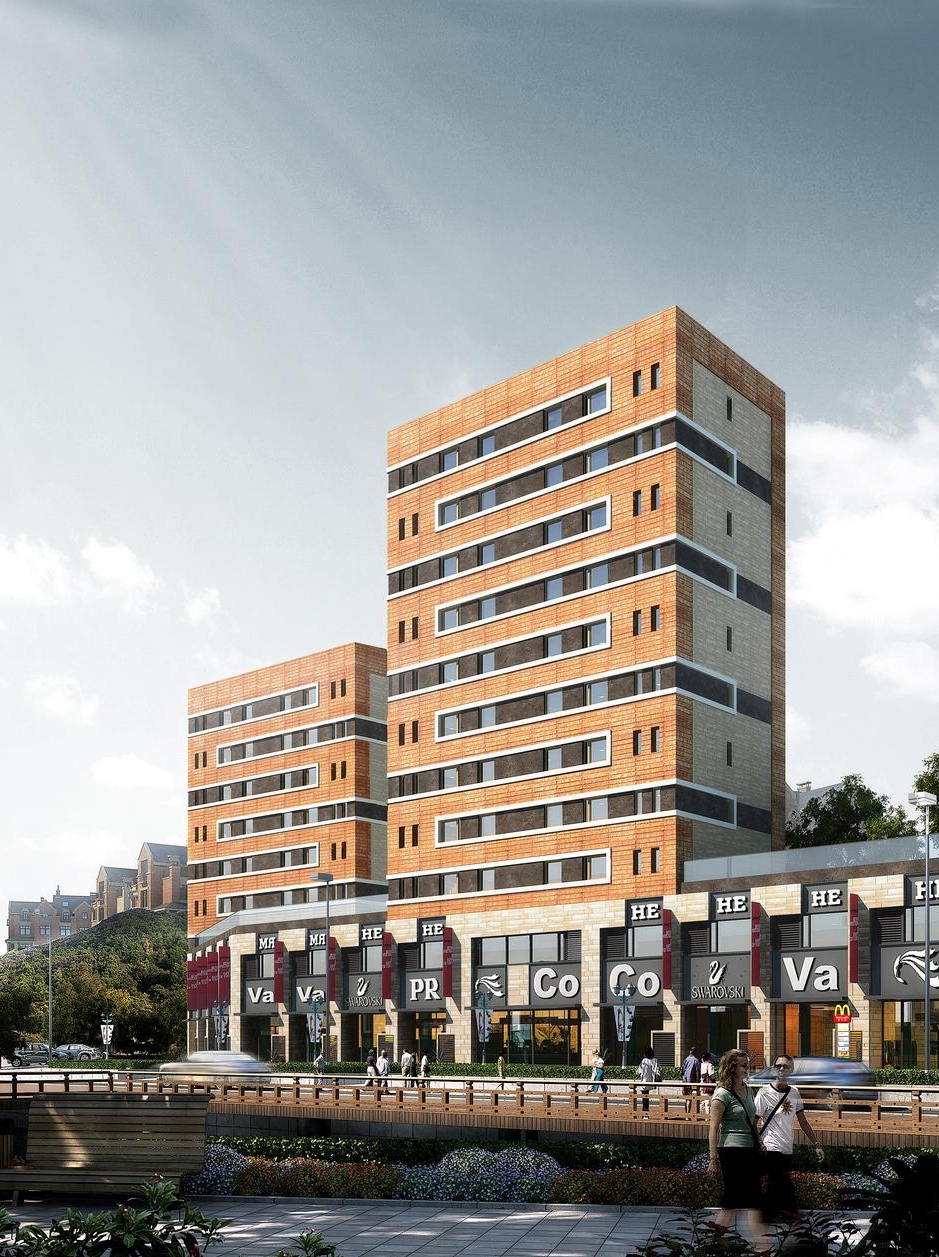

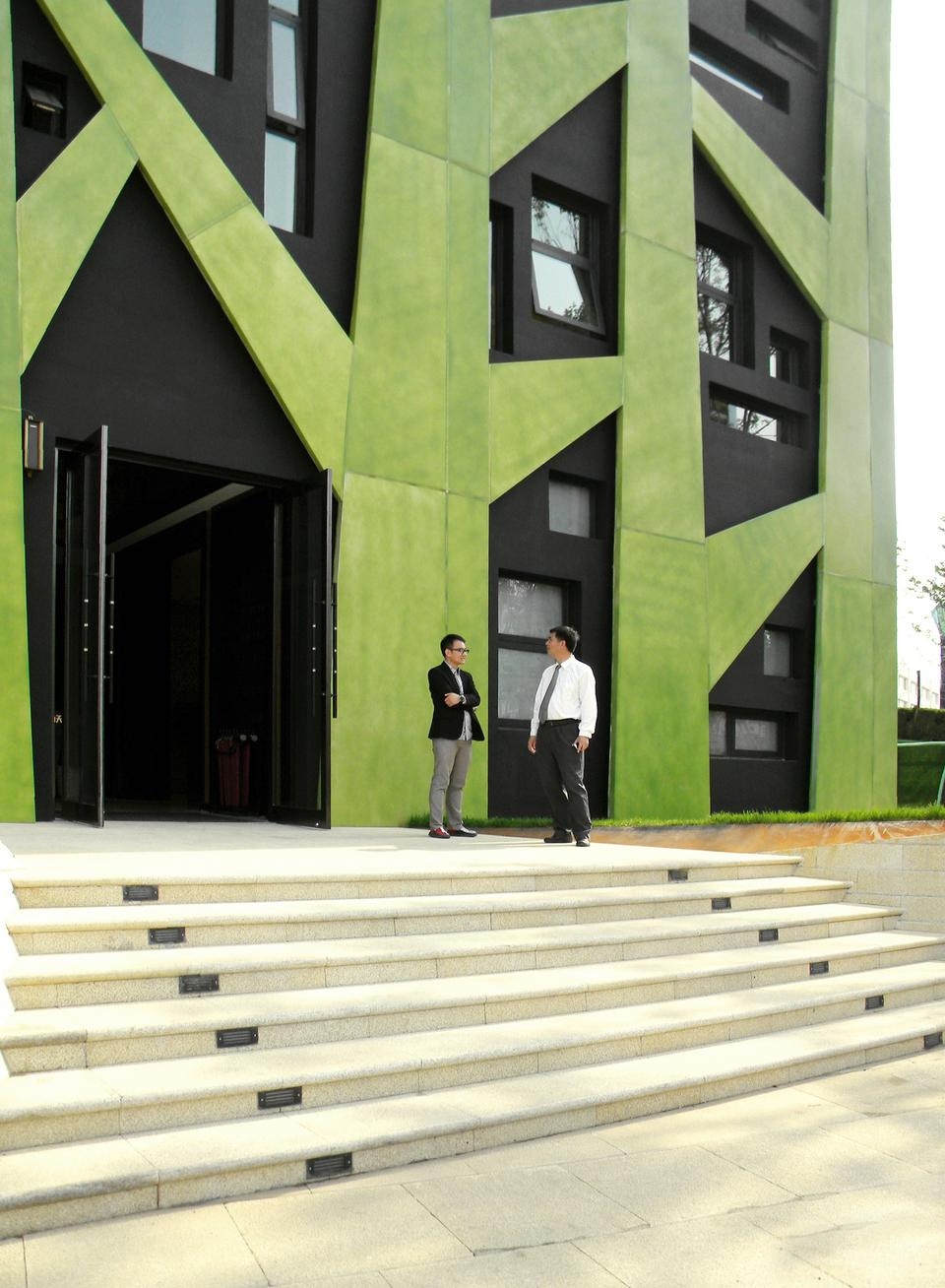

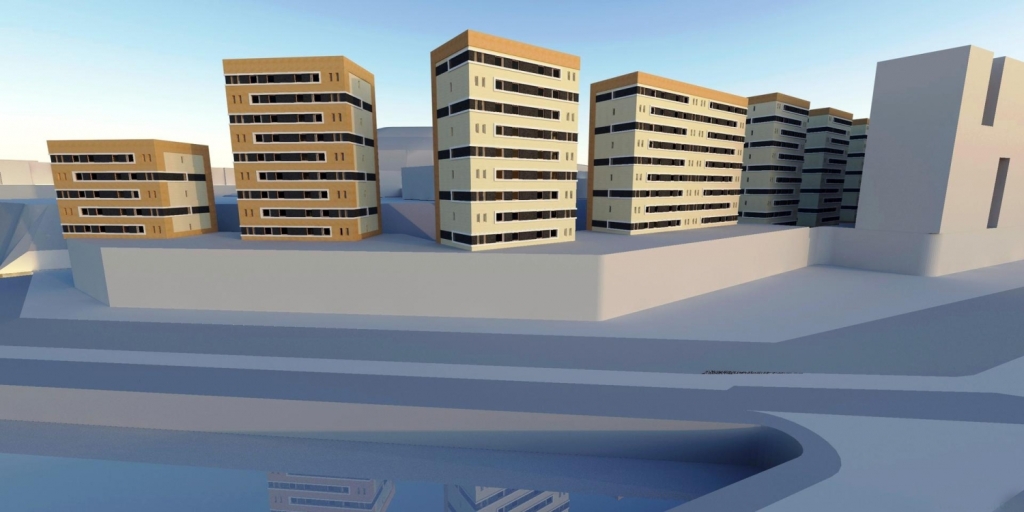

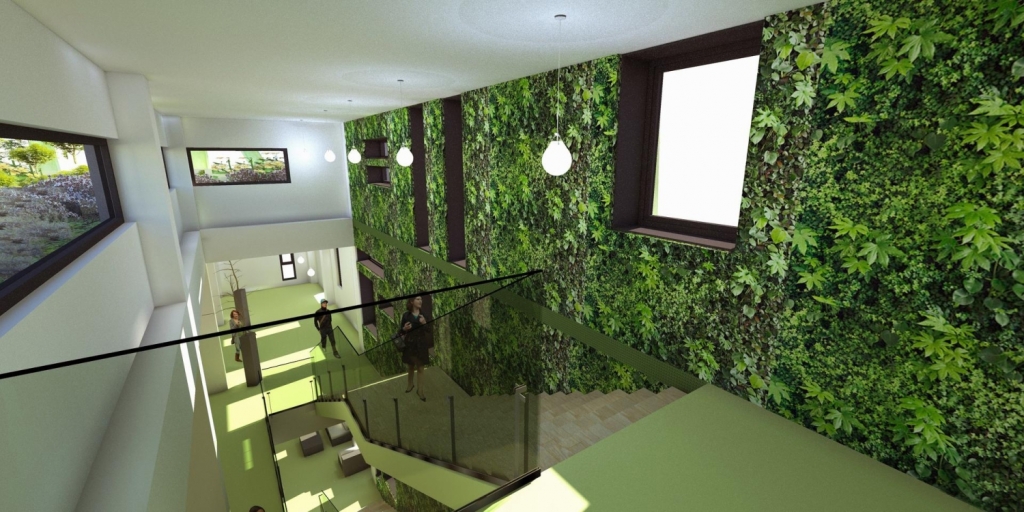

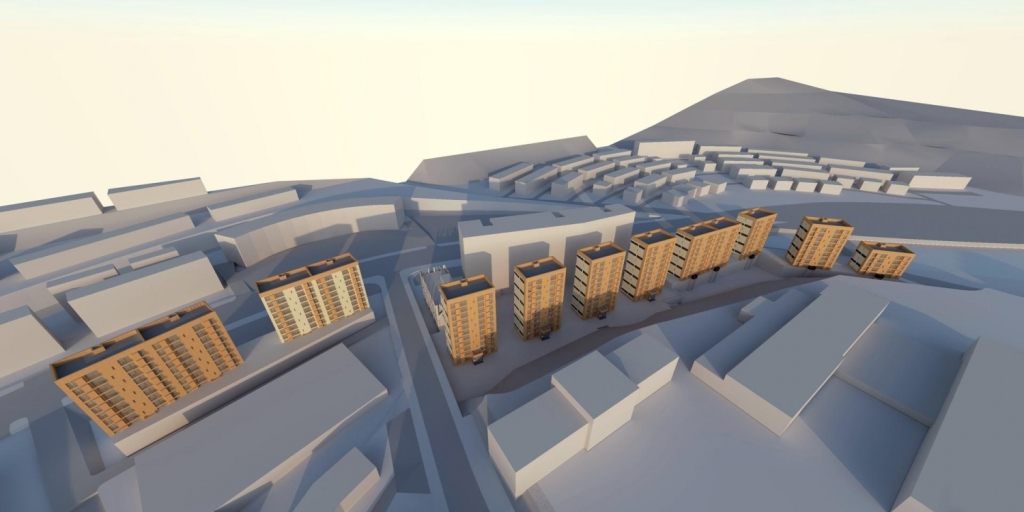

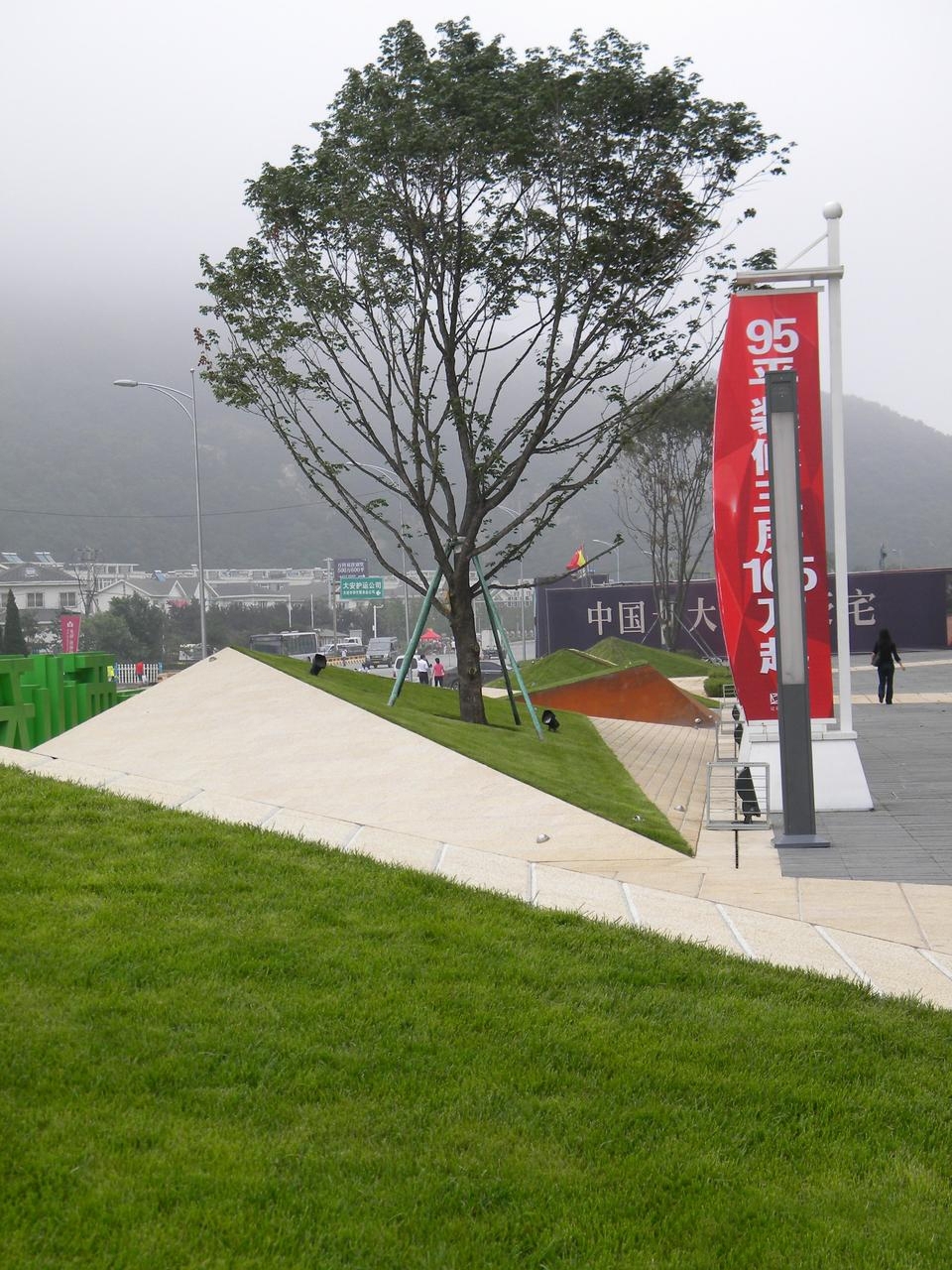

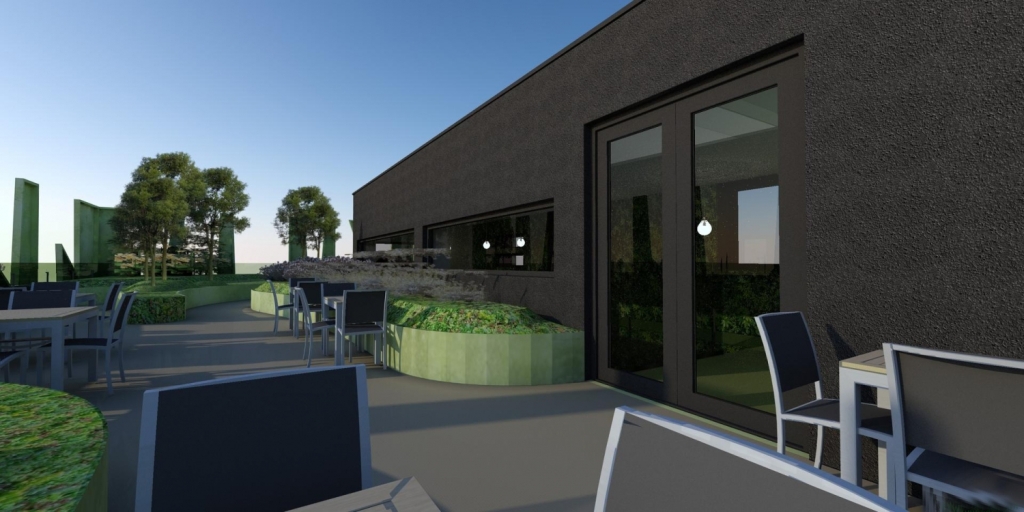

这是由CONTEXTUREARCHITECTS 设计的大连西山别墅，位于大连市区东部。场地为狭窄的线形用地，有一条正在动工的公路和小山丘。场地以东是大型大西山水库。该项目总建筑面积46,520平方米，包括住宅（259户）、SOHO（169户）、商业区和停车区（55个车位）。设计理念方面，在湿地休闲公园附近的狭窄用地创建一个混合使用中心，通过屋顶花园连接公共和私密空间；公寓设计方面，靠近城市一侧，以公共意向为主；零售商业设计方面，以小而深的商户和底层的大型商户（餐厅）为主；SOHO设计方面，以规整、宽敞的单元为主，阁楼小而灵活；销售中心设计方面，有机可持续的绿化设计，注重二层表皮、屋顶花园和可再生设计；景观设计方面，使用了不规则斜对角的耐候钢与玻璃搭配的元素，以及与山地联系的氧化钢的运用。译者：艾比 The Xishan Villa project is located on a narrow linear plot, between an ongoing public road and a small hill, starting on the east side near the large DaXishan reservoir. Located in a mountain like area, east of Dalian downtown, it is a part of a larger project with on the south side townhouses and villas, which are located on a higher level. The project is a mix of public and private functions: residential small towers, retail units, SOHO and a sales center. The north- south orientation of the narrow plot inspired to make a composition of two lines of towers which come together in the middle. Starting point for the design is the transparency of the configuration, in order to obtain sun in between the buildings. The sun thus penetrates to the inside, the core of the area.The total built volume has been divided over the plot as much as possible to create balance in the volume and provide the area with a human scale.The public and private functions are functionally separated but connected by using similar forms and materials. In this way the different elements together are forming a whole, instead of being all incidents. The relaxed living area is based on clear and strong forms with contrasts and harmony. Natural stone, brickwork, plaster and glass are the main materials.The facade designs are compositions of horizontal lines and vertical elements with the exception of the center building (sales center/ commercial) which emphasizes the entrance road. The residential program is formed by towers with two apartments per floor, standing in two rows, in order to create optimal stand-alones. This allows more view for the residents, more sun in the middle area (roof garden), but also creates more identity for each house. And last but not least this brings down the scale of the living environment to a relaxed human level. Basically on the south side the darker brickwork covers the sunny facades while on the north side a light natural stone gives a light exterior. Instead of repetition of each unit or floor, a dynamic movement is created by articulating the window frames. The commercial plinth is formed by retail units over two floors, with an own identity. The shops look independent by making a clear parceling and are covered with natural stone in a stylish pattern, creating an continuous décor. There is much glass on both floors and the advertisement area is clearly framed to make it less dominant. A canopy protects shoppers from rain and completes a the façade. The SOHO building is of a larger scale and is designed as one solid volume which becomes more transparent by its dynamic movement and holes on the street side.The layout is based on a central corridor with units on both sides. On the north side the holes create semi public spaces in the building on the side of the public realm near the public road.The units are actually lofts of 4.8 metres high with a net ground floor area of 39 m2. With adding a second floor a spacious apartment/workspace with a large void has been designed covering totally 75 m2. On the two lower floors of the SOHO building the retail units are meant to be combined and form restaurants. The facades of this building are made of the patterned brickwork while the incisions are emphasized by green plasterwork. This also forms the connection with the adjacent sales center, which is a prominent expressive exception in this row of buildings. The sales center, consisting of three stories plus roof garden, is located on the corner where the side road starts to ascend. In order to form an exceptional center point, the building has a striking façade based on organic tree shapes. This building expresses the green attitude of the whole project, being of 3 green star level and also contains an information center on sustainability & green building on the top floor. On the 4th floor a green roof garden is available for visitors. The outside (second) skin is made of aluminum while the dark inner (first) skin is formed by plaster work. Between Lvshan road and the strip of buildings a zone of grass elements forms the transition.Introducing thus the green element in a dynamic way by making landscape objects framed in Cor-ten steel. The irregular triangular objects are both subtle separation as connection.
