加拿大胸腔别墅

别墅 · 发表于 2026-5-23 07:26:02

Canada Thorax House

设计方：rzlbd

位置：加拿大

分类：别墅建筑

内容：实景照片

图片：17张

摄影师：borXu Design

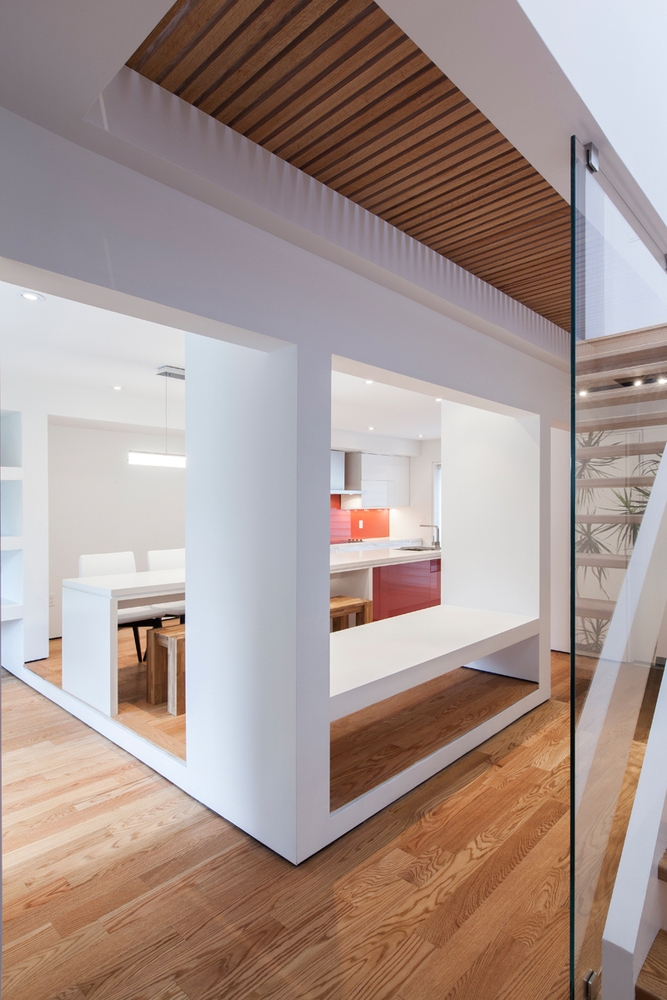

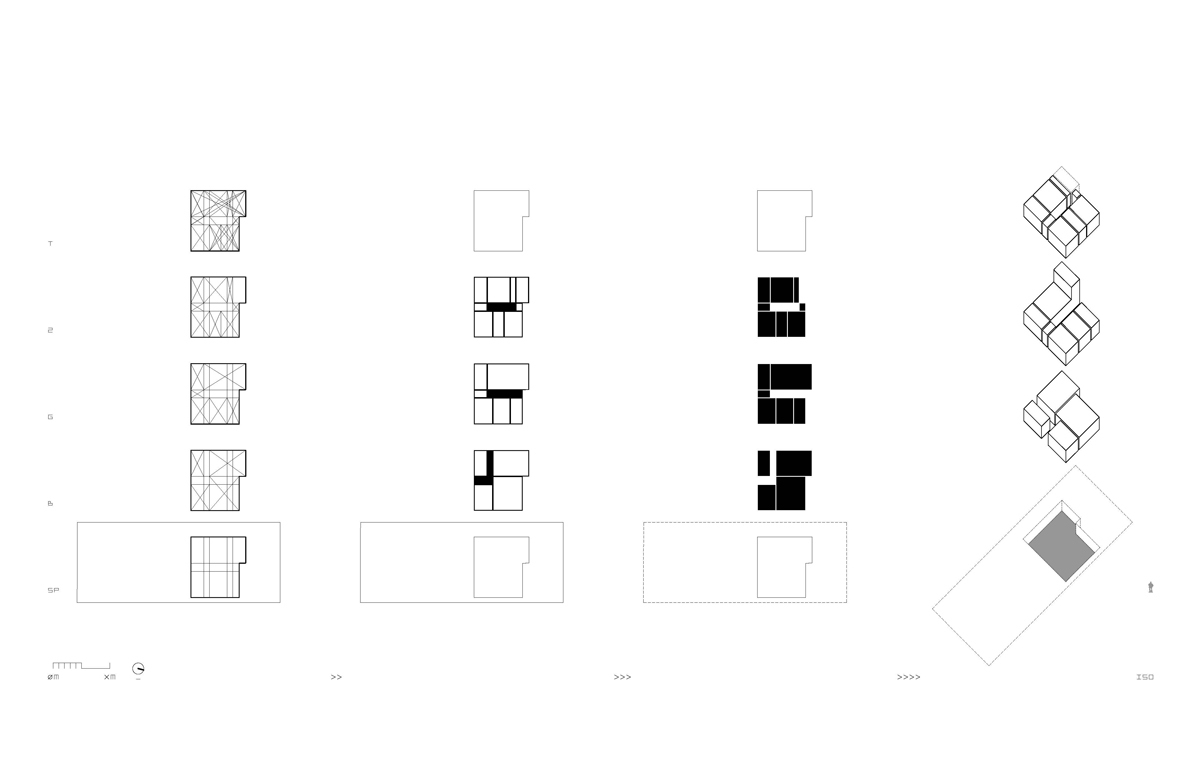

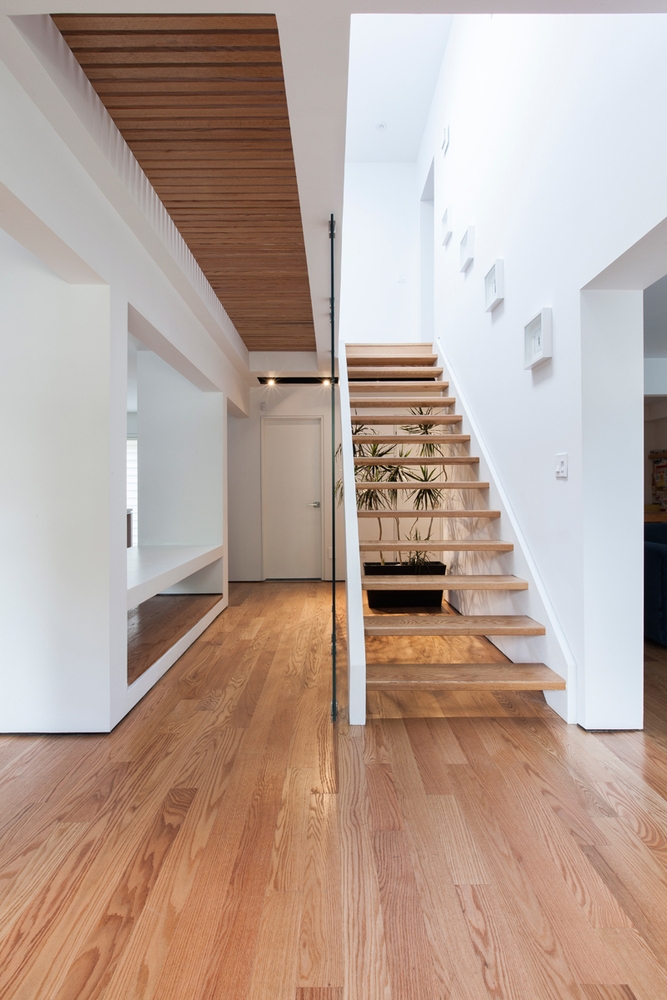

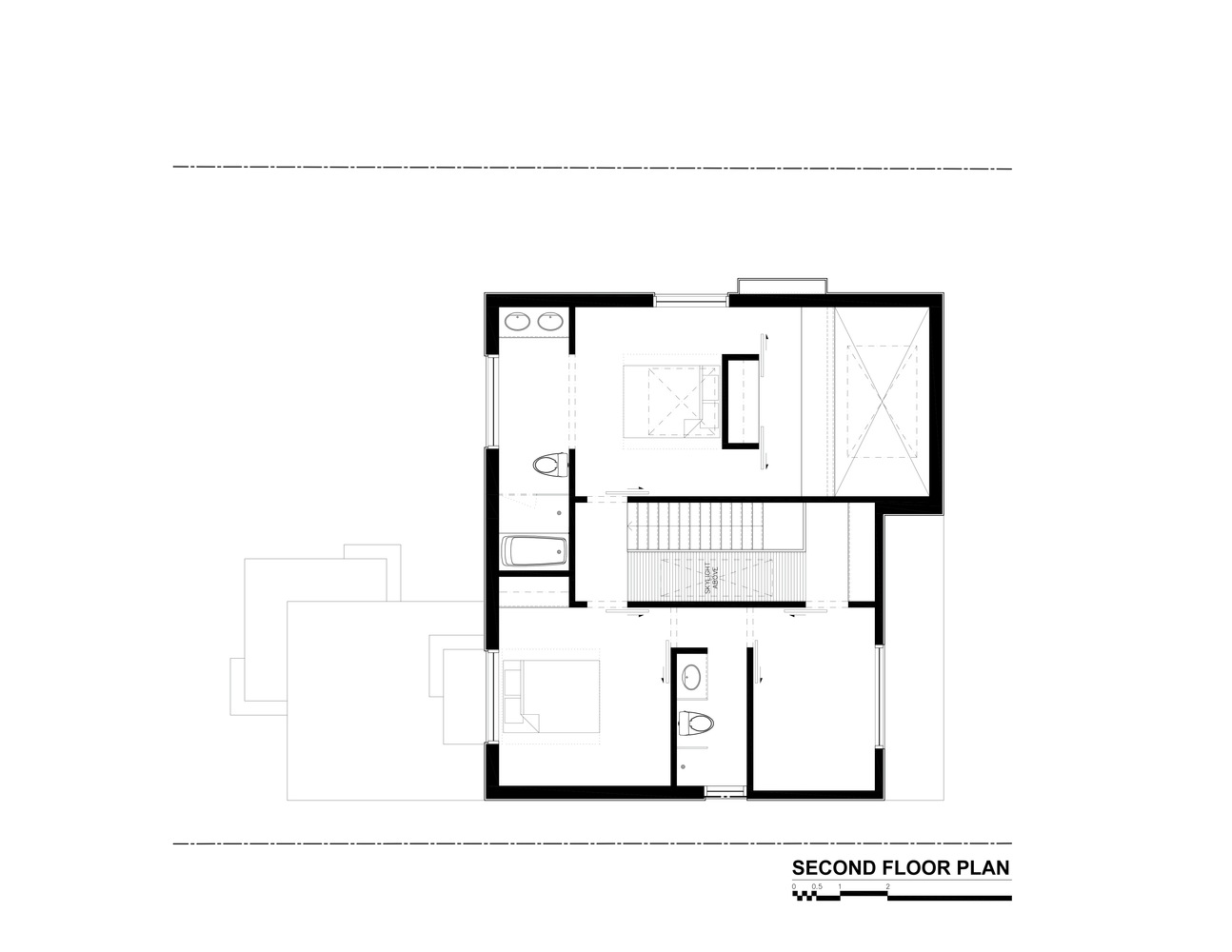

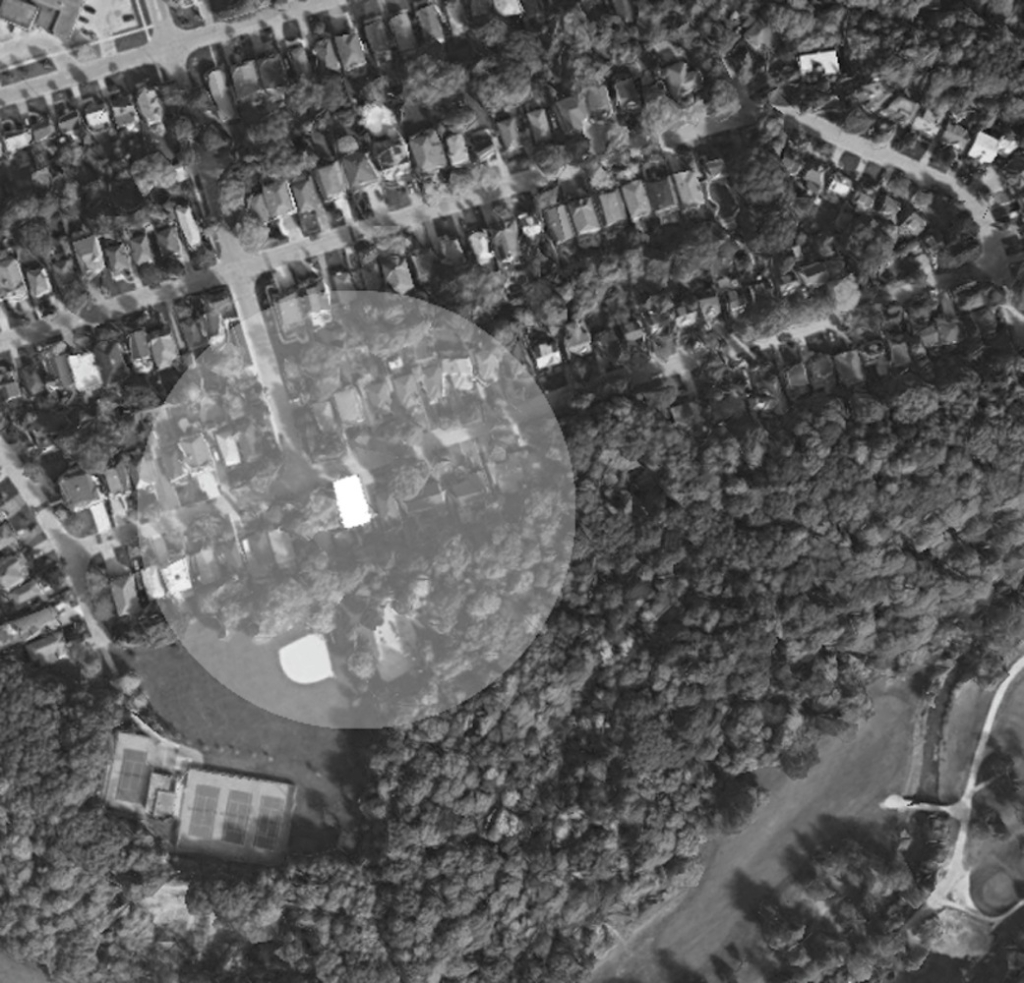

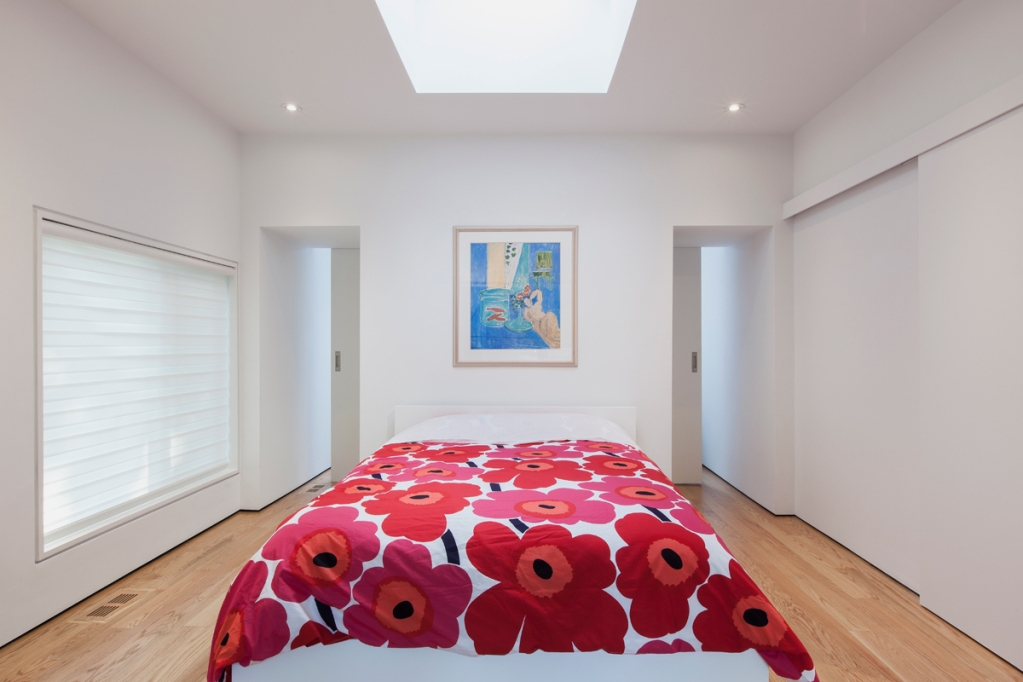

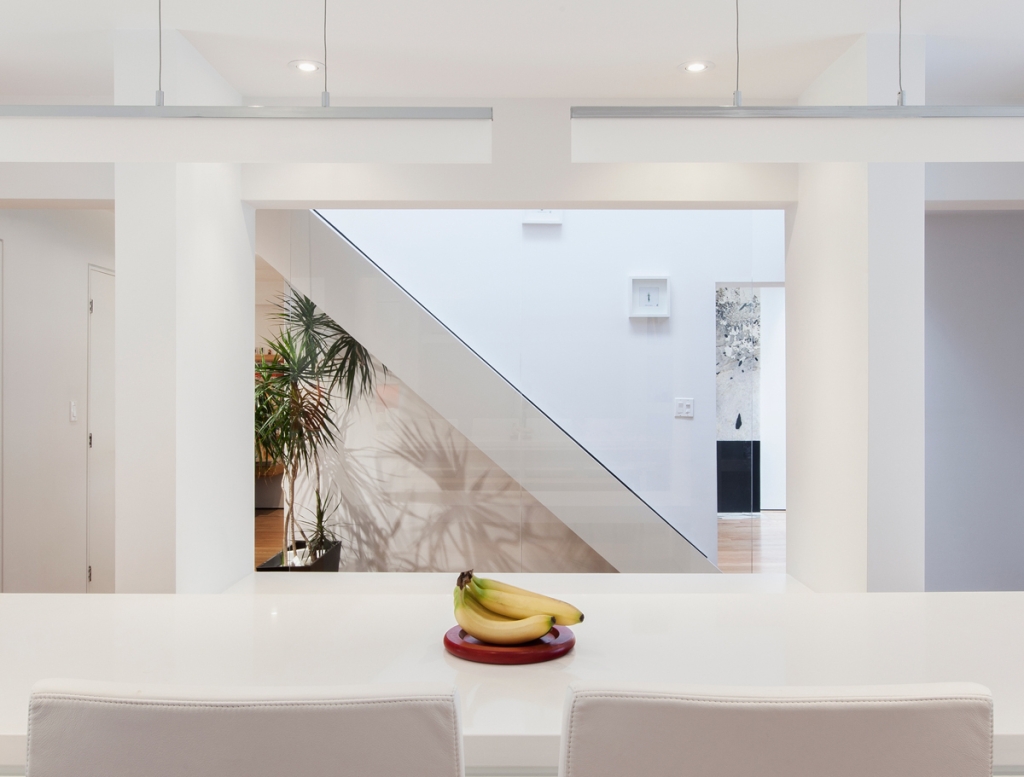

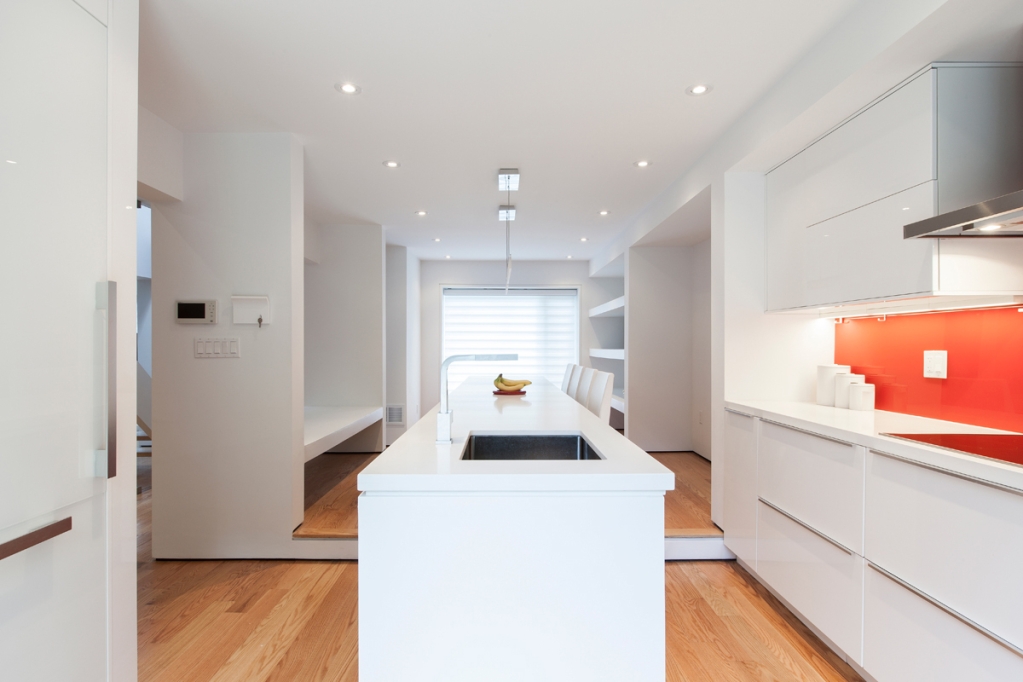

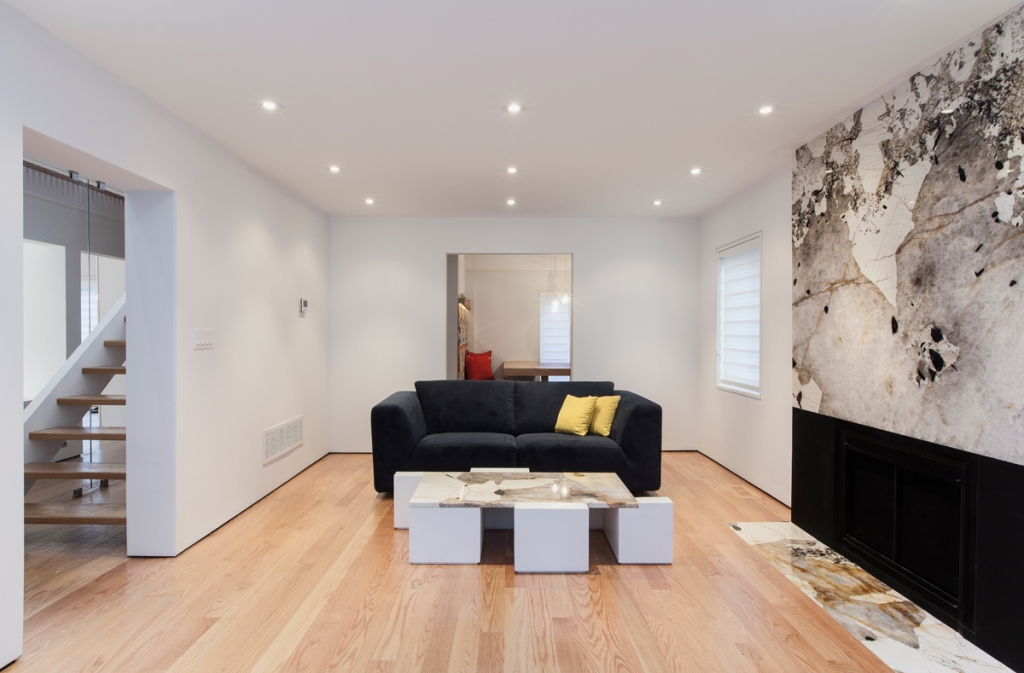

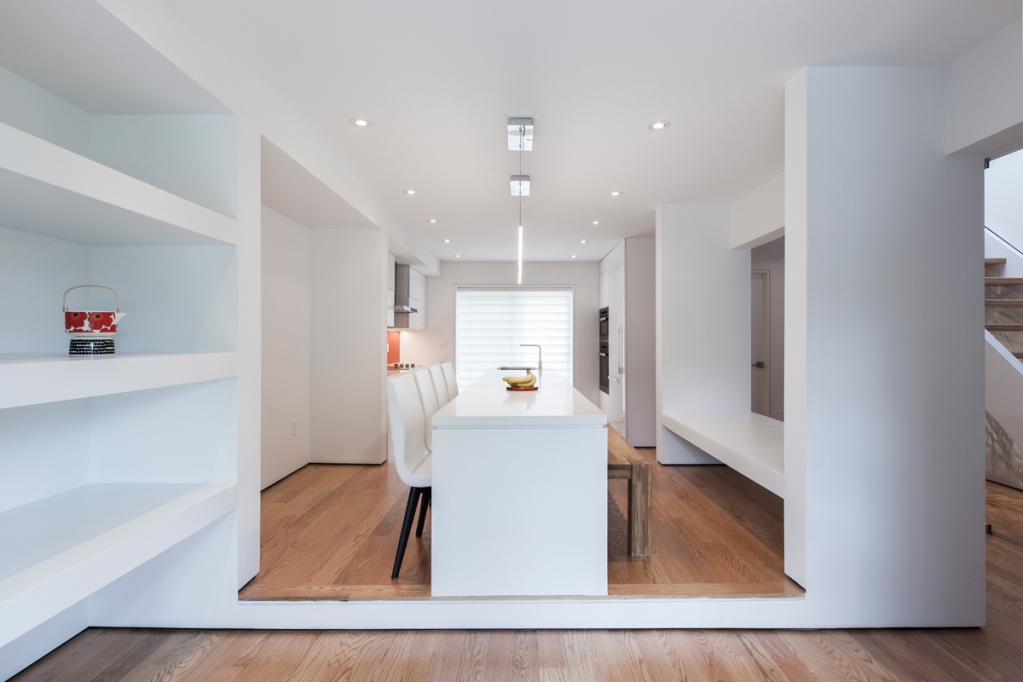

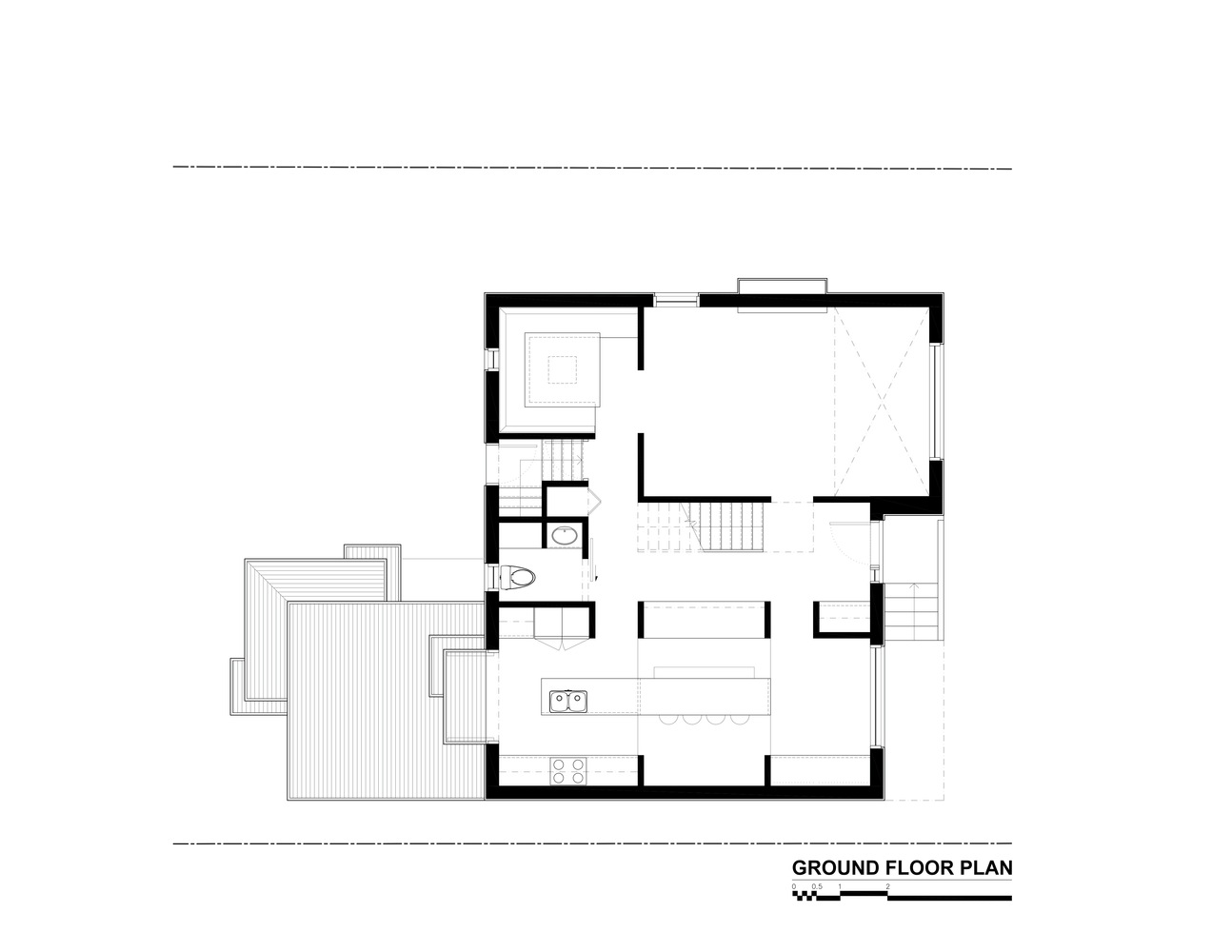

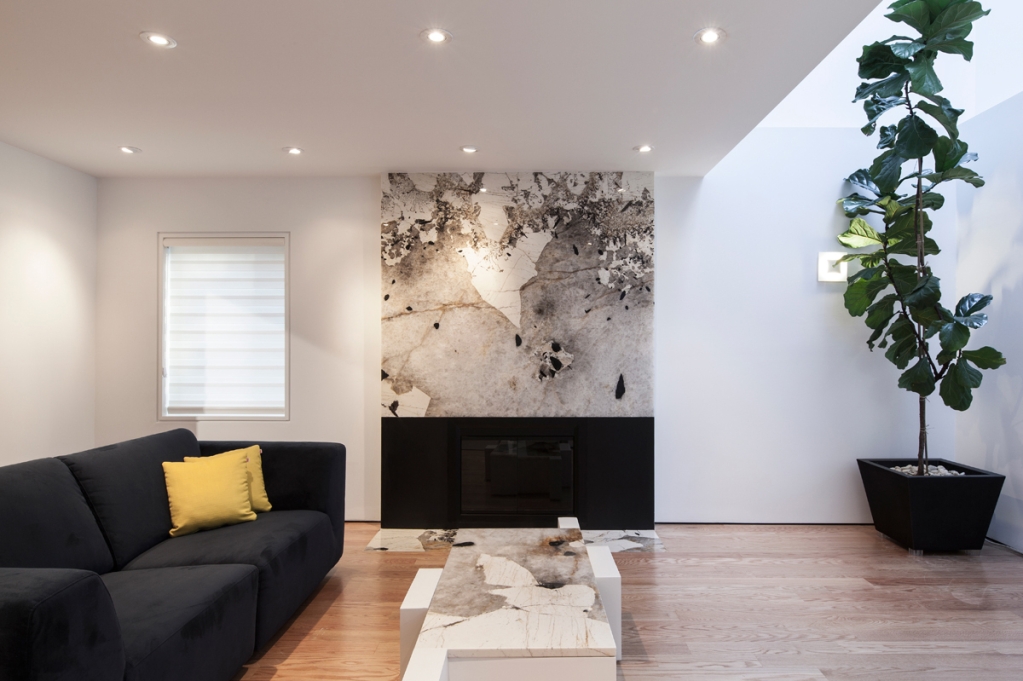

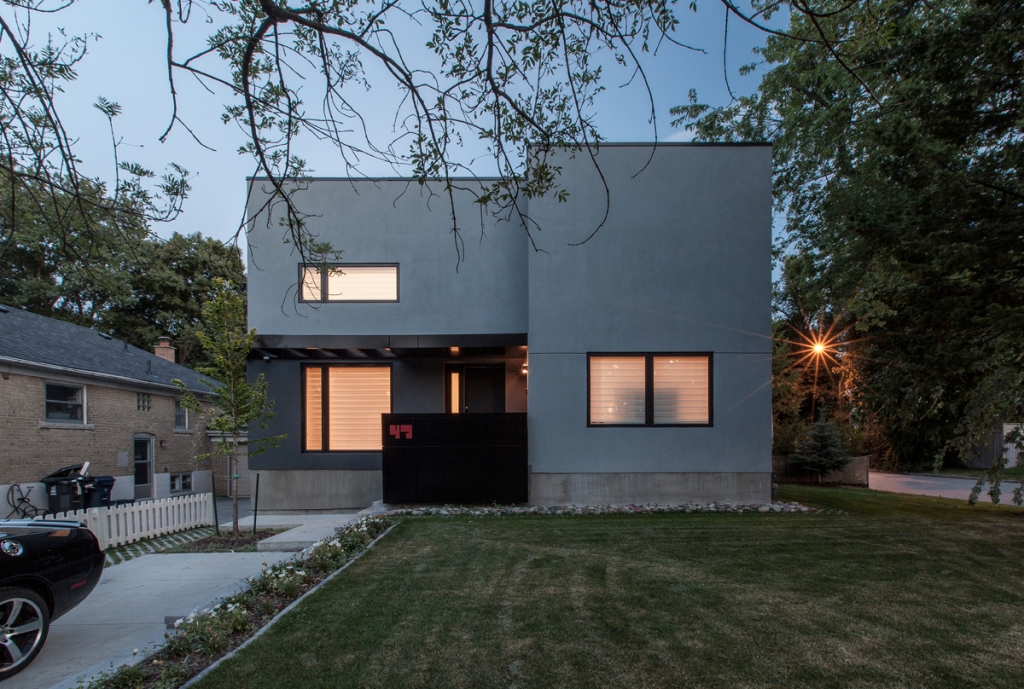

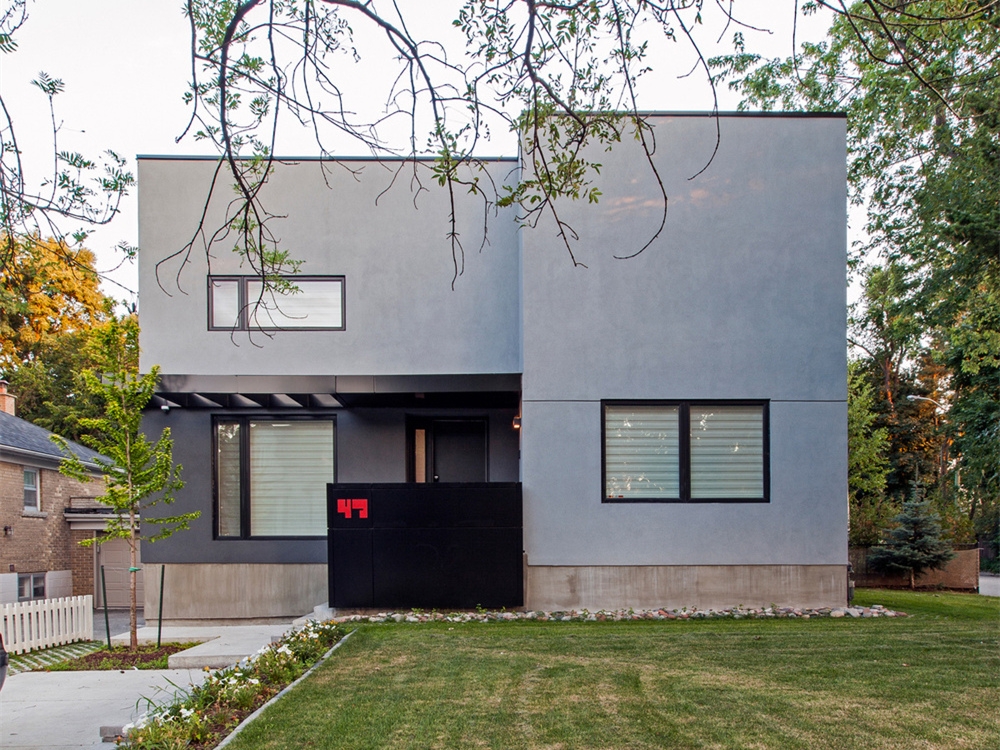

项目坐落在兰辛的南部边缘上，这是大多伦多区域的纽约区中的一个小社区。胸腔别墅是一栋两层楼的木结构，它仔细的回应了客户生活方式需要的同时，也没有忘记最基本的逻辑、计划和被它替代的小屋的简易朴素：这个新的住宅项目正好坐落在一个半楼层的小屋的场址上。项目设计的演变只是从胸腔简图中的一个简单的抽取：一个核心的两侧拥有一个两分的系统。项目以主要的循环为开端，楼梯和桥接器（脊骨）坐落在正方形建筑体量的中部，所有的生活空间（肺部）则对称的分布在两边。我们可以将建筑结构和外壳看做肋骨、肌肉和皮肤。位于中央轴的楼梯和桥接器把位于一楼的起居室和餐厅、厨房划分开了，把位于二楼的主卧和两间客房也划分开了。在主要的楼层平面上，餐饮区域被抬高了一个阶梯的高度，这样的设计是为了保持中岛式厨房和餐桌的高度能一样，以达到连续平面的设计效果。虽然楼梯将别墅划分成了两部分，但是我们还是可以通过仔细安排的可视缝隙线看到对面的部分。举个例子，坐在餐厅中可以看见起居室壁炉上的漂亮石板。这种非常独特的大理石板属于客户的私人格调。译者：蝈蝈 The project is located on the southern edge of Lansing, which is a small neighbourhood in the North York municipality in the Greater Toronto Area. Thorax House is a minimalist two-storey wood structure that carefully responds to the needs and lifestyle of the client while it has not forgotten the basic logic, plan and simplicity of the bungalow it replaced: the new project sits exactly on the small foot-print of the one-and-a-half storey bungalow that had occupied the site.The evolution of design was a simple extraction form a thorax diagram: a two-party system on either sides of a core. Starting with the main circulation, the staircase and bridge (the spine) run up the middle of the square volume, and all the living spaces (lungs) are arranged symmetrically on both sides. One can consider the building structure and envelope as the ribs, muscles, and skin. The staircase and bridge, which sit on the central axis, divide the living room and gentleman banquette from the dining room and kitchen on the ground floor, and the master bedroom from the two guest bedrooms on the second floor.On the main floor the dining area has been raised one step to keep the kitchen island and the dining table at the same height as one continuous surface. Although the staircase divides the house into two, one can still see the opposite side through carefully arranged sight-lines. An example would be sitting in the dining room and getting a glance at the beautiful slab of stone above the fireplace in the living room; this very unusual marble is the client’s personal touch.
