克里斯塔尔别墅

别墅 · 发表于 2026-5-23 10:39:44

Cristal House

设计方：Gómez De La Torre & Guerrero

位置：秘鲁

分类：别墅建筑

内容：实景照片

项目建筑师：María Del Carmen Guerrero Yábar , Enrique Gomez De La Torre

结构工程师：Ing. J. Francisco Barrantes Bezold

机电工程师：Ing. Jorge Luis Suca Meza

项目规模：504平方米

图片：17张

摄影师：Gómez De La Torre & Guerrero

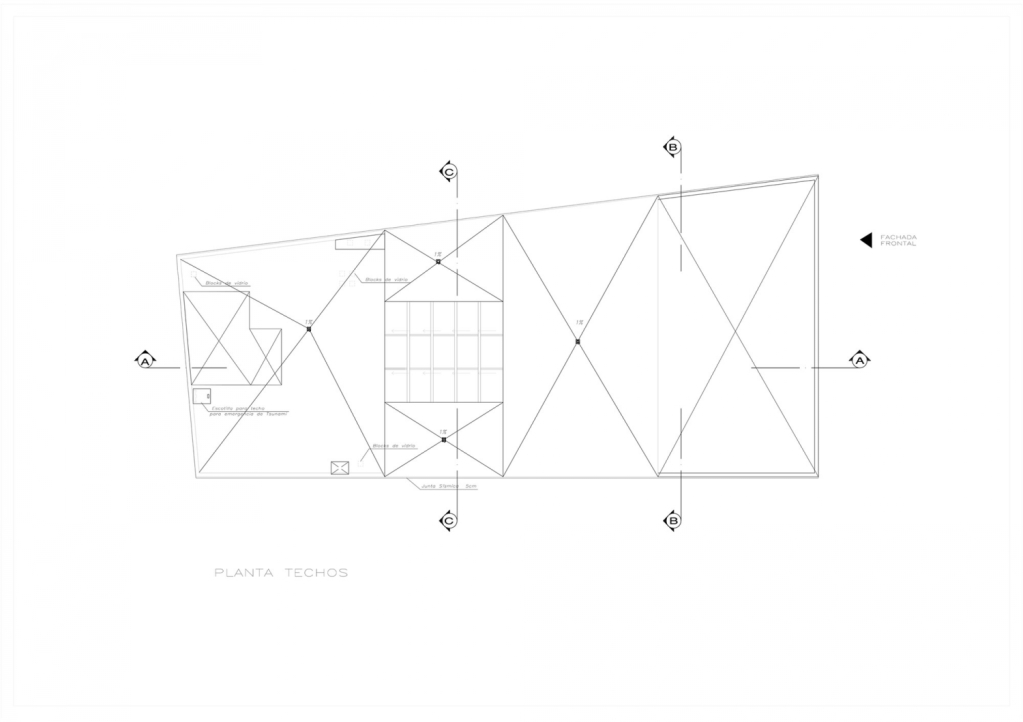

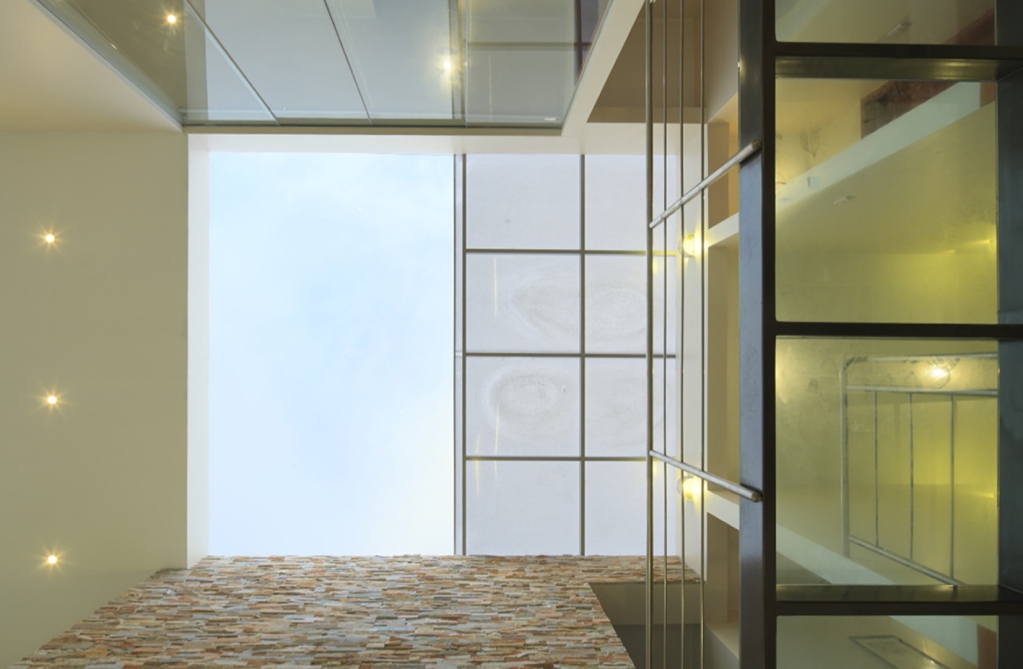

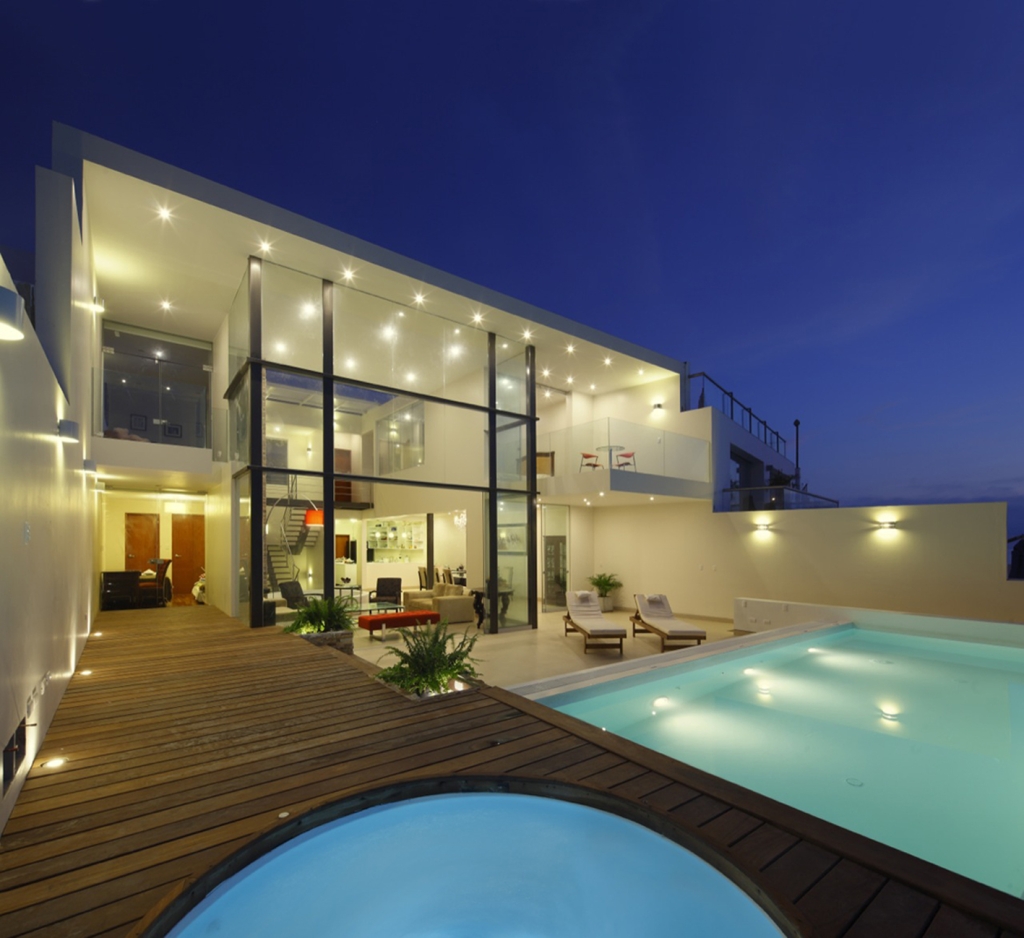

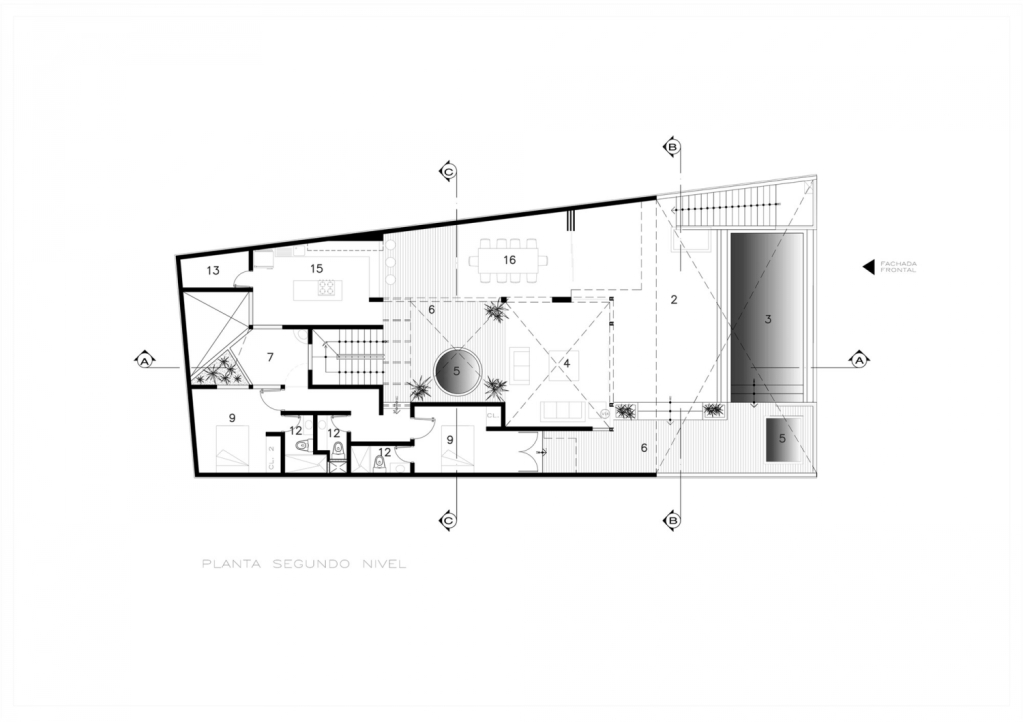

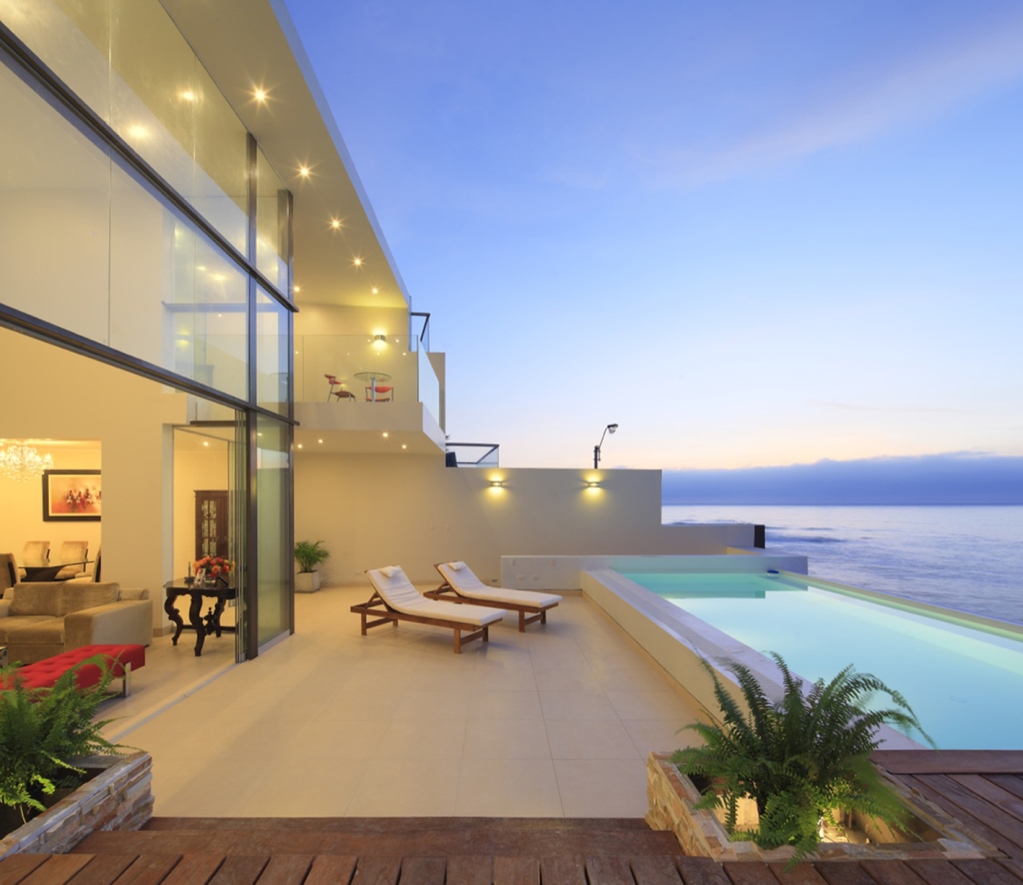

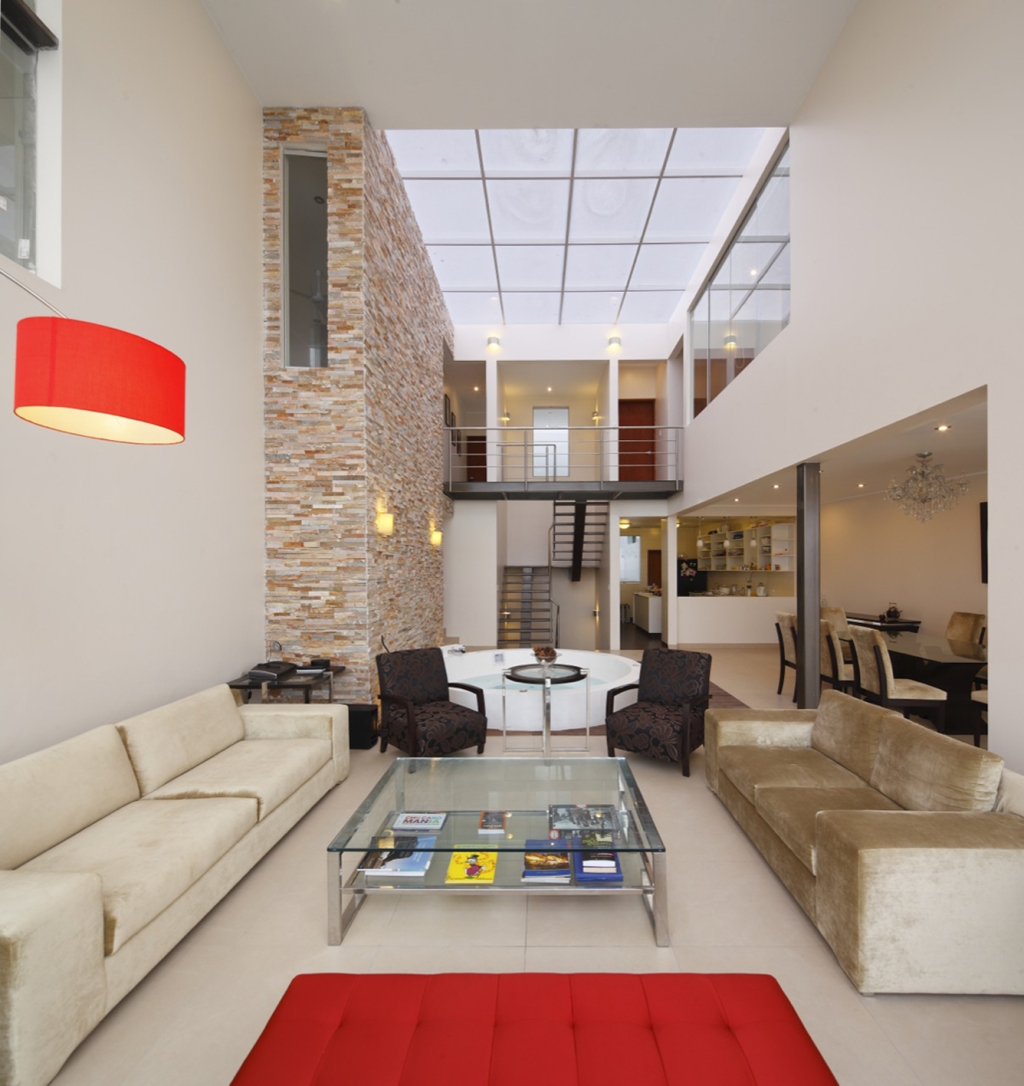

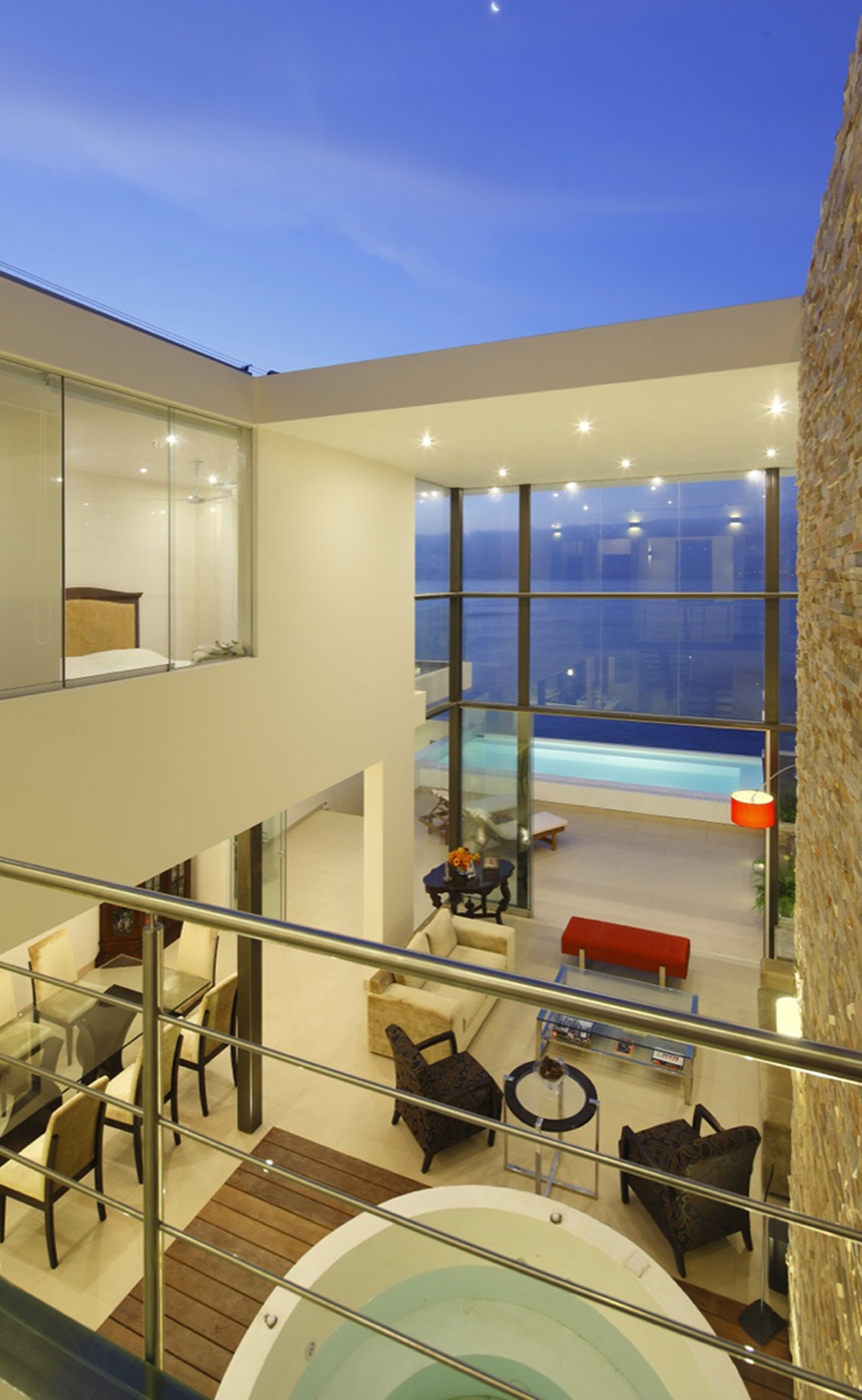

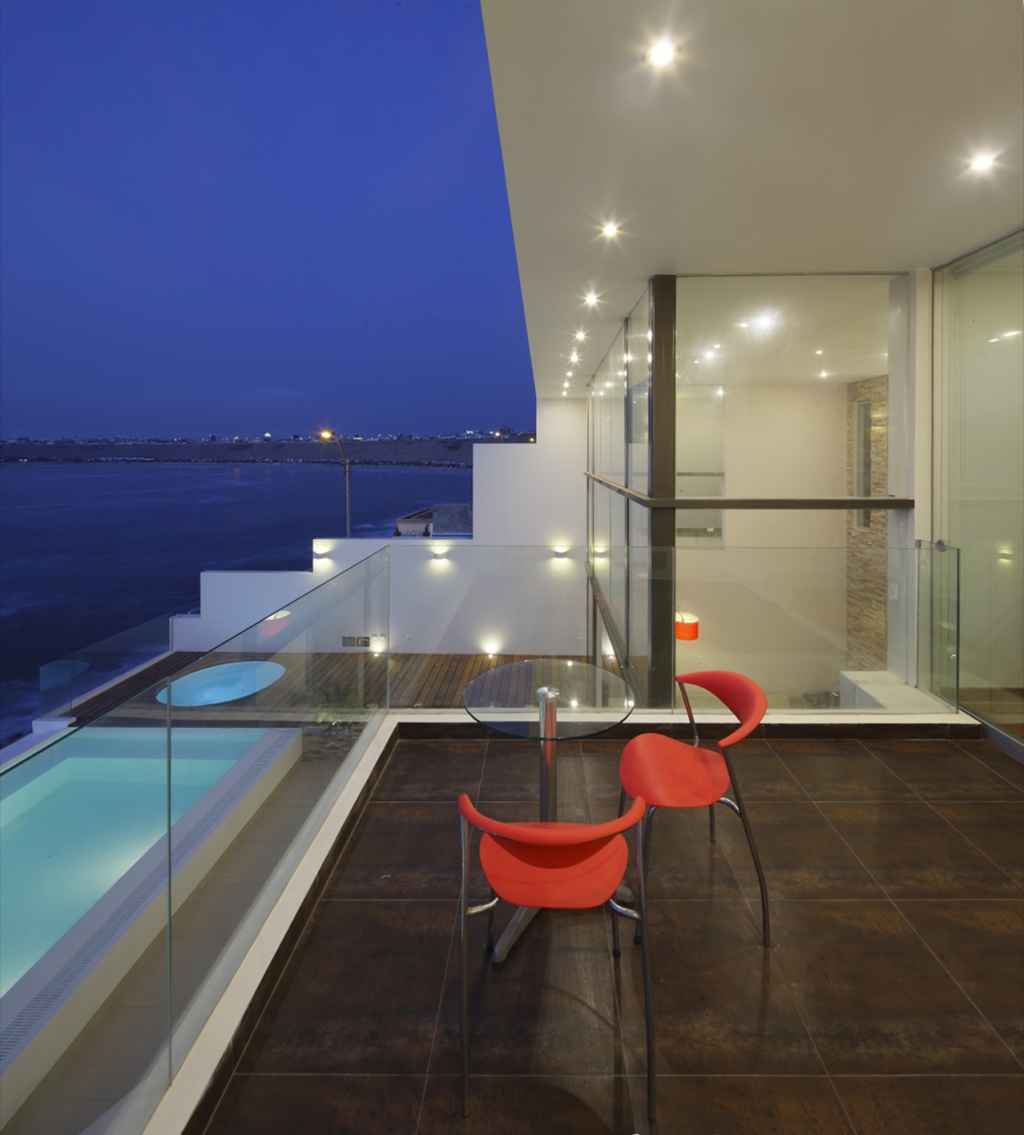

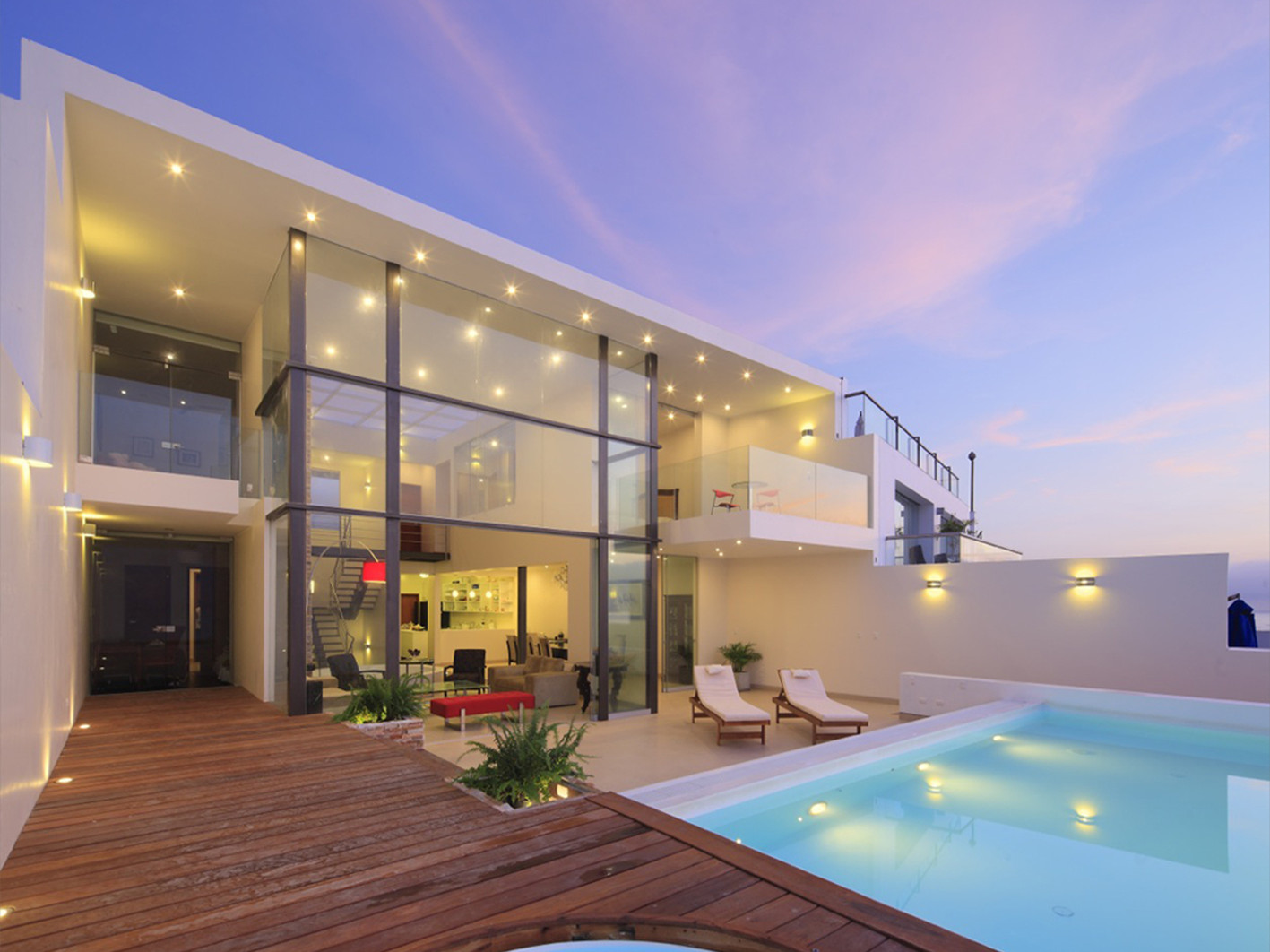

这是由Gómez De La Torre & Guerrero设计的克里斯塔尔别墅。该别墅基于大型自我支撑的玻璃盒的设计概念，设计出宽敞的空间，玻璃盒支撑着混凝土屋顶，屋顶侧面是透明的，屋顶可伸缩，从而加强室内空透感。这个别墅尽管用作偶然居住，但全年都会被使用，因此配置了一个自然控制环境的系统。中央屋顶可以释放室内的热空气，而用来眺望大海的玻璃幕墙可以引入冷空气。在冬季，玻璃建筑会从周边环境吸收热量，因此当玻璃建筑是关闭状态时，根据温室效应原理可保持室内温度。 Designed as a project with great spatiality, this home is based on the concept of a large self-supporting glass box which supports the concrete roof, that surrounds it with side tranparencies, and with an aperture of a retractable roof that reinforces the idea of full transparency.The house will be occupied all year despite being a temporary residence, thus it is equipped with a system that conditions the environments naturally. The central roof is operable to release hot air; the entry of cold air is allowed through the screens of the glass facade overlooking the sea. In winter, the entire glass box collects heat from the environment and as it remains closed, maintains the heat creating a greenhouse effect. This temporary residence, located in the first row on Señoritas beach, has a site area of 270.30 m2. The project proposes a house with integrated environments, spread over three levels, which are connected to the sea horizon view. The design is based on a central, double height living room – interior terrace, through which one can register the exterior. This terrace has a differentiated floor, a deck, where there is a jacuzzi and a retractable roof, made of translucent polycarbonate and aluminum, that will remain open in the summer and when closed, it will protect the house when it is uninhabited. In winter it protects from the cold, fostering a warm and lit atmosphere. At the same time, it allows for adequate cross ventilation to cool the house in high temperatures. We propose a large outdoor terrace with a deck and an elongated pool with a jacuzzi. A staircase leads to the outside, with direct access to the terrace and garage on the first floor . The first level, where the garage is, has an open courtyard connected to the laundry, a bedroom with a bathroom and a service area with a bathroom and storage area. From there, a staircase connects the three levels of the house. The garage houses up to six cars. The second level includes the social environments, kitchen with pantry, and to the left, two bedrooms and the terrace area. The third level has a glass bridge that connects the left and right wings, and looks over the double height. To the right, overlooking the sea, is the master bedroom and bathroom. It has a large terrace. To the back, there is another bedroom with bathroom. On the left, at the front we propose a family room with terrace, and the back, another bedroom with bathroom. We include a corridor to an additional laundry for beachwear. Likewise, in the third bedroom, we have placed a ladder within a closet for tsunami emergency preparedness. Formally, the house has a large roof with a solid appearance. This contrasts with the lightness of the iron column structure of the living room. This roof, which covers the terraces in front of the bedrooms, favors them with the incidence of solar rays.
