AL’s House

设计方:Gonzalo Mardones Viviani建筑事务所

位置:智利 圣地亚哥

竣工:2011年

分类:别墅建筑

内容:实景照片

图片:26张

摄影师:Nicolás Saieh

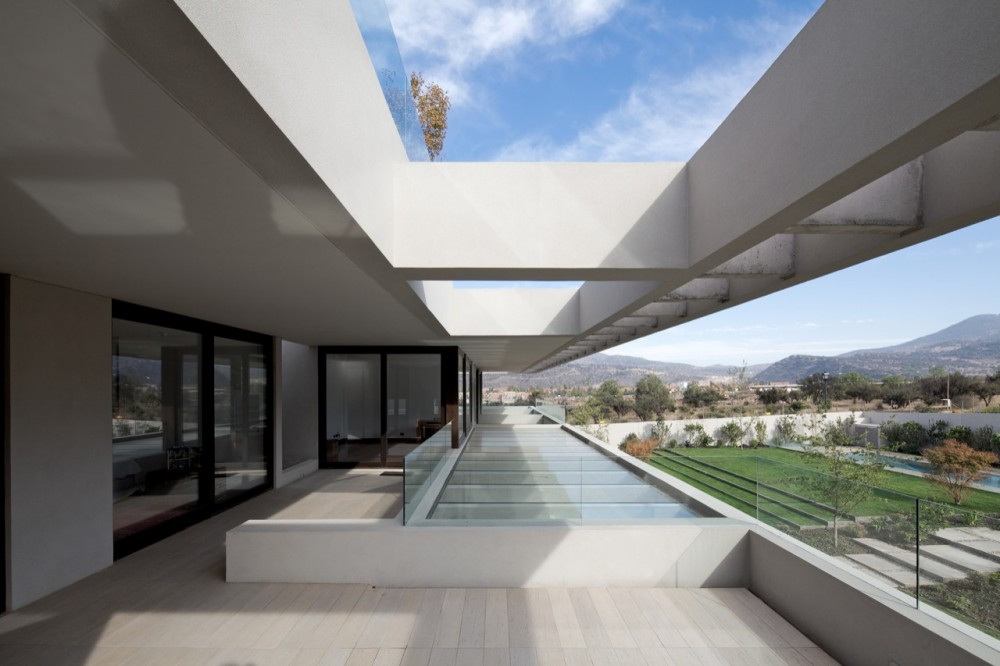

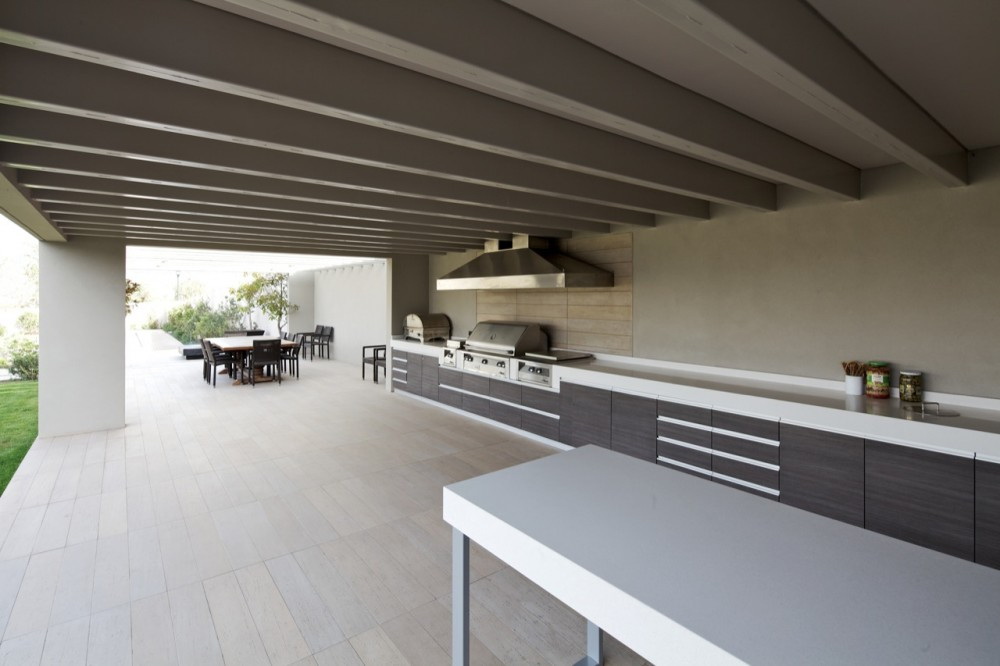

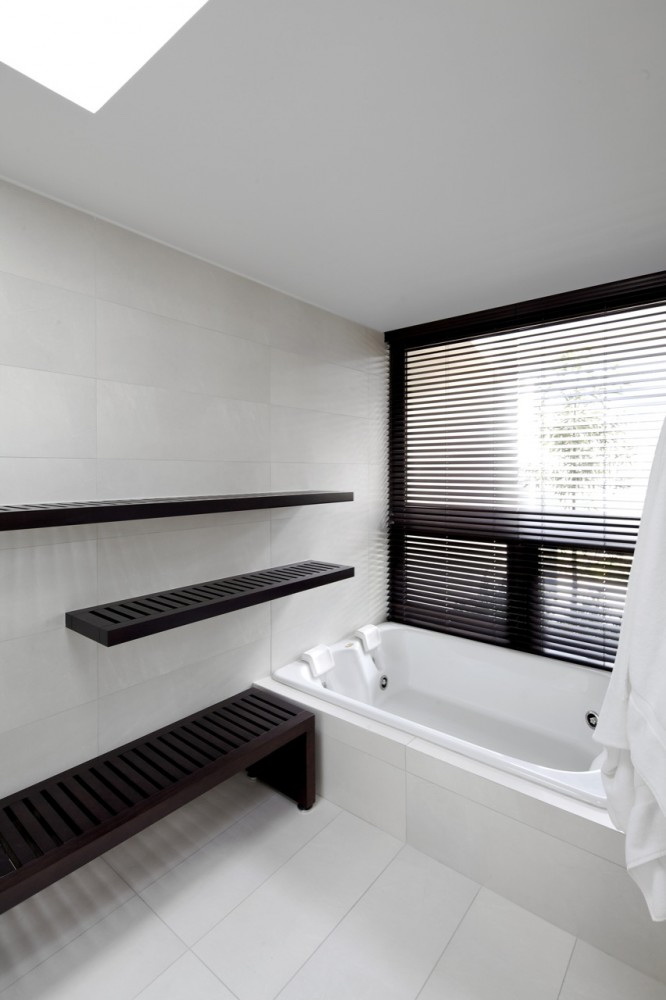

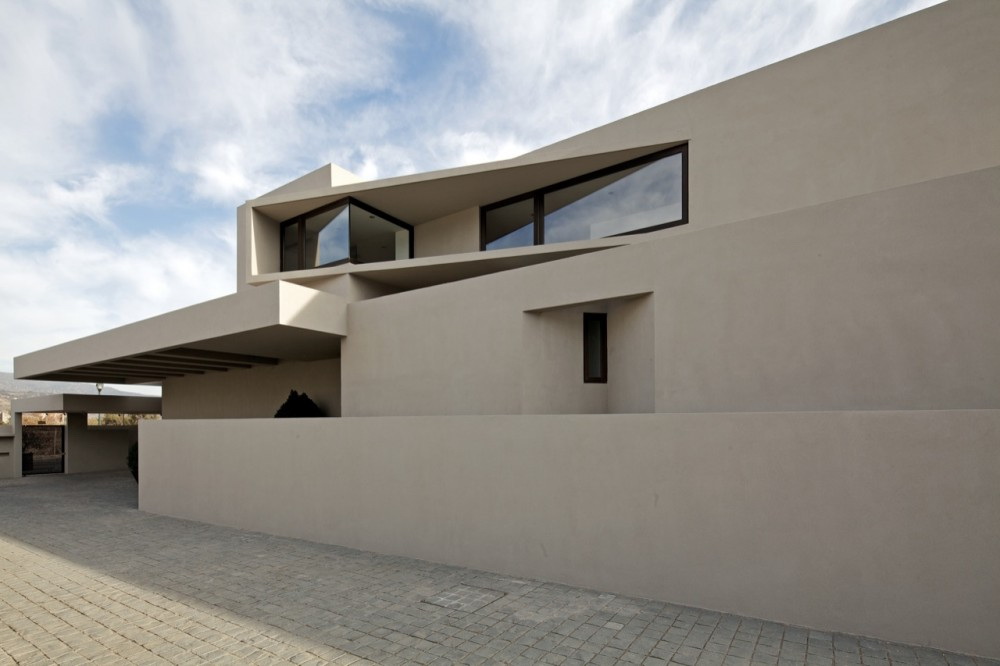

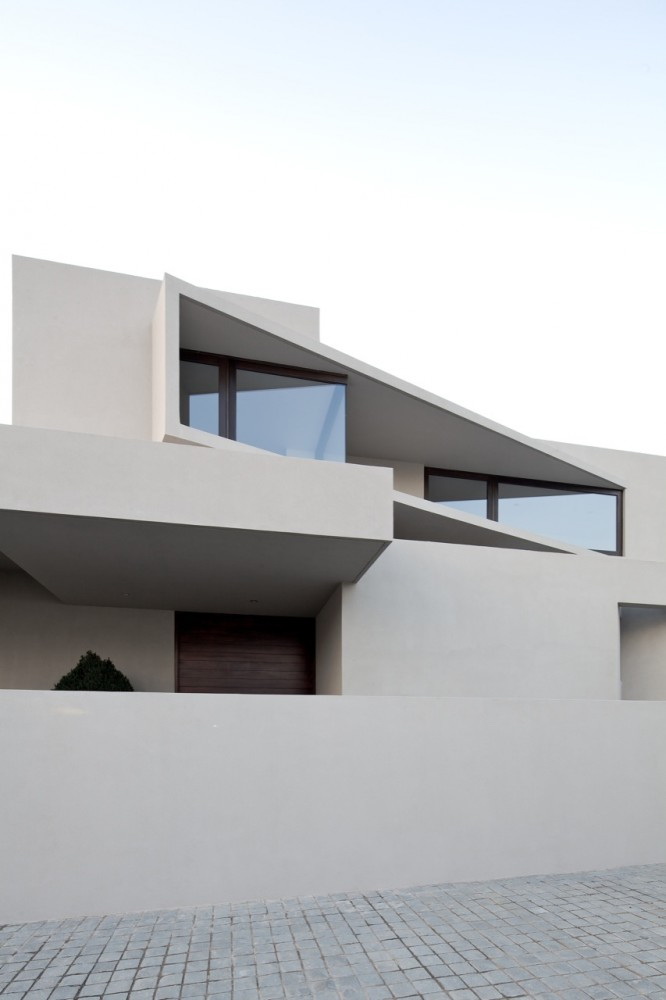

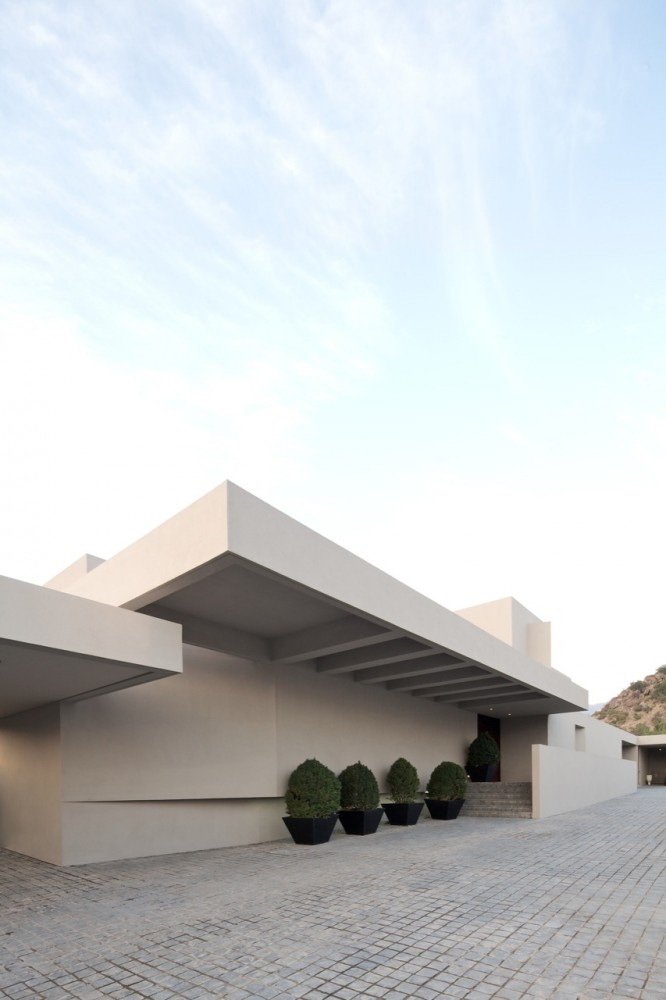

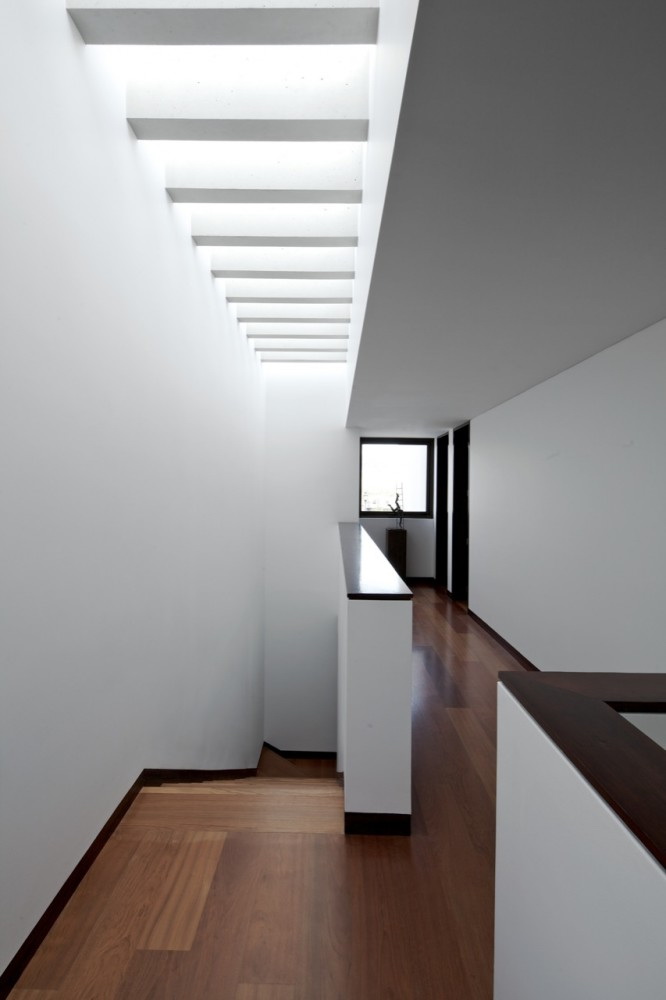

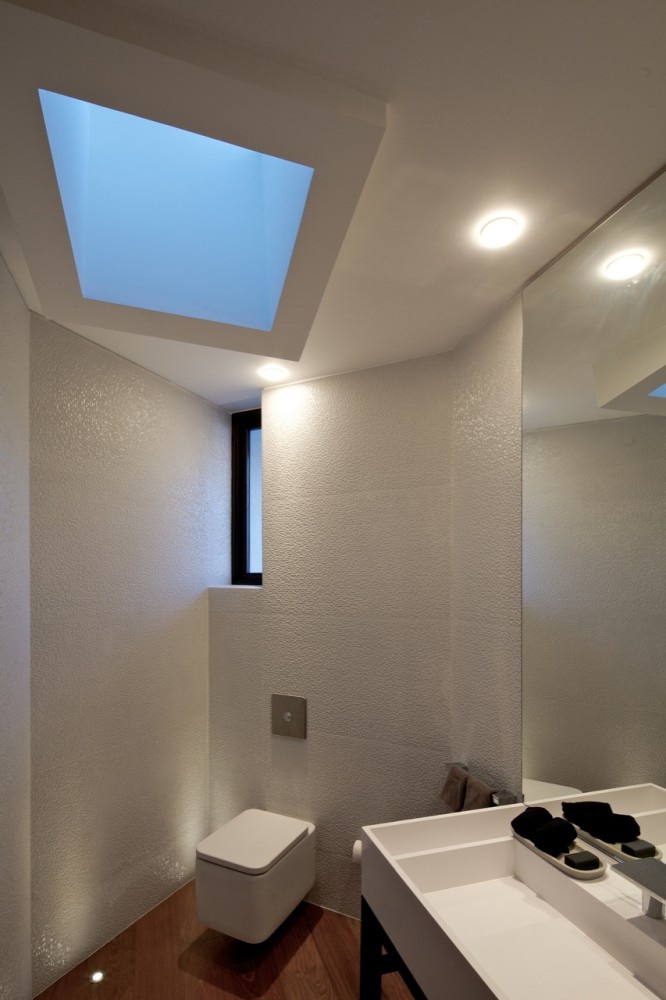

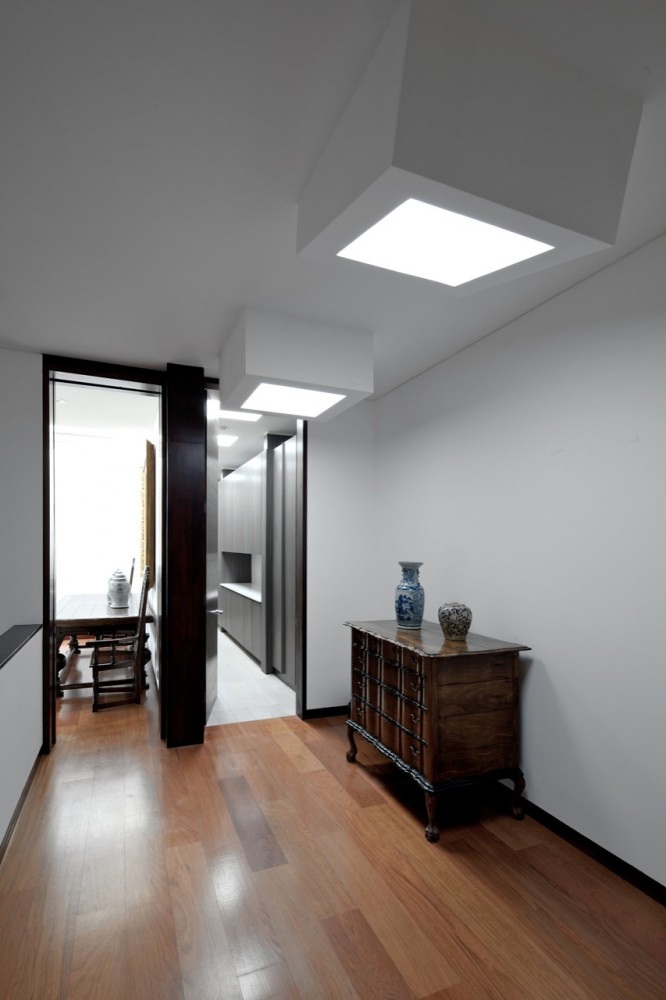

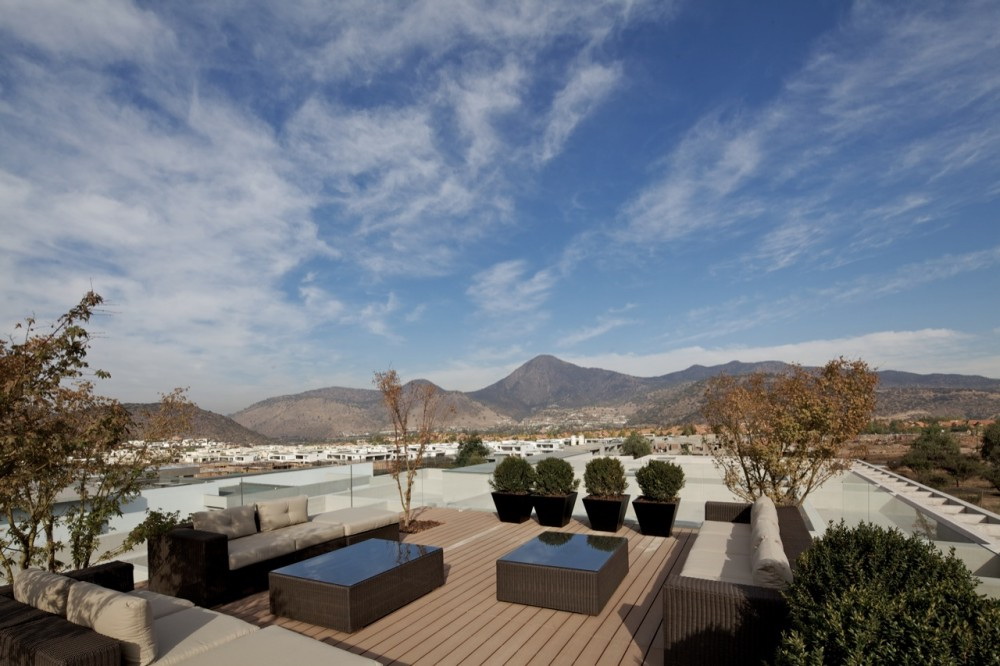

场地面积:2842平方米 建筑面积:841平方米  Site Area 2842 sqm Project Area: 841 sqm  AL住宅位于圣地亚哥山脚下的Lo Barnechea地区,建筑的体量呈现出一个纵向的横条状,这个结构与街道垂直,为的是朝着北侧,一方面获取阳光,一方面获取美好视野,同时还为花园创造出的充足的空间。设计还包含一个带烧烤烤架的室外厨房。关于材料的应用,设计在室外采用加固混凝土,室内则全白,从而更好地反射阳光。屋顶是一个休闲的场地,木质的甲板为人们提供拥抱自然的空间。  AL’s house is located in Lo Barnechea District at Santiago’s foothills. Its volume locates like a longitudinal bar perpendicular to the street with the double purpose of facing North (Sun and better views) and allowing a big free space for the garden. The proposal consists of a barbeque gridiron – external kitchen at one end of the area in order to embrace the place. As usual in our works, we chose a unique building material, in this case, reinforced concrete and just one finish, which was the organic texture of color from the area’s dry fields. All woodwork, windows, and floors are made of cedar wood. Interiors are entirely white in order to allow the light bounce and multiply architectural light filtering through walls and ceilings. The roof is a relaxation place, resulting in a cedar wood deck that allows a space to be open to surrounding geography.

AL住宅-2

AL住宅-3

AL住宅-4

AL住宅-5

AL住宅-6

AL住宅-7

AL住宅-8

AL住宅-9

AL住宅-10

AL住宅-11

AL住宅-12

AL住宅-13

AL住宅-14

AL住宅-15

AL住宅-16

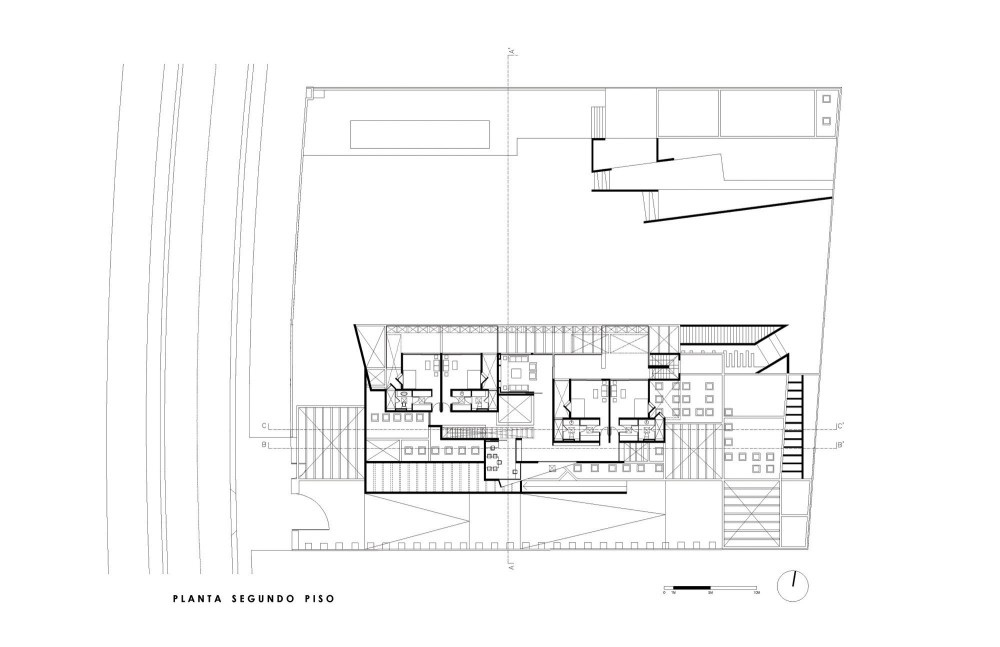

二层平面图 second floor plan

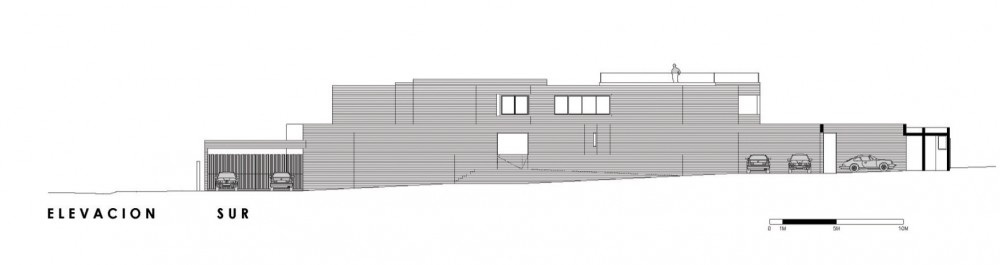

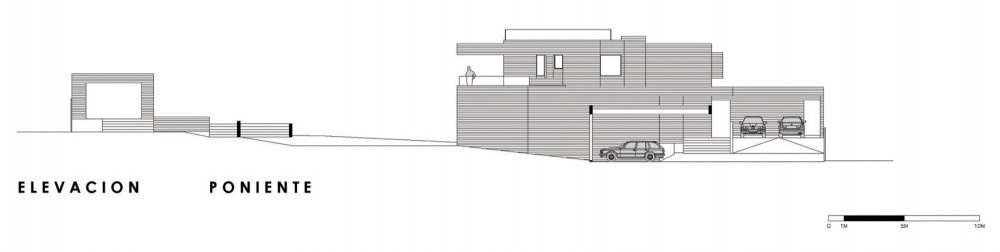

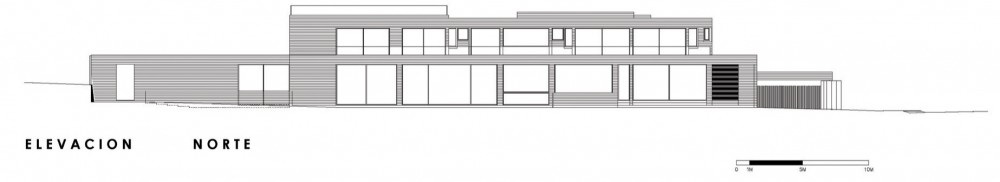

立面图01 elevation01

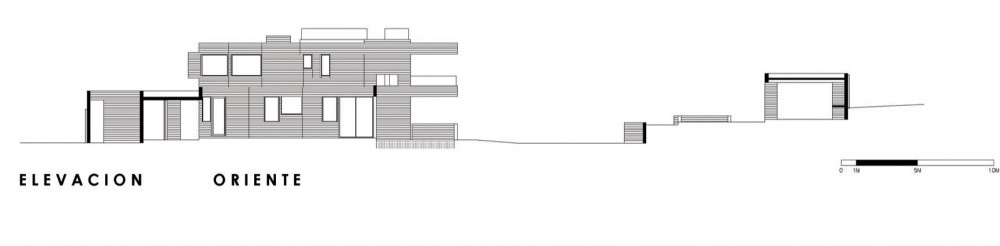

立面图02 elevation02

立面图03 elevation03

立面图04 elevation04

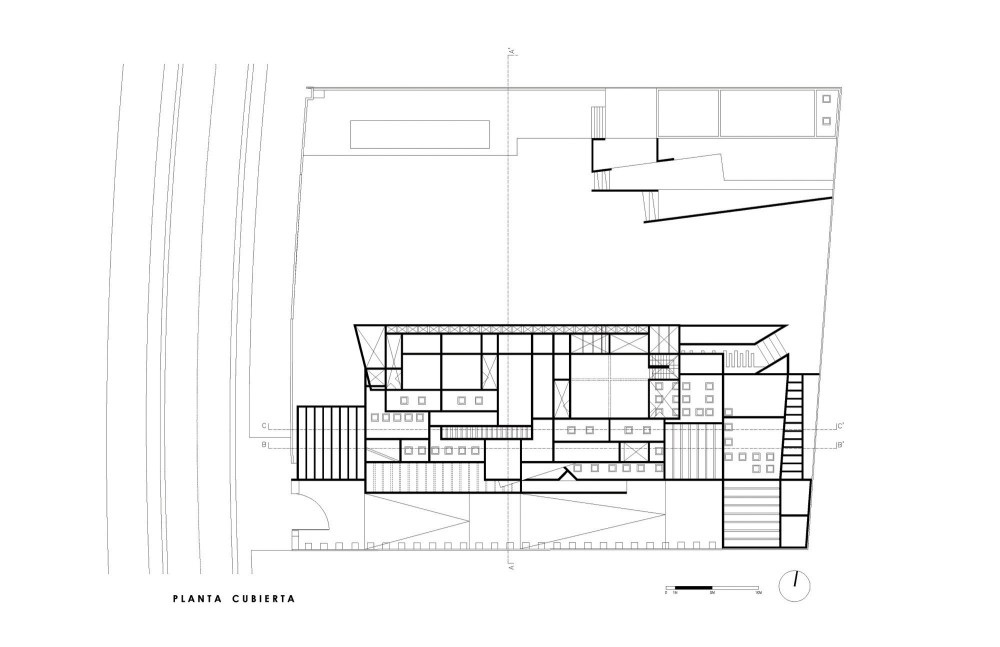

平面图 plan

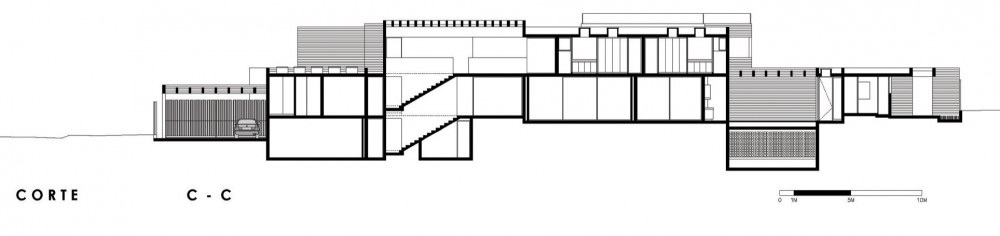

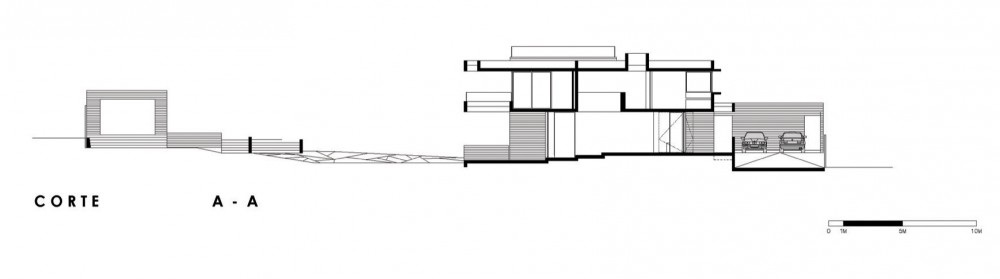

剖面图01 section01

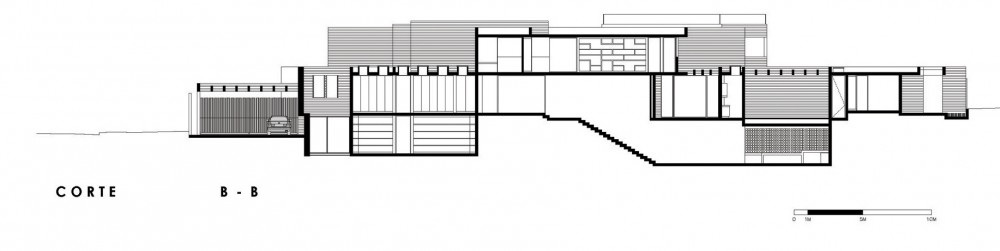

剖面图02 section02

剖面图03 section03

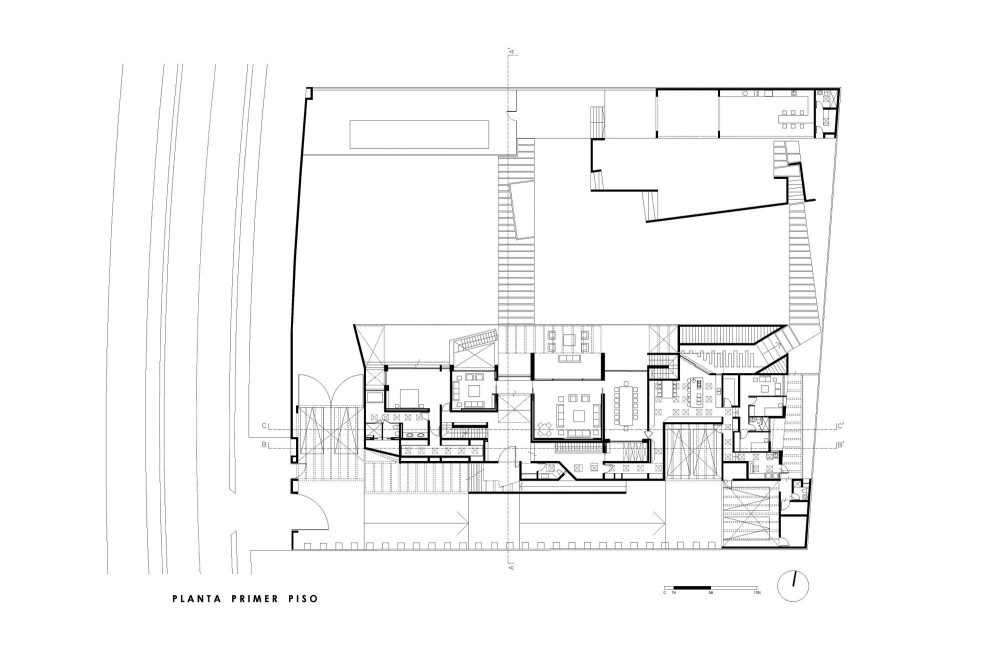

一层平面图 first floor plan
