发表于 2026-6-4 10:44:59 | 显示全部楼层 |阅读模式
Israel of affordable housing

设计方:Orit Muhlbauer Eyal Architects

位置:以色列

分类:居住建筑

内容:实景照片

图片来源:Shai Epstein

图片:15张

摄影师:Shai Epstein

“Ganei Shapira”项目占地一英亩,属于特拉维夫直辖市。它位于Tueri Zahav大街和De Modina大街之间。这个项目包括保障性住房计划内的69套廉租房。其中有42套是三室一厅(大约80平方米),还有27套是4-5室一厅(大约90-120平方米)。项目企划时着重强调了开放的公共空间以及周围的绿化带。本着旧时代的“基布兹都市”精神,设计者实验了很多的企划方案才选出了这个最能使社区像大学校区那样运行的方案。  这个项目的中心在于中间的公共区域,它是一条从此处通向公园的通道,也是各个大楼的入口处。这个项目使Shapira居民区大大受益,它吸引了无数中产阶级家庭到此定居。当局通过这个项目强有力地回应了去年夏天中产阶级发起的抗议高房价的活动。适当地利用这样一个机会对于保障性住房计划和中产阶级都很重要。它是Shapira地区城市复兴和人口增加的原因。  译者: 柒柒  The “Ganei Shapira” project was built on a 1 Acre plot, owned by the Tel Aviv municipality. It is located between Tueri Zahav Street and De Modina Street. The project encompasses 69 apartments which will be available for rent under the Affordable Housing scheme. 42 apt are 3 bed room apt.(around 80 sq/m), 27 apt are 4-5 bedroom apt (90-120 sq./m).In planning the project, a special emphasis was given to the open communal spaces and to the neighborhood’s green spaces. We examined several planning alternatives for the project. The chosen plan has the highest potential to enable the community to evolve as a real collegial neighborhood, in the spirit of old times a kind of an “Urban Kibbutz”.  The centre of the project is the communal space in the middle which serves as a passage through the project to the park and as the entrance area to the buildings. This project highly benefit the Shapira neighborhood by attracting middle class families to the area, and will also serve as a valid and compelling response by the authorities to the demands of the middle class from the “Rothchild protest” last summer.It is important that such an opportunity be properly used, both for affordable housing for the middle class and as lever of urban and population renewal of the Shapira area.

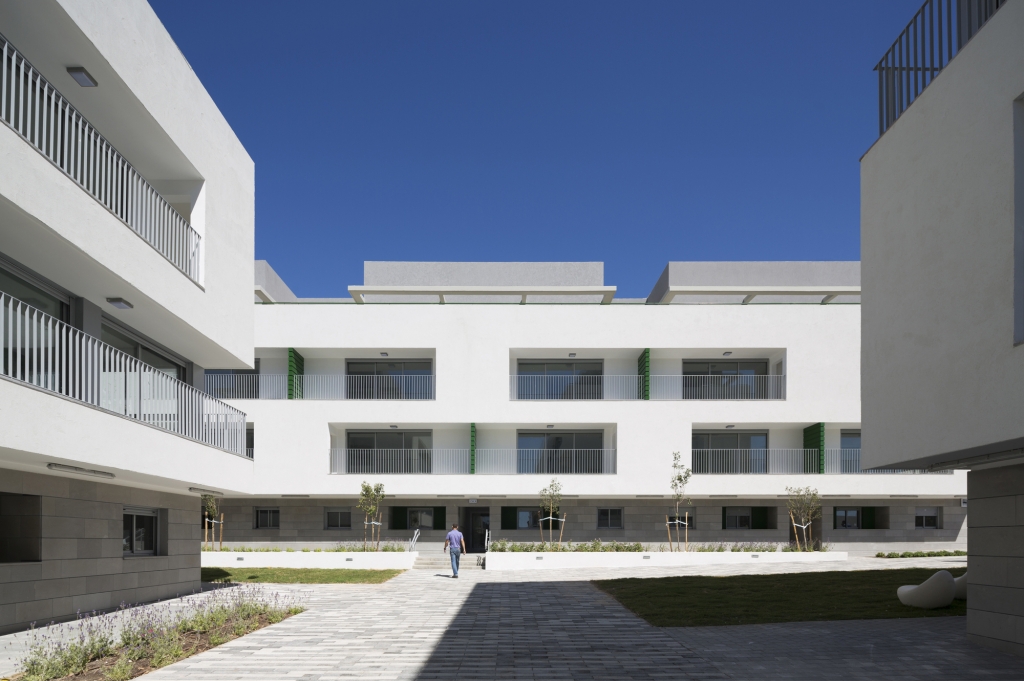

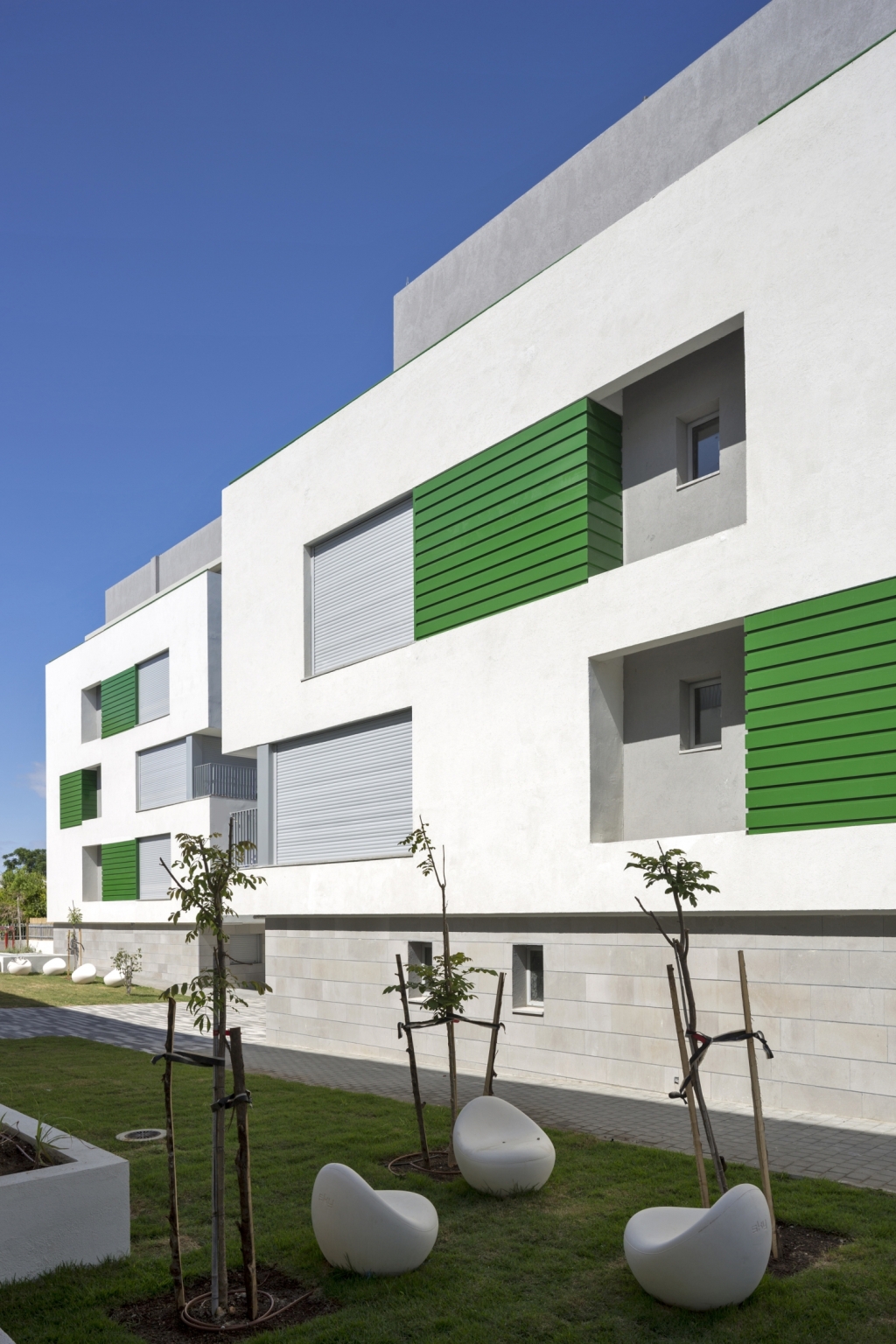

以色列保障性住房外部实景图

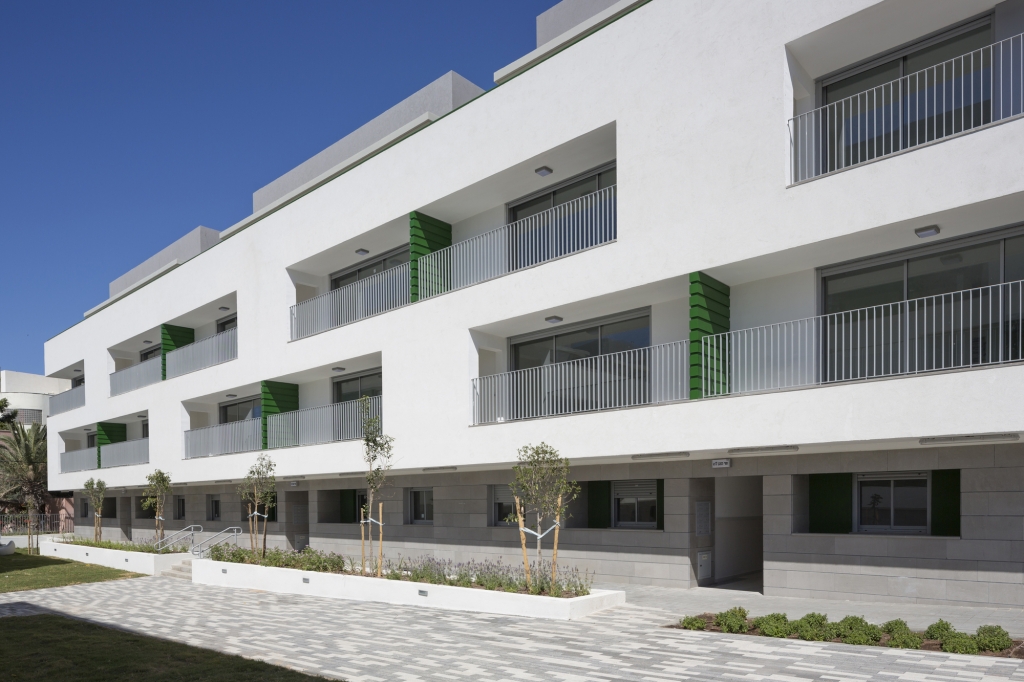

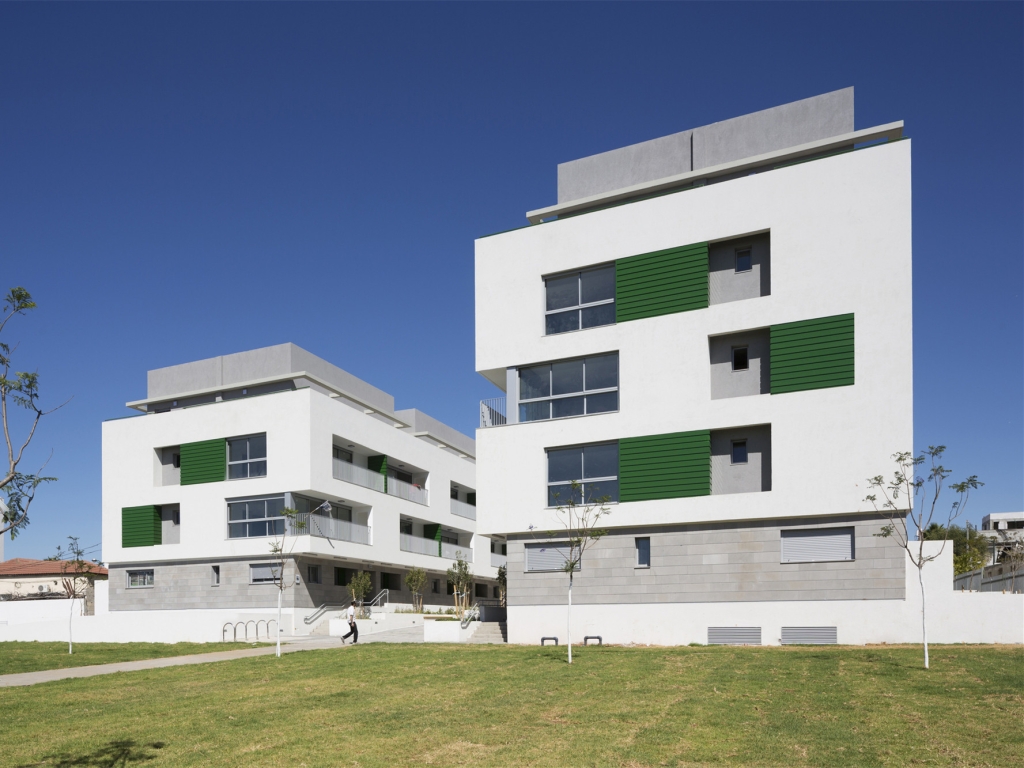

以色列保障性住房外部实景图

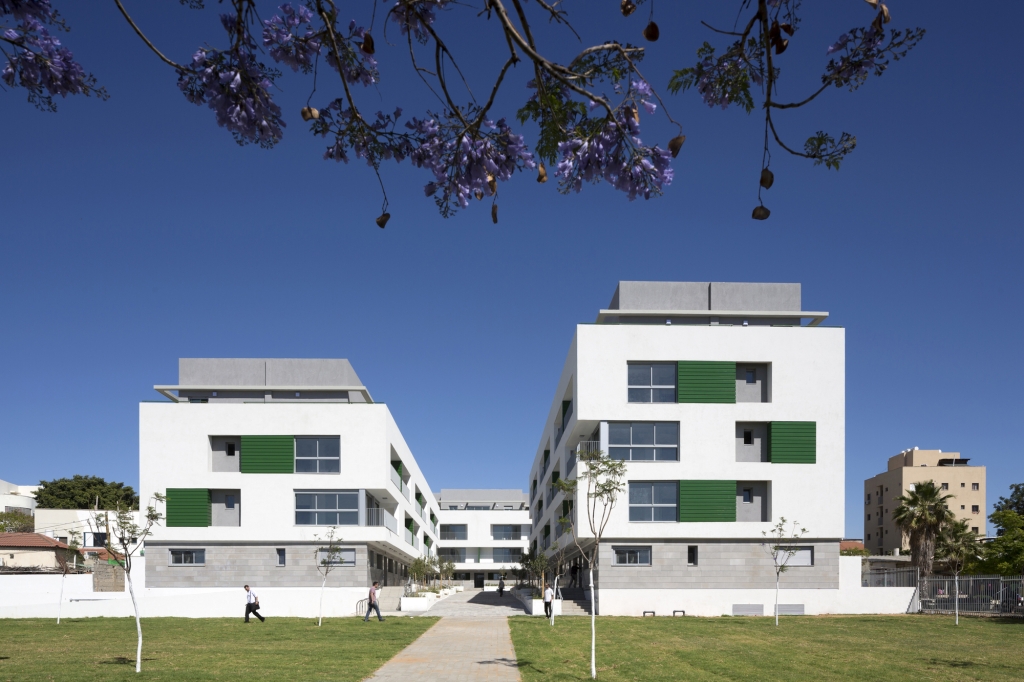

以色列保障性住房外部街道实景图

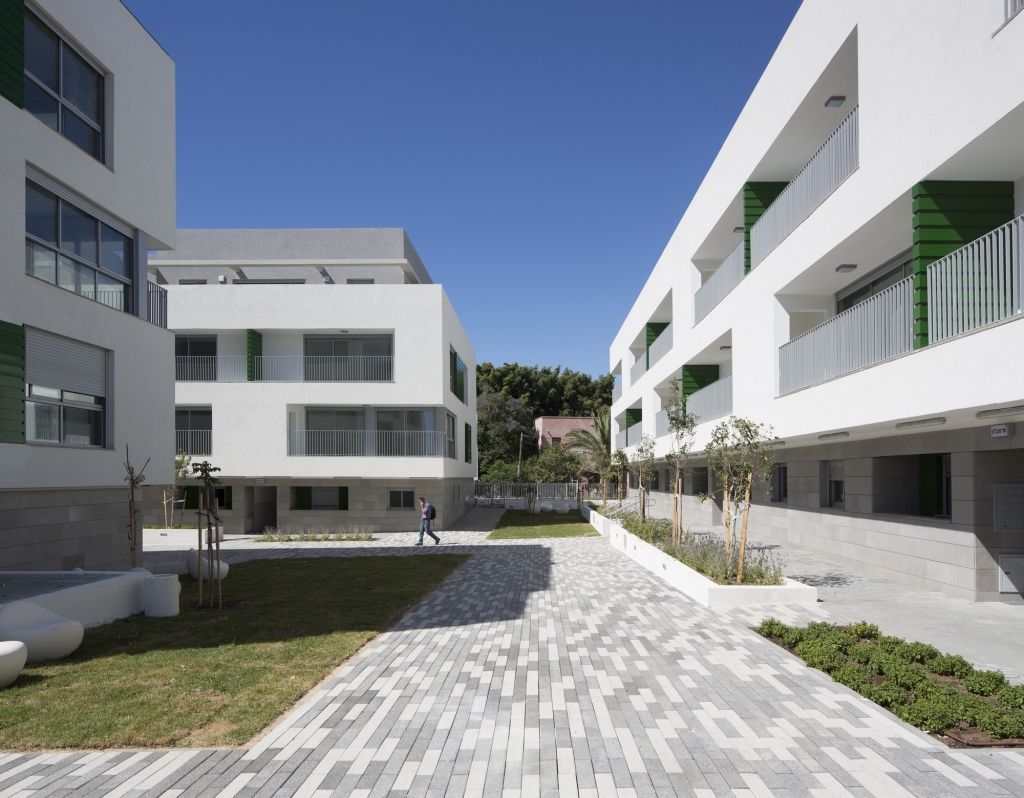

以色列保障性住房外部空间实景图

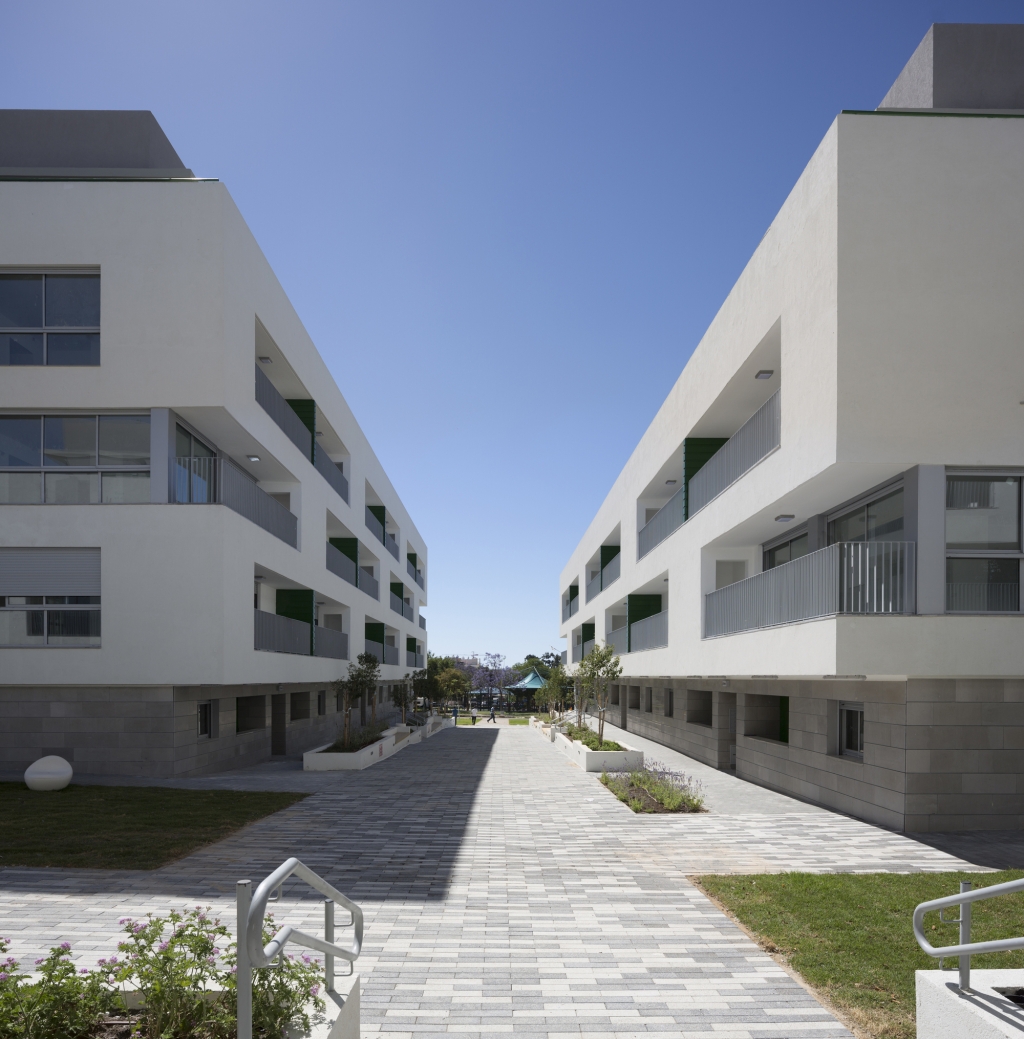

以色列保障性住房外部背面实景图

以色列保障性住房外部背面实景图

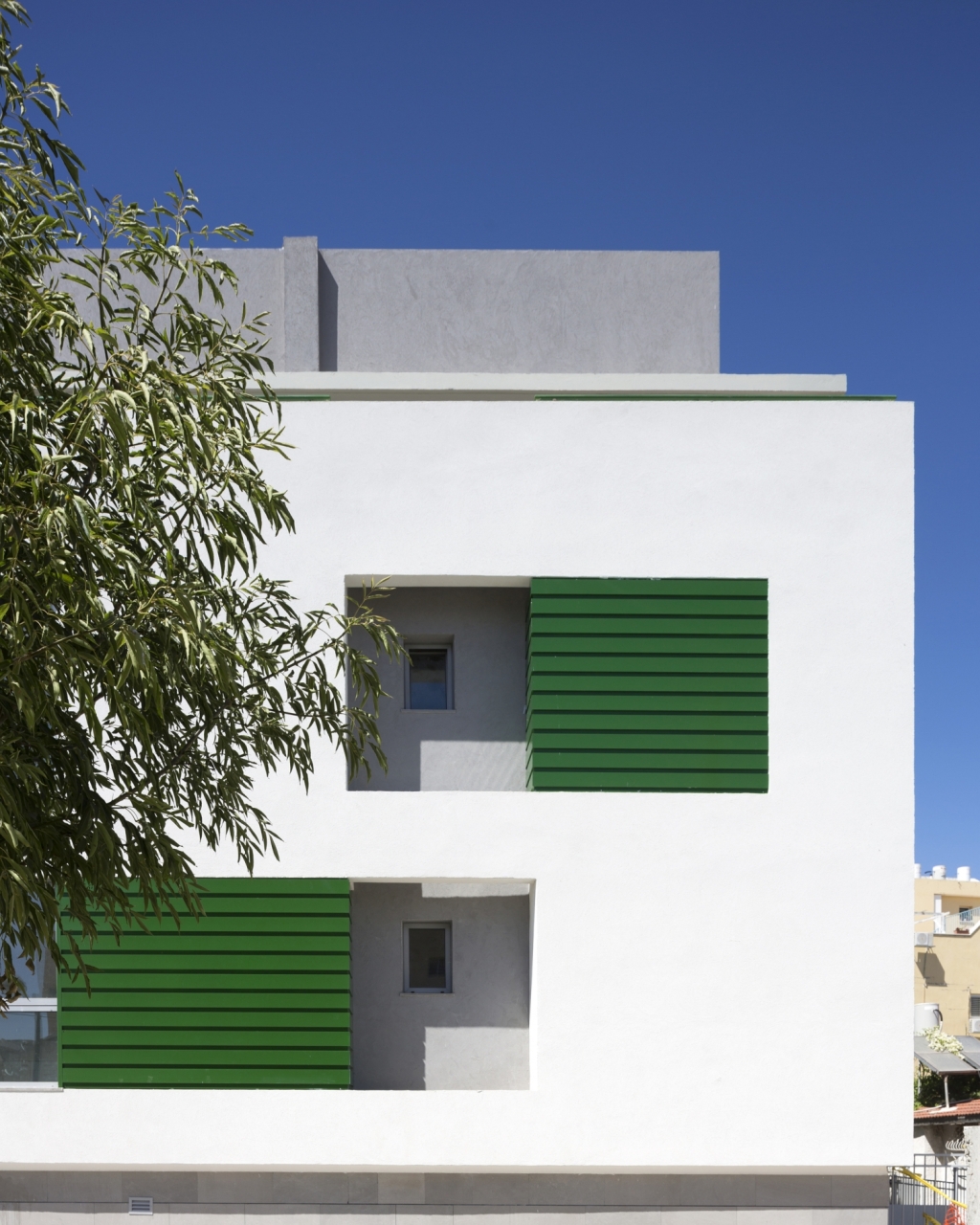

以色列保障性住房外部墙体局部实景图

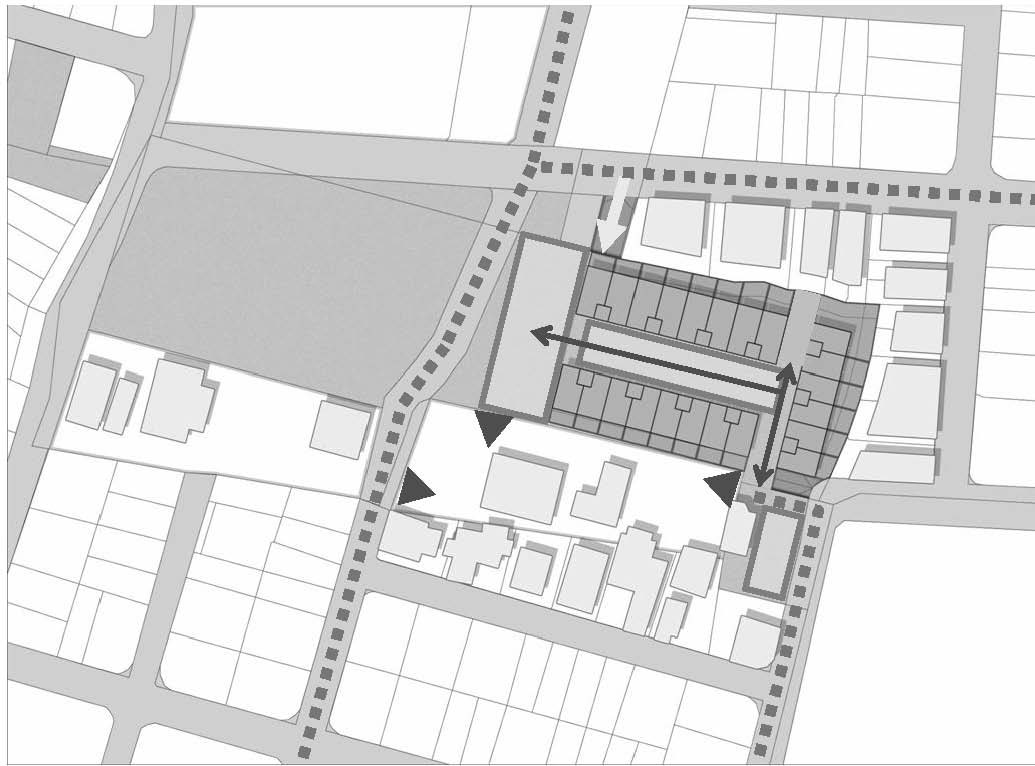

以色列保障性住房总平面图

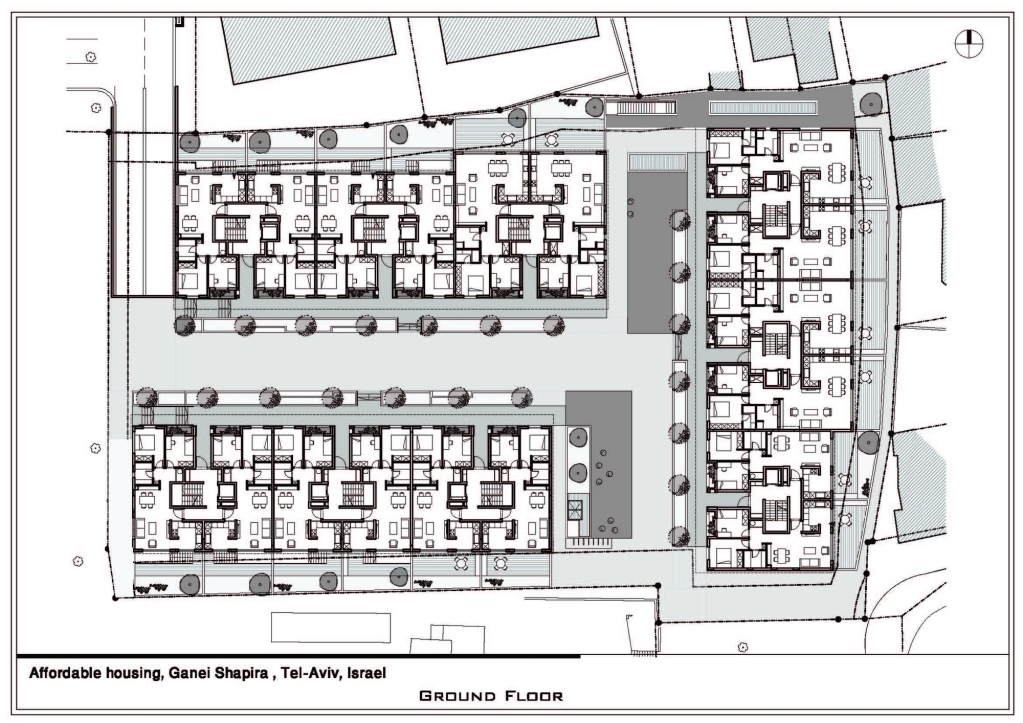

以色列保障性住房底层平面图

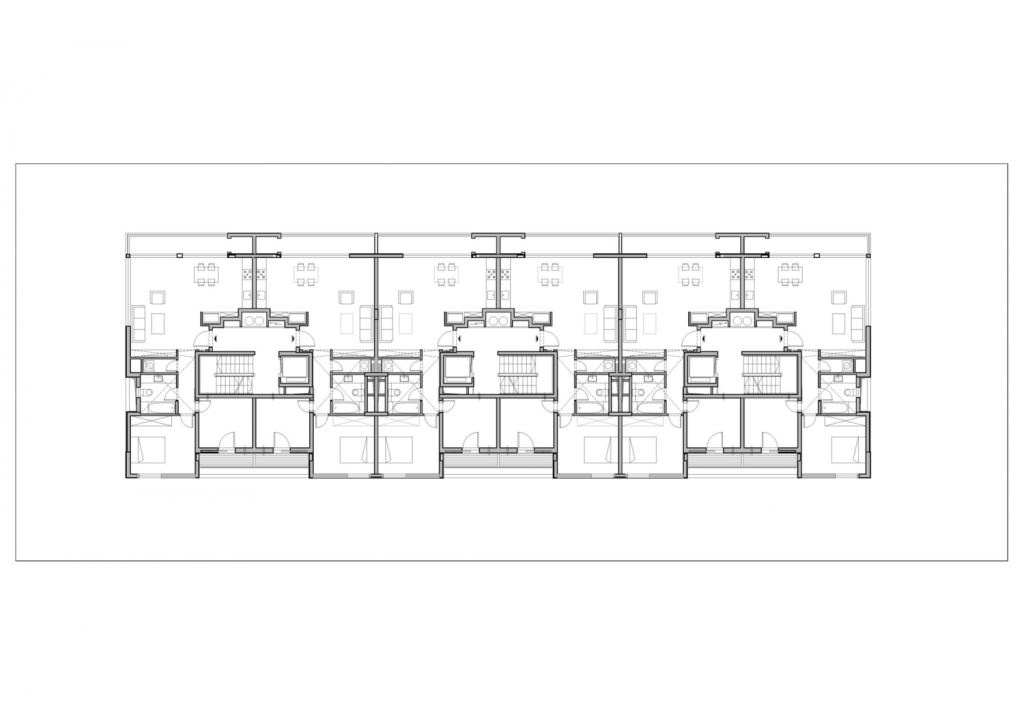

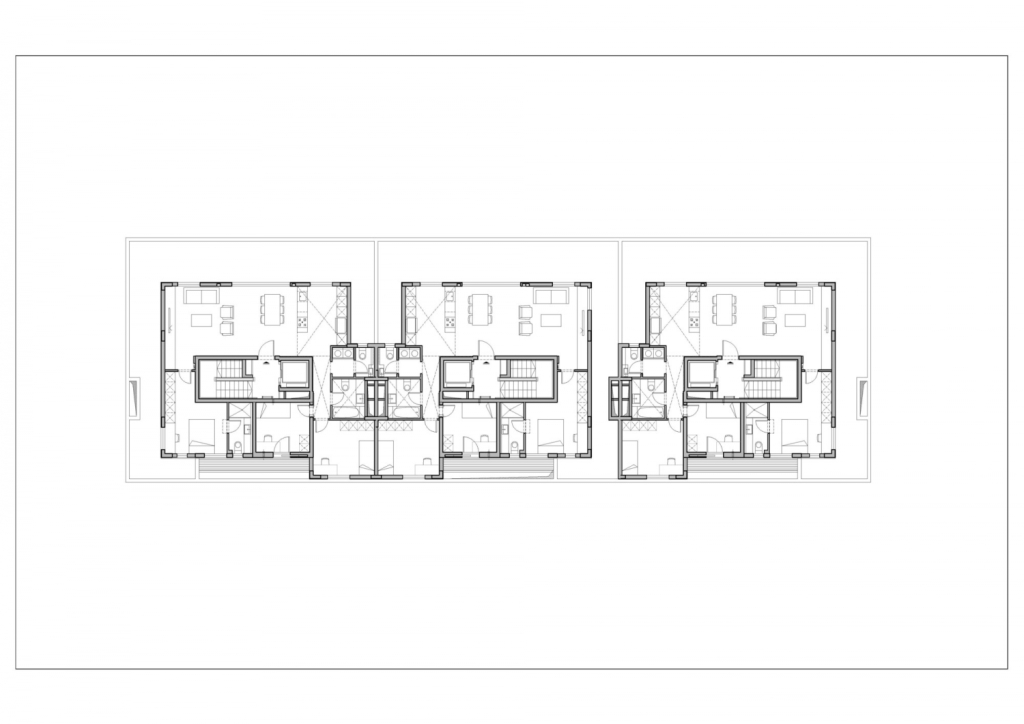

以色列保障性住房平面图

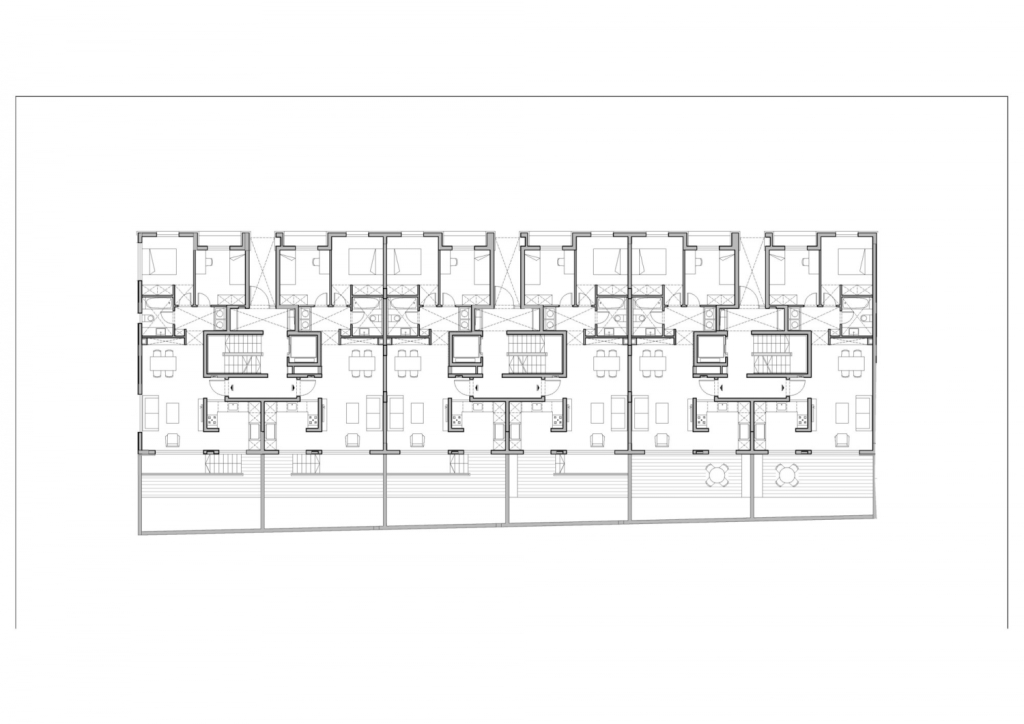

以色列保障性住房平面图

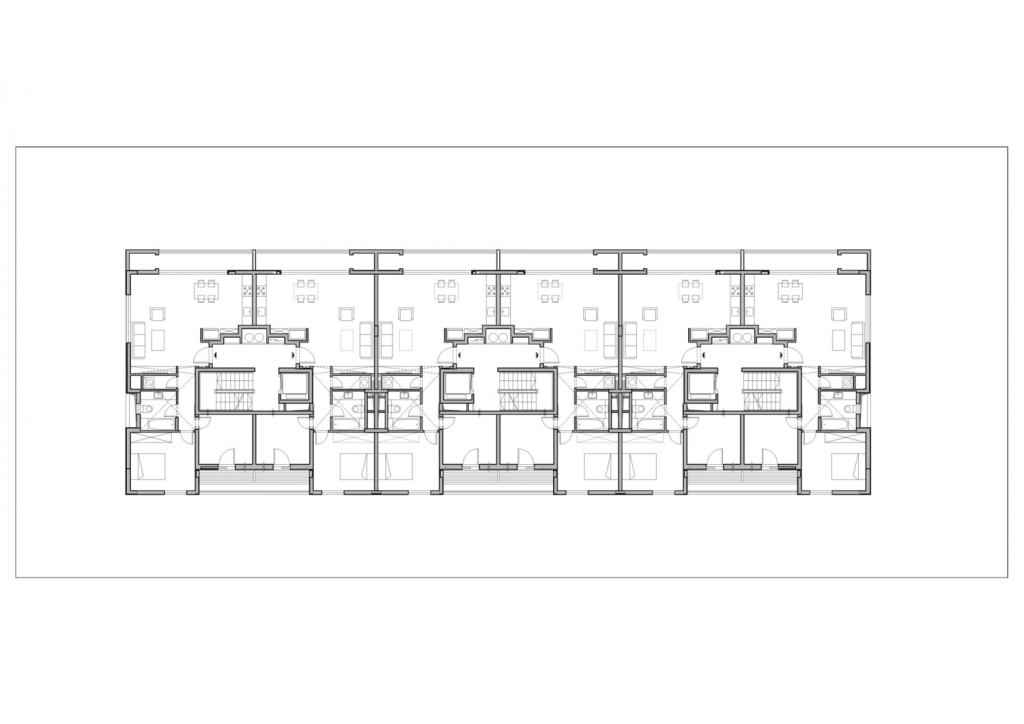

以色列保障性住房平面图

以色列保障性住房平面图

以色列保障性住房平面图
