阿根廷Atelier Vilela住宅

住宅

Argentina's Atelier Vilela housing

设计方：HM.Arquitectos

位置：阿根廷 布宜诺斯艾利斯

分类：居住建筑

内容：实景照片

结构工程师：Carlos Gandini

合作人：Florencia Schvartzman, Lorhena Cáceres Suárez

图片：39张

摄影师：Federico Kulekdjian


这是由HM.Arquitectos设计的Atelier Vilela住宅。该项目位于一个老旧的角落位，原建筑是一座建于二十世纪中期的典型自用住宅。该项目包括三个独立单元，而在角落的单位被用作旧自行车店。该设计旨在对现状已经存在的元素进行处理，包括材料、视线等，顶层体块与新建部分形成明显对比。新建部分使用了坡屋顶，而周边建筑以单坡屋顶为主。为了将新建部分与旧体块形成对比，采用了轻质的结构体系和波浪状的钢覆材塑造一个纯粹的立方体块，从而留出一个小小的三角形田径。为了加强整个建筑的凝聚力，一面金属网将新建部分与现状建筑编织在一起。  译者： 艾比  The project took place in an old corner property. It is a typical house built in the mid-twentieth century considered as self-construction housing. The property is divided into three separate units. The actual project was performed on corner unit, which functioned as an old bicycle store in the neighborhood.  The main objective was to operate on the existing place through an element that is not associated to what already exists. While there is not a tectonic association (material), there is from the point of view of the volumes, there was a clear intention of representing a game between the upper volume in contrast to the new intervention. Qualities of the new intervention as a sloped roof expresses a contemporary nod to its neighbor mono-pitched roof.For a contrast between the contemporary and the old volume, lightweight construction system was used and corrugated iron cladding were chosen to create a purely cubic volume, thereby releasing the excess of meters to a small triangular patio. In order to give cohesion to the whole, expanded metal mesh was used to sew both the new intervention and the existing house.  The first level is constructed with pre-stressed beams and the second level with a tubular structure about 100×50 reproducing a modulation which is displayed on the facade as well. The openings and protection systems strictly respond to modulation of the new intervention, totally opposed to the old house, whose openings have no projective logic.The intervention of only 66 m2 covered was not constrained to the corner unit, it also had to solve an expansion on an old zinc roof over the adjoining unit. In this way and through an lightweight tubular structure that supports a wide wooden deck we achieved an exterior expansion of the project which is accessed from the second level.  As if trying to recall the ancient craft practiced there, the destiny of the new intervention is a practical space for arts and crafts. The idea is to develop activities such as classes of jewelry, carpentry, etc. mostly on ground floor and first level, while in the upper level will take place, physical activities, yoga and meditation.

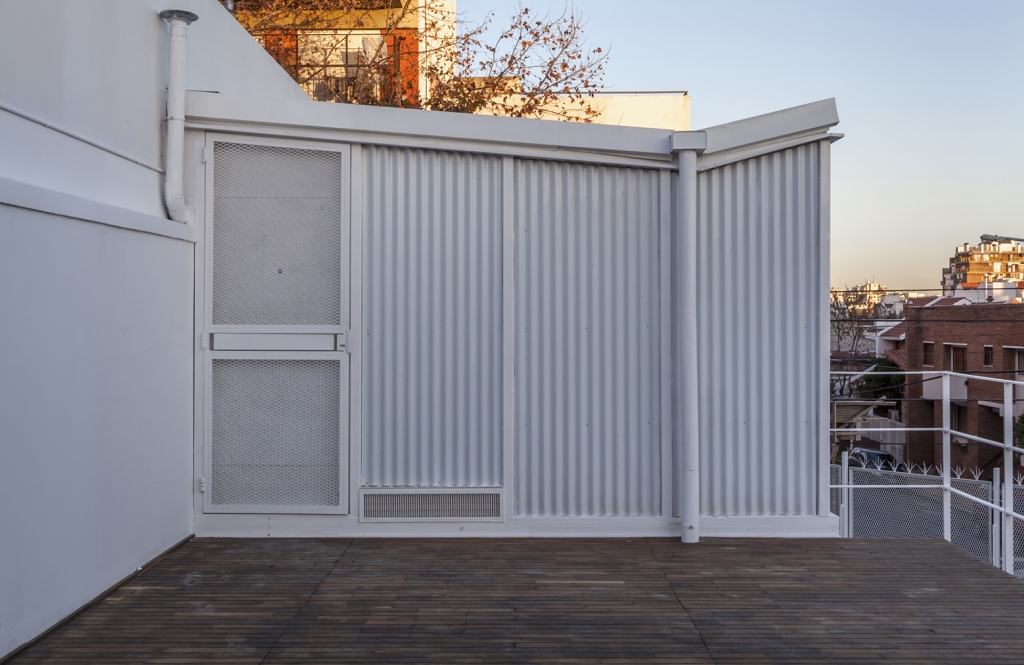

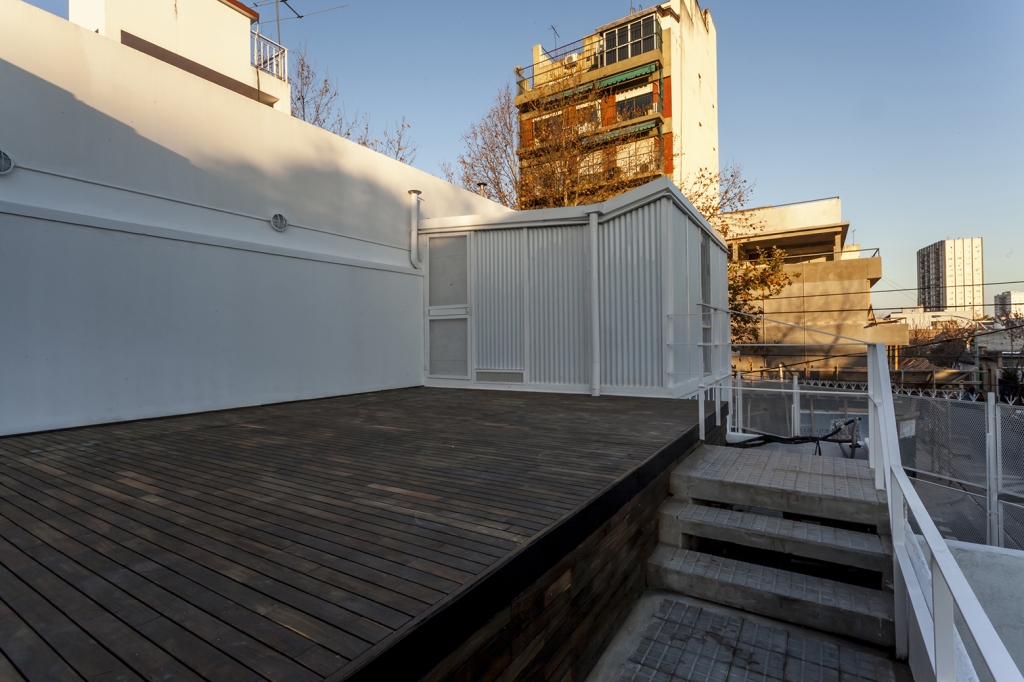

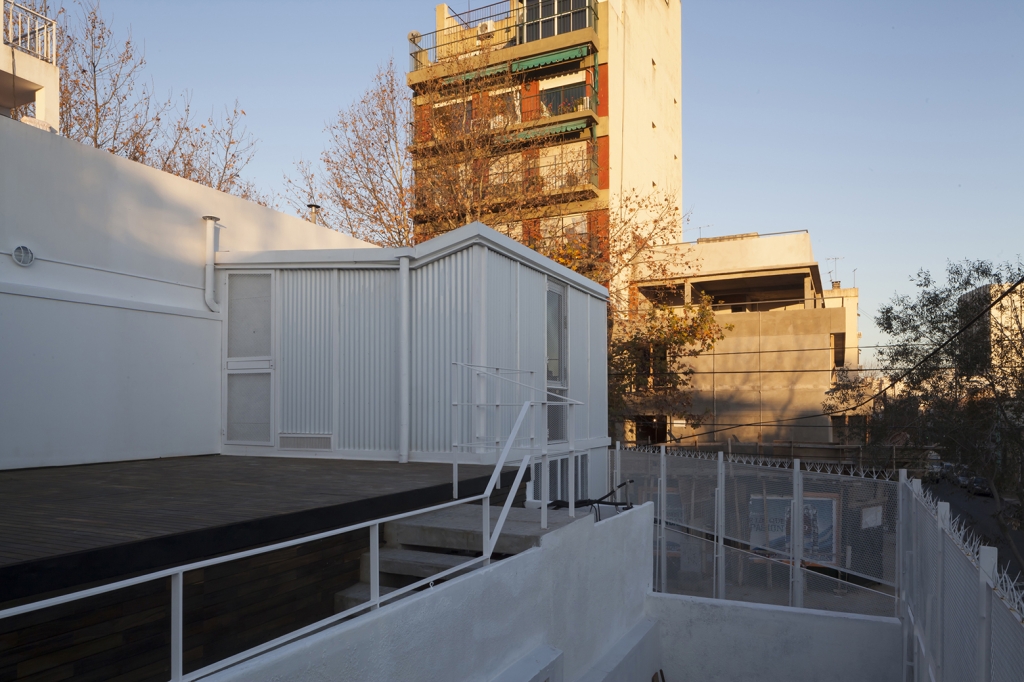

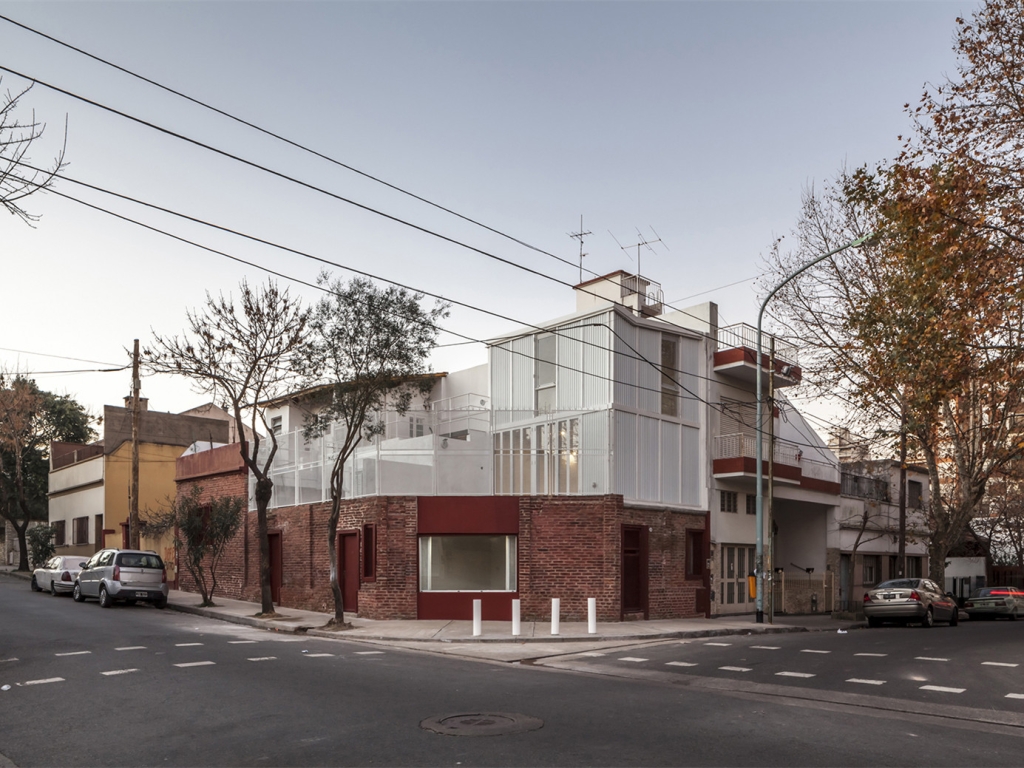

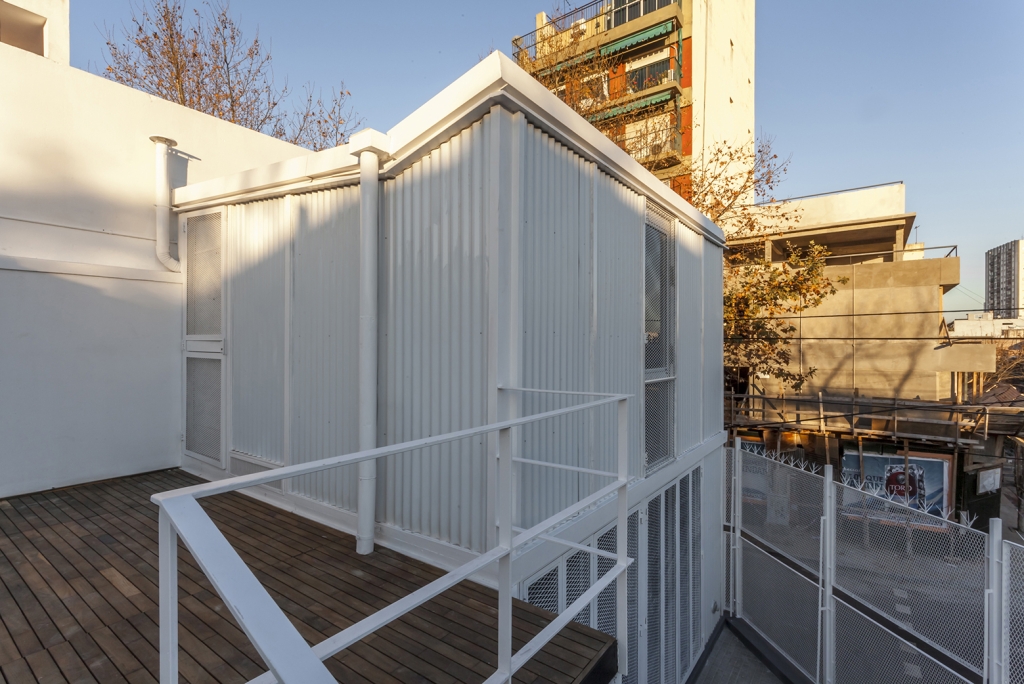

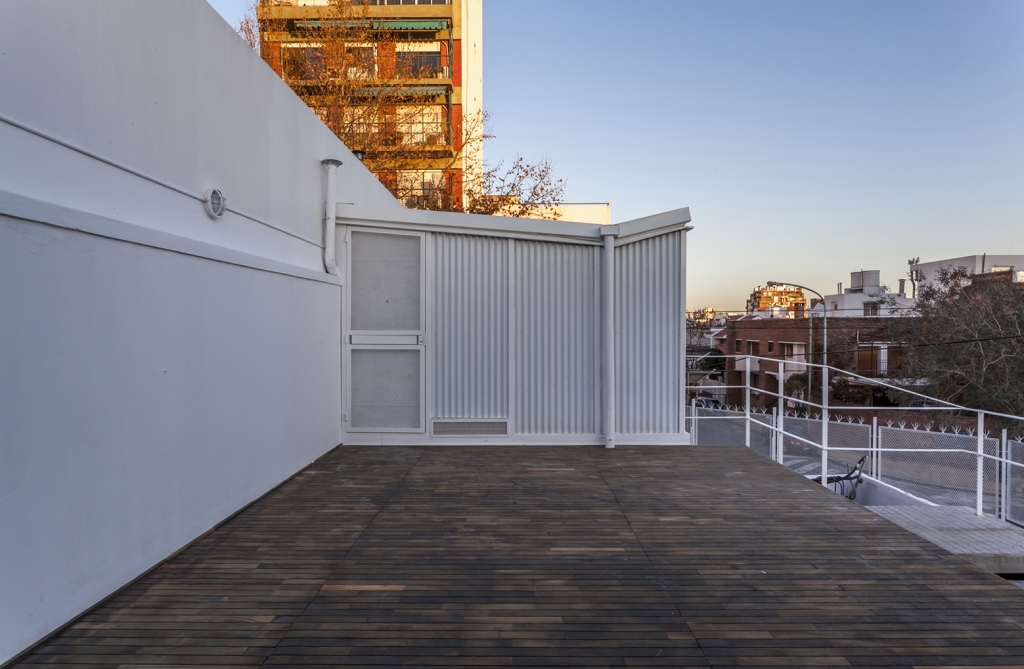

阿根廷Atelier Vilela住宅外部实景图


阿根廷Atelier Vilela住宅外部实景图

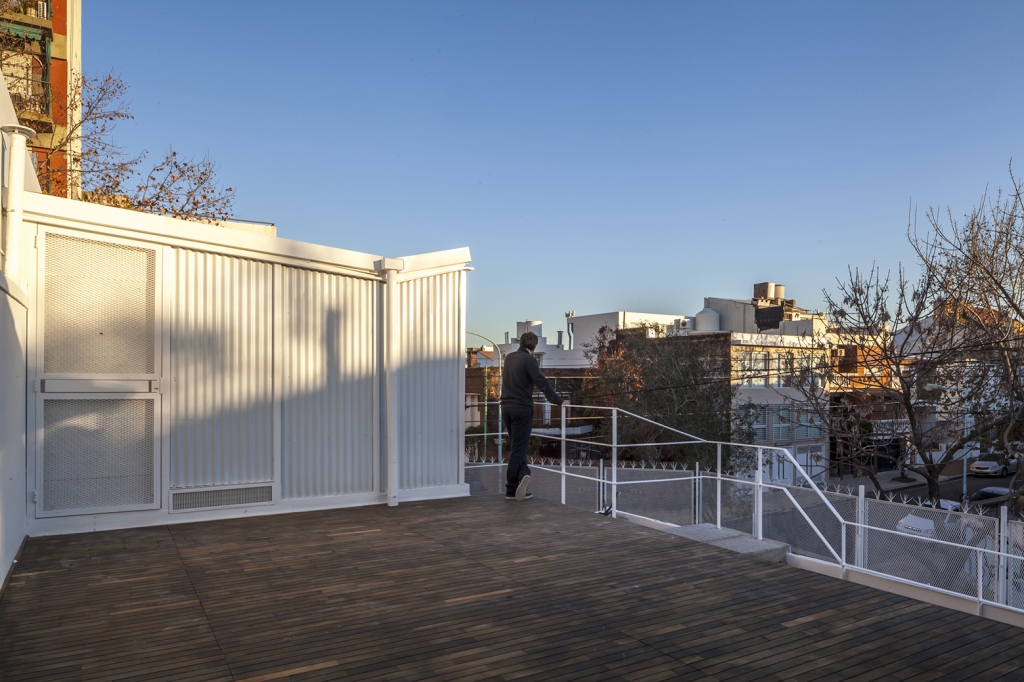

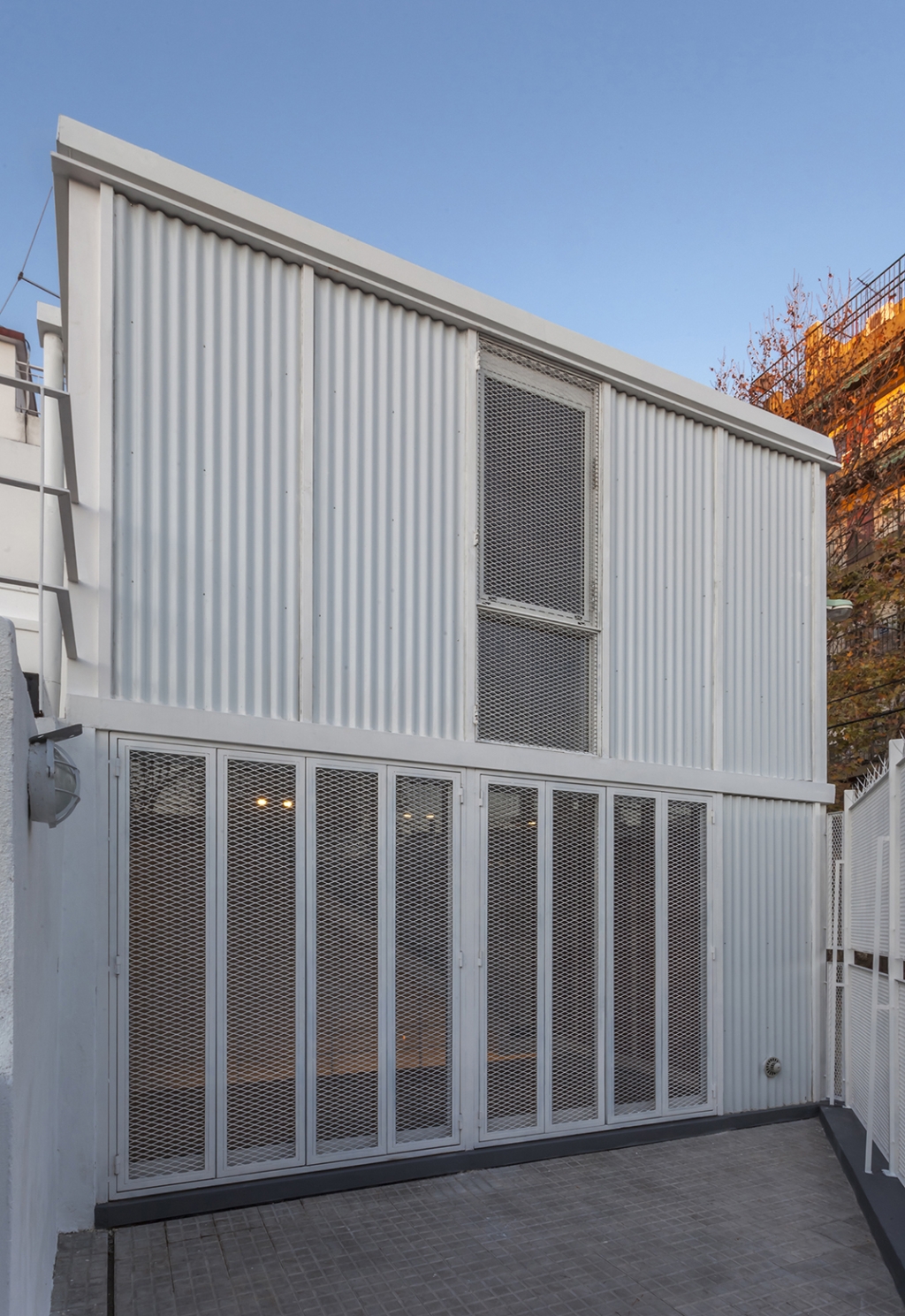

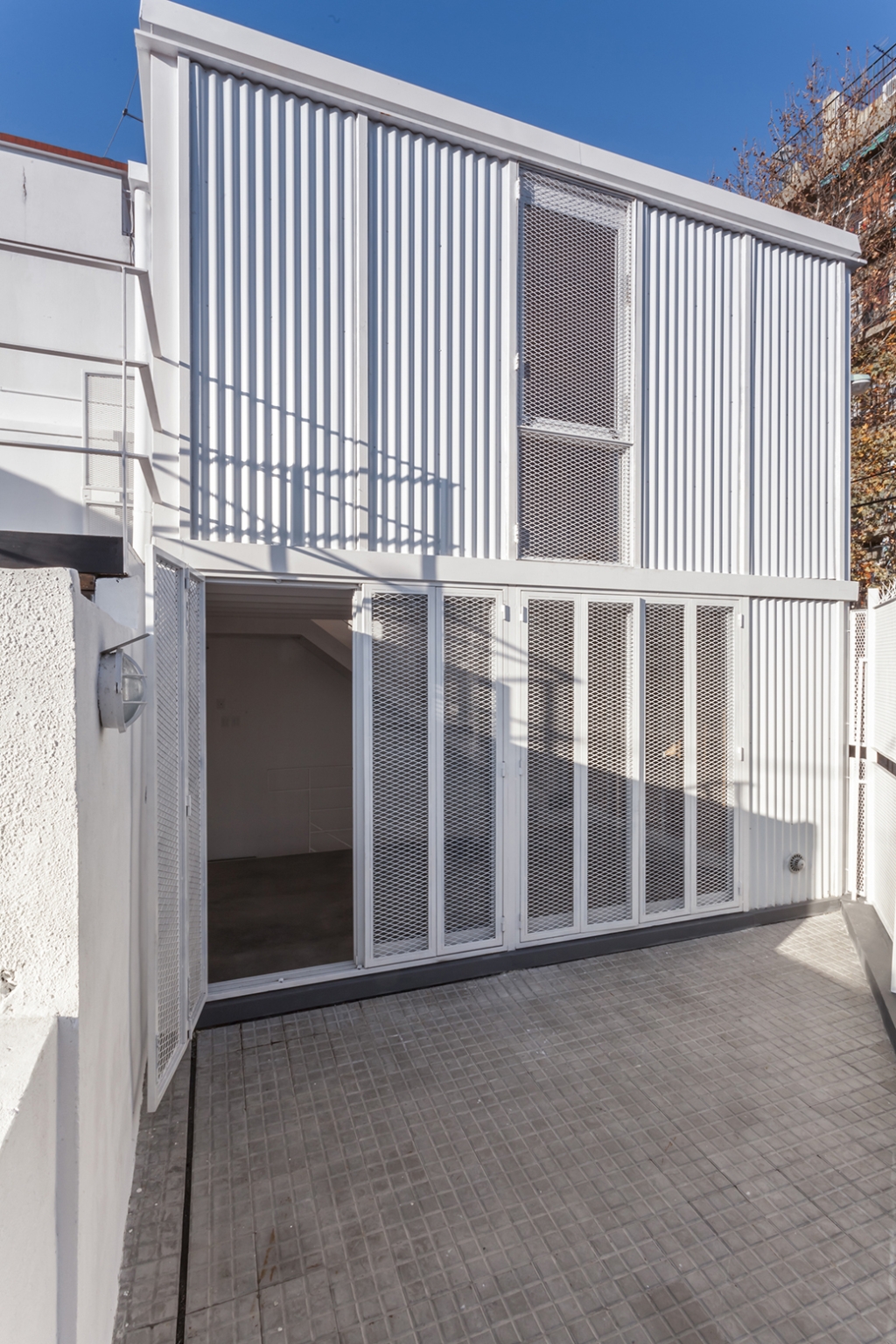

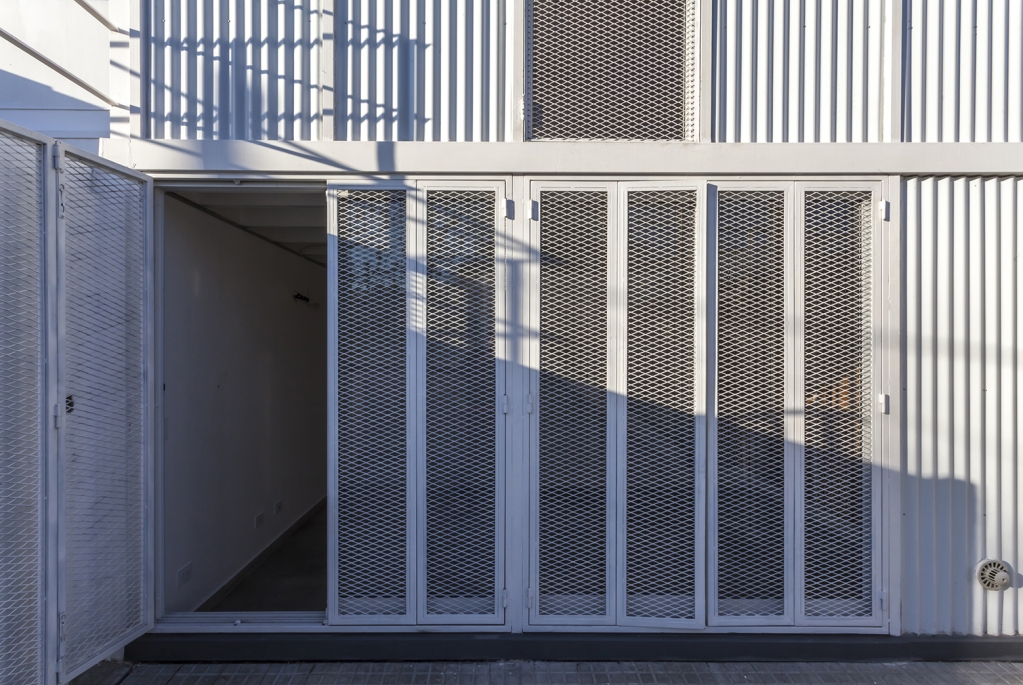

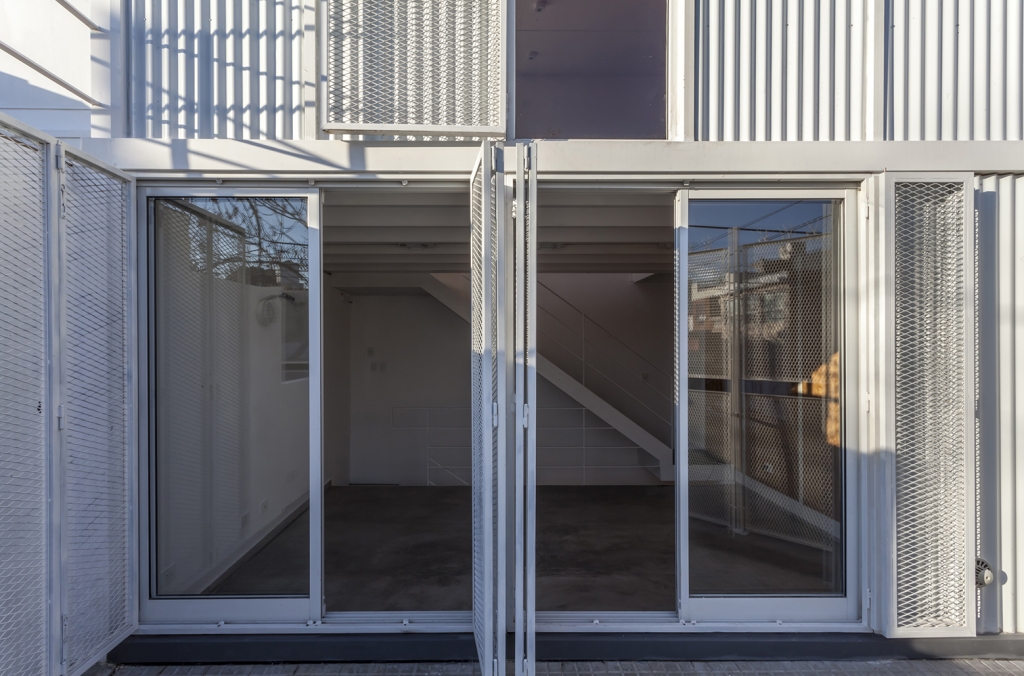

阿根廷Atelier Vilela住宅外部入口实景图


阿根廷Atelier Vilela住宅外部入口实景图


阿根廷Atelier Vilela住宅外部入口实景图


阿根廷Atelier Vilela住宅外部入口实景图


阿根廷Atelier Vilela住宅外部入口实景图


阿根廷Atelier Vilela住宅外部入口实景图


阿根廷Atelier Vilela住宅外部入口实景图


阿根廷Atelier Vilela住宅外部入口实景图

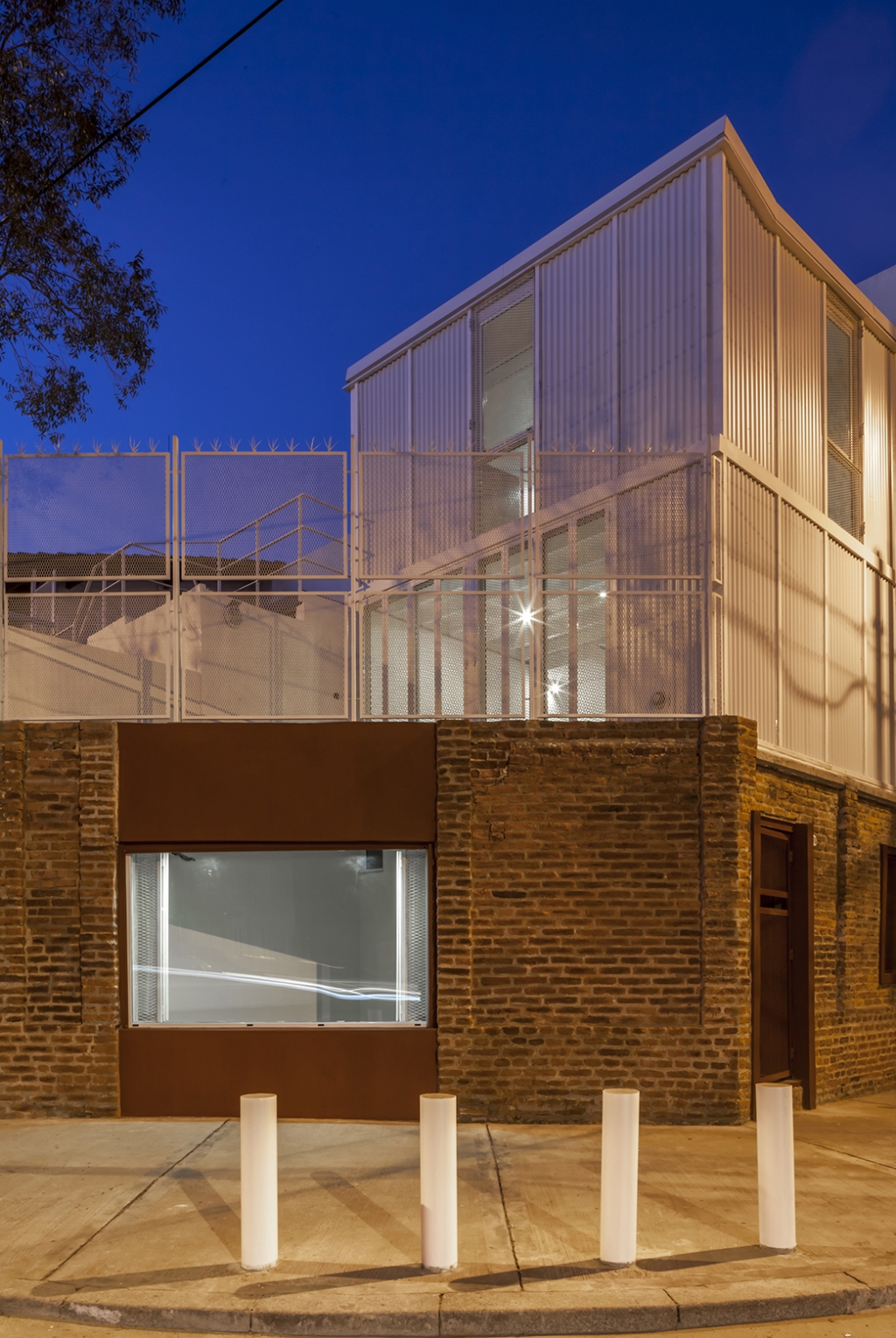

阿根廷Atelier Vilela住宅外部夜景实景图

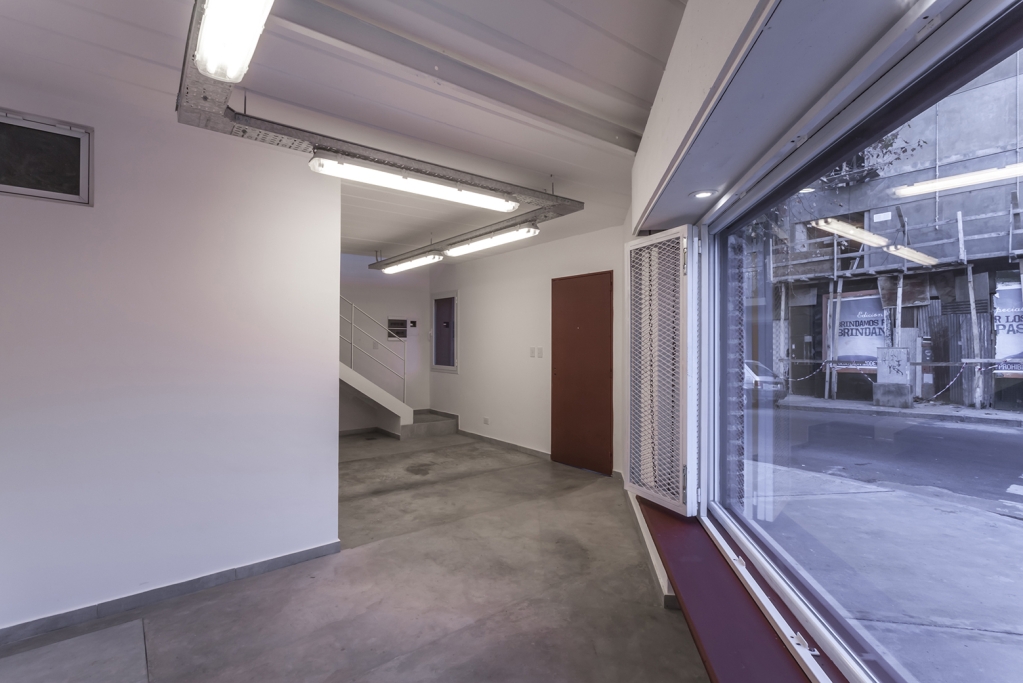

阿根廷Atelier Vilela住宅内部门口处实景图


阿根廷Atelier Vilela住宅内部过道实景图


阿根廷Atelier Vilela住宅内部过道实景图

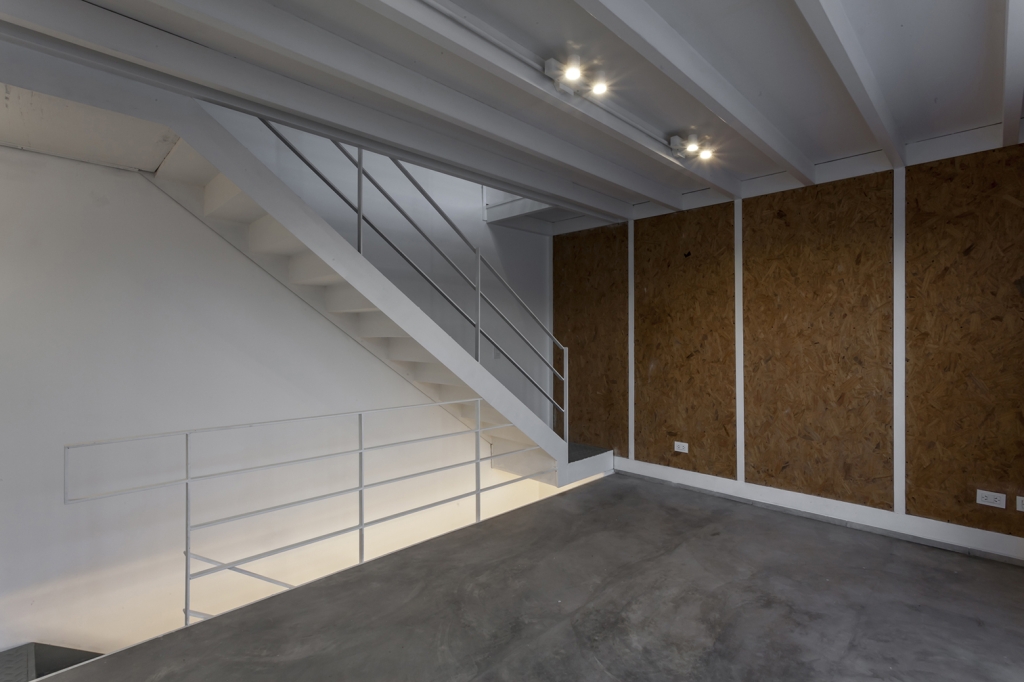

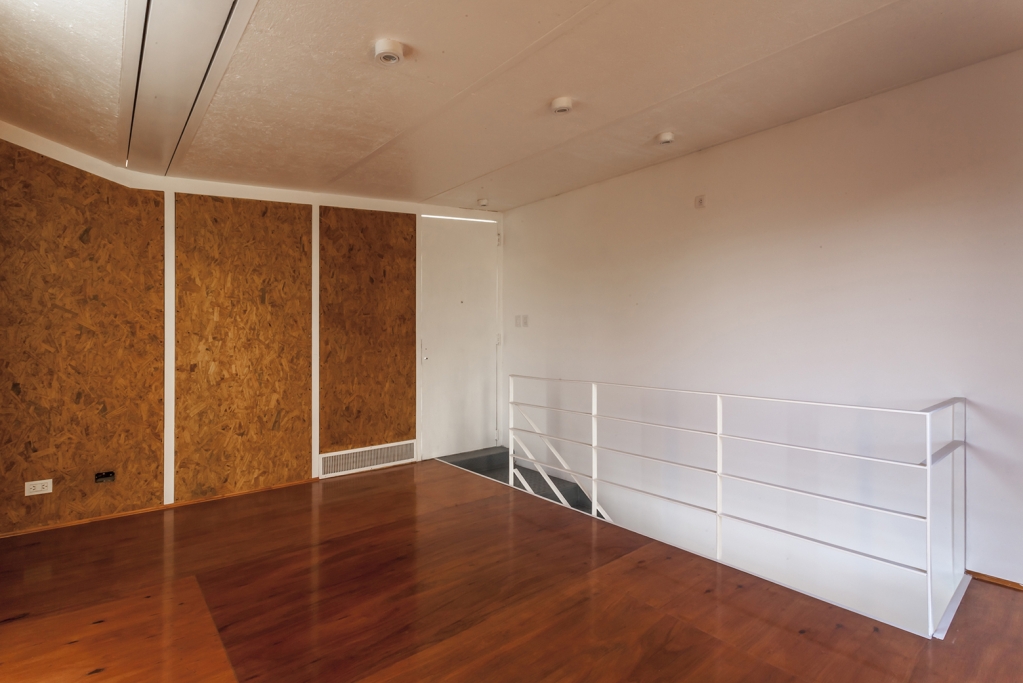

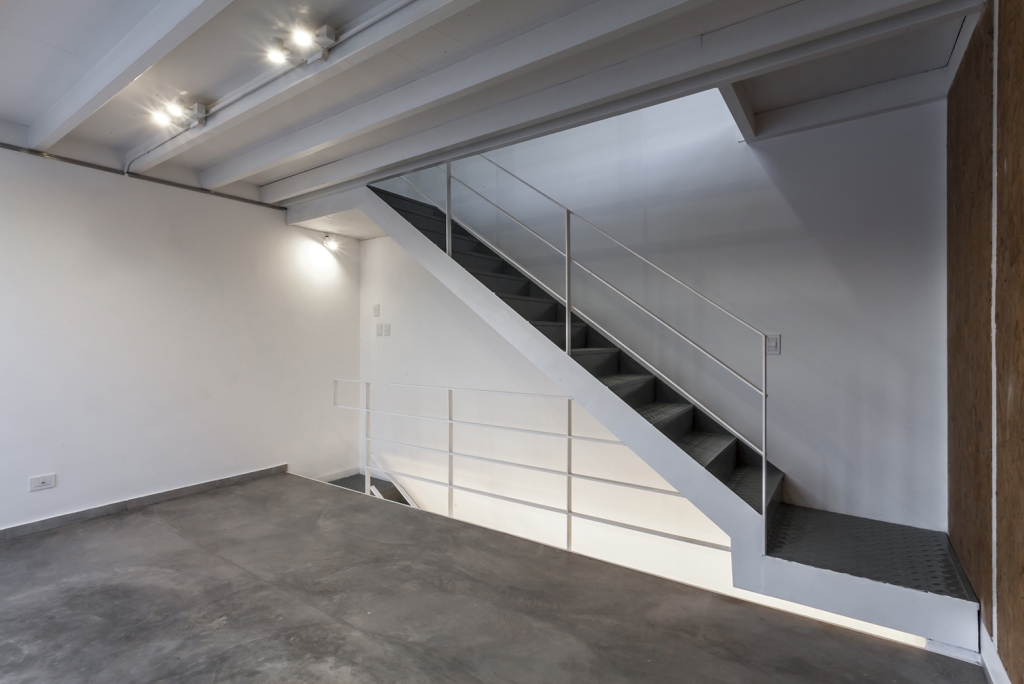

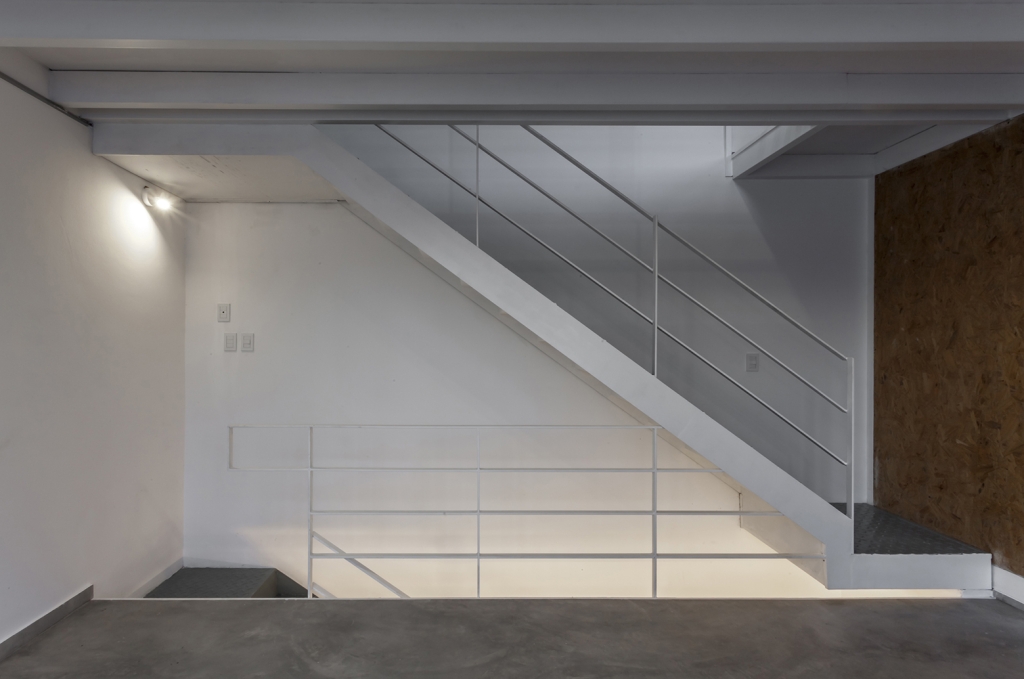

阿根廷Atelier Vilela住宅内部楼梯口实景图


阿根廷Atelier Vilela住宅内部楼梯口实景图


阿根廷Atelier Vilela住宅内部楼梯口实景图


阿根廷Atelier Vilela住宅内部楼梯口实景图

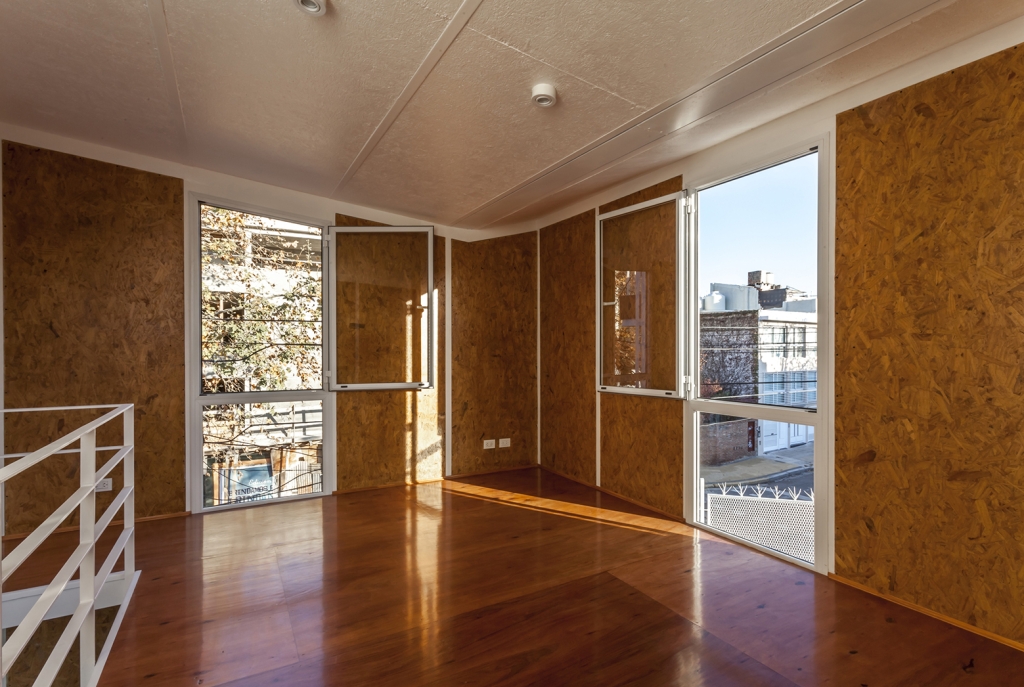

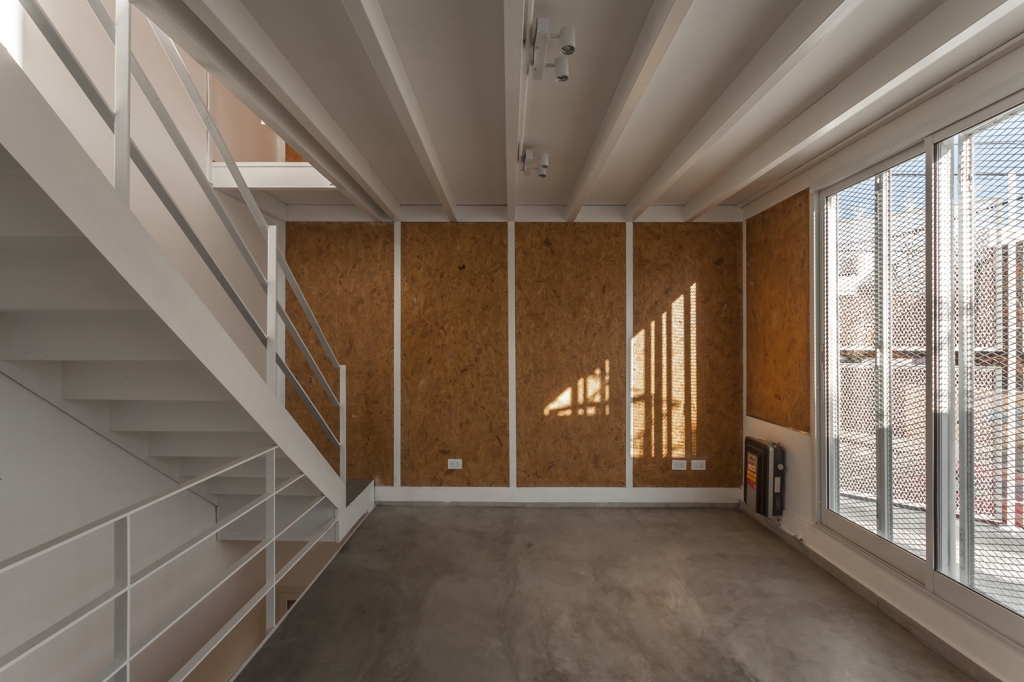

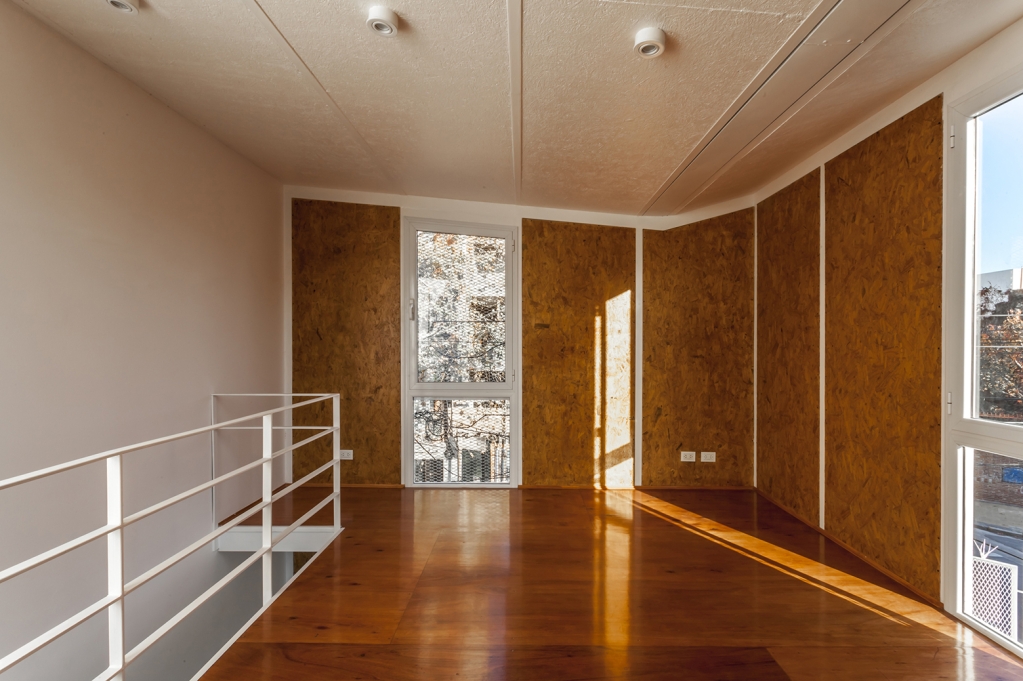

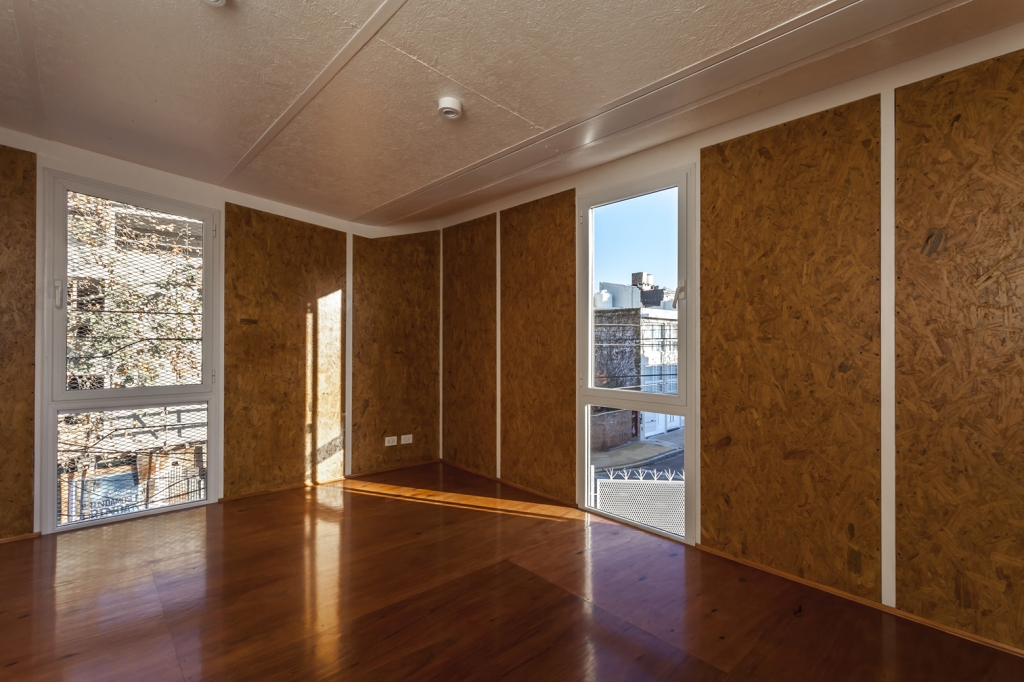

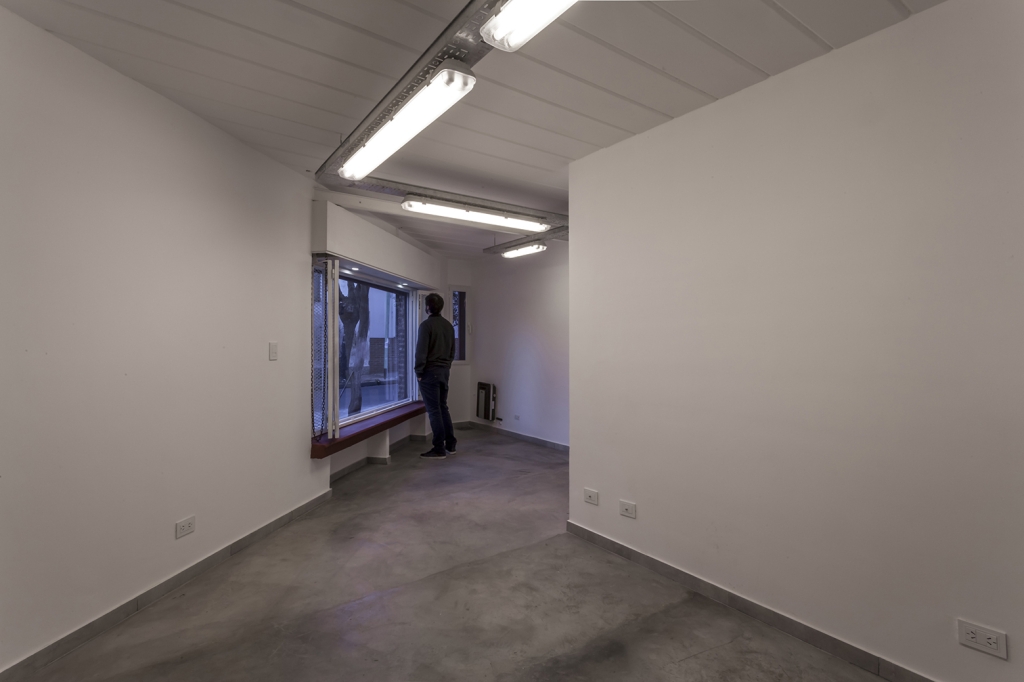

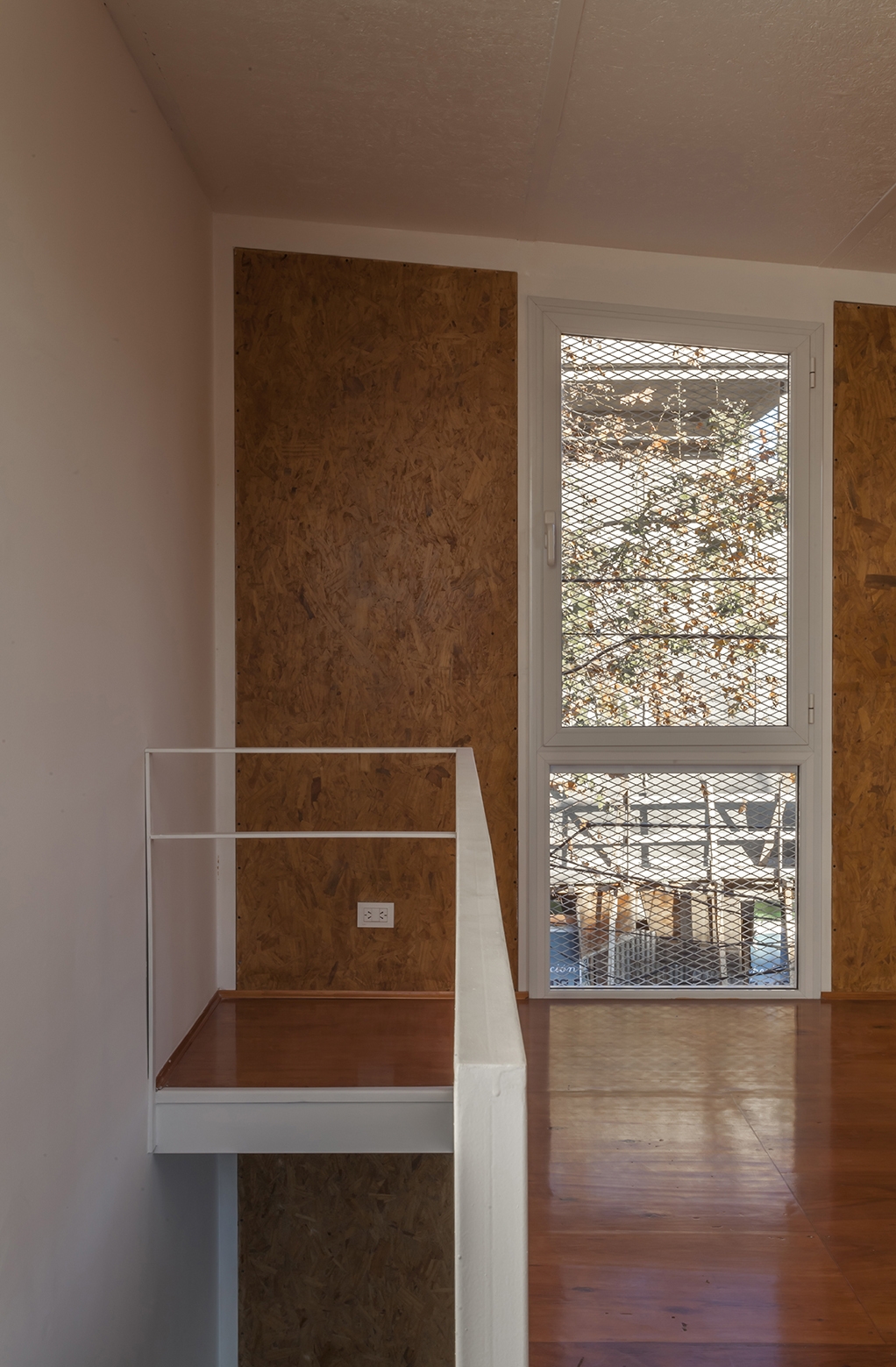

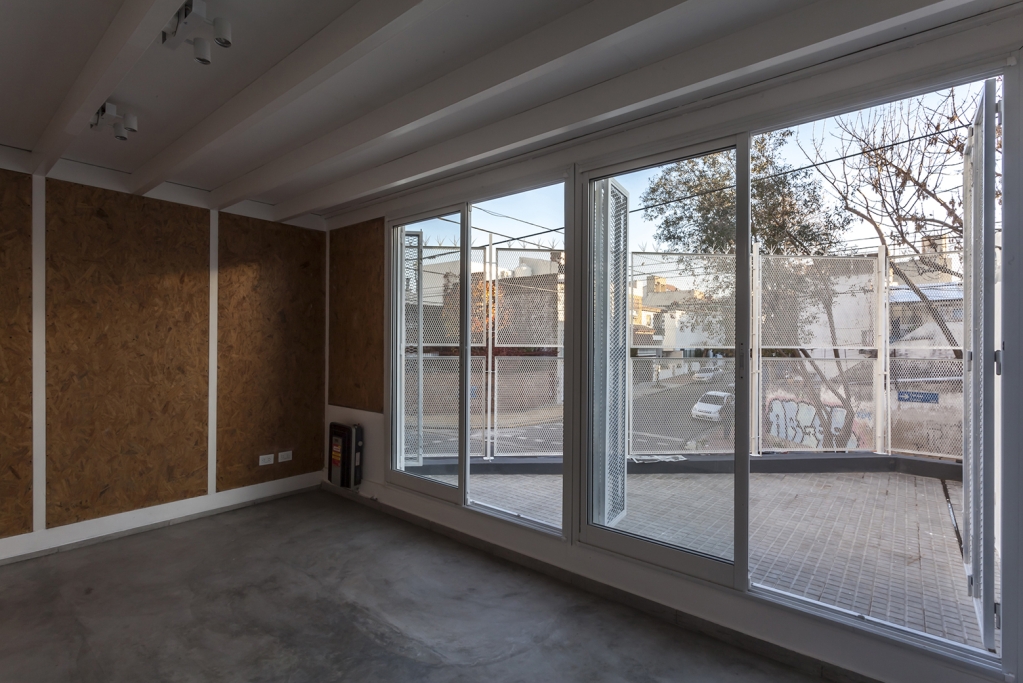

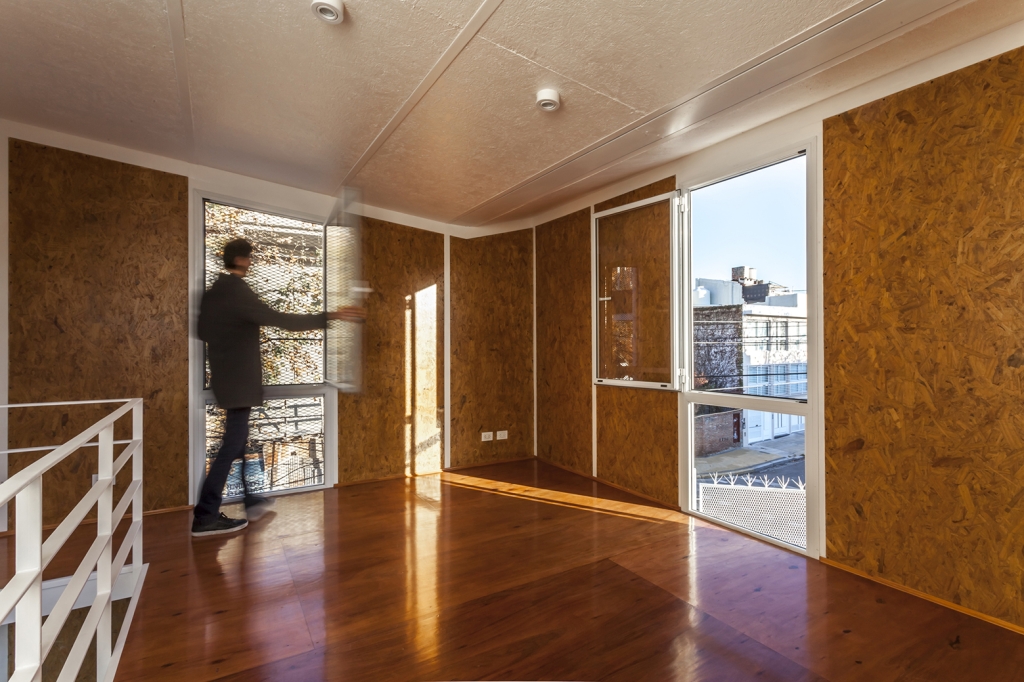

阿根廷Atelier Vilela住宅内部局部实景图


阿根廷Atelier Vilela住宅内部局部实景图


阿根廷Atelier Vilela住宅内部局部实景图


阿根廷Atelier Vilela住宅内部局部实景图


阿根廷Atelier Vilela住宅内部局部实景图


阿根廷Atelier Vilela住宅内部局部实景图

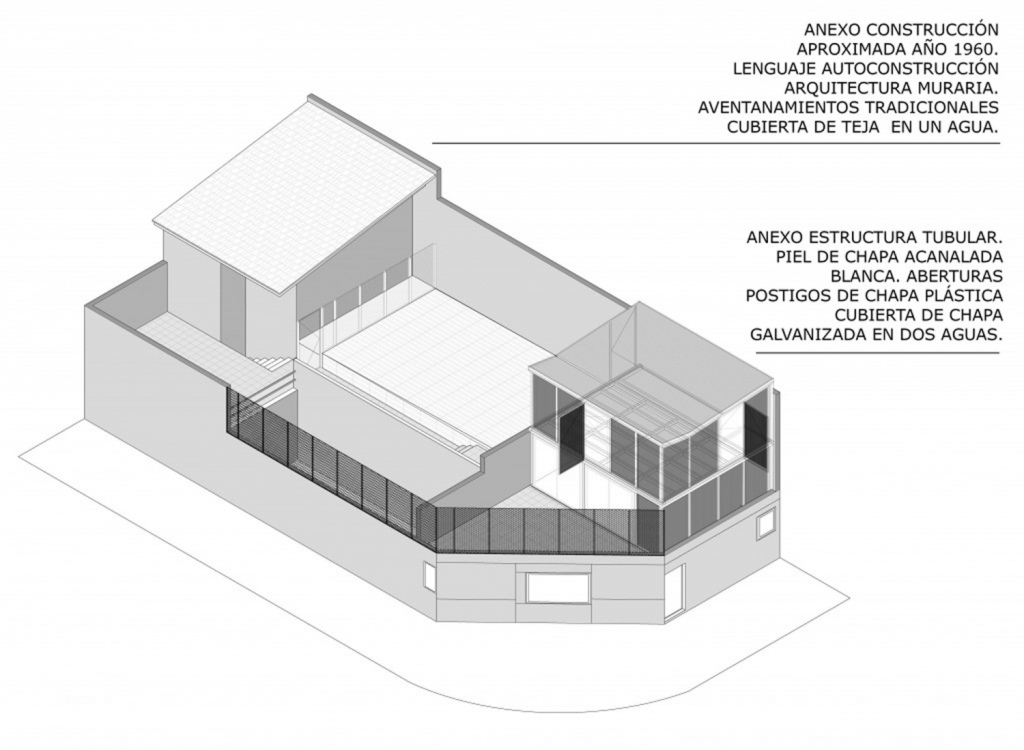

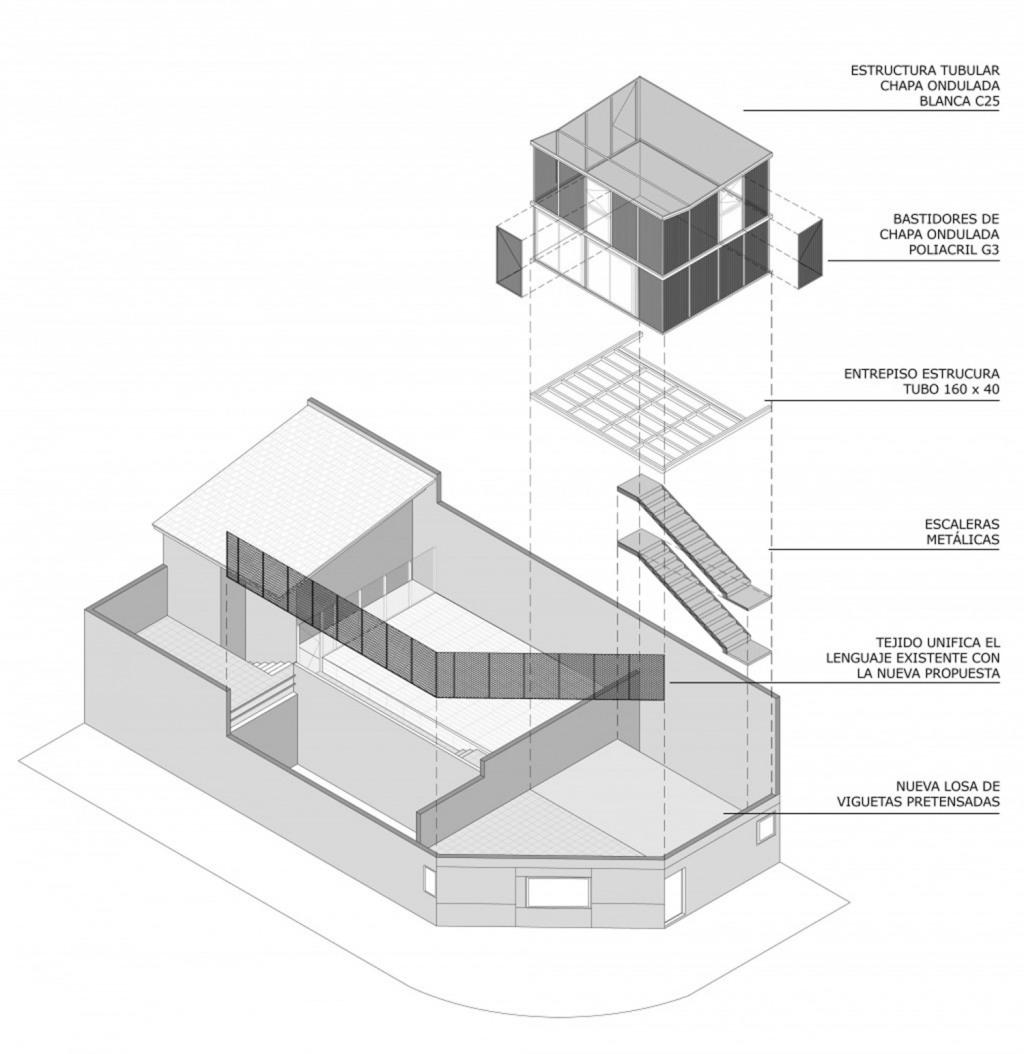

阿根廷Atelier Vilela住宅轴测图


阿根廷Atelier Vilela住宅轴测图

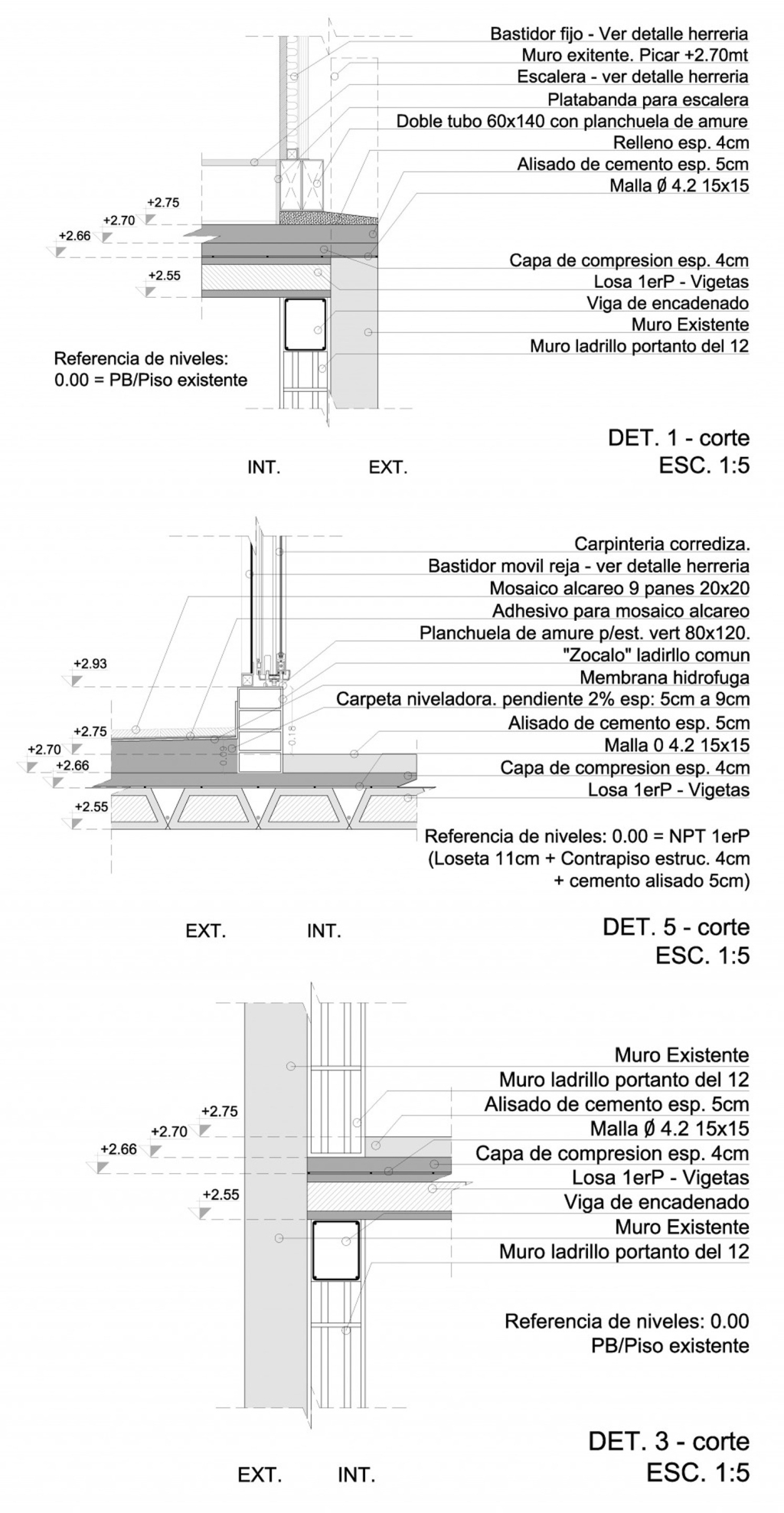

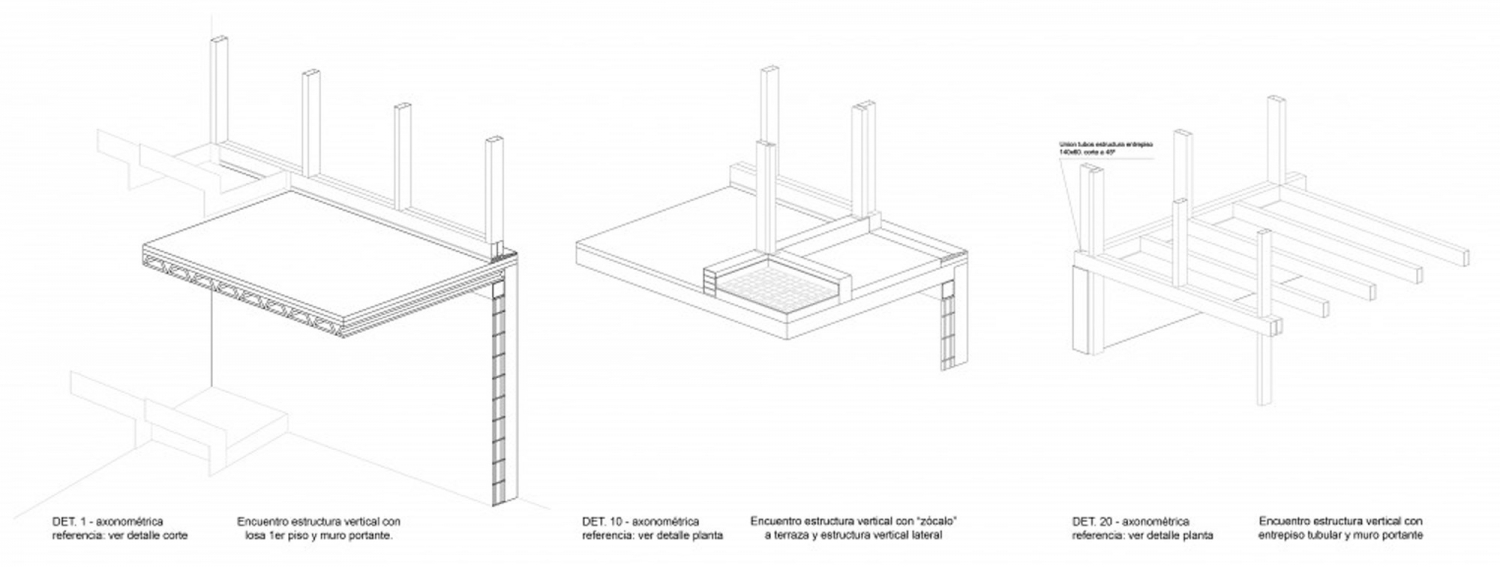

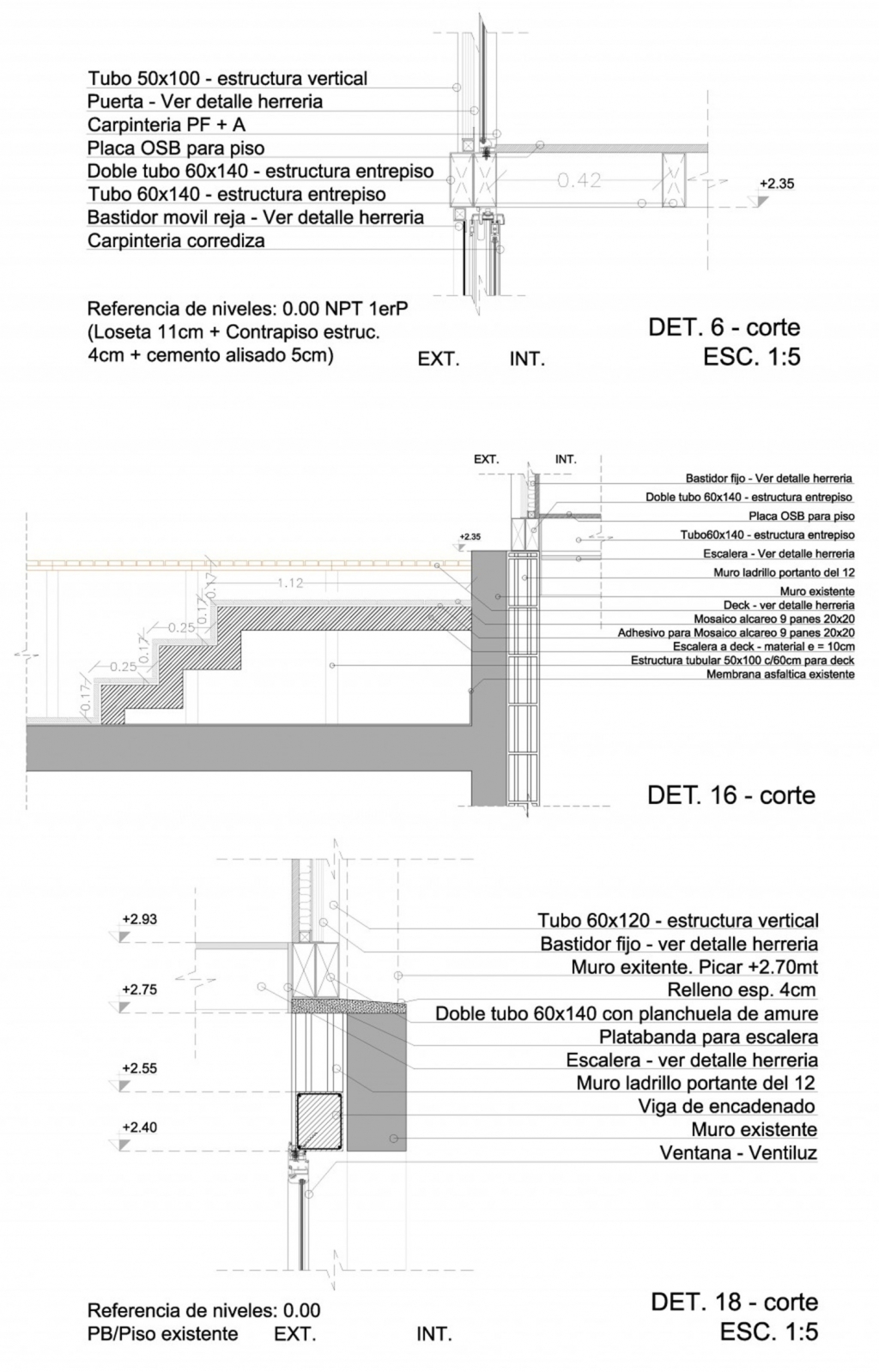

阿根廷Atelier Vilela住宅详图


阿根廷Atelier Vilela住宅详图

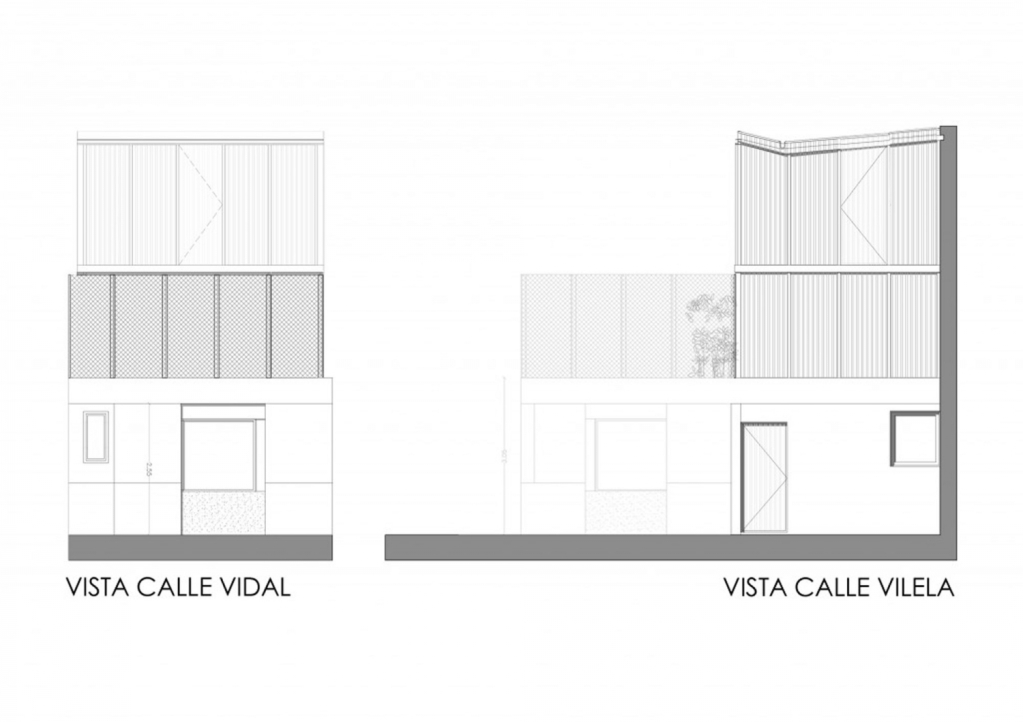

阿根廷Atelier Vilela住宅正面图

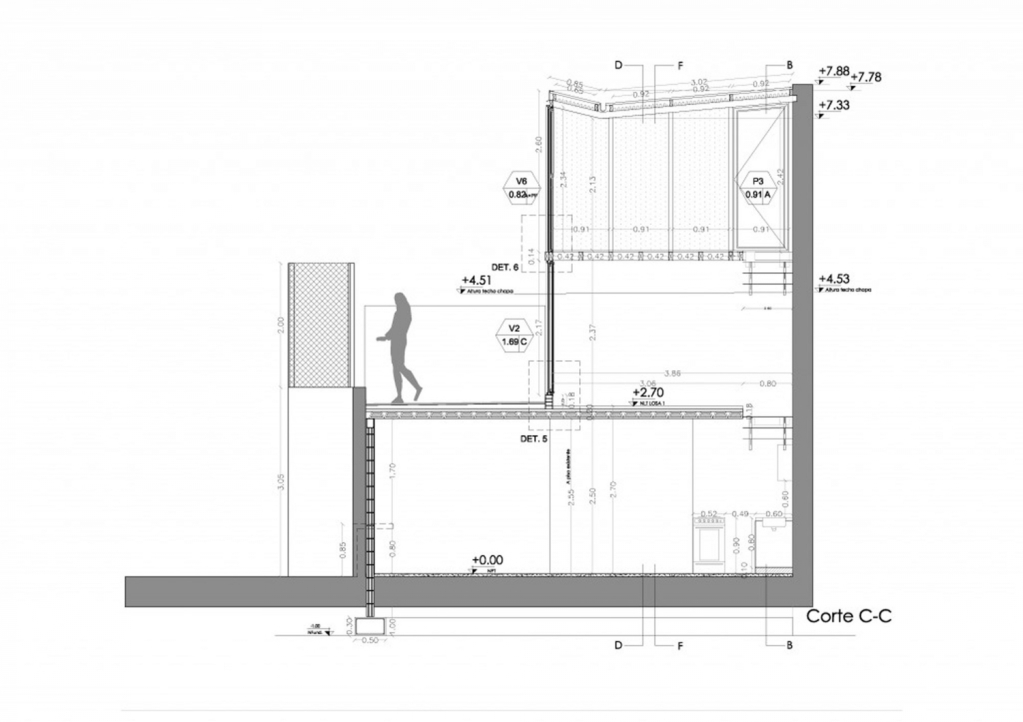

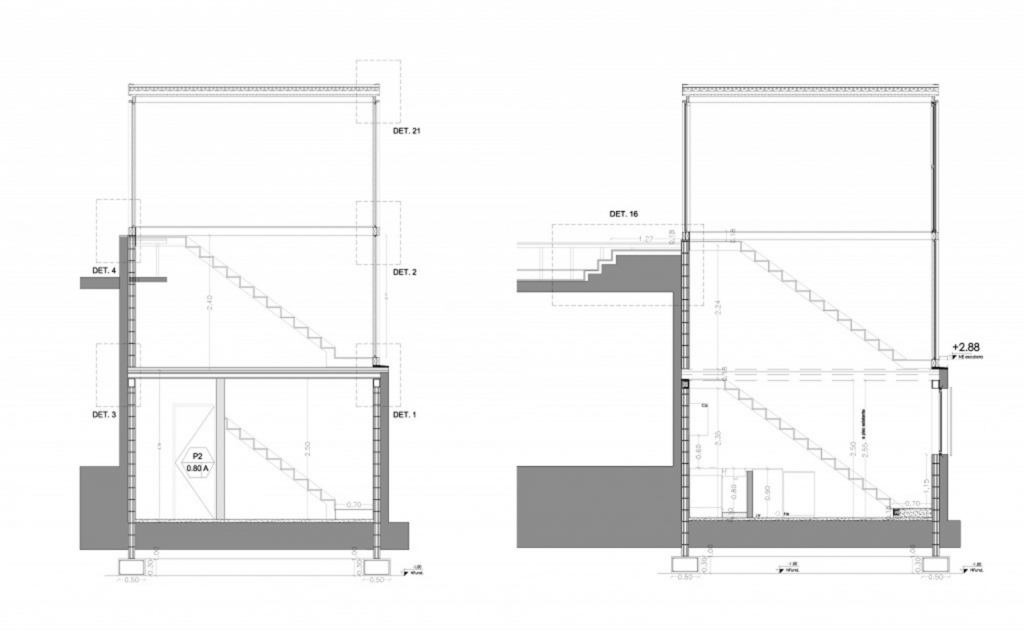

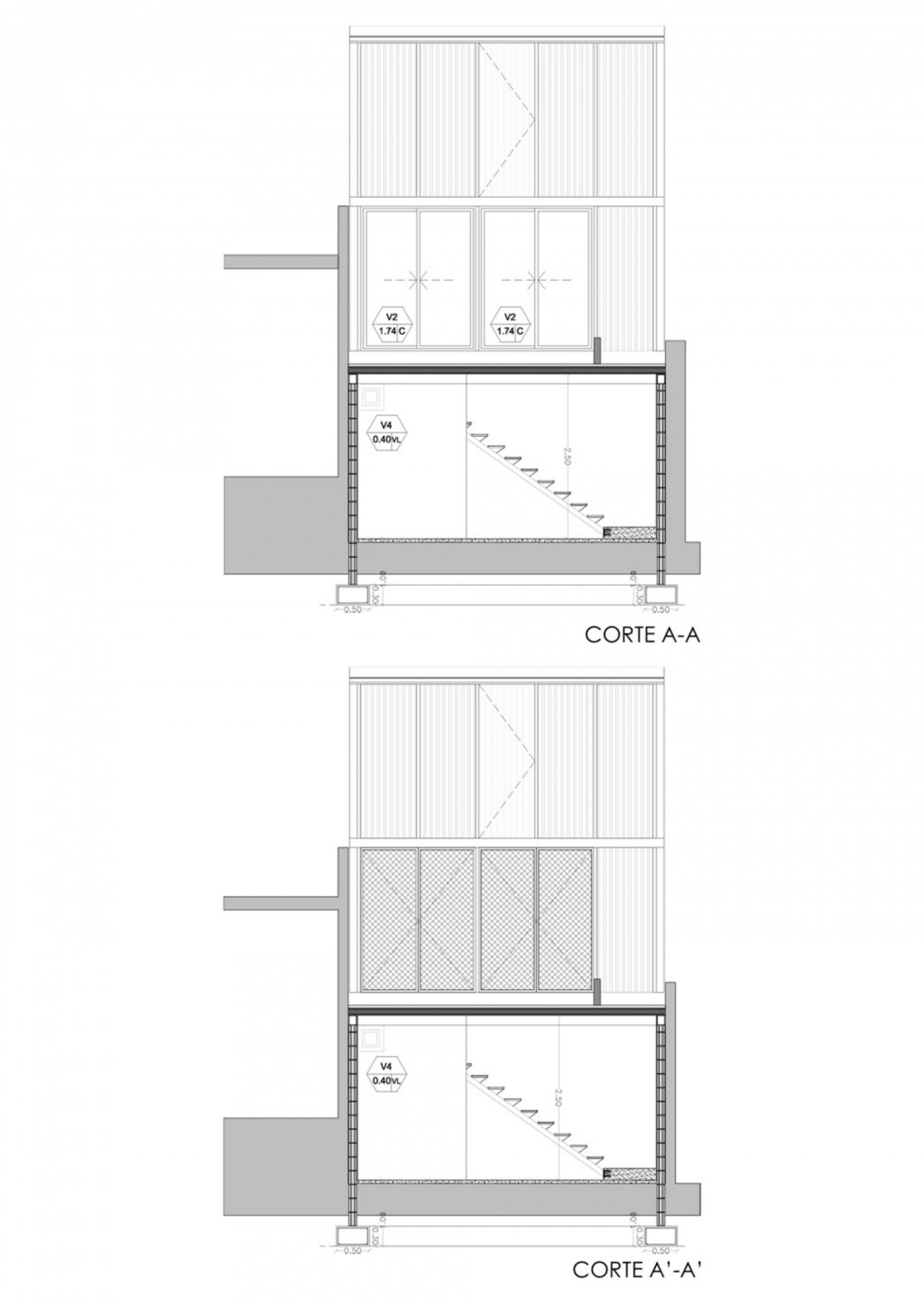

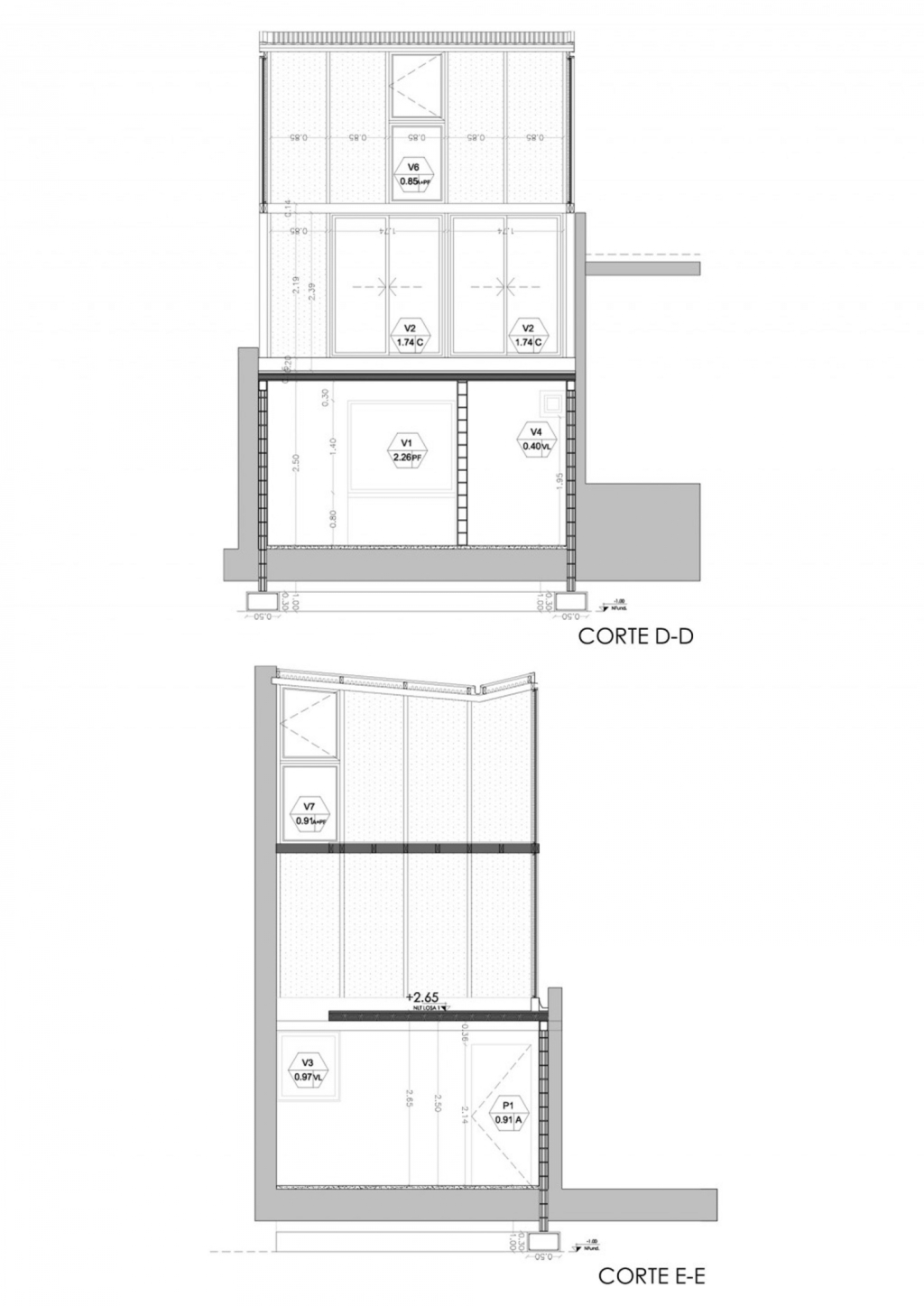

阿根廷Atelier Vilela住宅剖面图


阿根廷Atelier Vilela住宅正面图

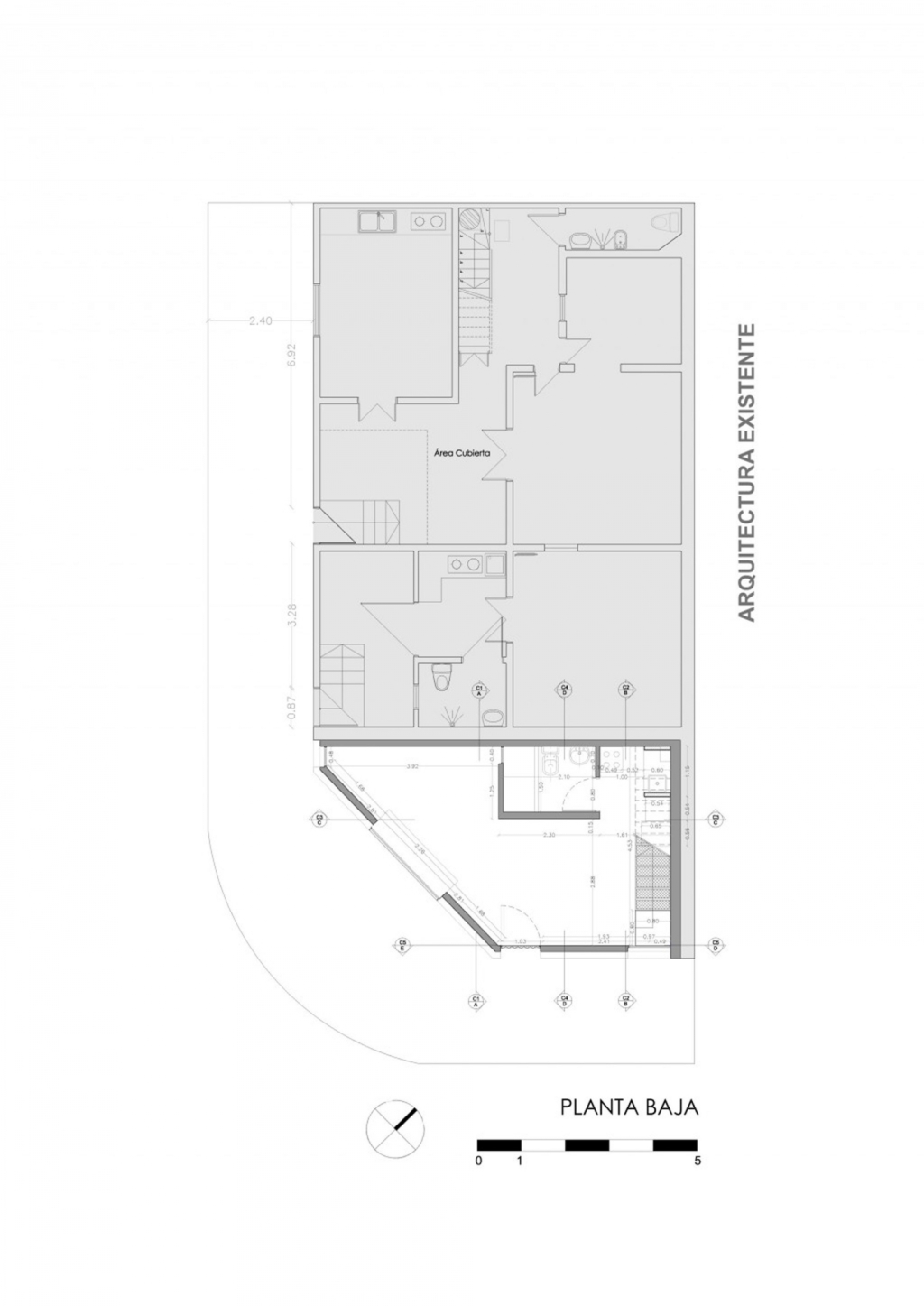

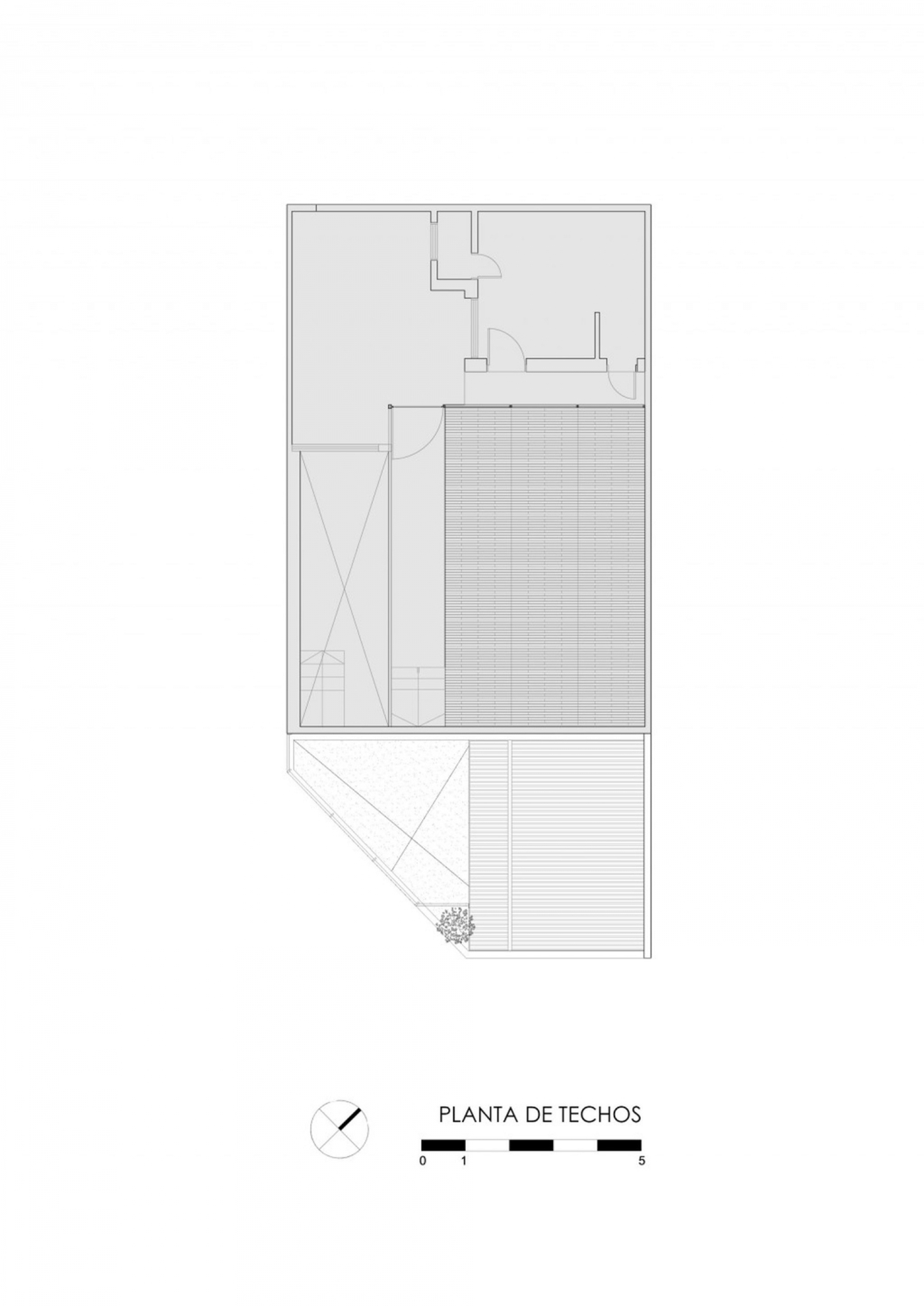

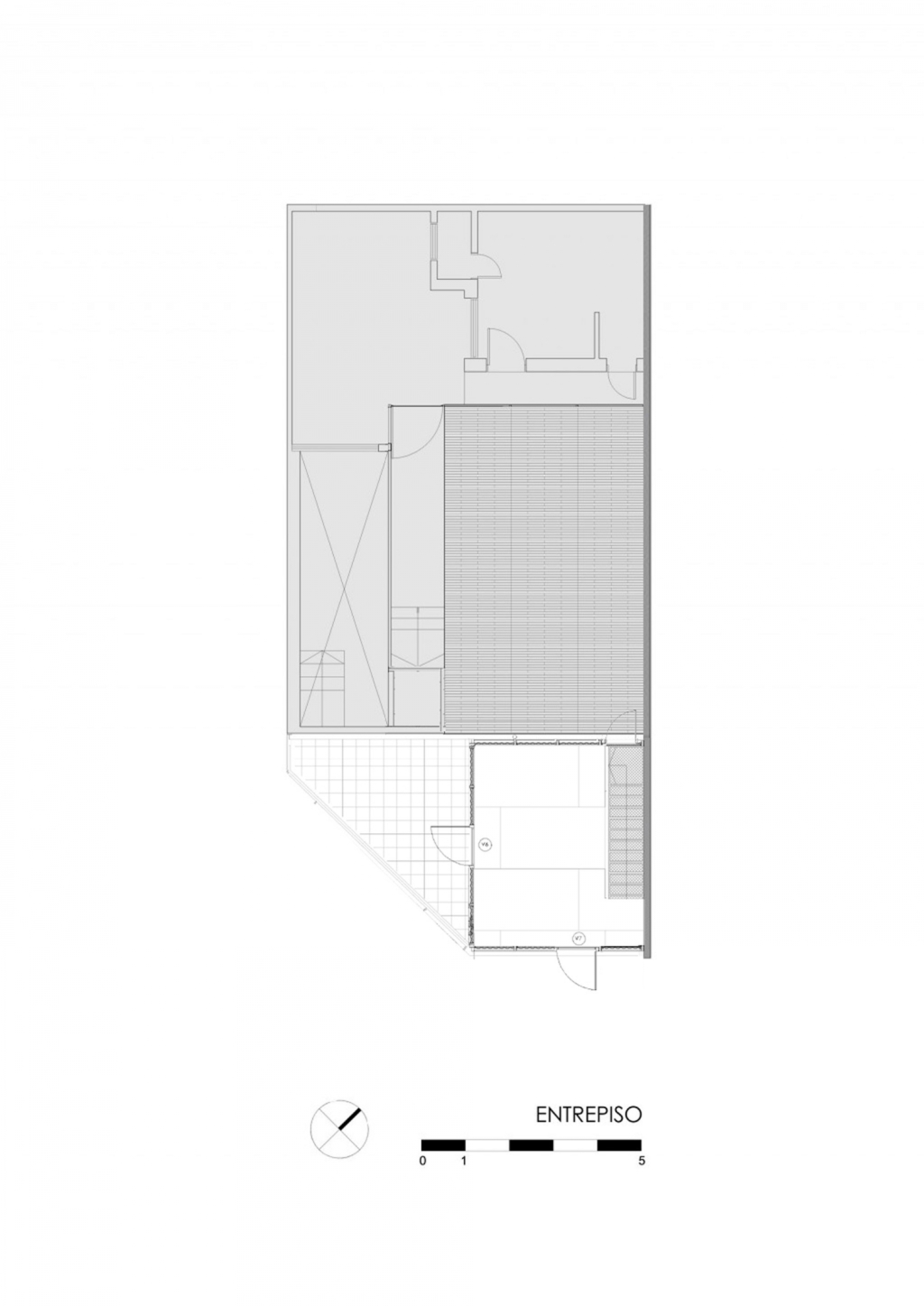

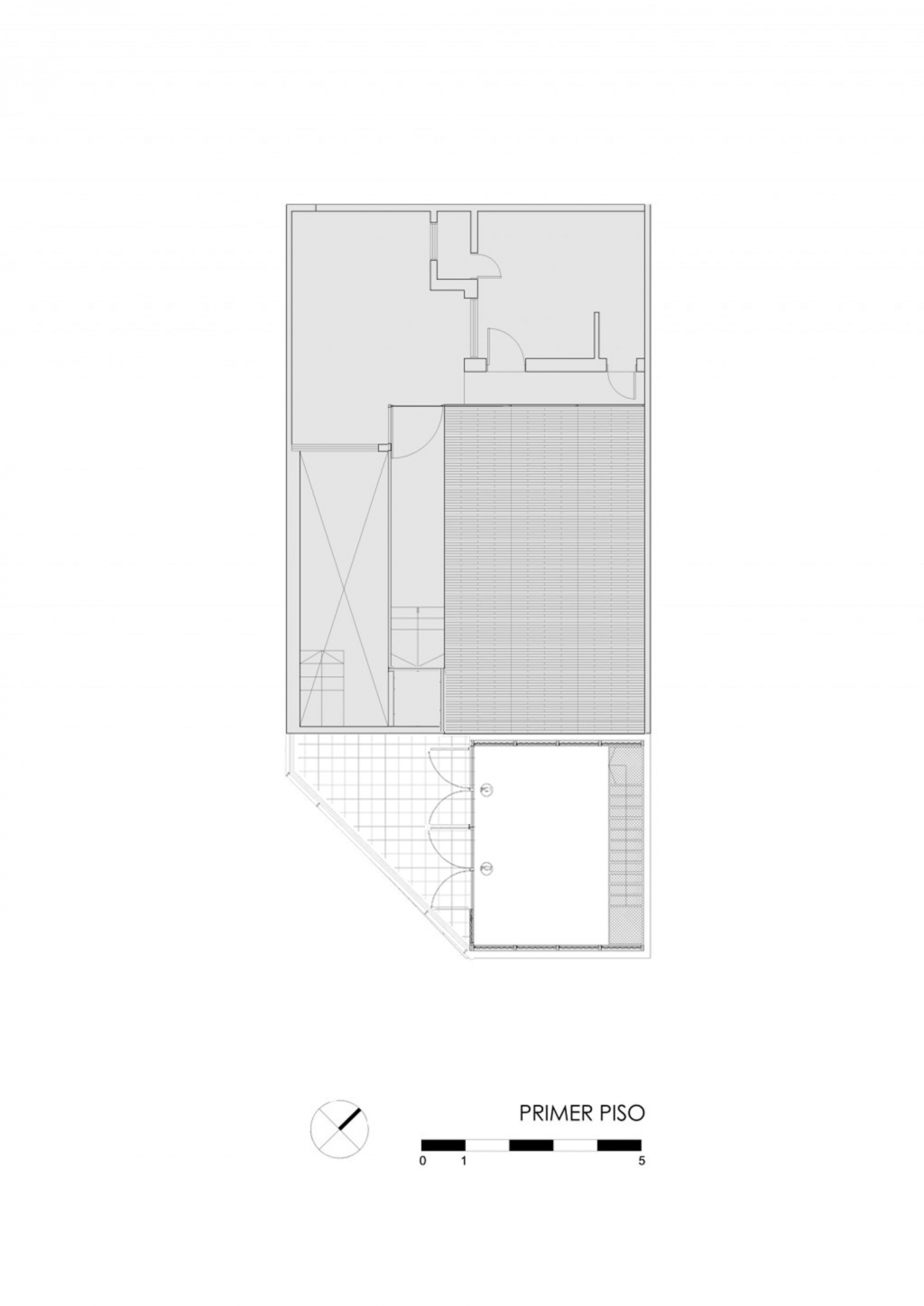

阿根廷Atelier Vilela住宅平面图


阿根廷Atelier Vilela住宅平面图


阿根廷Atelier Vilela住宅平面图


阿根廷Atelier Vilela住宅平面图


阿根廷Atelier Vilela住宅剖面图


阿根廷Atelier Vilela住宅剖面图


阿根廷Atelier Vilela住宅详图


阿根廷Atelier Vilela住宅平面图
