House of Agostos

设计方:Pedro Domingos Arquitectos

位置:葡萄牙 法鲁

竣工:2011年

分类:居住建筑

内容:实景照片

图片:35张

摄影师:FG+SG

建筑面积:200平方米(住宅)+900平方米(景观)  这是由Pedro Domingos Arquitectos事务所设计的奥格斯托住宅项目,这个项目的设计策略是清除场地中心空间,既有的住宅包含三个相互连接的空间,它们容纳现在的房间和浴室,北翼建在地下,同时以两个大小相当的门厅定义场地,一个是厨房的北侧延伸,一个是起居室的西侧延伸。住宅的主要入口位于既有住宅和新翼之间,这是一个过渡空间,也是两翼之间的分隔。  The strategy consists on clarifying the limits of the central space of property – a void enclosed by the ruin and the “hedges” and the upland trees. The clearing delimited of this emptiness is made with the recuperation of the existing ruin defining the western boundary, with the construction of a new wing set back from the existing group, establishing the northern boundary and the setting of a water tank at the south end of the plot. The pre-existing house consisting of three interconnected cells contains the rooms and their bathrooms. The north wing is built into the ground and articulates the topography with two built patios of similar proportions, one is a northern extension of the kitchen and the other a western extension of the living room.

奥格斯托住宅-2

奥格斯托住宅-3

奥格斯托住宅-4

奥格斯托住宅-5

奥格斯托住宅-6

奥格斯托住宅-7

奥格斯托住宅-8

奥格斯托住宅-9

奥格斯托住宅-10

奥格斯托住宅-11

奥格斯托住宅-12

奥格斯托住宅-13

奥格斯托住宅-14

奥格斯托住宅-15

奥格斯托住宅-16

奥格斯托住宅-17

奥格斯托住宅-18

奥格斯托住宅-19

奥格斯托住宅-20

奥格斯托住宅-21

奥格斯托住宅-22

奥格斯托住宅-23

奥格斯托住宅-24

奥格斯托住宅-25

奥格斯托住宅-26

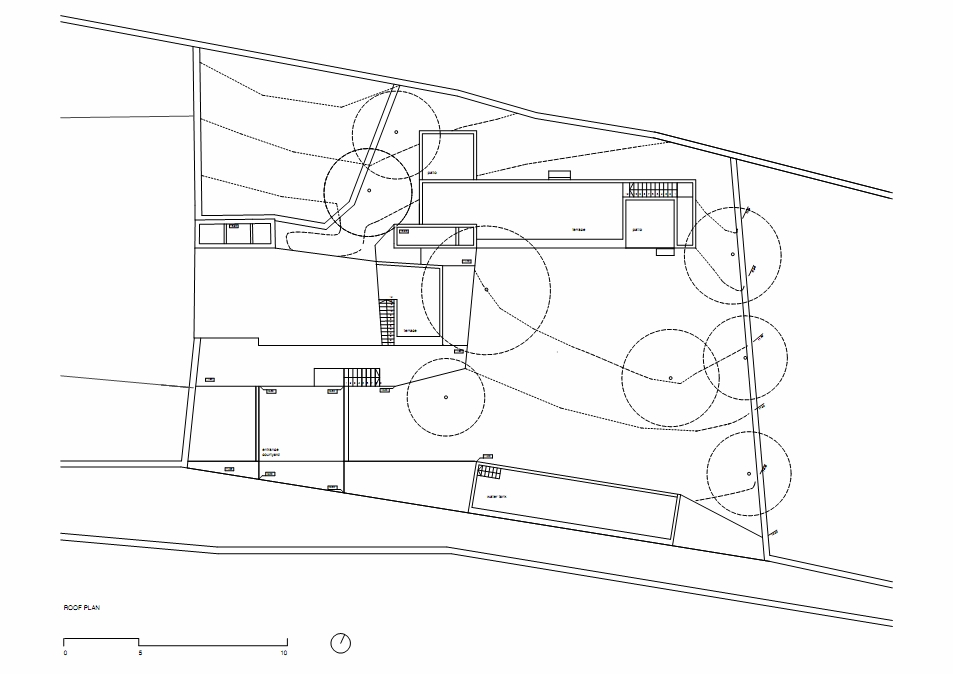

屋顶平面图 roof plan

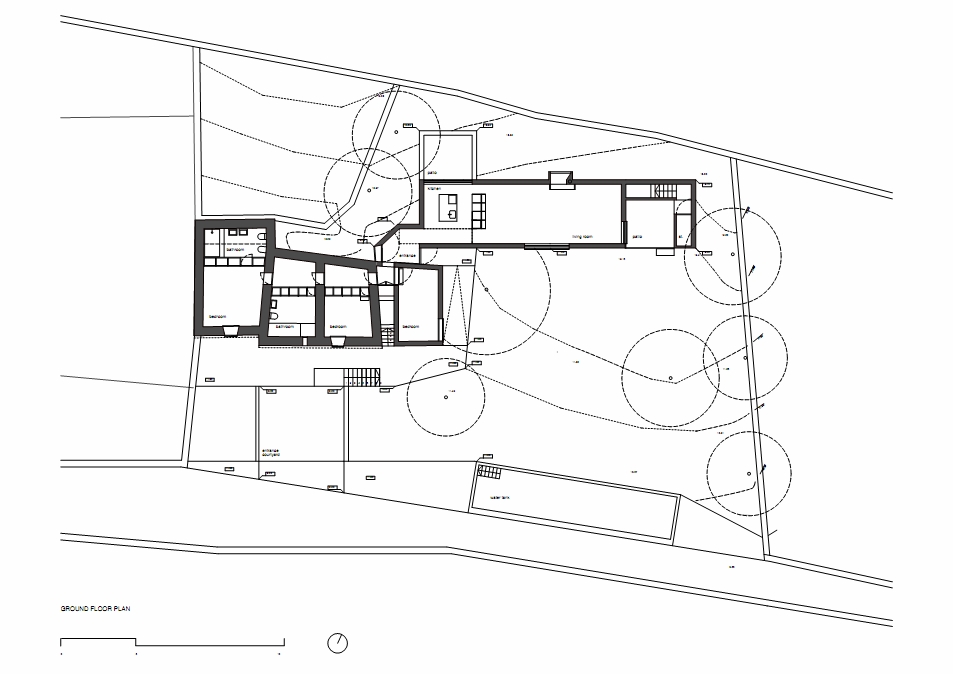

首层平面图 ground floor plan

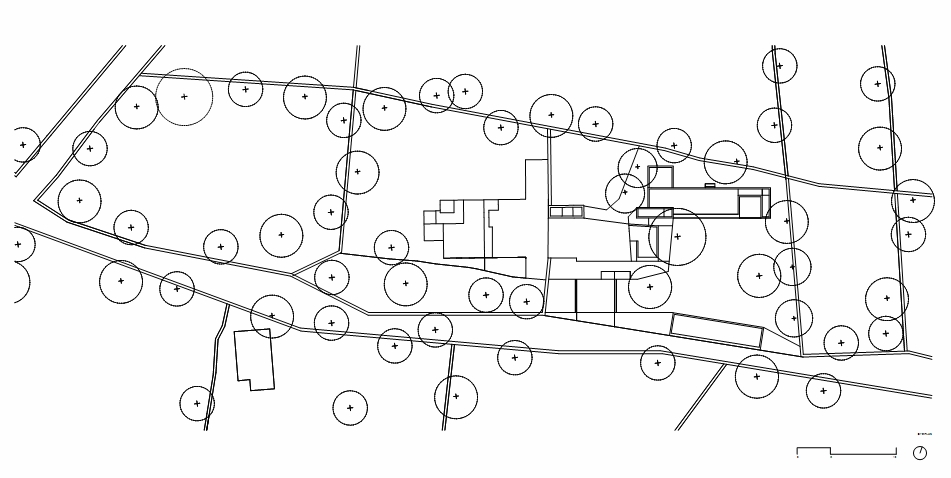

场地平面图 site plan

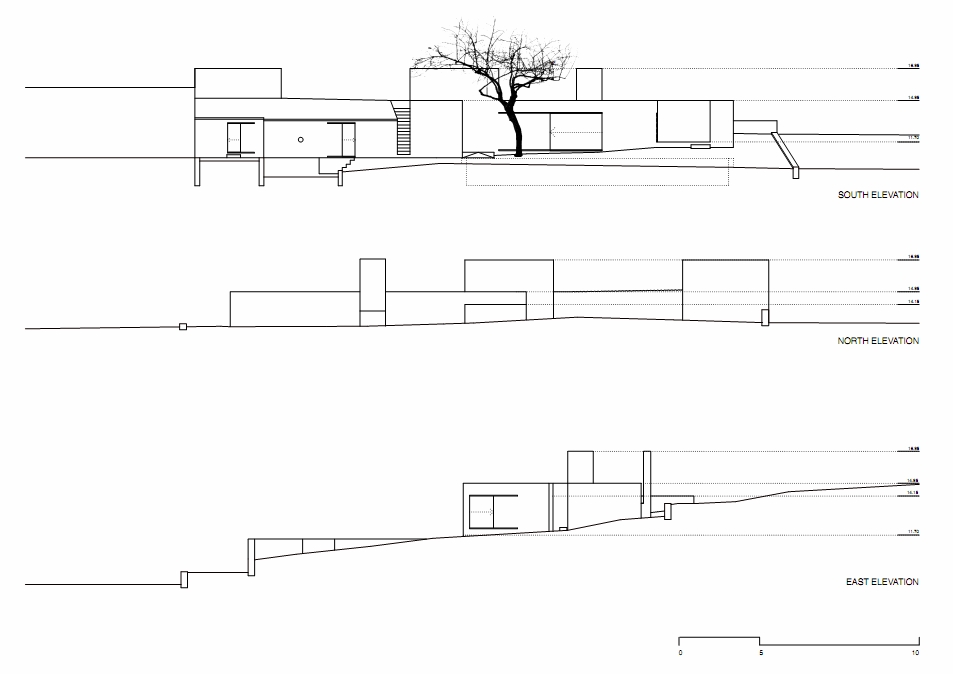

立面图 elevations

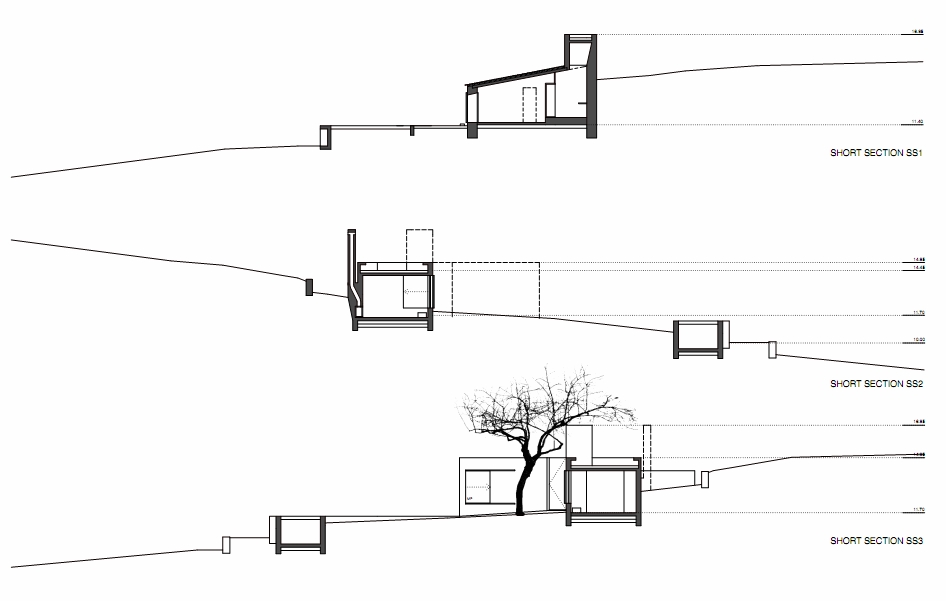

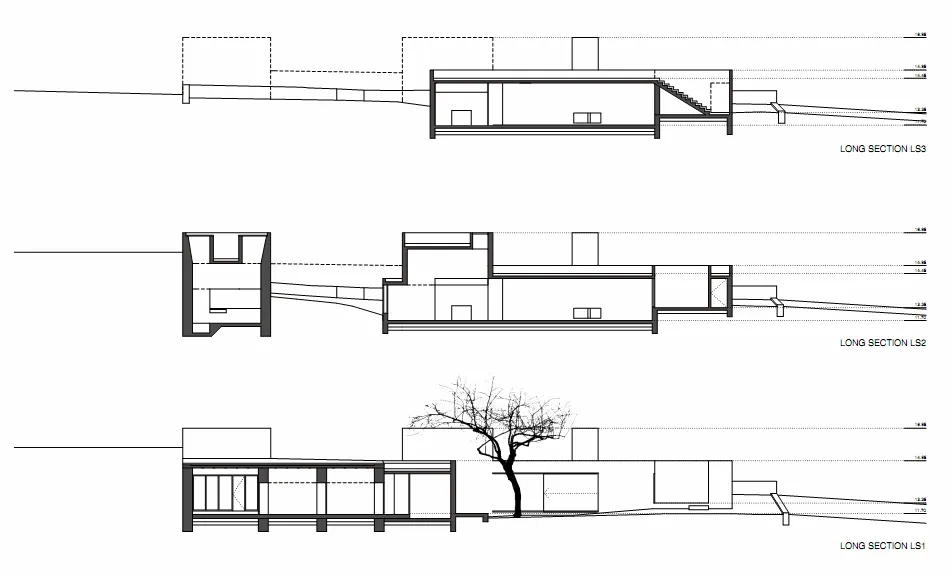

剖面图 01 sections 01

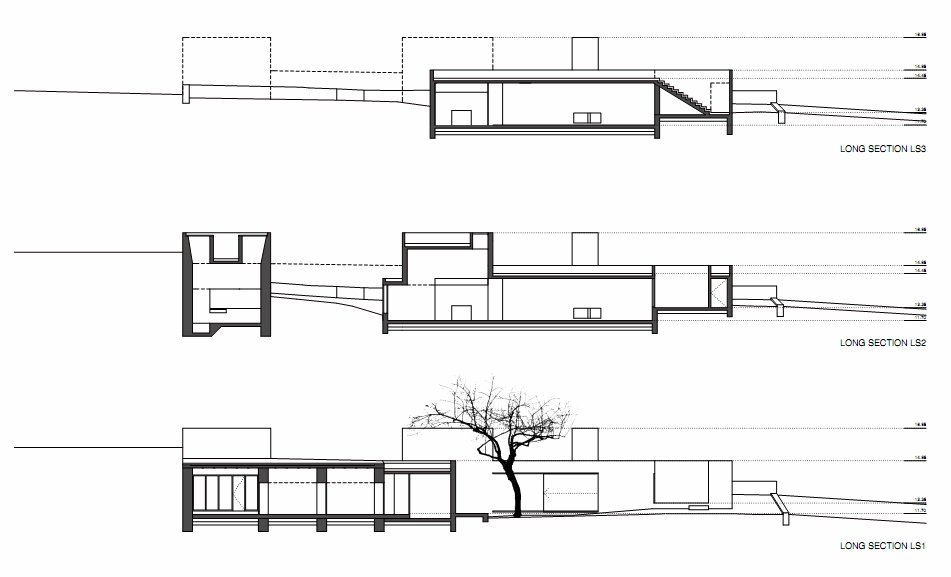

剖面图 02 sections 02

剖面图 03 sections 03

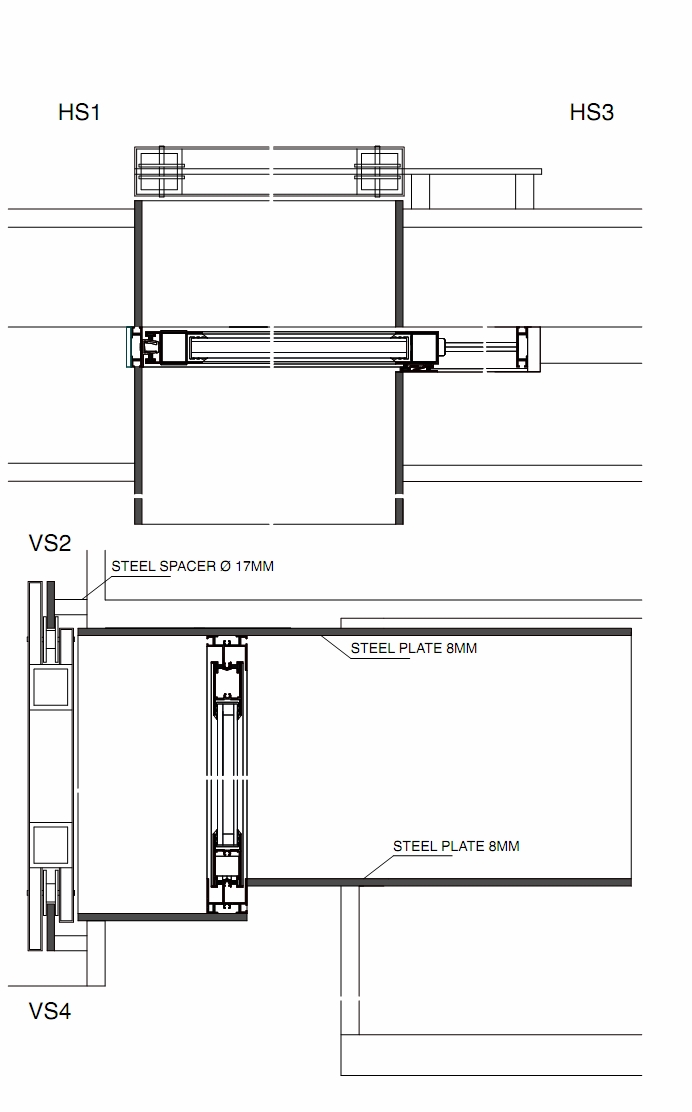

起居房间窗户 living room window

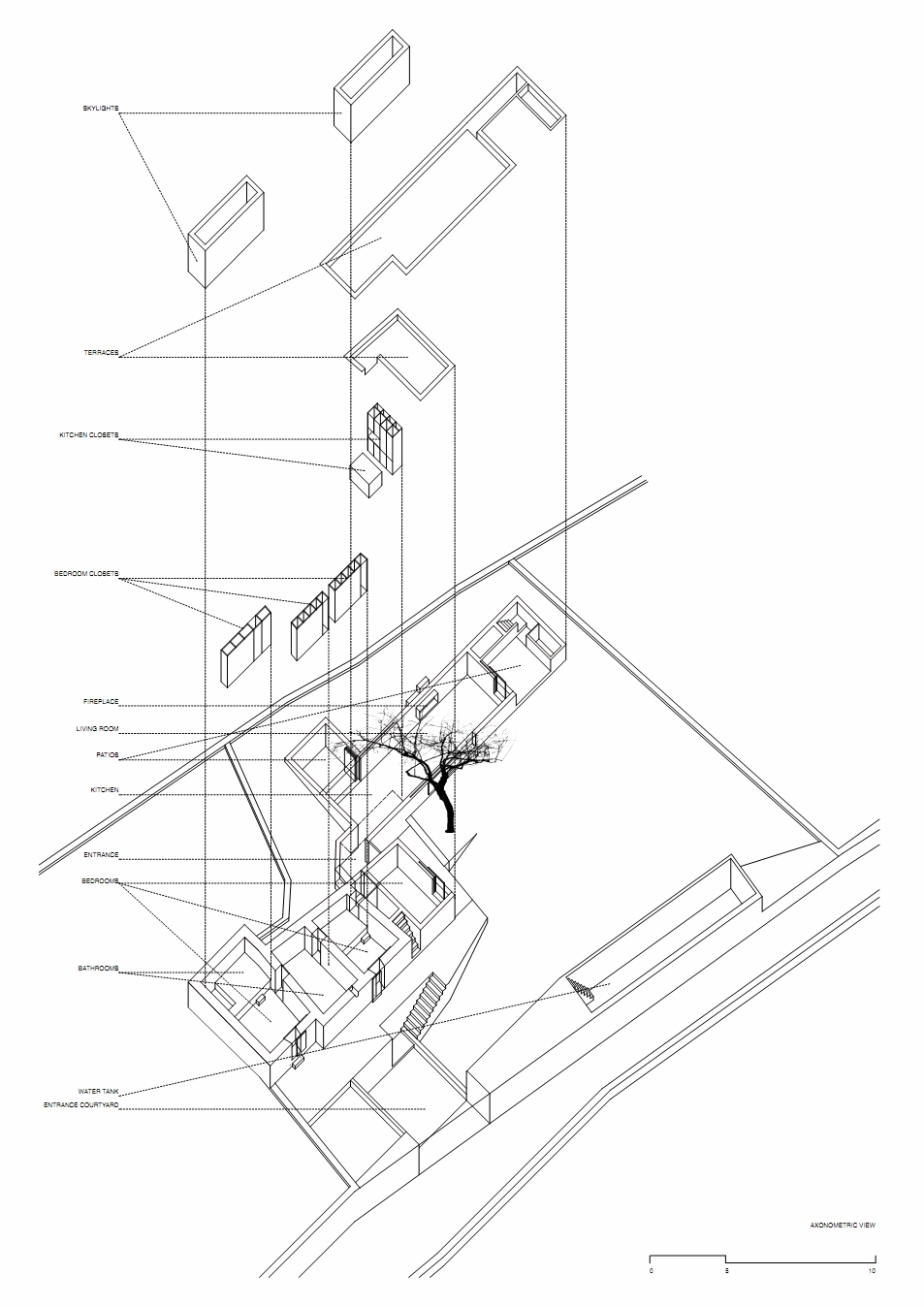

轴测图 axonometric

屋顶平面图 roof plan

首层平面图 ground floor plan

场地平面图 site plan

立面图 elevations

剖面图 01 sections 01

剖面图 02 sections 02

剖面图 03 sections 03

起居房间窗户 living room window

轴测图 axonometric
