阿根廷Urquiza大厦

住宅 · 发表于 2026-6-8 14:41:07

英文名称：Argentina Urquiza building

工程内容：实景照片

位置：阿根廷

设计公司：Federico Marinaro

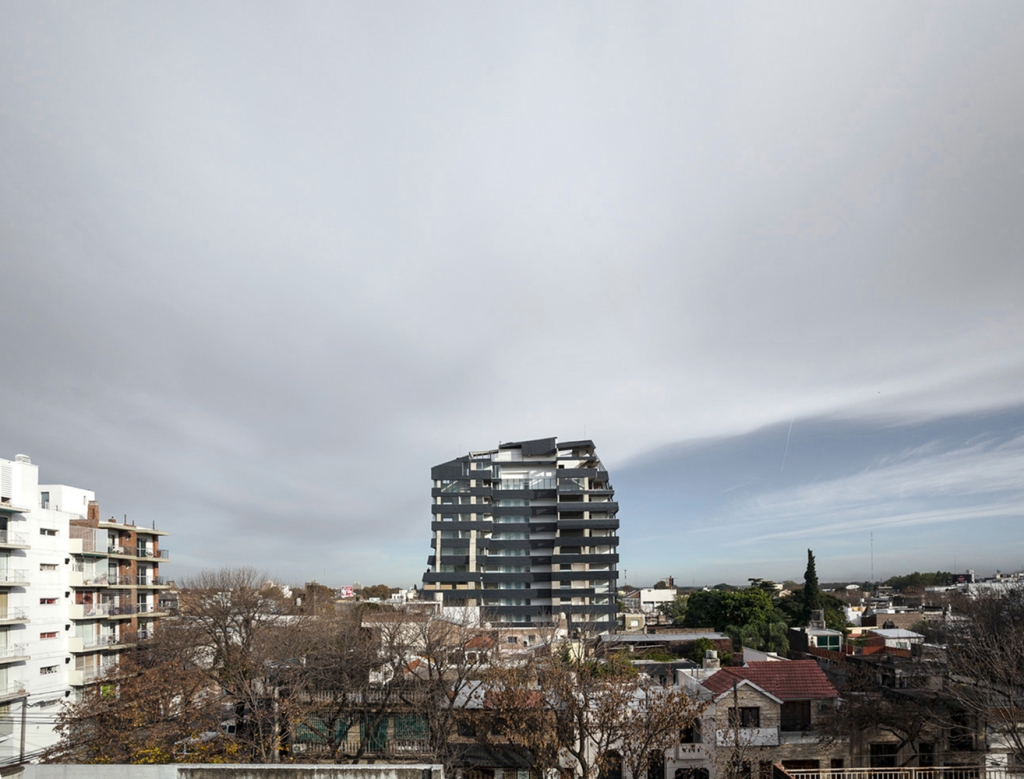

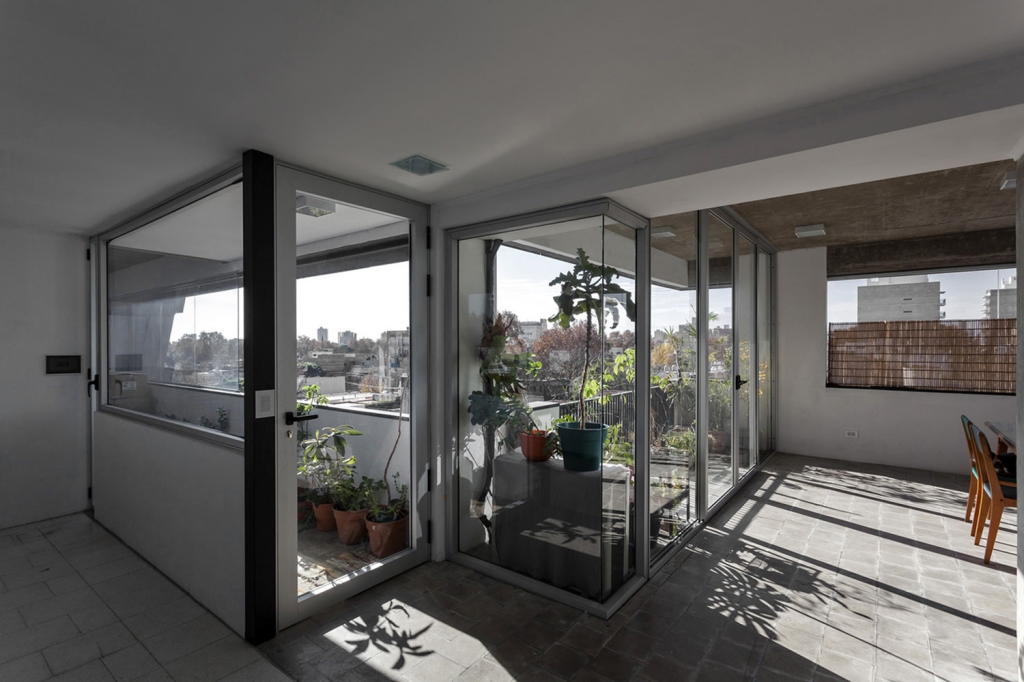

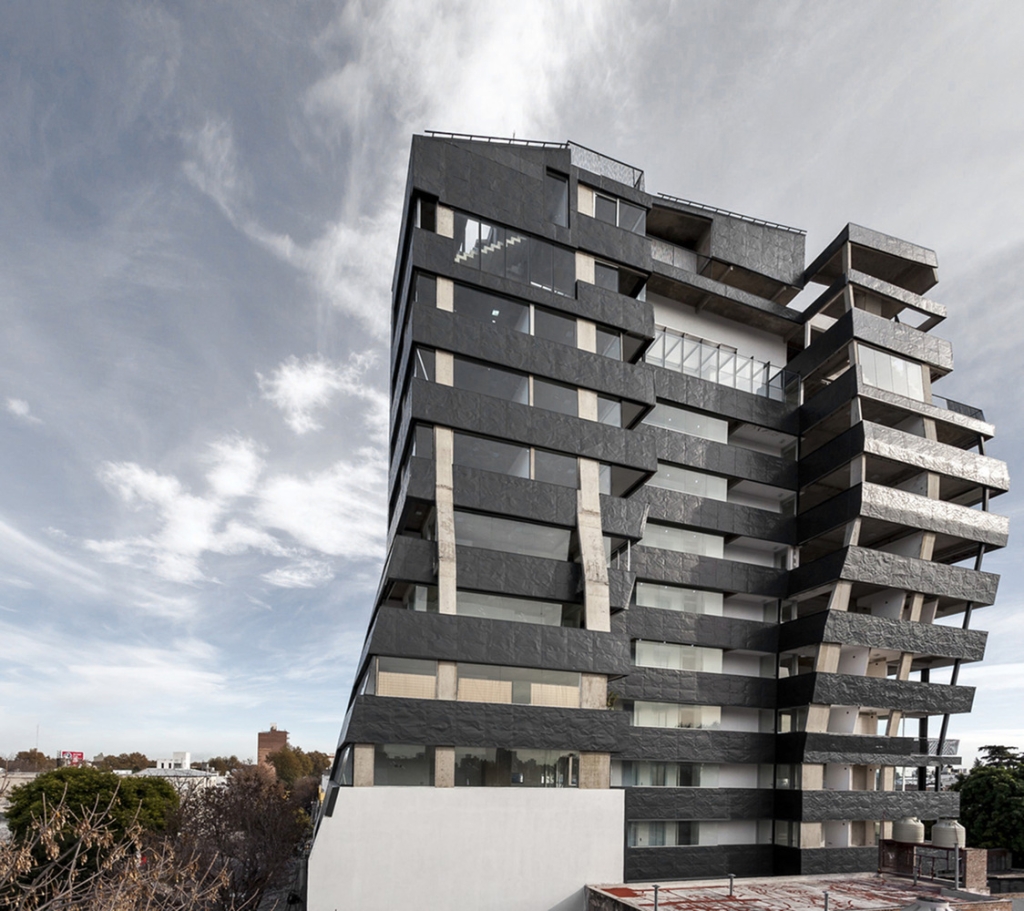

这是由Federico Marinaro设计的Urquiza大厦，位于阿根廷罗萨里奥市Echesortu小区南部一个8.66米的用地里。该项目靠近公交站，处于城市的几何中心位置。建筑被设想为两座“塔楼”，并通过一条开放式高空走廊连接，消除闭式承载结构的想法。因此进入住宅的序列是通过开放空间转入竖向虚空间与北向、东向的内部庭院。这有助形成独立而独特的各个住宅单元，而分布绝不重复。不同分布方式的住宅单元都保证了光线和垂直通风。

译者：筑龙网艾比

From the architect. At the end of 2009 comes the order to realize a multi-storey building in a lot with 8.66m width in the southern of Echesortu neighborhood in Rosario. It is located within the urban fabric of the city near the bus station and in the geographic center of the city. The assignment is done by a marketer of products derived from aluminum (profiles, lines of timber, steel-frames, sheets, etc). The premise of the commission were fully exploit the constructible area according to the Urban Code of Rosario and use aluminum products.

The initial intentions were:Reformulate the compact building between medians.Reformulate the building between understood as a single extrusion.How should it relate to the block shape? Mainly its solid, closed and compact solution.Reformulate the building between the mass built for vertically also leave your empty log vertically on the solid mass of the block.How they should dwell, to live and interact with the people inside and outside of it?

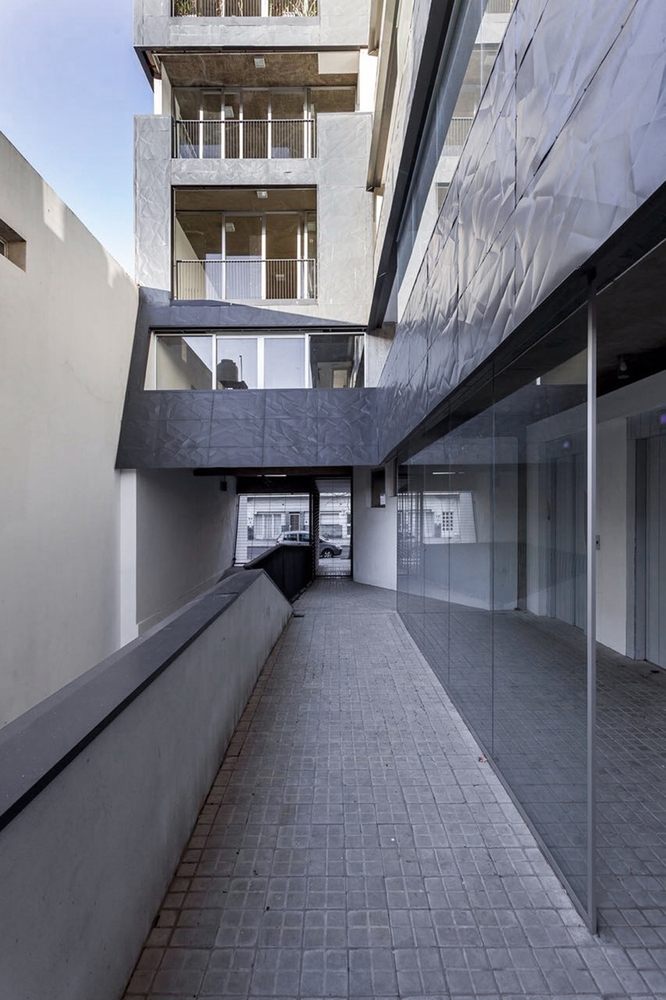

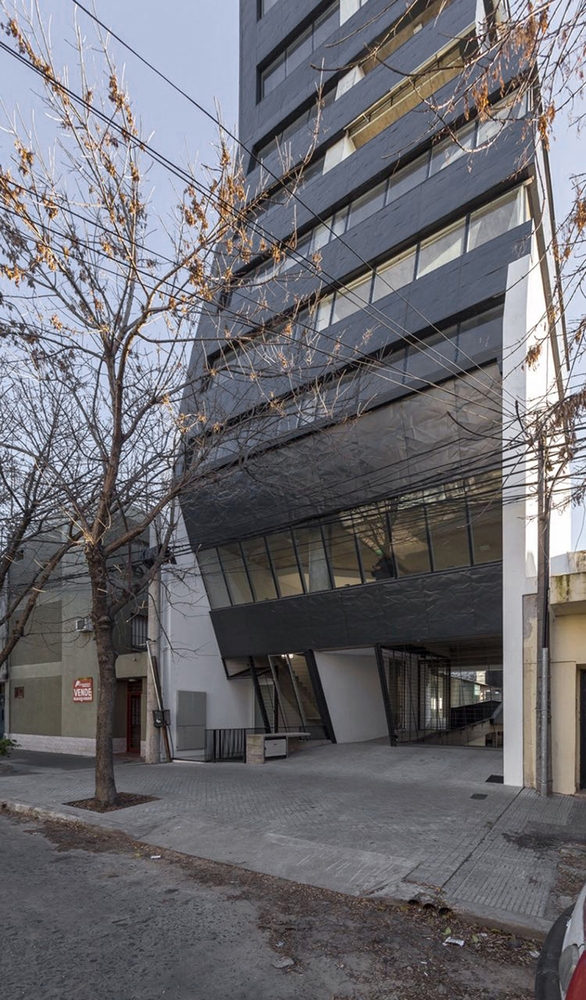

Orienting the building to the north and east accompany the sun path.Generate an architectural piece where the void generated tension same as does the constructed mass.Think each department as a house in height. Inquire about the experience that this means in concrete inhabit.Explore the use of aluminum, its scope and possibilities of both industrial and artisanal use.Link the building with the public space of the sidewalk and the street, while maintaining visual continuity and material.

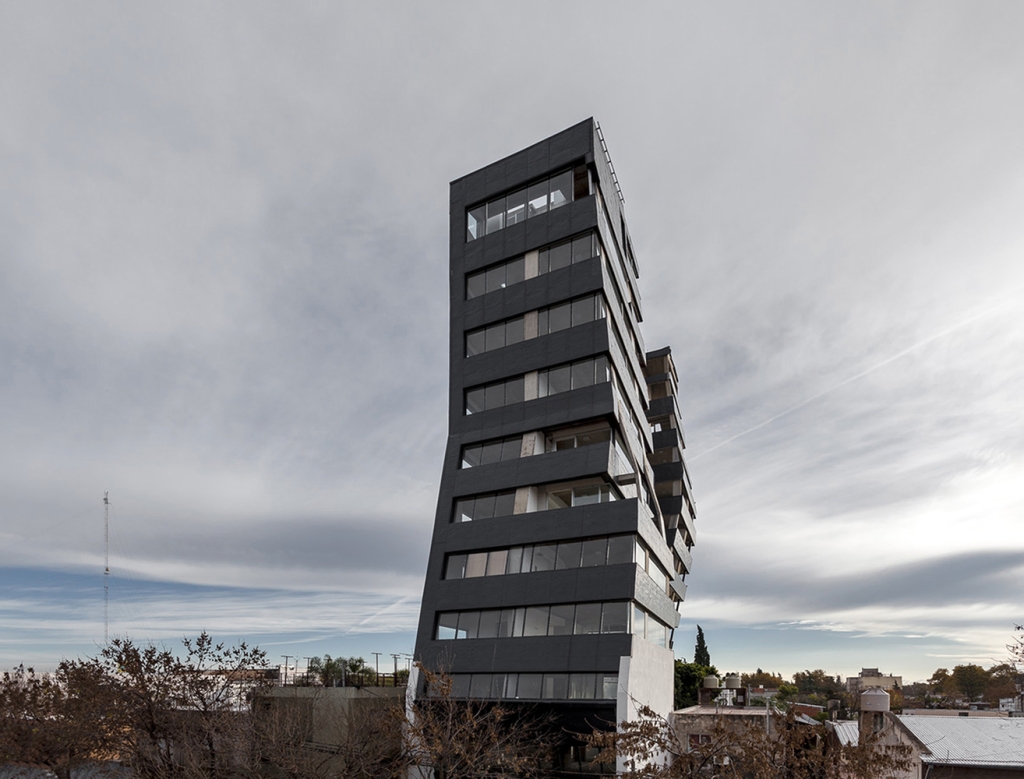

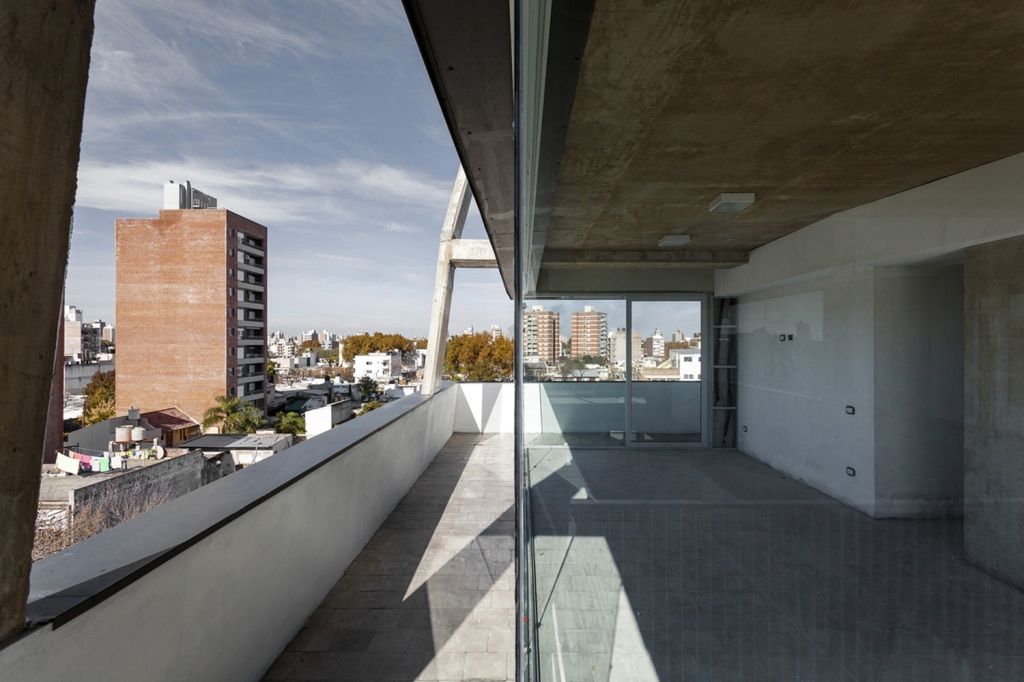

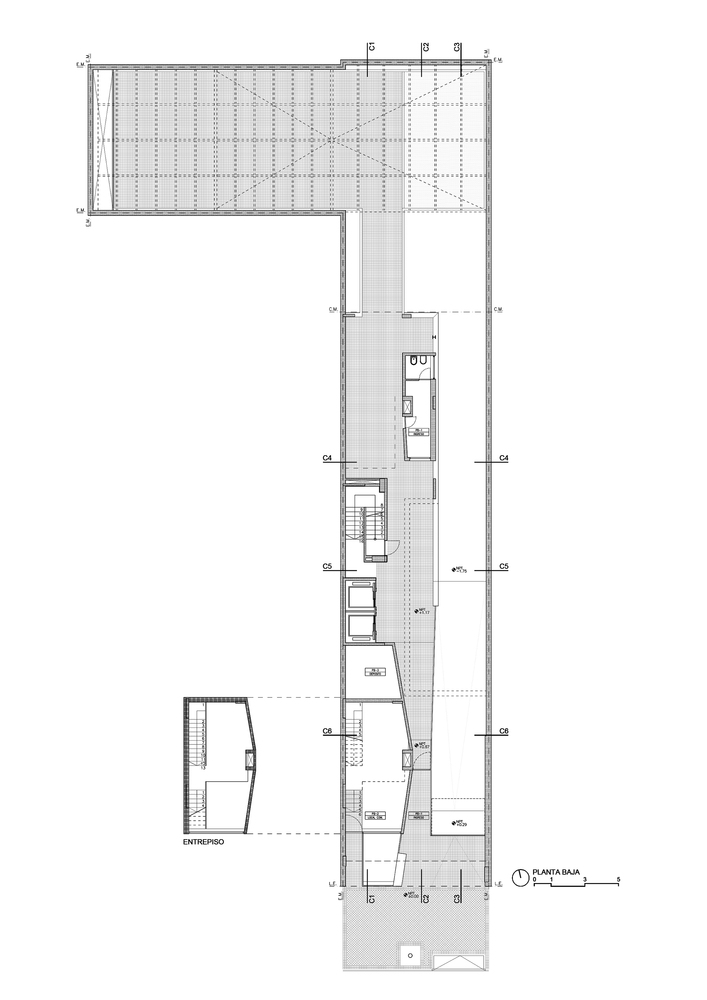

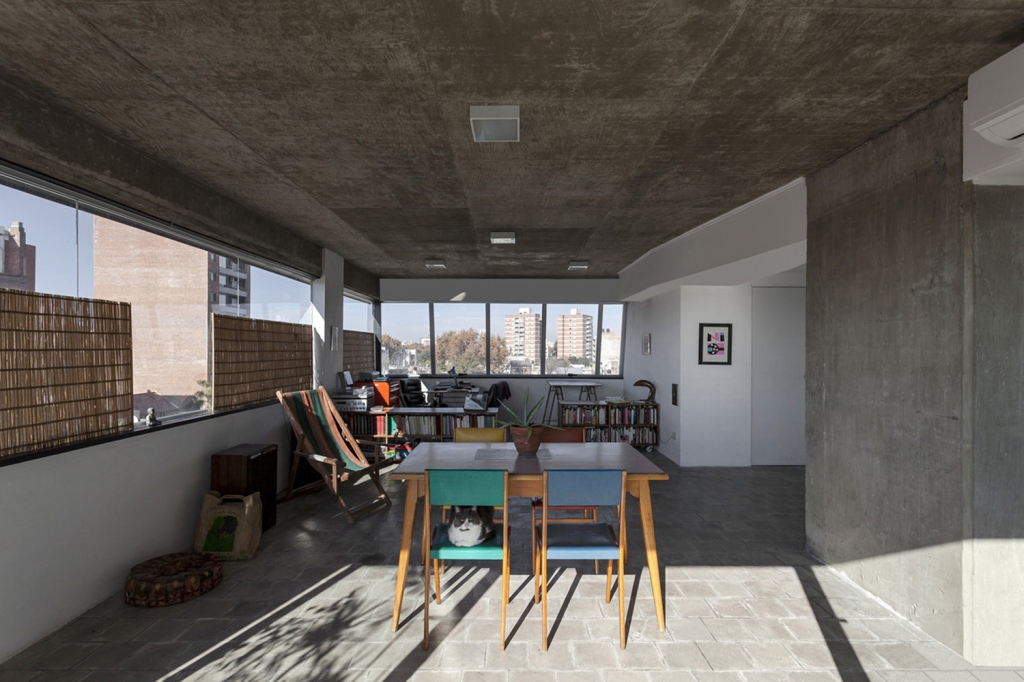

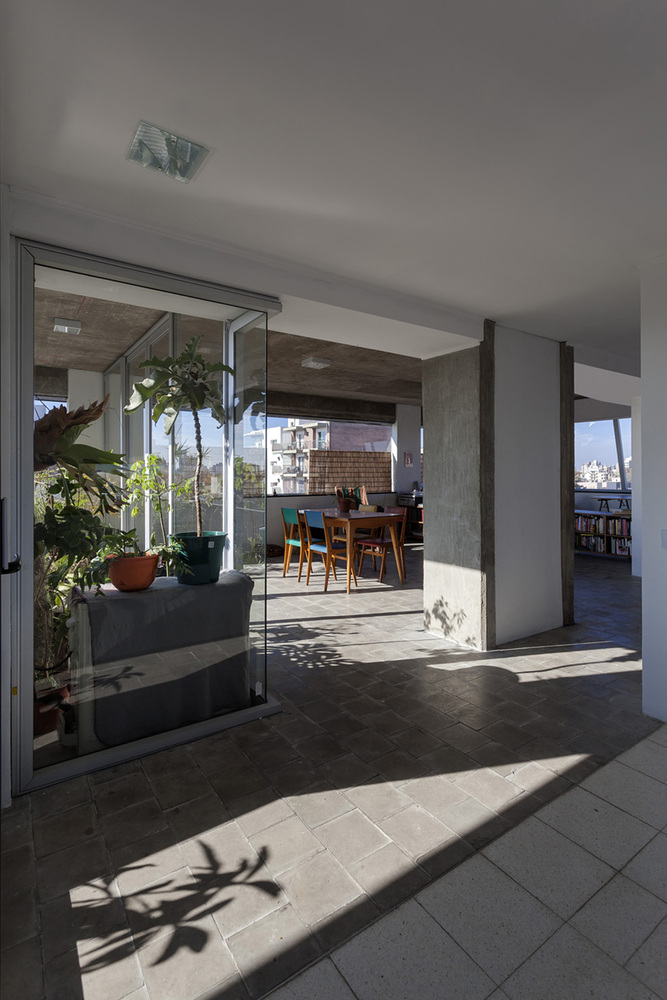

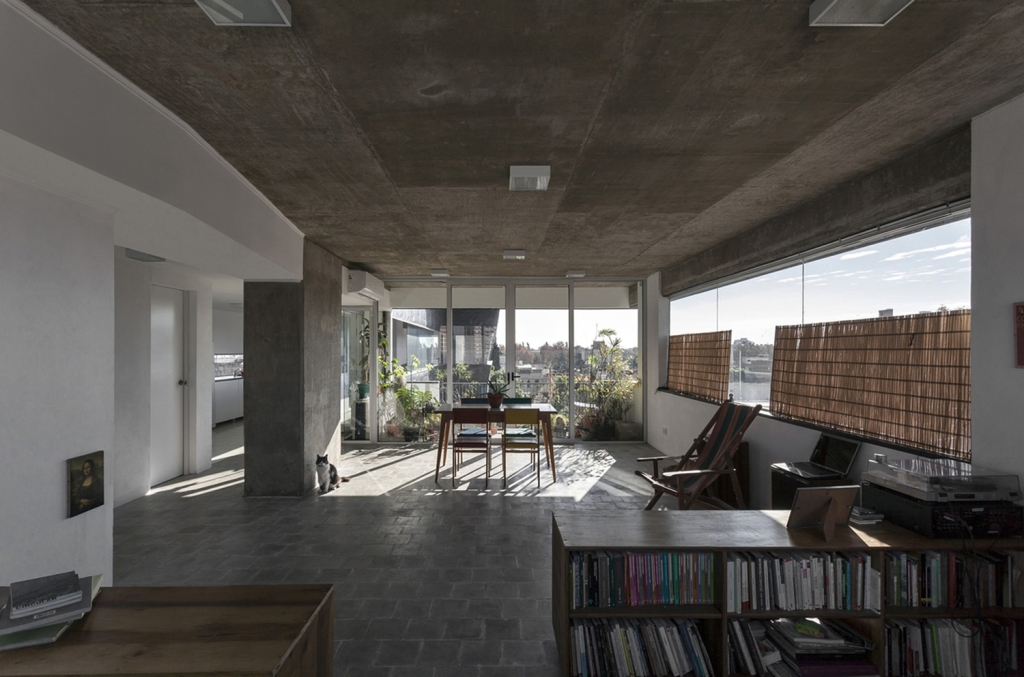

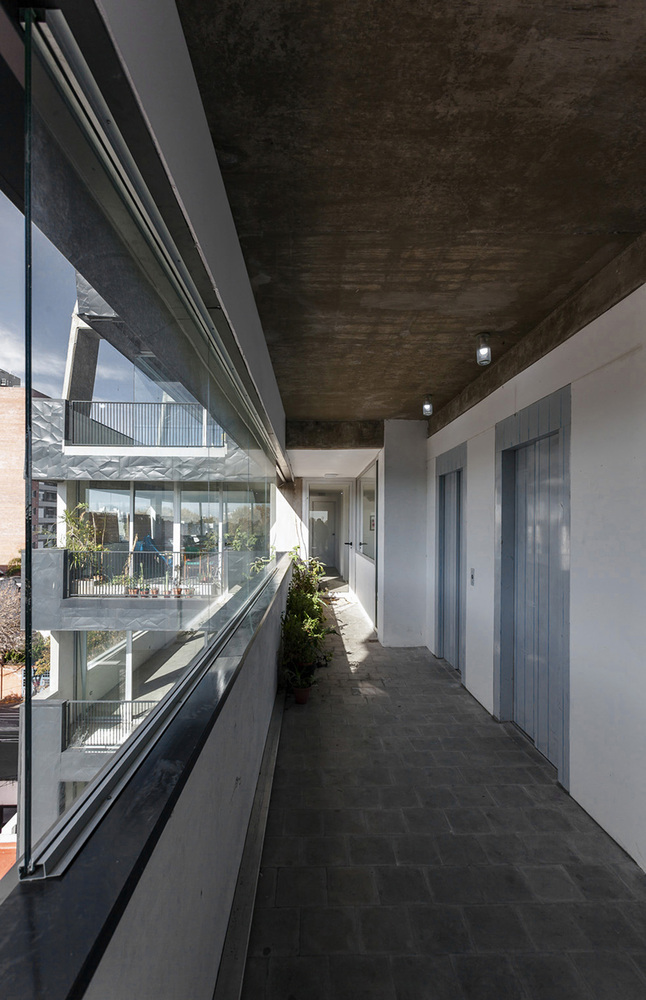

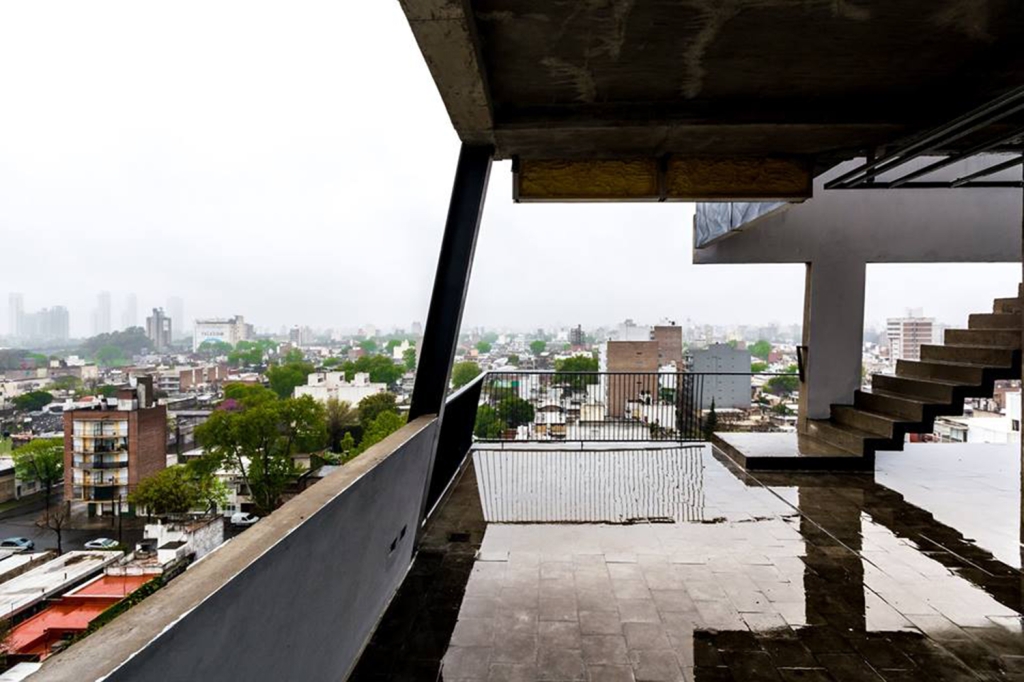

the problem of only using one of the medians and work on the dividing north and east in order to achieve a vertical gap in the batch accordance with the rules established 3m to ventilate and illuminate and 1.15m to illuminate local departments was raised. At the same time it seeks to obtain natural lighting and ventilation as much surface of the east-north main facade. The building is conceived as two "towers" together by a circulation / open mode high path corridor, eliminating the idea of closed bearing. Thus always enters the houses through an open space turned to the vertical void and the inner courtyard facing north and east. The intention was that each housing unit building is individual and unique, without repeating any distribution. Lighting and natural ventilation articulated with different spatial distributions are the conditions that make each unit has a unique character.

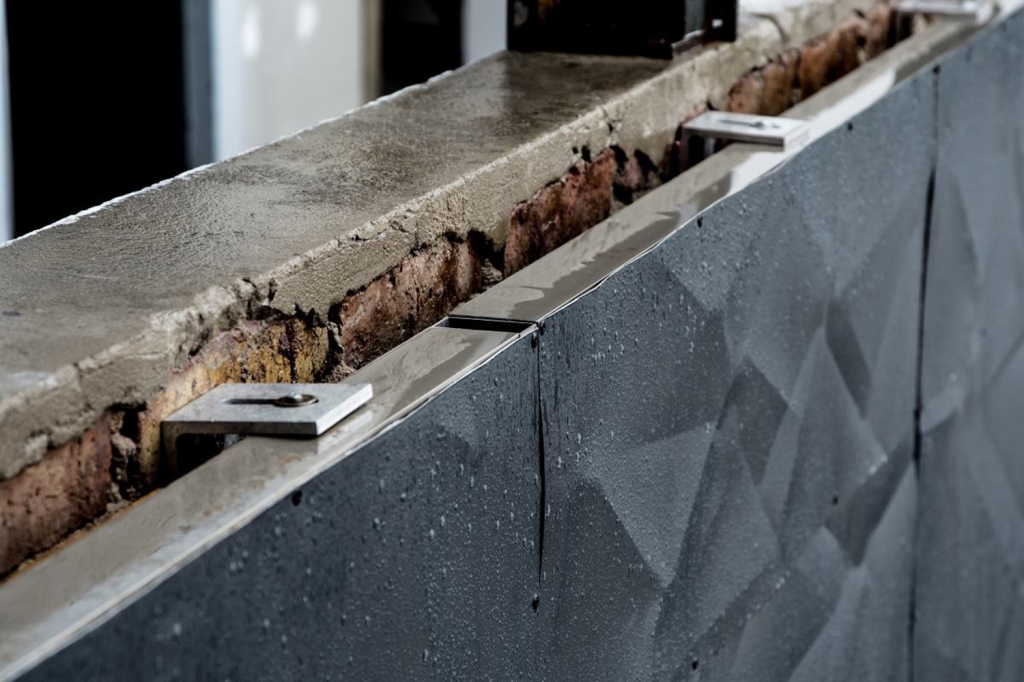

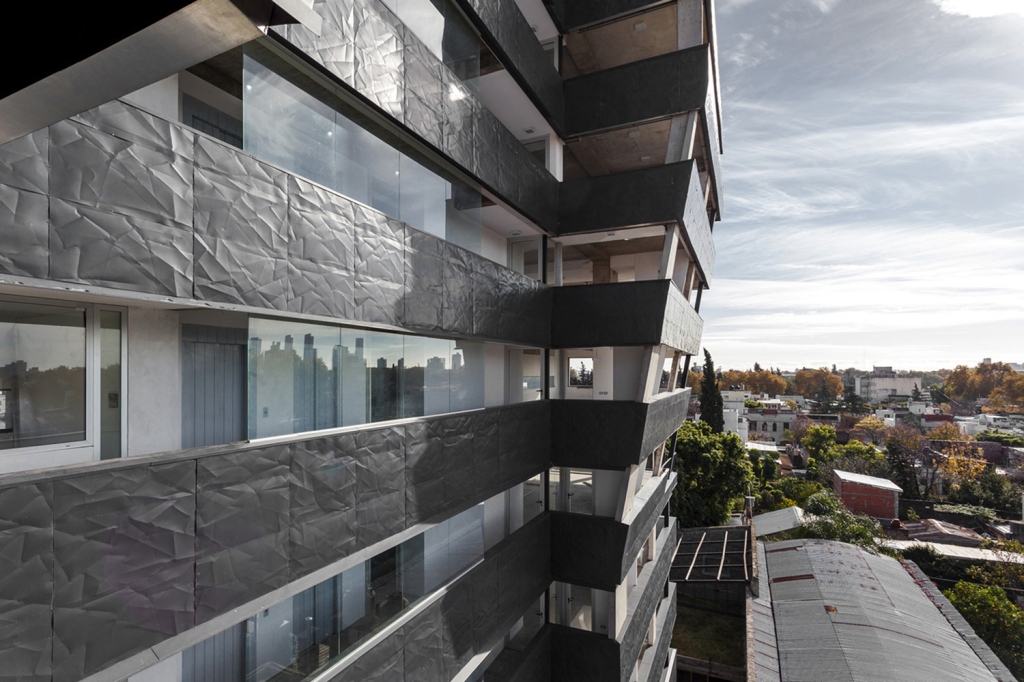

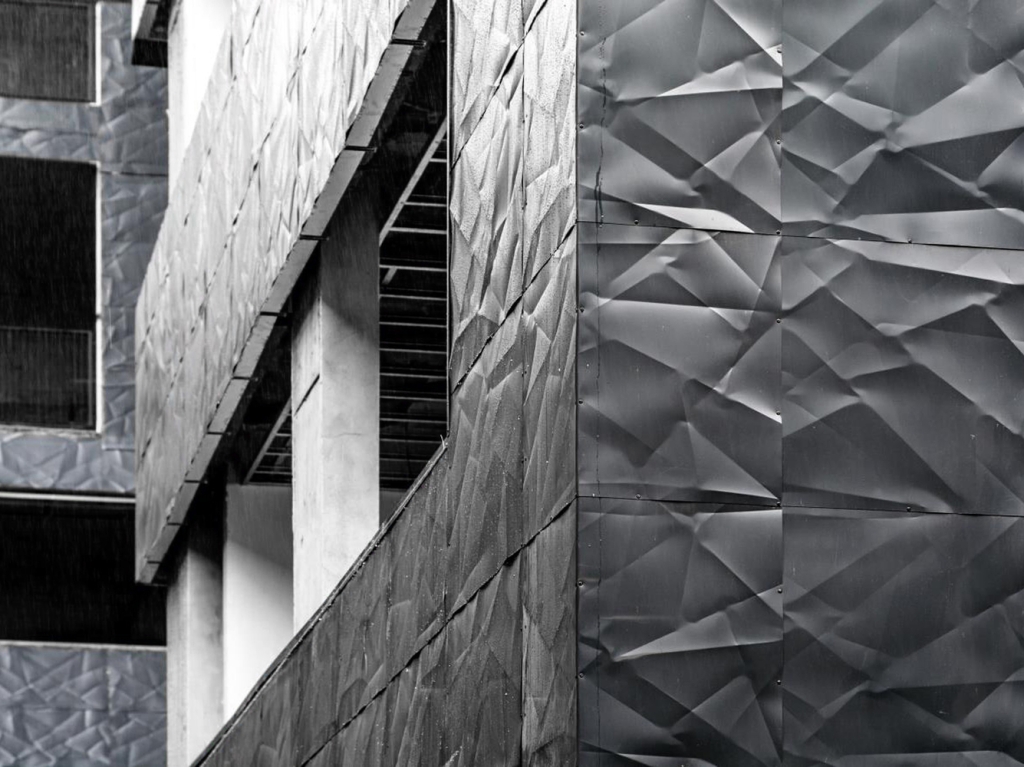

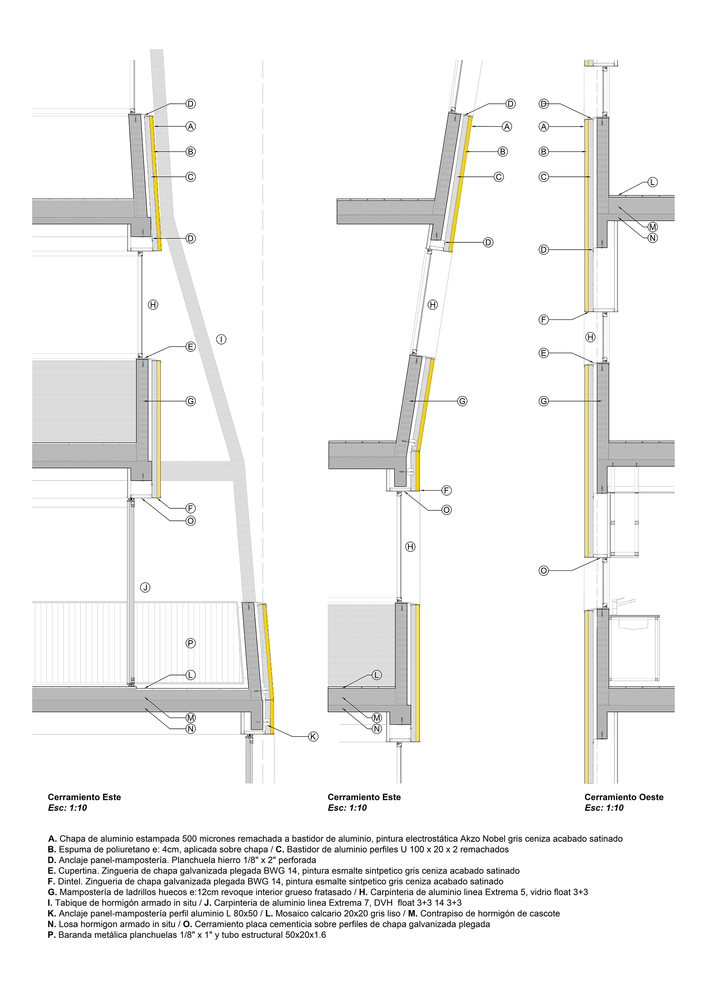

Skin. To form the outer closures, as the aluminum supplier customer, they had available approximately 10 coils of aluminum sheet of 500 micron were stored since the late 80 deposit. It was decided to make use of them, but their use was necessary to submit to a process of adaptation and panel manufacturing.The mounting system is similar to traditional steel frame, but has no less variant, the first anchor is made of slab to slab and this work is done anchoring slab window sill. Modulation for assembly and manufacture of framing and other modulation for carpentry and empty was used, allowing open bays desired size without relying on strict modulation frame. Thus the struts that traverse the woodwork and released modulation which determines the shapes of their openings and their visual deleted.
