日本三重县S画廊住宅

住宅 · 发表于 2026-6-8 17:57:36

Japanese oita S house gallery

设计方：Shinichi Ogawa & Associates

位置：日本三重县

分类：居住建筑

内容：实景照片

图片：26张

摄影师：Shinichi Ogawa & Associates

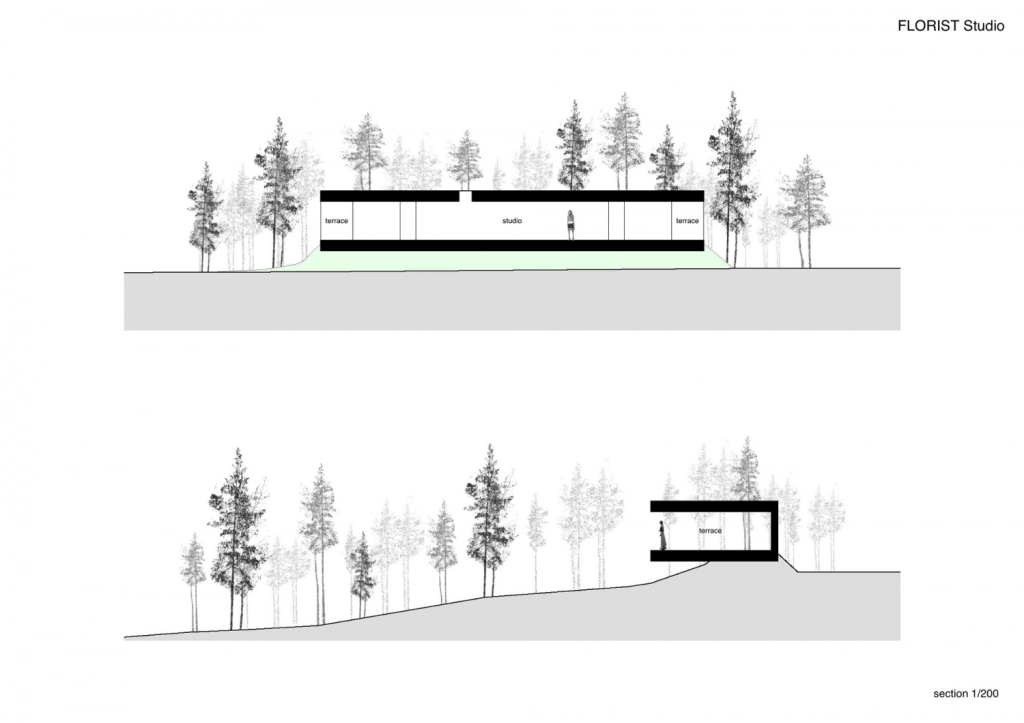

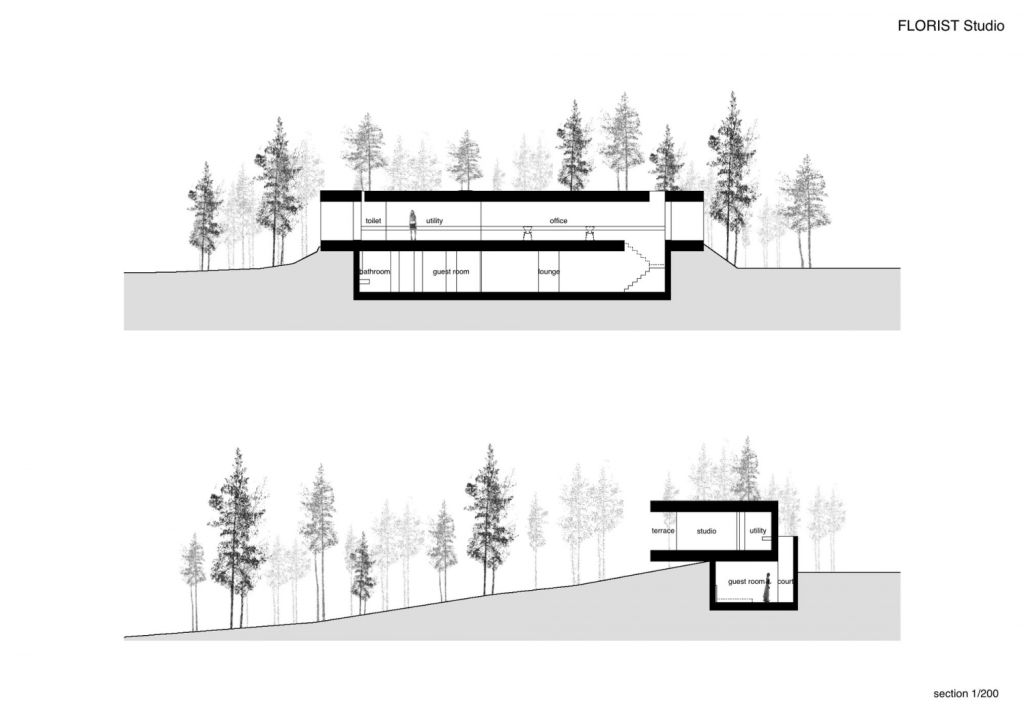

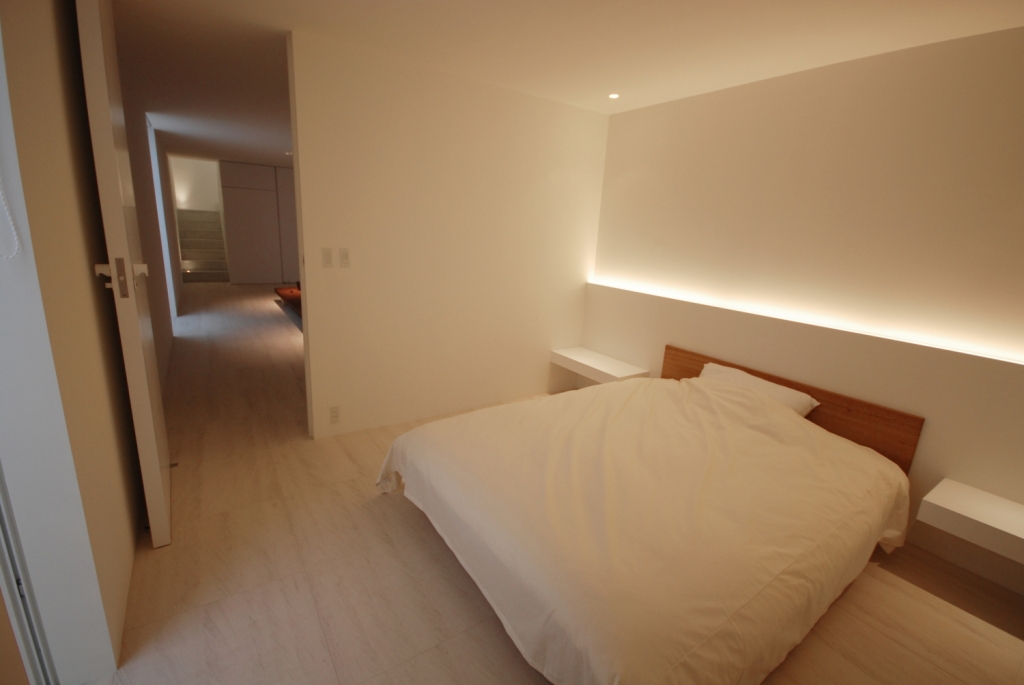

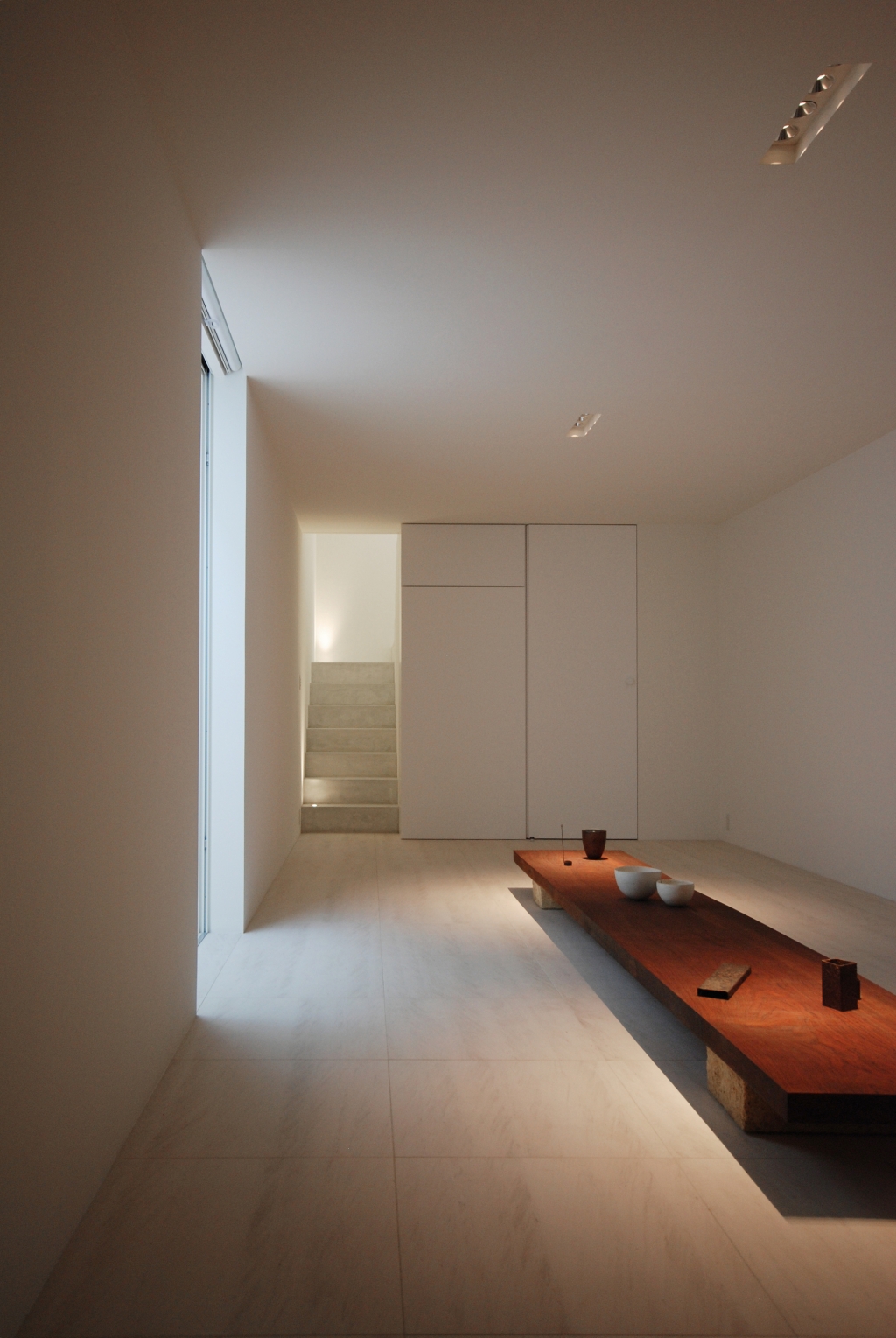

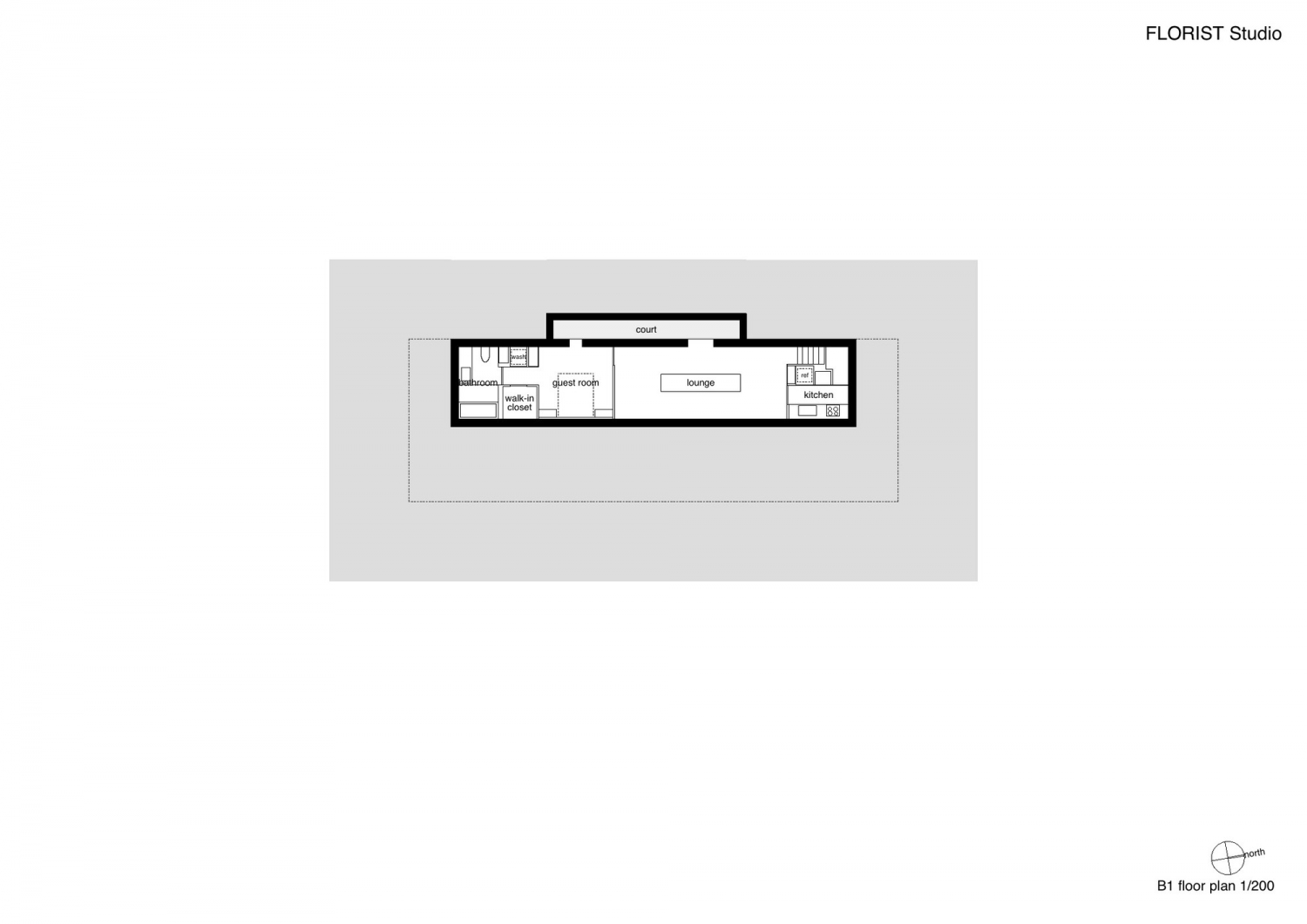

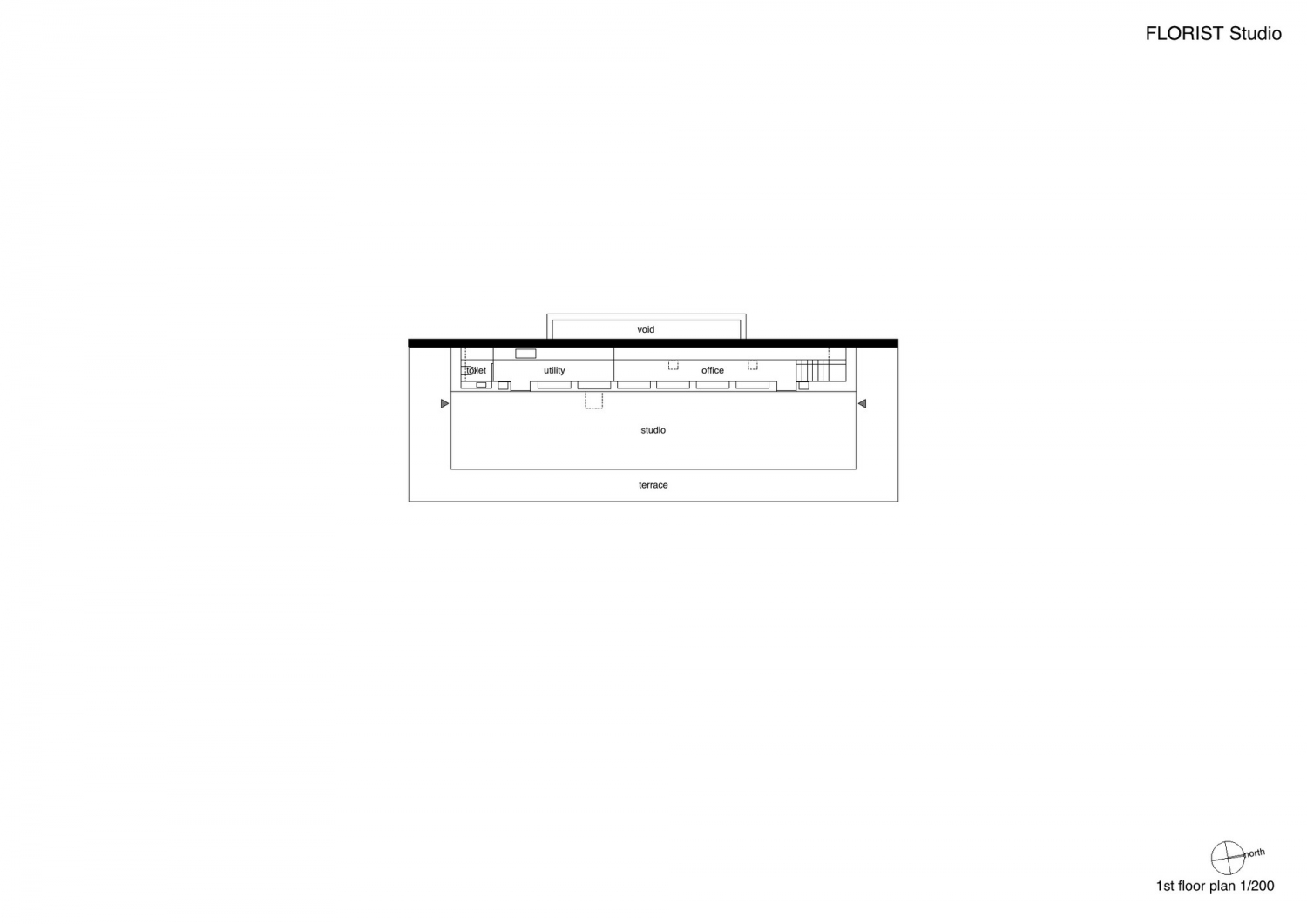

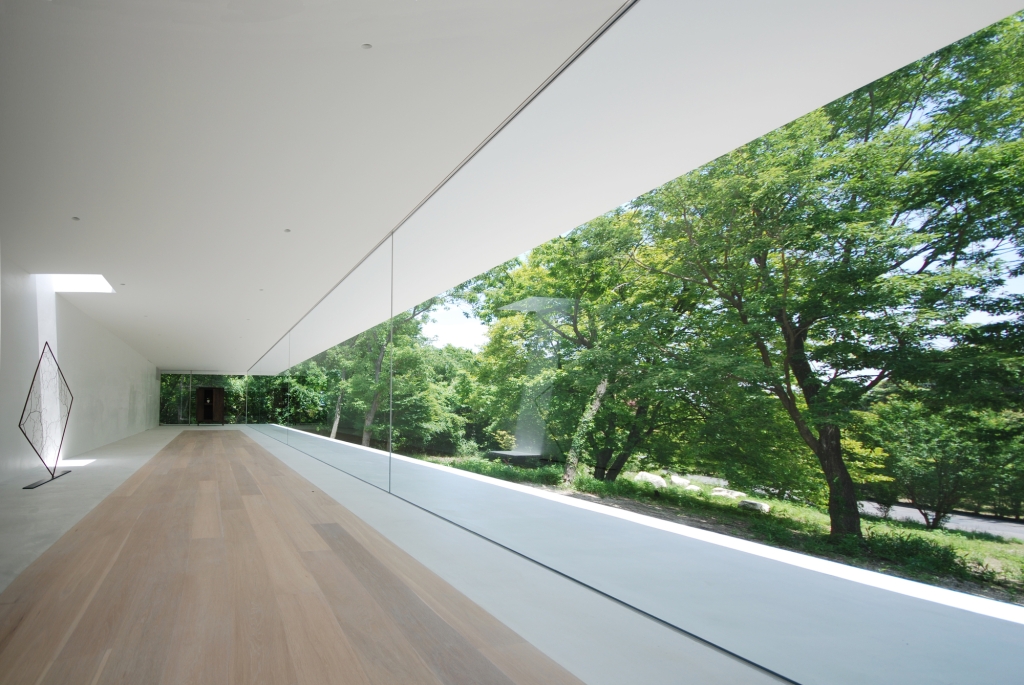

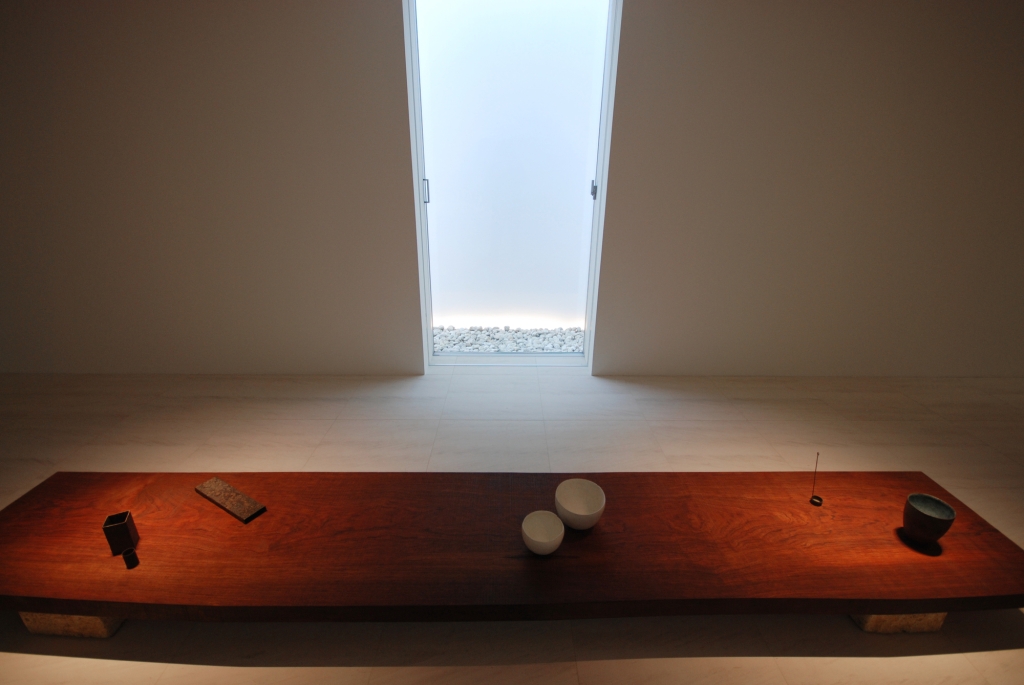

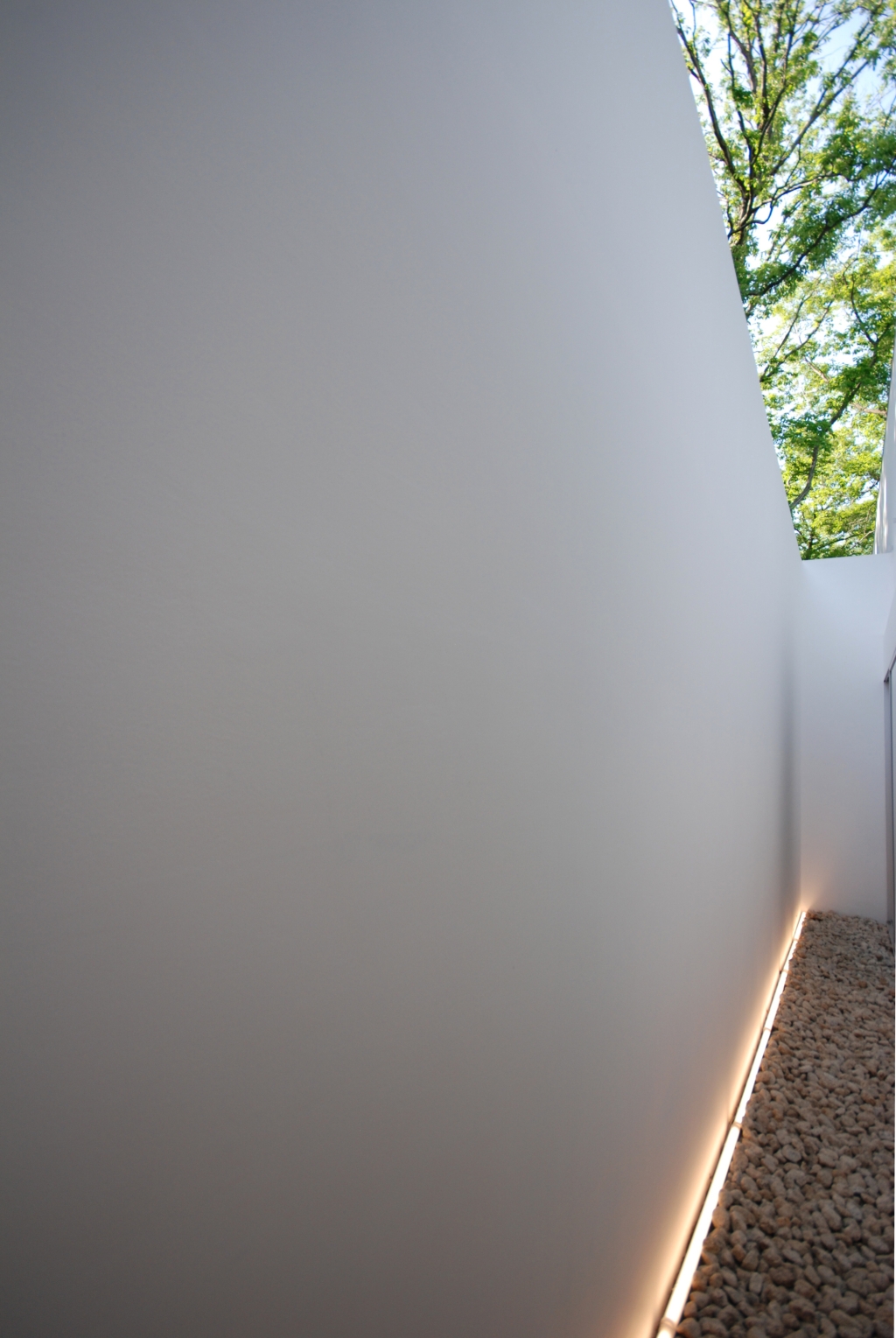

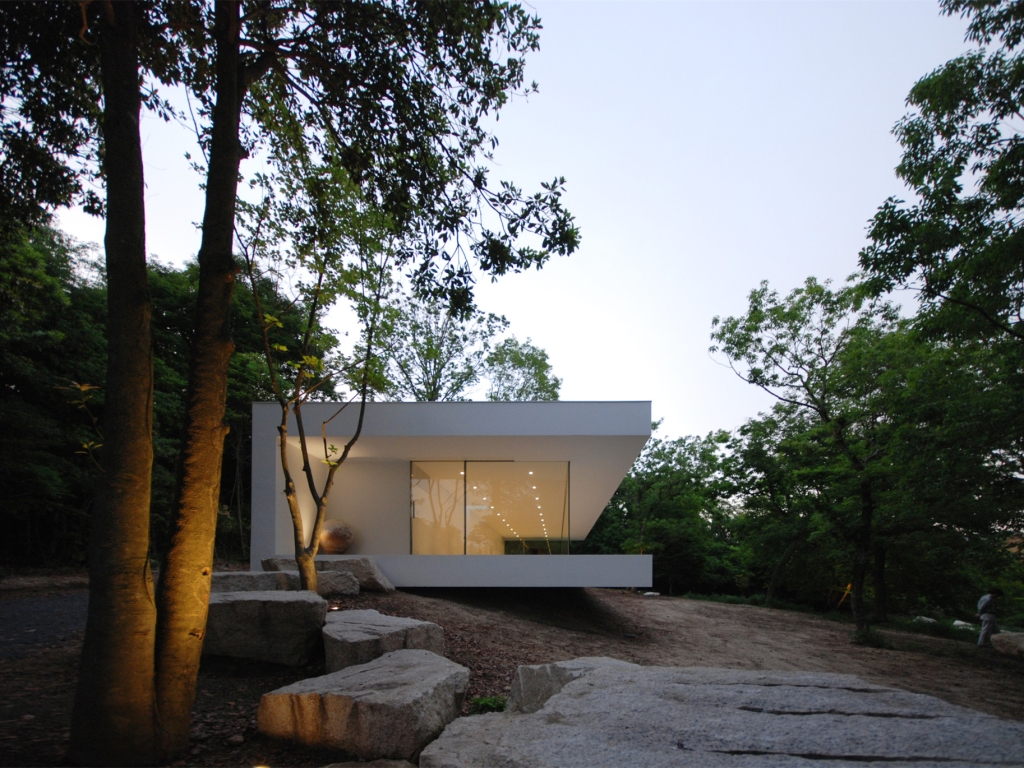

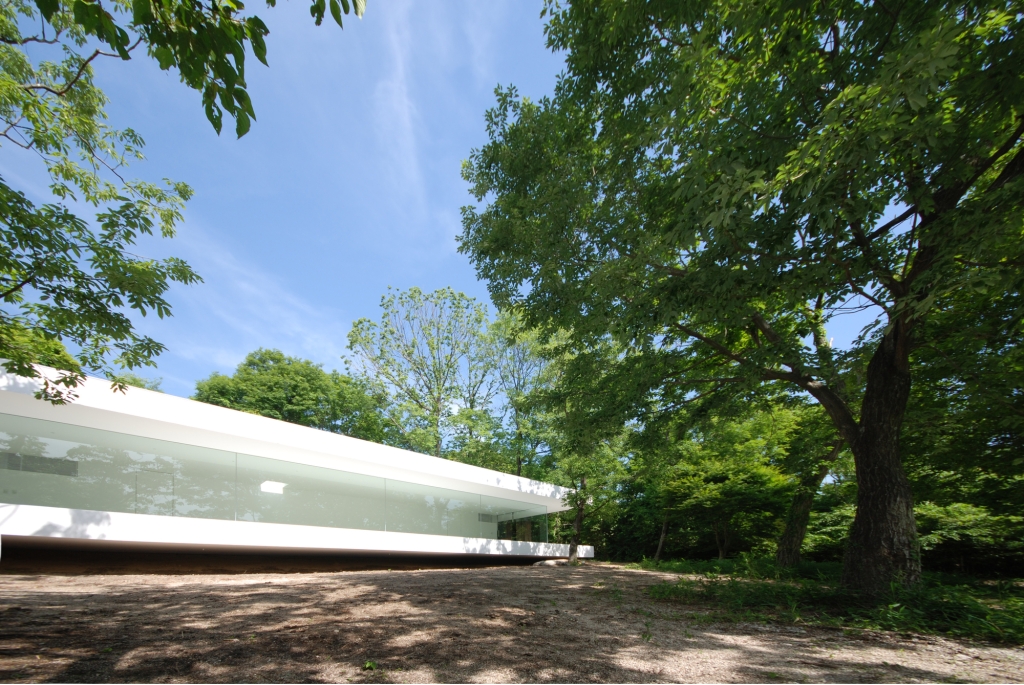

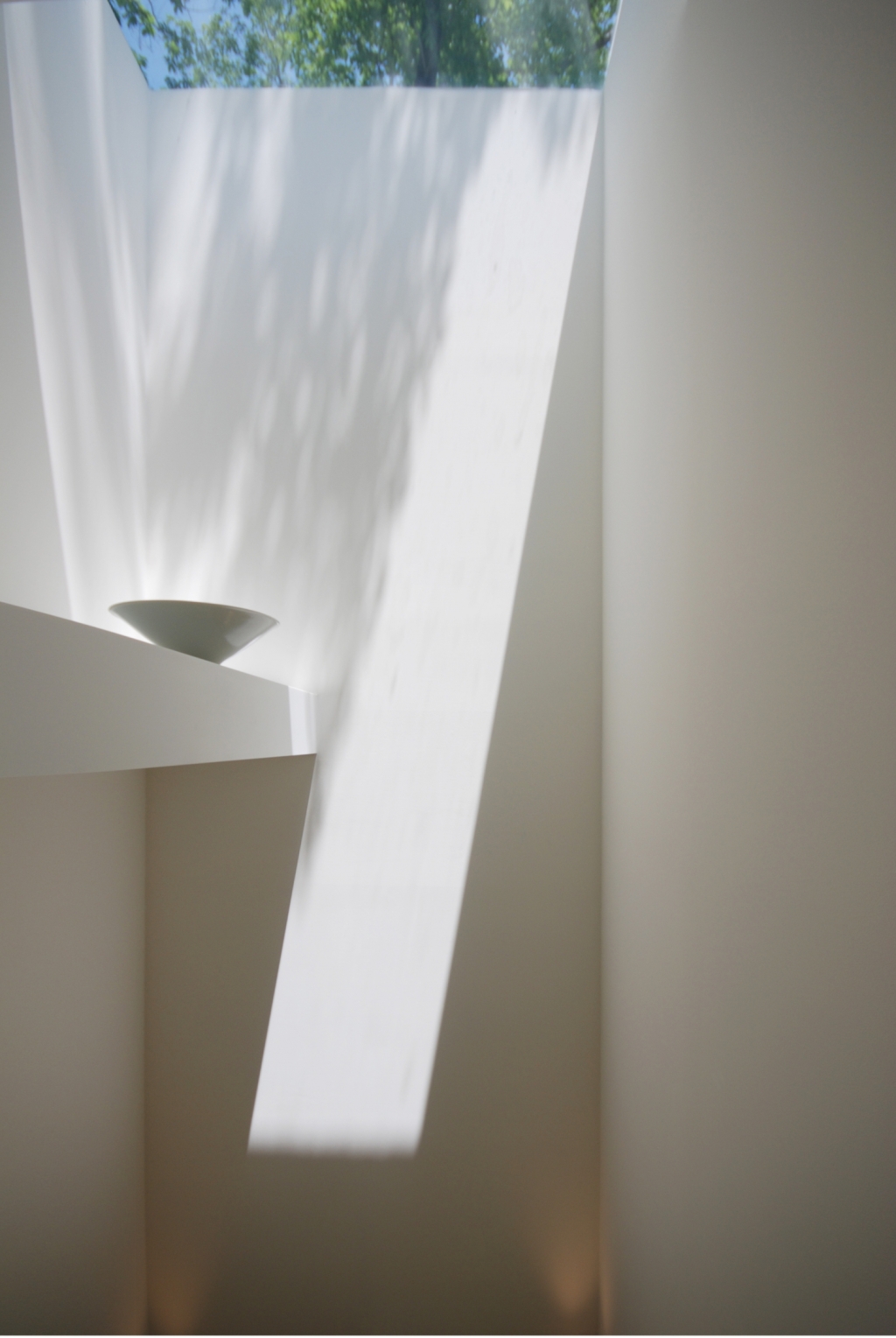

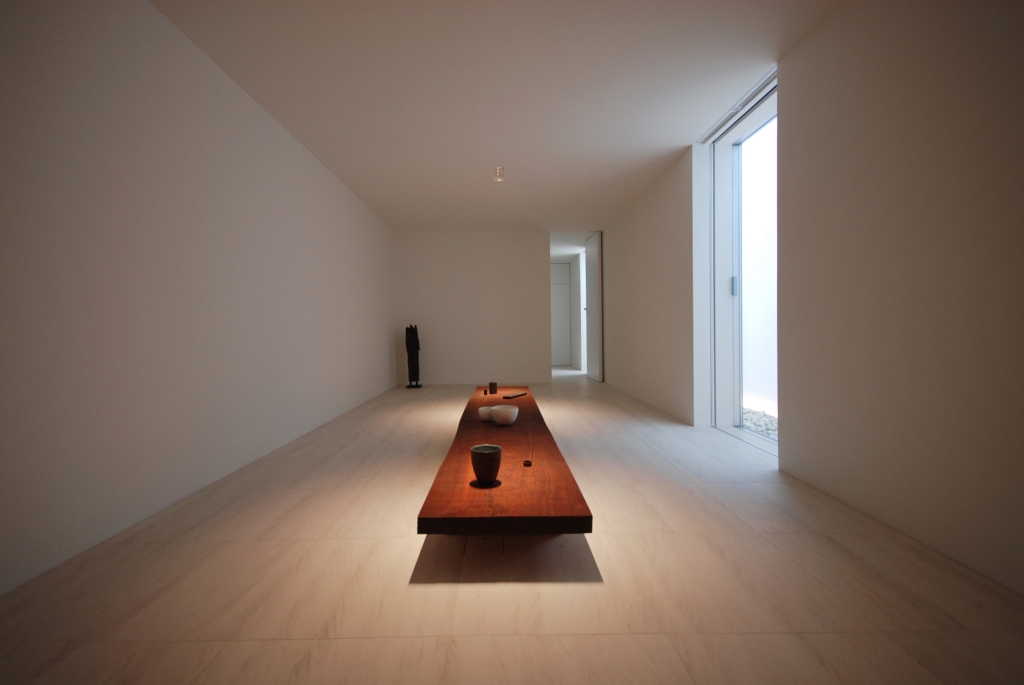

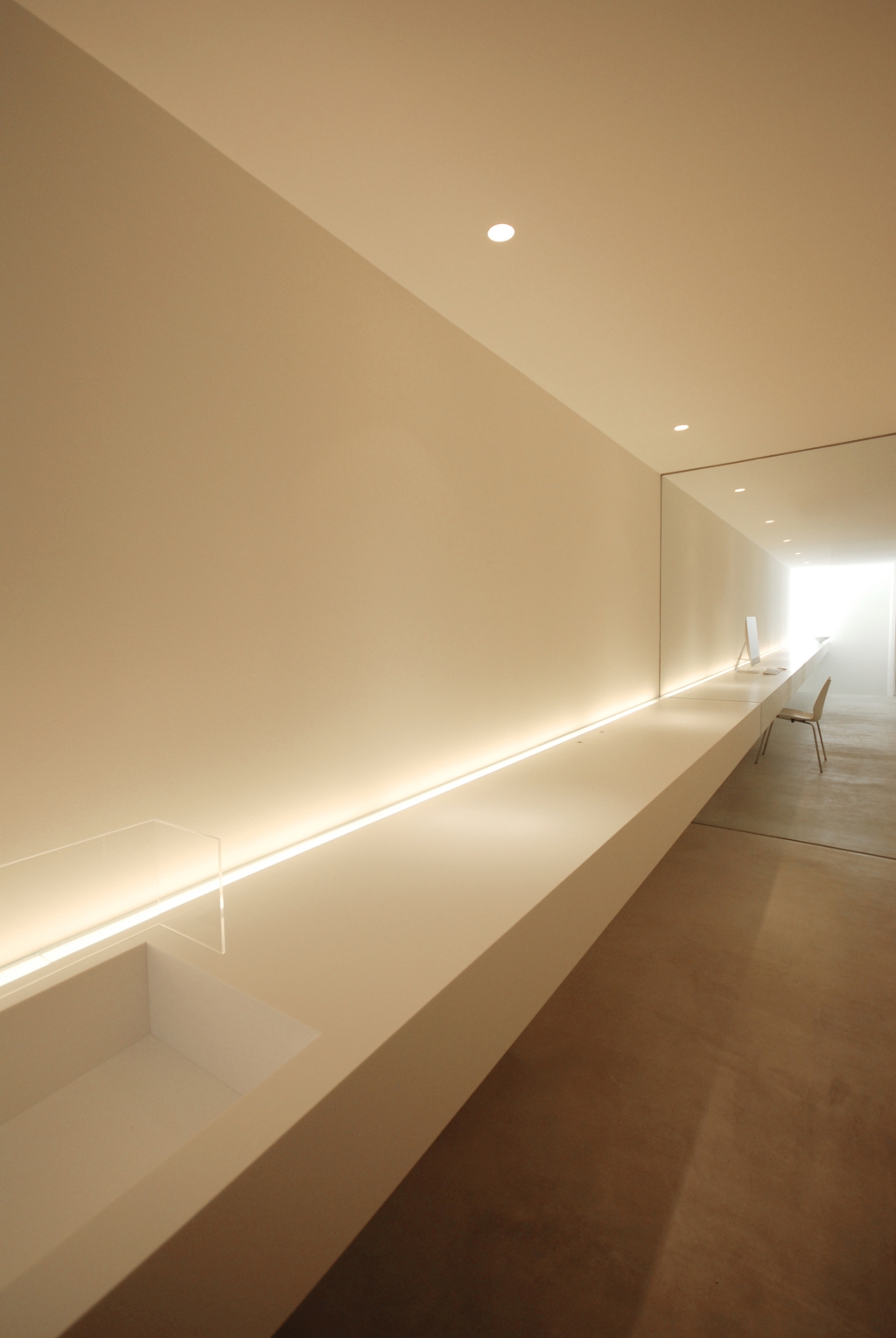

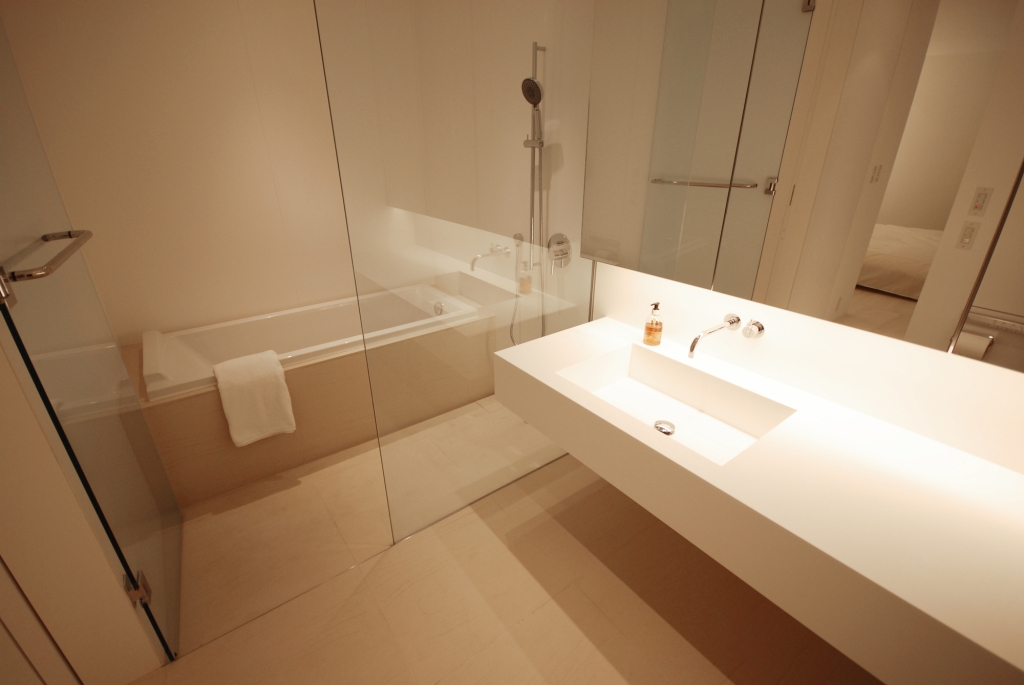

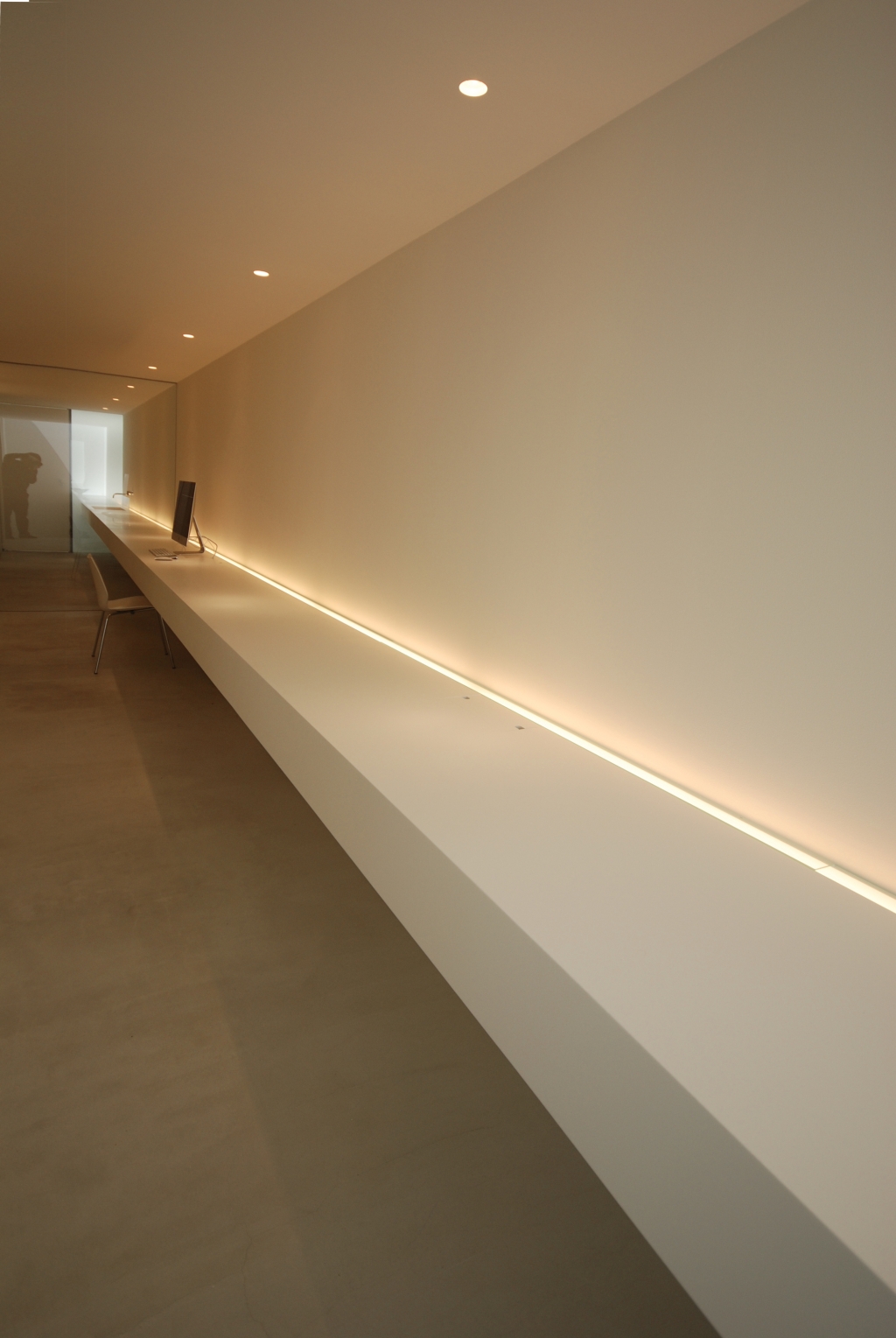

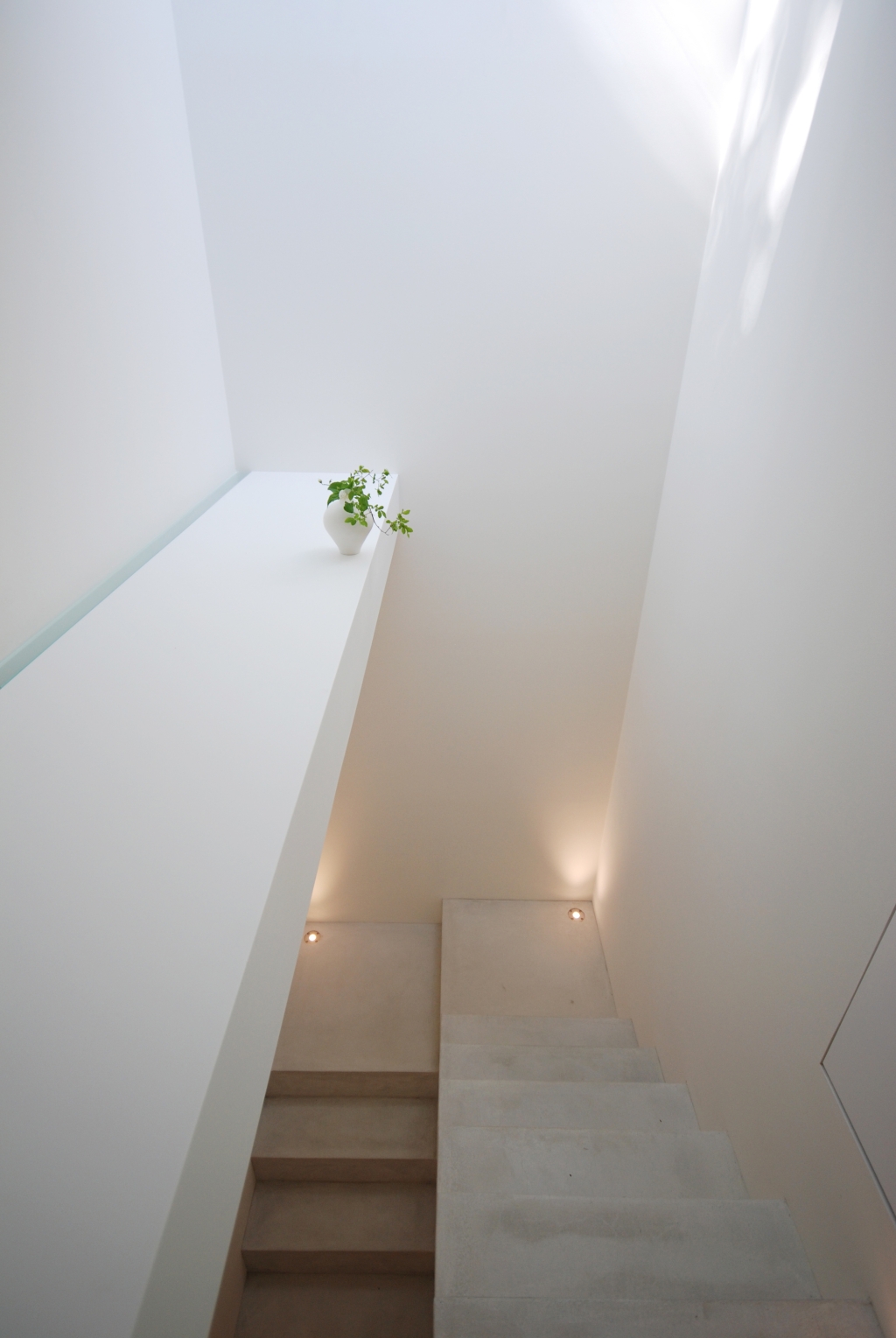

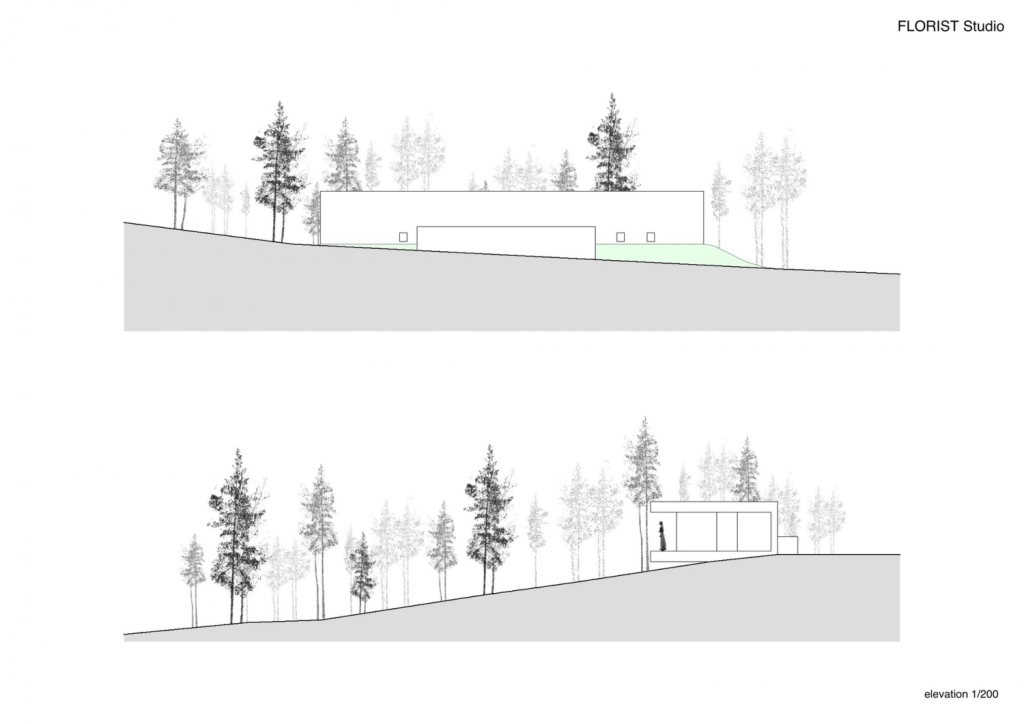

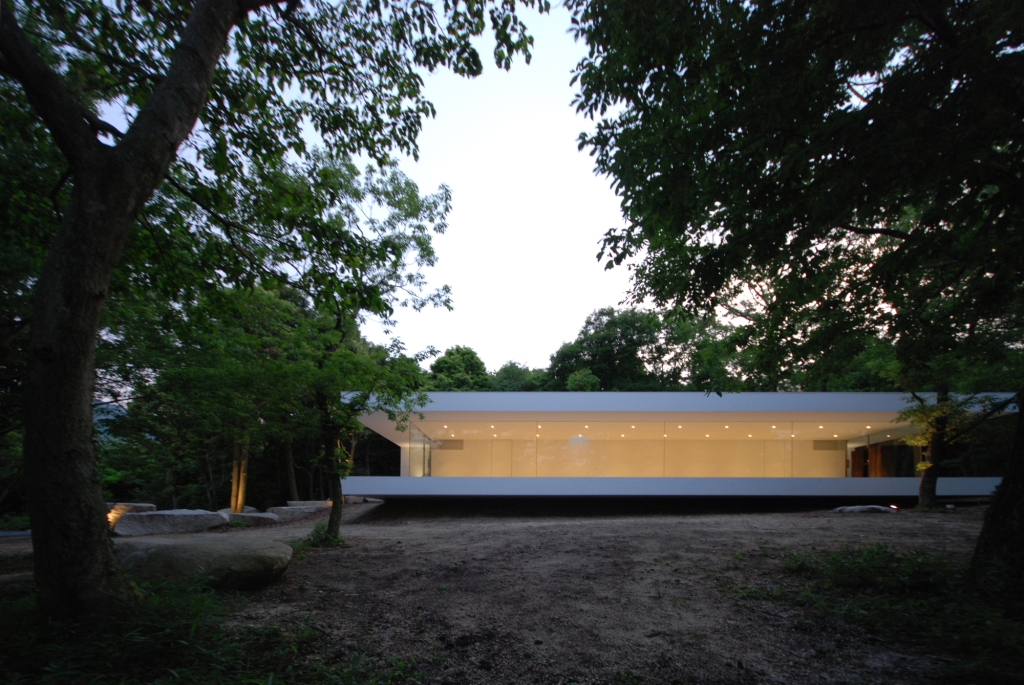

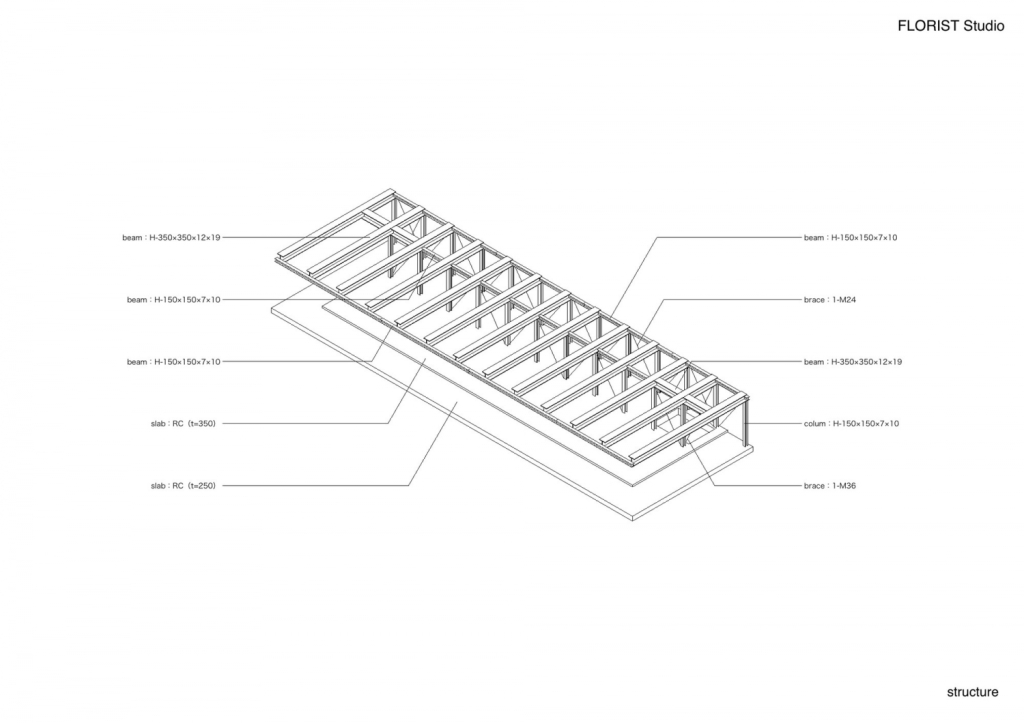

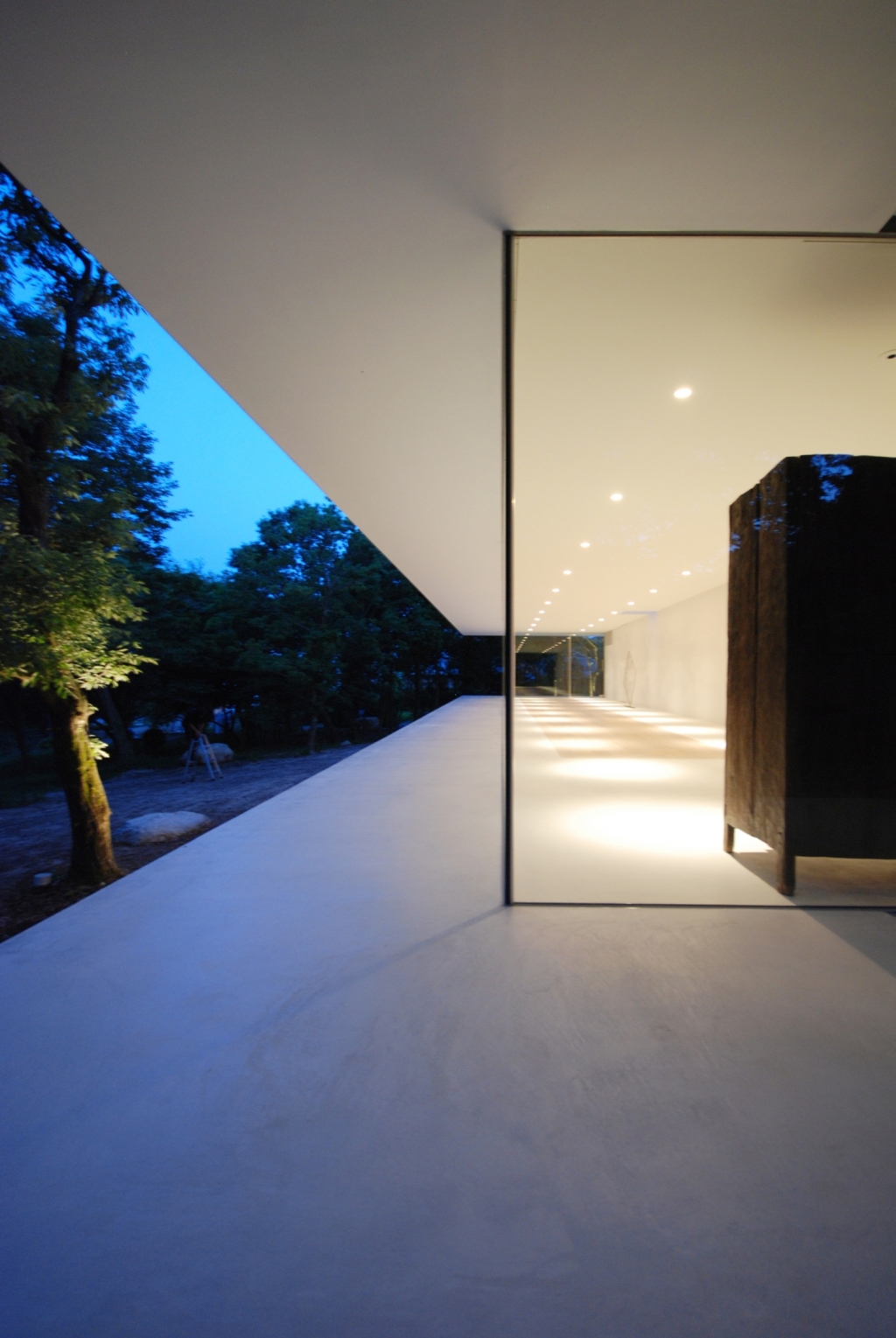

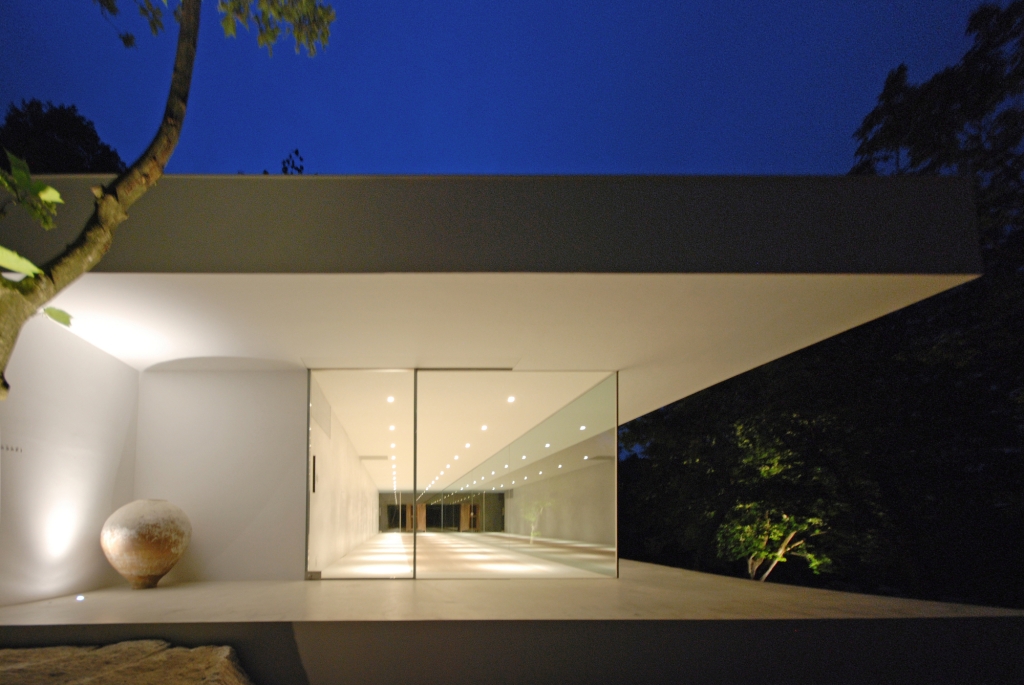

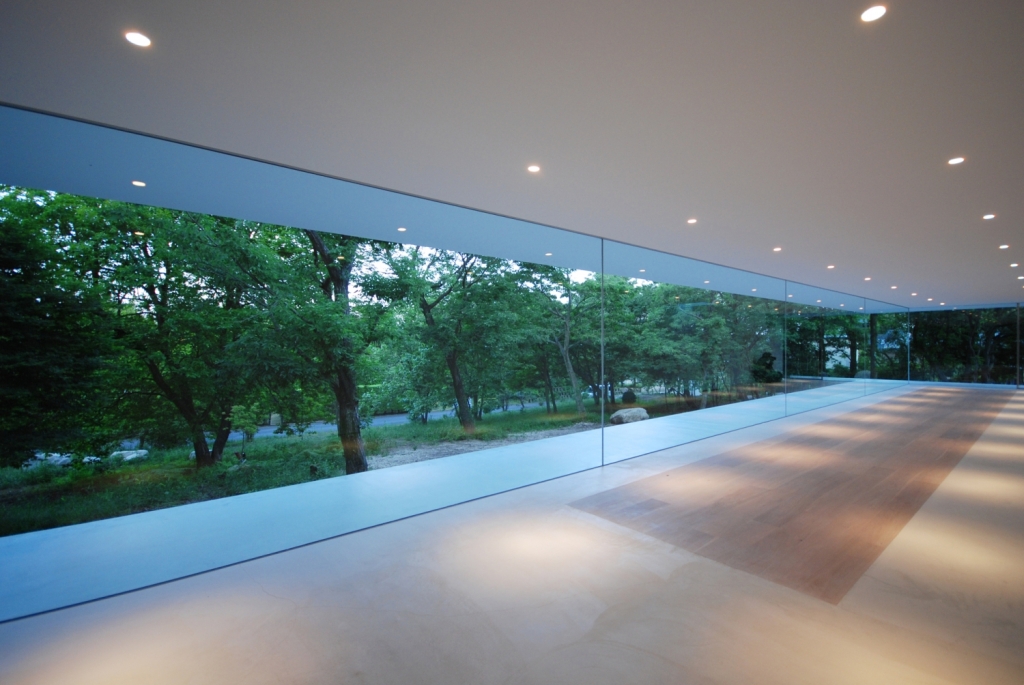

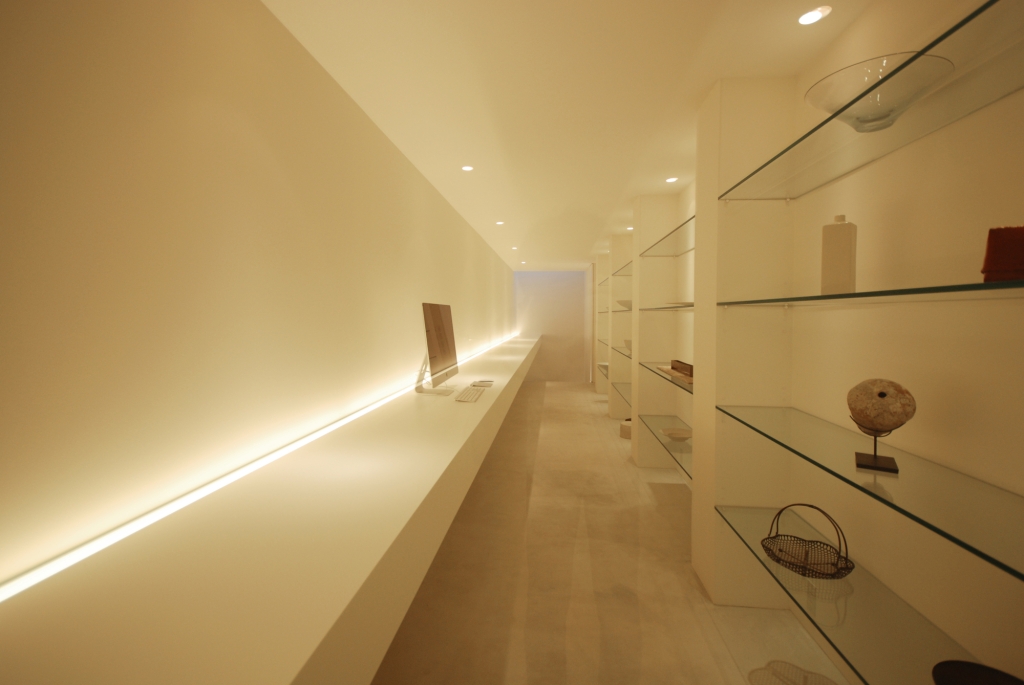

这是由Shinichi Ogawa & Associates为一个花卉研究者设计的S画廊住宅，坐落在风景秀丽的三重县，紧邻铃鹿山脉。房子类似于C形状嵌在山坡上，总共22m长。内部空间平面为3.7米x 18米，短边被分为2个空间。第一个空间作为画廊空间，除去一面钢架结构的墙壁和天花，其余三面均为无框架玻璃，因此内部空间与周边景观融为一体。白色灰泥墙和石灰砂浆地板，营造一个干净的空间环境，这个设计延伸至平台。相反，另外一个空间是几乎封闭的。光线通过屋顶两端的缝隙渗透进来，带来光影变化的美感。此外，业主玻璃货架上的艺术藏品也为整个空间带来形式、质感和色彩上的变化。卧室、卫生间、休息室和厨房设置在地下层，通过一个狭长的天井采光，营造宁静的氛围。译者：艾比 This house sits in the beautiful scenery of Mie, near the Suzuka mountain range. The client, a emi- nent florist truly enjoys its natural surroundings, with its natural green context, with site plants which he uses for his own work, as well as wild animals coming from mountains to eat fruits. Approaching from the road, suddenly appears a white sharp “C-shape” volume of 22m long, gently floating above a existing slope, between the trees. A stairway to the house is made of 7 pieces from a huge rock which found buried under the ground while construction. The “C-shape” is composed with a subtle reinforced concrete cantilever of 3.7m, and contains two other smaller volumes of 18m long. The first one is a totally transparent volume which serves as a gallery space. The steel frame struc- ture of the wall and ceiling slab, allows for a big room with no columns. The frameless glass makes this a special open space that is completely invaded by the exterior nature. Thus, the gallery be- comes a true ‘stage’ for the client, while the exterior green landscape transforms into a perfect background setting. The whiteness of the space is made of organic materials – white stucco for walls and lime mortar for floor. The terrace was given the same finish as the interior space in order to make this a continuous space. A smaller wooden floor means the ‘special area’ in the room. In contrast, the other volume is fully closed. The slits in both ends of roof offer this silent space an additional beauty - a sense of motion and passage of time. In this narrow and long space, a minimal straight counter runs along a wall from one end to another. On the other side, owner’s art collections on glass shelves mold the space with various forms, materials and colors.The private living areas - bedroom, bathroom, lounge and kitchen - are set on an underground level, having a calm atmosphere with the natural illumination from a small court.
