shelton's house

设计方:Intentionallies建筑事务所

位置:日本 东京 新宿

分类:居住建筑

内容:实景照片

图片:19张

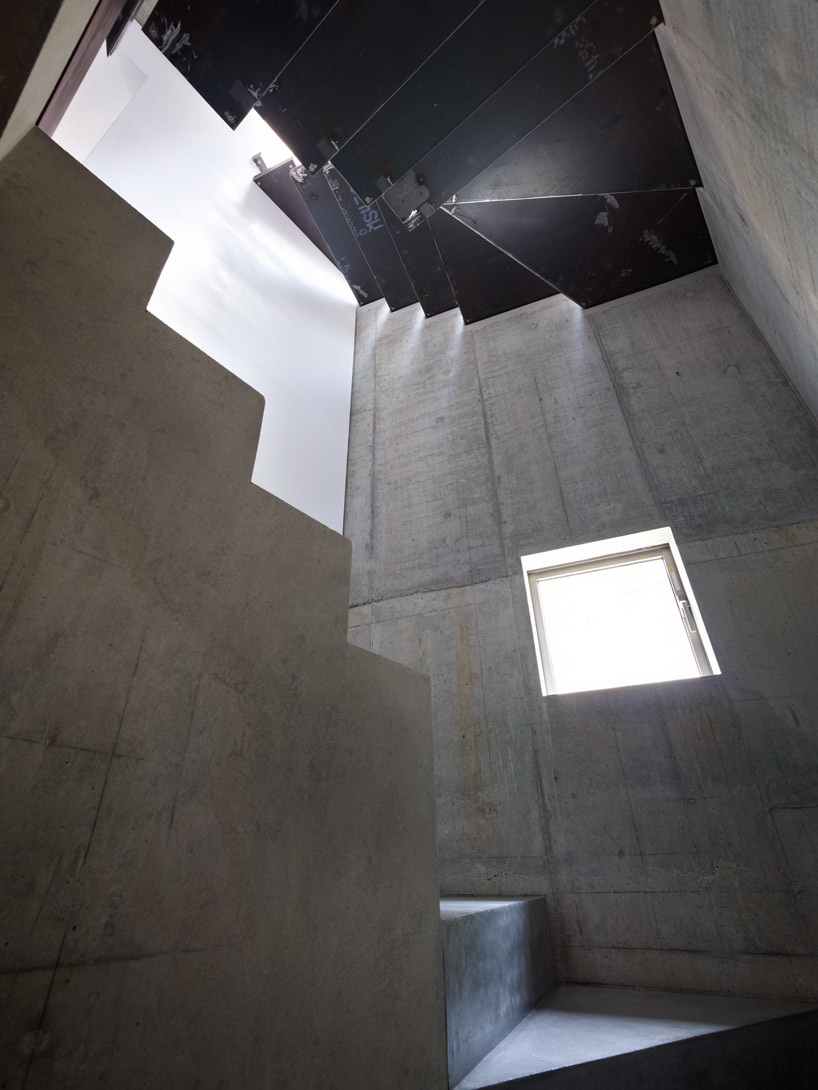

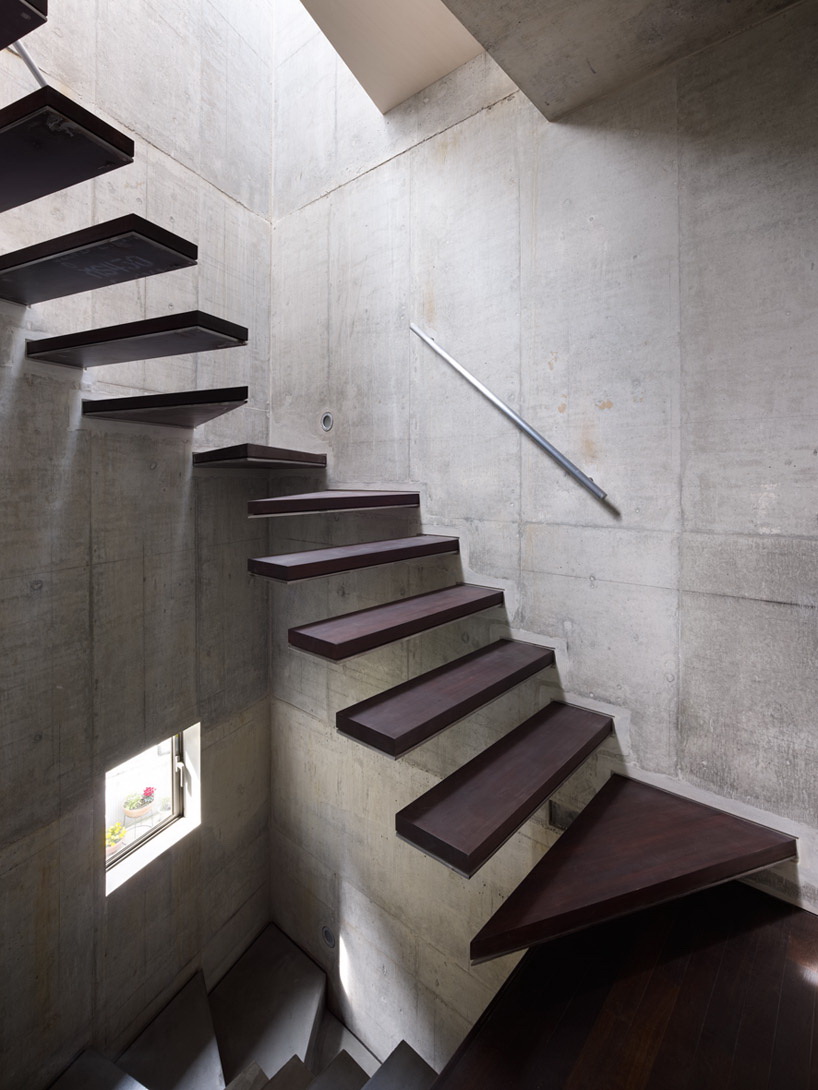

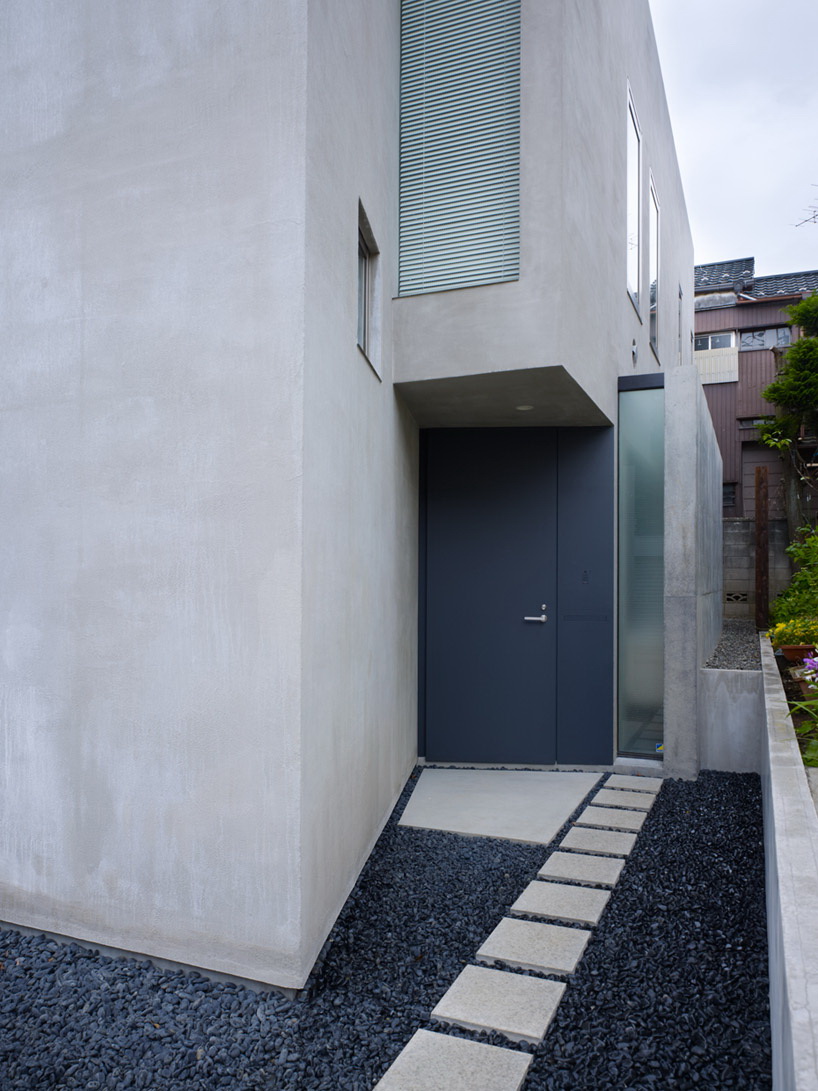

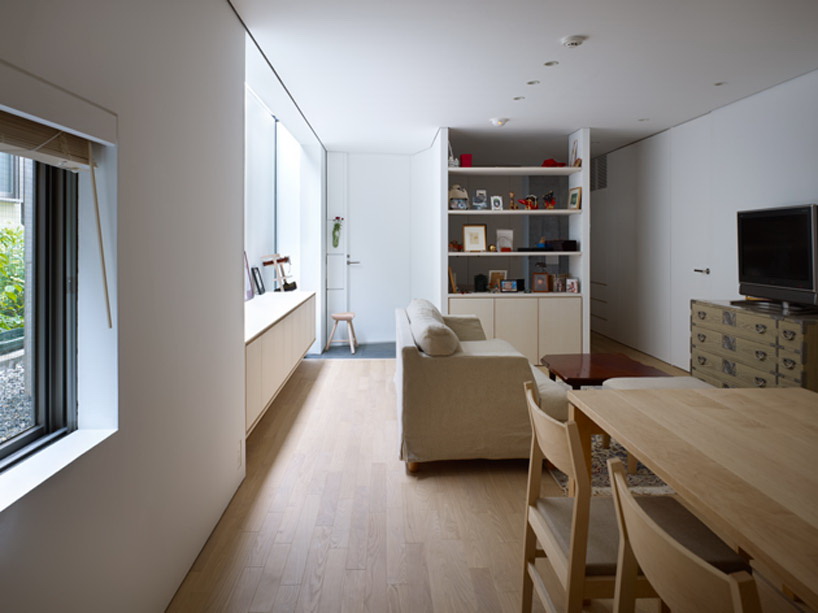

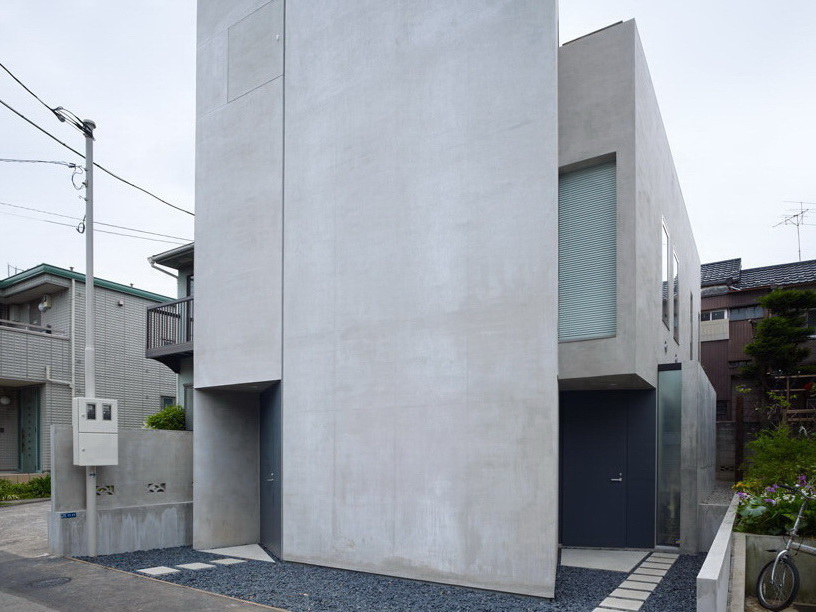

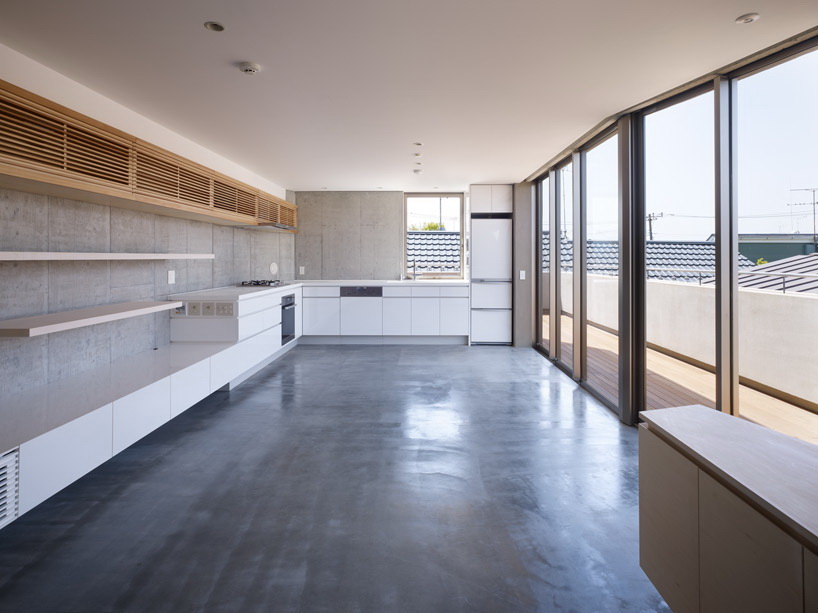

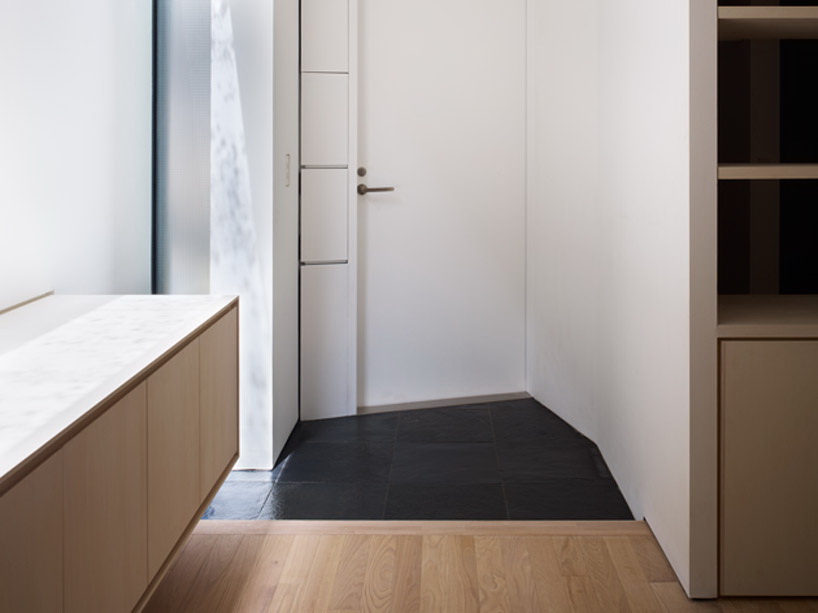

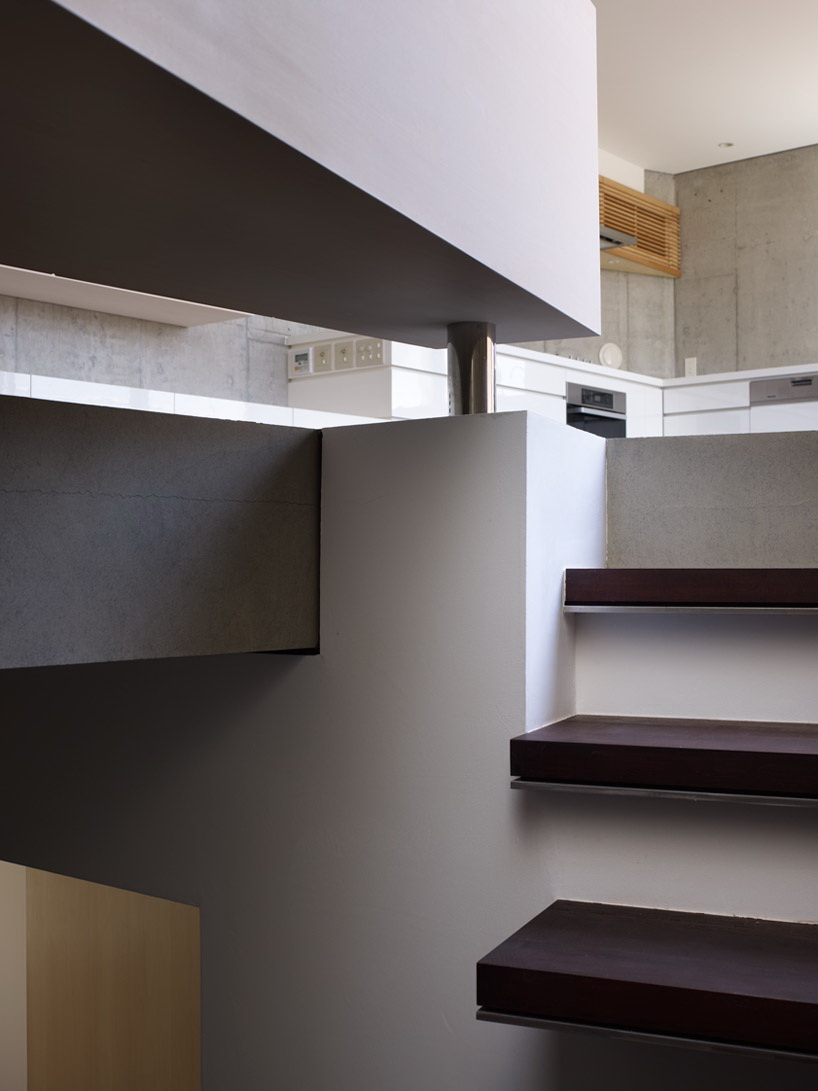

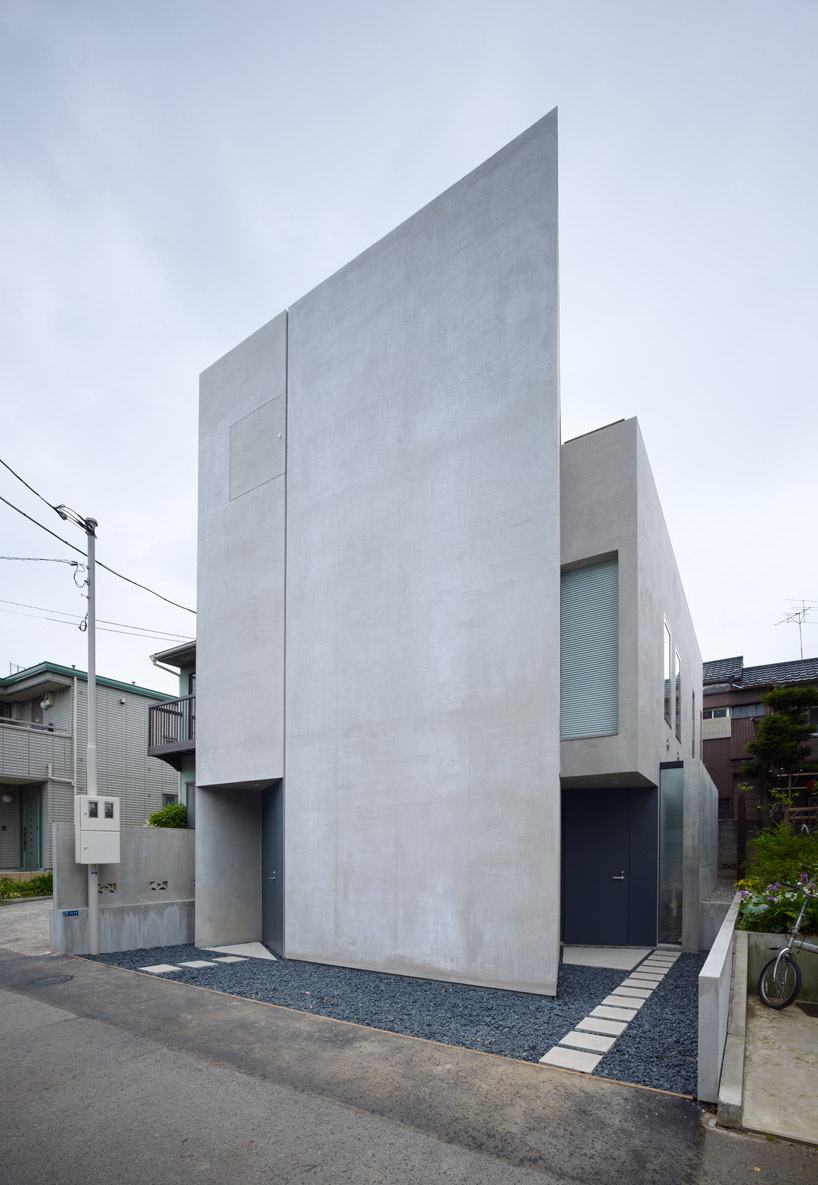

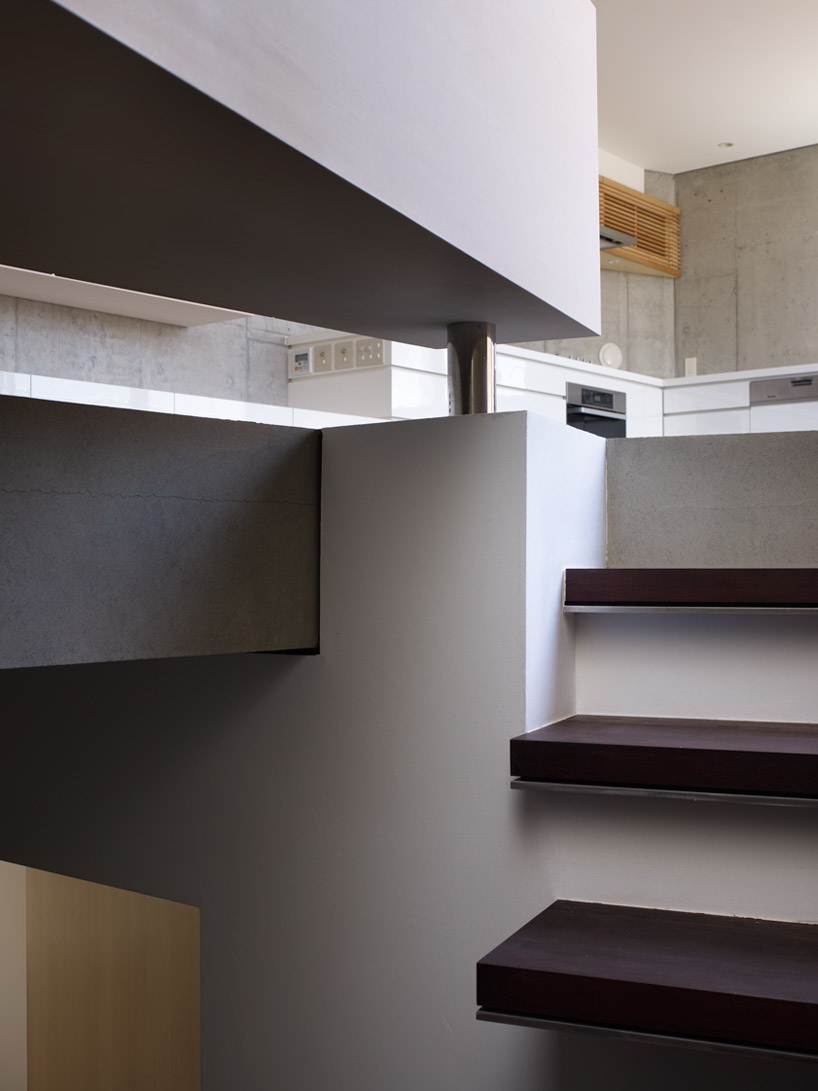

这是由日本建筑事务所intentionallies设计的一个家庭住宅,它位于日本东京郊外的新宿地区,一个庞大的混凝土墙体突兀地排列在附近的街道旁,它用一面无窗的墙挡住了所有的城市活动。独立的入口分布结构两侧,为住户提供相应的独立性。其中一个门被缩回来形成一个凹形的结构,创造出一个置身于黑洞中的院落结构,使人们能够通过窗户得到一丝道路上的景色。室内逐渐打开,延续形成起居空间。低层处的楼梯貌似是从混凝土整体中切割出来,它们慢慢展开形成一系列开阔的楼梯,悬挑在附近的内部墙壁之上。  Japanese architect shuwa tei of tokyo-based practice intentionallies has completed 'shelton's house', a residence for a family and the in-laws in the secluded neighborhood near shinjuku outside of Tokyo, Japan. A monolithic concrete wall abruptly borders the adjacent street, closing the urban activity from the interior of the dwelling with a windowless front elevation. Separate entrances on either half of the structure allow a sense of independence for the related inhabitants. One of the doors is setback into a niche creating a courtyard within the void to allow an oblique view of the road through a window. Upon entering, the interior opens gradually, beginning as a continuous living room. Seemingly carved from a concrete block, the lower portion of the stairway unfolds into a series of open riser treads which cantilever from the bounding internal walls.

谢尔顿住宅-2

谢尔顿住宅-3

谢尔顿住宅-4

谢尔顿住宅-5

谢尔顿住宅-6

谢尔顿住宅-7

谢尔顿住宅-8

谢尔顿住宅-9

谢尔顿住宅-10

谢尔顿住宅-11

谢尔顿住宅-12

谢尔顿住宅-13

谢尔顿住宅-14

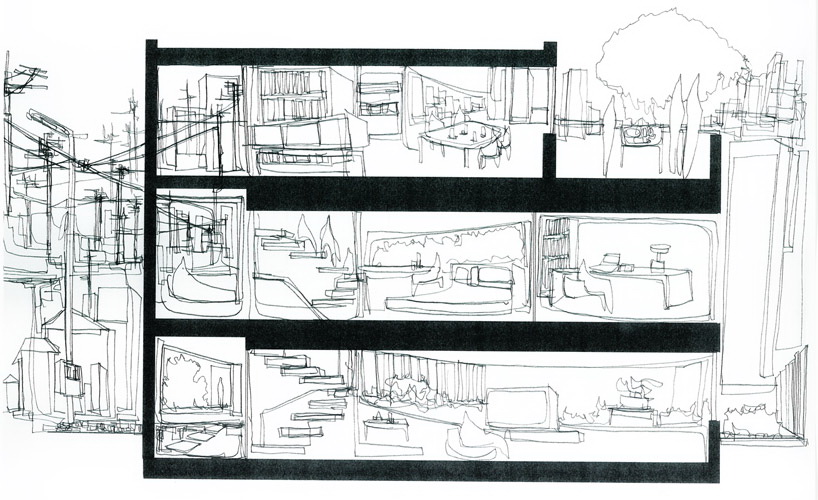

草图 sketch

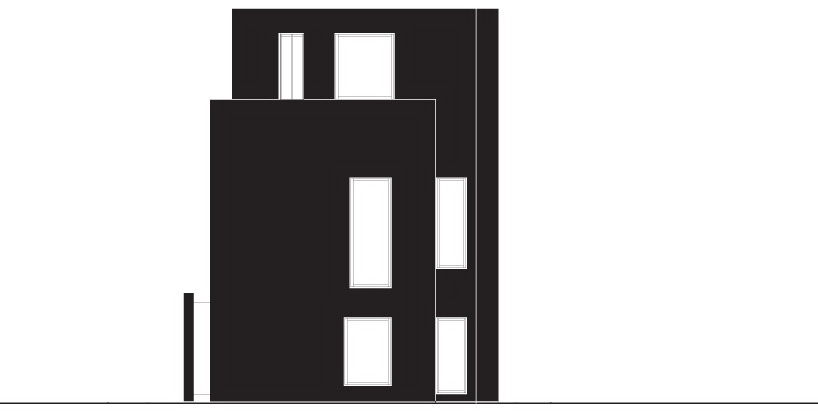

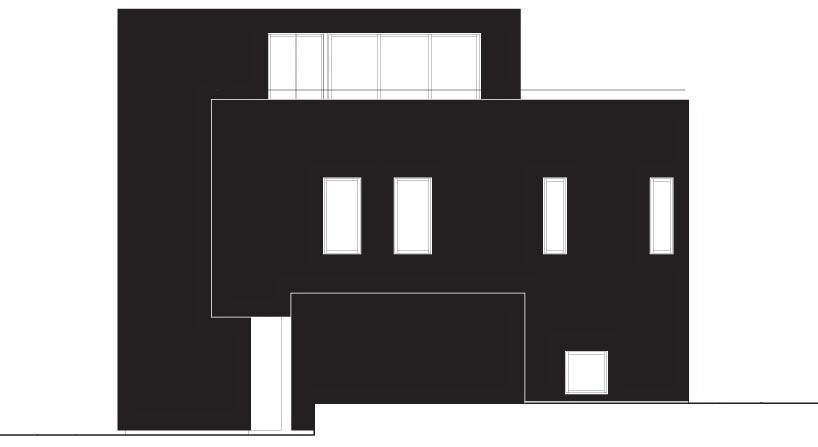

立面图01 elevation01

立面图02 elevation02

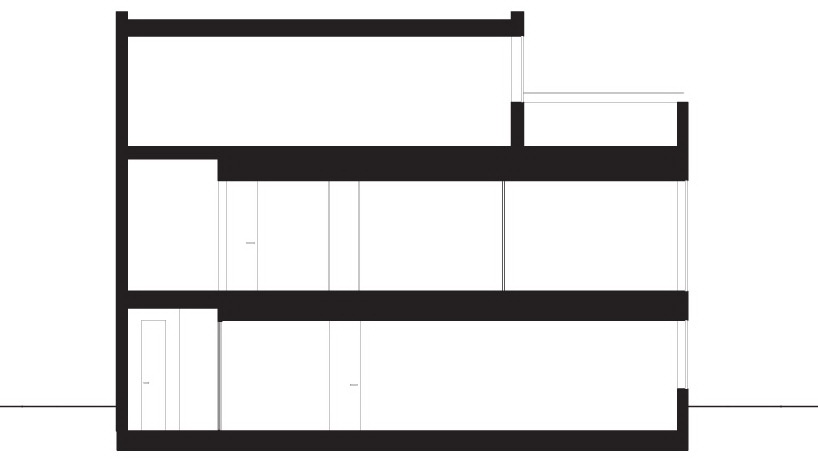

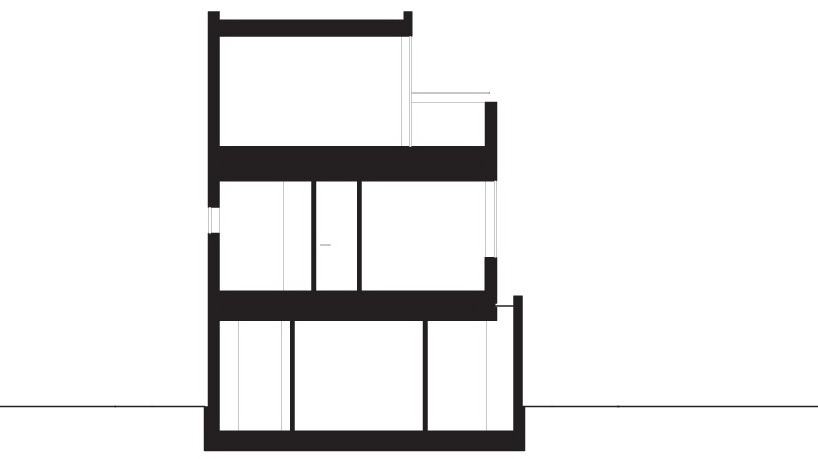

剖面图01 section01

剖面图02 section02

草图 sketch

立面图01 elevation01

立面图02 elevation02

剖面图01 section01

剖面图02 section02
