杰马尼斯住宅

住宅

Small House on a Hillside

设计方：Vladimír Balda建筑事务所

位置：捷克

竣工：2007年

分类：居住建筑

内容：实景照片

图片：17张

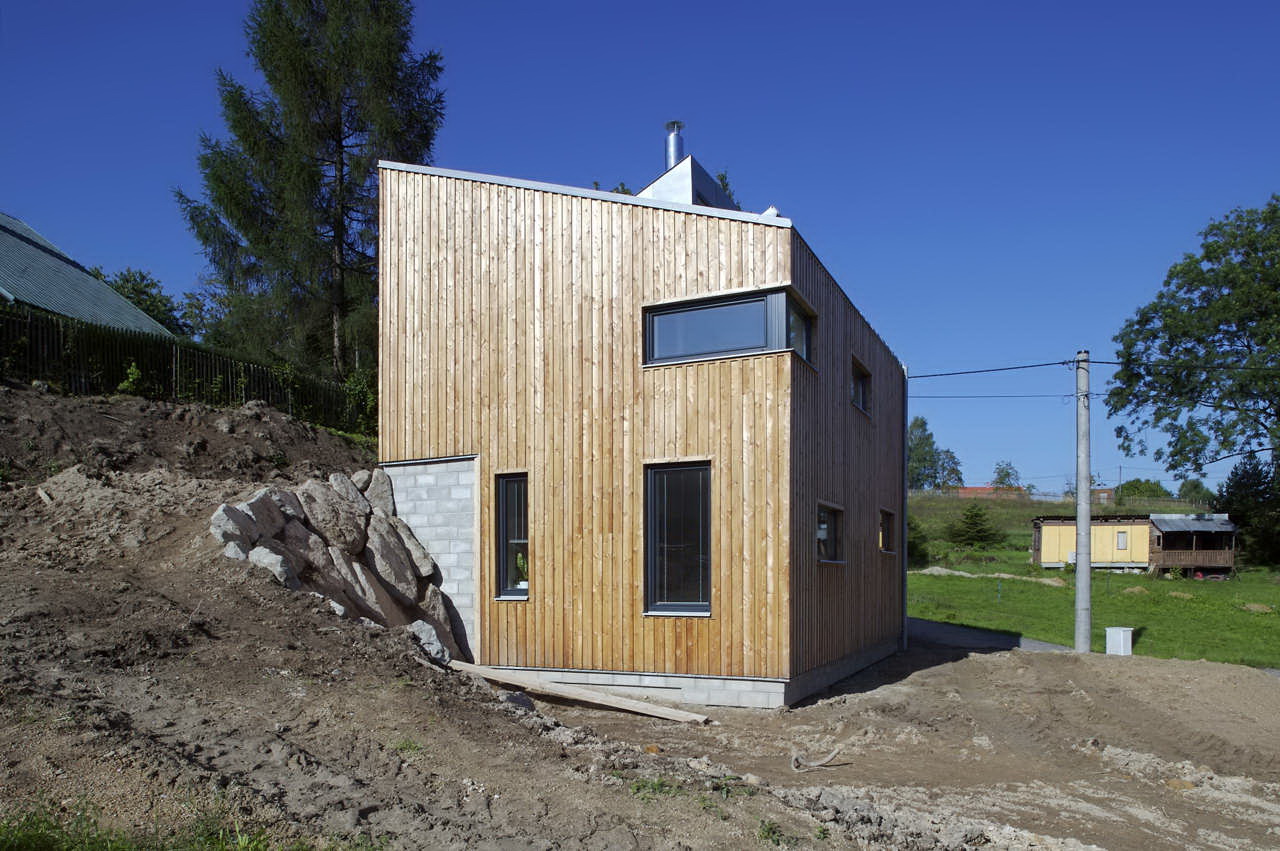

建筑面积：87平方米  Project area: 87 sqm   住宅位于一个郊区村落，向着开阔的林地景观，场地的斜坡和不太有利的朝向决定了住宅的形状和它的内部构造。住宅体量切入北面的斜坡，高度的安排使住户能从首层顺利进入住宅的任何一层，因为尖尖屋顶的斜坡，住宅冲南侧敞开。  The house is constructed at the periphery of a suburban village. The housing development turns gradually into an open woody landscape here. The sloping shape of the plot and its unfavorable orientation to the north were decisive factors for the house shape and its internal arrangement. The house block cuts into the steep northern slope. The height arrangement of the house enables barrier-free access to both floors directly from the ground level. The house opens to the south side thanks to the slope of its gabled roof.


杰马尼斯住宅-2


杰马尼斯住宅-3


杰马尼斯住宅-4


杰马尼斯住宅-5


杰马尼斯住宅-6


杰马尼斯住宅-7


杰马尼斯住宅-8


杰马尼斯住宅-9

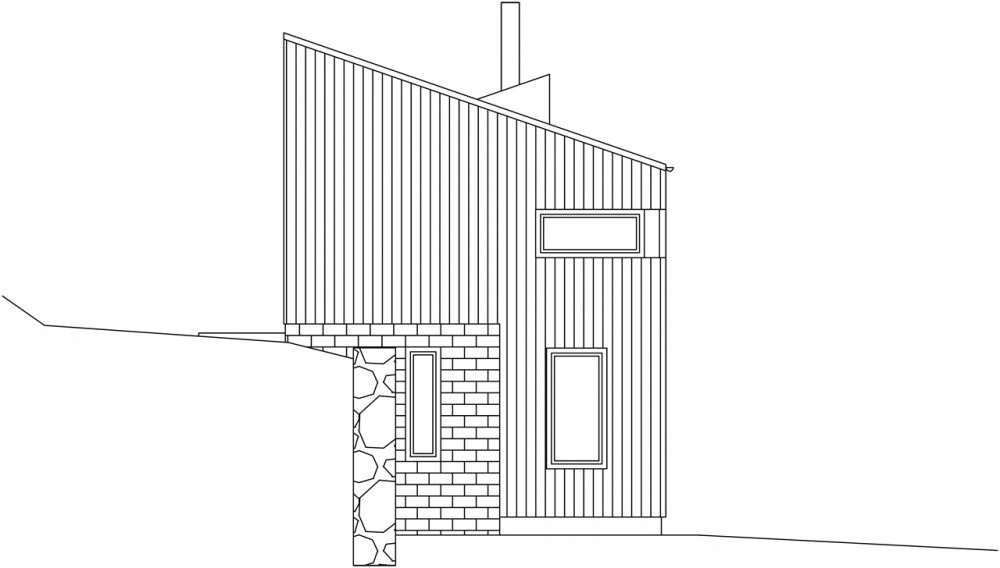

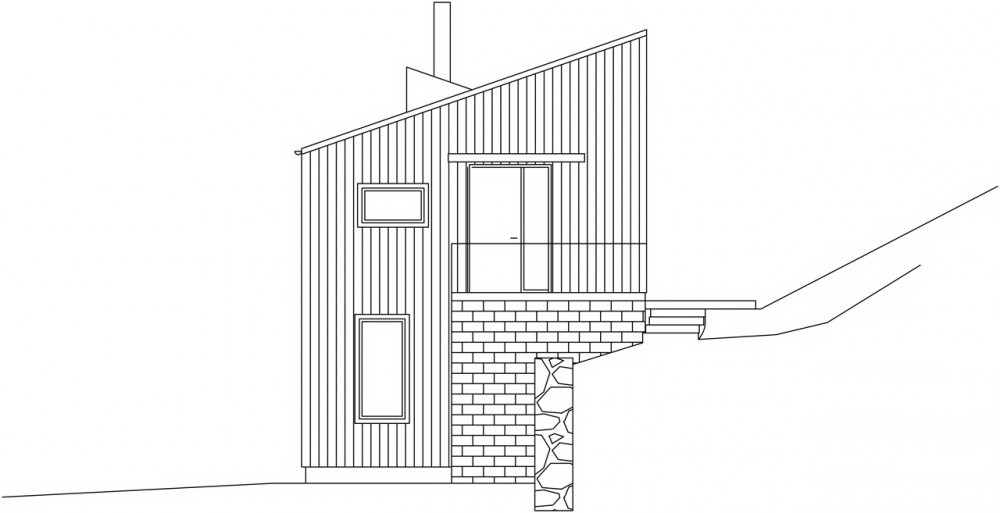

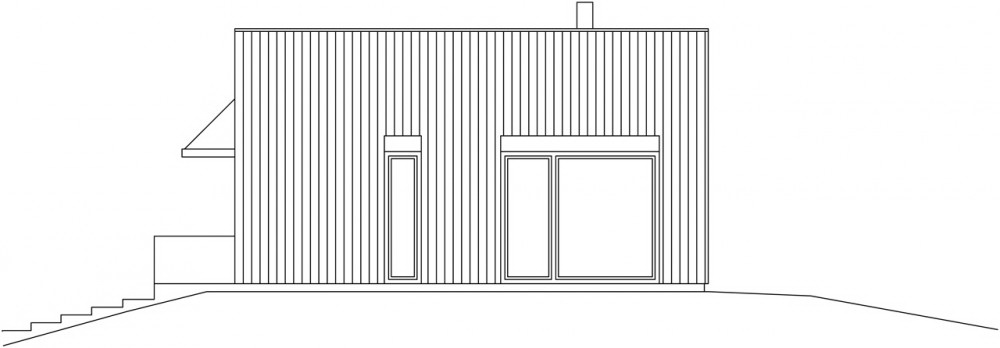

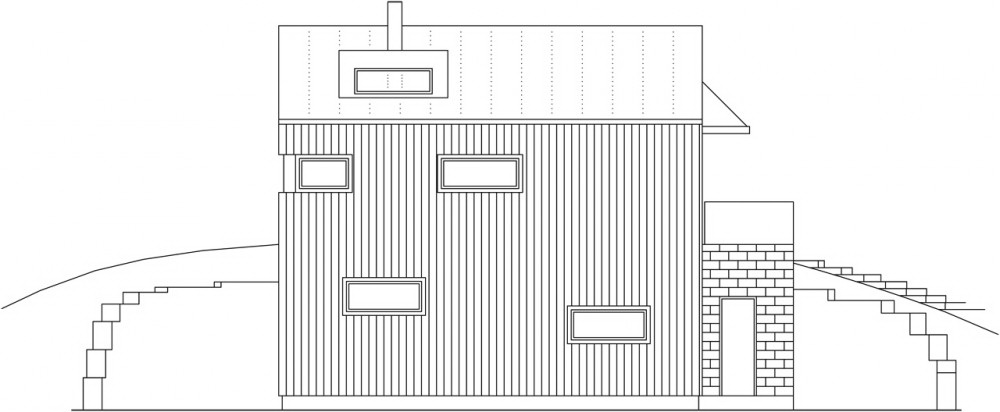

立面图01 elevation 01


立面图02 elevation 02


立面图03 elevation 03


立面图04 elevation 04

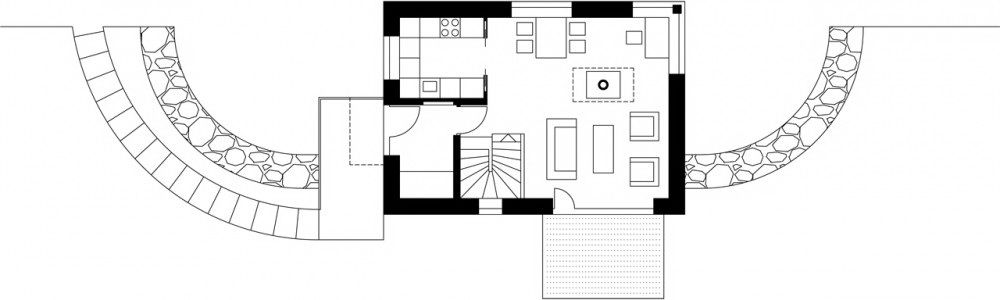

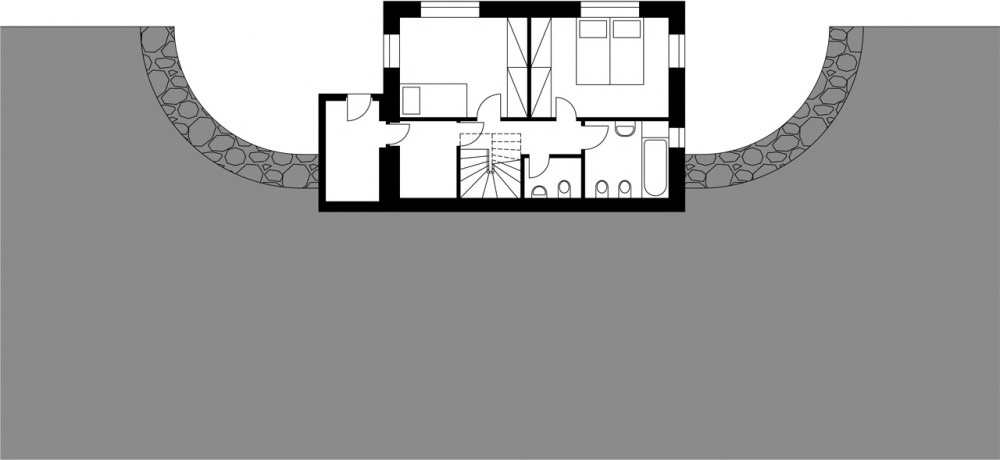

平面图01 plan 01


平面图02 plan 02

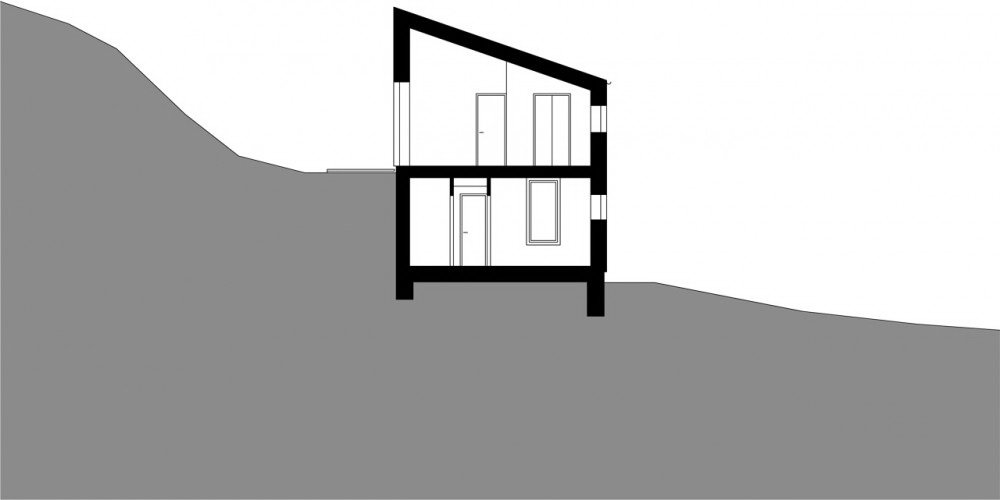

剖面图 section

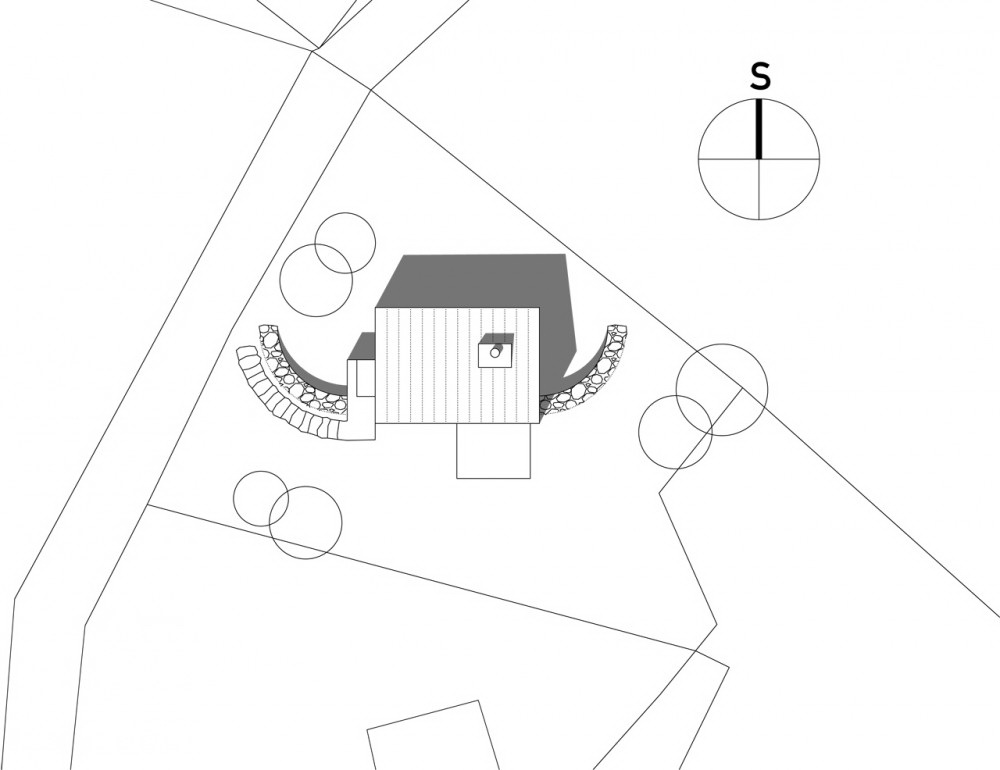

位置平面图 location plan
