Herzberg Public Housing

设计方:AllesWirdGut Architektur + feld72建筑事务所

位置:奥地利 维也纳

竣工:2011年

分类:居住建筑

内容:实景照片

图片:14张

摄影师:Hertha Hurnaus

建筑面积:20212平方米  Project Area: 20,212 sqm  这个设计背后的想法是打造出包含着不同住宅模式的建筑结构,从而为不同的生活方式提供可能,这个目的既是从城市规划上也是从建筑上着手的,一方面建筑包含几个不同的城市设计模式:由分散在草坪上的几个不同塔楼,还有带阳台的院落式住宅;或是多家庭的位于街边及广场边的联体别墅。这种混合使项目能够融合在周围的城市肌理里;另一方面建筑在上部楼层呈现梯层的模式,从而形成不同的生活和室外空间。  The idea behind the Herzberg development is to create a built structure which combines a variety of residential offerings into one neighborhood that facilitates different ways of living. This objective was pursued on both an urban-planning and on an architectural level. For one thing, the estate comprises several widely different urban- design typologies: There is the lawn with several point block buildings scattered on it; the residential courtyard building with access balconies, or the street and plaza with a multi-family townhouse. This collage structure makes the estate mediate in the urban fabric between the colony of small-scale single-family houses on the West side and a shopping mall to the East. For another thing, the buildings are terraced on the upper stories, which creates different living and outdoor situations from floor to floor.

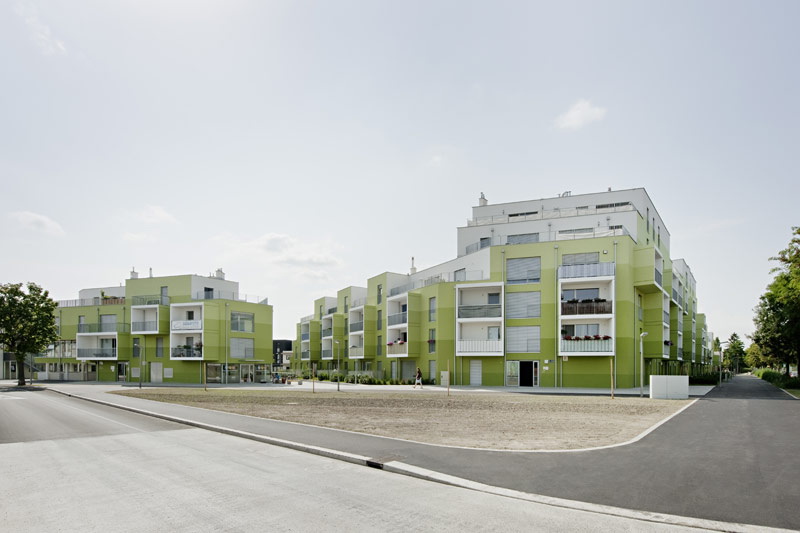

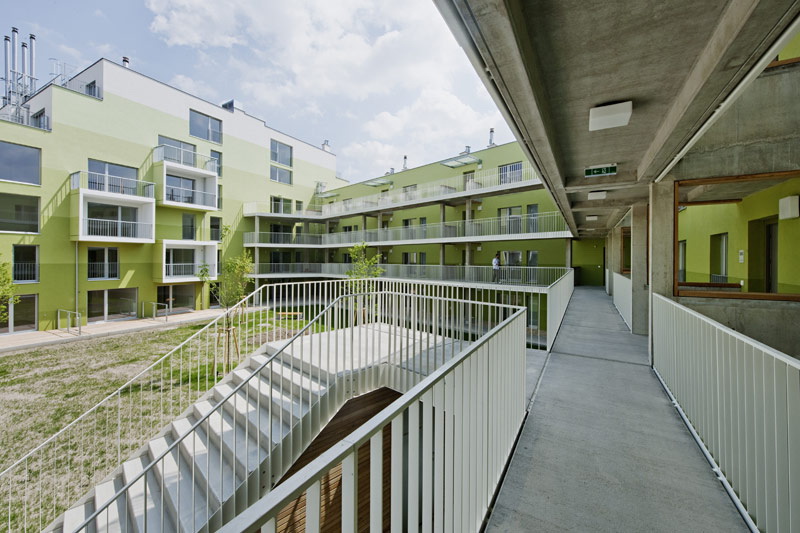

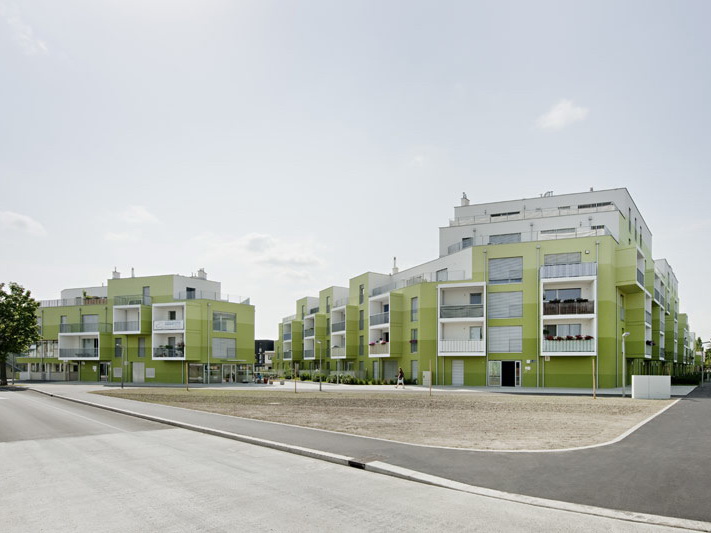

赫茨伯格公共住宅-2

赫茨伯格公共住宅-3

赫茨伯格公共住宅-4

赫茨伯格公共住宅-5

赫茨伯格公共住宅-6

赫茨伯格公共住宅-7

赫茨伯格公共住宅-8

赫茨伯格公共住宅-9

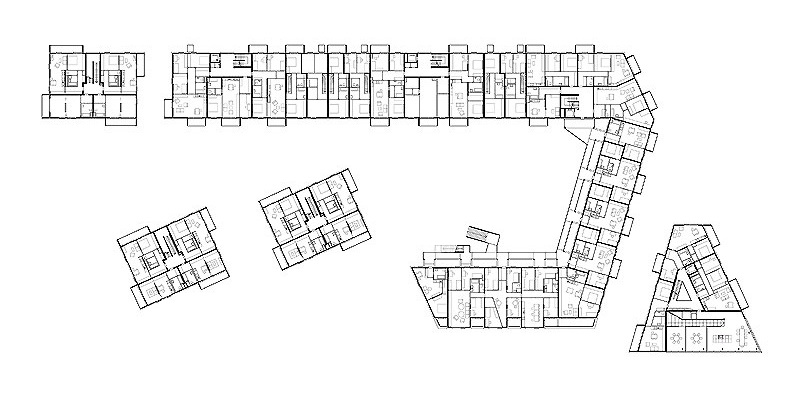

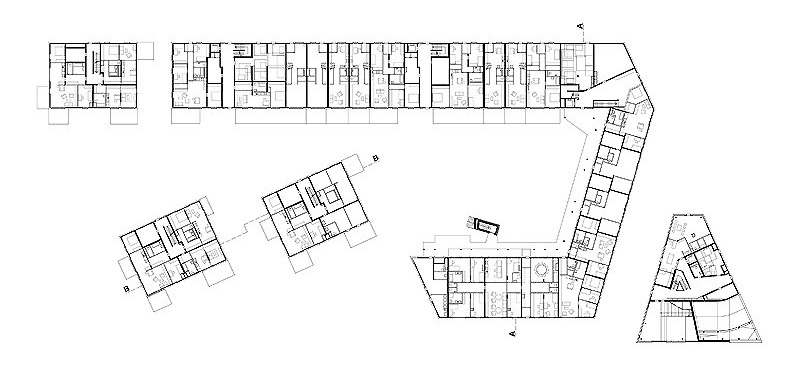

平面图01 Floor Plan01

平面图02 Floor Plan02

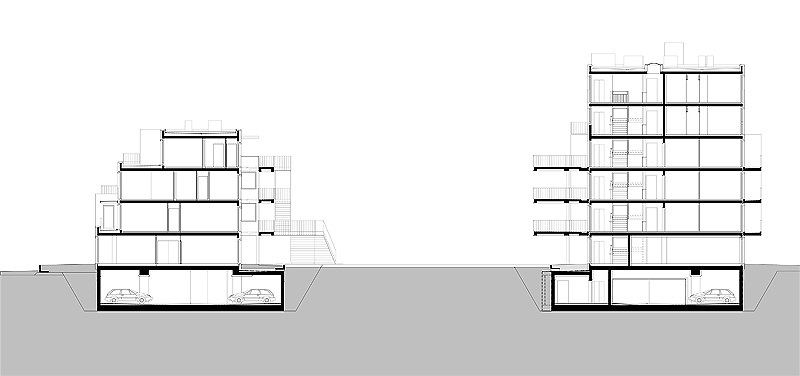

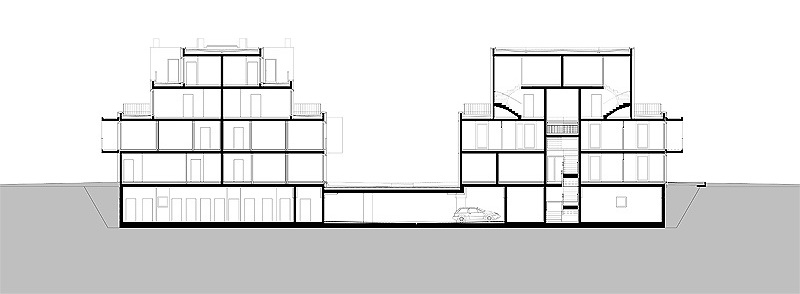

剖面图01 Sections01

剖面图02 Sections02

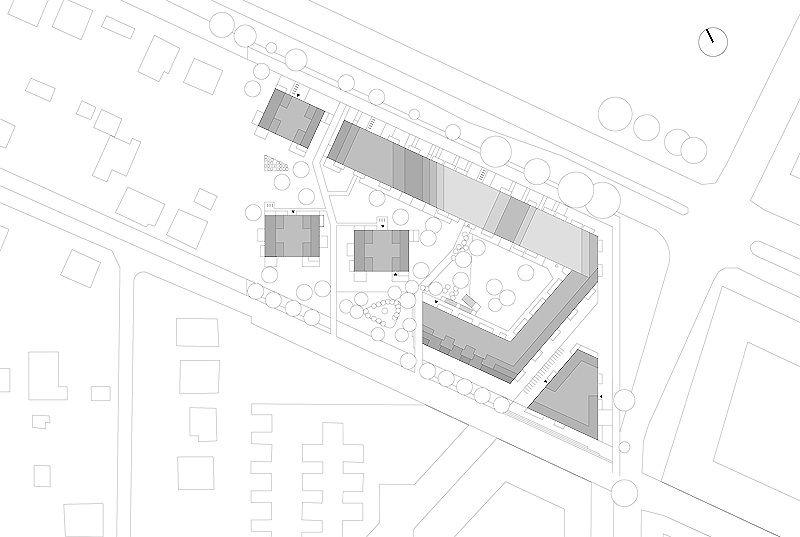

位置平面图 Site Plan

平面图01 Floor Plan01

平面图02 Floor Plan02

剖面图01 Sections01

剖面图02 Sections02

位置平面图 Site Plan
