Riva San Vitale House

设计方:Gianluca Martinelli Architetto建筑事务所

位置:瑞士 Canton Ticino

竣工:2009年

分类:居住建筑

内容:实景照片

图片:20张

摄影师:Simone Mengani

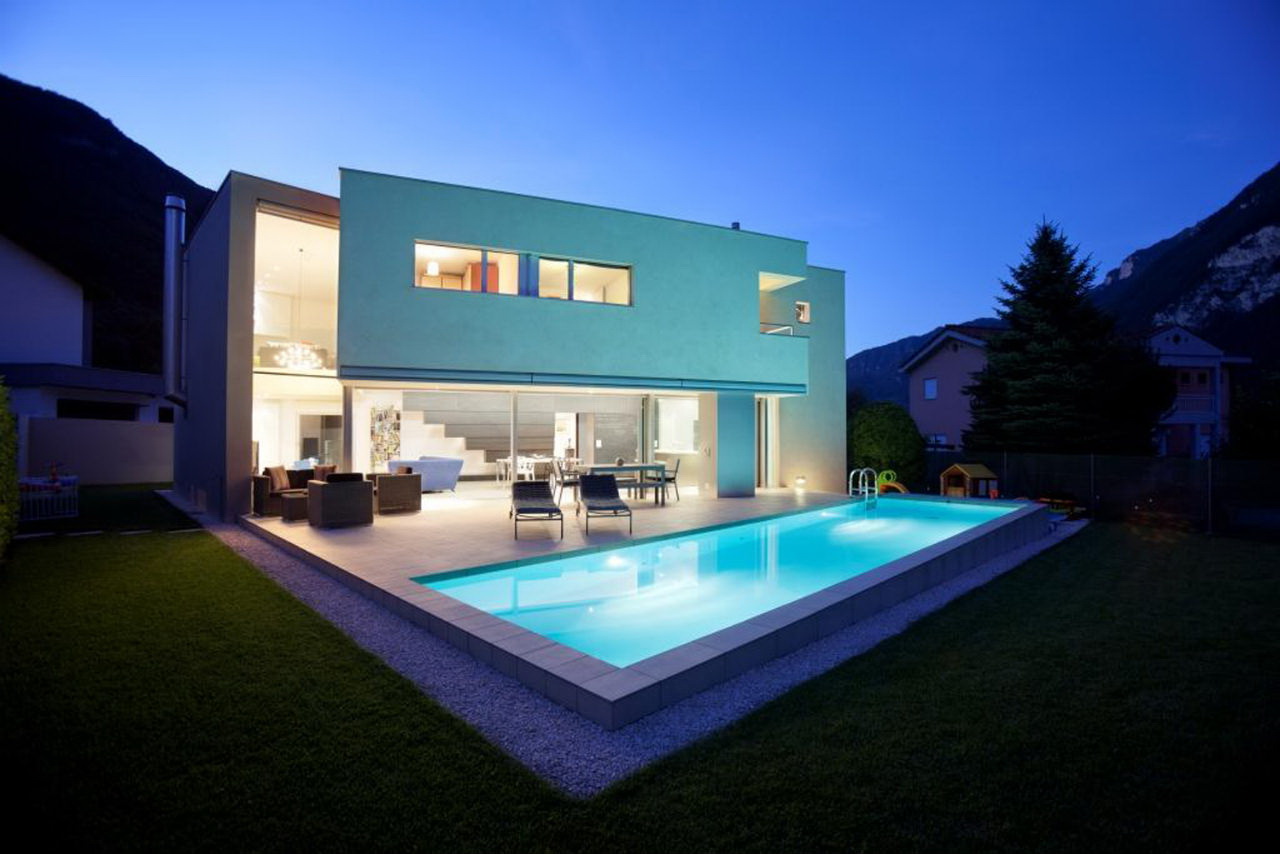

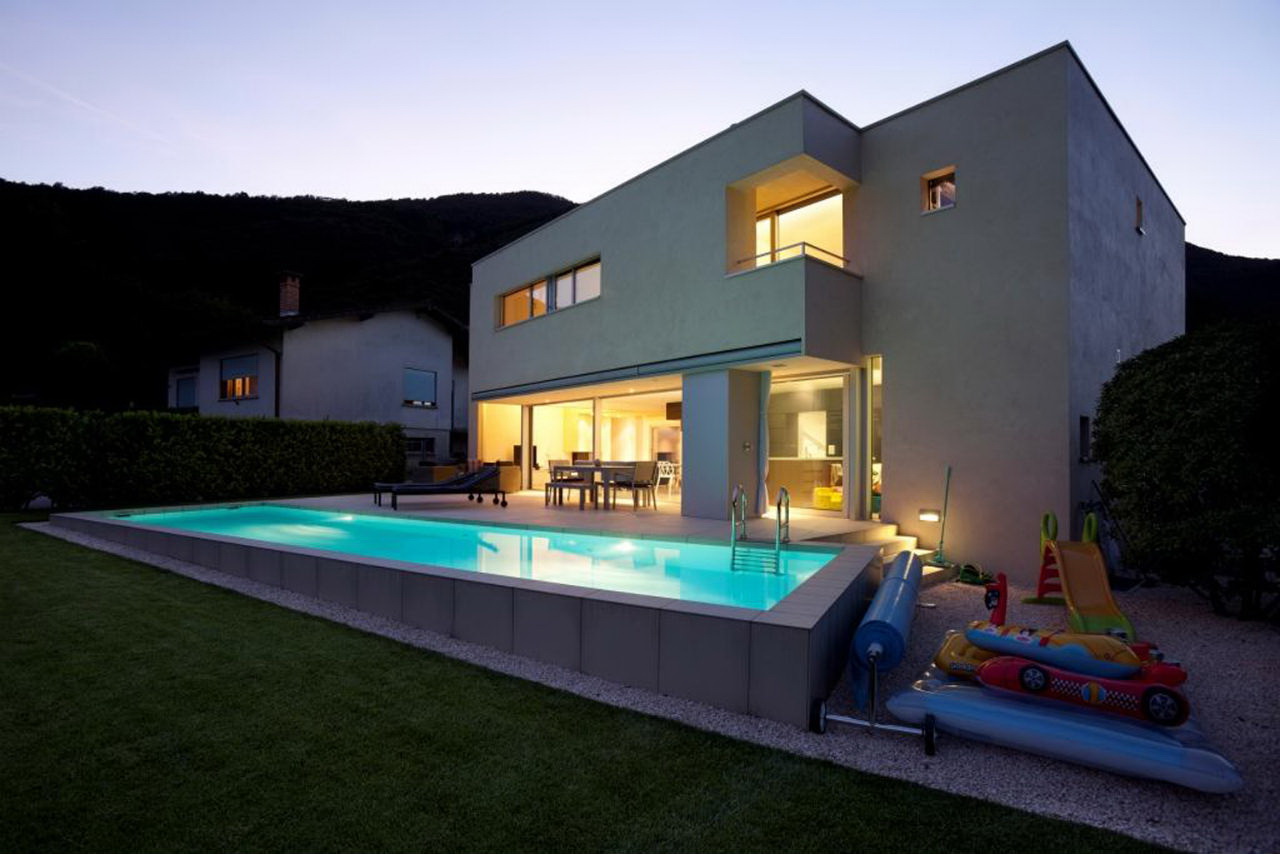

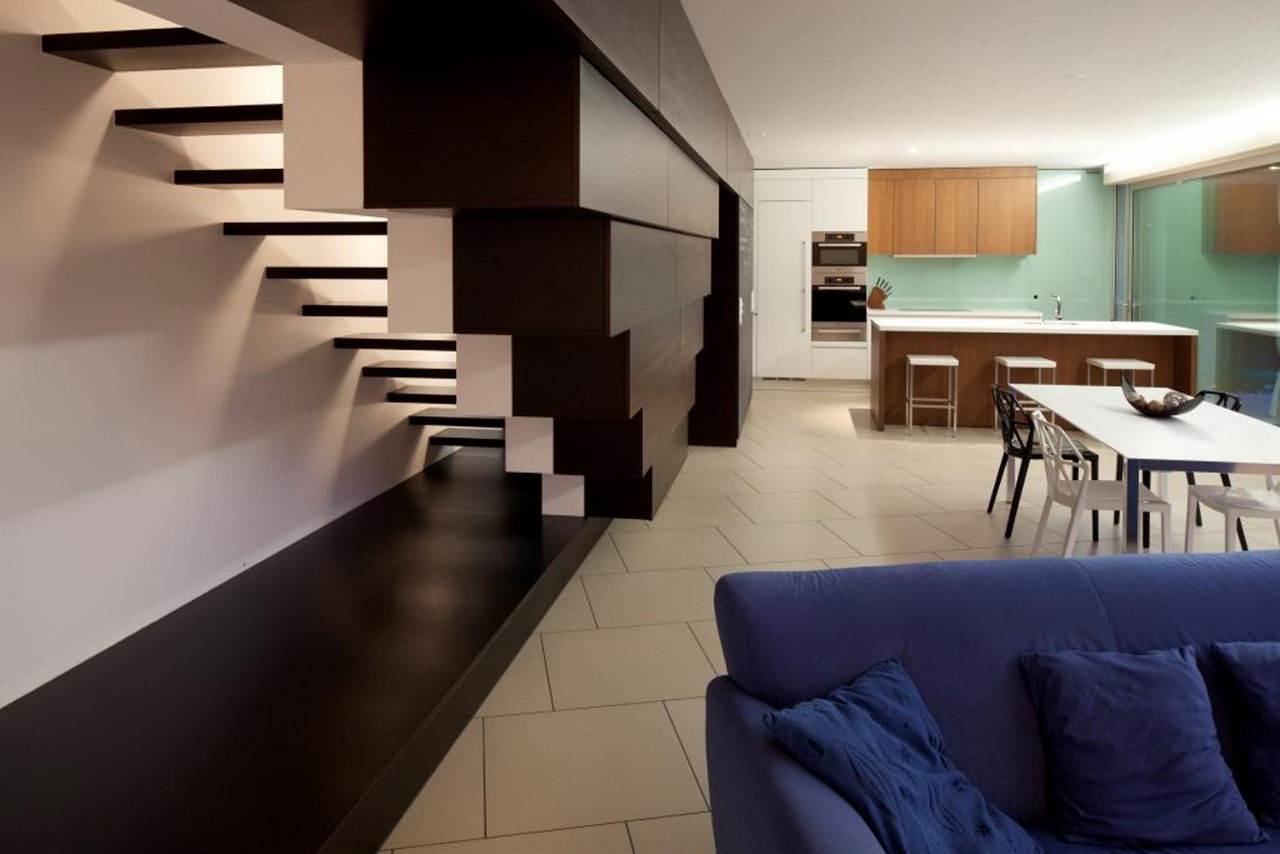

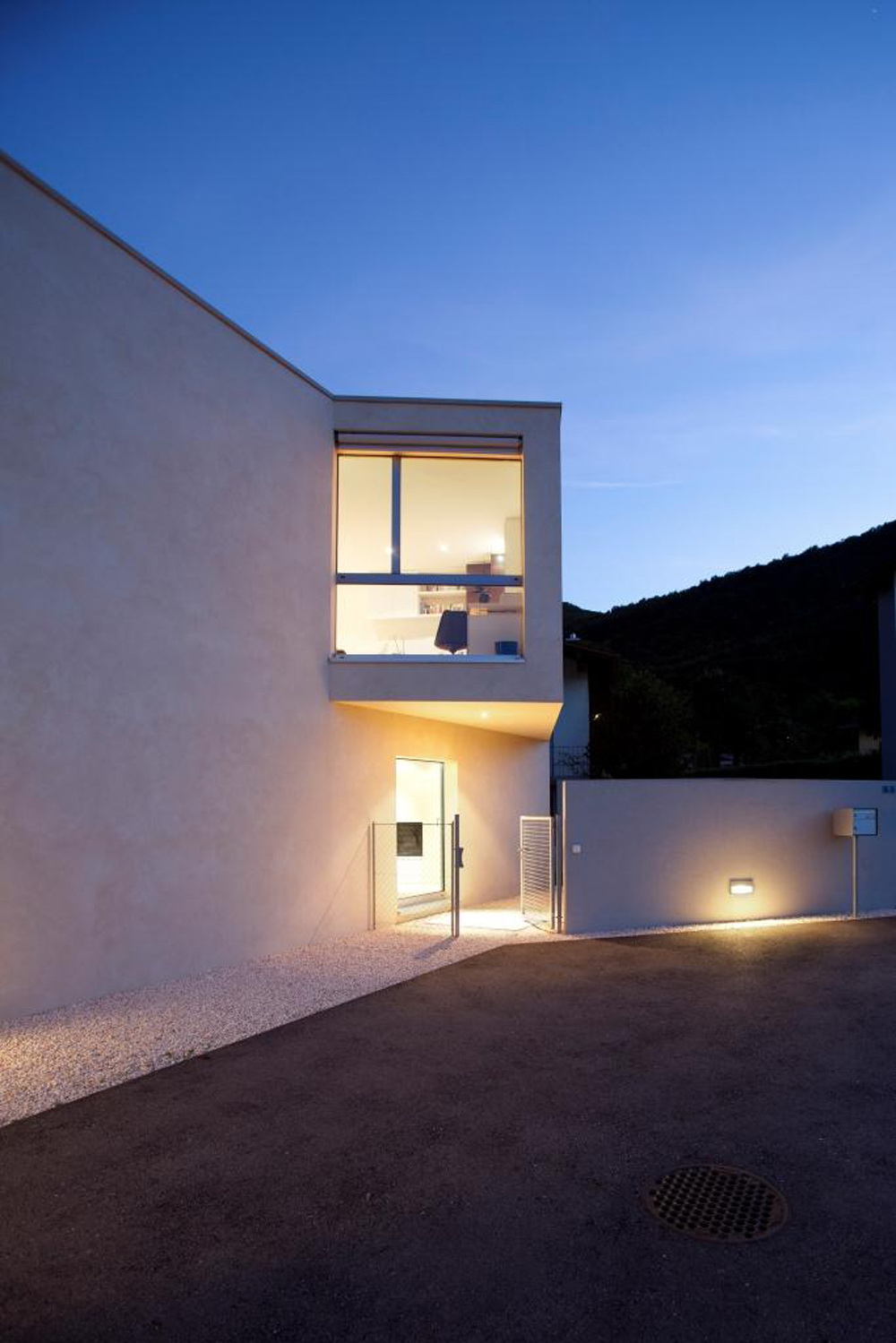

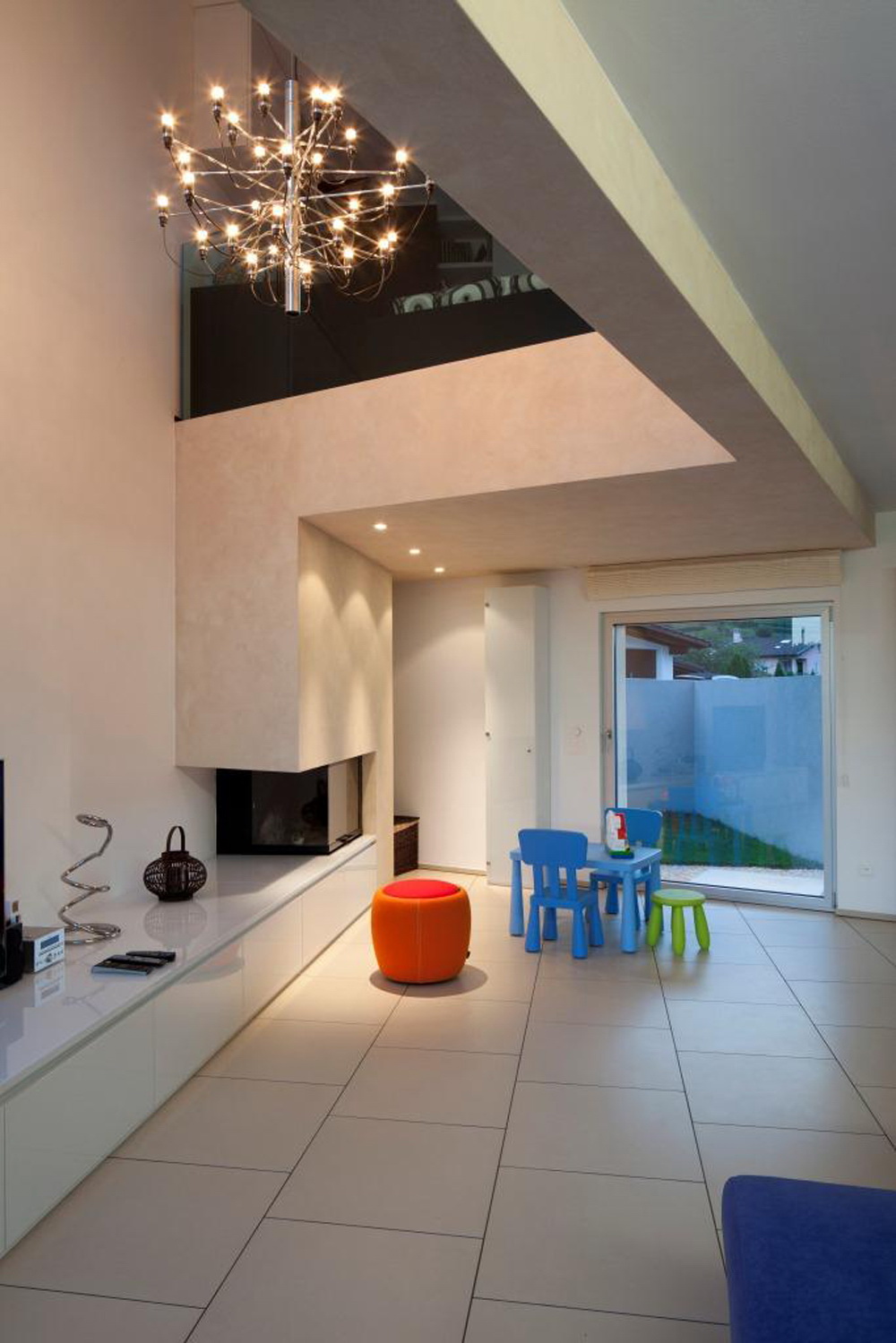

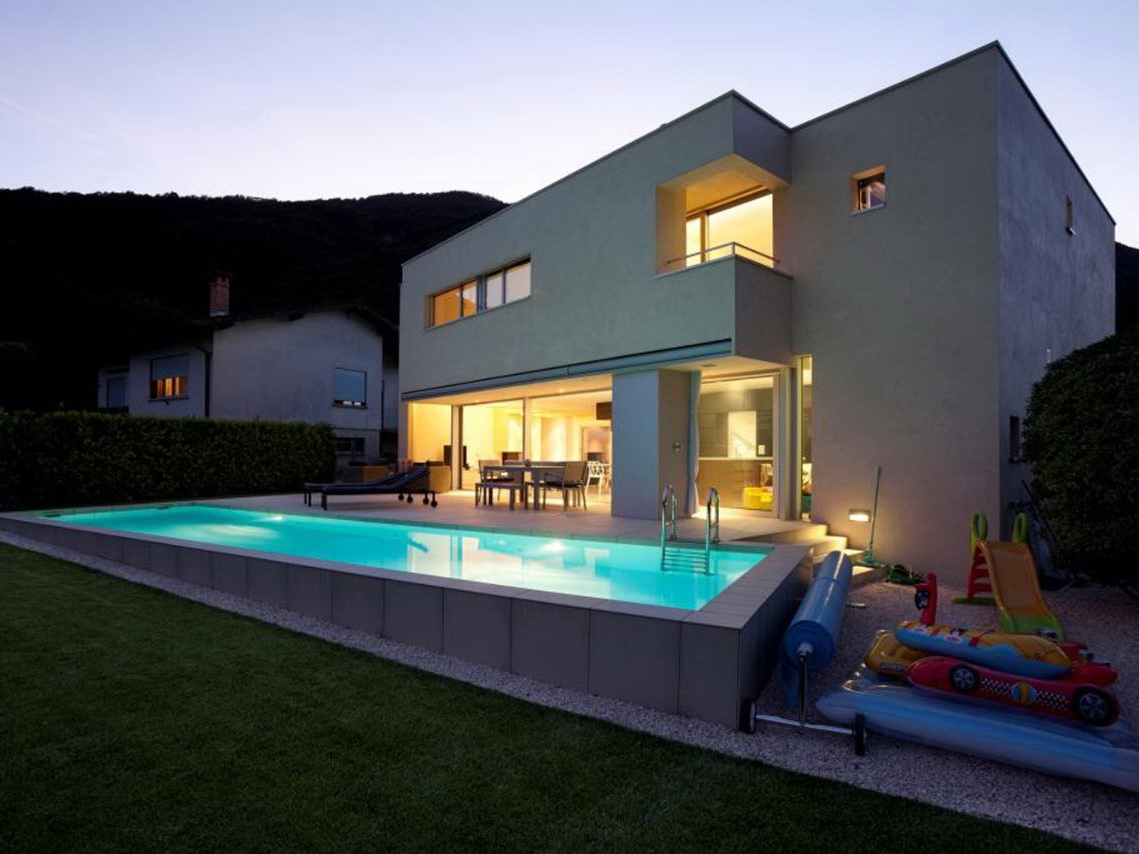

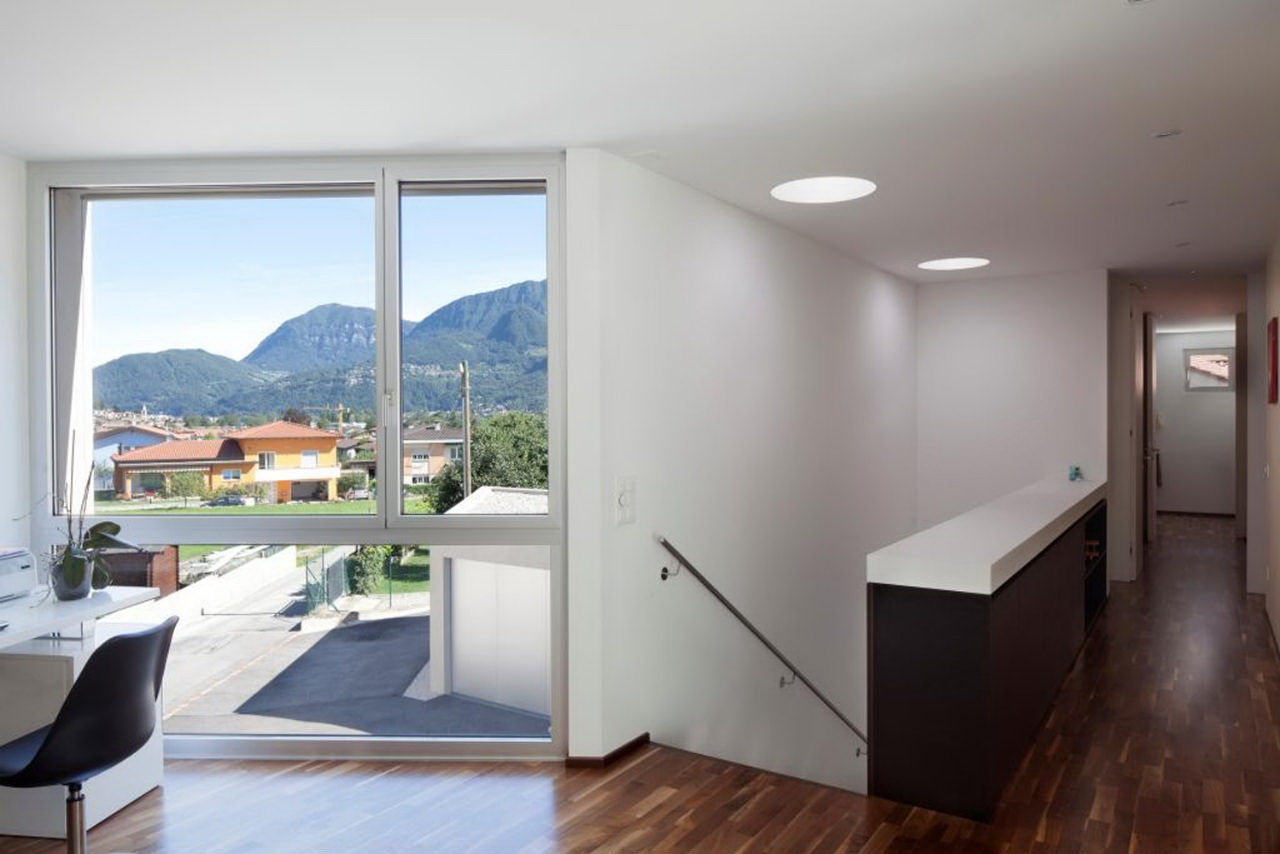

场地面积:640平方米  这个住宅的设计是最大限度地与周围世界的融合,它跟随着场地的轮廓延展,设计的布局和颜色受到周围宏伟的山体的灵感激发。首层占据场地的整个宽度,包含一个巨大的起居空间,开阔的玻璃门和材料的统一性使起居空间一直延伸到了泳池方向。二层的卧室向外悬挑,形成下方的门廊空间,它同时还向着另外两个方向悬挑,为主要的入口和通向庭院的路径提供遮阴。住宅正面主要朝着南侧,而其他三侧则包含很少的开口,这些窗户有很好的视角,是根据特定的室内功能进行设计的。这种设计保证了空间的隐私性。  This house is designed to merge, as best as possible, with the outside world. It follows the confines of the property and its layout and colors are inspired by the majestic mountains all around. The ground floor runs the entire width of the land and consists of one large living room. The broad glass doors and the uniform choice of materials make it possible to extend the living area as far as the swimming pool. The first floor, where the bedrooms are, protrudes outwards to form a portico below. It also protrudes at two other points to shade the main entrance and the access to the patio. The front of the house faces mainly south. There are fewer windows on the other three sides of the house and these have particular viewpoints and are designed according to the specific function of the interiors. This guarantees the right degree of intimacy in the more private rooms of the house.

圣维塔莱河住宅-2

圣维塔莱河住宅-3

圣维塔莱河住宅-4

圣维塔莱河住宅-5

圣维塔莱河住宅-6

圣维塔莱河住宅-7

圣维塔莱河住宅-8

圣维塔莱河住宅-9

圣维塔莱河住宅-10

圣维塔莱河住宅-11

圣维塔莱河住宅-12

圣维塔莱河住宅-13

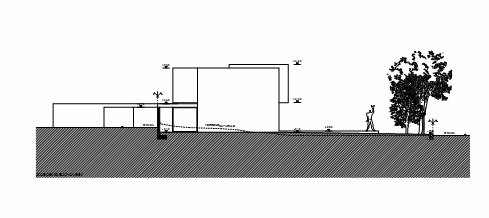

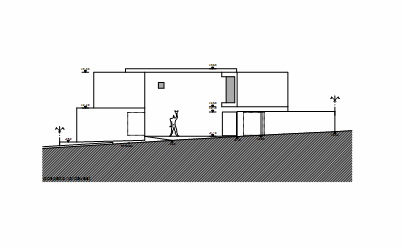

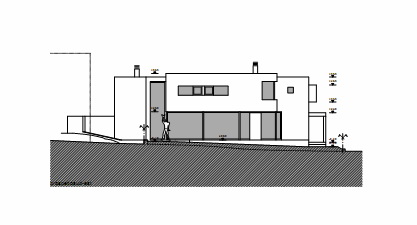

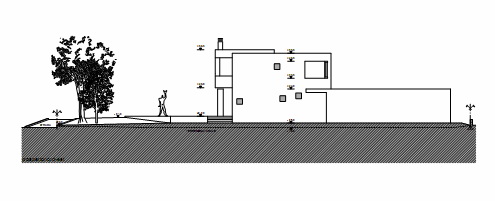

立面图01 elevations01

立面图02 elevations02

立面图03 elevations03

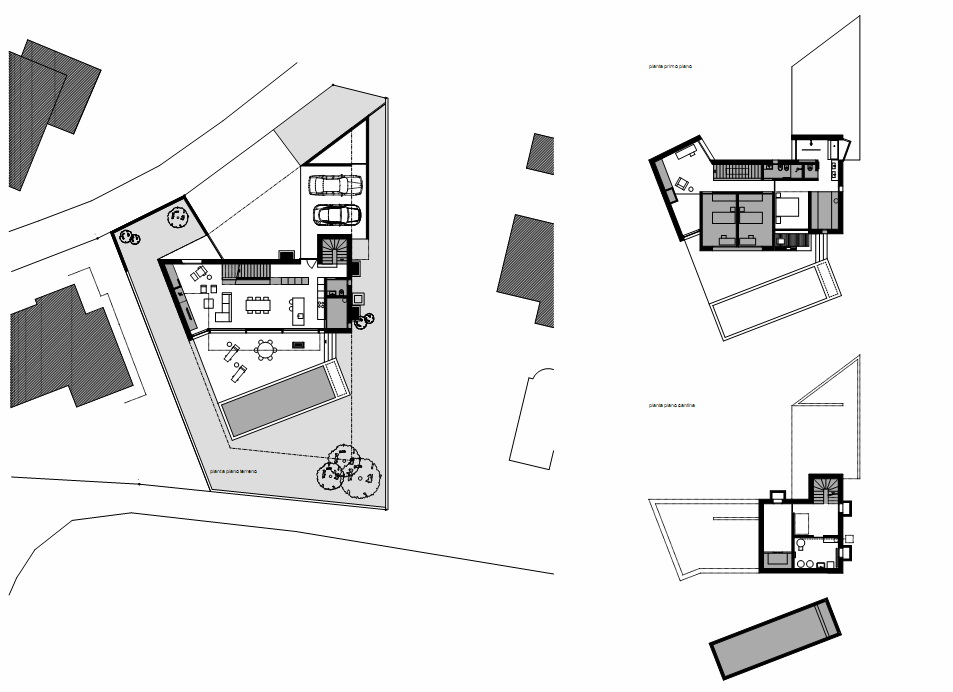

平面图 plan

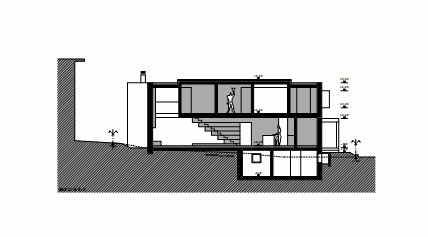

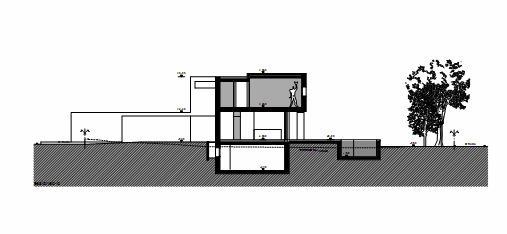

剖面图01 sections01

剖面图02 sections02

剖面图03 sections03

立面图01 elevations01

立面图02 elevations02

立面图03 elevations03

平面图 plan

剖面图01 sections01

剖面图02 sections02

剖面图03 sections03
