黄油工厂翻新

住宅

Rehabilitation Of The Old Butter Factory

设计方：M.S.B Architects建筑师事务所

位置：葡萄牙

竣工：2010年

分类：居住建筑

内容：实景照片

图片：16张


建筑面积：350平方米  Project area: 350 sqm   这是对原来的一个黄油工厂的翻新改造，改造后它将成为一个开阔的住宅空间。这是与众不同的一次翻新过程，因为改造将全部保留原来建筑的外表结构，只是将新结构插入旧结构之中，并在两者之间保留空隙，设置缓冲区。低层将被分为厨房，餐厅，和一个巨大的起居空间；顶层将是三个主卧。   Located in a residential neighborhood of single family houses， the old butter factory has the characteristic image of the other houses surrounding it， defined by a typical architecture， with simple constructive technics. The existing buildings are in an advanced state of disrepair. However， taking into consideration the architectural interest of the volume of the former factory it is our desire to recover what currently exists. Thus we rehabilitate the building in its pathologies， strengthening the structure of their walls， repair the roof， and ensure their finishes. The interior of the old factory will be completely redone. The two floors will be kept at the same level. The lower floor is divided into a kitchen， den and a large living room. The top floor will house 3 bedrooms en suite.


黄油工厂翻新-2


黄油工厂翻新-3


黄油工厂翻新-4


黄油工厂翻新-5


黄油工厂翻新-6


黄油工厂翻新-7


黄油工厂翻新-8


黄油工厂翻新-9


黄油工厂翻新-10

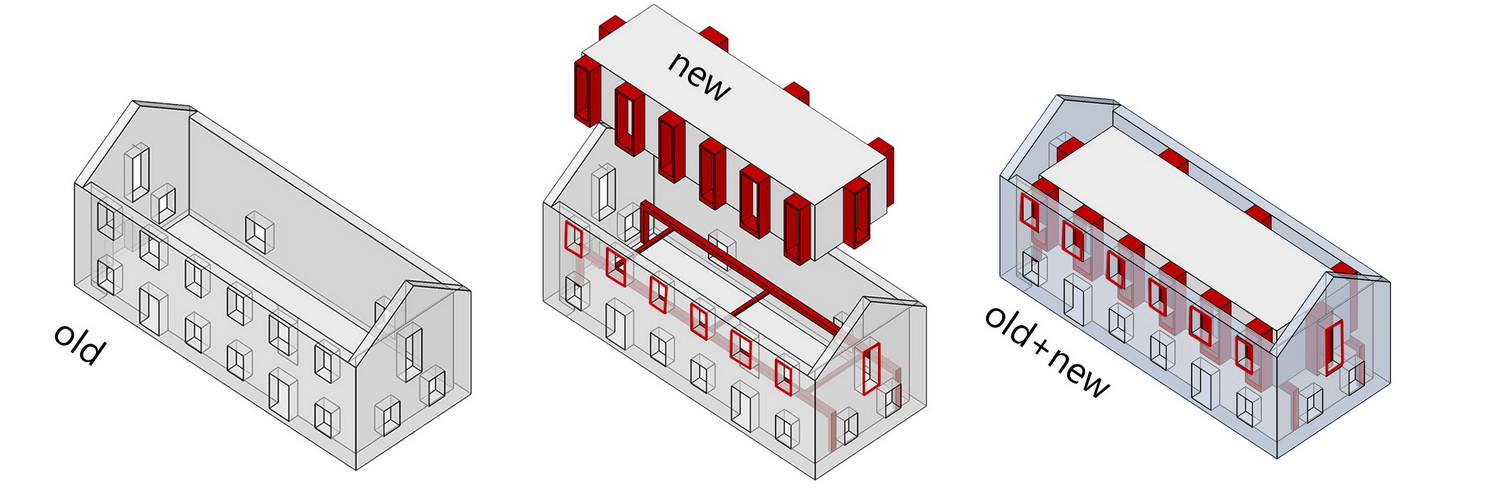

模型 models

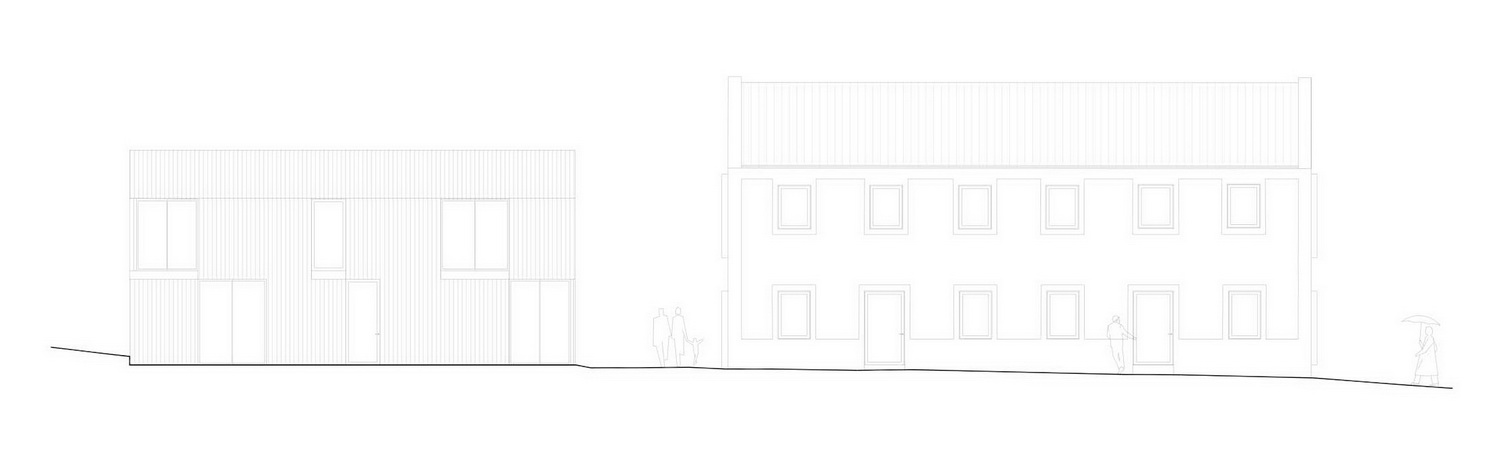

南立面图 south elevation

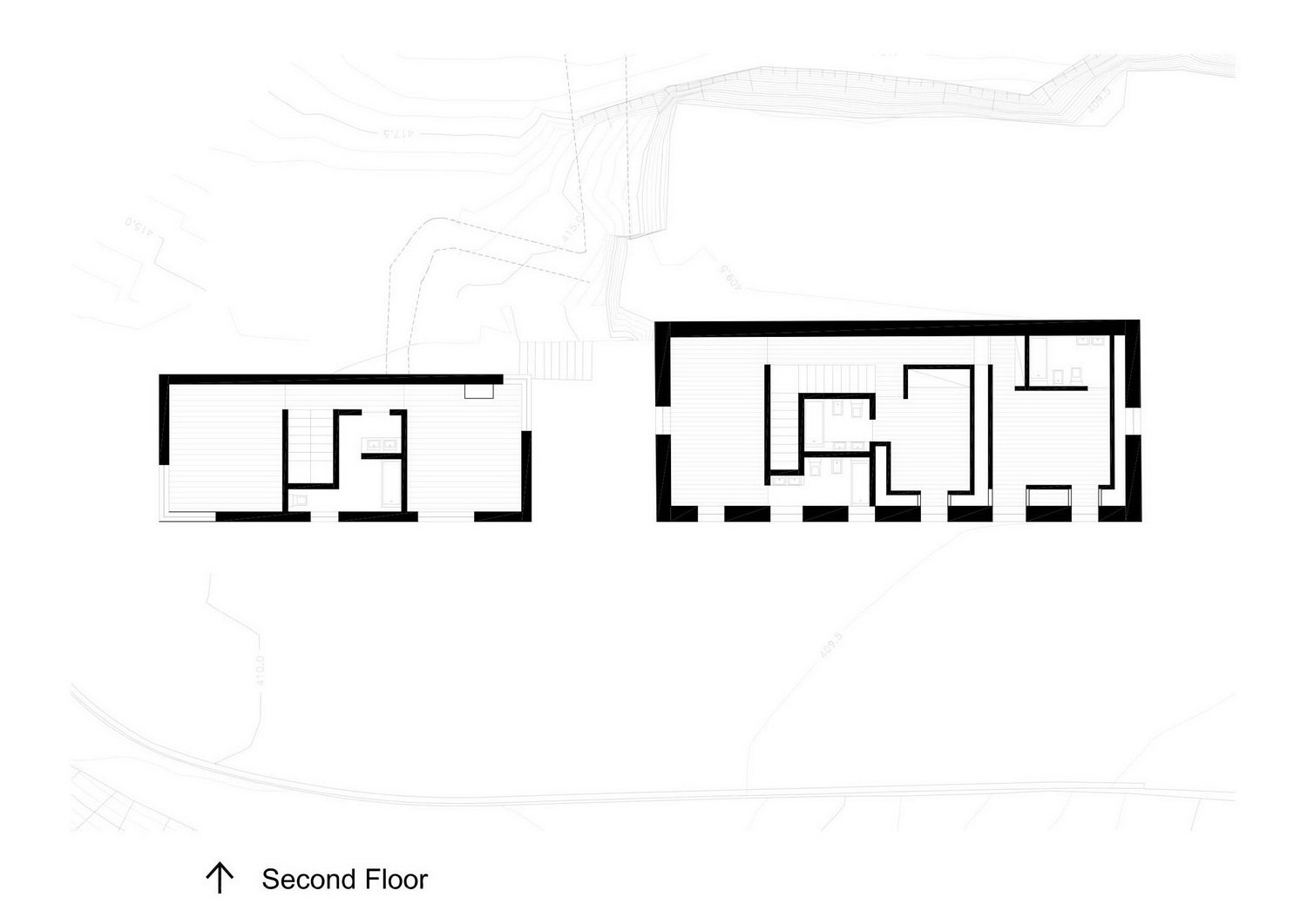

三层平面图 second floor plan

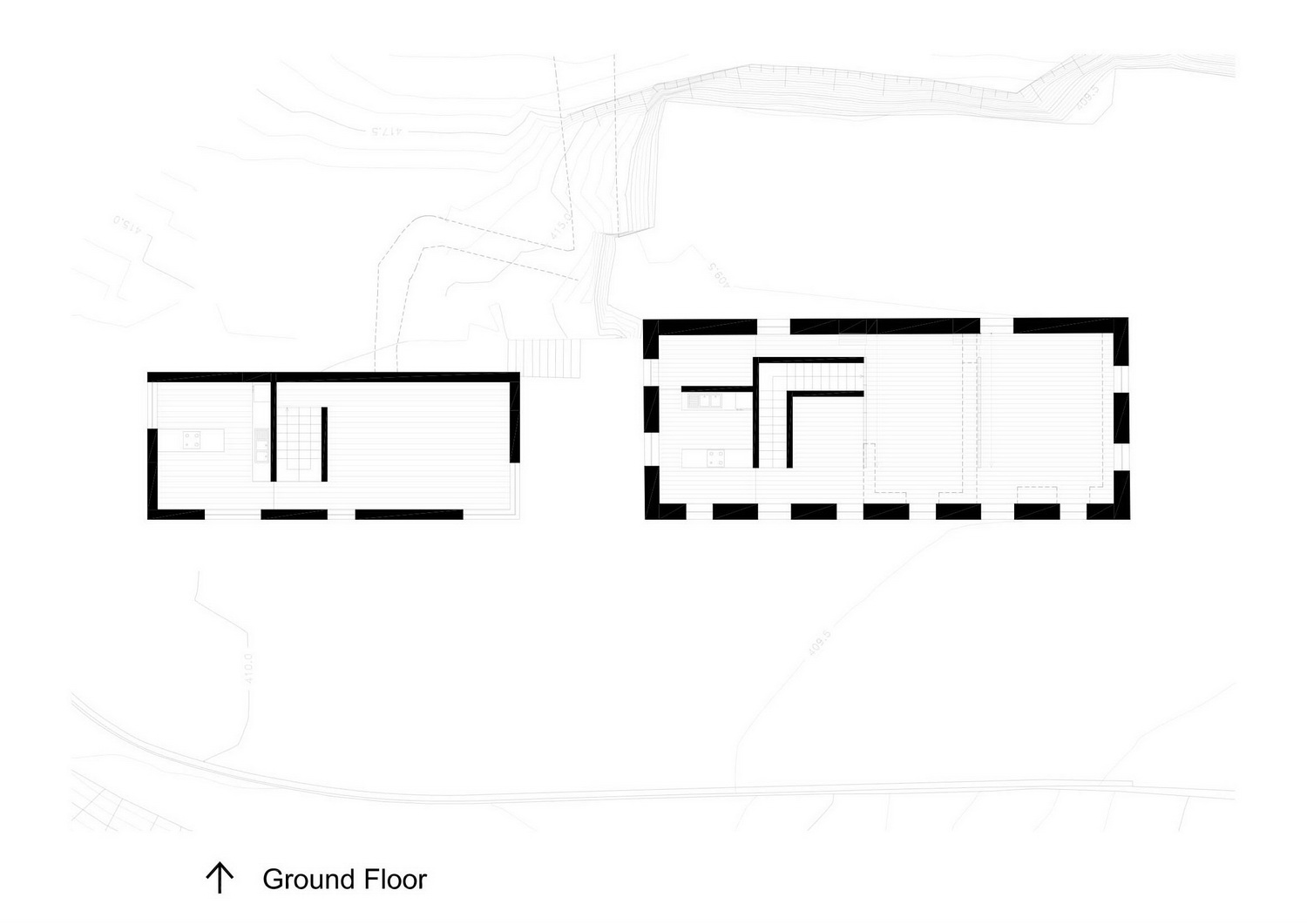

首层平面图 ground floor plan

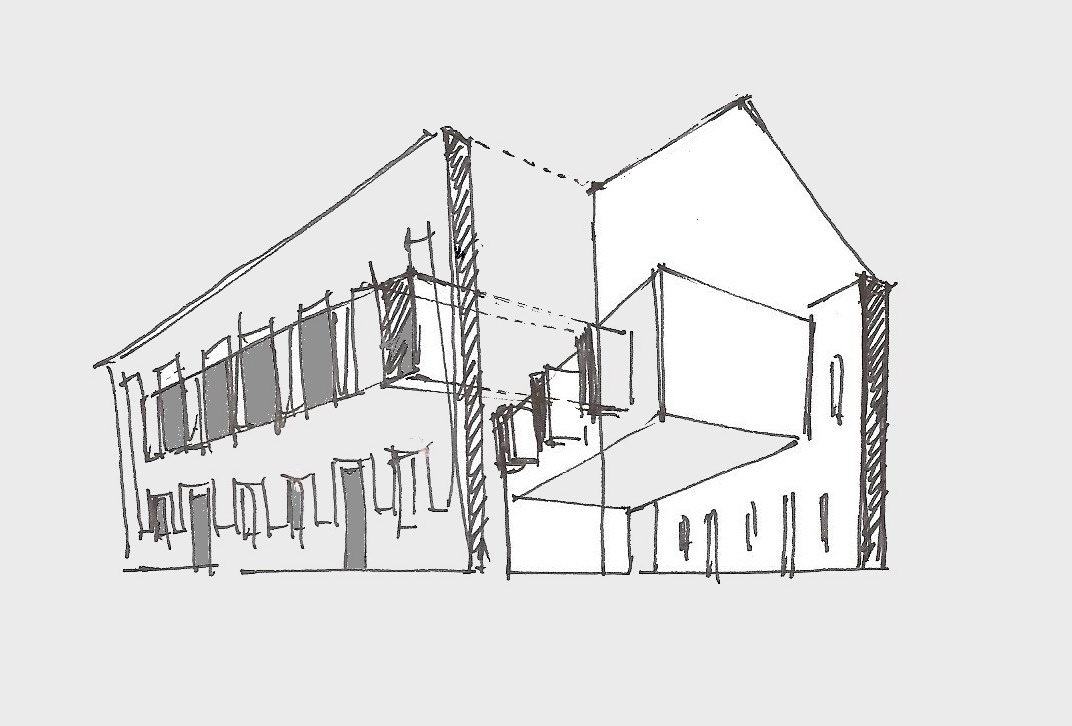

图纸 drawing

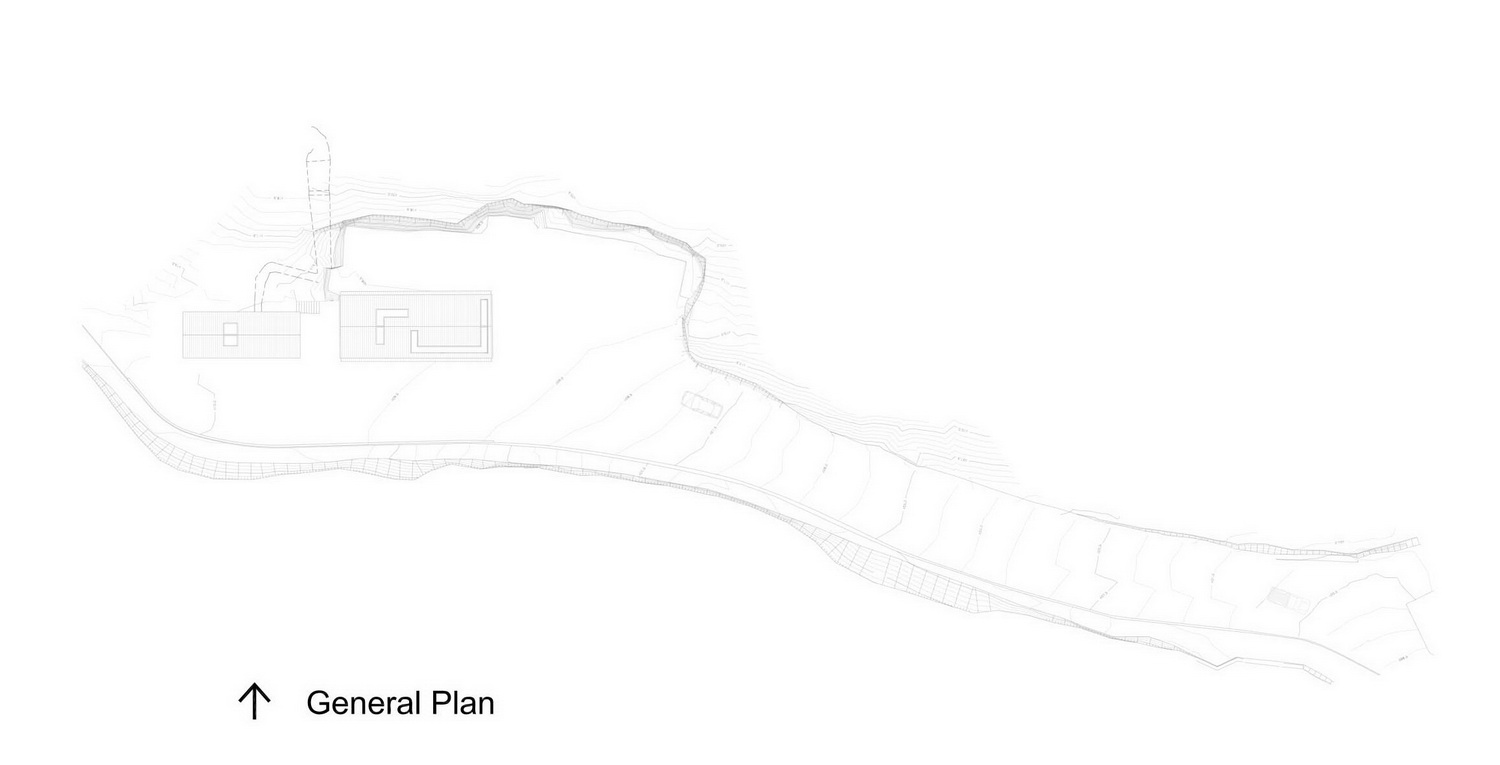

总平面图 general plan
