Chile Suarez cabin

设计方:Arq2g arquitectura

位置:智利

分类:居住建筑

内容:实景照片

图片:16张

摄影师:Arq2g arquitectura

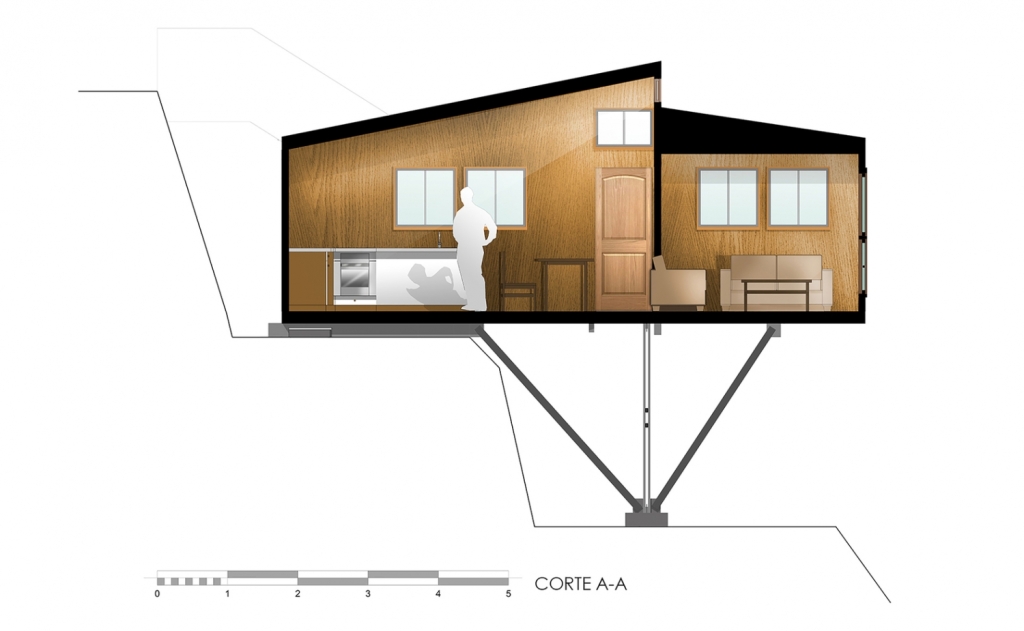

这是一栋居民自建的社会住宅,它是一个翻修项目,这个翻修项目是在2013年瓦尔帕莱索大区发生火灾后提出的。小屋的平台或露台在上述的火灾中受到了损害,它们的面积也是修建一栋住宅所允许的最小面积。Suarez 先生和太太是老年人,所以小屋的主要入口要尽可能的接近入口楼层,入口楼层在二楼。二楼是面对着峡谷的第一级。小屋的修建要使用位于地面上的头两个平台,平台比街道平面低三米。  在这样的情况下,小屋的承重结构有必要依附于原始的平台,这是必须遵守的规则,而生活空间就被计划修建在这个庞大而又自然的峡谷的斜坡上。同样地,小屋和自然生活环境之间的关系也是通过几何理性容量分析和瓦尔帕莱索的自然有机外形之间的对比创造出来的。除了被计划成为峡谷一部分的结构外,小屋所有的房间都像是空虚的一部分。小屋剩下的部分就坐落在一个木结构上,形成了一个生活空间,它假装拥有一个连续的形状,综合了上部的光源,使用并利用了场址提供的美丽风景。  译者:蝈蝈  This self-built social house, correspond to a reconstruction program at the existing client owned lot, which was raised after the fire occurred in Valparaiso on 2013.Platforms or terraces of the houses, which suffered the mentioned fire, are the minimum one to allow emplacing of a house. Beside the Mr. and Ms. Suarez are older people, that are why the house should have its main access as close as to the entrance elevation, which is the second floor. The second floor has the purpose to act as the first level facing the gorge.The house is set in a way to use the first two platforms of the ground, at a -3mts level from the street elevation.  In this way, the house supports comply with the necessity to be attached to the existing platforms, where the living space is projected at the slope of this enormous and natural gorge.Likewise, the relation between the house and the nature living surrounding is by contrasting the geometrically rational volumetry in opposing to the natural organic shapes belonging to Valparaiso.The whole housing is conformed as a part of the emptiness instead the structure be projected in to the gorge. The rest of the house is based on a wood structure forming a living space that pretends to have a continuous shape, integrating upper light sources, using, and taking advantage of the great landscapes offered by this location.

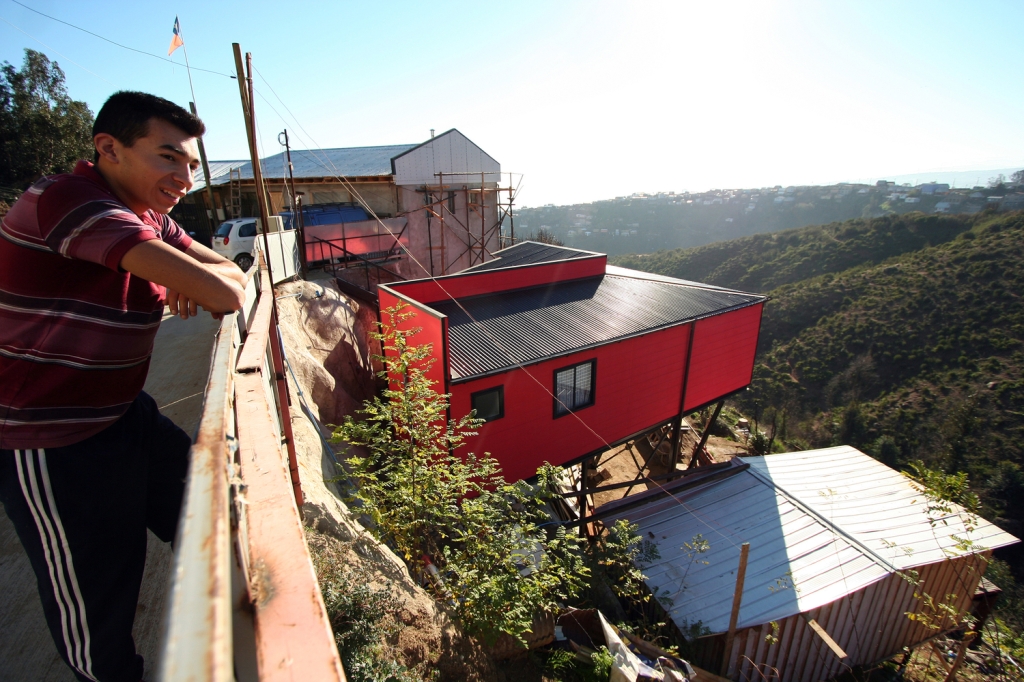

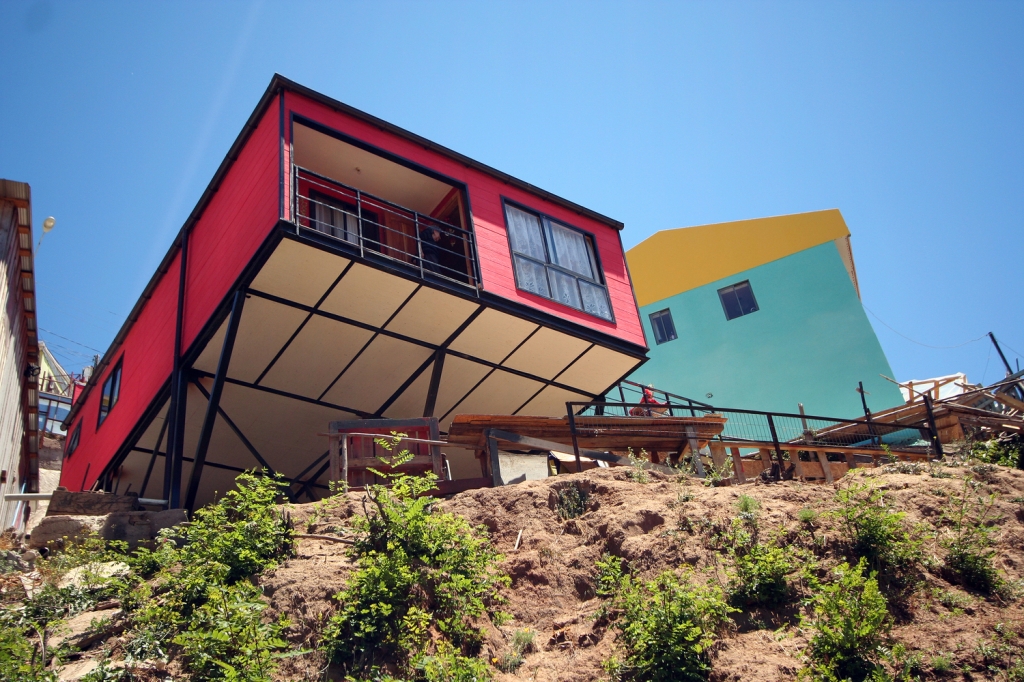

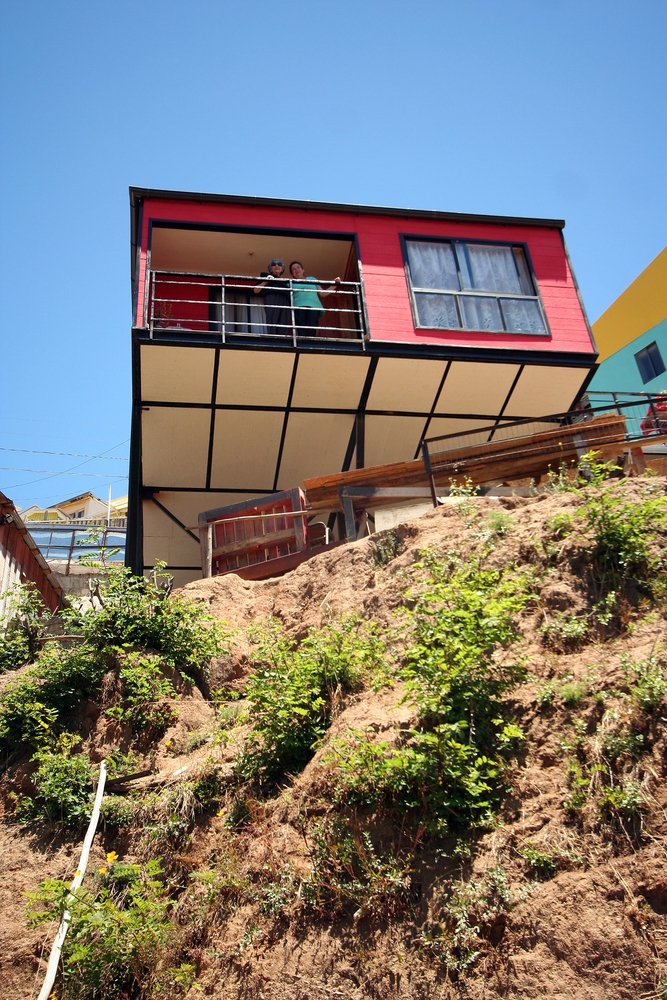

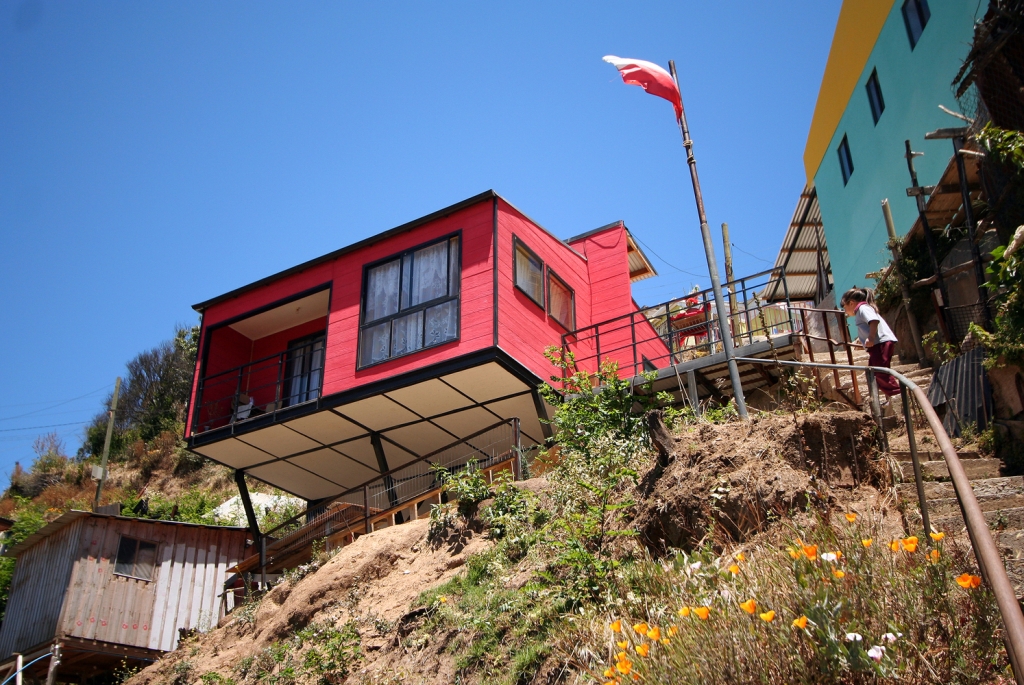

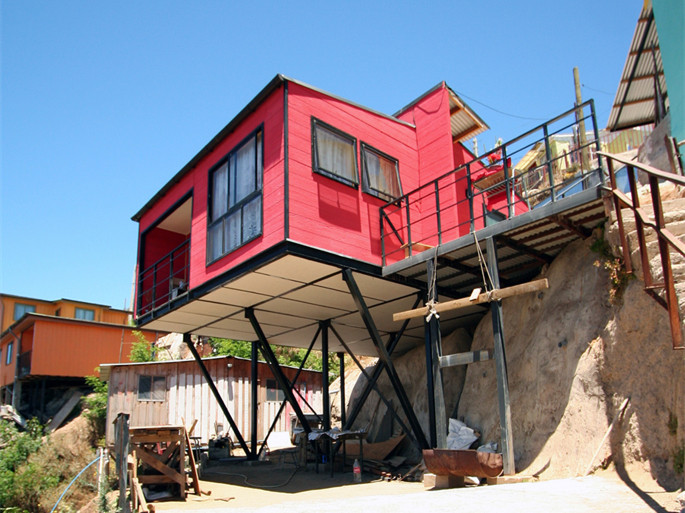

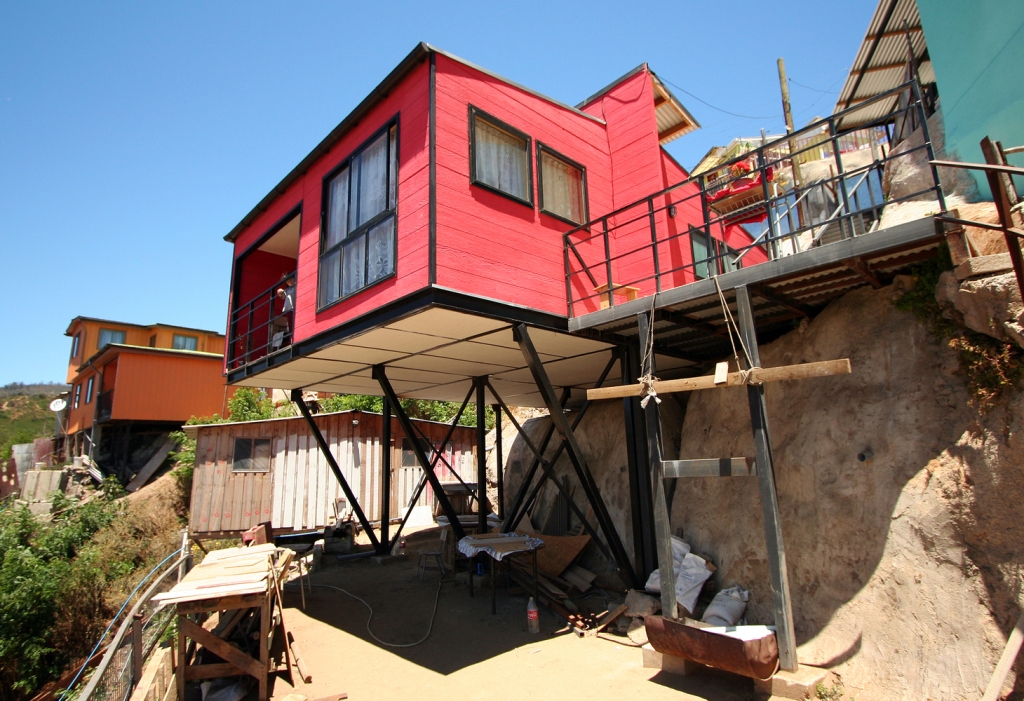

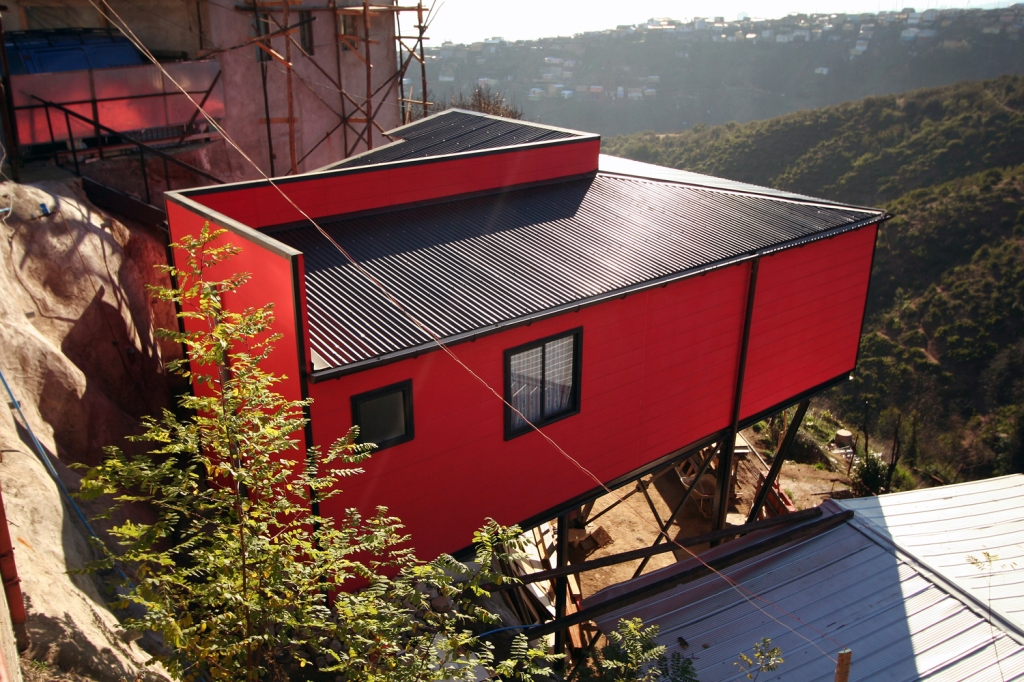

智利苏亚雷斯小屋外部实景图

智利苏亚雷斯小屋外部实景图

智利苏亚雷斯小屋外部实景图

智利苏亚雷斯小屋外部实景图

智利苏亚雷斯小屋外部实景图

智利苏亚雷斯小屋外部实景图

智利苏亚雷斯小屋外部实景图

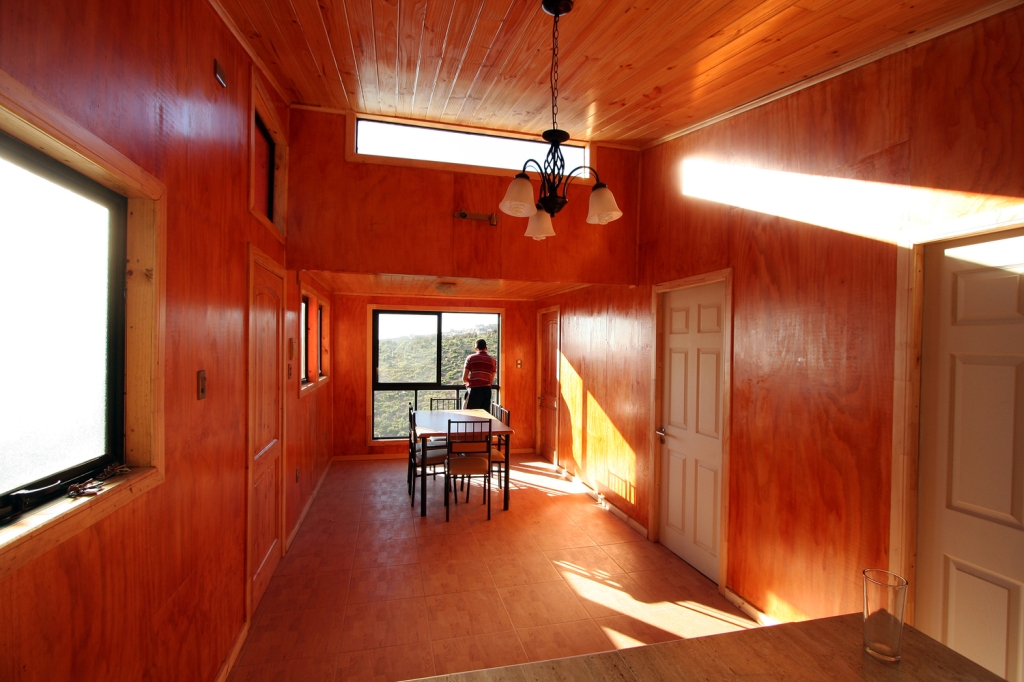

智利苏亚雷斯小屋内部实景图

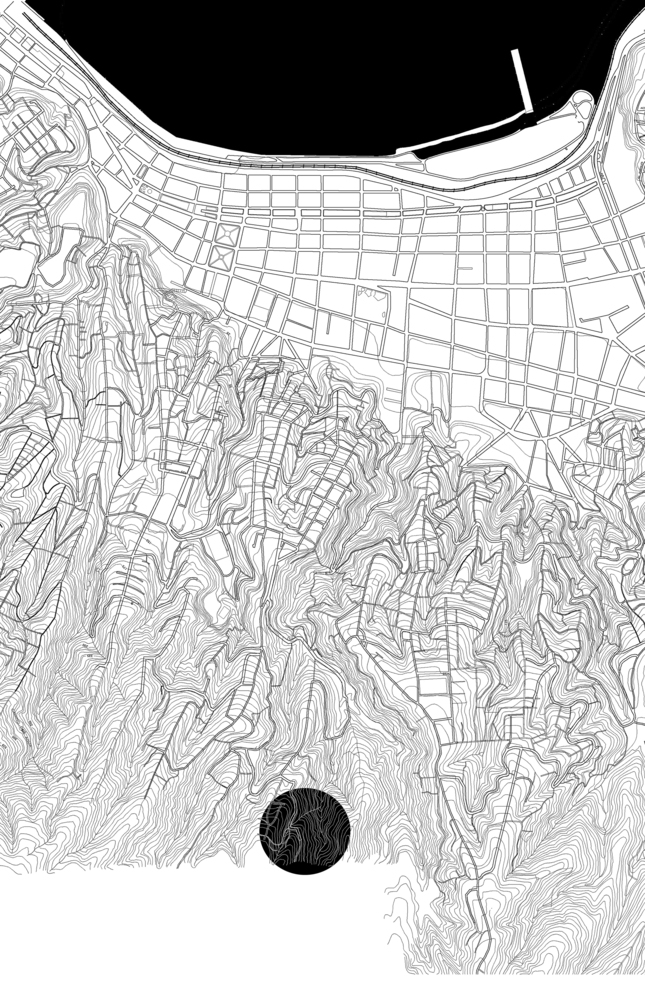

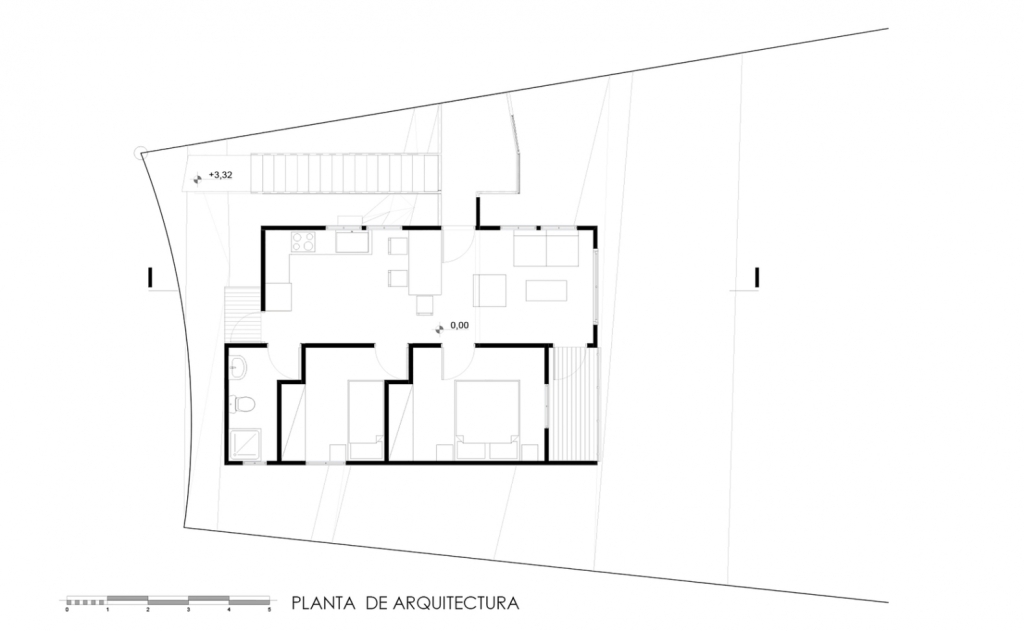

智利苏亚雷斯小屋平面图

智利苏亚雷斯小屋平面图

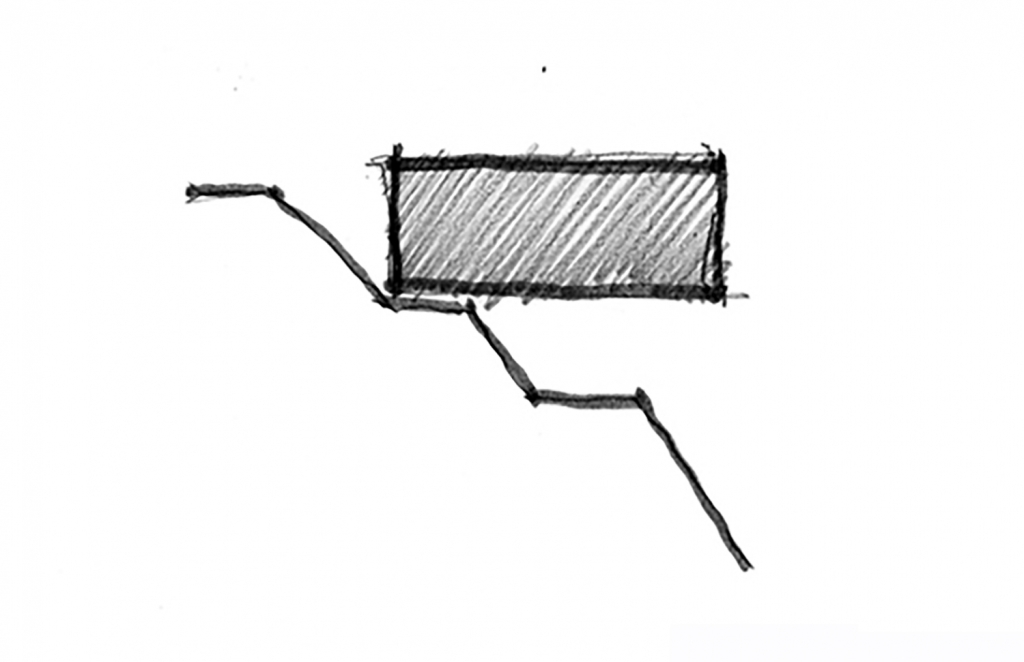

智利苏亚雷斯小屋略图

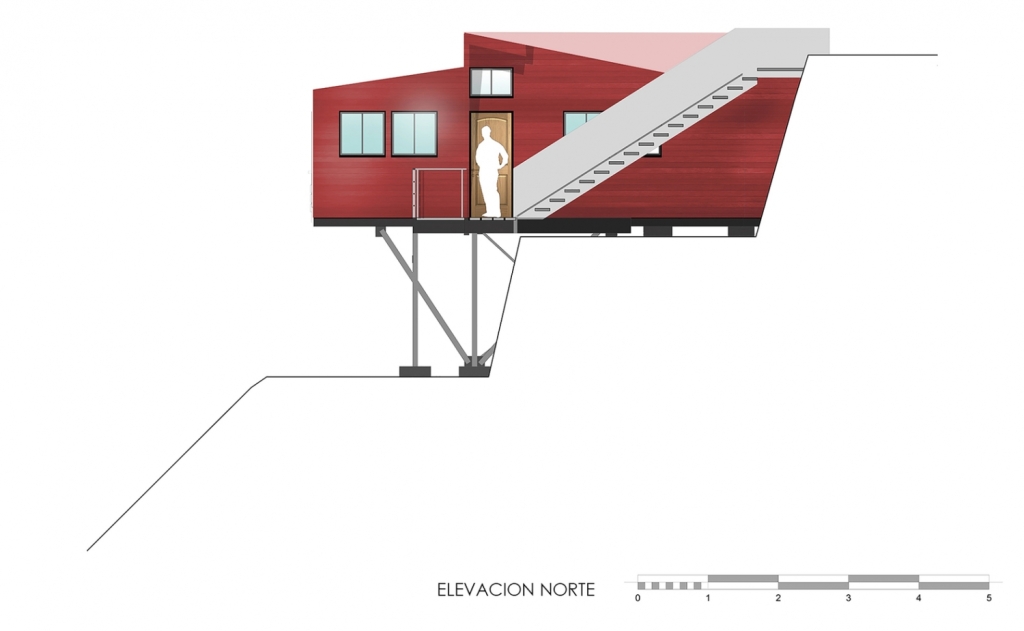

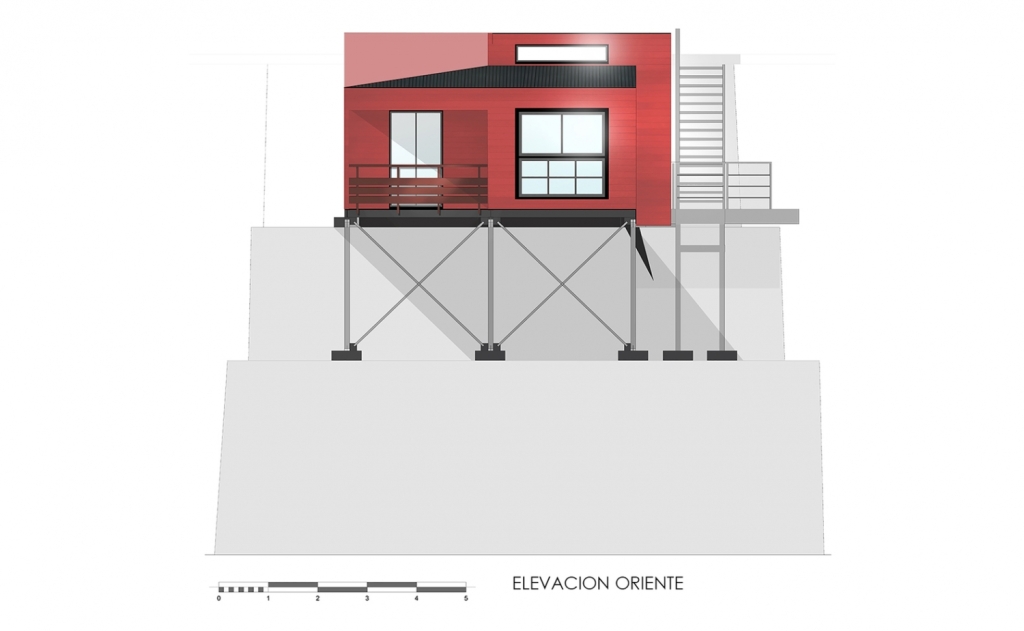

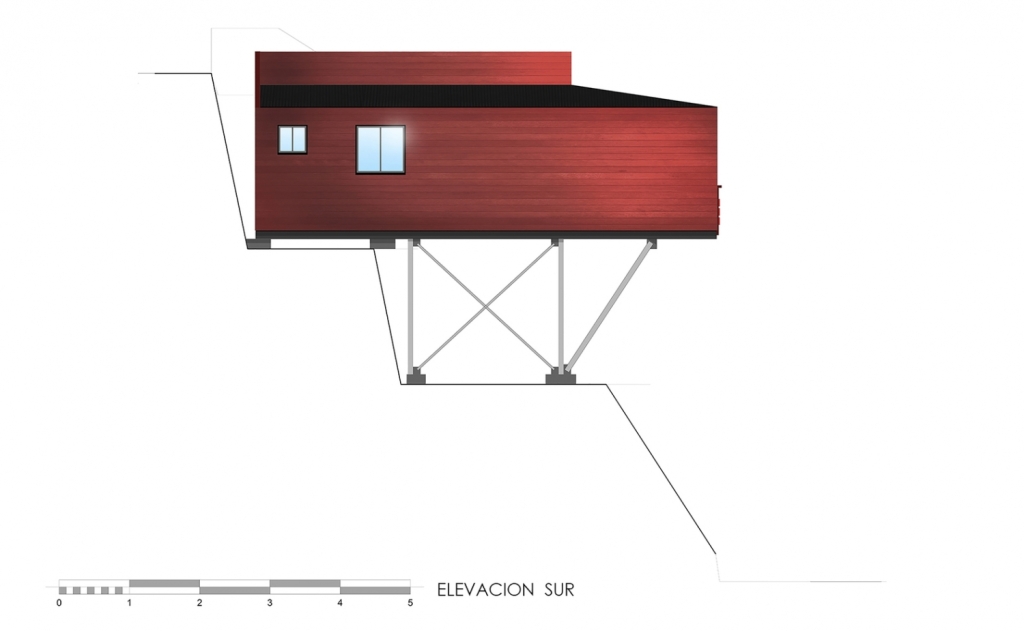

智利苏亚雷斯小屋立面图

智利苏亚雷斯小屋立面图

智利苏亚雷斯小屋立面图

智利苏亚雷斯小屋立面图
