Iran MW7 Apartment house
设计方:ARAD
位置:伊朗
分类:居住建筑
内容:实景照片
设计团队:Padideh Teimourian , Niloofar Niksar , Behzad Barzegar , Majid Pajuhi, Fereshteh Assadzadeh
图片:23张
这个项目包含了8套住宅公寓,310平方米的区域被设置在了两个不同的区域。在第六层楼中间有一单个空间楼层,底部有五层楼,六楼的上部还有三层楼,中下部楼层由白色的、有雕刻的洞石制成,这些公寓用于售卖或出租。上部楼层由深黑色的、热的白蜡木制成,这是为客户及其家庭设计的生活空间。第六层楼是为客人准备的,包含了联谊室。客房和50平方米的阳台面对着南部,这强调了上部楼层和中下部楼层之间的差异。 一楼是入口大厅,包含了一个多功能大厅和一个设备齐全的家庭影院,这可以用来举办家庭仪式。地下室的负一层中有一个停车场,停车场有18个停车位,负一层中还有一个装有柴油发电机和电气设备的电配室,供紧急状况使用。另外,负一层中还有四个储藏室。游泳池、极可意按摩浴缸、健身室、主要的机械室和一些储藏室则位于地下室的负二层中。在建筑体量的顶上有一个屋顶花园,这里有供空闲时间和聚会使用的全套配套设施。 译者:蝈蝈 This structure has built in 8 residential apartments with 310 sq. meters area that are placed in two different zones and a single spatial floor in between at sixth level, five stories in the bottom and three on the top of sixth floor, the lower part made of a white carved travertine stone and these apartments are for sale or rent, the upper part is made of dark grey thermo ash wood which designed for the client’s family to live.Sixth floor has designed for guests, including party room; guest room and a 50 sq. meter terrace looking south witch emphasize the variance between two objects on the top and the bottom. Ground floor is the entrance lobby that is compound with a multi-purpose hall and a home theater in full facilities in side which is ready for family ceremonies.Car parks are located in the basement -1 for 18 park positions and there’s an electrical room for emergency diesel generator and electrical devises added to four storages in this floor. Pool, Jacuzzi, gym, main mechanical room and some storage located in basement -2. On the top there’s a roof garden with full facilities for leisure and parties.

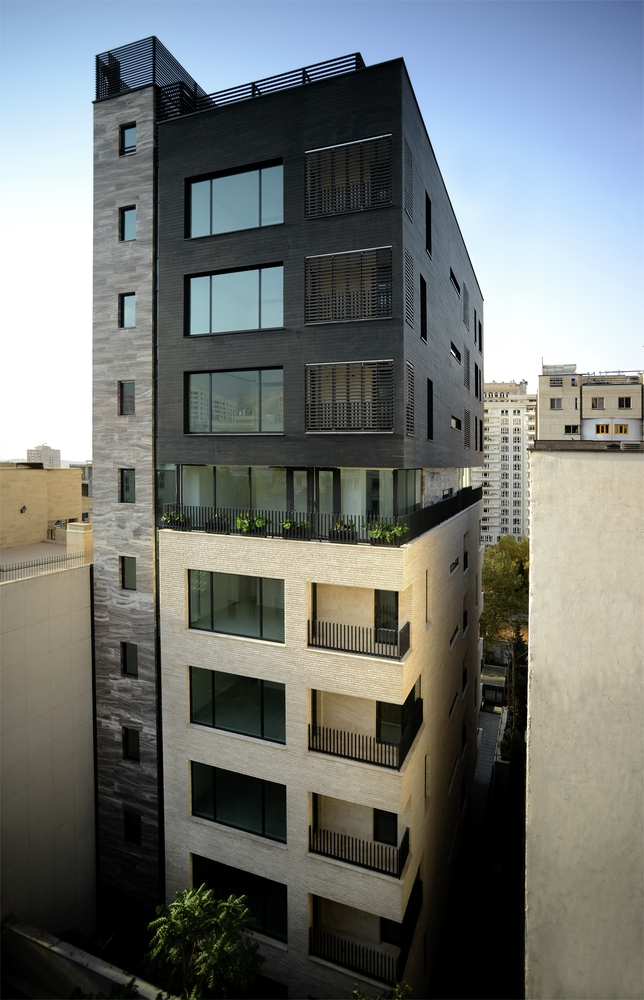

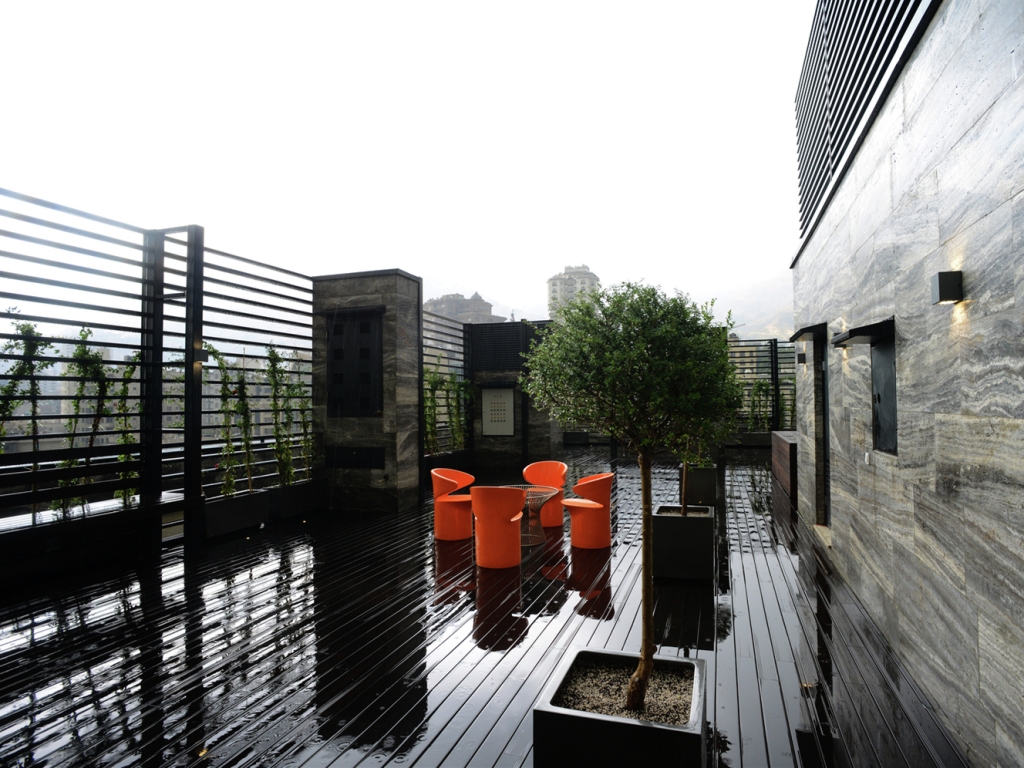

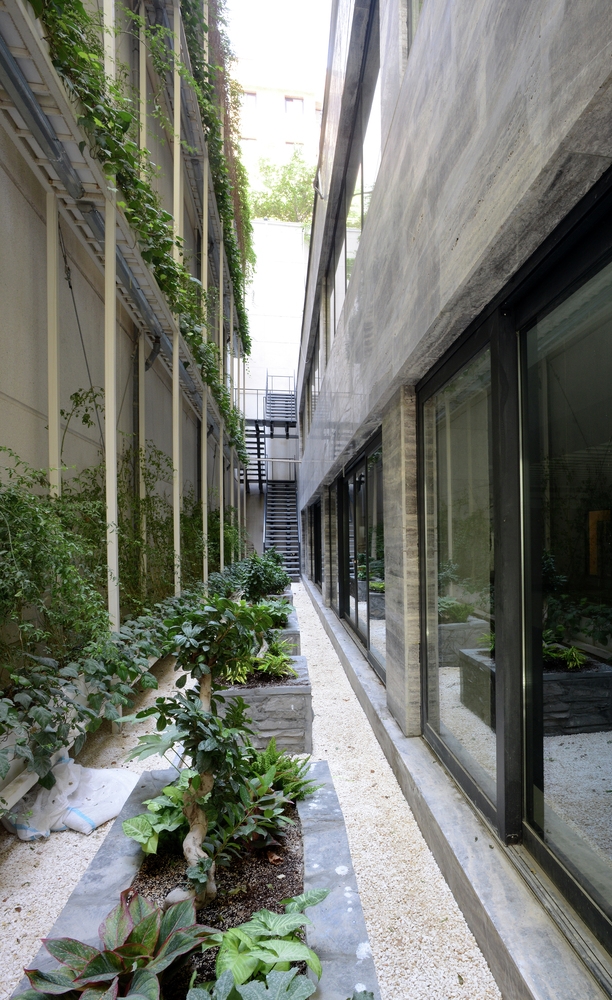

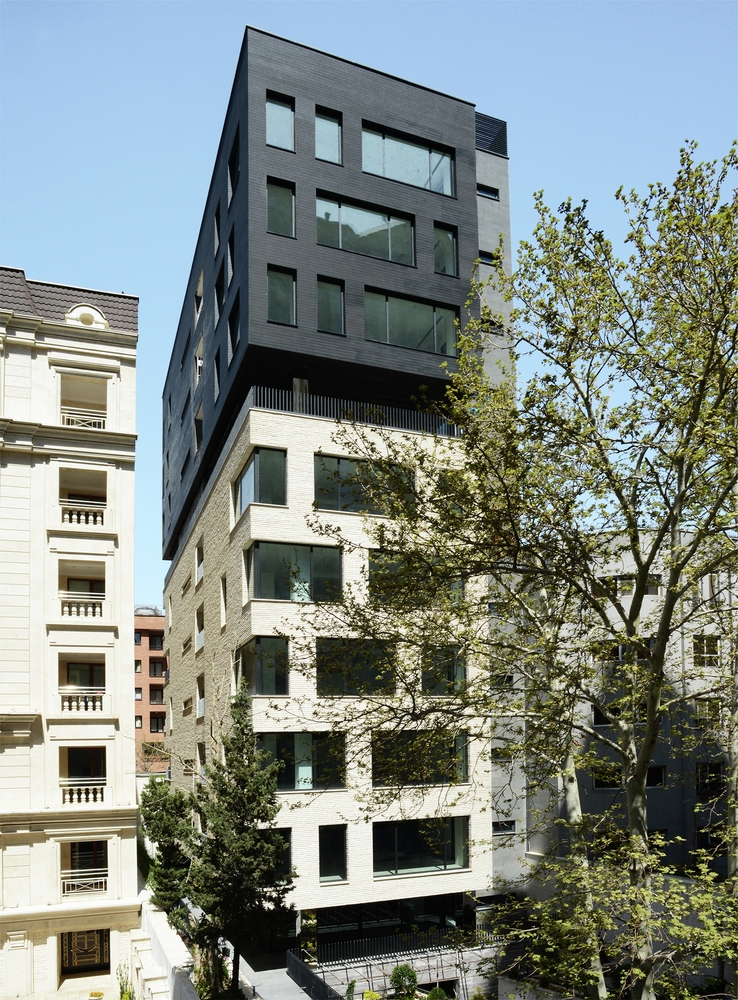

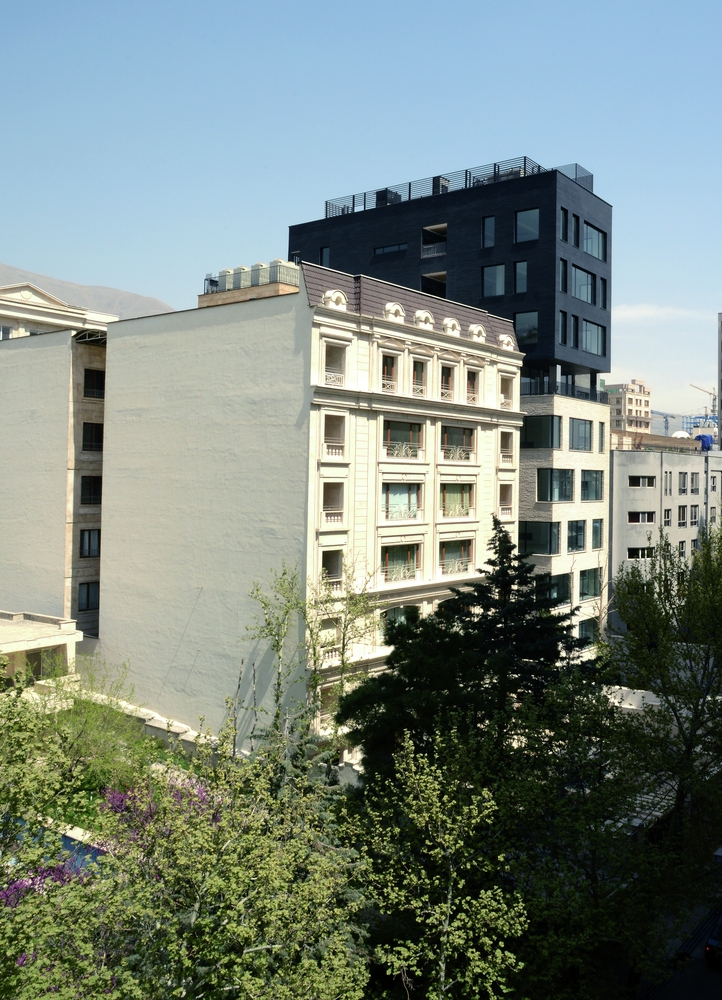

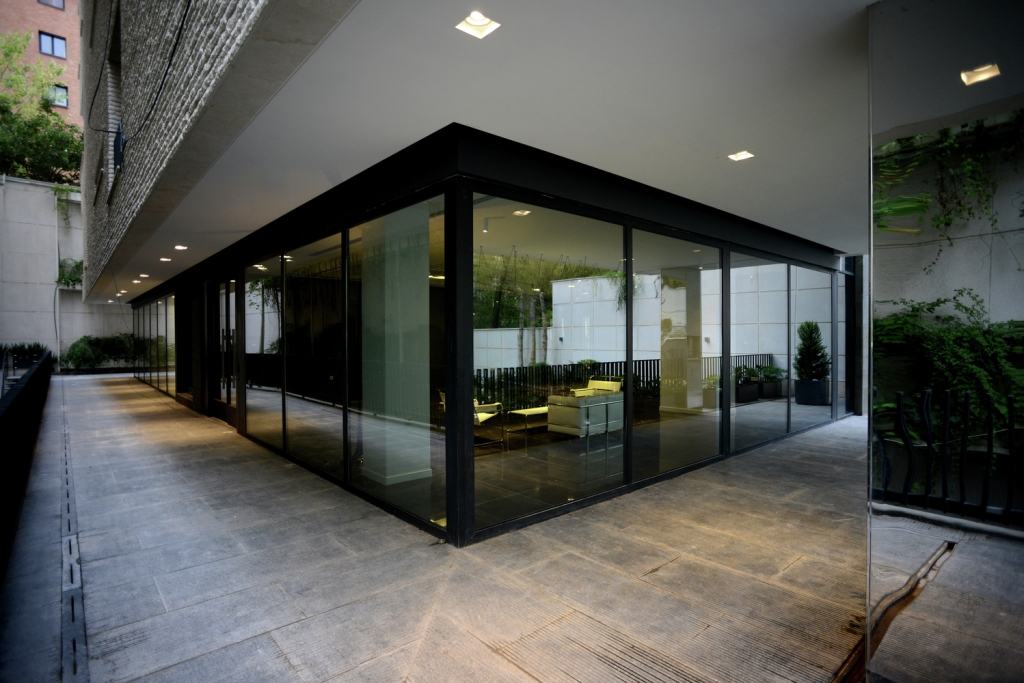

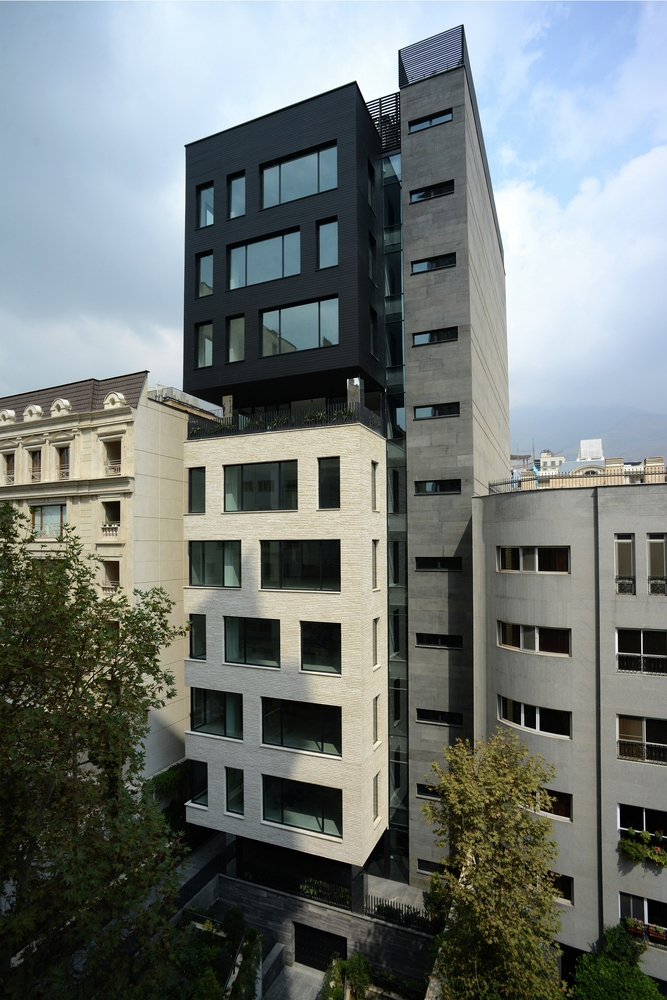

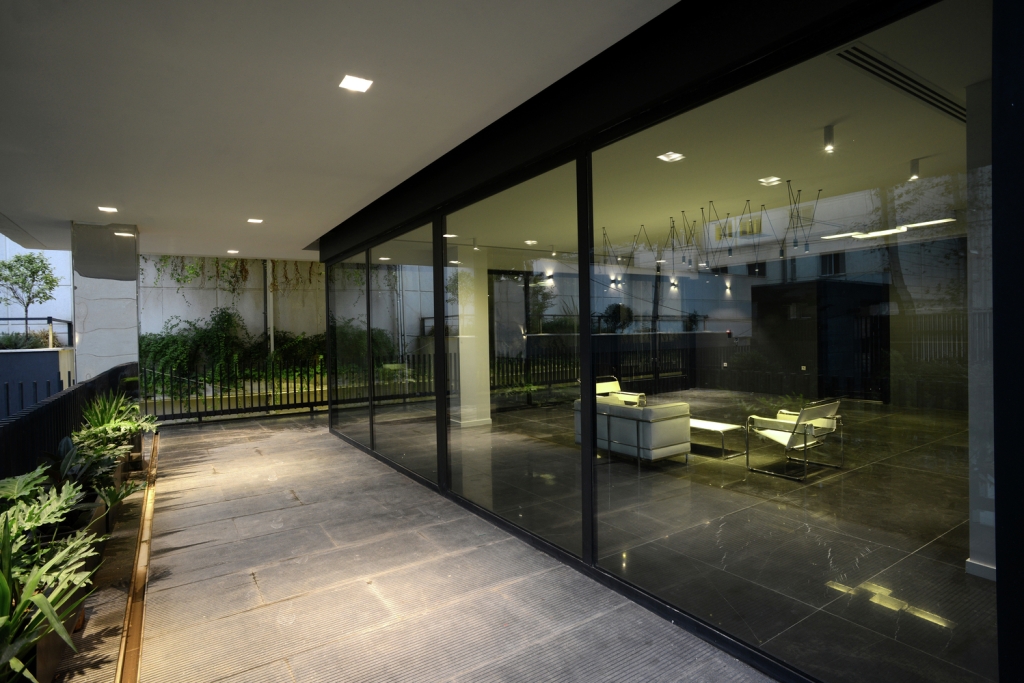

伊朗MW7公寓住宅外部实景图
伊朗MW7公寓住宅外部实景图
伊朗MW7公寓住宅外部实景图
伊朗MW7公寓住宅外部实景图
伊朗MW7公寓住宅外部实景图
伊朗MW7公寓住宅外部实景图
伊朗MW7公寓住宅外部实景图
伊朗MW7公寓住宅外部实景图

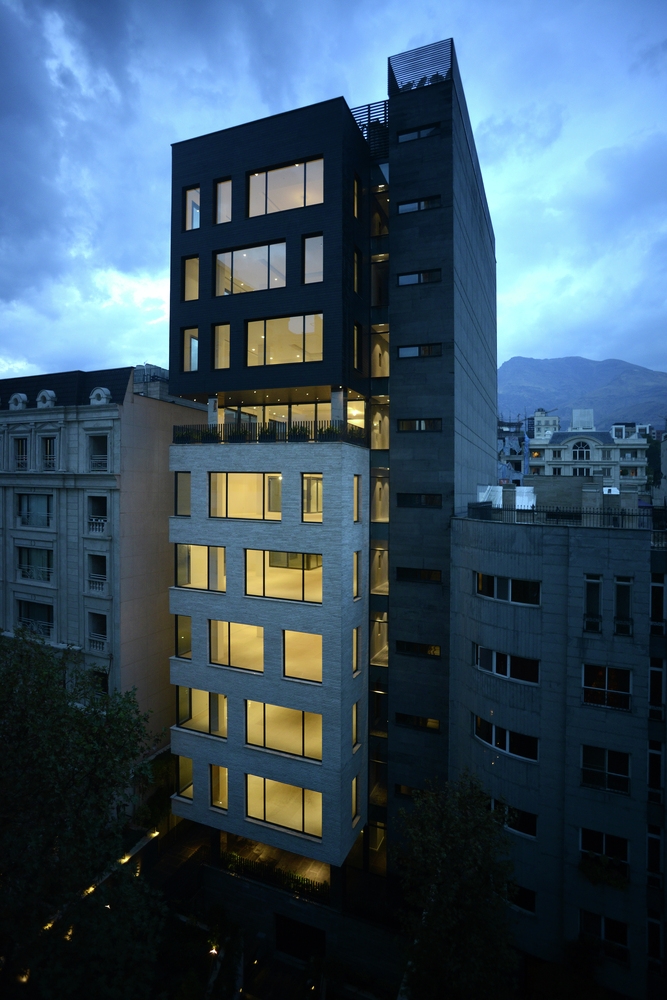

伊朗MW7公寓住宅外部夜景实景图

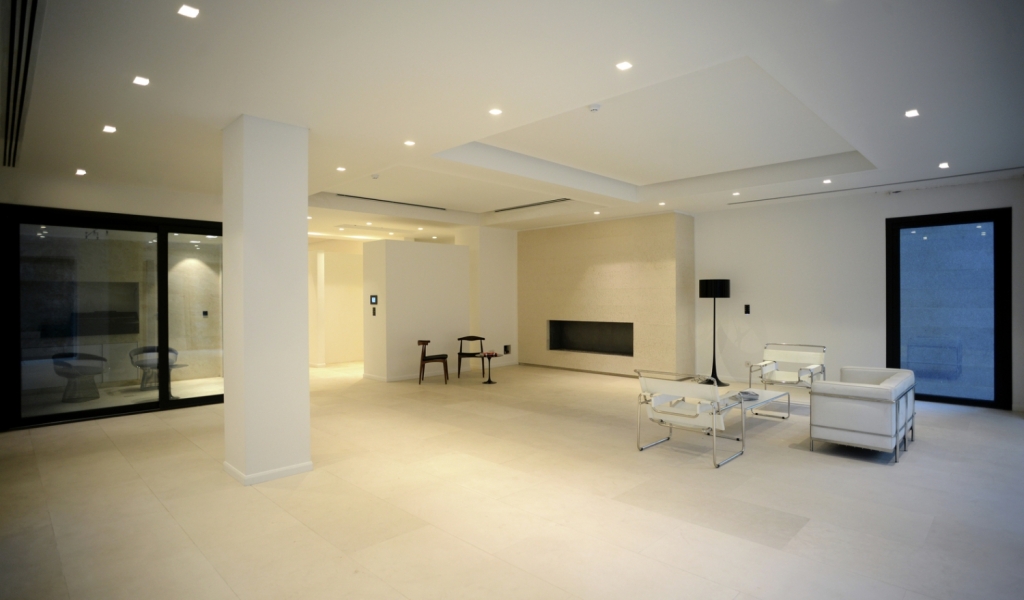

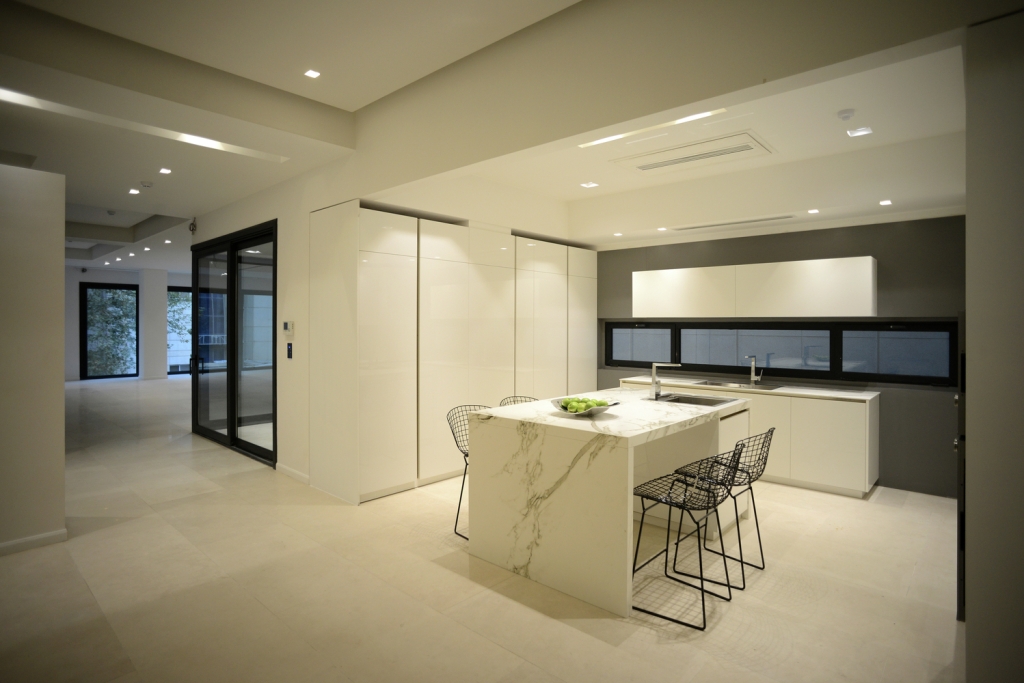

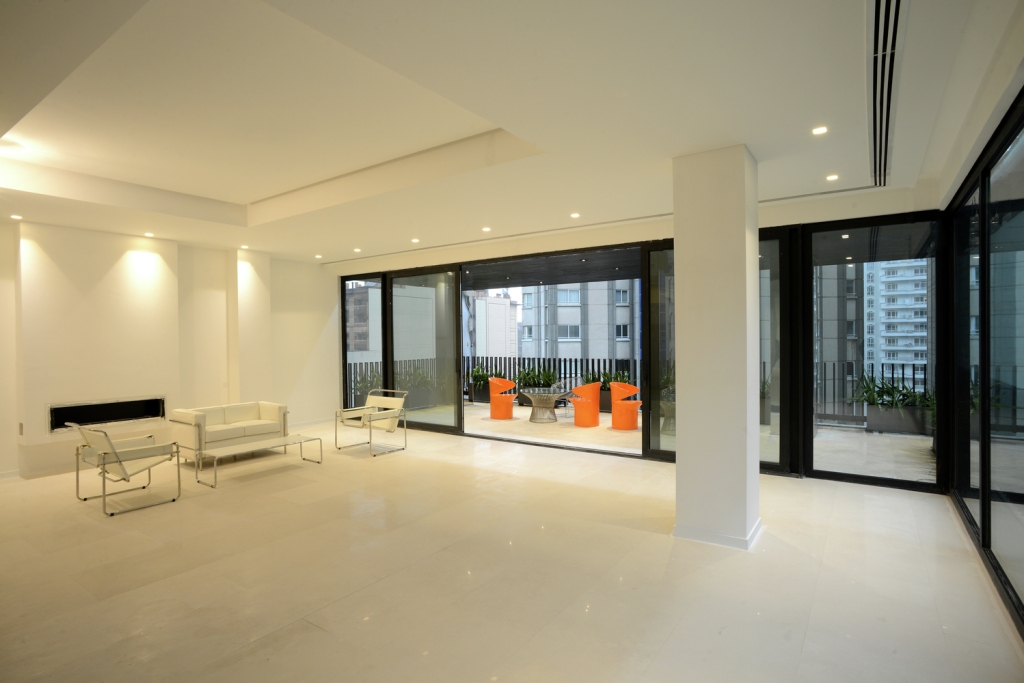

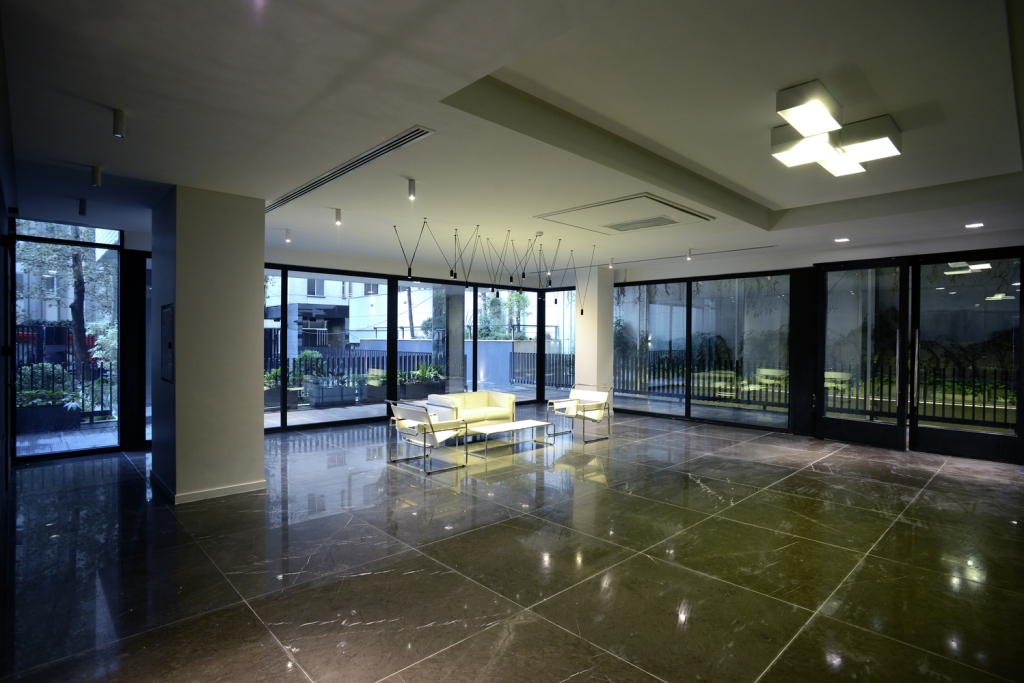

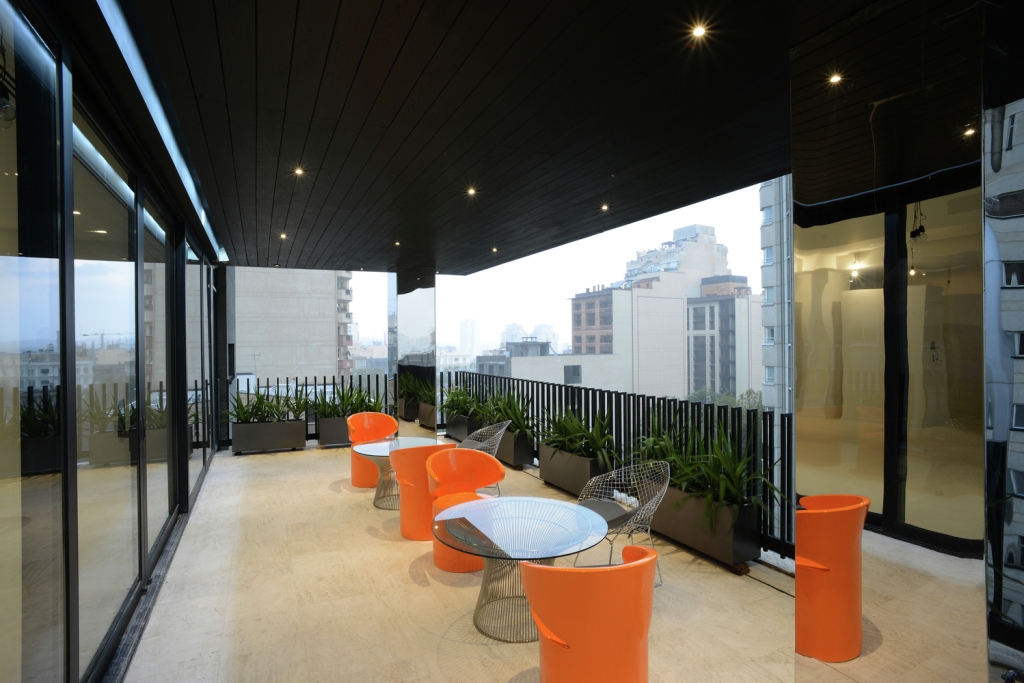

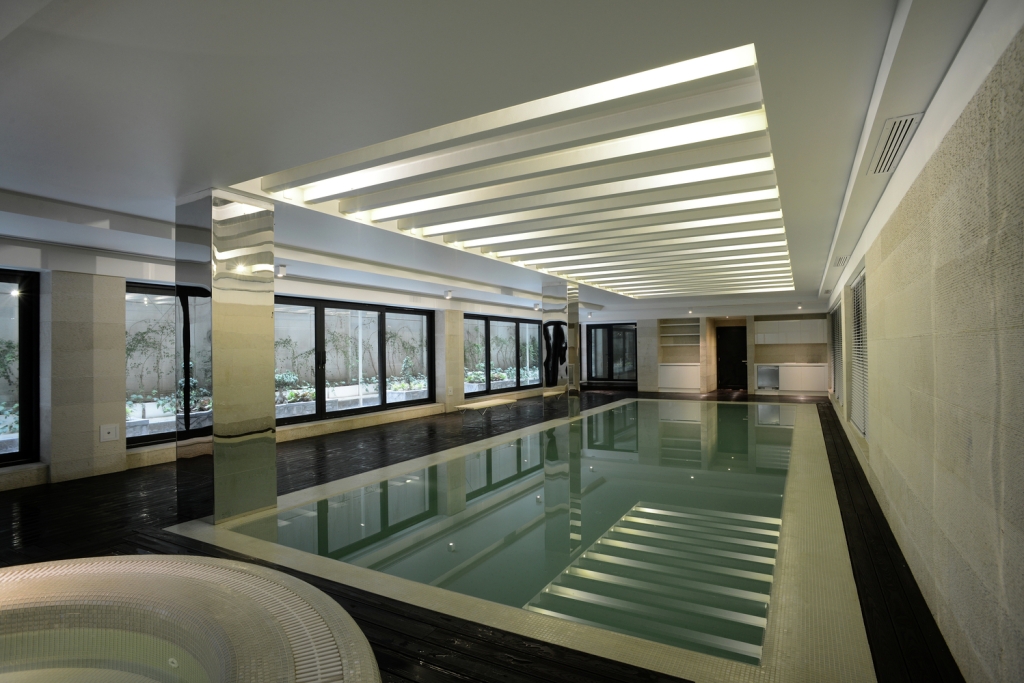

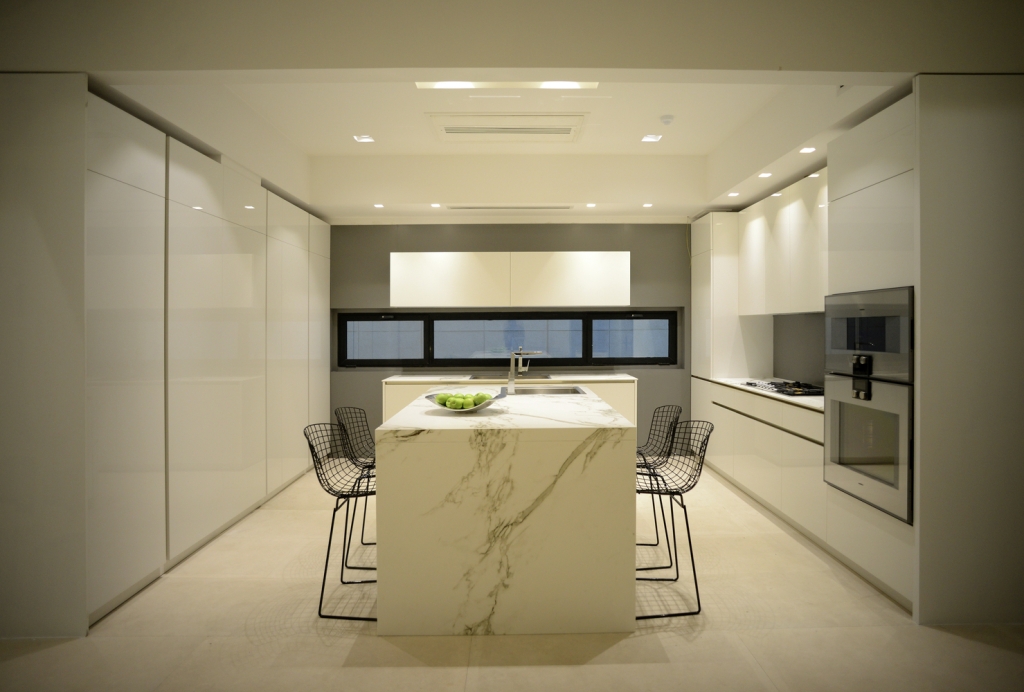

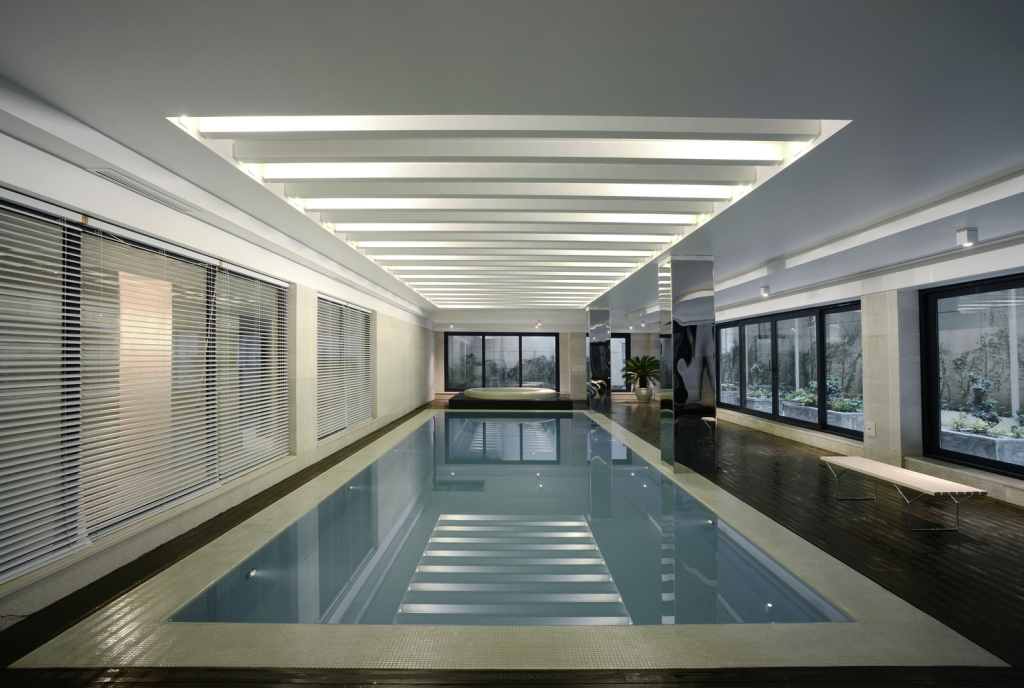

伊朗MW7公寓住宅内部实景图
伊朗MW7公寓住宅内部实景图
伊朗MW7公寓住宅内部实景图
伊朗MW7公寓住宅内部实景图
伊朗MW7公寓住宅内部实景图
伊朗MW7公寓住宅内部实景图
伊朗MW7公寓住宅内部实景图

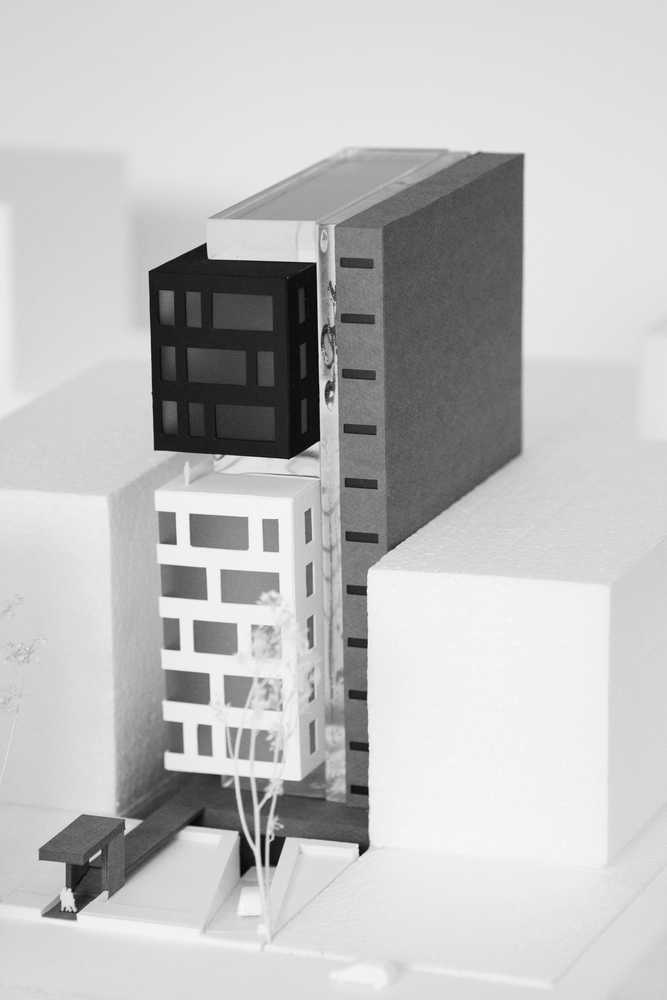

伊朗MW7公寓住宅模型图

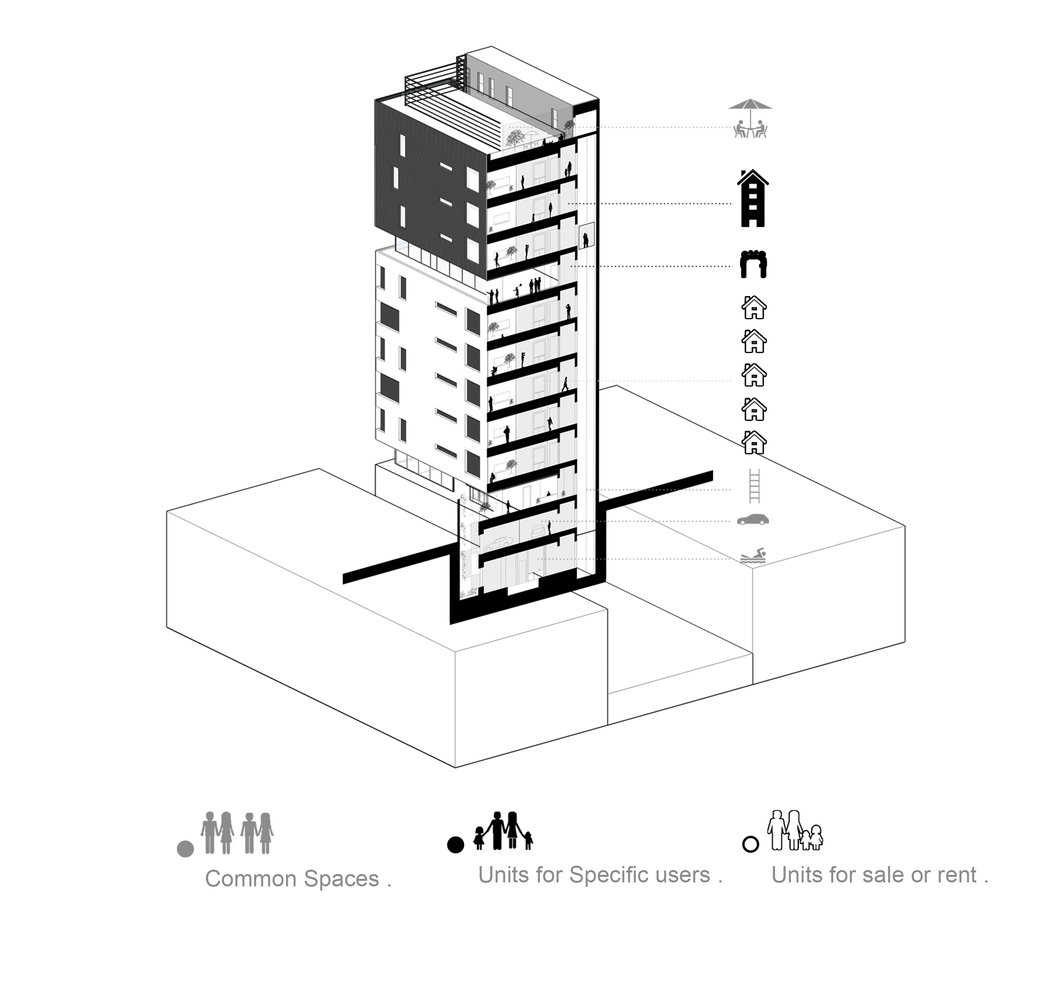

伊朗MW7公寓住宅示意图

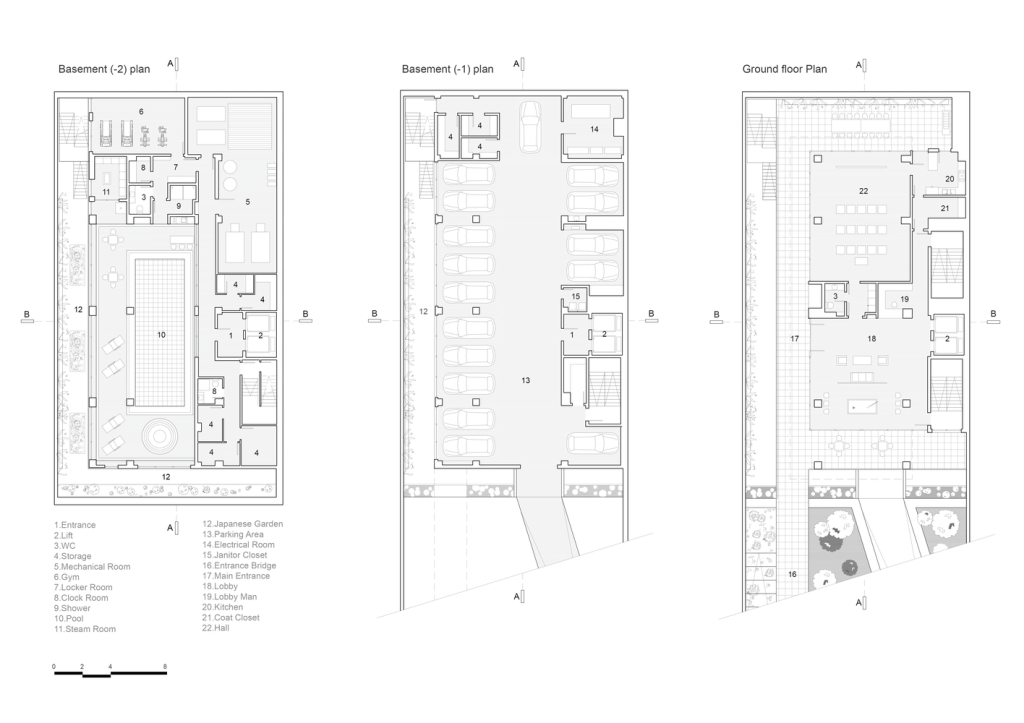

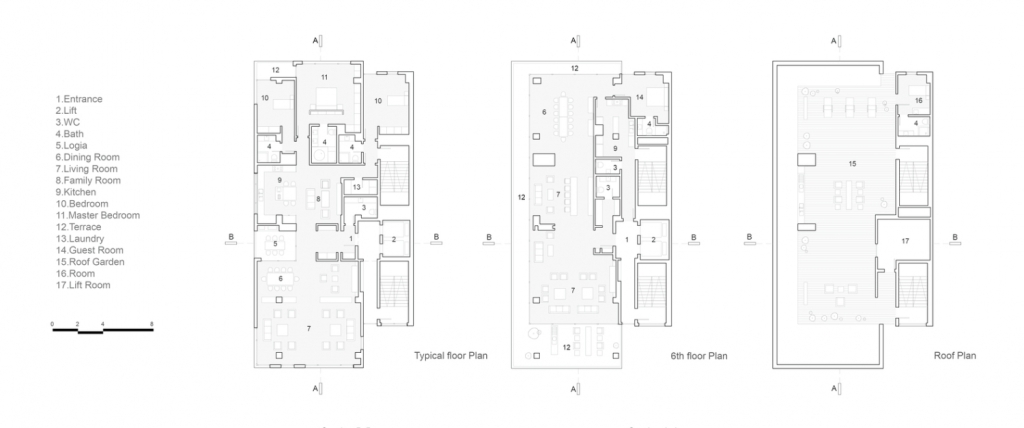

伊朗MW7公寓住宅平面图
伊朗MW7公寓住宅平面图

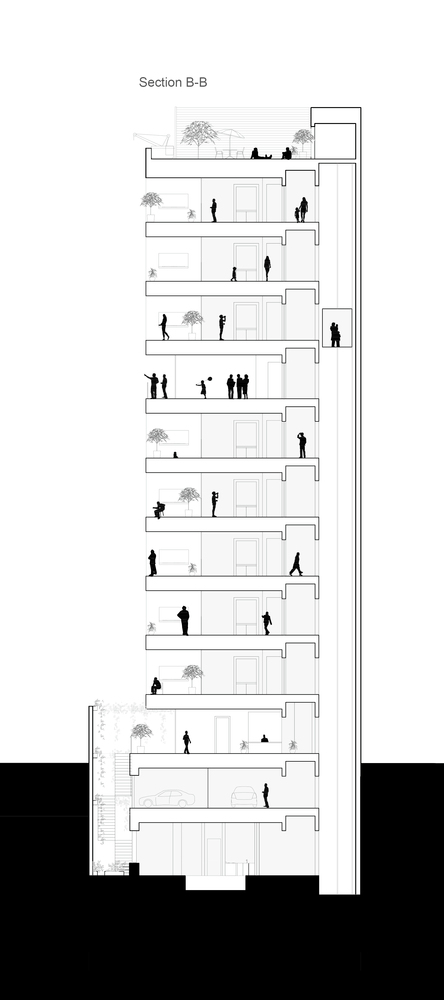

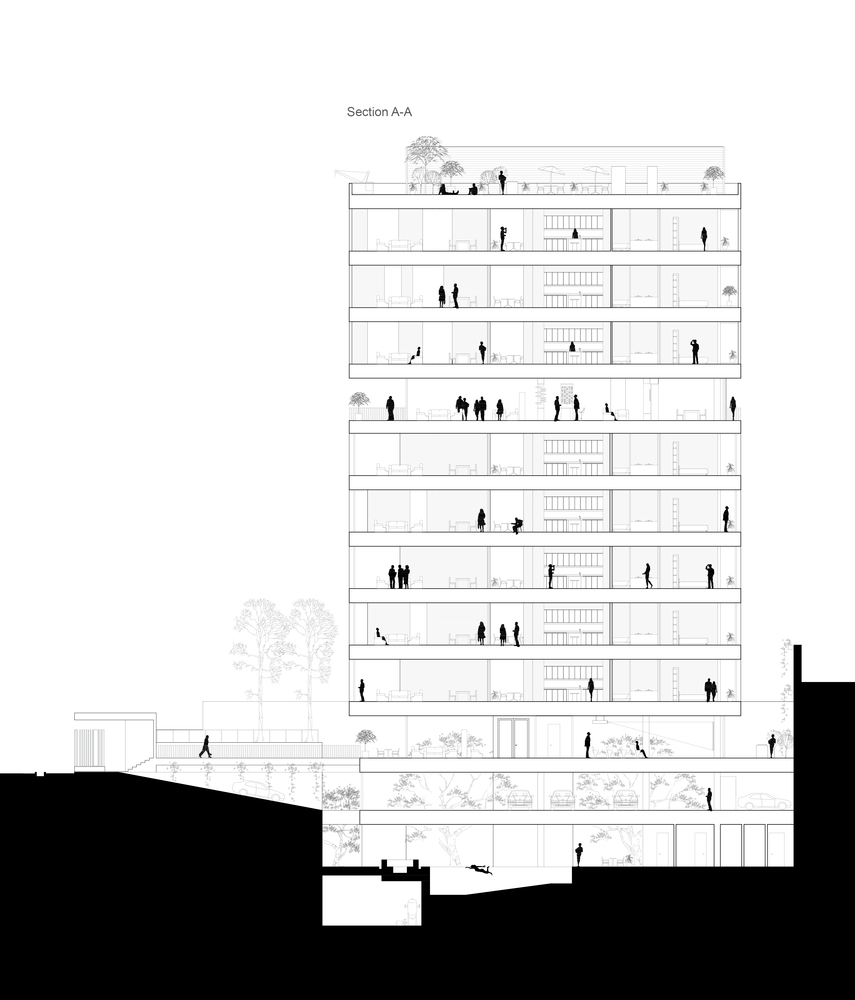

伊朗MW7公寓住宅剖面图
伊朗MW7公寓住宅剖面图
伊朗MW7公寓住宅平面图 |
|
