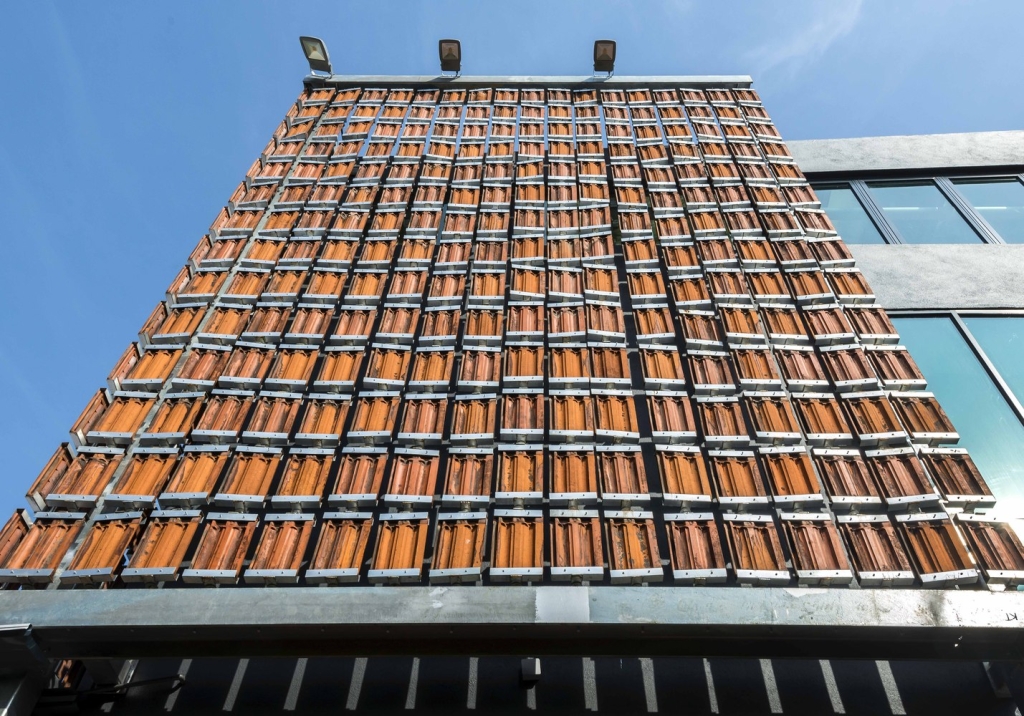

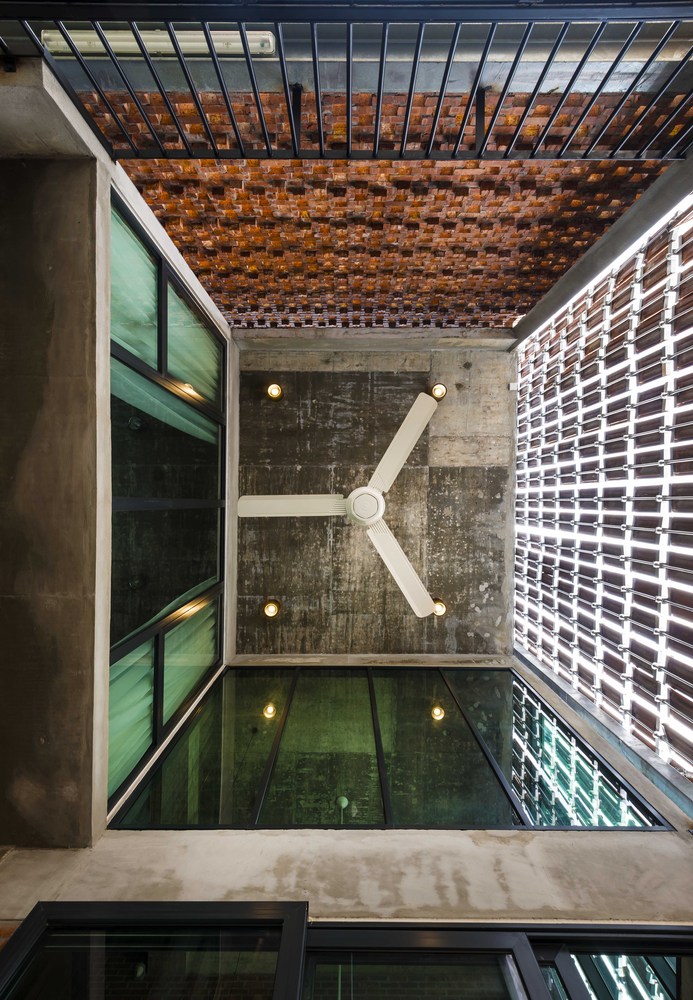

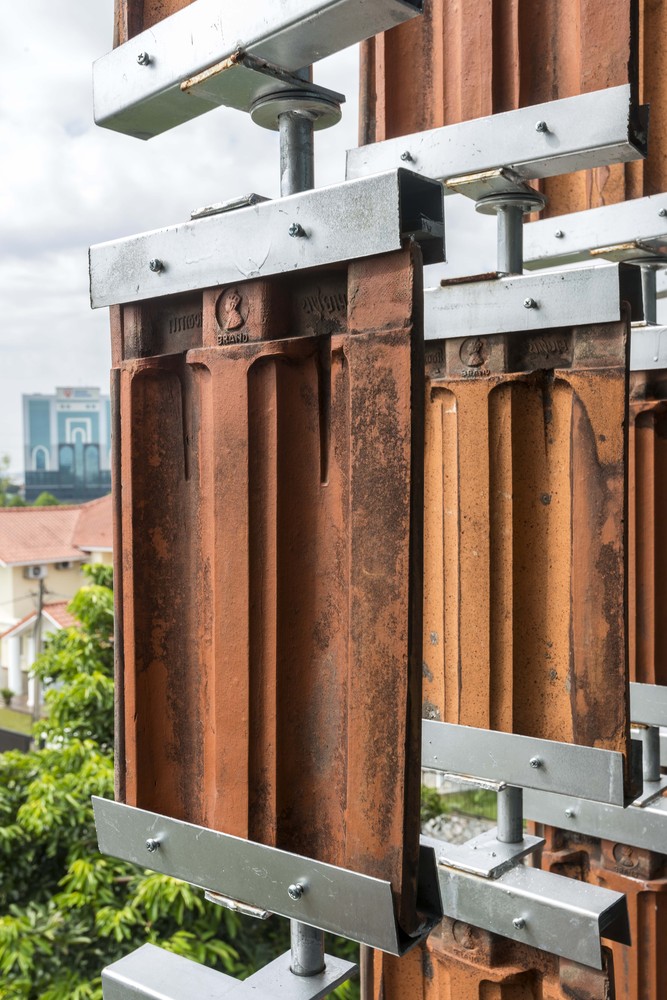

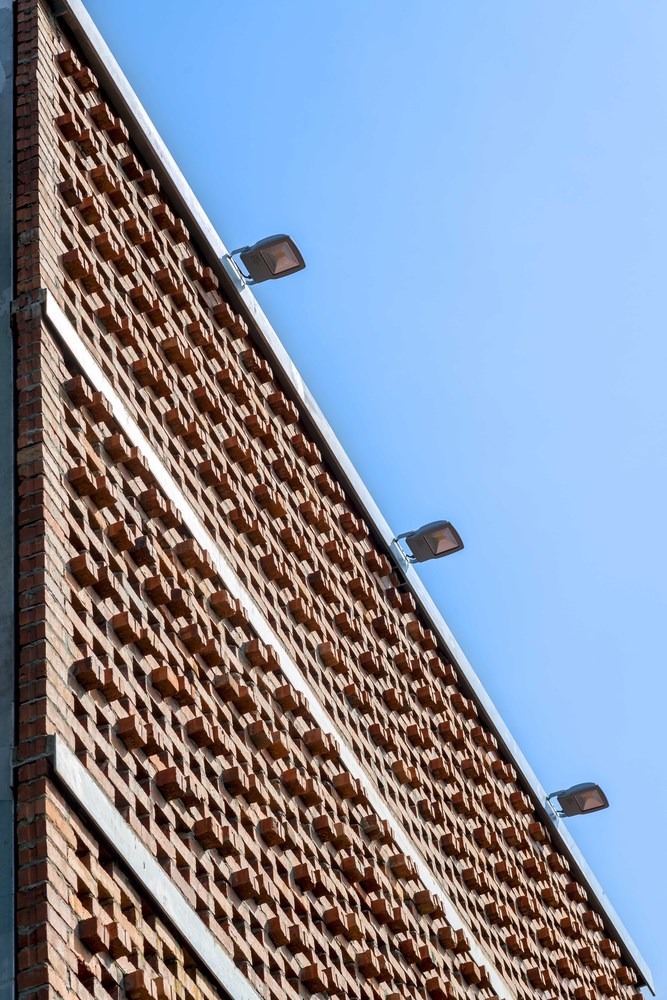

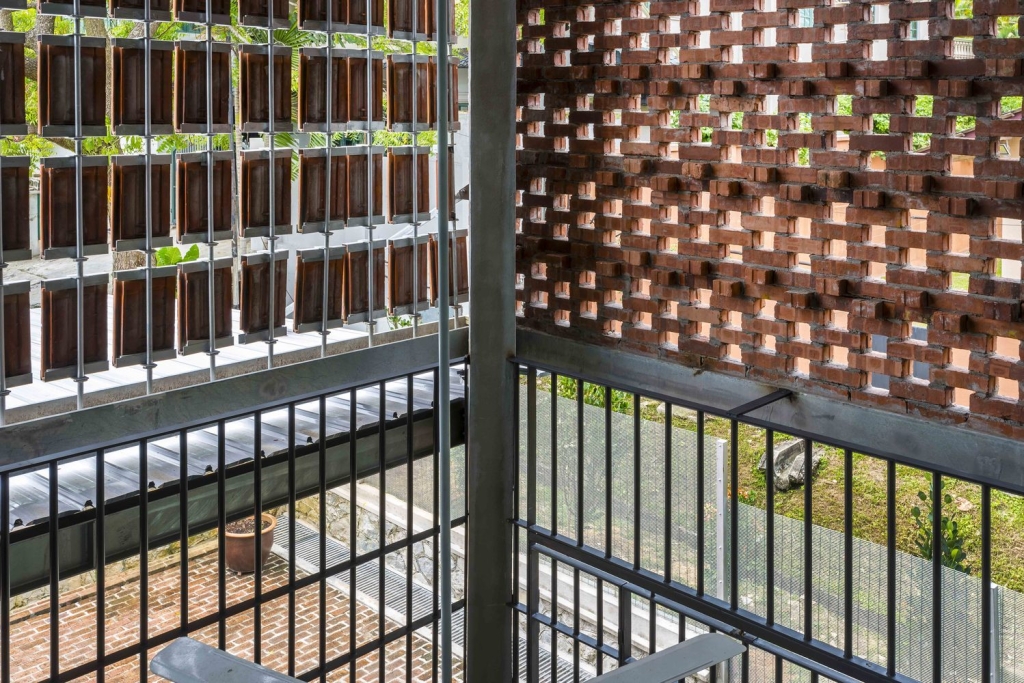

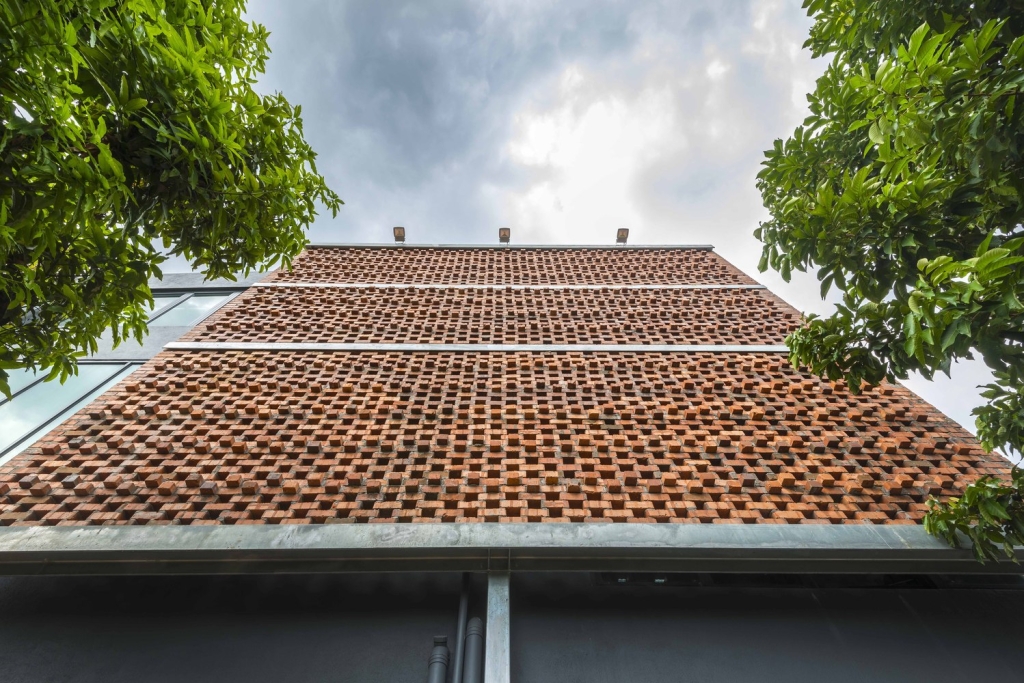

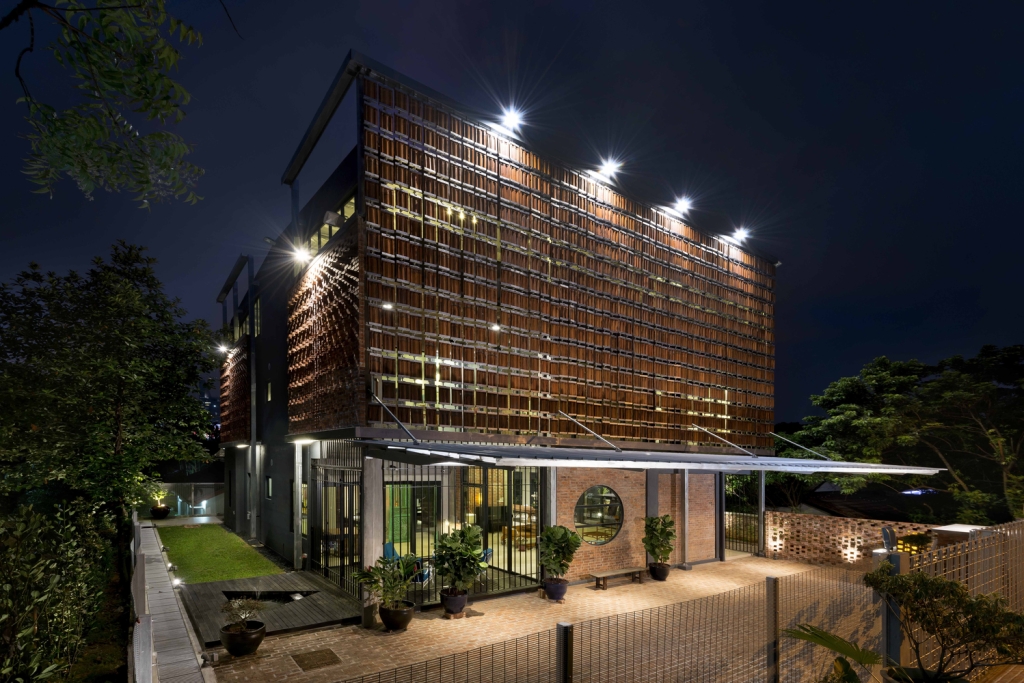

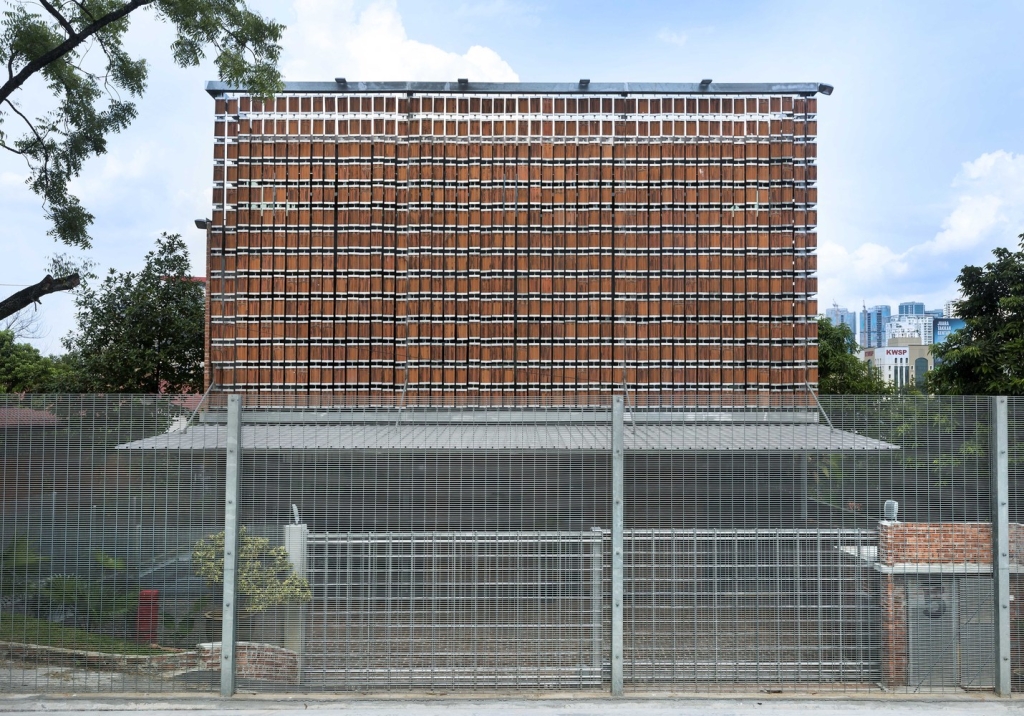

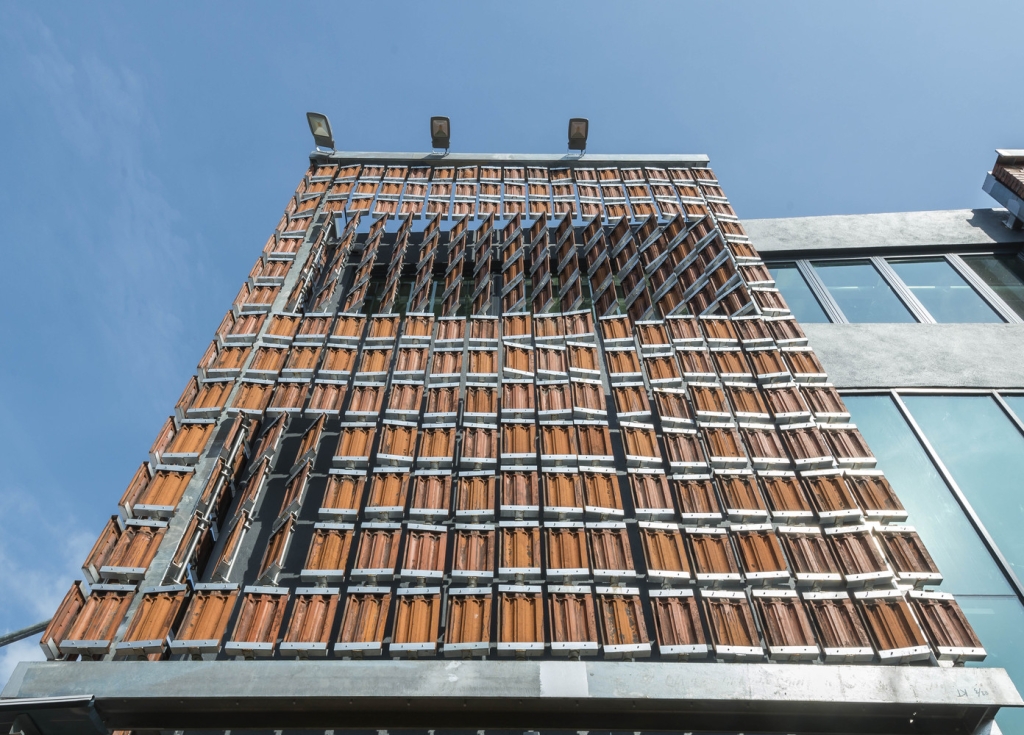

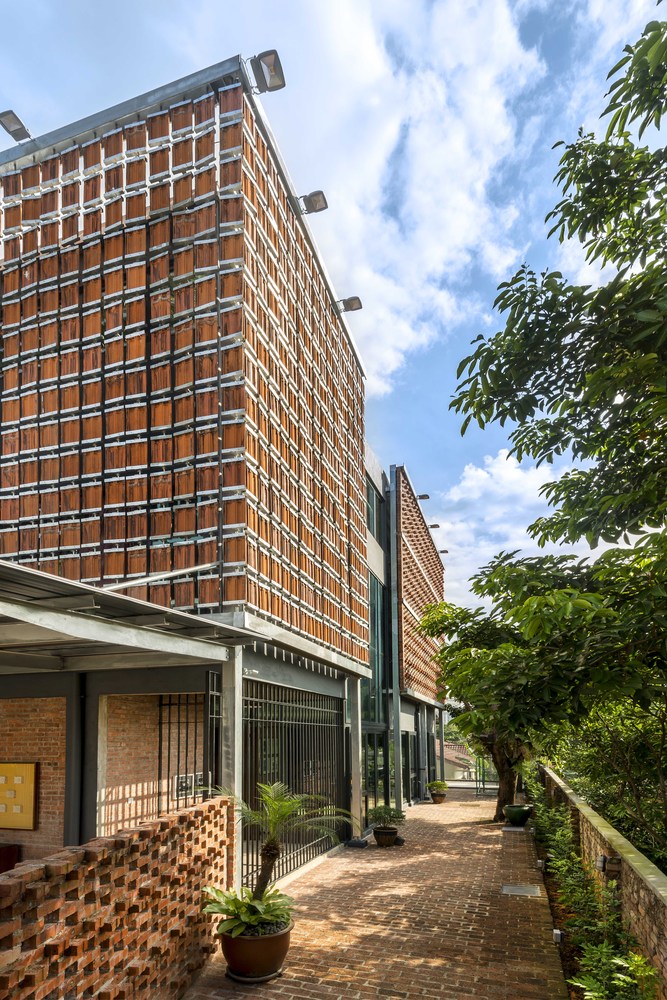

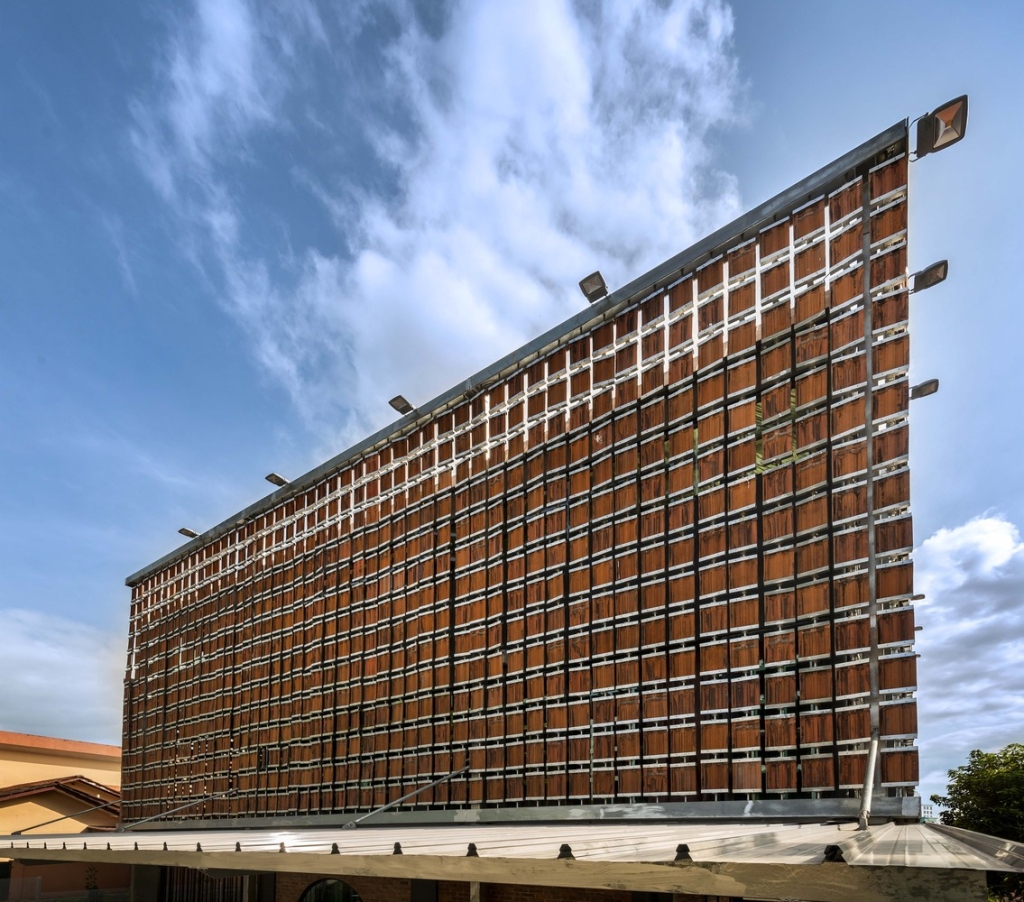

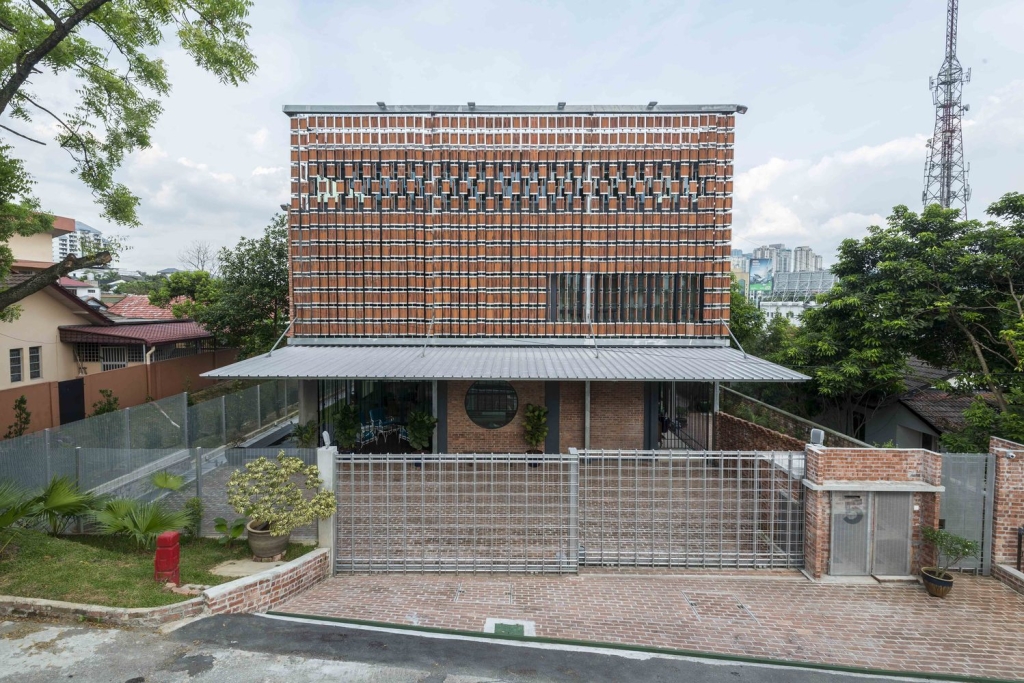

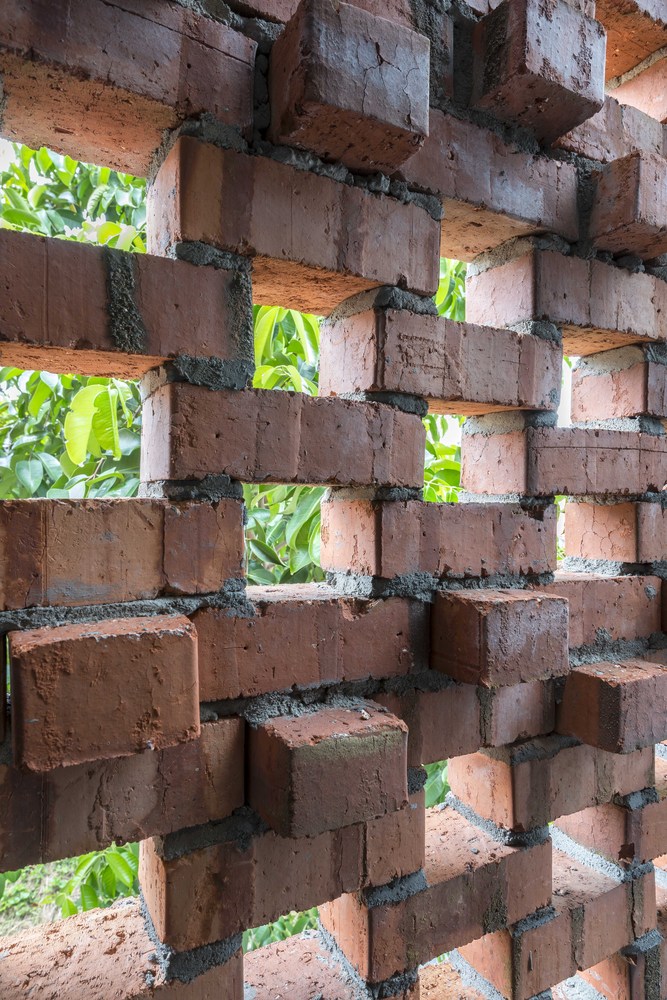

住宅坐落在八打灵再也城市旧郊外的一个小场址上。房主买下了一栋旧的、荒废的住宅，并想要重新修建一栋新的家庭住宅。在检查的时候我们发现旧住宅的印度粘土屋顶瓦片质量很好，它们很耐用。而且因为场址面对着西边儿，粘土屋顶瓦片可以称为很好的垂直屏幕，以遮蔽早上和午后的阳光。屋顶的瓦片被仔细的拆掉、存储和再利用着。垂直的钢条被用来固定住粘土瓦，同时也能够自由的旋转和转动。 住宅的开窗法和玻璃门减少了住宅的热获得，而且到了晚上开灯后，从外面看时会有一种柔和的、发颤的光照效果。在阳光下，陶瓦会散发出温暖的橘黄色光芒。这将住宅转换成了一栋绝缘的、通风良好的立方体，住宅的大量空间都处于独特屋瓦墙壁和格子的砖砌体屏幕之间，这些屏幕将内部空间和外部空间隔了开来。住宅拥有处于自然状态的墙壁、使用了处于自然形态的建筑材料、有简单线条的极简主义以及朴素的图案和开放的空间。 译者：蝈蝈 The House is located on a small lot in the older suburbs of Petaling Jaya. The owners had purchased an old dilapidated house and wanted to rebuild a new family home. Upon inspection it was discovered that the old house had good quality Indian clay roof tiles that were still robust. And as the property faced west, the clay roof tiles offered a good solution to vertically screen the facade from the morning and afternoon sun.The roof tiles were carefully removed, stored and reused. Vertical steel rods were designed to hold the clay tiles whilst allowing free movement to swivel and turn. This reduces the solar gain through the house’s fenestration of windows and glass doors and lends a soft tremulous lighting effect when viewed with internal lights switched on at night from the outside. In the sun the terracotta glows a warm orange.This transformed the house into an insulated and well-ventilated cube comprising volumes of spaces within a unique facade of roof tile and lattice brick work screens that shields the inside from the outside. There is a touch of purism in the raw walls and use of building materials in its natural form, a breath of minimalism in the simple lines, unornamented motifs and open spaces.
