梅道诊所的临时宿舍

住宅

a.gor.gor.a architects: temporary dormitories for mae tao clinic

位置：泰国

分类：居住建筑

内容：实景照片

图片：12张

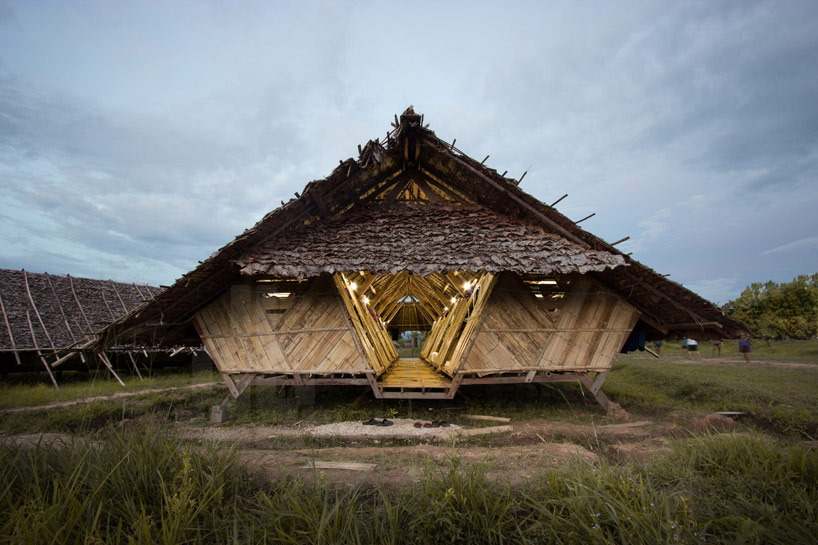

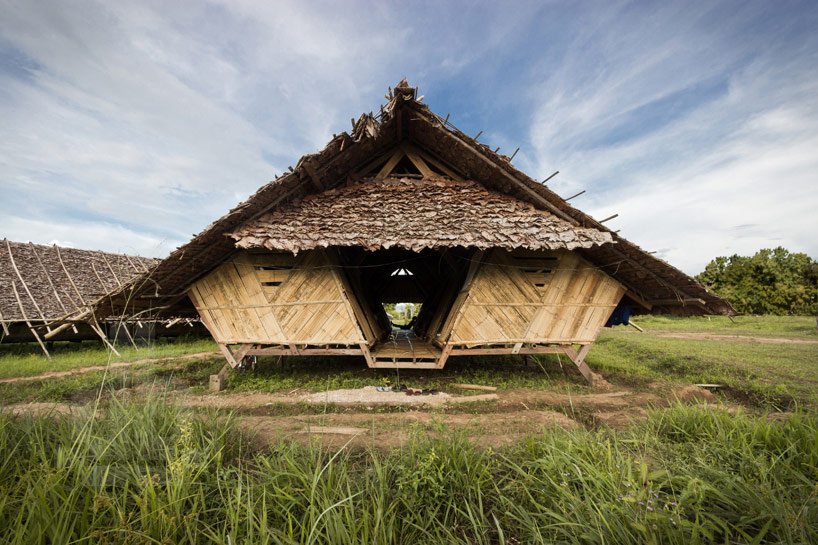

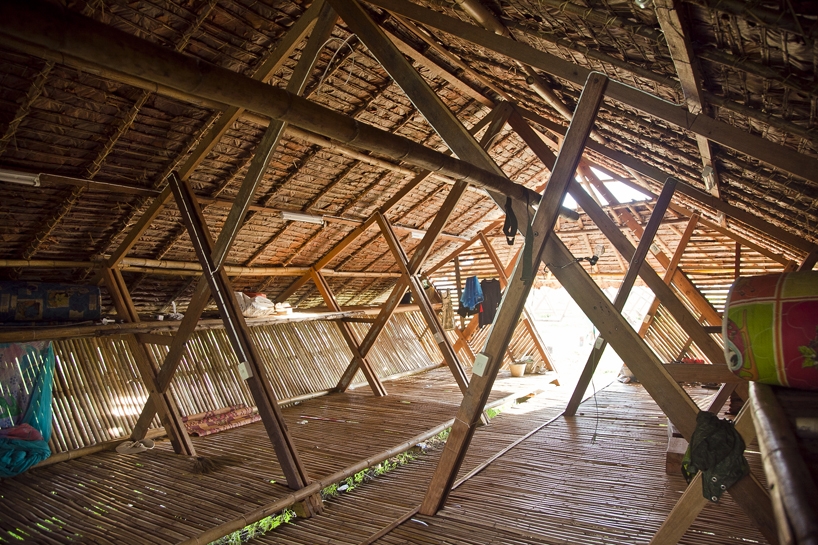

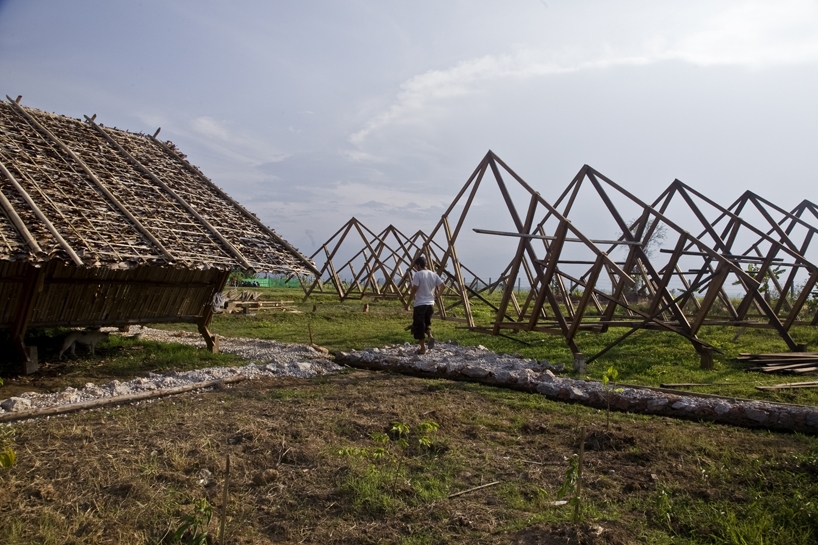

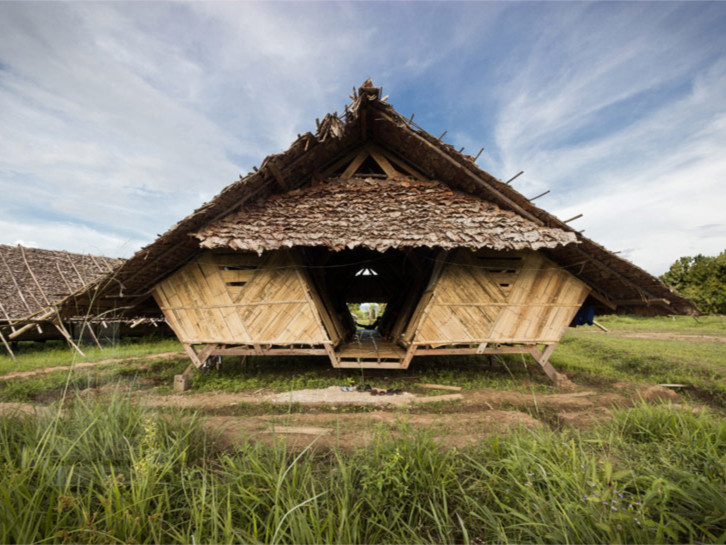

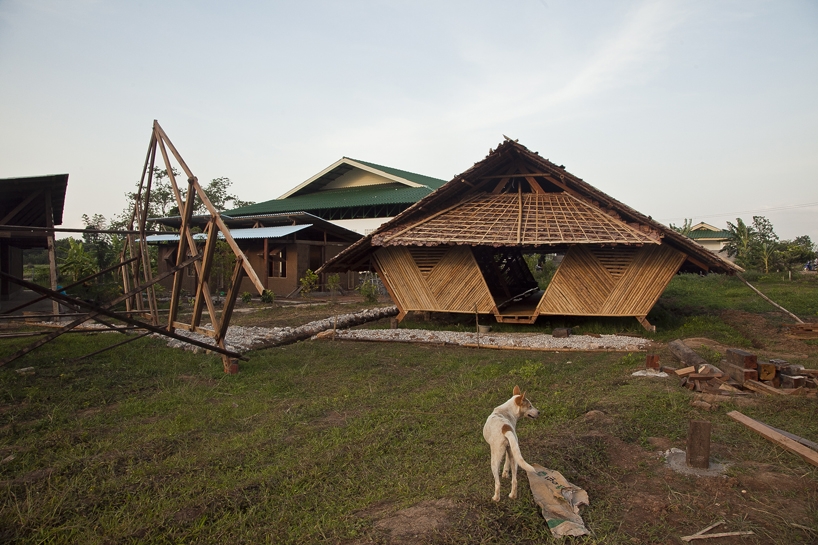

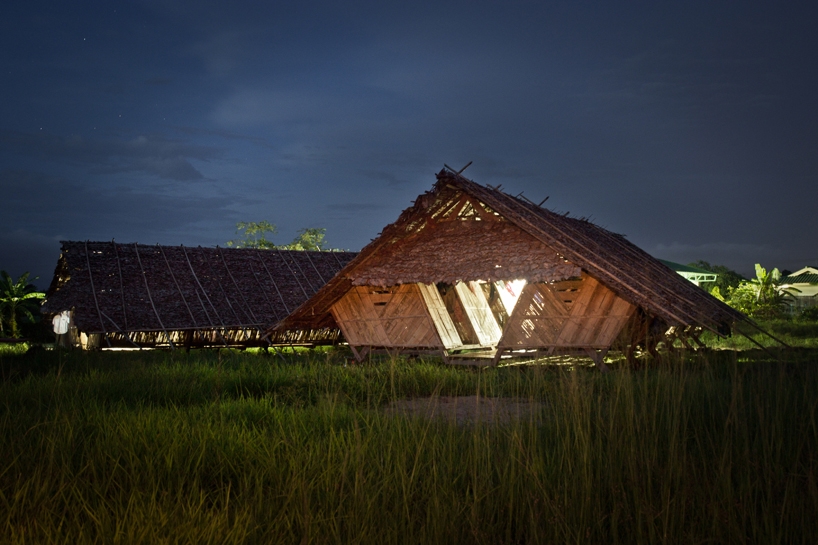

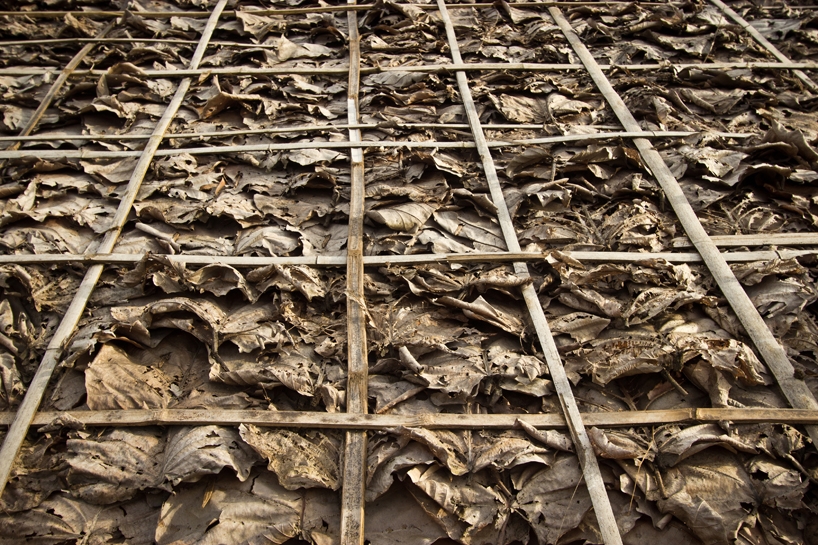

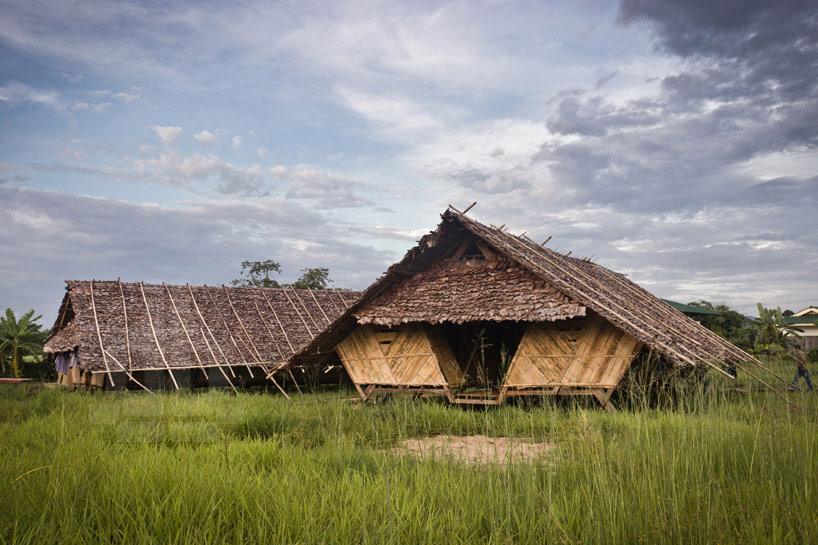

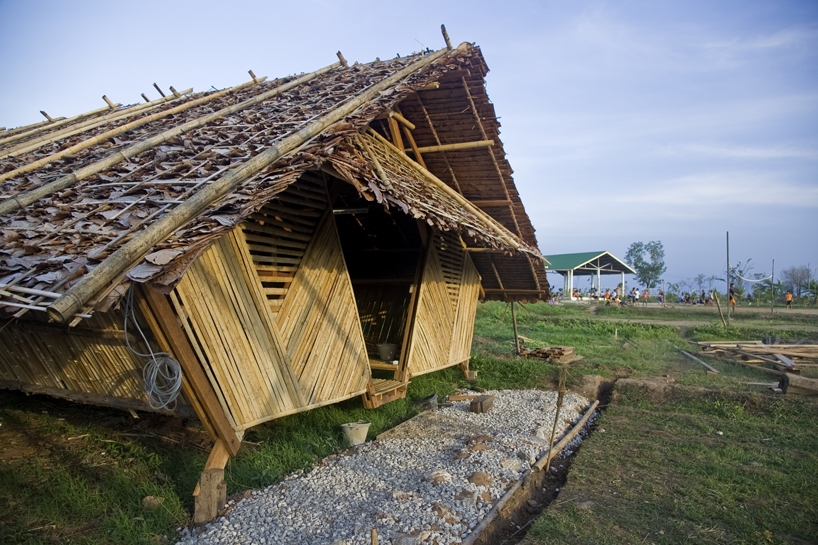

建筑设计：a.gor.a 建筑设计师 建筑时间：2013 建筑面积：72平方米  该项目由a.gor.a建筑设计师设计，位于泰国，主要理念是尽可能多的回收利用旧的材料，减少成本。梅道诊所缺乏新学生的住宿空间，所以建设了这样一所临时宿舍。目前拥有500名学生，每个单元可以容纳25名学生。该诊所每年都会接收难民和流动移民。 建筑一般花费四个星期就可以建成。材料都是现成的，从周围搜集的各种回收的低成本材料。主要由木制材料构成，把木头抛光打磨，锯成合适的尺寸，再固定起来，屋顶由茅草和按树叶覆盖。每个框架都比较容易重新拆卸和组装。室内面积72平方米，有一个开放和通风的半私人的空间和一个存储空间。这种回收木材的方式赢得了广大人民的欢迎，因为这是一个高效环保的建筑方式，也极大的节约了资金成本。该项目不仅解决了人们的住宿，而且促进了当地森林开发和可持续发展。  译者： 毛毛  built using as many recycled materials as possible, thailand-based architecture firm a.gor.a architects have designed these temporary, low-cost dormitories and training classrooms. located in mae sot, thailand just a few kilometres from the burmese border, the site receives a daily flow of refugees and immigrants due to the persisting armed conflict in the karen state of myanmar. the construction of four dormitories was funded by the embassy of luxembourg in bangkok, with each building allowing for a capacity of 25 students.  easily built within four weeks, the temporary structures fit into the local environment - the materials are readily available and well known to the users, allowing for easy restoration and low maintenance costs. made primarily from recycled timber that is stripped from old buildings in the town and put aside by a demolition crew - it is then polished, de-nailed and sawn down to size. each timber frame is easy to disassemble and assemble in a new location with seasonal bamboo and thatch applied to the walls, floors, and roofs. the interior layout of the 72 m2 hut ensures an open and airy space, that is semi-private and even includes storage space for the students. the project not only provides the center with the needed accommodation spaces, it helps raise awareness towards deforestation and promote local and sustainable building practices.


梅道诊所的临时宿舍-2


梅道诊所的临时宿舍-3


梅道诊所的临时宿舍-4


梅道诊所的临时宿舍-5


梅道诊所的临时宿舍-6


梅道诊所的临时宿舍-7


梅道诊所的临时宿舍-8


梅道诊所的临时宿舍-9


梅道诊所的临时宿舍-10


梅道诊所的临时宿舍-11


梅道诊所的临时宿舍-12
