Biyan-Alam Sutra

设计方:Wahana Cipta Selaras建筑事务所

位置:印度 Tanggerang

竣工:2010年

分类:居住建筑

内容:实景照片

图片:14张

摄影师:Fernando Gomulya

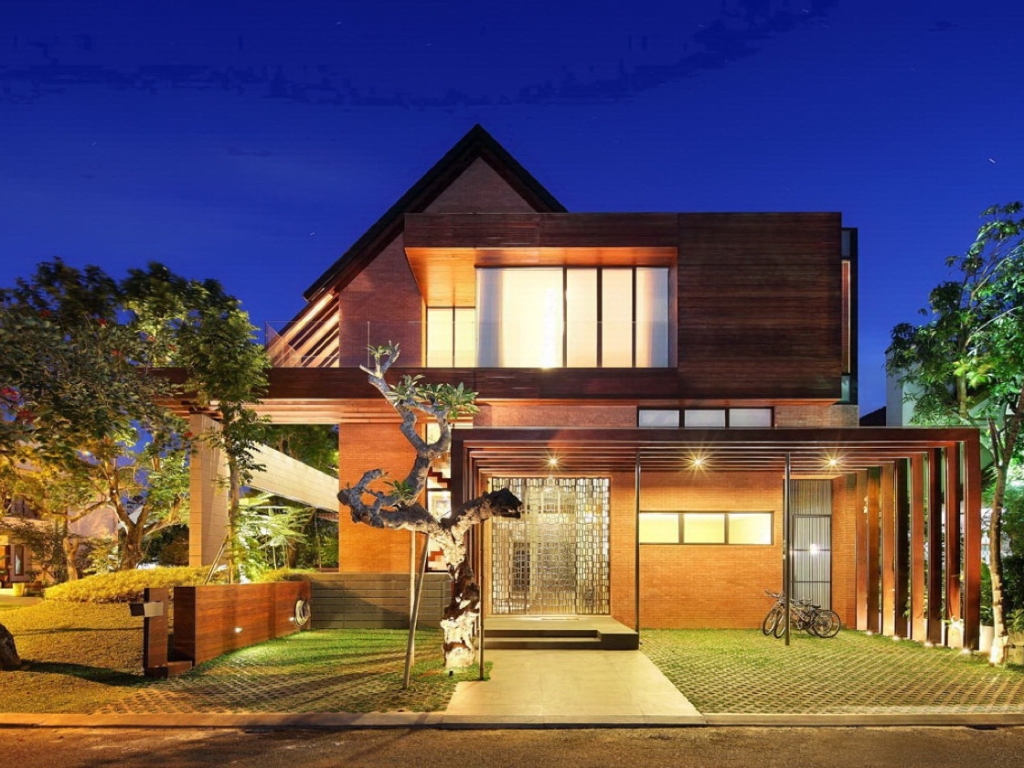

建筑面积:524平方米  Project Area: 524 sqm  这个住宅位于一个住宅综合体内,场地内有良好的环境,绿树萦绕,安静怡人。设计也是从此环境出发,引出了独特的设计理念;住宅所在地的场地有限,但它要同时满足主人的很多种不同需求,设计因此采用了单一整体的形式,同时充满现代的热带风情,并包含应有的城市元素。住宅的整体加上一个有45度旋转的屋顶,结合一个向外突出的现代的木质盒子,桥结构,及木材的使用,还有暴露的红色砖墙,这些都定义了住宅的热带感和现代感。  Situated in a well developed residential complex, this site has a good environment, especially with an overgrown tree on its parameter as a green belt and a relatively “quite” neighborhood. With this in mind the concept for this house was developed. The site was relatively small, yet its must accommodate many needs of the owner which is usual in the urban house. So a single mass building was chosen. A touch of modern tropical design with the urban concept was used as a reference for further development. The building mass with a roof has a nearly 45-degree angle combined with a wooden box as a modern element protruding from main mass, the bridge and the use of wood and exposed reddish brick wall of the building asserted the atmosphere of tropical modern.

比亚阿拉姆住宅-2

比亚阿拉姆住宅-3

比亚阿拉姆住宅-4

比亚阿拉姆住宅-5

比亚阿拉姆住宅-6

比亚阿拉姆住宅-7

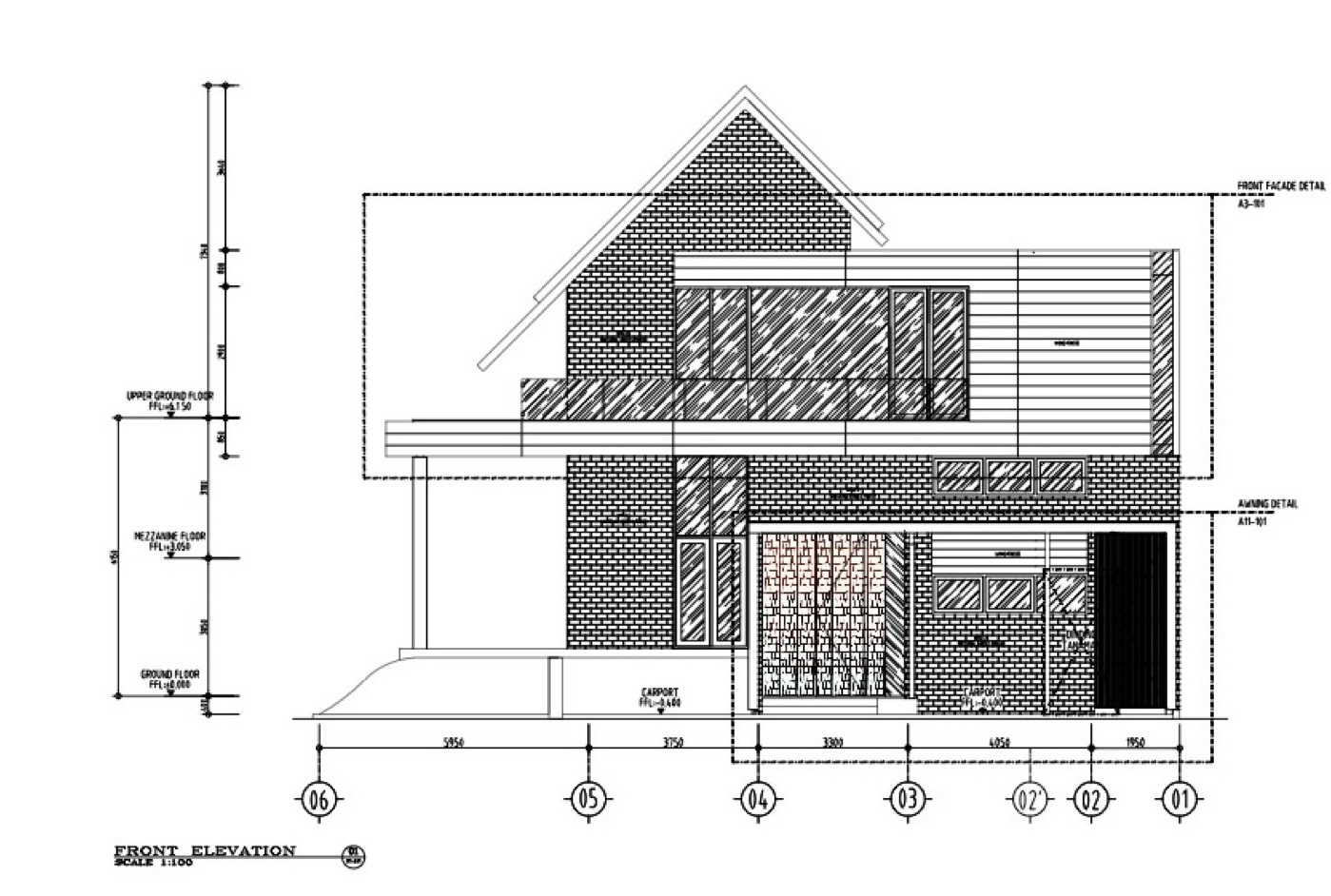

立面图01 elevation01

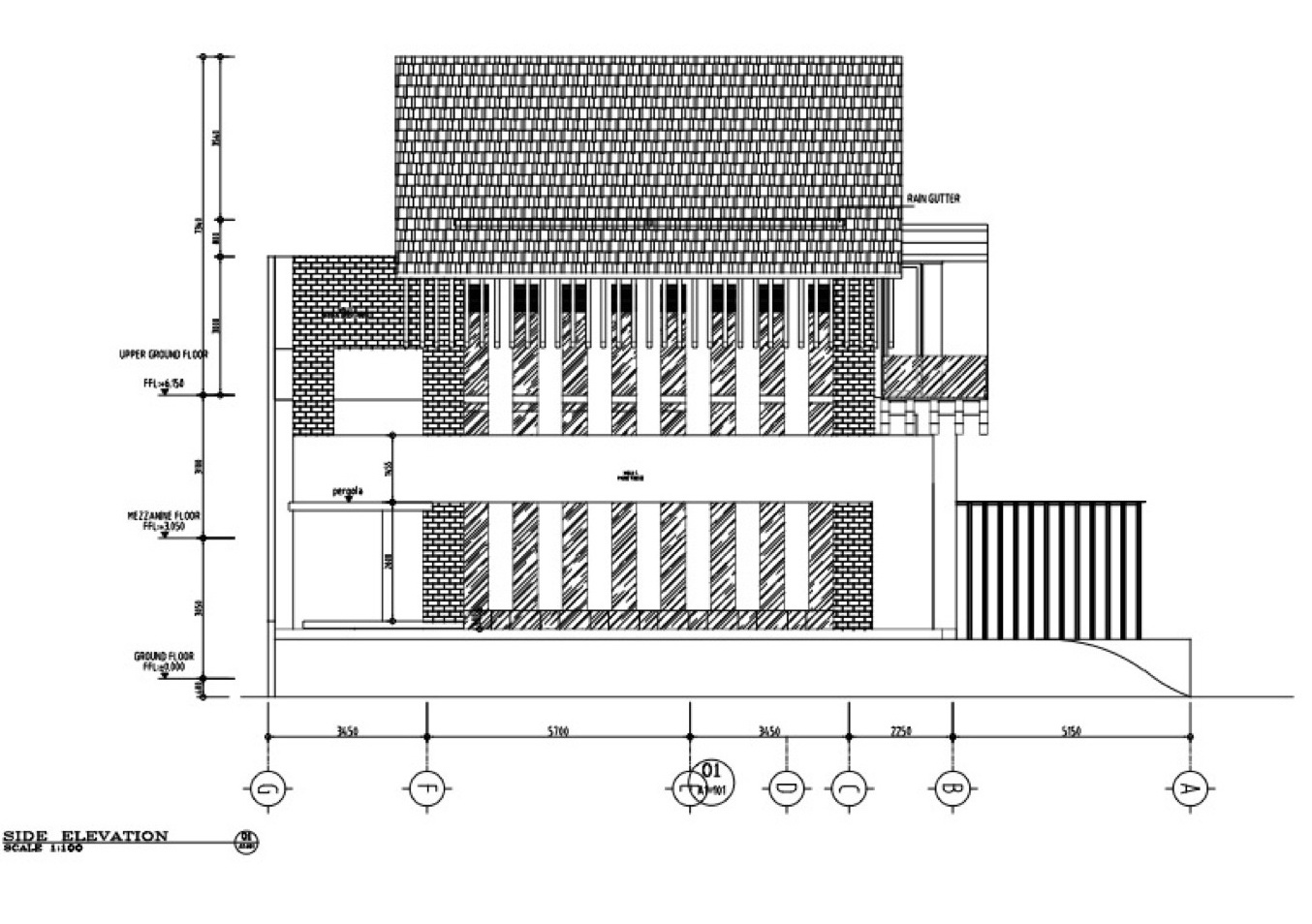

立面图02 elevation02

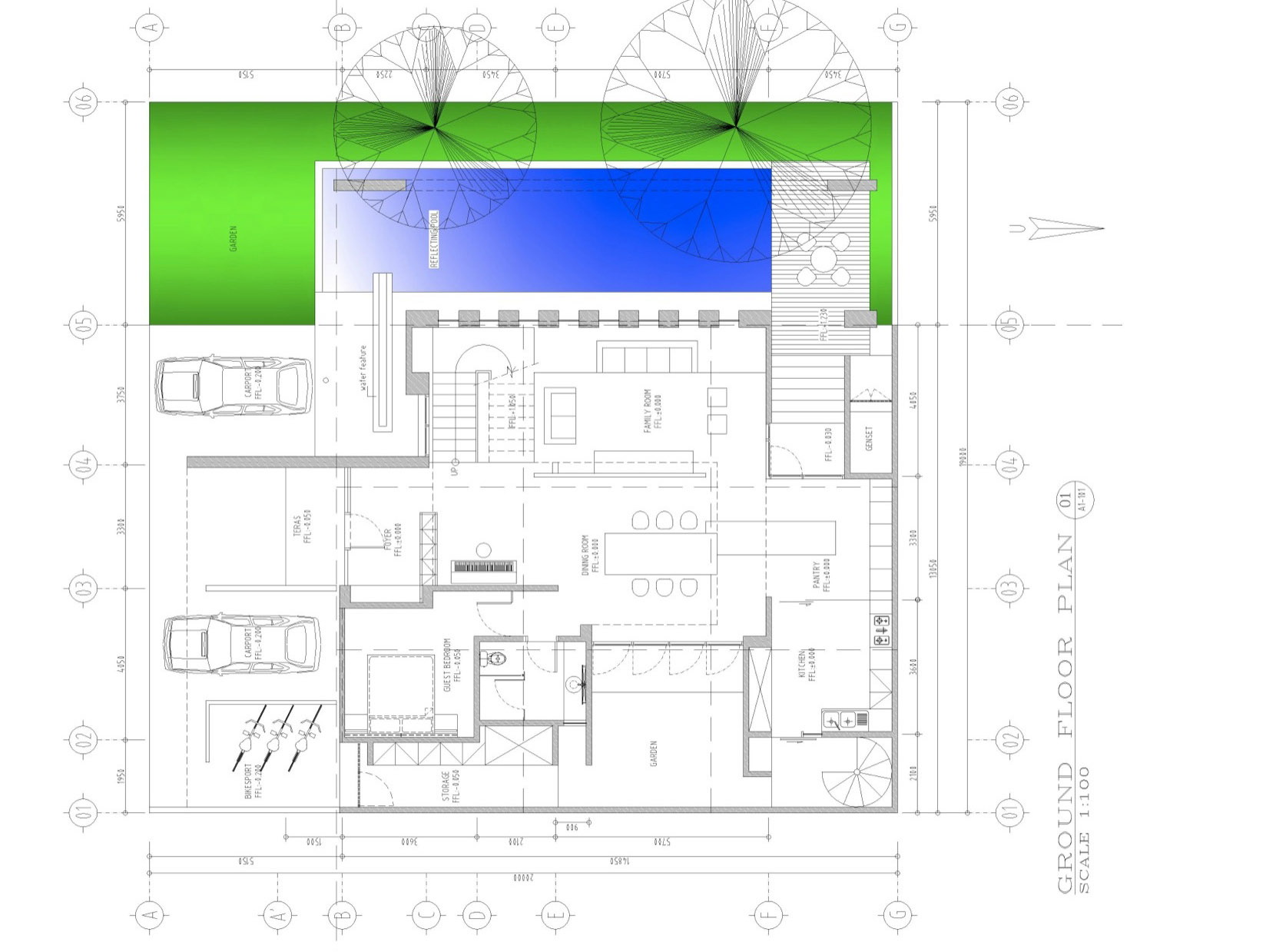

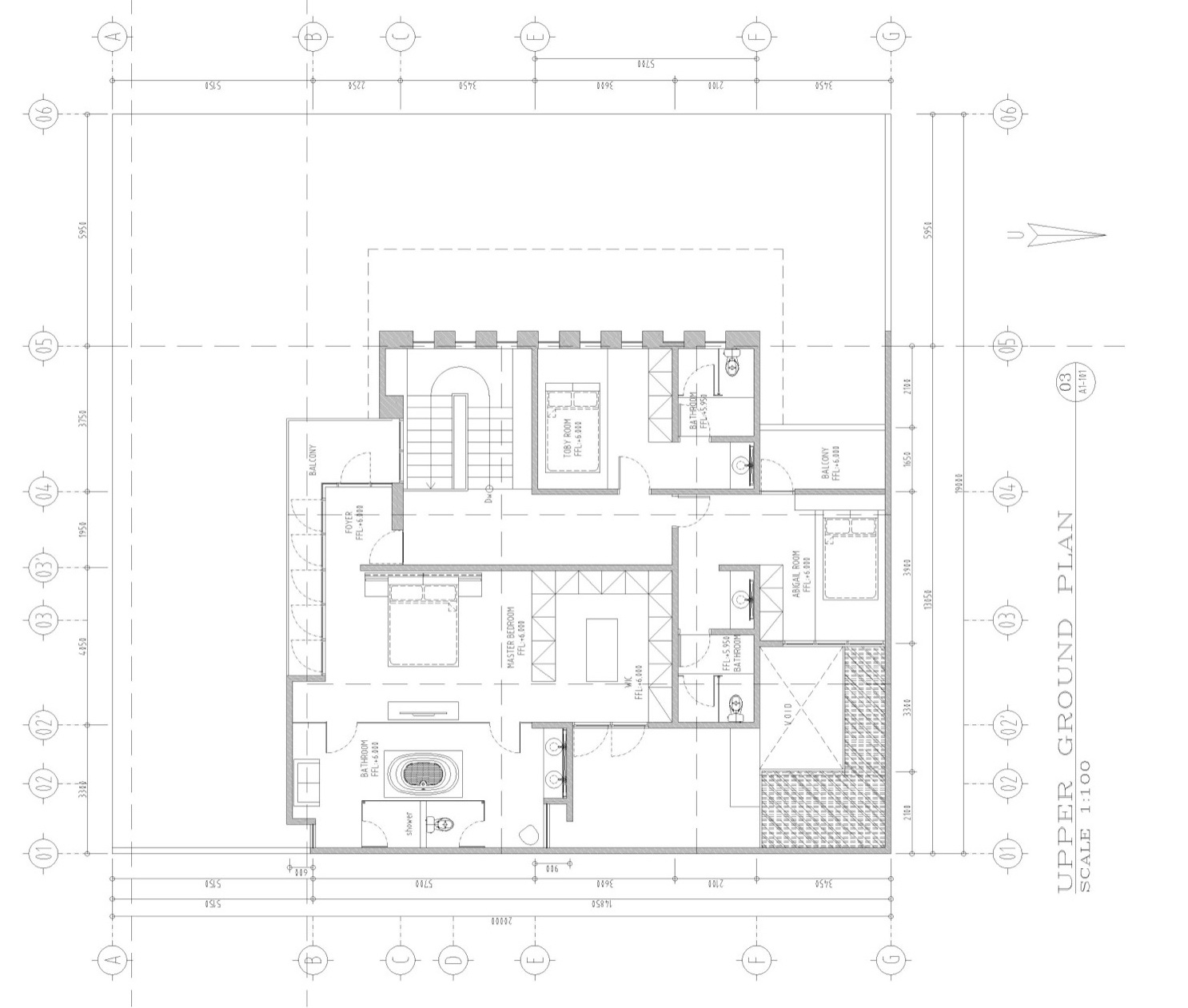

平面图01 plan01

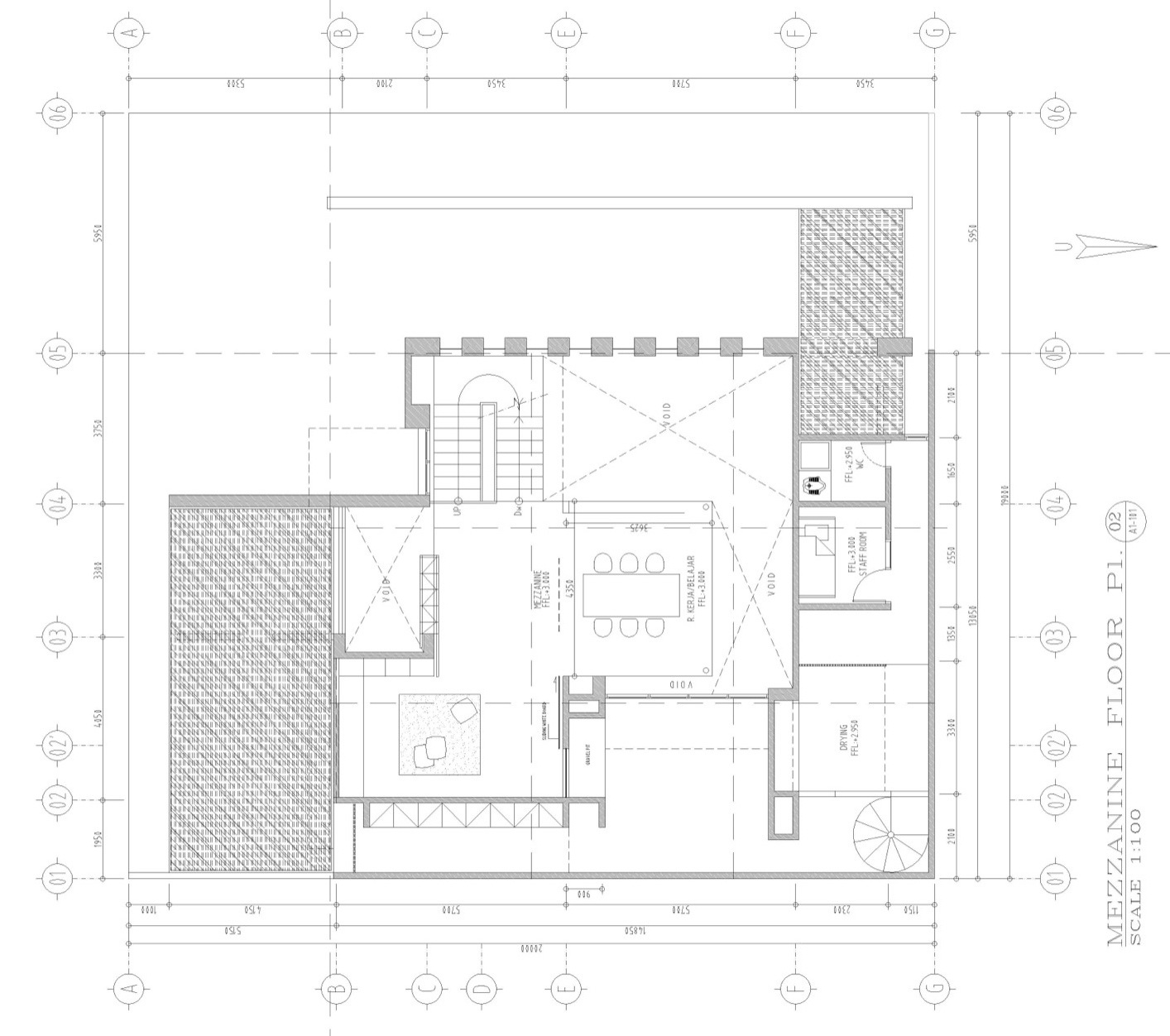

平面图02 plan02

平面图03 plan03

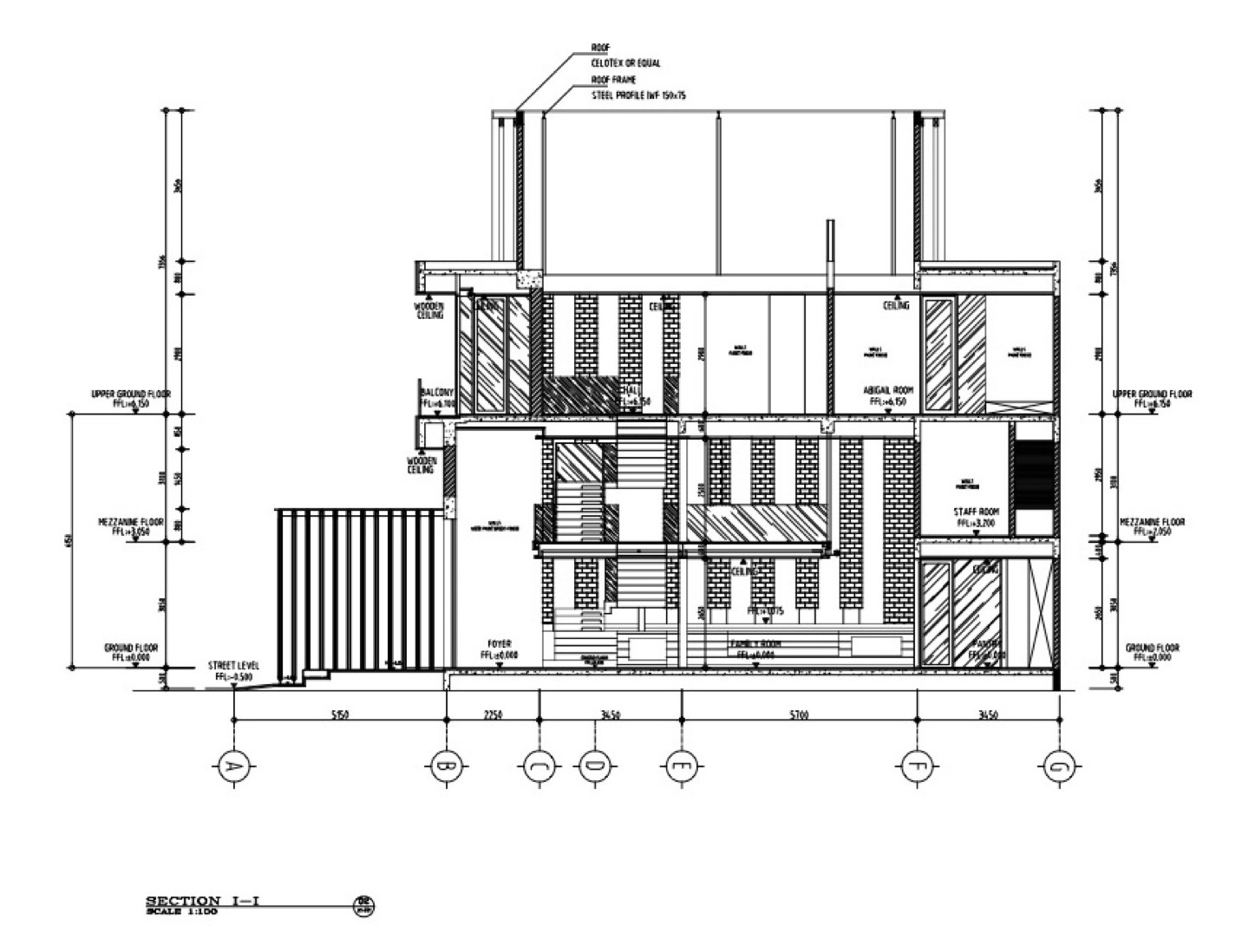

剖面图01 section01

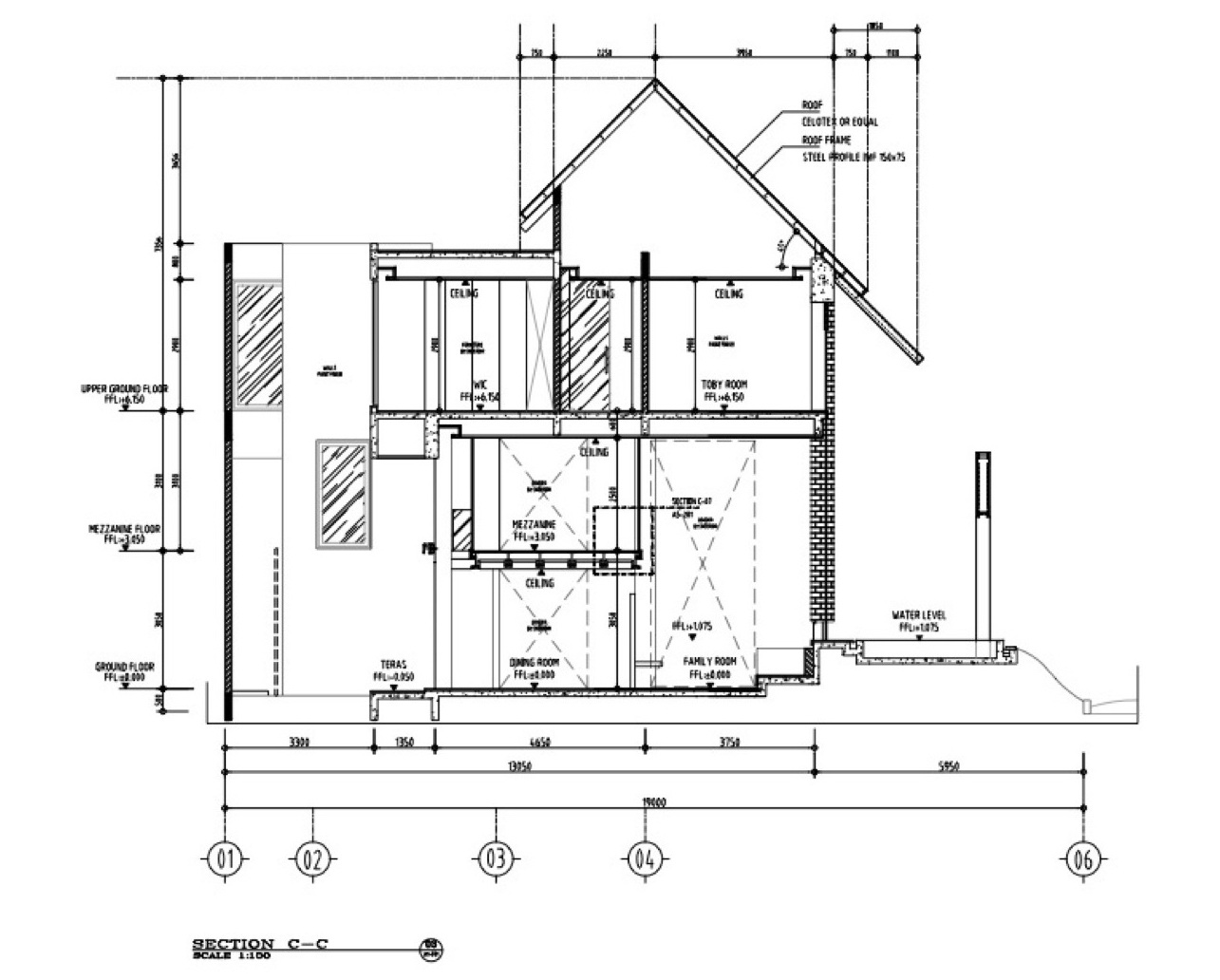

剖面图02 section02
