137 Housing

设计方:H建筑事务所

位置:西班牙 巴塞罗那 Granollers

开工:2006

竣工:2008年

分类:居住建筑

内容:实景照片

图片:22张

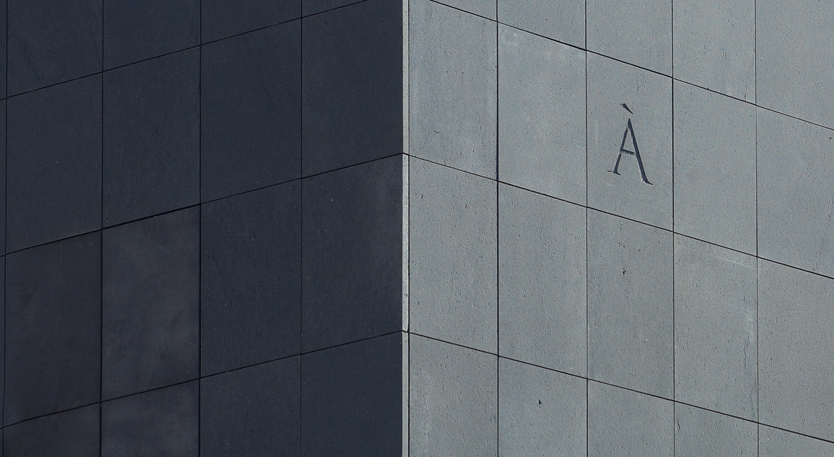

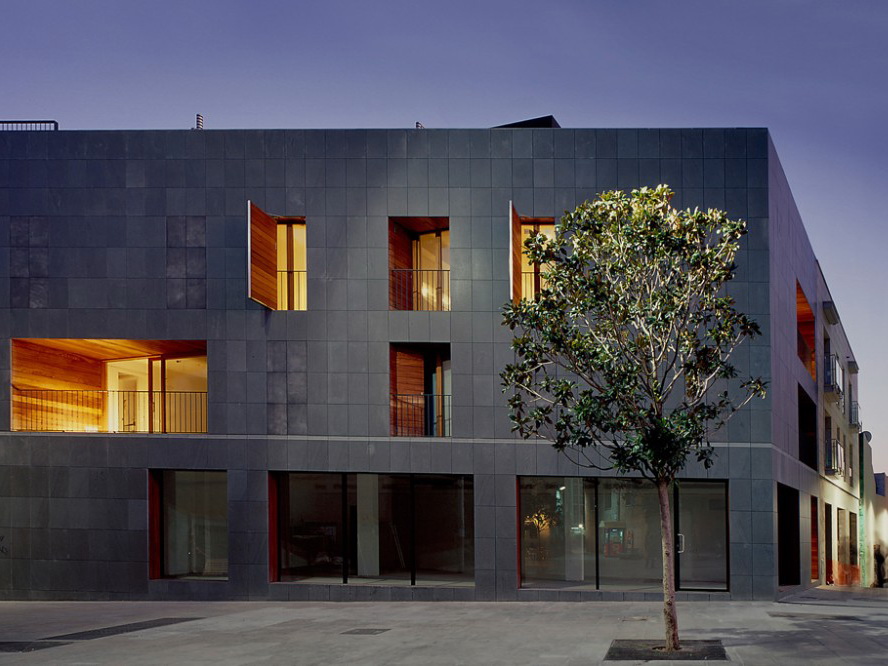

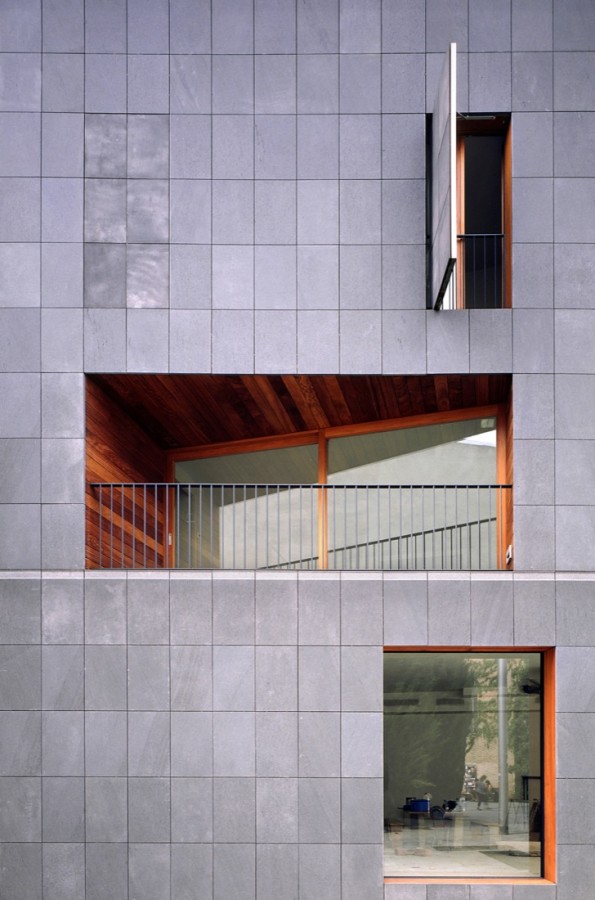

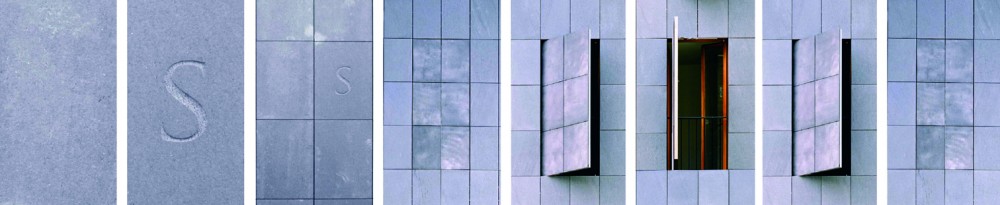

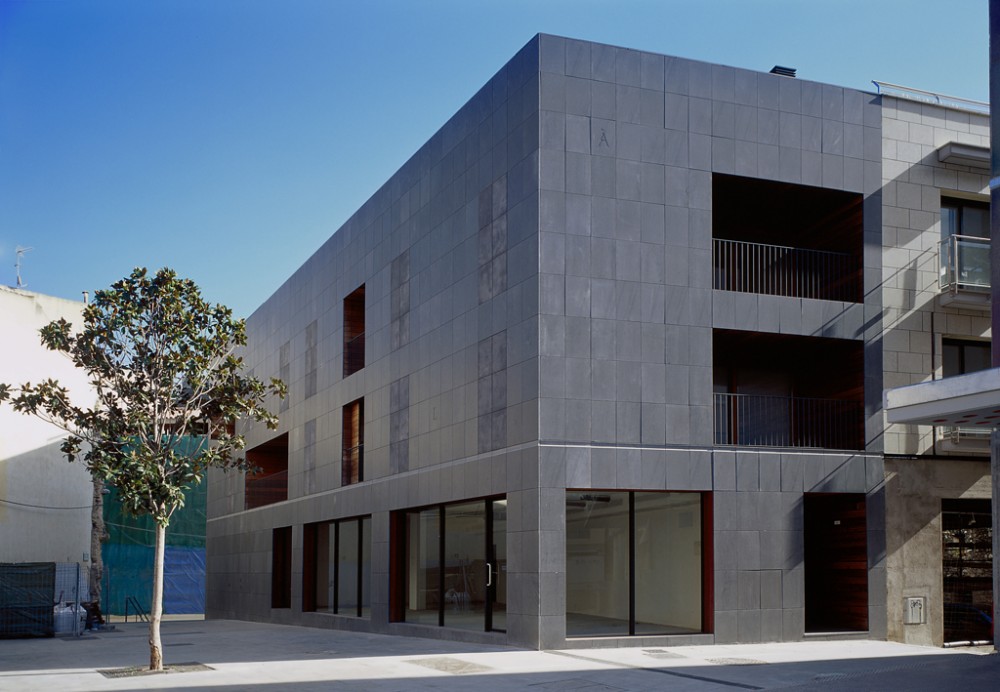

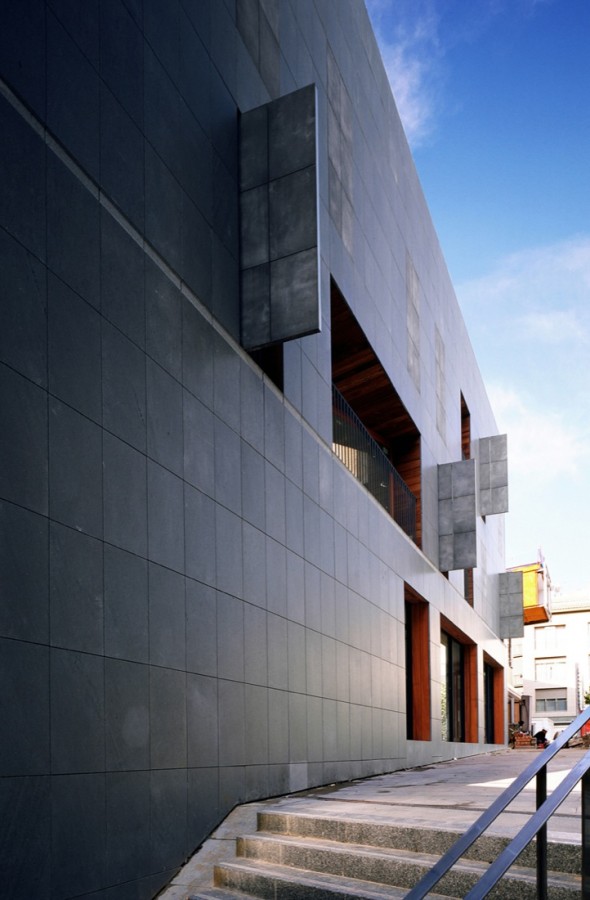

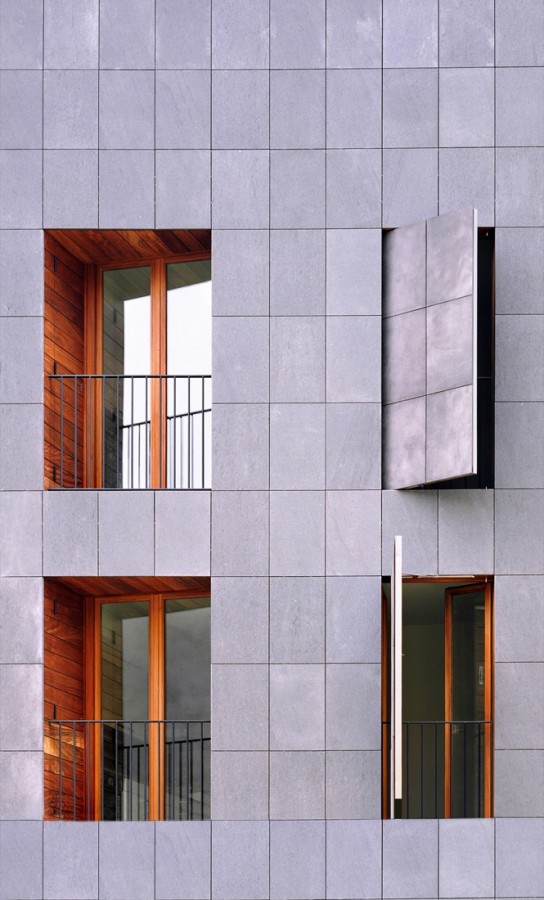

项目面积:1086.05平方米  Project Area: 1,086.05 sqm  “Plaça de l Església”城市规划旨在恢复广场在这个古老的Granollers城镇所扮演的角色。设计师设计的关键因素是巩固这个中心,由于这里连续占据巴塞罗那街道,并且与“Plaça de l Església”相连接。  建筑3面外墙采用独立的石质材料,将数量进行统一并对大量在旧城区围墙外墙的特点优势进行巩固。  The Urban Planning for Plaça de lEsglésia in Granollers intends to regain the role of this square within the old part of town. Our plot is the key factor for the consolidation of this centrality, due to it occupies the space that gives continuity to Barcelona Street and connects with Plaça de la Porxada.  The three facades of the building become a single skin that, thank to the continuous use of the stone even in the shutters, unifies the volume and consolidates the cha racteristic predominance of the massive-wall facades in the old quarter.

137住宅-2

137住宅-3

137住宅-4

137住宅-5

137住宅-6

137住宅-7

137住宅-8

137住宅-9

137住宅-10

137住宅-11

137住宅-12

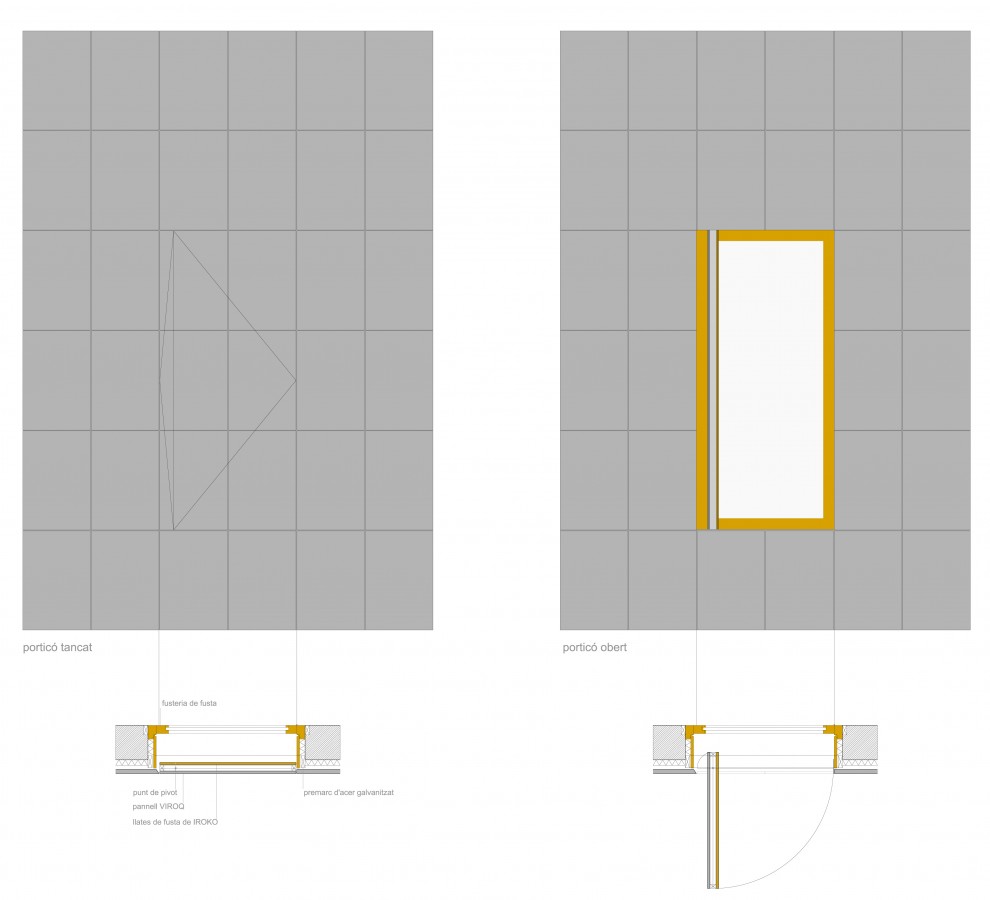

百叶窗详图 shutters details

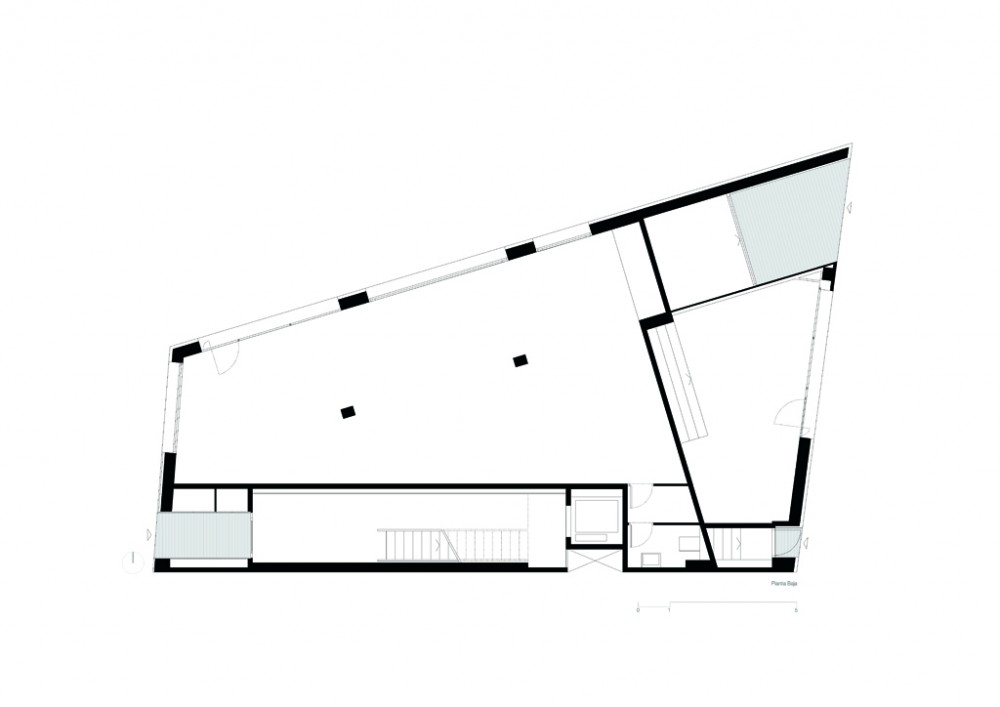

低层平面图 lower floor plan

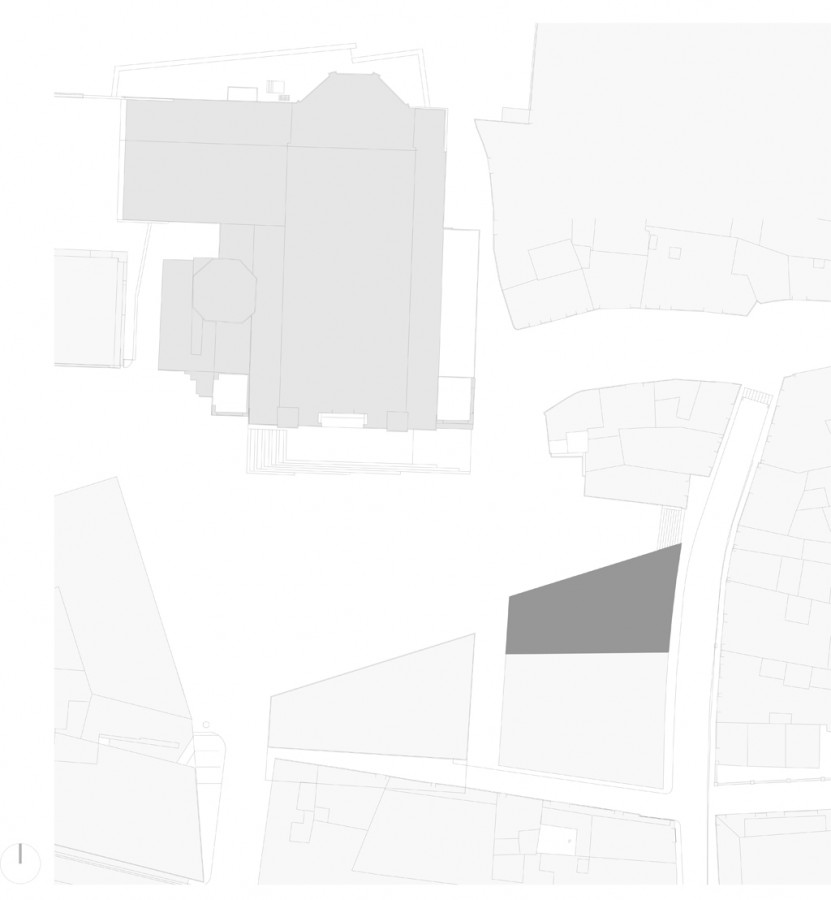

地势平面图 situation plan

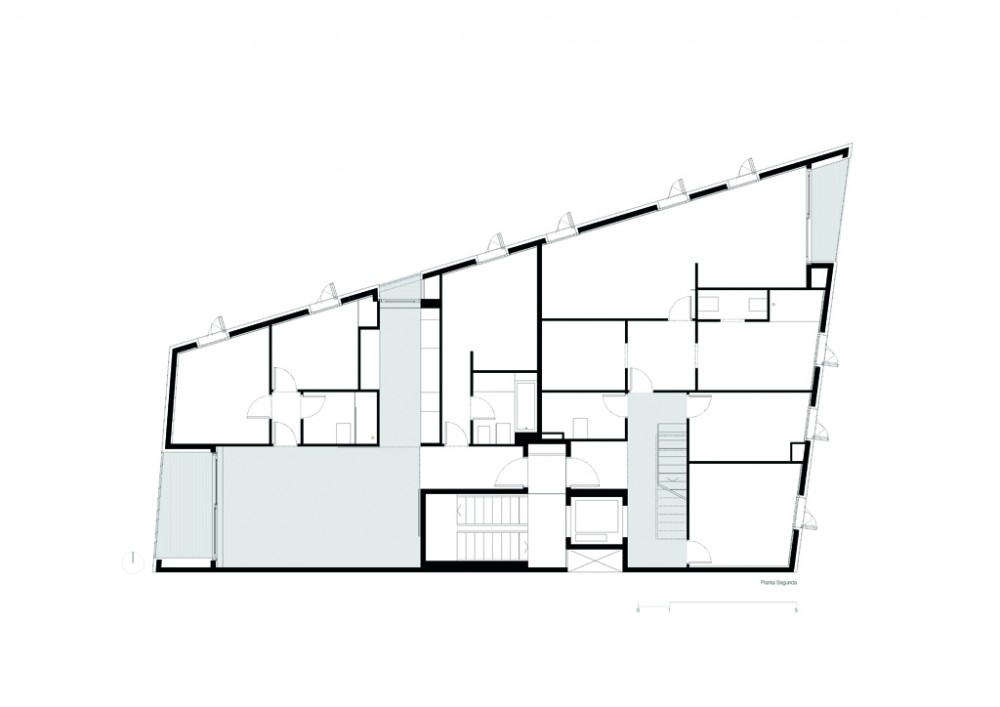

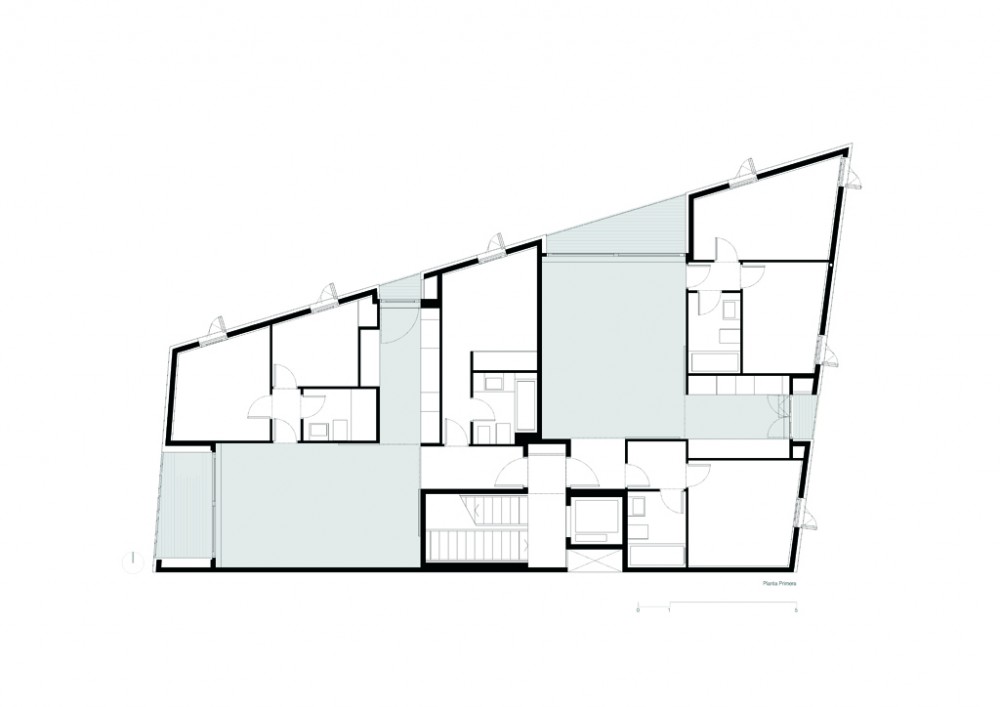

二层平面图 second floor plan

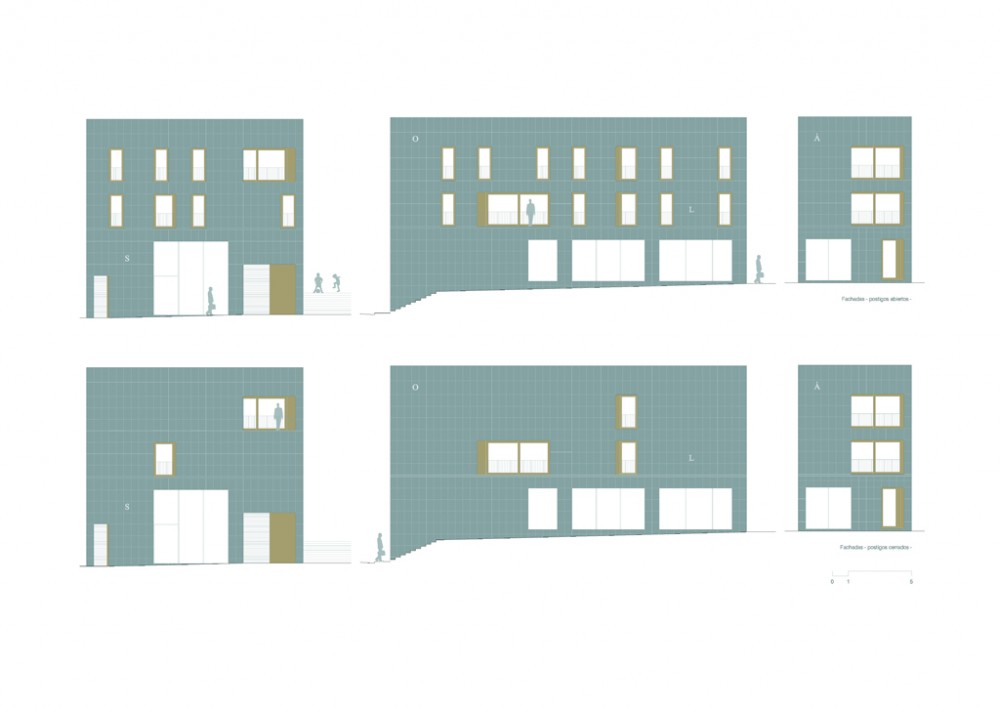

立面图 Elevations

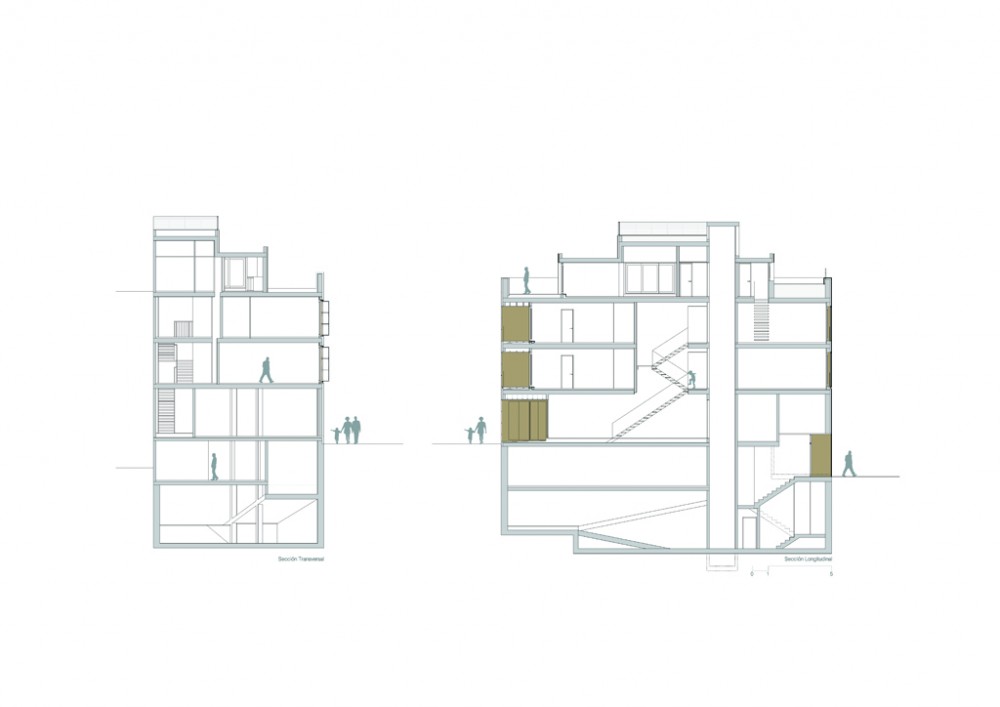

剖面图 Sections

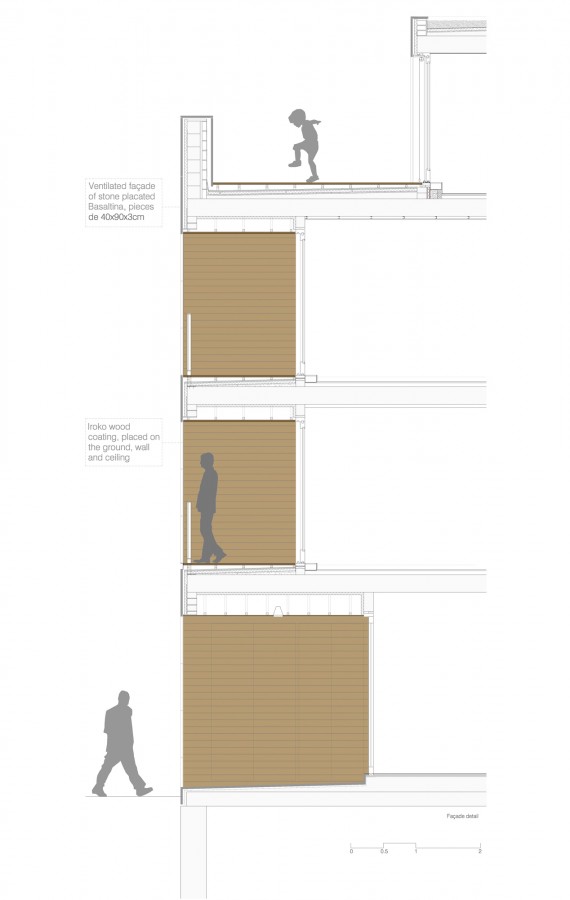

剖面详图 detailed section

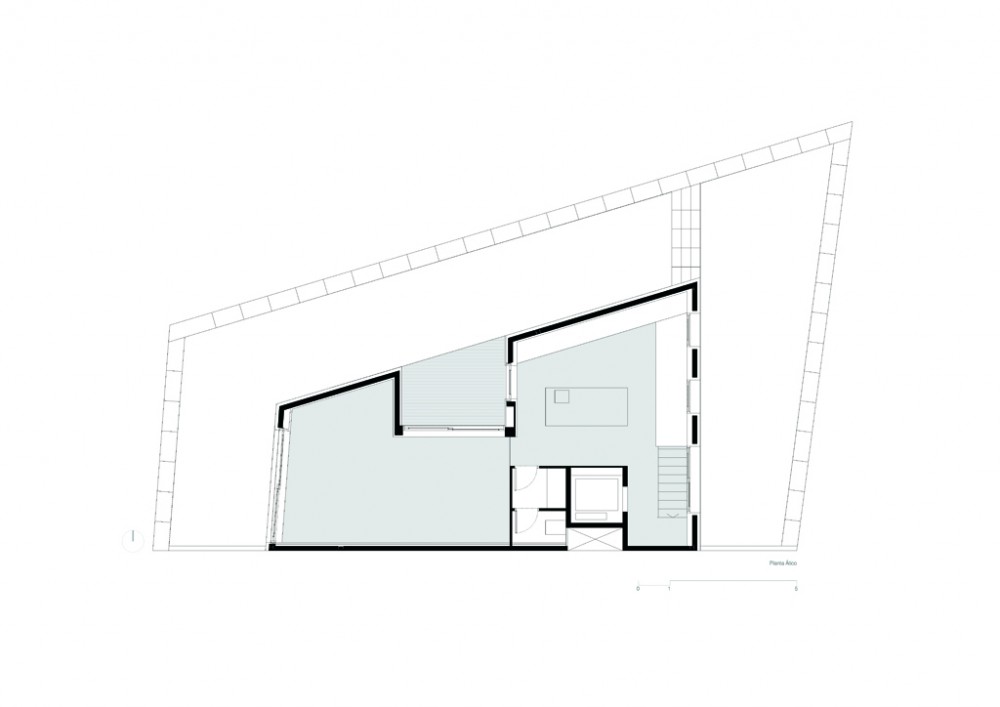

三层平面图 attic plan

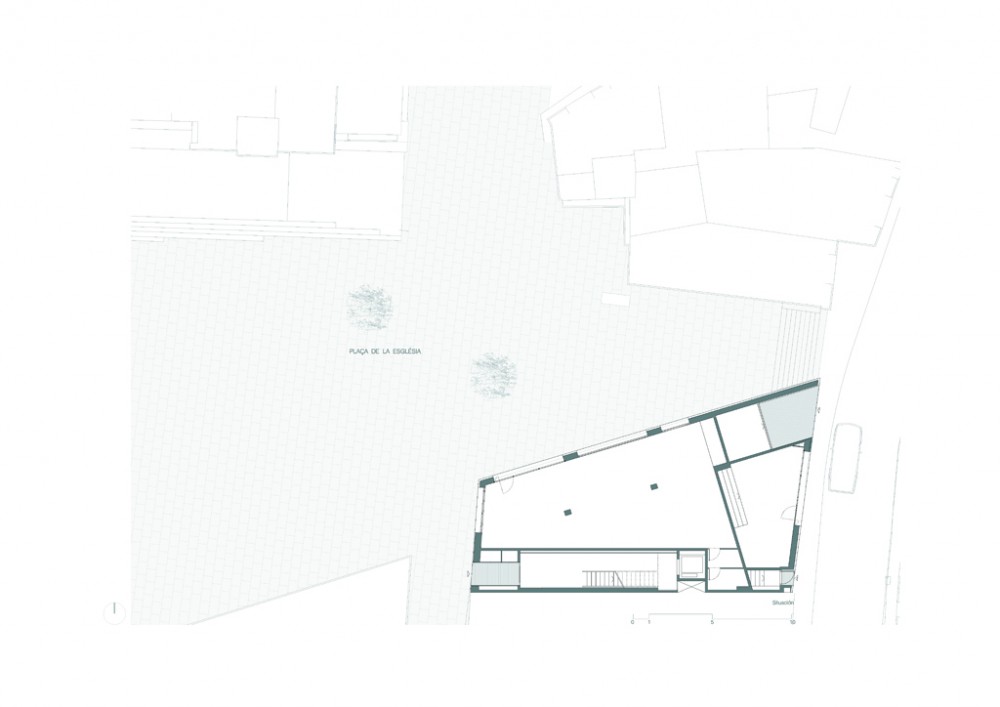

一层平面图 first floor plan

总平面图 site plan
